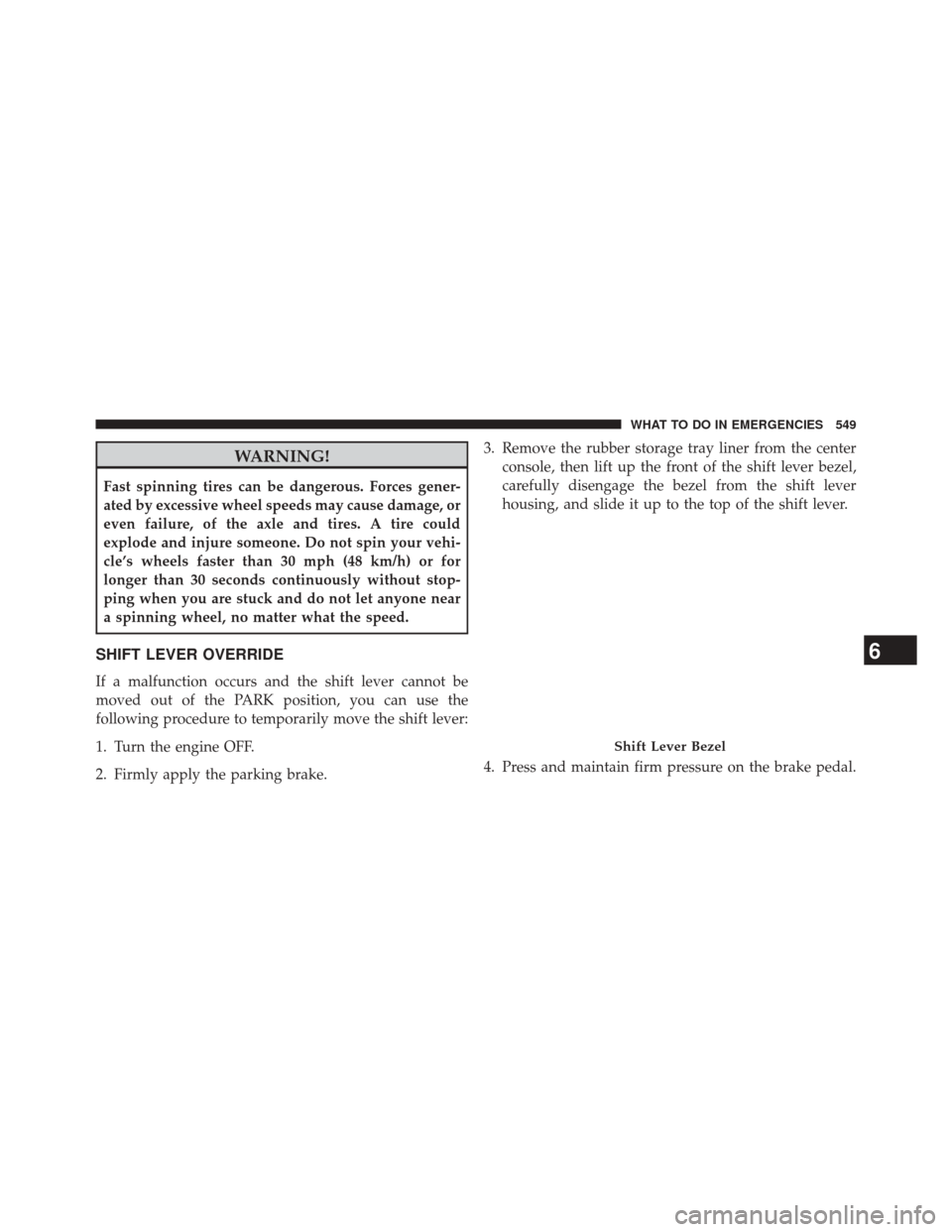

WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
SHIFT LEVER OVERRIDE
If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:
1. Turn the engine OFF.
2. Firmly apply the parking brake.3. Remove the rubber storage tray liner from the center
console, then lift up the front of the shift lever bezel,
carefully disengage the bezel from the shift lever
housing, and slide it up to the top of the shift lever.
4. Press and maintain firm pressure on the brake pedal.
Shift Lever Bezel
6
WHAT TO DO IN EMERGENCIES 549

5. Insert a small screwdriver or similar tool down intothe access slot at the front of the shift lever assembly,
and push and hold the white override release lever
down.
6. Move the shift lever to the NEUTRAL position. 7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever bezel (use care to avoid
pinching the wiring), and the rubber storage tray liner.
Override Release Tab
Shift Lever
550 WHAT TO DO IN EMERGENCIES

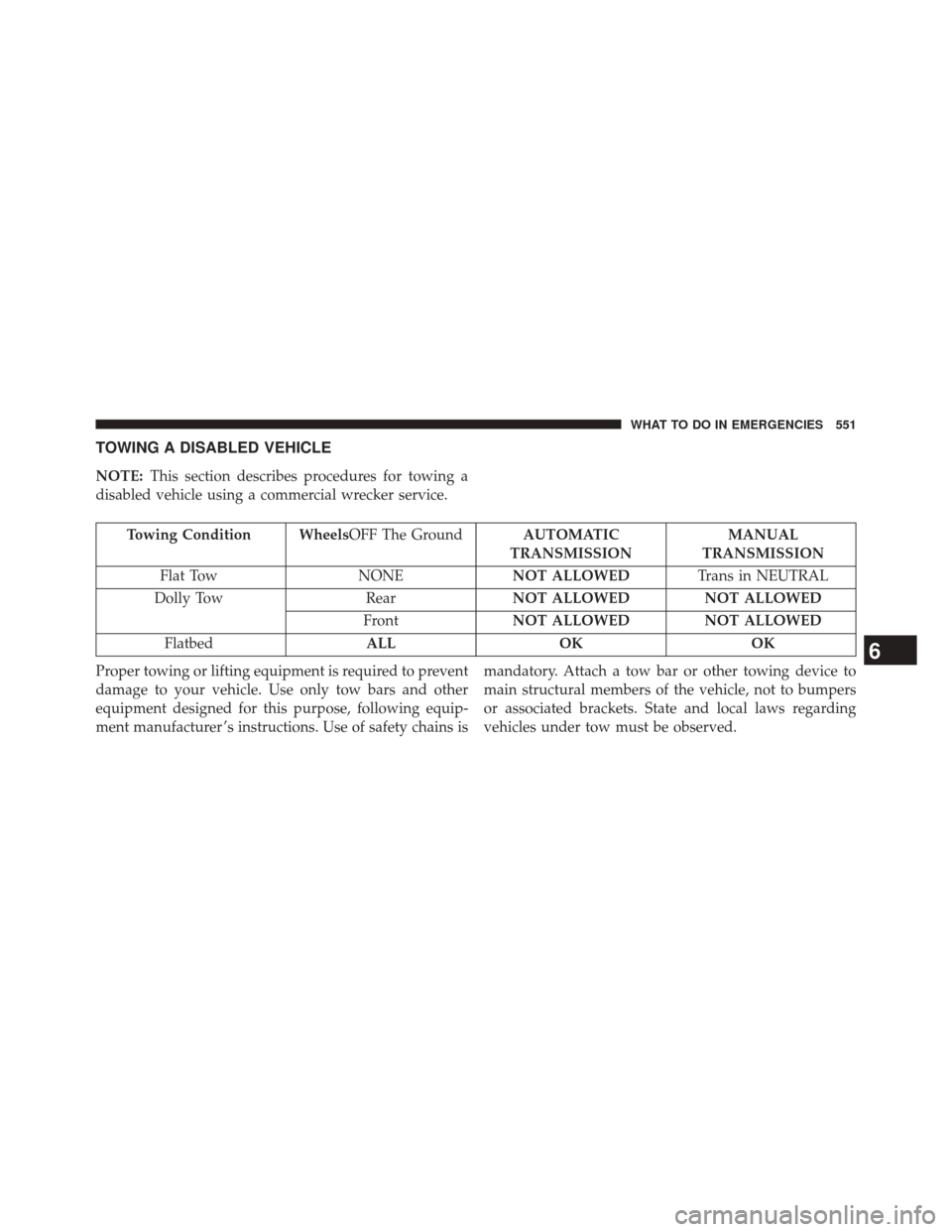

TOWING A DISABLED VEHICLE
NOTE:This section describes procedures for towing a
disabled vehicle using a commercial wrecker service.
Towing Condition WheelsOFF The Ground AUTOMATIC
TRANSMISSION MANUAL
TRANSMISSION
Flat Tow NONENOT ALLOWED Trans in NEUTRAL
Dolly Tow RearNOT ALLOWED NOT ALLOWED
Front NOT ALLOWED NOT ALLOWED
Flatbed ALLOKOK
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
6
WHAT TO DO IN EMERGENCIES 551

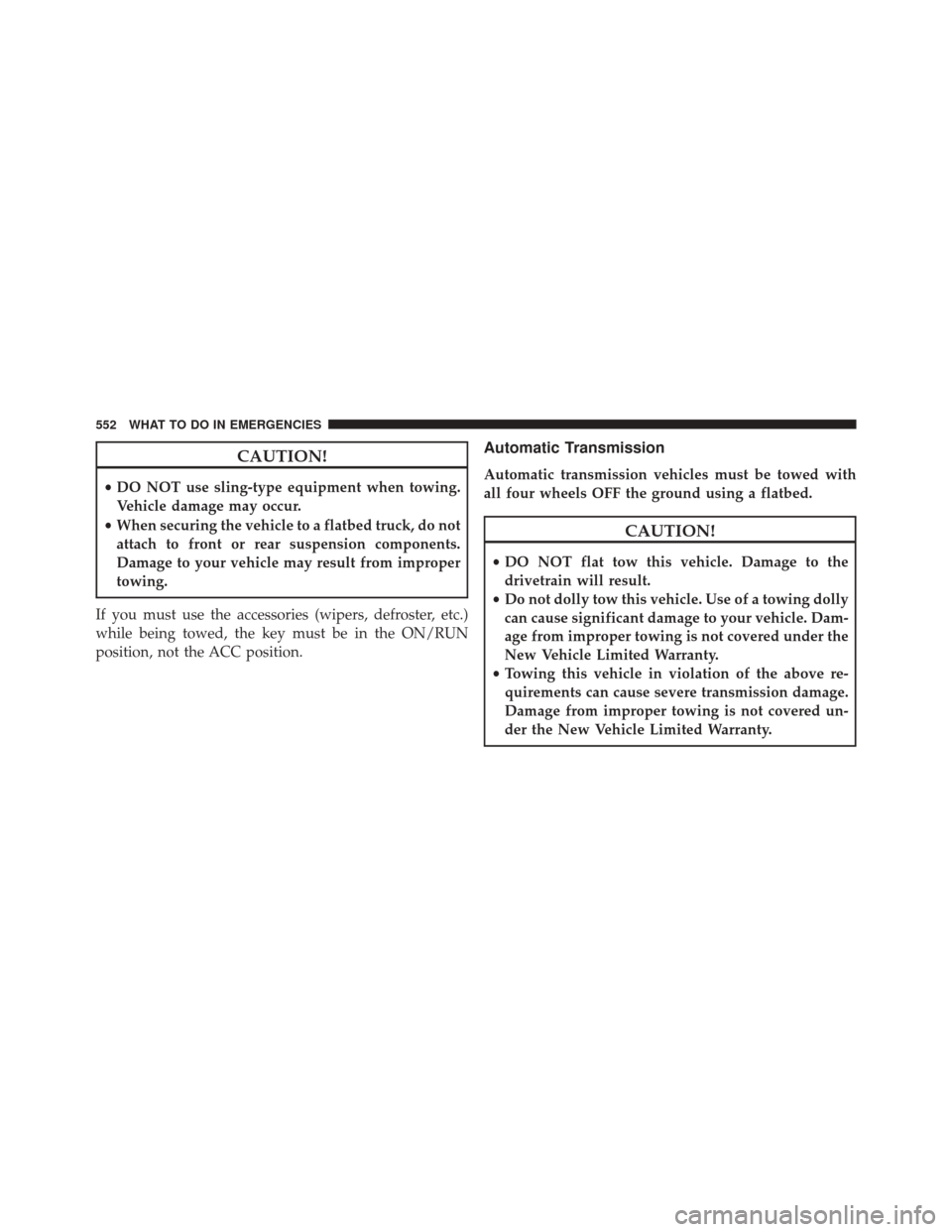

CAUTION!
•DO NOT use sling-type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
If you must use the accessories (wipers, defroster, etc.)
while being towed, the key must be in the ON/RUN
position, not the ACC position.
Automatic Transmission
Automatic transmission vehicles must be towed with
all four wheels OFF the ground using a flatbed.
CAUTION!
• DO NOT flat tow this vehicle. Damage to the
drivetrain will result.
• Do not dolly tow this vehicle. Use of a towing dolly
can cause significant damage to your vehicle. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
• Towing this vehicle in violation of the above re-
quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.
552 WHAT TO DO IN EMERGENCIES

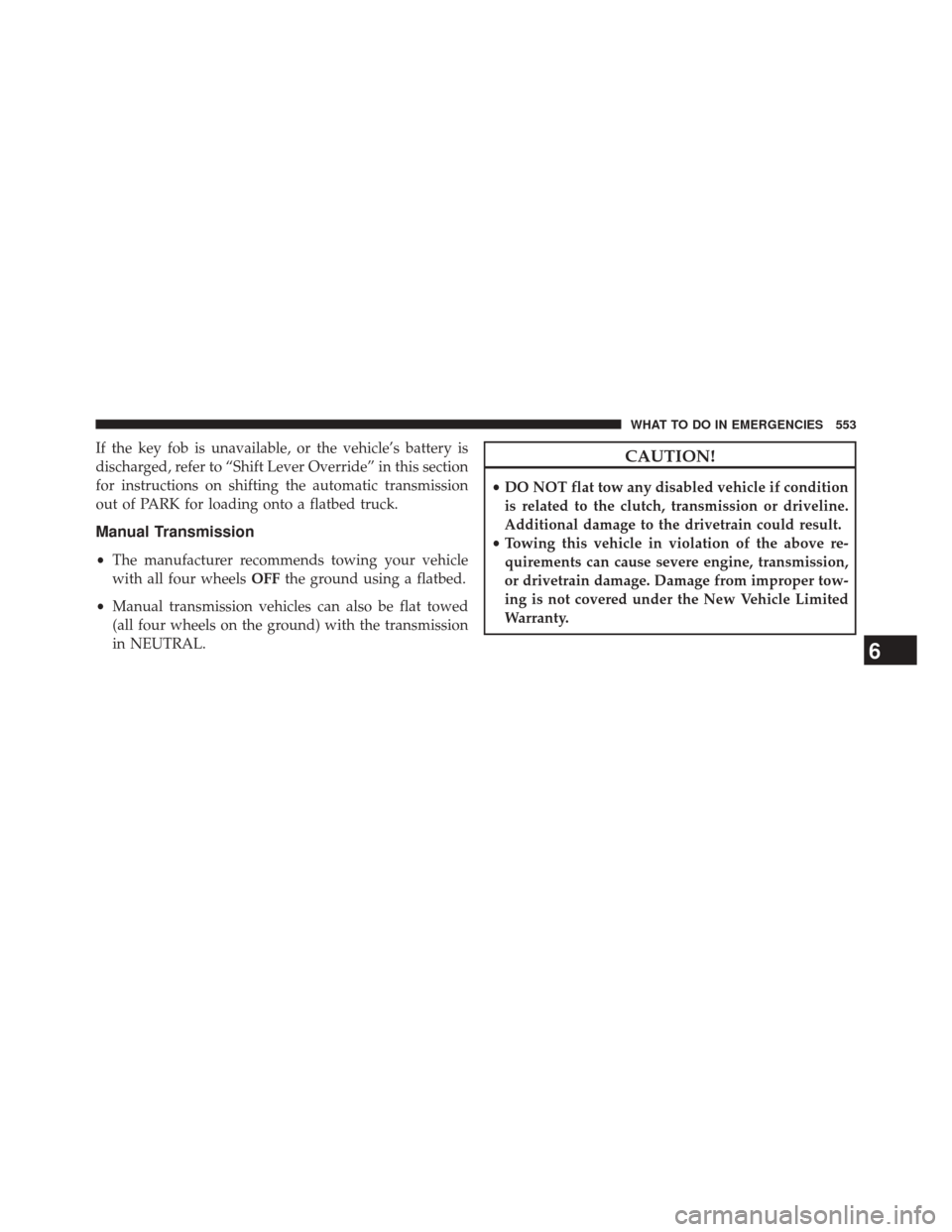

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Shift Lever Override” in this section
for instructions on shifting the automatic transmission
out of PARK for loading onto a flatbed truck.
Manual Transmission
•The manufacturer recommends towing your vehicle
with all four wheels OFFthe ground using a flatbed.
• Manual transmission vehicles can also be flat towed
(all four wheels on the ground) with the transmission
in NEUTRAL.
CAUTION!
•DO NOT flat tow any disabled vehicle if condition
is related to the clutch, transmission or driveline.
Additional damage to the drivetrain could result.
• Towing this vehicle in violation of the above re-
quirements can cause severe engine, transmission,
or drivetrain damage. Damage from improper tow-
ing is not covered under the New Vehicle Limited
Warranty.
6
WHAT TO DO IN EMERGENCIES 553

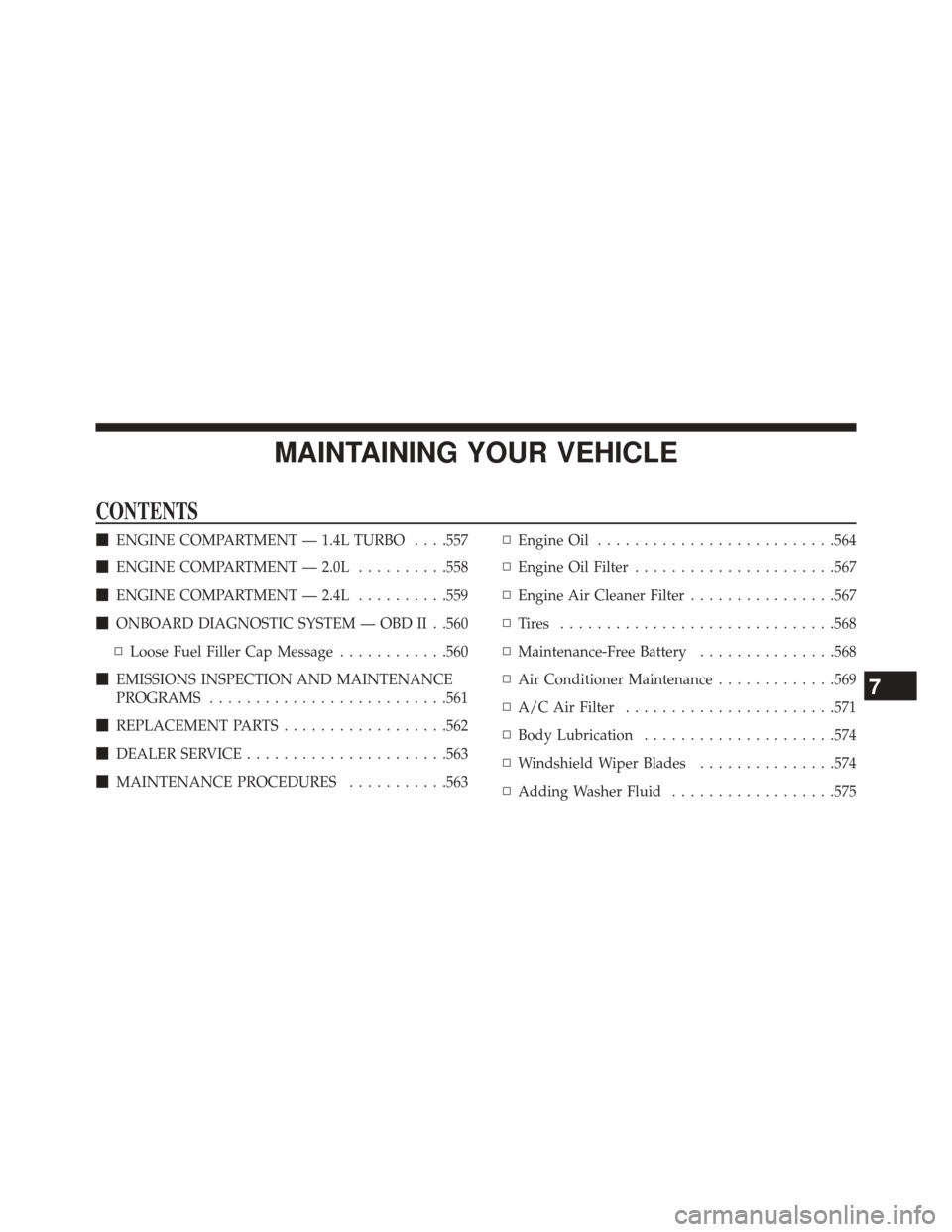

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 1.4L TURBO . . . .557
 ENGINE COMPARTMENT — 2.0L ..........558
 ENGINE COMPARTMENT — 2.4L ..........559
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .560
▫ Loose Fuel Filler Cap Message ............560
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ..........................561
 REPLACEMENT PARTS ..................562
 DEALER SERVICE ..................... .563
 MAINTENANCE PROCEDURES ...........563▫
Engine Oil ..........................564
▫ Engine Oil Filter ..................... .567
▫ Engine Air Cleaner Filter ................567
▫ Tires ..............................568
▫ Maintenance-Free Battery ...............568
▫ Air Conditioner Maintenance .............569
▫ A/C Air Filter .......................571
▫ Body Lubrication .....................574
▫ Windshield Wiper Blades ...............574
▫ Adding Washer Fluid ..................575
7

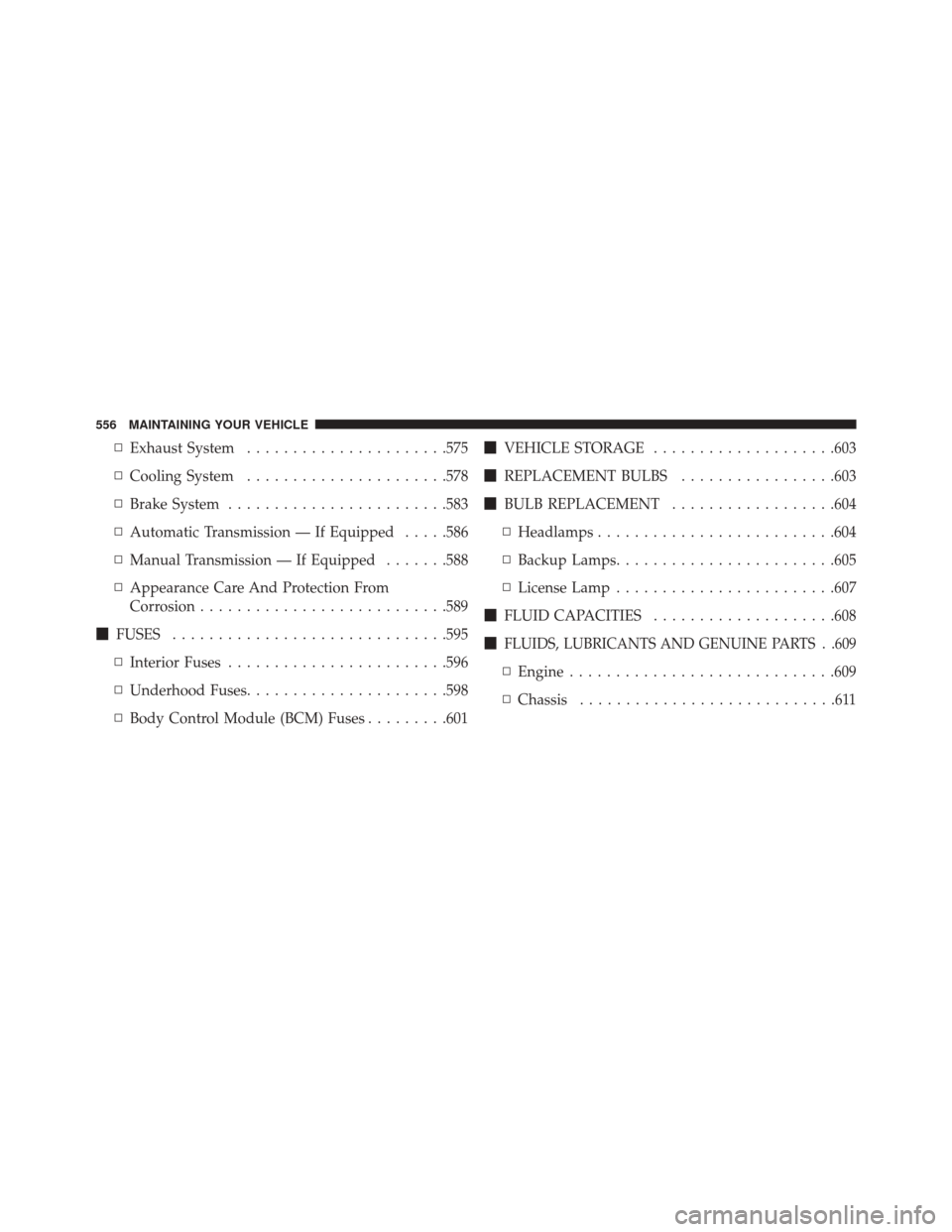

▫Exhaust System ..................... .575
▫ Cooling System ..................... .578
▫ Brake System ........................583
▫ Automatic Transmission — If Equipped .....586
▫ Manual Transmission — If Equipped .......588
▫ Appearance Care And Protection From
Corrosion .......................... .589
 FUSES ............................. .595
▫ Interior Fuses ........................596
▫ Underhood Fuses ..................... .598
▫ Body Control Module (BCM) Fuses .........601
VEHICLE STORAGE ....................603
 REPLACEMENT BULBS .................603
 BULB REPLACEMENT ..................604
▫ Headlamps ..........................604
▫ Backup Lamps ........................605
▫ License Lamp ........................607
 FLUID CAPACITIES ....................608

FLUIDS, LUBRICANTS AND GENUINE PARTS . .609
▫ Engine ............................ .609
▫ Chassis ............................611
556 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Power Distribution Center (Fuses)
2 — Engine Oil Level Indicator 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Battery
4 — Brake Fluid Reservoir 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 557

ENGINE COMPARTMENT — 2.0L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Power Distribution Center (Fuses) 8 — Air Cleaner Filter
558 MAINTAINING YOUR VEHICLE
