DODGE DART 2014 PF / 1.G Owners Manual

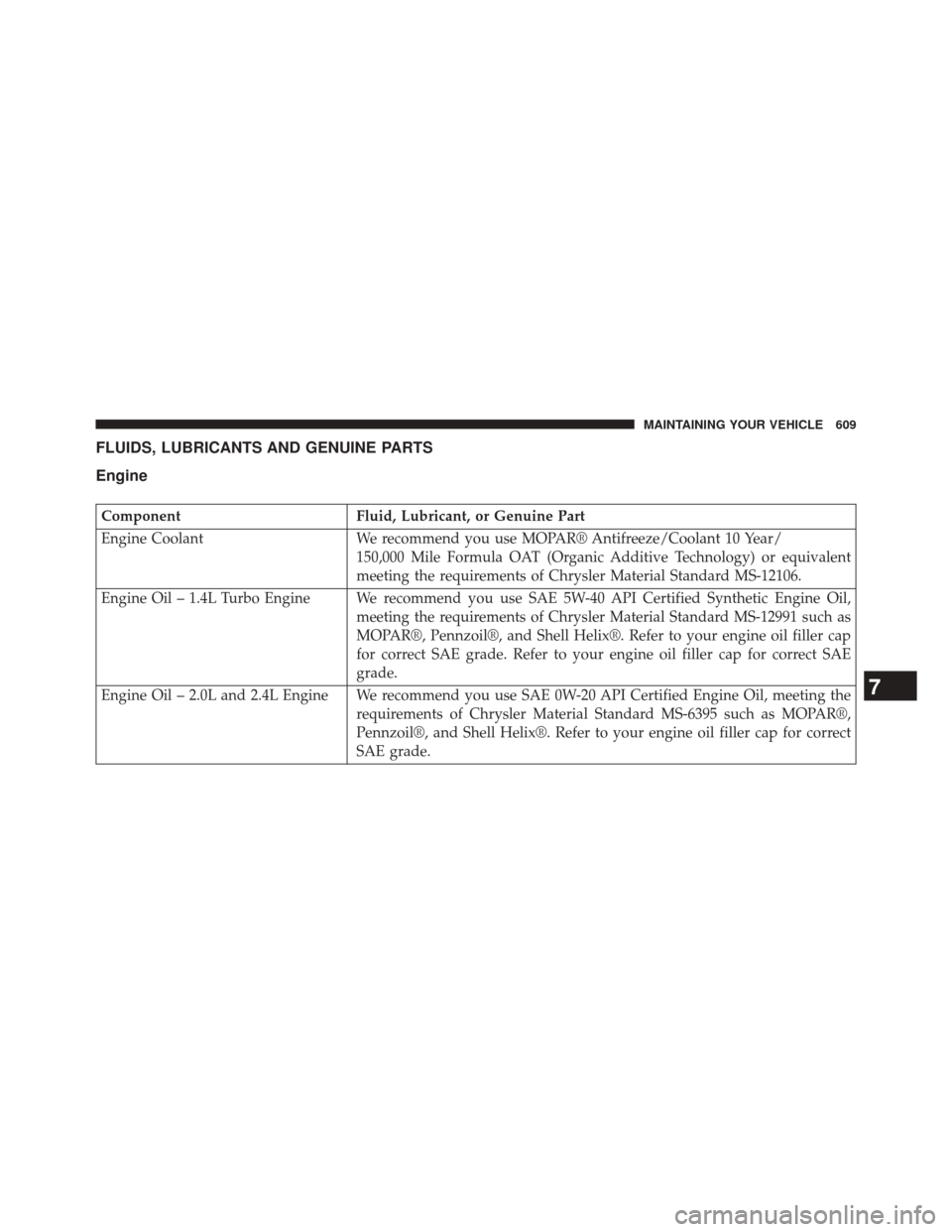

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/
150,000 Mile Formula OAT (Organic Additive Technology) or equivalent
meeting the requirements of Chrysler Material Standard MS-12106.
Engine Oil – 1.4L Turbo Engine We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the requirements of Chrysler Material Standard MS-12991 such as
MOPAR®, Pennzoil®, and Shell Helix®. Refer to your engine oil filler cap
for correct SAE grade. Refer to your engine oil filler cap for correct SAE
grade.
Engine Oil – 2.0L and 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395 such as MOPAR®,
Pennzoil®, and Shell Helix®. Refer to your engine oil filler cap for correct
SAE grade.
7
MAINTAINING YOUR VEHICLE 609

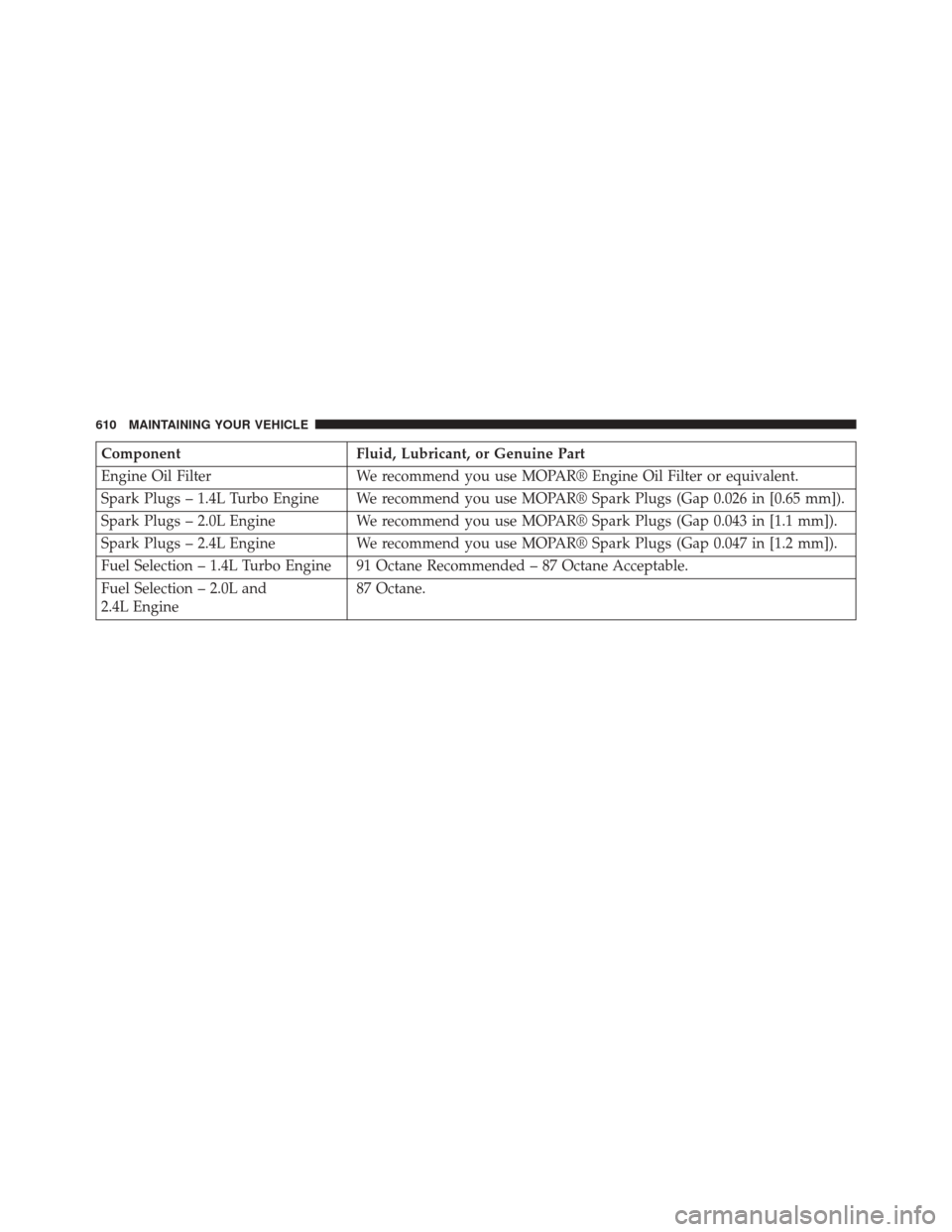

ComponentFluid, Lubricant, or Genuine Part
Engine Oil Filter We recommend you use MOPAR® Engine Oil Filter or equivalent.
Spark Plugs – 1.4L Turbo Engine We recommend you use MOPAR® Spark Plugs (Gap 0.026 in [0.65 mm]).
Spark Plugs – 2.0L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]).
Spark Plugs – 2.4L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.047 in [1.2 mm]).
Fuel Selection – 1.4L Turbo Engine 91 Octane Recommended – 87 Octane Acceptable.
Fuel Selection – 2.0L and
2.4L Engine 87 Octane.
610 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission
(1.4L Turbo Engine) – If Equipped MOPAR® C635 DDCT/MTX Transmission Fluid or equivalent. Failure to
use the correct fluid may affect the function or performance of your
transmission.
Automatic Transmission (2.0L And
2.4L Engine) – If Equipped MOPAR® SP-IV Automatic Transmission Fluid or equivalent. Failure to
use the correct fluid may affect the function or performance of your
transmission
Manual Transmission – If
Equipped We recommend you use MOPAR® C635 DDCT/MTX Transmission Fluid.
Brake Master Cylinder We recommend you use MOPAR® DOT 3, SAE J1703. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable.
7
MAINTAINING YOUR VEHICLE 611

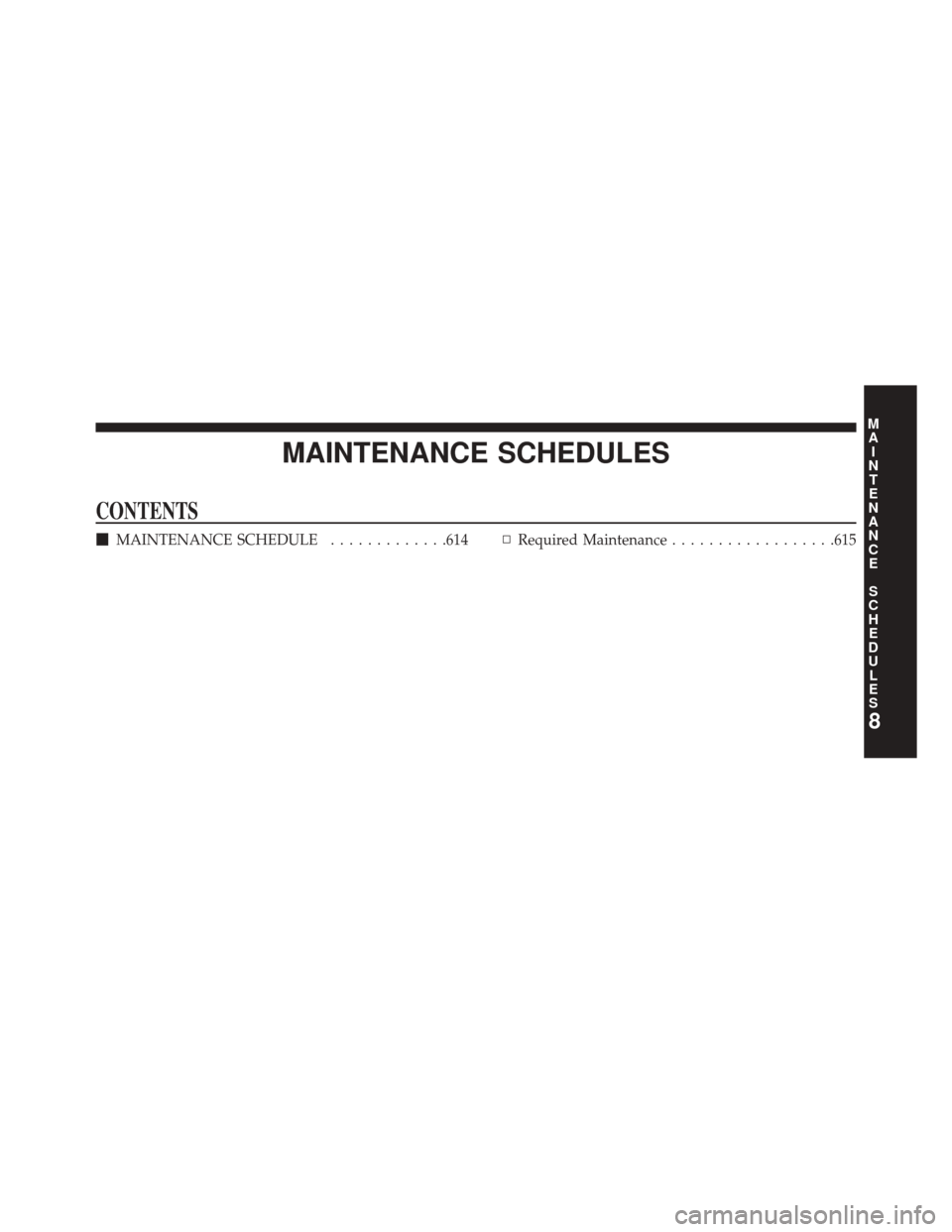

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............614▫Required Maintenance ..................615
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S

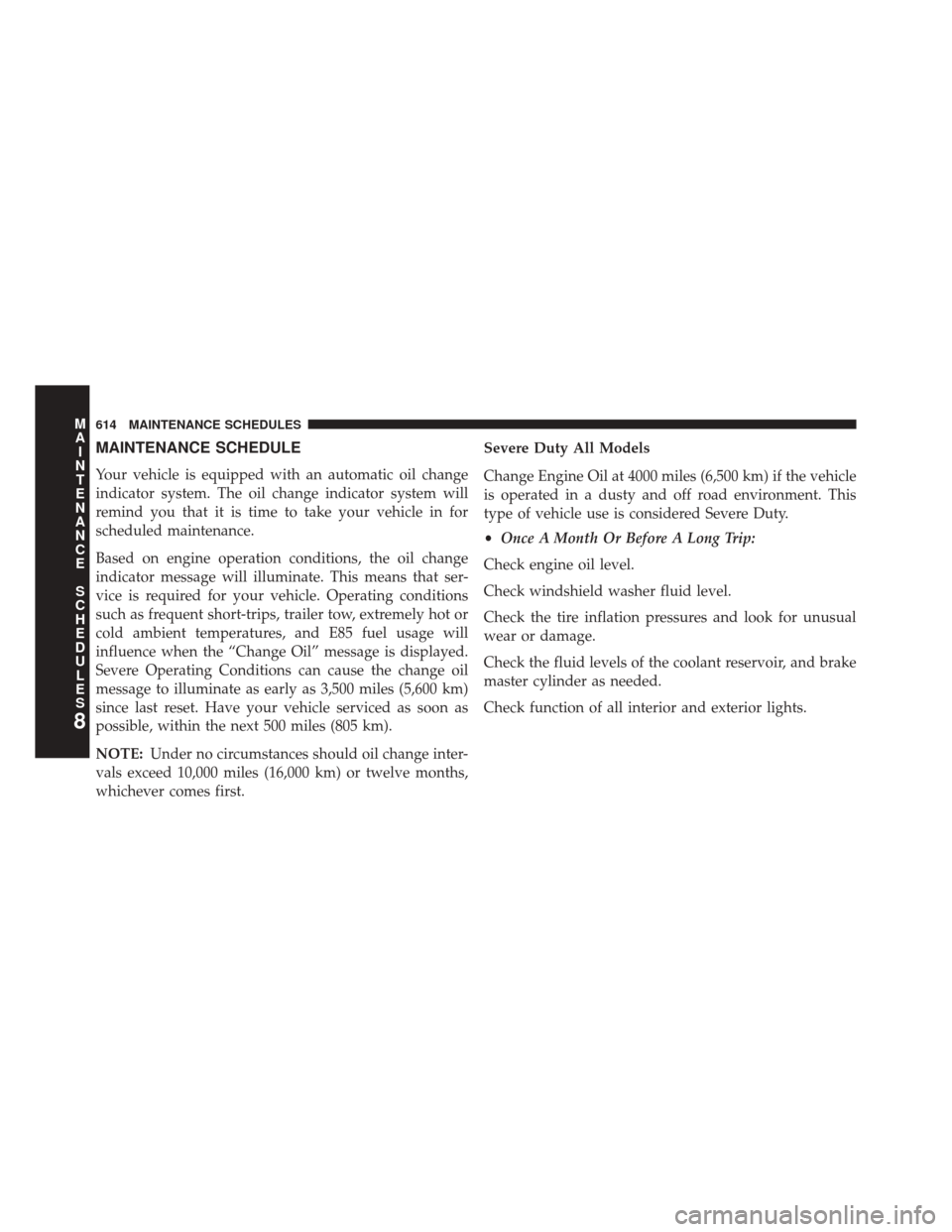

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
NOTE:Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first. Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
•
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look for unusual
wear or damage.
Check the fluid levels of the coolant reservoir, and brake
master cylinder as needed.
Check function of all interior and exterior lights.
8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S614 MAINTENANCE SCHEDULES

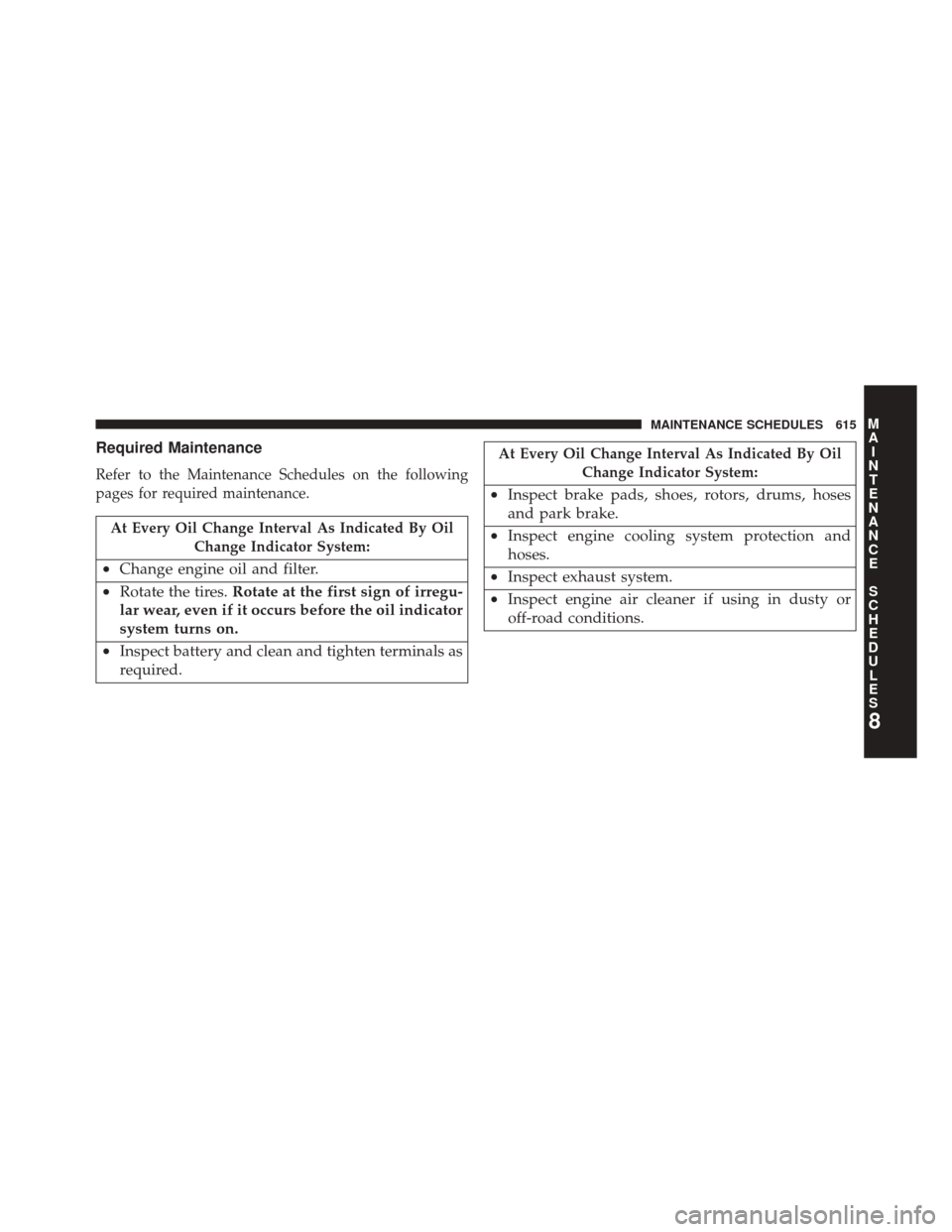

Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By OilChange Indicator System:
•Change engine oil and filter.
• Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 615

Maintenance Chart
Mileage Or Time Passed
(Whichever Comes First)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2345678 9101112131415
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect CV joint boots. XX X XX
Inspect front suspension, tie rod ends and replace
as necessary. XXXX X X X
Inspect brake linings, parking brake function. XXXX X X X
Additional Maintenance
Replace the cabin/air conditioning filter. XXXX X X X
Replace the engine air cleaner filter. XX X XX
Replace the spark plugs (1.4L Turbo Engine).** XX X XX
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S616 MAINTENANCE SCHEDULES

Mileage Or Time Passed
(Whichever Comes First)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2345678 9101112131415
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Replace the spark plugs (2.0L and 2.4L Engine).** X
Flush and replace the engine coolant at 10 years or
150,000 miles (240,000 km) whichever comes first. XX
Change the transmission fluid (manual, or 1.4L
turbo automatic) if using your vehicle for any of the
following: trailer towing, heavy loading, taxi, police,
delivery service (commercial service), off-road, des-
ert operation or more than 50% of your driving is at
sustained speeds during hot weather, above 90°F
(32°C). XX X
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 617

Mileage Or Time Passed
(Whichever Comes First)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2345678 9101112131415
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000

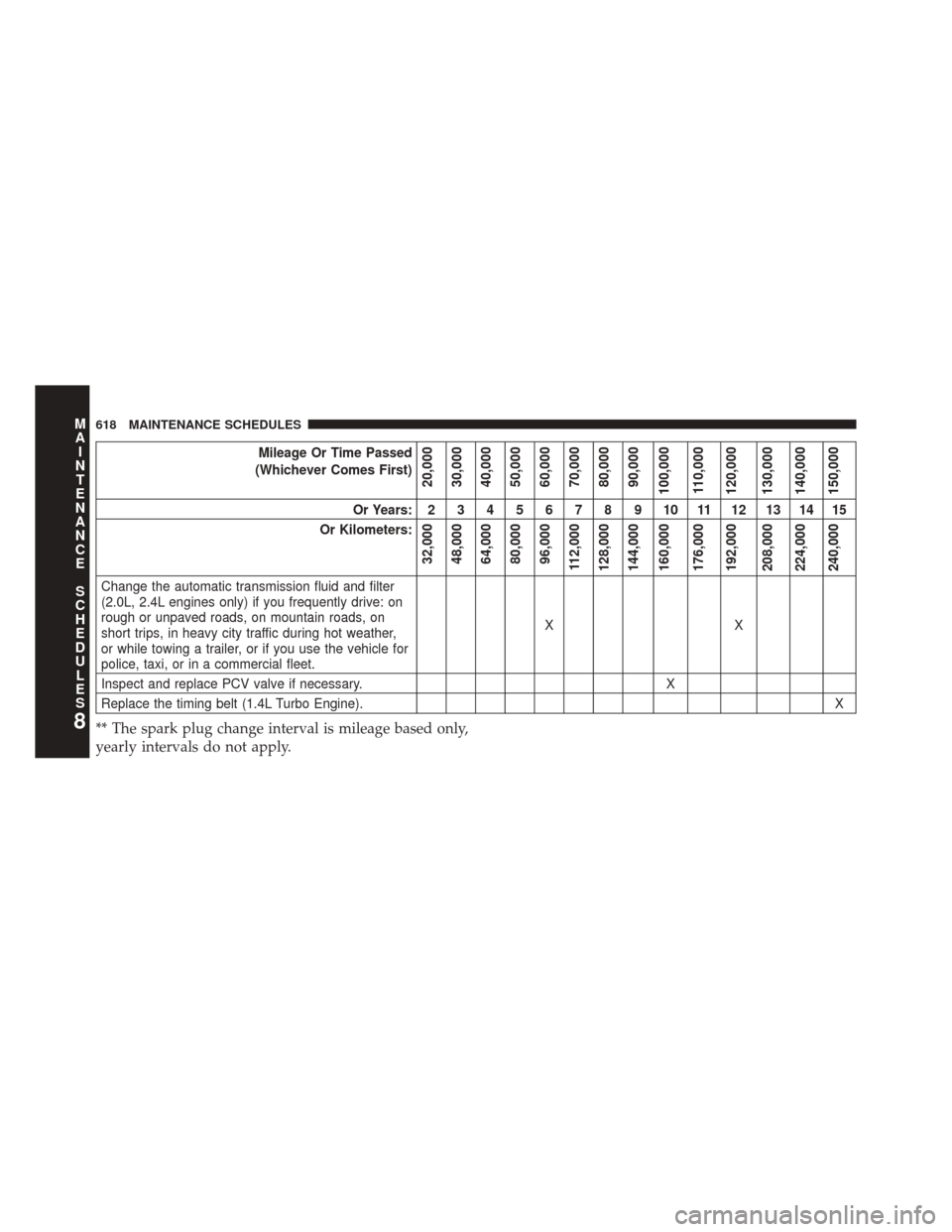

Change the automatic transmission fluid and filter
(2.0L, 2.4L engines only) if you frequently drive: on
rough or unpaved roads, on mountain roads, on
short trips, in heavy city traffic during hot weather,
or while towing a trailer, or if you use the vehicle for
police, taxi, or in a commercial fleet. XX
Inspect and replace PCV valve if necessary. X
Replace the timing belt (1.4L Turbo Engine). X
** The spark plug change interval is mileage based only,
yearly intervals do not apply.8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S618 MAINTENANCE SCHEDULES
