•For grease stains, apply MOPAR® Multi-Purpose
Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.
•Do not use any harsh solvents or any other form of
protectants on Stain Repel products.
Interior Care
Use MOPAR® Fabric Cleaner or equivalent to clean
fabric upholstery and MOPAR® Carpet Cleaner or
equivalent for carpeting.
Interior Trim should be cleaned starting with a damp
cloth, or MOPAR® Satin Select or equivalent. Do not use
harsh cleaners or Armor All®. Use MOPAR® Total Clean
or equivalent to clean vinyl upholstery.
MOPAR® Total Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR® Total Clean or equivalent. Care should be
taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
7
MAINTAINING YOUR VEHICLE 599

Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
600 MAINTAINING YOUR VEHICLE

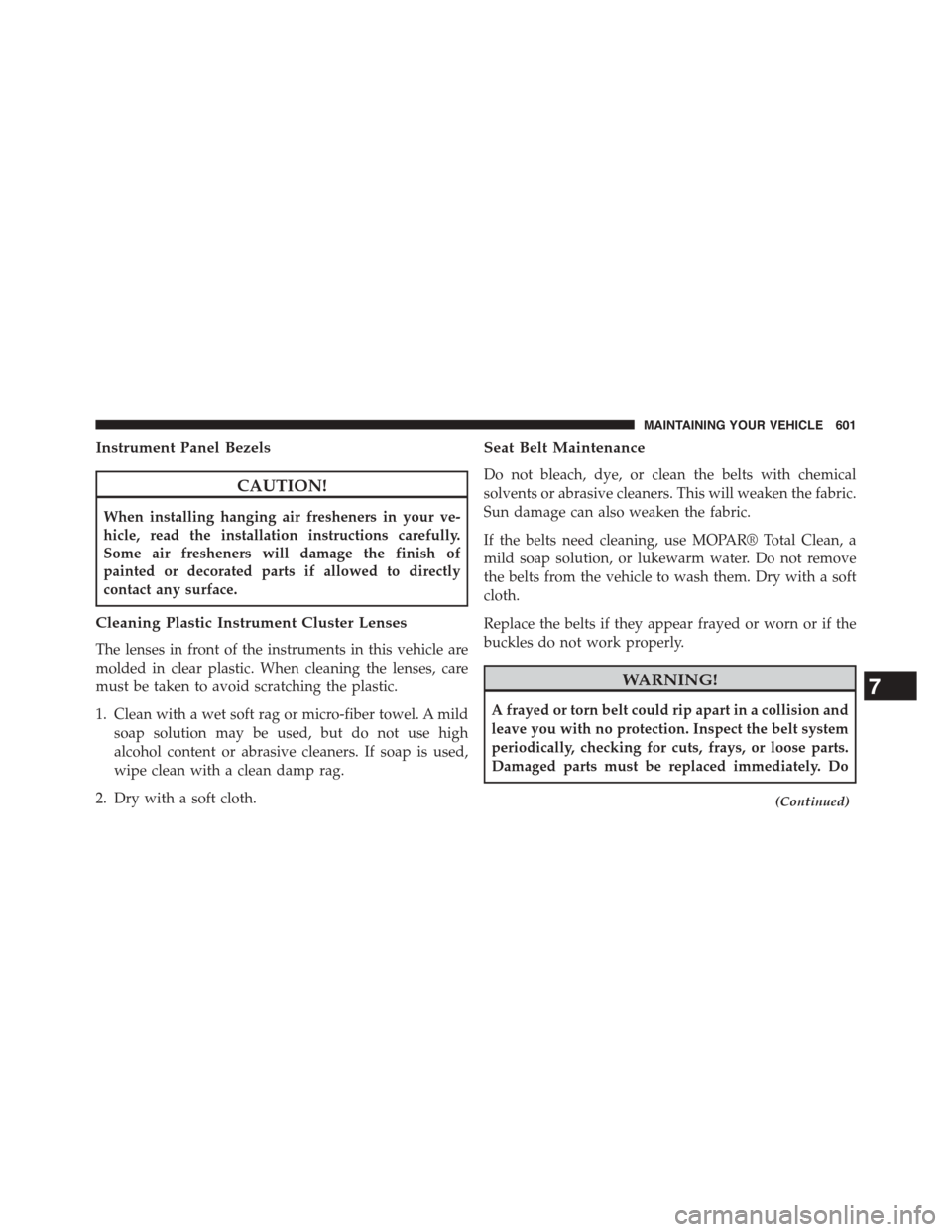

Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag or micro-fiber towel. A mild
soap solution may be used, but do not use high
alcohol content or abrasive cleaners. If soap is used,
wipe clean with a clean damp rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
(Continued)
7
MAINTAINING YOUR VEHICLE 601

WARNING!(Continued)
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
(Continued)
WARNING!(Continued)
injury, fire and/or property damage.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Interior Fuses
The interior fuses are located on the drivers side under
the instrument panel.
602 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini FuseDescription
F1–20 Amp Yellow Front Heated Seats – If Equipped
F2–20 Amp Yellow Rear Heated Seats, Heated Steering Wheel – If
Equipped
F3–10 Amp Red Park Assist Module, Rear Camera, Left and
Right Blind Spot Sensor, Compass – If
Equipped
F4–15 Amp Blue Instrument Cluster
F5–10 Amp Red HVAC, Humidity Sensor, In-Car Temperature
Sensor, Inside Mirror Assembly
F18–15 Amp Blue Radio
F20–10 Amp Red Steering Column Control Module, Switch
Bank
F21–10 Amp Red Diagnostic Port
F22–10 Amp Red Universal Garage Door Opener, EOM
F23–20 Amp Yellow Sunroof
7
MAINTAINING YOUR VEHICLE 603

Cavity Cartridge FuseMini FuseDescription
F24–5 Amp Tan Run/Accessory Relay
F25–5 Amp Tan Transmission Control Module #4
F26–5 Amp Tan Stop Lamp Switch
F27–10 Amp Red Pneumatic Lumbar Support
Underhood Fuses
The Power Distribution Center is located on the right side
of the engine compartment, behind the battery.
Power Distribution Center
604 MAINTAINING YOUR VEHICLE

CavityMaxi FuseMini FuseDescription
F0170 Amp Tan–Body Control Module #1
F0260 Amp Blue–Body Control Module #2
F0330 Amp Green–Output For Starter Relay #1
F0440 Amp Orange–ESC Pump Motor
F0540 Amp Orange–Transmission Control Module #1
F0630 Amp Green–Body Control Module #3
F0740 Amp Orange–EBL RLY Coil, Blower Motor RLY Coil
F09–5 Amp TanRadiator Fan
F10–10 Amp RedORC
F11–20 Amp YellowRun/Start, Engine Control Module
F14–15 Amp BlueTransmission Control Module #2
F15–15 Amp BlueTransmission Control Module #3
F16–15 Amp Blue Engine Control Module, Ignition Coils
F17–15 Amp BlueBrake System Module
F18–20 Amp YellowEngine Control Module
7
MAINTAINING YOUR VEHICLE 605

CavityMaxi FuseMini FuseDescription
F19–10 Amp RedA/C Compressor Clutch
F20–30 Amp GreenRear Defroster (EBL)
F21–20 Amp YellowFuel Pump
F22–10 Amp RedOccupant Restraint Controller
F23–25 Amp ClearBrake System Module
F24–20 Amp Yellow Engine Control Module, Fuel Injectors
F30–20 Amp YellowPower Outlet (Console)
F8160 Amp Blue–Interior PDC Battery Feed, Power Seats
F8230 Amp Green–Amplifier
F8340 Amp Orange–HVAC Blower Motor
F84–20 Amp YellowCigar Lighter
F85–10 Amp Red Sunroof, LRSM, Power Outlet (Console),
UCI/AUX Port, Cigar Lighter
F86–20 Amp Yellow–
606 MAINTAINING YOUR VEHICLE

CavityMaxi FuseMini FuseDescription
F87–10 Amp RedWastegate, Purge Solenoid, OBD Vent
Valve, Oxygen Sensor Heaters
F88–10 Amp RedHeated Outside Mirrors
Body Control Module (BCM) Fuses
CavityCartridge Fuse Mini FuseDescription
F12––Spare
F13–15 Amp Blue Left Headlamp
F31––Spare
F32–10 Amp Red Interior Lighting/Decklid/Liftgate Release
F33–25 Amp Clear Window Motor – Driver
F34–25 Amp Clear Window Motor – Passenger
F36–15 Amp Blue Intrusion Module
F37–10 Amp Red Instrument Panel Cluster
F38–20 Amp Yellow Door Locks
7
MAINTAINING YOUR VEHICLE 607

CavityCartridge Fuse Mini FuseDescription
F42––Spare
F43–20 Amp Yellow Windshield Washer Pump
F47–5 Amp Tan Transmission Control Module (Tcm)
F48–20 Amp Yellow Spare
F49–7.5 Amp Brown Stop Lamp Switch
F50–7.5 Amp Brown Pneumatic Lumbar Support
F51–7.5 Amp Brown Cd/Hands-Free Module – Bluetooth/
Radio Display
F53–7.5 Amp Brown Driver Window Switch/Power Mirrors
F89–5 Amp Tan Trunk Lamp
F90–7.5 Amp Brown Front Fog Lamps – Right
F91–7.5 Amp Brown Front Fog Lamps – Left
F92–7.5 Amp Brown High Beams (Shutters)
F93–15 Amp Blue Right Headlamp
