DODGE DART 2016 PF / 1.G User Guide

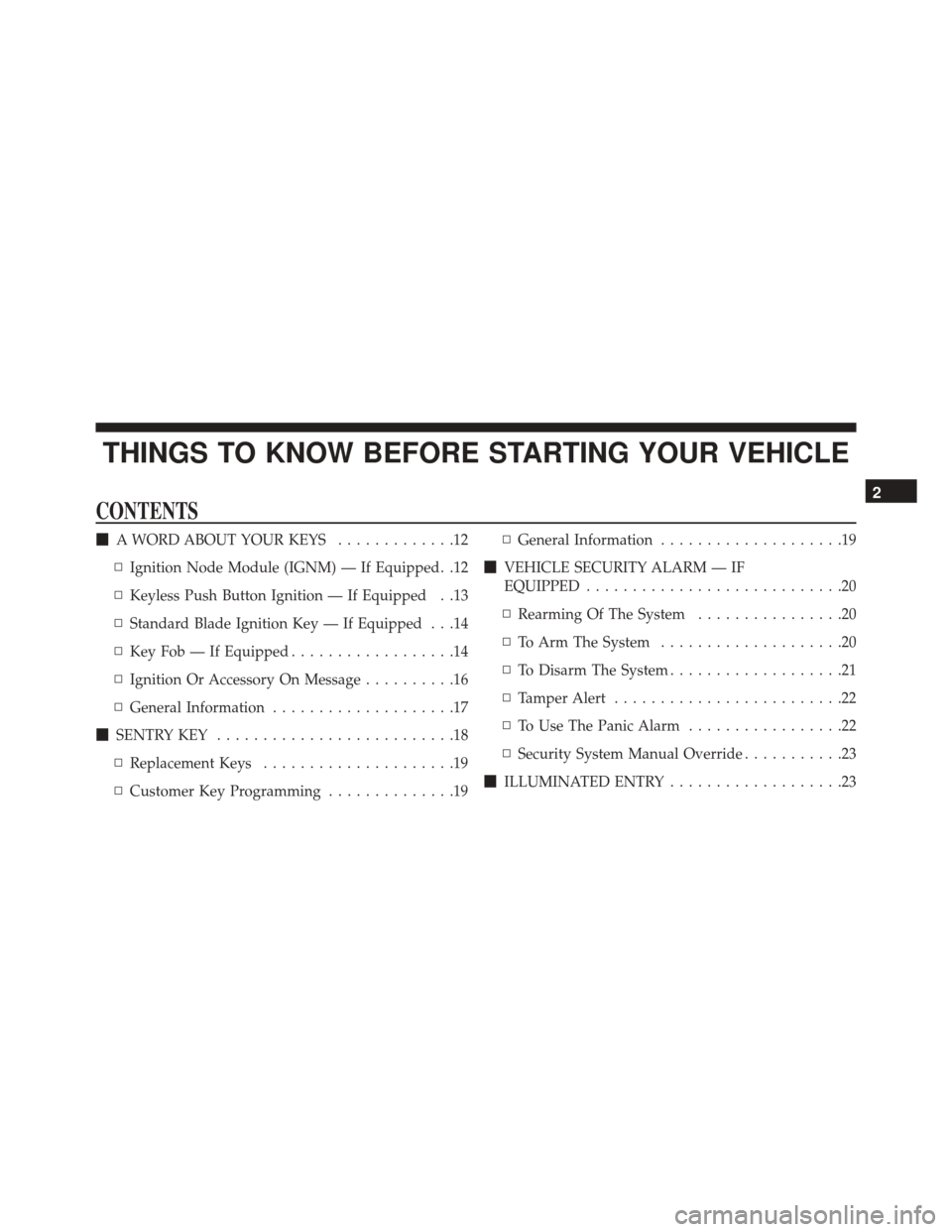

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Ignition Node Module (IGNM) — If Equipped. .12
▫ Keyless Push Button Ignition — If Equipped . .13
▫ Standard Blade Ignition Key — If Equipped . . .14
▫ Key Fob — If Equipped ..................14
▫ Ignition Or Accessory On Message ..........16
▫ General Information ....................17
 SENTRY KEY ..........................18
▫ Replacement Keys .....................19
▫ Customer Key Programming ..............19▫
General Information ....................19
 VEHICLE SECURITY ALARM — IF
EQUIPPED ............................20
▫ Rearming Of The System ................20
▫ To Arm The System ....................20
▫ To Disarm The System ...................21
▫ Tamper Alert .........................22
▫ To Use The Panic Alarm .................22
▫ Security System Manual Override ...........23
 ILLUMINATED ENTRY ...................23
2

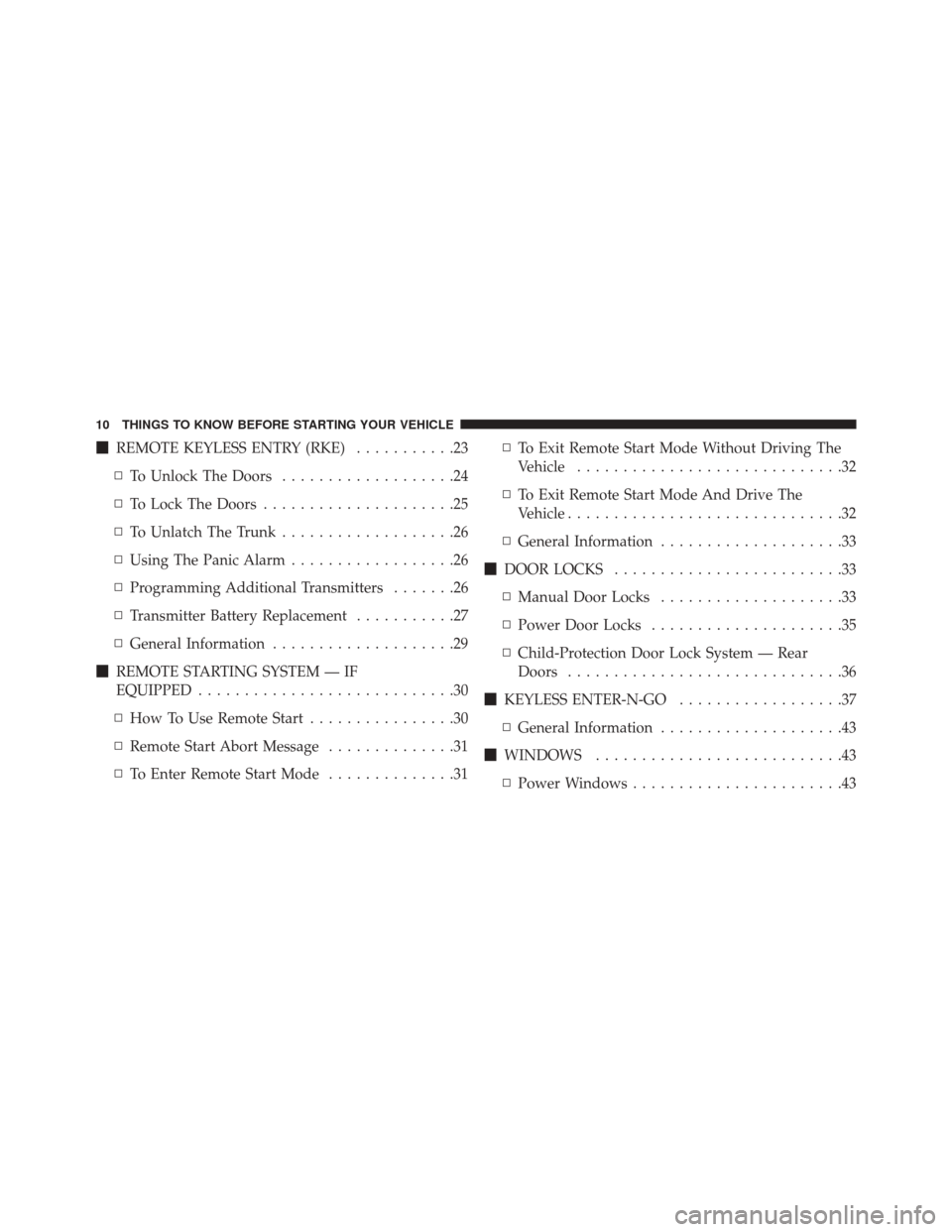

REMOTE KEYLESS ENTRY (RKE) ...........23
▫ To Unlock The Doors ...................24
▫ To Lock The Doors .....................25
▫ To Unlatch The Trunk ...................26
▫ Using The Panic Alarm ..................26
▫ Programming Additional Transmitters .......26
▫ Transmitter Battery Replacement ...........27
▫ General Information ....................29
 REMOTE STARTING SYSTEM — IF
EQUIPPED ............................30
▫ How To Use Remote Start ................30
▫ Remote Start Abort Message ..............31
▫ To Enter Remote Start Mode ..............31▫
To Exit Remote Start Mode Without Driving The
Vehicle .............................32
▫ To Exit Remote Start Mode And Drive The
Vehicle ..............................32
▫ General Information ....................33
 DOOR LOCKS .........................33
▫ Manual Door Locks ....................33
▫ Power Door Locks .....................35
▫ Child-Protection Door Lock System — Rear
Doors ..............................36
 KEYLESS ENTER-N-GO ..................37
▫ General Information ....................43
 WINDOWS ...........................43
▫ Power Windows .......................43
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

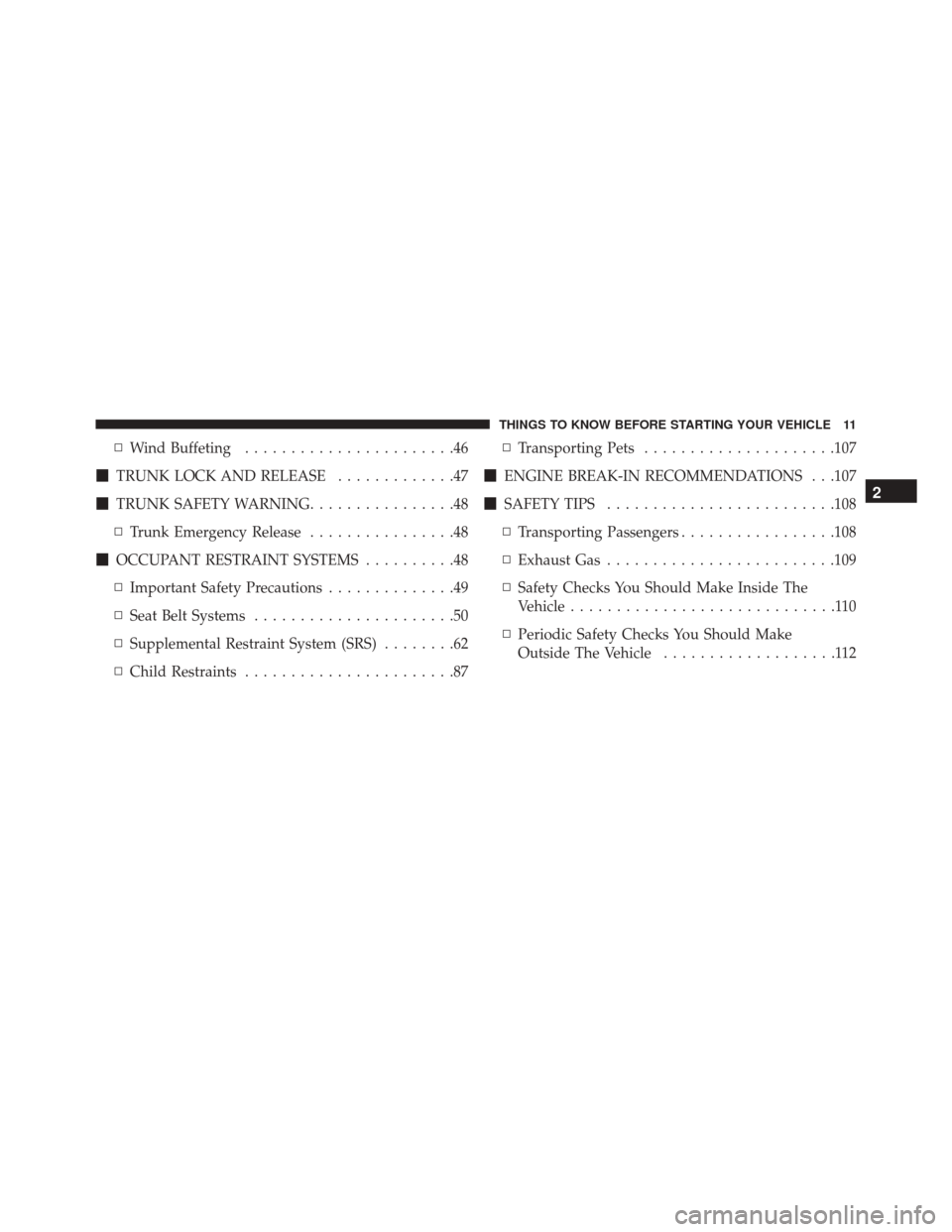

▫Wind Buffeting .......................46
 TRUNK LOCK AND RELEASE .............47
 TRUNK SAFETY WARNING ................48
▫ Trunk Emergency Release ................48
 OCCUPANT RESTRAINT SYSTEMS ..........48
▫ Important Safety Precautions ..............49
▫ Seat Belt Systems ......................50
▫ Supplemental Restraint System (SRS) ........62
▫ Child Restraints .......................87 ▫
Transporting Pets .....................107
 ENGINE BREAK-IN RECOMMENDATIONS . . .107
 SAFETY TIPS ........................ .108
▫ Transporting Passengers .................108
▫ Exhaust Gas ........................ .109
▫ Safety Checks You Should Make Inside The
Vehicle .............................110
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ...................112
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a either a bladed key with an immobilizer chip
in it, or a Key Fob with Remote Keyless Entry (RKE)
transmitter and an Ignition Node Module (IGNM). The
keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Push Button Ignition.
Ignition Node Module (IGNM) — If Equipped
The Ignition Node Module (IGNM) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.Ignition Node Module (IGNM)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Keyless Push Button Ignition — If Equipped
This feature allows the driver to operate the ignition
switch with the push of a button, as long as the Remote
Keyless Entry (RKE) transmitter is in the passenger
compartment.
The Keyless Push Button Ignition has four operating
positions, three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.
NOTE:In case the ignition switch does not change with
the push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery. In this situation, a back up
method can be used to operate the ignition switch. Put
the nose side (side opposite of the emergency key) of the
Key Fob against the ENGINE START/STOP button and
push to operate the ignition switch.
Keyless Push Button Ignition
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Keyless Enter-N-Go Feature
If your vehicle is equipped with the Keyless Enter-N-Go
feature, refer to “Starting Procedure” in “Starting And
Operating” for further information.
Standard Blade Ignition Key — If Equipped
Your vehicle may use a standard blade key ignition
system. The authorized dealer that sold you your vehicle
has the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place. You can insert the
double-sided standard blade key into the ignition switch
or lock cylinders with either side up.
Key Fob — If Equipped
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
Standard Blade Ignition Key
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the face of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
Emergency Key Removal (IGNM)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
When opening the driver’s door when the ignition is in
ACC or ON (engine not running), a chime will sound to remind you to place the ignition in the OFF position. In
addition to the chime, the ignition or accessory on
message will display in the cluster.
NOTE:
With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
NOTE:
• Never use the PARK position as a substitute for the
parking brake. Always apply the parking brake fully
when parked to guard against vehicle movement and
possible injury or damage.
Emergency Key Removal
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

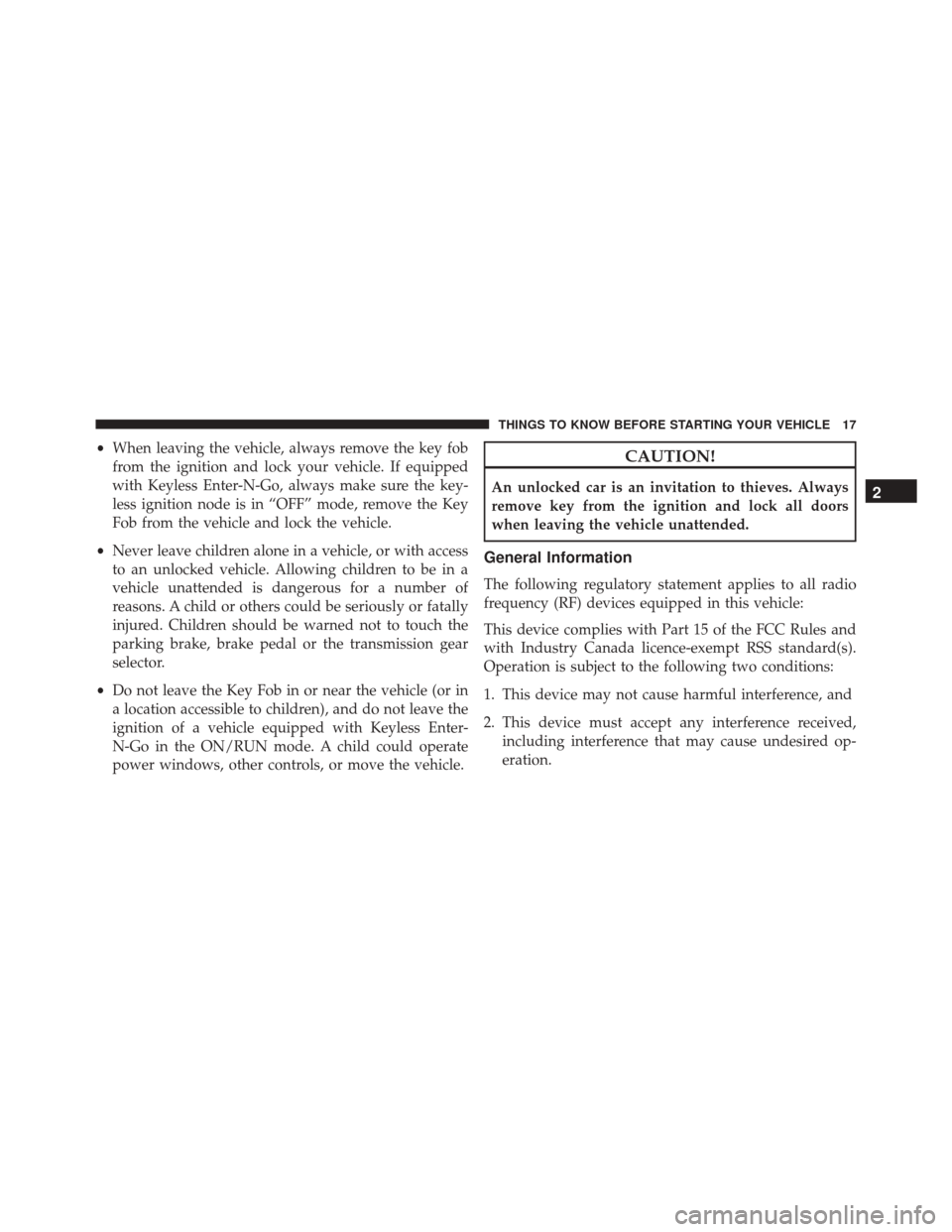

•When leaving the vehicle, always remove the key fob
from the ignition and lock your vehicle. If equipped
with Keyless Enter-N-Go, always make sure the key-
less ignition node is in “OFF” mode, remove the Key
Fob from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with access
to an unlocked vehicle. Allowing children to be in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or fatally
injured. Children should be warned not to touch the
parking brake, brake pedal or the transmission gear
selector.
• Do not leave the Key Fob in or near the vehicle (or in
a location accessible to children), and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired op-
eration.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

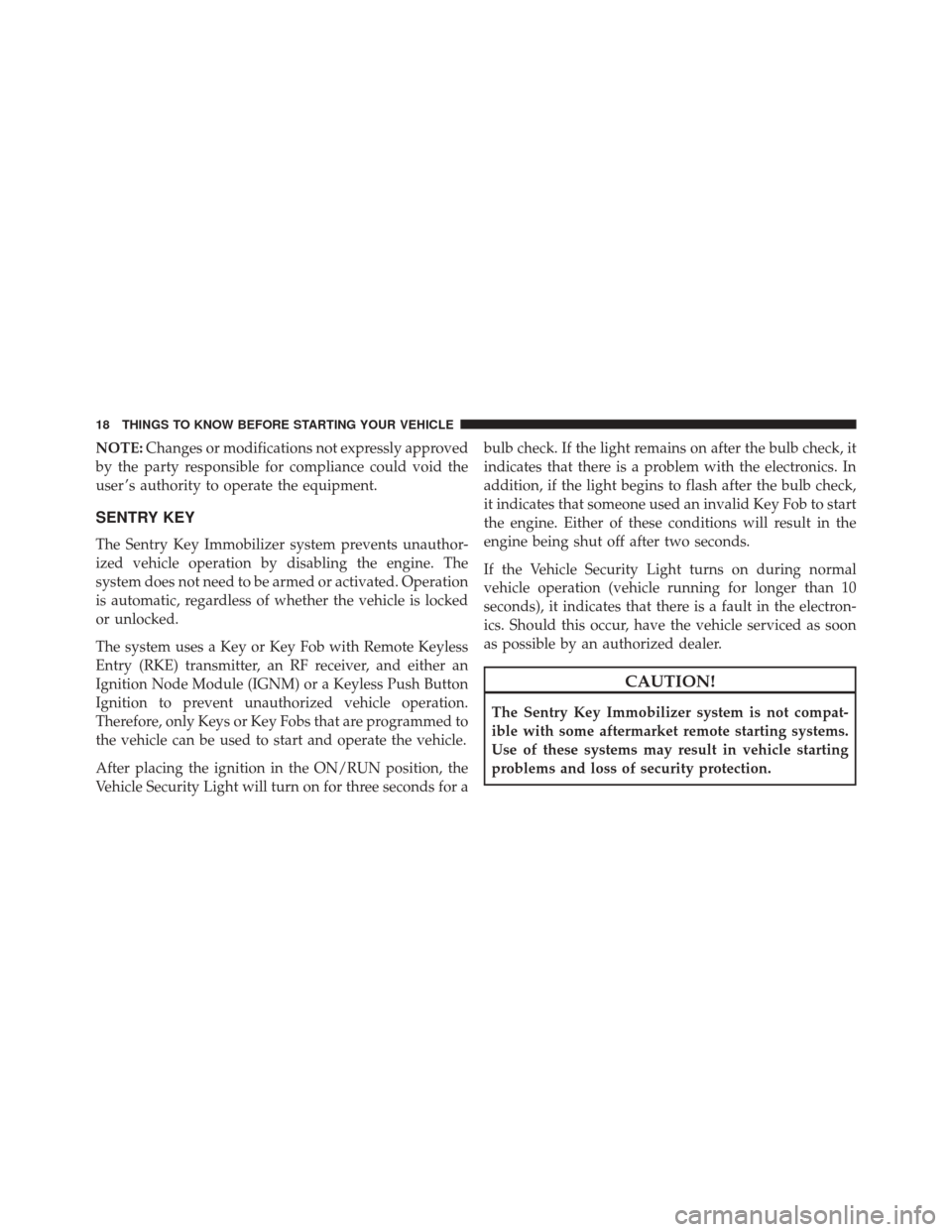

NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key or Key Fob with Remote Keyless
Entry (RKE) transmitter, an RF receiver, and either an
Ignition Node Module (IGNM) or a Keyless Push Button
Ignition to prevent unauthorized vehicle operation.
Therefore, only Keys or Key Fobs that are programmed to
the vehicle can be used to start and operate the vehicle.
After placing the ignition in the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.
CAUTION!
The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
