clock DODGE DART 2016 PF / 1.G User Guide

•Turning it clockwise (forward) by one click, while
playing a track, skips to the next track or push the
VR
button and say Next Track.
•Turning it counterclockwise (backward) by one click,
will jump to the previous track in the list or push the
VR
button and say Previous Track
•Jump backward in the current track by pushing and
holding the << RWbutton. Holding the << RW
button long enough will jump to the beginning of the
current track.
• Jump forward in the current track by pushing and
holding the FF>> button.
• A single push backward << RWor forward FF>> will
jump backward or forward respectively, for five sec-
onds.
• Use the << SEEKbutton during play mode to jump to
the start of the current track. Pushing the SEEK>>button during play mode will jump to the next track in
the list, or push the VR
button and say
Next or
Previous Track.
• While a track is playing, push the INFObutton to see
the associated metadata (artist, track title, album, etc.)
for that track. Pushing the INFObutton again jumps to
the next screen of data for that track. Once all screens
have been viewed, the last INFObutton push will go
back to the play mode screen on the radio.
• Pushing the REPEATbutton will change the audio
device mode to repeat the current playing track or
push the VR
button and say Repeat ONor
Repeat Off.
• Push the SHUFFLE button to play the selections on the
USB/iPod device in random order to provide an
interesting change of pace. To stop Shuffle Mode, push
the SHUFFLE button again. To turn SHUFFLEOn/Off
388 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:Pressing this button while in Sync mode will
automatically exit Sync.
9. SYNC
Press the Sync button on the touchscreen to toggle the
Sync feature On/Off. The Sync indicator is illuminated
when this feature is enabled. Sync is used to synchronize
the passenger temperature setting with the driver tem-
perature setting. Changing the passenger temperature
setting while in Sync will automatically exit this feature.
10. Blower Control
Blower control is used to regulate the amount of air forced
through the climate system. There are seven blower speeds
available. Adjusting the blower will cause automatic mode
to switch to manual operation. The speeds can be selected
using either the blower control knob on the faceplate or
buttons on the touchscreens as follows:
Blower Control Knob On The Faceplate
The blower speed increases as you turn the control
clockwise from the lowest blower setting. The blower
speed decreases as you turn the blower control knob
counter-clockwise.
Button On The Touchscreen
Use the small blower icon to reduce the blower setting
and the large blower icon to increase the blower setting.
Blower can also be selected by pressing the blower bar
area between the icons.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 403

2. If equipped with aluminum wheels where the centercap covers the wheel bolts, use the wheel bolt wrench
to pry the center cap off carefully before raising the
vehicle. 3. Before raising the vehicle, use the wheel bolt wrench
to loosen, but not remove, the wheel bolts on the
wheel with the flat tire. Turn the wheel bolts counter-
clockwise one turn while the wheel is still on the
ground.
4. Place the jack underneath the notched lift area that is closest to the flat tire. Turn the jack screw clockwise to
firmly engage the jack saddle with the lift area of the
sill flange, centering the jack saddle between the
locating notches on the sill flange.
Removing Jack Handle From Jack
6
WHAT TO DO IN EMERGENCIES 549

NOTE:•For vehicles so equipped, do not attempt to install a
center cap or wheel cover on the compact spare.
• Refer to “Compact Spare Tire” and to “Limited-Use
Spare” under “Tires — General Information” in
“Starting and Operating” for additional warnings,
cautions, and information about the spare tire, its
use, and operation.
8. Install the wheel bolts with the threaded end of the wheel bolt toward the wheel. Lightly tighten the
wheel bolts.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not fully tighten the wheel bolts until the vehicle
has been lowered. Failure to follow this warning may
result in serious injury. 9. Lower the vehicle to the ground by turning the jack
handle counterclockwise.
10. Finish tightening the wheel bolts. Push down on the wrench while at the end of the handle for increased
leverage. Tighten the wheel bolts in a star pattern
until each wheel bolt has been tightened twice. Refer
to “Torque Specifications” in this section for proper
lug bolt torque. If in doubt about the correct tight-
ness, have them checked with a torque wrench by
your authorized dealer or at a service station.
11. Lower the jack until it is free. Remove the wheel blocks. Reassemble the lug wrench to the jack assem-
bly and stow it in the spare tire area. Secure the
assembly using the means provided. Release the
parking brake before driving the vehicle.
12. Stow the jack and tools in the storage location and secure the flat tire in the trunk.
552 WHAT TO DO IN EMERGENCIES

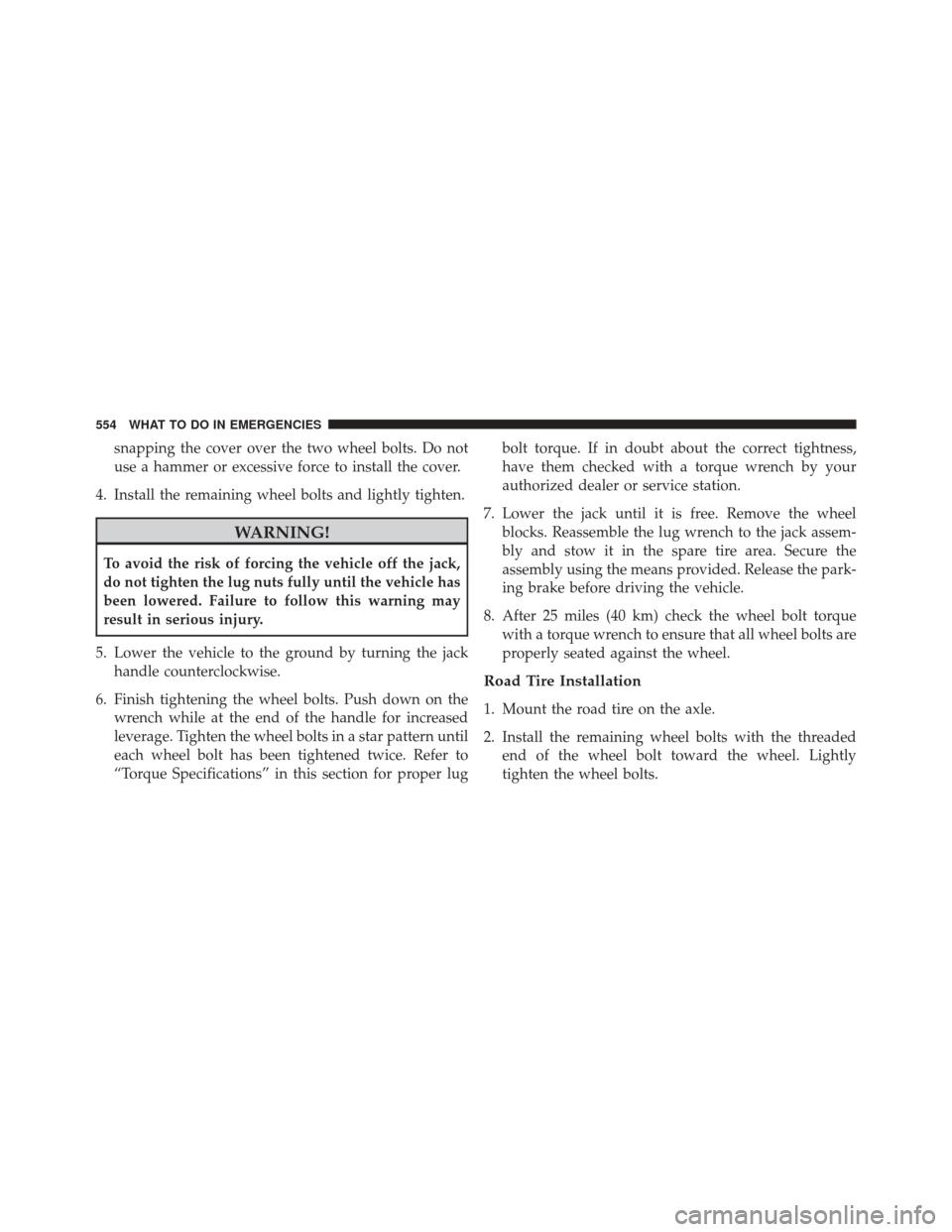

snapping the cover over the two wheel bolts. Do not
use a hammer or excessive force to install the cover.
4. Install the remaining wheel bolts and lightly tighten.
WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.
5. Lower the vehicle to the ground by turning the jack handle counterclockwise.
6. Finish tightening the wheel bolts. Push down on the wrench while at the end of the handle for increased
leverage. Tighten the wheel bolts in a star pattern until
each wheel bolt has been tightened twice. Refer to
“Torque Specifications” in this section for proper lug bolt torque. If in doubt about the correct tightness,
have them checked with a torque wrench by your
authorized dealer or service station.
7. Lower the jack until it is free. Remove the wheel blocks. Reassemble the lug wrench to the jack assem-
bly and stow it in the spare tire area. Secure the
assembly using the means provided. Release the park-
ing brake before driving the vehicle.
8. After 25 miles (40 km) check the wheel bolt torque with a torque wrench to ensure that all wheel bolts are
properly seated against the wheel.
Road Tire Installation
1. Mount the road tire on the axle.
2. Install the remaining wheel bolts with the threadedend of the wheel bolt toward the wheel. Lightly
tighten the wheel bolts.
554 WHAT TO DO IN EMERGENCIES

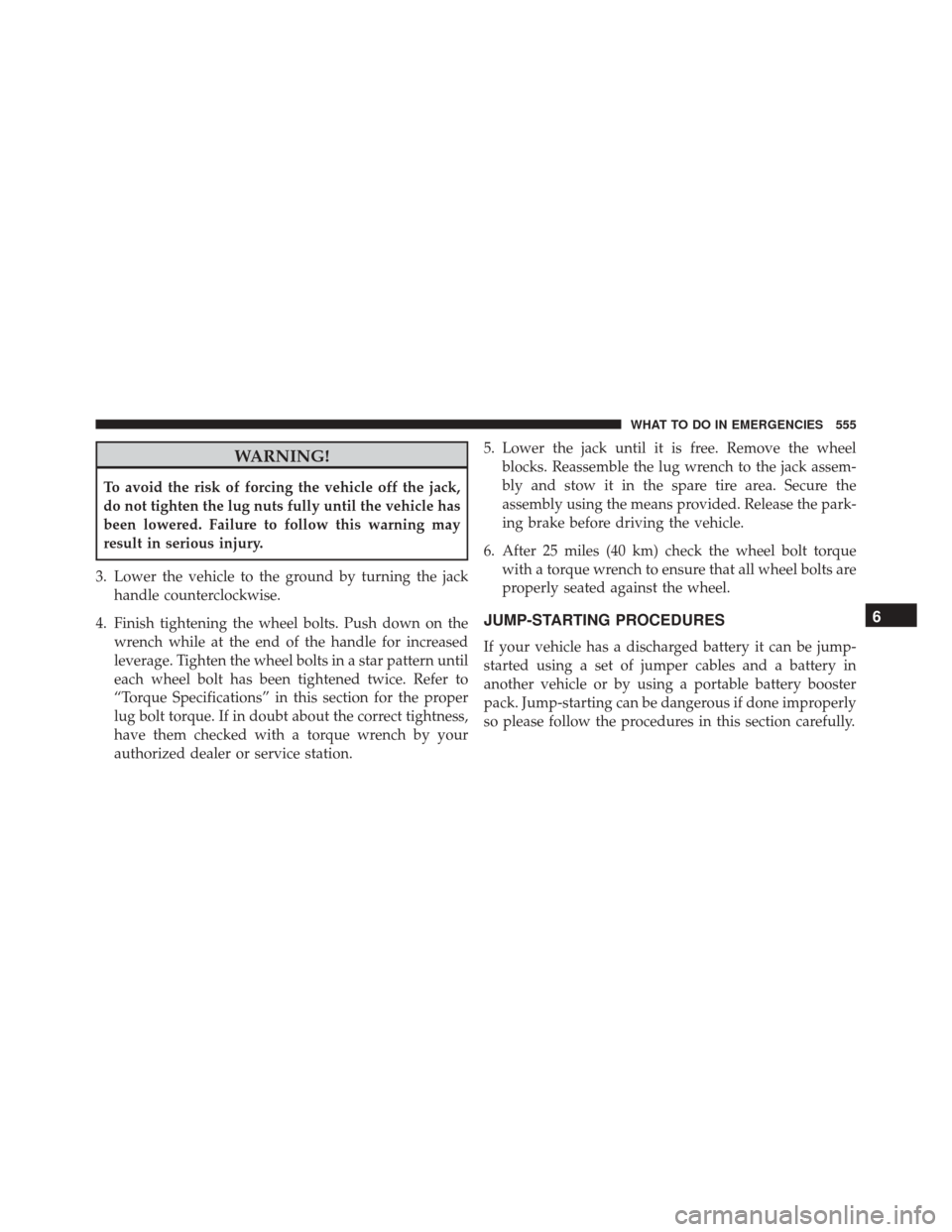

WARNING!
To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.
3. Lower the vehicle to the ground by turning the jack handle counterclockwise.
4. Finish tightening the wheel bolts. Push down on the wrench while at the end of the handle for increased
leverage. Tighten the wheel bolts in a star pattern until
each wheel bolt has been tightened twice. Refer to
“Torque Specifications” in this section for the proper
lug bolt torque. If in doubt about the correct tightness,
have them checked with a torque wrench by your
authorized dealer or service station. 5. Lower the jack until it is free. Remove the wheel
blocks. Reassemble the lug wrench to the jack assem-
bly and stow it in the spare tire area. Secure the
assembly using the means provided. Release the park-
ing brake before driving the vehicle.
6. After 25 miles (40 km) check the wheel bolt torque with a torque wrench to ensure that all wheel bolts are
properly seated against the wheel.
JUMP-STARTING PROCEDURES
If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.
6
WHAT TO DO IN EMERGENCIES 555

3. Twist the bulb socket one quarter turn counter clock-wise to remove. 4. Replace bulb.
Trim CoverBulb Socket
7
MAINTAINING YOUR VEHICLE 619

5. Twist the bulb socket one quarter turn clockwise toinstall.
6. Install trim cover.
License Lamp
1. Remove the screws securing the lamp to the rear fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and install the replacement bulb.
Backup Bulb
620 MAINTAINING YOUR VEHICLE

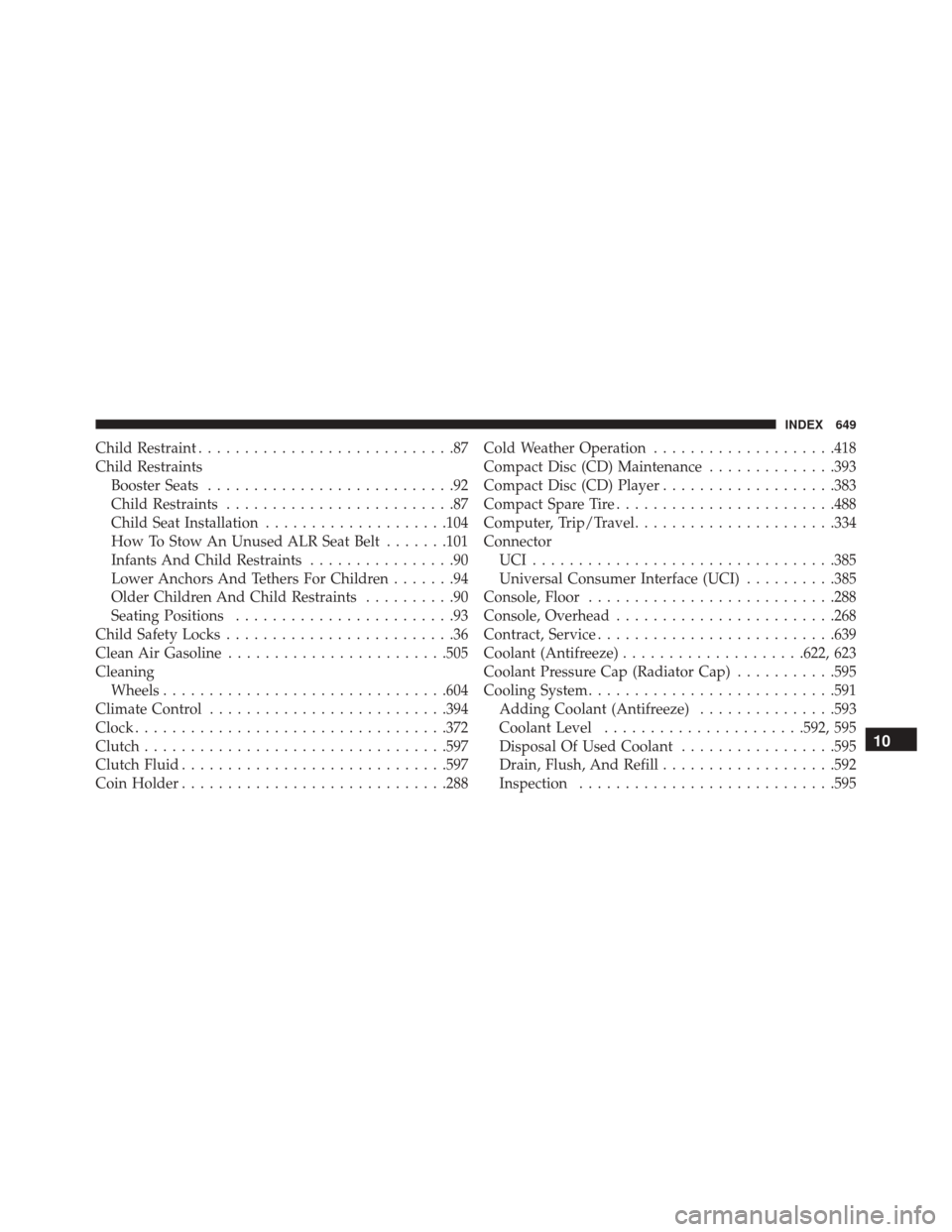

Child Restraint............................87
Child Restraints Booster Seats ...........................92
Child Restraints .........................87
Child Seat Installation ....................104
How To Stow An Unused ALR Seat Belt .......101
Infants And Child Restraints ................90
Lower Anchors And Tethers For Children .......94
Older Children And Child Restraints ..........90
Seating Positions ........................93
Child Safety Locks .........................36
Clean Air Gasoline ....................... .505
Cleaning Wheels .............................. .604
Climate Control ......................... .394
Clock ................................. .372
Clutch ................................ .597
Clutch Fluid ............................ .597
Coin Holder ............................ .288Cold Weather Operation
....................418
Compact Disc (CD) Maintenance ..............393
Compact Disc (CD) Player ...................383
Compact Spare Tire ....................... .488
Computer, Trip/Travel ..................... .334
Connector UCI................................ .385
Universal Consumer Interface (UCI) ..........385
Console, Floor .......................... .288
Console, Overhead ....................... .268
Contract, Service ......................... .639
Coolant (Antifreeze) ....................622, 623
Coolant Pressure Cap (Radiator Cap) ...........595
Cooling System .......................... .591
Adding Coolant (Antifreeze) ...............593
Coolant Level ..................... .592, 595
Disposal Of Used Coolant .................595
Drain, Flush, And Refill ...................592
Inspection ........................... .595
10
INDEX 649

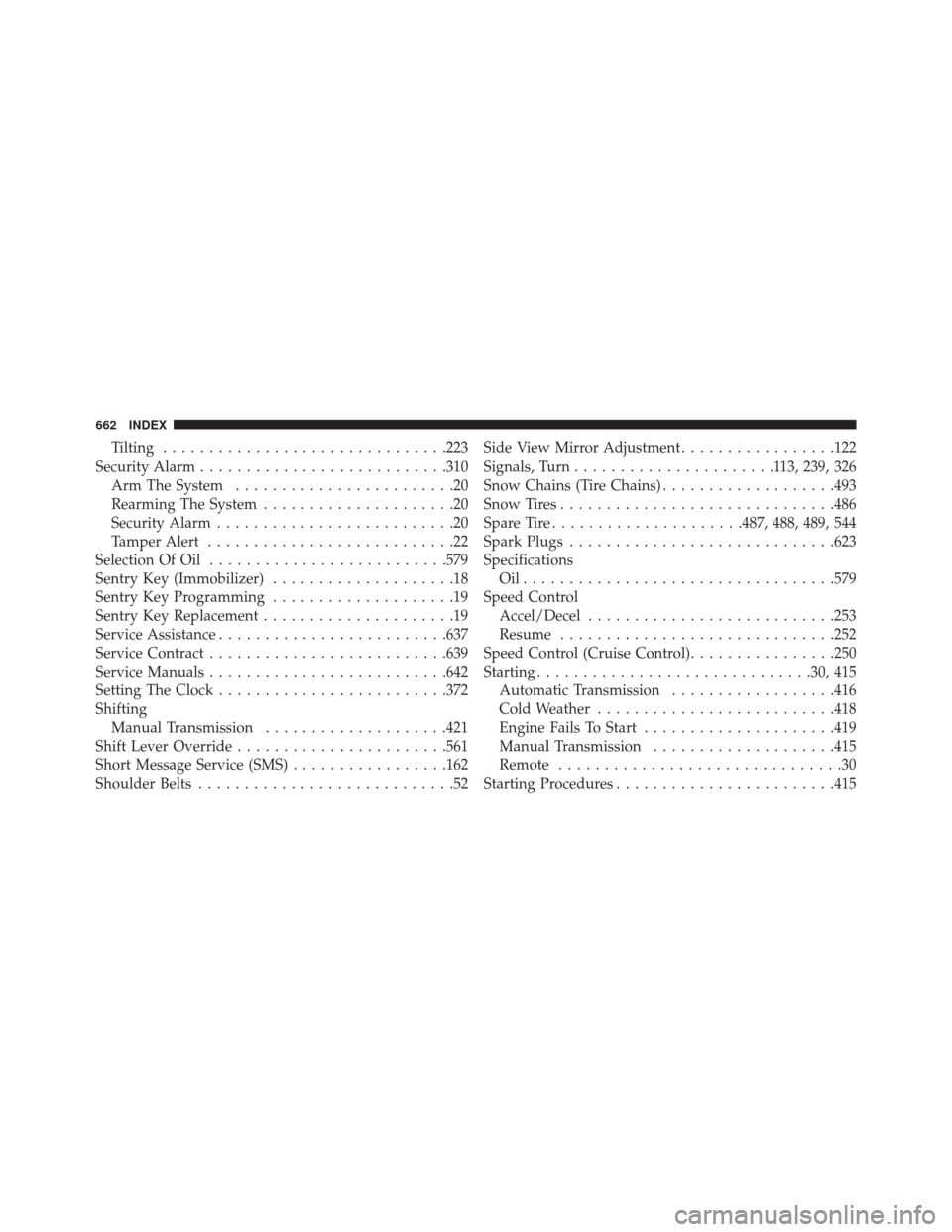

Tilting.............................. .223
Security Alarm .......................... .310
Arm The System ........................20
Rearming The System .....................20
Security Alarm ..........................20
Tamper Alert ...........................22
Selection Of Oil ......................... .579
Sentry Key (Immobilizer) ....................18
Sentry Key Programming ....................19
Sentry Key Replacement .....................19
Service Assistance ........................ .637
Service Contract ......................... .639
Service Manuals ......................... .642
Setting The Clock ........................ .372
Shifting Manual Transmission ....................421
Shift Lever Override ...................... .561
Short Message Service (SMS) .................162
Shoulder Belts ............................52 Side View Mirror Adjustment
.................122
Signals, Turn ......................113, 239, 326
Snow Chains (Tire Chains) ...................493
Snow Tires ............................. .486
Spare Tire .....................487, 488, 489, 544
Spark Plugs ............................ .623
Specifications Oil................................. .579
Speed Control Accel/Decel .......................... .253
Resume ............................. .252
Speed Control (Cruise Control) ................250
Starting ............................. .30, 415
Automatic Transmission ..................416
Cold Weather ......................... .418
Engine Fails To Start .....................419
Manual Transmission ....................415
Remote ...............................30
Starting Procedures ....................... .415
662 INDEX
