buttons DODGE DURANGO 2005 2.G Owner's Manual

INFO Button (CD Mode For MP3 Play)
Press and INFO button while playing MP3 disc. The
radio scrolls through the following TAG information:
Song Title, Artist, File Name, and Folder Name (if avail-
able).
Press the INFO button once more to return toelapsed
timepriority mode.
Press and hold the INFO button while in the message
display priority mode or elapsed time display priority
mode will display the song title for each file.
RW/FF (CD Mode For MP3 Play)
Press the FF side of the button to move forward through
the MP3 selection.
TUNE Control (CD Mode For MP3 Play)
Pressing the TUNE Control allows the adjustment of
Tone, Balance, and Fade.
AM/FM Button (CD Mode For MP3 Play)
Switches back to Radio mode.
RND/ PTY Button (CD Mode For MP3 Play)
Pressing this button plays files randomly.
SET/DIR Button (CD Mode For MP3 Play)
Press the SET/DIR Button to display folders, when
playing an MP3 discs that have a file/folder structure.
Turn the TUNE control to display available folders or
move through available folders. Press the TUNE control
to select a folder.
Buttons1-6(CDModeForMP3Play)
Selects disc positions1-6forPlay/Load/Eject.
Operating Instructions - Hands Free Phone (If
Equipped)
Refer to Hands Free Phone section of the Owner’s
Manual.
190 INSTRUMENT PANEL AND CONTROLS

ESN/SID Access With REF Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the Eject or CD Eject (depending on
the radio type) and Time buttons simultaneously for 3
seconds. The first four digits of the twelve-digit ESN/SID
number will be displayed. Press the SEEK UP button to
display the next four digits. Continue to press the SEEK
UP button until all twelve ESN/SID digits have been
displayed. The SEEK DOWN will page down until the
first four digits are displayed. The radio will exit the
ESN/SID mode when any other button is pushed, the
ignition is turned OFF, or 5 minutes has passed since any
button was pushed.
ESN/SID Access With RAQ Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the CD Eject and TIME buttons
simultaneously for 3 seconds. All twelve ESN/SID num-
bers will be displayed. The radio will exit the ESN/SIDmode when any other button is pushed, the ignition is
turned OFF, or 5 minutes has passed since any button
was pushed.
Selecting Satellite Mode in REF Radios
Press the MODE button repeatedly untilSAappears in
the display. A CD may remain in the radio while in the
Satellite radio mode.
Selecting Satellite Mode in RAQ Radios
Press the MODE button repeatedly until the word
SIRIUSappears in the display. These radios will also
display the following:
•After 3 seconds, the current channel name and channel
number will be displayed for 5 seconds.
•The current program type and channel number will
then be displayed for 5 seconds.
•The current channel number will then be displayed
until an action occurs.
192 INSTRUMENT PANEL AND CONTROLS

A CD may remain in the radio while in the Satellite radio
mode.
Selecting a Channel
Press and release the SEEK or TUNE buttons to search for
the next channel. Press the top of the button to search up
and the bottom of the button to search down. Holding the
TUNE button causes the radio to bypass channels until
the button is released.
Press and release the SCAN button (if equipped) to
automatically change channels every 7 seconds. The
radio will pause on each channel for 7 seconds before
moving on to the next channel. The wordSCANwill
appear in the display between each channel change. Press
the SCAN button a second time to stop the search.
NOTE:Channels that may contain objectionable content
can be blocked. Contact Sirius Customer Care at 888-539-
7474 to discuss options for channel blocking or unblock-
ing. Please have your ESN/SID information available.
Storing and Selecting Pre-Set Channels
In addition to the 10 AM and 10 FM pre-set stations, you
may also commit 10 satellite stations to push button
memory. These satellite channel pre-set stations will not
erase any AM or FM pre-set memory stations. Follow the
memory pre-set procedures that apply to your radio.
Using the PTY (Program Type) Button (if
equipped)
Follow the PTY button instructions that apply to your
radio.
PTY ButtonSCAN
When the desired program type is obtained, press the
SCANbutton within five seconds. The radio will play 7
seconds of the selected channel before moving to the next
channel of the selected program type. Press theSCAN
button a second time to stop the search.
NOTE:Pressing theSEEKorSCANbutton while
performing a music type scan will change the channel by
INSTRUMENT PANEL AND CONTROLS 193
4

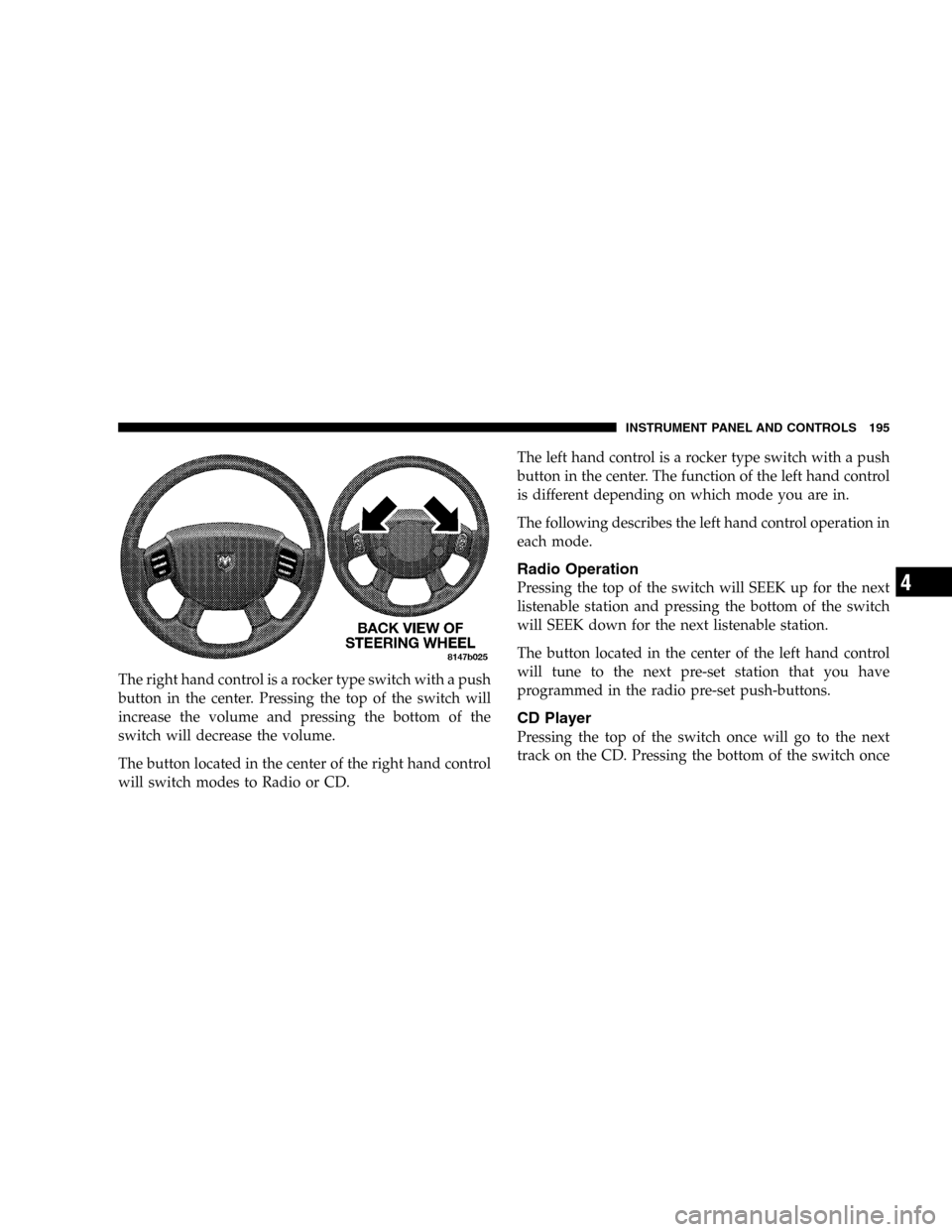

The right hand control is a rocker type switch with a push
button in the center. Pressing the top of the switch will
increase the volume and pressing the bottom of the
switch will decrease the volume.
The button located in the center of the right hand control
will switch modes to Radio or CD.The left hand control is a rocker type switch with a push
button in the center. The function of the left hand control
is different depending on which mode you are in.
The following describes the left hand control operation in
each mode.
Radio Operation
Pressing the top of the switch will SEEK up for the next
listenable station and pressing the bottom of the switch
will SEEK down for the next listenable station.
The button located in the center of the left hand control
will tune to the next pre-set station that you have
programmed in the radio pre-set push-buttons.
CD Player
Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
INSTRUMENT PANEL AND CONTROLS 195
4

the A/C snowflake button has not been pressed. This
dehumidifies the air to help dry the windshield.
Rear Temperature Control (ATC)
The “REAR FUNCTIONS” button cycles through the
following modes:
Rear Control from Front
This allows the driver or passenger to control the rear
blower speeds using the FAN +/– rocker switch and the
rear temperature using the TEMP +/– rocker switch.
While in this mode, pressing the POWER button will turn
the rear system off. Pressing the POWER, TEMP or FAN
buttons will turn the rear system back on.
NOTE:The display will show a “REAR” fan speed
graph and a “REAR” temperature graph.
CONTROL IN REAR
This allows the passengers in the second row seats to
control the blower speed and temperature by means ofthe rear control located in the rear of the center floor
console as described under theRear Zone Climate
Control.
NOTE:The display will show “CONTROL IN REAR.”
REAR OFF
This turns the rear system off. The control will return to
the front system display after approximately 5 seconds if
no buttons are pushed while in one of the rear system
displays. You may also return to the front system display
sooner by pushing any button except the POWER, REAR,
TEMP or FAN buttons.
NOTE:The display will show “REAR OFF.”
Rear Window Defrosting and Rear Window
Washer/Wiper
See the “Rear Window Features” section of this book.
206 INSTRUMENT PANEL AND CONTROLS
