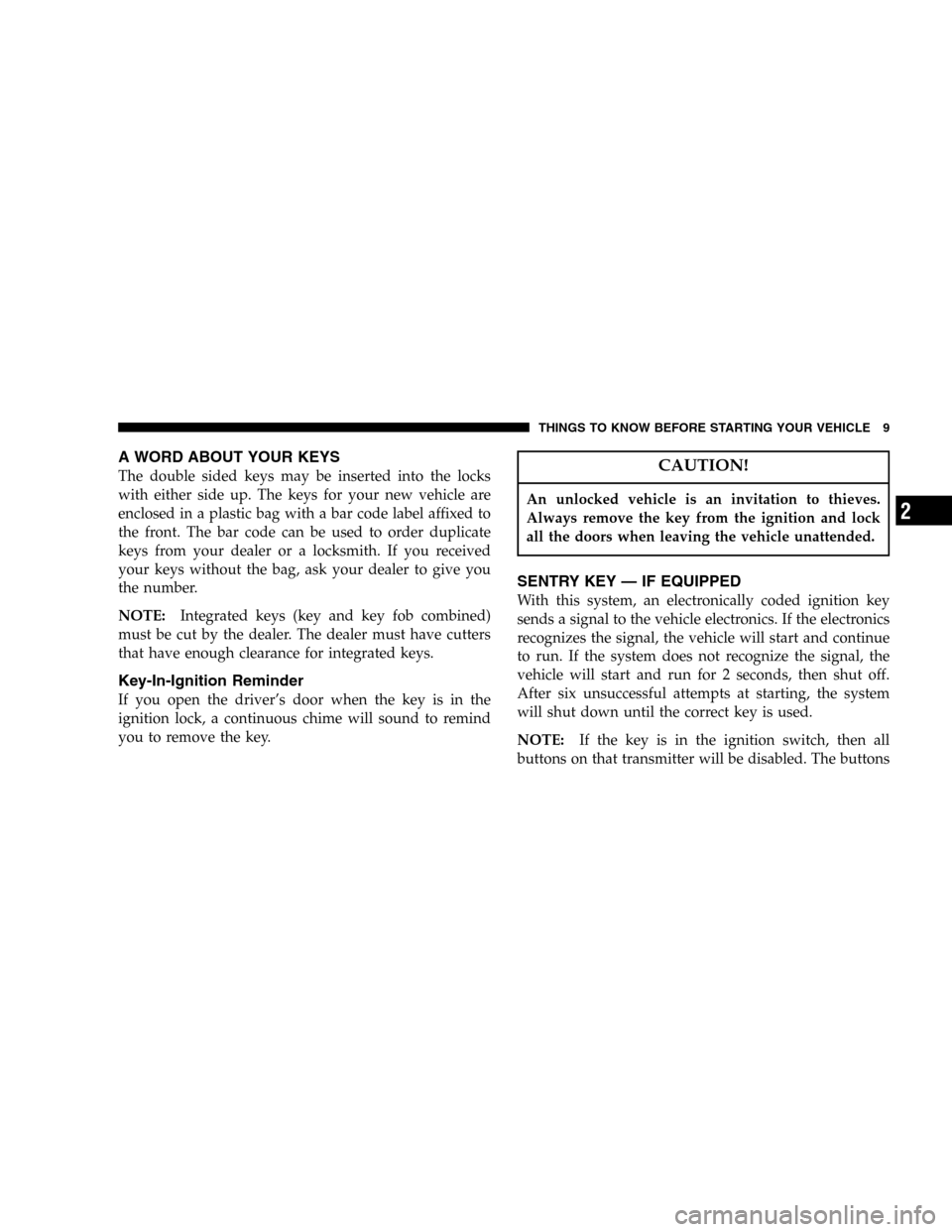

Page 9 of 416
A WORD ABOUT YOUR KEYS
The double sided keys may be inserted into the locks
with either side up. The keys for your new vehicle are
enclosed in a plastic bag with a bar code label affixed to
the front. The bar code can be used to order duplicate
keys from your dealer or a locksmith. If you received
your keys without the bag, ask your dealer to give you
the number.
NOTE:Integrated keys (key and key fob combined)
must be cut by the dealer. The dealer must have cutters
that have enough clearance for integrated keys.
Key-In-Ignition Reminder
If you open the driver’s door when the key is in the
ignition lock, a continuous chime will sound to remind
you to remove the key.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition and lock
all the doors when leaving the vehicle unattended.
SENTRY KEY — IF EQUIPPED
With this system, an electronically coded ignition key
sends a signal to the vehicle electronics. If the electronics
recognizes the signal, the vehicle will start and continue
to run. If the system does not recognize the signal, the
vehicle will start and run for 2 seconds, then shut off.
After six unsuccessful attempts at starting, the system
will shut down until the correct key is used.
NOTE:If the key is in the ignition switch, then all
buttons on that transmitter will be disabled. The buttons
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9
2
Page 10 of 416
on the remaining transmitters will work. If the vehicle is
moving 5 mph or more, then all the transmitter buttons
are disabled for all keys.
NOTE:The Sentry Key Immobilizer System is not
compatible with remote starting systems. Use of these
systems may result in vehicle starting problems and a
loss of security protection. Additional Sentry Keys or
Mobil Speed-pass™ devices held against or immediately
adjacent to the ignition key when starting the engine may
cause vehicle starting problems. If a problem occurs,
remove the Sentry Key from the key-ring and attempt to
start the vehicle again. Pagers, cell phones, walkman, etc.
will have no effect on this system.
TheSecurity Lightwill illuminate for about 3 seconds
when the ignition switch is first turned to the ON
position. If the vehicle electronics do not receive a valid
signal from the ignition key, theSecurity Lightwill flashcontinuously to signal that the vehicle has been immobi-
lized. If theSecurity Lightremains on during vehicle
operation, it indicates a fault in the system electronics. If
this option was ordered, all of the keys provided with
your new vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 416
Vehicles equipped with power door locks can be locked
or unlocked from inside by either the use of the door lock
switches located on the front doors or by pressing the
LOCK or UNLOCK buttons on the Remote Keyless Entry
key fob.As a safety feature the doors will not lock when using the
door lock switches during the following conditions:
•The driver’s door is open while the key is in the
ignition.
Automatic Door Locks
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
1. Enter your vehicle and Close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

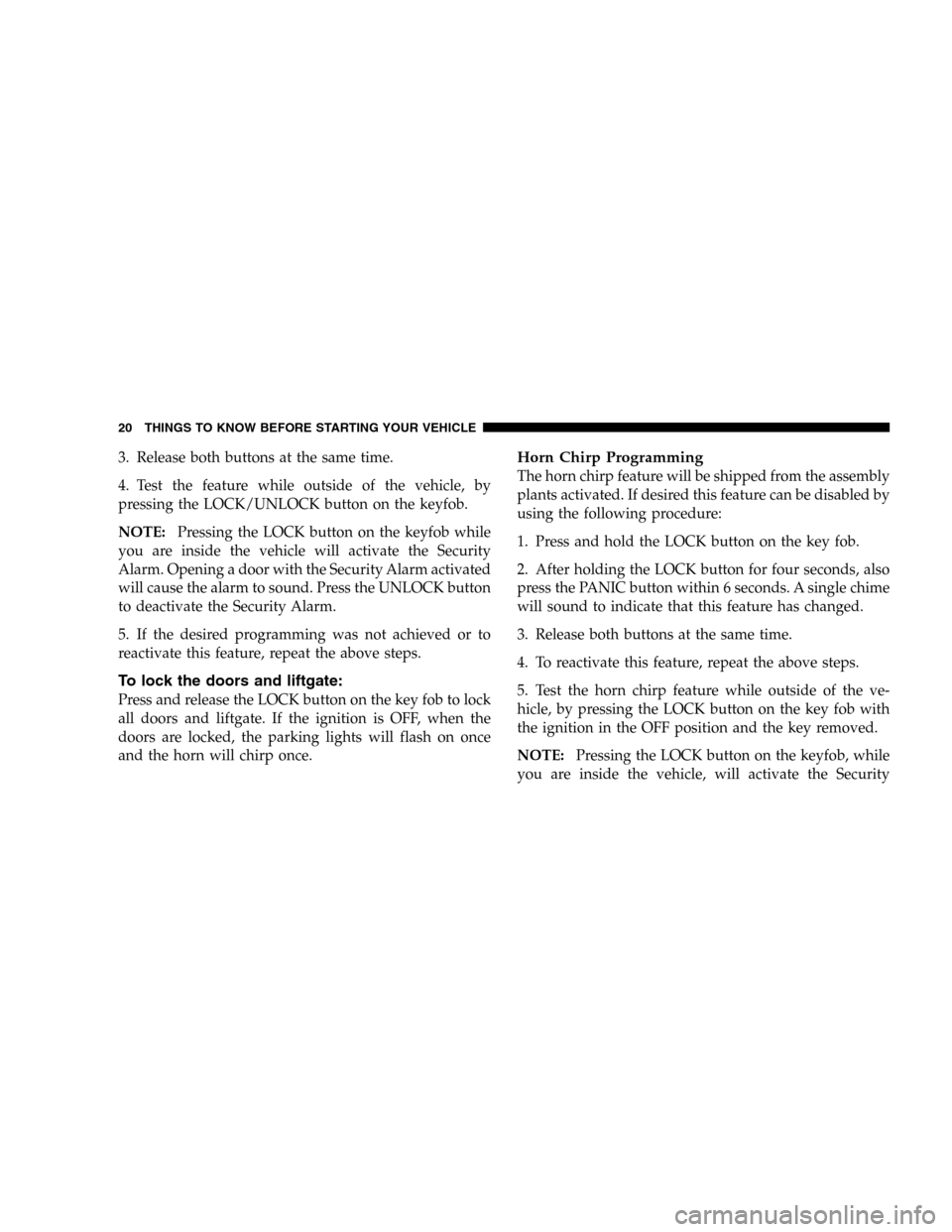

Page 20 of 416
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the keyfob.
NOTE:Pressing the LOCK button on the keyfob while
you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To lock the doors and liftgate:
Press and release the LOCK button on the key fob to lock
all doors and liftgate. If the ignition is OFF, when the
doors are locked, the parking lights will flash on once
and the horn will chirp once.
Horn Chirp Programming
The horn chirp feature will be shipped from the assembly
plants activated. If desired this feature can be disabled by
using the following procedure:
1. Press and hold the LOCK button on the key fob.
2. After holding the LOCK button for four seconds, also
press the PANIC button within 6 seconds. A single chime
will sound to indicate that this feature has changed.
3. Release both buttons at the same time.
4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the ve-
hicle, by pressing the LOCK button on the key fob with
the ignition in the OFF position and the key removed.
NOTE:Pressing the LOCK button on the keyfob, while
you are inside the vehicle, will activate the Security
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 416
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
6. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Flash Lamps with Lock Programming
1. Press and hold the UNLOCK button on the key fob.
2. After holding the UNLOCK button for four seconds,
also press the LOCK button within 6 seconds. A single
chime will sound to indicate that this feature has
changed.
3. Release both buttons at the same time.
4. Test the flash lamps with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the key
fob with the ignition in the OFF position, and the key
removed.NOTE:Pressing the LOCK button on the key fob, while
you are in the vehicle, will activate the Security Alarm.
Opening a door with the Security Alarm activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.Using the Panic Alarm
To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.
To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started or exceeds 15 mph (24 km/h). During the Panic
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 23 of 416
2. Fasten your seat belt (Fastening the seatbelt will cancel
any chiming that may confuse you during this program-
ming procedure).
3. Place the key into the ignition.
4. Turn the ignition to the ON position (Do not start the
engine).
5. Press and hold the UNLOCK button on the key fob.
6. After holding the UNLOCK button for four seconds,
also press the PANIC button within 6 seconds.
7. When a single chime is heard release both buttons. The
chime is an indication that you have successfully entered
program mode. All fobs that are to be programmed must
be done so within 60 seconds of when the chime was
heard.
8. Using the fob to be programmed, press and release
both the LOCK and UNLOCK buttons, simultaneously.9. A single chime will be heard.
10. Within four seconds of hearing the chime, press and
release the UNLOCK button on the fob.
11. A single chime will be heard.
12. Repeat steps 8 through 10 to program up to six
additional fobs.
13. Turn the ignition to the OFF position.
14. Your vehicle will remain in program mode up to 60
seconds from when the original chime was heard. After
60 seconds, all programmed fobs function normally.
NOTE:If you do not have a programmed transmitter,
contact your dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Page 24 of 416
Battery Replacement
The recommended replacement battery is CR2032.
1. If the key fob is equipped with a screw, remove the
screw. With the transmitter buttons facing down, use a
flat blade to pry the two halves of the transmitter apart.
Make sure not to damage the elastomer seal during
removal.2. Remove and replace the batteries. Avoid touching the
new batteries with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
3. To assemble the transmitter case, snap the two halves
together.
NOTE:If the key fob is equipped with a screw, reinstall
and tighten the screw until snug.
SECURITY ALARM SYSTEM — IF EQUIPPED
This system monitors the vehicle doors, liftgate, and
ignition for unauthorized operation. When the alarm is
activated, the system provides both audible and visual
signals. The horn will sound repeatedly for 3 minutes
and the headlights and security light in the instrument
cluster will flash for an additional 15 minutes. The engine
will not run until the system is disarmed.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 72 of 416
Compass/Temperature Mini-Trip Computer....136
▫US/M Button........................136
▫Reset Button.........................137
▫Global Reset.........................137
▫Step Button.........................138
▫Average Fuel Economy (AVG ECO)........138
▫Distance To Empty (DTE)...............138
▫Trip Odometer (ODO)..................139
▫Elapsed Time (ET).....................139
▫C/T Button.........................139
▫Compass/Temperature Display...........140
▫Automatic Compass Calibration...........140
▫Manual Compass Calibration.............140▫To Put Into a Calibration Mode...........140
▫Outside Temperature...................142
Garage Door Opener — If Equipped.........142
▫Programming Homelink................144
▫Canadian Programming/Gate Programming . . 146
▫Using Homelink......................147
▫Erasing Homelink Buttons...............147
▫Reprogramming a Single Homelink Button . . . 148
▫Security............................148
Power Sunroof — If Equipped.............149
▫Express Open Feature..................149
▫Wind Buffeting.......................150
▫Sunroof Maintenance...................151
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 79 of 416
each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system. The diagram below shows the mirror
with the appropriate buttons. Individual button behavior
is discussed in theOperationsection.The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. If your
cellular phone supports a different profile (eg., Headset
Profile), you may not be able to use any UConnect™
features. Refer to your cellular service provider or the
phone manufacturer for details.
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3
Page 97 of 416
Bluetooth Communication Link
Cellular phones have been found to occasionally loose
connection to the UConnect™ system. When this hap-
pens, the connection can generally be re-established by
switching the phone off/on. Your cell phone is recom-
mended to remain in Bluetoothonmode.
Reset
In rare instances, it may be necessary to reset the UCon-
nect™ system. The reset feature is exercised by pressingand holding the ’UConnect™ ’ and ’Voice Recognition’
buttons simultaneously for 15 seconds. Normally, you do
not need to exercise this feature.
Power-Up
After switching ignition key from off to either On or ACC
position, or after a reset, you must wait at least five (5)
seconds prior to using the system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3
