clock setting DODGE DURANGO 2005 2.G Owners Manual

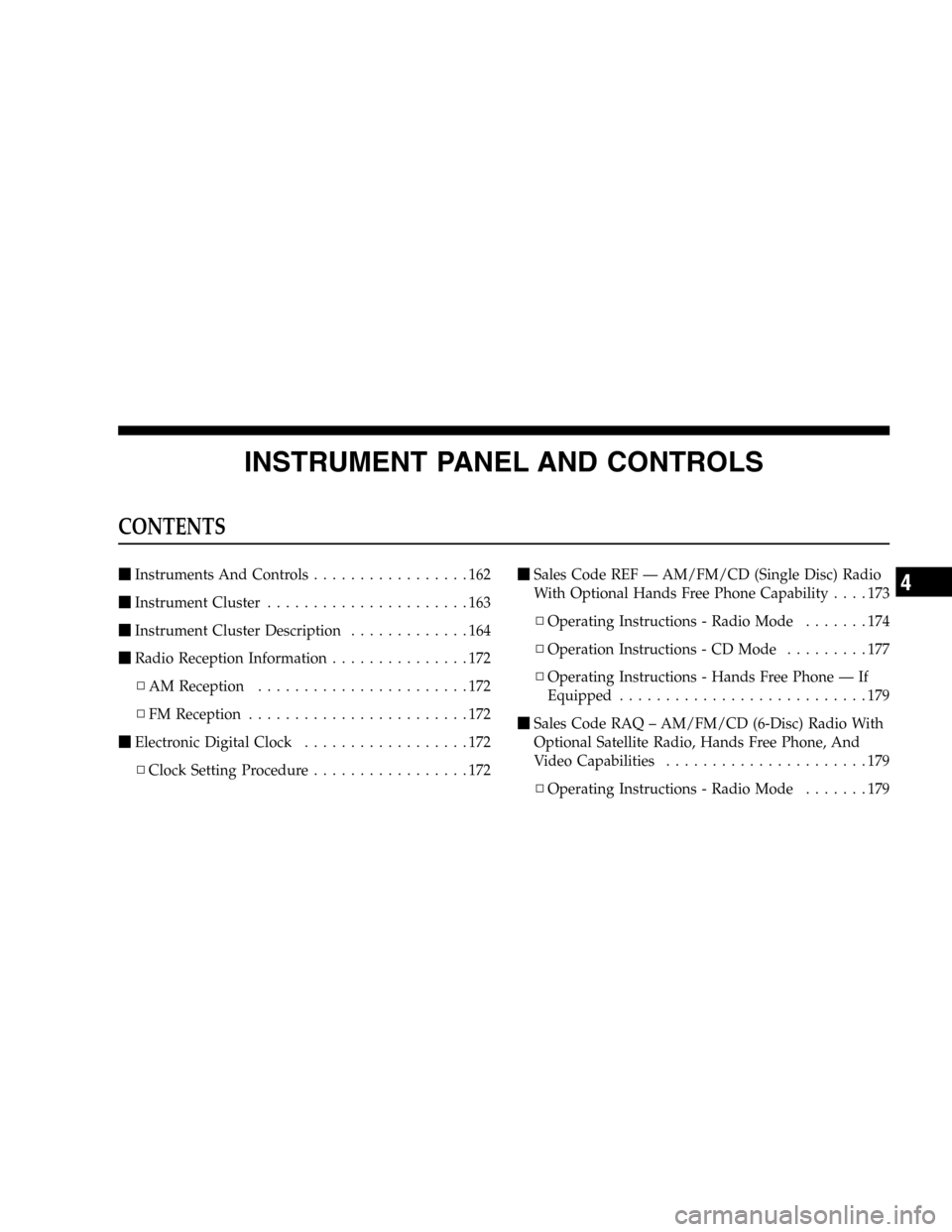

INSTRUMENT PANEL AND CONTROLS
CONTENTS

Instruments And Controls.................162

Instrument Cluster......................163

Instrument Cluster Description.............164

Radio Reception Information...............172
▫AM Reception.......................172
▫FM Reception........................172

Electronic Digital Clock..................172
▫Clock Setting Procedure.................172
Sales Code REF — AM/FM/CD (Single Disc) Radio
With Optional Hands Free Phone Capability....173
▫Operating Instructions - Radio Mode.......174
▫Operation Instructions - CD Mode.........177
▫Operating Instructions - Hands Free Phone — If
Equipped...........................179

Sales Code RAQ – AM/FM/CD (6-Disc) Radio With
Optional Satellite Radio, Hands Free Phone, And
Video Capabilities......................179
▫Operating Instructions - Radio Mode.......1794

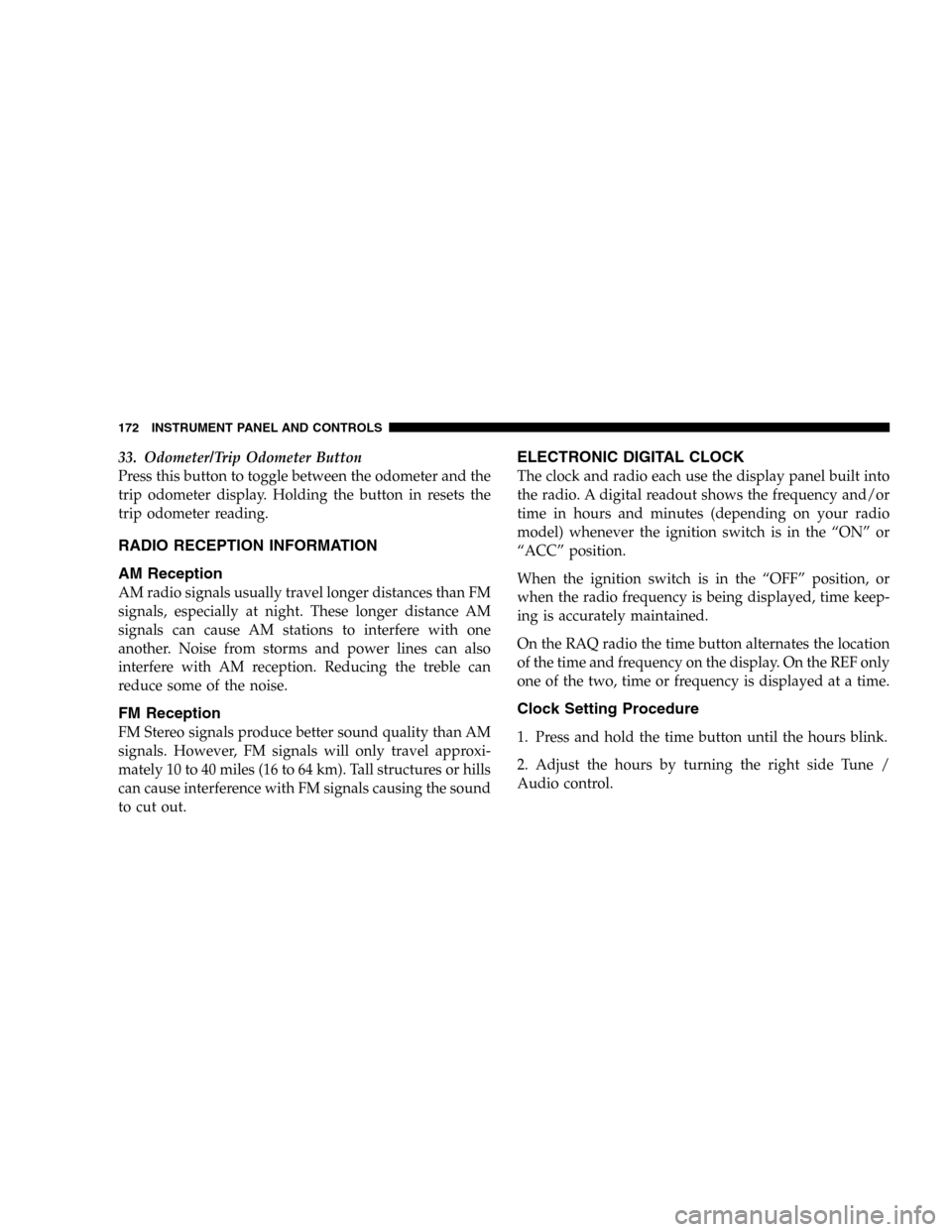

33. Odometer/Trip Odometer Button
Press this button to toggle between the odometer and the
trip odometer display. Holding the button in resets the
trip odometer reading.
RADIO RECEPTION INFORMATION
AM Reception
AM radio signals usually travel longer distances than FM
signals, especially at night. These longer distance AM
signals can cause AM stations to interfere with one
another. Noise from storms and power lines can also
interfere with AM reception. Reducing the treble can
reduce some of the noise.
FM Reception
FM Stereo signals produce better sound quality than AM
signals. However, FM signals will only travel approxi-
mately 10 to 40 miles (16 to 64 km). Tall structures or hills
can cause interference with FM signals causing the sound
to cut out.
ELECTRONIC DIGITAL CLOCK
The clock and radio each use the display panel built into
the radio. A digital readout shows the frequency and/or
time in hours and minutes (depending on your radio
model) whenever the ignition switch is in the “ON” or
“ACC” position.
When the ignition switch is in the “OFF” position, or
when the radio frequency is being displayed, time keep-
ing is accurately maintained.
On the RAQ radio the time button alternates the location
of the time and frequency on the display. On the REF only
one of the two, time or frequency is displayed at a time.
Clock Setting Procedure
1. Press and hold the time button until the hours blink.
2. Adjust the hours by turning the right side Tune /
Audio control.
172 INSTRUMENT PANEL AND CONTROLS

LOAD / EJECT - Eject
Press the LOAD/ EJECT button and the push-
button with the corresponding number where
the CD was loaded and the disc will unload
and move to the entrance for easy removal.
Radio display will showEJECTING DISCwhen the disc
is being ejected and prompt the user to remove the disc.
Press and hold the LOAD/ EJECT button to eject all discs
in the radio.
If you have ejected a disc and have not removed it within
15 seconds, it will be reloaded. If the CD is not removed,
the radio will continue to play the non-removed CD. If
the CD is removed and there are other CD’s in the radio,
the radio will play the next CD. If the CD is removed and
there are no other CD’s in the radio, the radio will remain
in CD mode and displayNO DISC LOADED. The disc
can be ejected with the radio and ignition OFF.
TIME Button (CD MODE For CD Audio Play)
Press this button to change the display from a large CD
playing time display and small clock time display to a
large clock time display and small CD playing time
display.
RW/FF (CD MODE For CD Audio Play)
Press FF (Fast Forward) once and the CD player will
begin to fast forward until FF is pressed again or RW or
another CD button is pressed. The RW (Reverse) button
works in a similar manner.
TUNE Control (CD MODE For CD Audio Play)
Pressing the TUNE control allows the setting of the Tone,
Fade, and Balance. See Radio Mode.
AM/FM Button (CD MODE For CD Audio Play)
Switches the Radio to the Radio mode.
INSTRUMENT PANEL AND CONTROLS 185
4

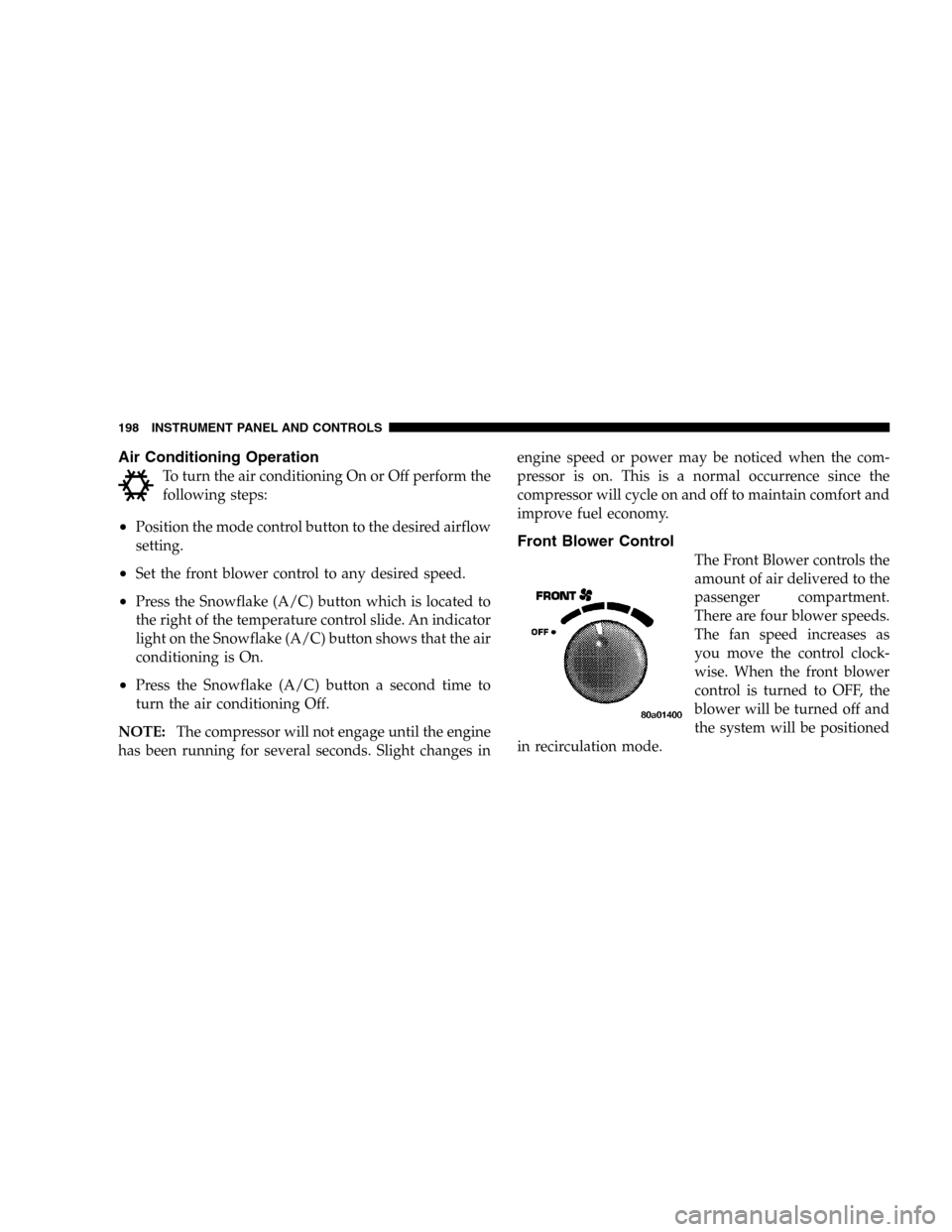

Air Conditioning Operation
To turn the air conditioning On or Off perform the
following steps:
•Position the mode control button to the desired airflow
setting.
•Set the front blower control to any desired speed.
•Press the Snowflake (A/C) button which is located to
the right of the temperature control slide. An indicator
light on the Snowflake (A/C) button shows that the air
conditioning is On.
•Press the Snowflake (A/C) button a second time to
turn the air conditioning Off.
NOTE:The compressor will not engage until the engine
has been running for several seconds. Slight changes inengine speed or power may be noticed when the com-
pressor is on. This is a normal occurrence since the
compressor will cycle on and off to maintain comfort and
improve fuel economy.
Front Blower Control
The Front Blower controls the
amount of air delivered to the
passenger compartment.
There are four blower speeds.
The fan speed increases as
you move the control clock-
wise. When the front blower
control is turned to OFF, the
blower will be turned off and
the system will be positioned
in recirculation mode.
198 INSTRUMENT PANEL AND CONTROLS

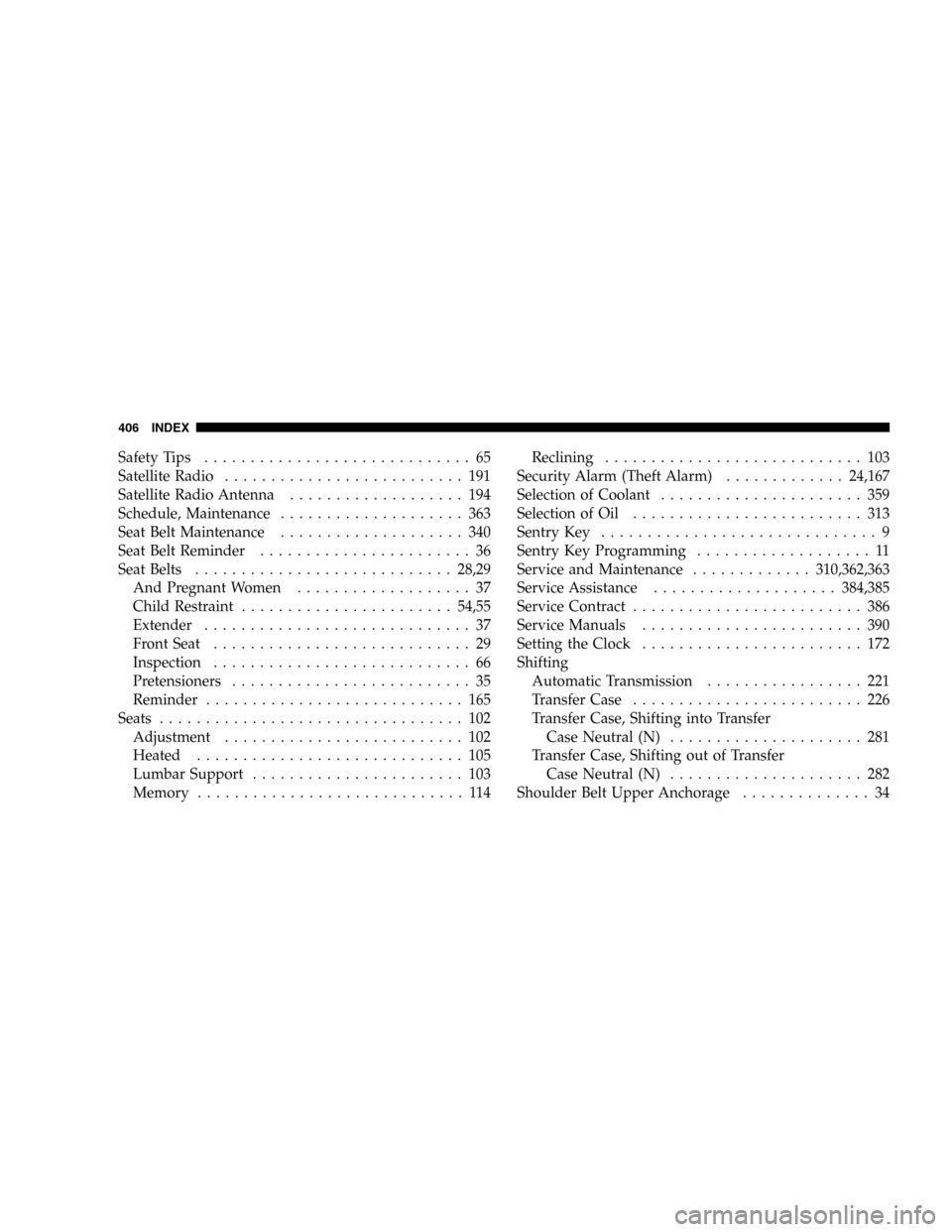

Safety Tips............................. 65
Satellite Radio.......................... 191
Satellite Radio Antenna................... 194
Schedule, Maintenance.................... 363
Seat Belt Maintenance.................... 340
Seat Belt Reminder....................... 36
Seat Belts............................28,29
And Pregnant Women................... 37
Child Restraint.......................54,55
Extender............................. 37
Front Seat............................ 29
Inspection............................ 66
Pretensioners.......................... 35
Reminder............................ 165
Seats................................. 102
Adjustment.......................... 102
Heated............................. 105
Lumbar Support....................... 103
Memory............................. 114Reclining............................ 103
Security Alarm (Theft Alarm).............24,167
Selection of Coolant...................... 359
Selection of Oil......................... 313
Sentry Key.............................. 9
Sentry Key Programming................... 11
Service and Maintenance.............310,362,363
Service Assistance....................384,385
Service Contract......................... 386
Service Manuals........................ 390
Setting the Clock........................ 172
Shifting
Automatic Transmission................. 221
Transfer Case......................... 226
Transfer Case, Shifting into Transfer
Case Neutral (N)..................... 281
Transfer Case, Shifting out of Transfer
Case Neutral (N)..................... 282
Shoulder Belt Upper Anchorage.............. 34
406 INDEX
