mirror DODGE DURANGO 2005 2.G Owners Manual

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS

Mirrors...............................74
▫Inside Day/Night Mirror.................74
▫Automatic Dimming Mirror — If Equipped....74
▫Outside Mirrors.......................75
▫Exterior Mirrors Folding Feature — If
Equipped............................75
▫Electric Remote-Control Mirrors............76
▫Illuminated Vanity Mirrors — If Equipped....77
▫Heated Mirrors — If Equipped.............77▫Automatic Dimming Driver’s Exterior
Mirror — If Equipped...................78

Hands–Free Communication (UConnect™) — If
Equipped.............................78
▫Operation............................80
▫Phone Call Features....................86
▫UConnect™ System Features..............89
▫Advanced Phone Connectivity.............93
▫Things You Should Know About Your
UConnect™ System.....................95
3

Seats................................102
▫Front Seat Manual Seat Adjustment........102
▫Front Seats Manual Seat Recliners..........103
▫Manual Lumbar Support Adjustment — If
Equipped...........................103
▫Adjustable Head Restraints — All Seating
Positions...........................104
▫8 - Way Driver’s Power Seat — If Equipped . . 104
▫4 - Way Passenger’s Power Seat — If
Equipped...........................105
▫Front Heated Seats — If Equipped.........105
▫Second Row 40/20/40 Seat — Fold And
Tumble............................106
▫Third Row Seat Bench — If Equipped.......109▫Third Seat 50/50 Split Seat — If Equipped . . . 111

Driver Memory System — If Equipped.......114
▫Setting Memory Positions And Linking Remote
Keyless Entry Transmitter To Memory.......115
▫Memory Position Recall.................116
▫To Disable A Transmitter Linked To Memory . . 116
▫Self-Limiting Control...................117
▫Driver Easy Exit And Easy Entry Control....117
▫Tilt Mirrors In Reverse.................118

To Open And Close The Hood.............118

Lights...............................120
▫Interior Lights.......................121
▫Battery Saver........................121
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
The mirror should be adjusted to center on the view
through the rear window. A two-point pivot system
allows for horizontal and vertical adjustment of the
mirror.Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward rear of truck). The mirror should be adjusted
while set in the day position (toward windshield).
Automatic Dimming Mirror — If Equipped
This mirror will automatically adjust for annoying head-
light glare from vehicles behind you. You can turn the
feature on or off by pressing the button at the base of the
mirror. A light in the button will indicate when the
dimming feature is activated. This option also controls
the driver’s side mirror when it is equipped with auto
dimming glass.
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Exterior Mirrors Folding Feature — If Equipped
Folding exterior mirrors are hinged and may be moved
either forward or rearward to resist damage.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

Electric Remote-Control Mirrors
The controls for the power mirrors are located on the
driver’s door trim panel.
To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Vehicles and other objects seen in the right side
convex mirror will look smaller and farther away
than they really are. Relying too much on your right
side mirror could cause you to collide with another
vehicle or other object. Use your inside mirror when
judging the size or distance of a vehicle seen in the
right side mirror.

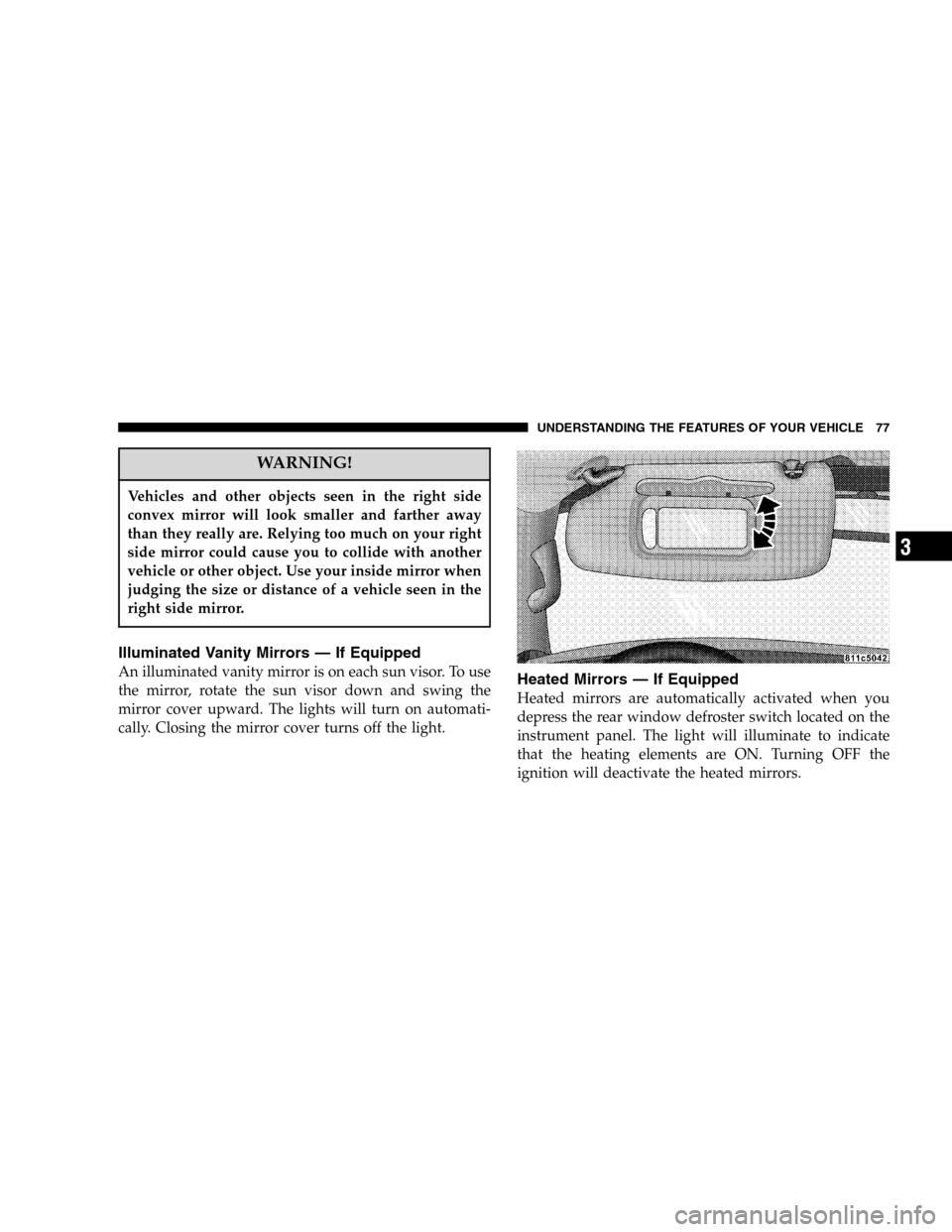

Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the light.Heated Mirrors — If Equipped
Heated mirrors are automatically activated when you
depress the rear window defroster switch located on the
instrument panel. The light will illuminate to indicate
that the heating elements are ON. Turning OFF the
ignition will deactivate the heated mirrors.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

Automatic Dimming Driver’s Exterior Mirror — If
Equipped
This mirror will automatically adjust for annoying light
glare from vehicles behind you. This feature is controlled
by the inside mirror and can be turned off by pressing the
button at the base of the inside mirror.
HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED
UConnect™ is a voice-activated, hands-free, in vehicle
communications system. UConnect™ allows you to dial
a phone number with your cellular phone* using simple
voice commands (e.g.,CallMikeWorkorDial
248-555-1212). Your cellular phone’s audio is transmitted
through your vehicle’s audio system; the system will
automatically mute your radio when using the UCon-
nect™ system.NOTE:The UConnect™ system use requires a cellular
phone equipped with the BluetoothHands-Free Profile,
version 0.96 or higher.
For UConnect Customer Support call 1-877-855-8400 or
visit the UConnect website (www.chrysler.com/
uconnect).
UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro-
phone for private conversation.
The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32 name phonebook accessible only in that
language. This system is driven through your Blue-
tooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
that enables different electronic devices to connect to
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system. The diagram below shows the mirror
with the appropriate buttons. Individual button behavior
is discussed in theOperationsection.The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. If your
cellular phone supports a different profile (eg., Headset
Profile), you may not be able to use any UConnect™
features. Refer to your cellular service provider or the
phone manufacturer for details.
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

Help Command
If you need assistance at any prompt or if you want to
know what your options are at any prompt, sayHelp
following the voice on beep. The UConnect™ system will
play all the options at any prompt if you ask for help.
To activate the UConnect™ system from idle, simply
press the ’Phone’ button and follow audible prompts for
directions. All UConnect™ system sessions begin with a
press of the ’Phone’ button on the mirror.
Cancel Command
At any prompt, after the voice on beep, you can say
Canceland you will be returned to the main menu.
However, in a few instances the system will take you
back to the previous menu.
Pair (Link) UConnect™ System to a Cellular Phone
To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone (re-
fer toIntroductionsection to learn about the phonetype). To complete the pairing process, you will need to
reference your cellular phone owner’s manual. One of the
following vehicle specific websites may also provide
detailed instructions for pairing with the brand of phone
that you have:
NOTE:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
The following are general phone to UConnect™ System
pairing instructions:
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the voice on beep, sayPair a
Phone.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

DRIVER MEMORY SYSTEM — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat
position, driver’s outside mirror position, adjustable
brake and accelerator pedals position, Automatic Tem-
perature Control (ATC) temperature and radio station
preset settings. Your Remote Keyless Entry transmitters
can also be programmed to recall the same positions
when the UNLOCK button is pressed.
Your vehicle was delivered with two Remote Keyless
Entry transmitters. One or both transmitters can be
linked to either memory position. The memory system
can accommodate up to two transmitters, each transmit-
ter linked to either of the two memory positions.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
