THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys.................. 9
▫Key-In-Ignition Reminder................ 9
▫Sentry Key — If Equipped................ 9

Ignition And Steering Lock.................12
▫Ignition Accessory Delay Feature...........13

Illuminated Entry........................13
▫Vehicles Equipped With Power Door Locks....13

Door Locks............................13
▫Manual Door Locks.....................13▫Power Door Locks.....................14
▫Child Protection Door Lock...............17

Remote Keyless Entry.....................19
▫To Unlock The Doors And Liftgate..........19
▫To Lock The Doors And Liftgate............20
▫Using The Panic Alarm..................21
▫General Information....................22
▫Programming Additional Transmitters........22
▫Battery Replacement....................24
2

Vehicles equipped with power door locks can be locked
or unlocked from inside by either the use of the door lock
switches located on the front doors or by pressing the
LOCK or UNLOCK buttons on the Remote Keyless Entry
key fob.As a safety feature the doors will not lock when using the
door lock switches during the following conditions:
•The driver’s door is open while the key is in the
ignition.
Automatic Door Locks
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
1. Enter your vehicle and Close all doors.
2. Fasten your seat belt (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure).
3. Place the key into the ignition.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances a
minimum of 66 feet (20 meters) using a hand held radio
transmitter. The transmitter need not be pointed at the
vehicle to activate the system.NOTE:The line of transmission must not be blocked
with metal objects.
To unlock the doors and liftgate:
Press and release the UNLOCK button on the key fob
once to unlock only the driver’s door or twice to unlock
all the doors and liftgate. When the UNLOCK button is
pressed, the illuminated entry will initiate, and the
parking lights will flash on twice.
The system can be programmed to unlock all the doors
upon the first UNLOCK button press by using the
following procedure:
1. Press and hold the LOCK button on a programmed
key fob.
2. Continue to hold the LOCK button at least 4 seconds,
but not longer than 10 seconds, then press and hold the
UNLOCK button. A single chime will sound to indicate
that this feature has changed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

Mode, the door locks and remote keyless entry systems
will function normally. Panic mode will not disarm the
security system on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your Remote Lock Control fails to operate from a
normal distance, check for these two conditions.1. Weak batteries in transmitter. The expected life of
batteries is five years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Programming Additional Transmitters
Vehicles will be shipped from the assembly plants with
two key fob transmitters programmed only for that
vehicle. A total of eight fobs can be programmed for your
vehicle. Additional fobs can be programmed to your
vehicle through the use of a currently programmed fob.
NOTE:When entering program mode using that fob, all
other programmed fobs will be erased and you will have
to reprogram them for your vehicle.
Use the Following procedure to program additional key
fobs if the vehicle is not equipped with Sentry Key:
1. Enter your vehicle and close all doors.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Set the Alarm:
The alarm will set when you use the power door locks or
use the Keyless Entry transmitter to lock the doors. After
all the doors are locked and closed the security light in
the instrument cluster will flash rapidly to signal that the
system is arming. The security light in the instrument
panel cluster will flash rapidly for about 15 seconds to
indicate that the alarm is being set. After the alarm is set,
the security light will flash at a slower rate to indicate
that the system is armed.
NOTE:If the security light stays on continuously during
vehicle operation, have the system checked by your
dealer.
To Disarm the System:
Use the Keyless Entry transmitter to unlock the doors. If
something has triggered the system in your absence, the
horn will sound three times when you unlock the doors.
Check the vehicle for tampering.The security system will also disarm, if the vehicle is
started with a programmed Sentry Key. If an unpro-
grammed Sentry Key is used to start a vehicle, the engine
will start and run for 2 seconds and then shut down.
After six unsuccessul attempts at starting the engine, the
system will shut down until the correct key is used. To
exit alarming mode, press the RKE Unlock button or start
the vehicle with a programmed Sentry Key.
The security alarm system is designed to protect your
vehicle; however, you can create conditions where the
system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the transmitter, the alarm
will sound when you pull the door handle to exit.
NOTE:You may accidentally activate the security sys-
tem (horn sounds and lights flash) by entering the vehicle
without using the key fob to unlock the door(s). The
security system can be disarmed with the key fob’s
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

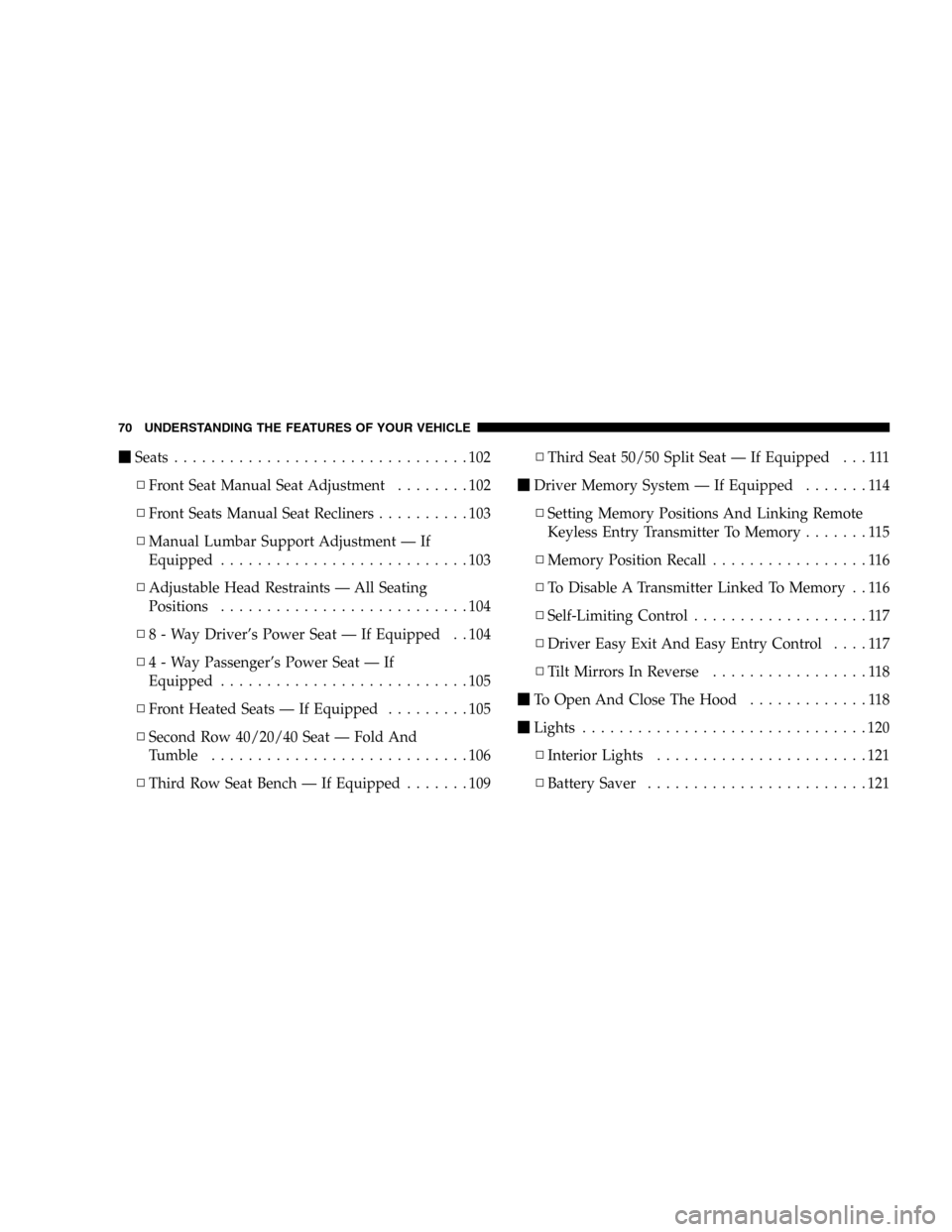

Seats................................102
▫Front Seat Manual Seat Adjustment........102
▫Front Seats Manual Seat Recliners..........103
▫Manual Lumbar Support Adjustment — If
Equipped...........................103
▫Adjustable Head Restraints — All Seating
Positions...........................104
▫8 - Way Driver’s Power Seat — If Equipped . . 104
▫4 - Way Passenger’s Power Seat — If
Equipped...........................105
▫Front Heated Seats — If Equipped.........105
▫Second Row 40/20/40 Seat — Fold And
Tumble............................106
▫Third Row Seat Bench — If Equipped.......109▫Third Seat 50/50 Split Seat — If Equipped . . . 111

Driver Memory System — If Equipped.......114
▫Setting Memory Positions And Linking Remote
Keyless Entry Transmitter To Memory.......115
▫Memory Position Recall.................116
▫To Disable A Transmitter Linked To Memory . . 116
▫Self-Limiting Control...................117
▫Driver Easy Exit And Easy Entry Control....117
▫Tilt Mirrors In Reverse.................118

To Open And Close The Hood.............118

Lights...............................120
▫Interior Lights.......................121
▫Battery Saver........................121
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

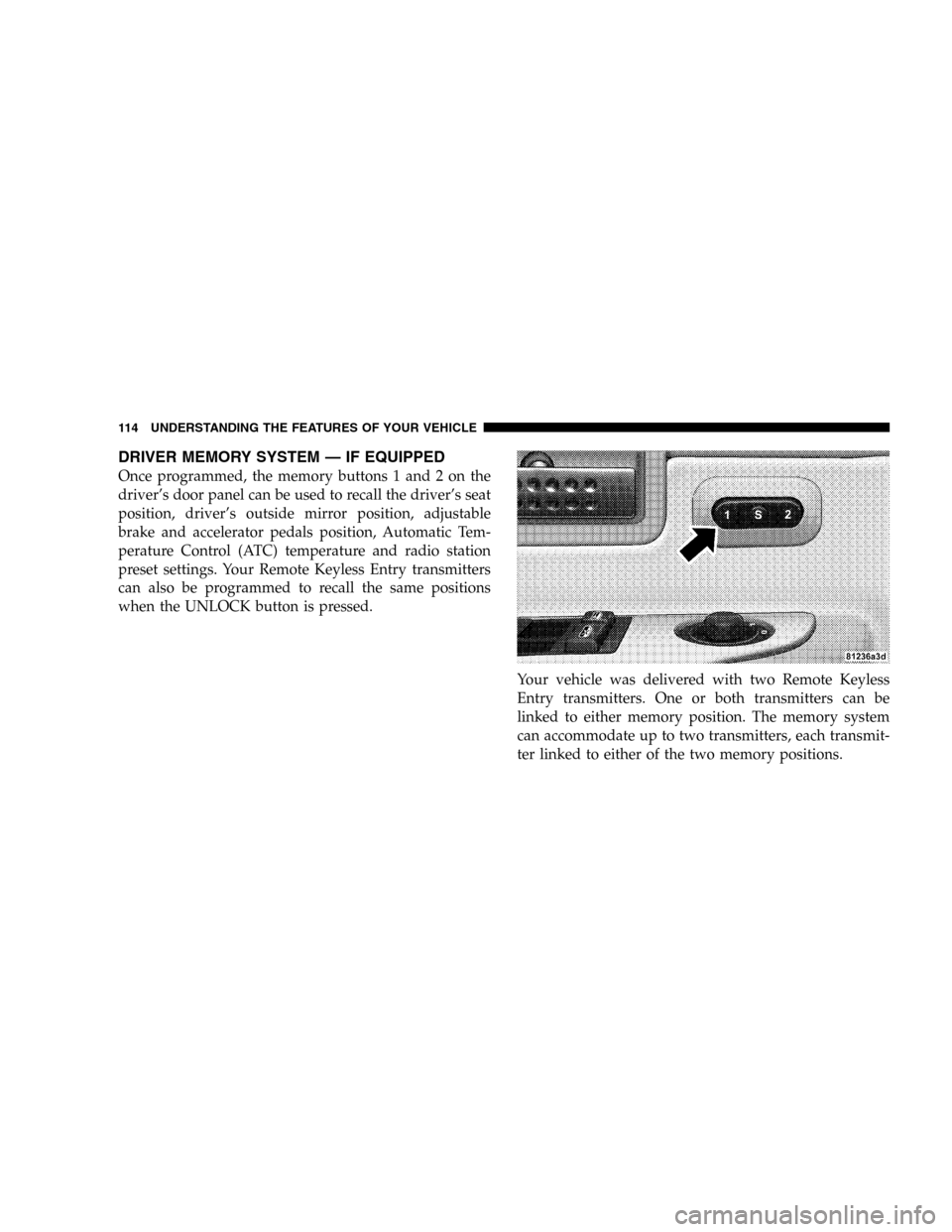

DRIVER MEMORY SYSTEM — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat
position, driver’s outside mirror position, adjustable
brake and accelerator pedals position, Automatic Tem-
perature Control (ATC) temperature and radio station
preset settings. Your Remote Keyless Entry transmitters
can also be programmed to recall the same positions
when the UNLOCK button is pressed.
Your vehicle was delivered with two Remote Keyless
Entry transmitters. One or both transmitters can be
linked to either memory position. The memory system
can accommodate up to two transmitters, each transmit-
ter linked to either of the two memory positions.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

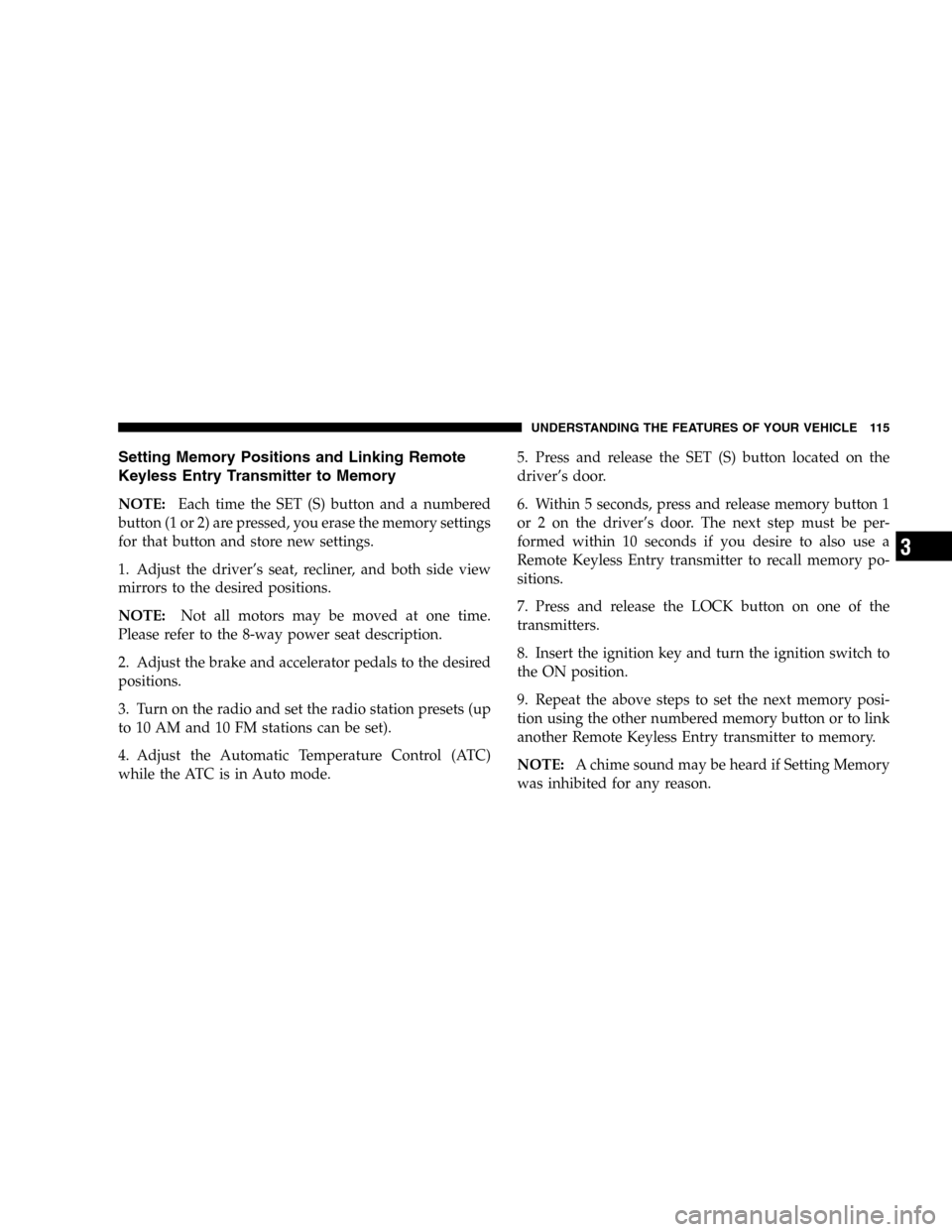

Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the SET (S) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Adjust the driver’s seat, recliner, and both side view
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time.
Please refer to the 8-way power seat description.
2. Adjust the brake and accelerator pedals to the desired
positions.
3. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
4. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.5. Press and release the SET (S) button located on the
driver’s door.
6. Within 5 seconds, press and release memory button 1
or 2 on the driver’s door. The next step must be per-
formed within 10 seconds if you desire to also use a
Remote Keyless Entry transmitter to recall memory po-
sitions.
7. Press and release the LOCK button on one of the
transmitters.
8. Insert the ignition key and turn the ignition switch to
the ON position.
9. Repeat the above steps to set the next memory posi-
tion using the other numbered memory button or to link
another Remote Keyless Entry transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

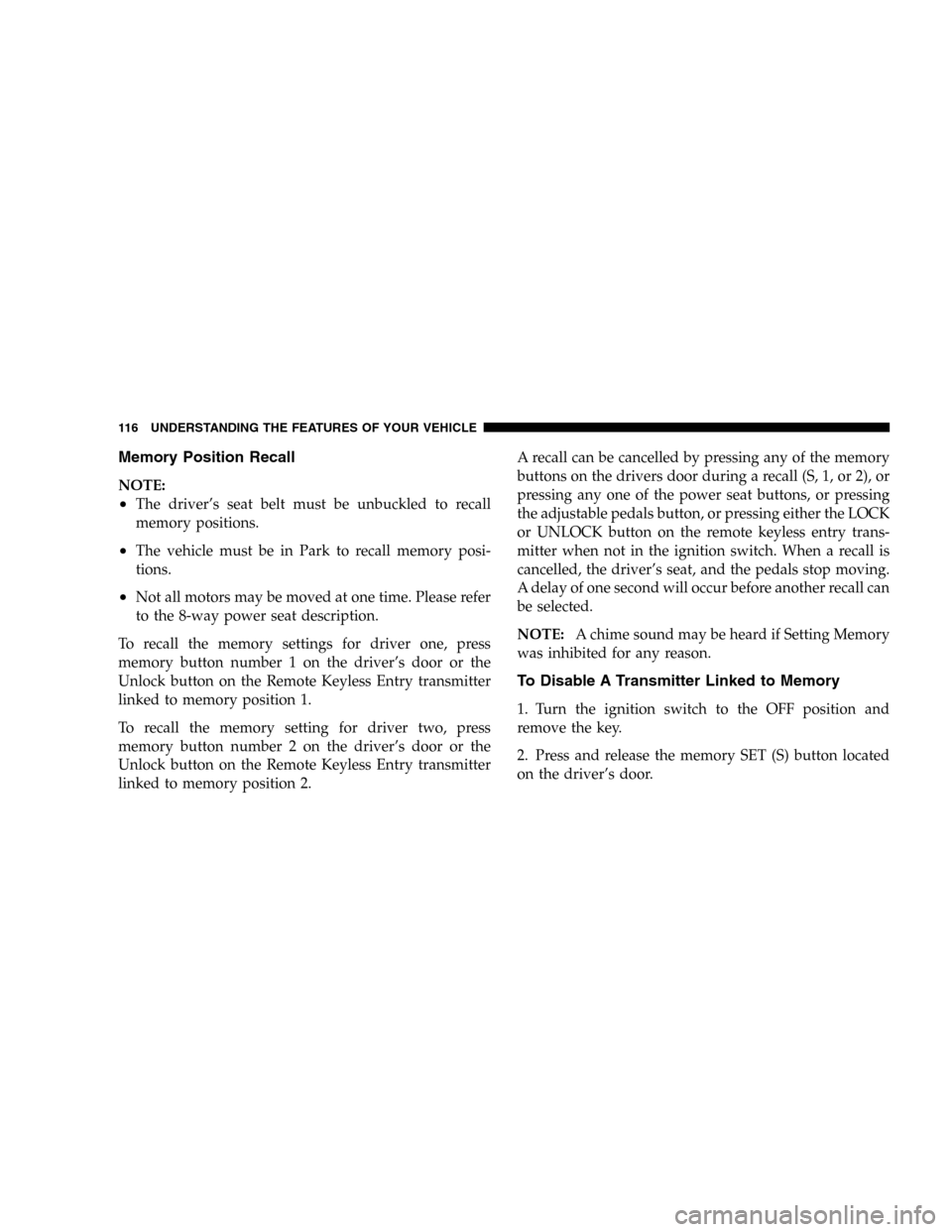

Memory Position Recall
NOTE:
•The driver’s seat belt must be unbuckled to recall
memory positions.
•The vehicle must be in Park to recall memory posi-
tions.
•Not all motors may be moved at one time. Please refer
to the 8-way power seat description.
To recall the memory settings for driver one, press
memory button number 1 on the driver’s door or the
Unlock button on the Remote Keyless Entry transmitter
linked to memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door or the
Unlock button on the Remote Keyless Entry transmitter
linked to memory position 2.A recall can be cancelled by pressing any of the memory
buttons on the drivers door during a recall (S, 1, or 2), or
pressing any one of the power seat buttons, or pressing
the adjustable pedals button, or pressing either the LOCK
or UNLOCK button on the remote keyless entry trans-
mitter when not in the ignition switch. When a recall is
cancelled, the driver’s seat, and the pedals stop moving.
A delay of one second will occur before another recall can
be selected.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
To Disable A Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET (S) button located
on the driver’s door.
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

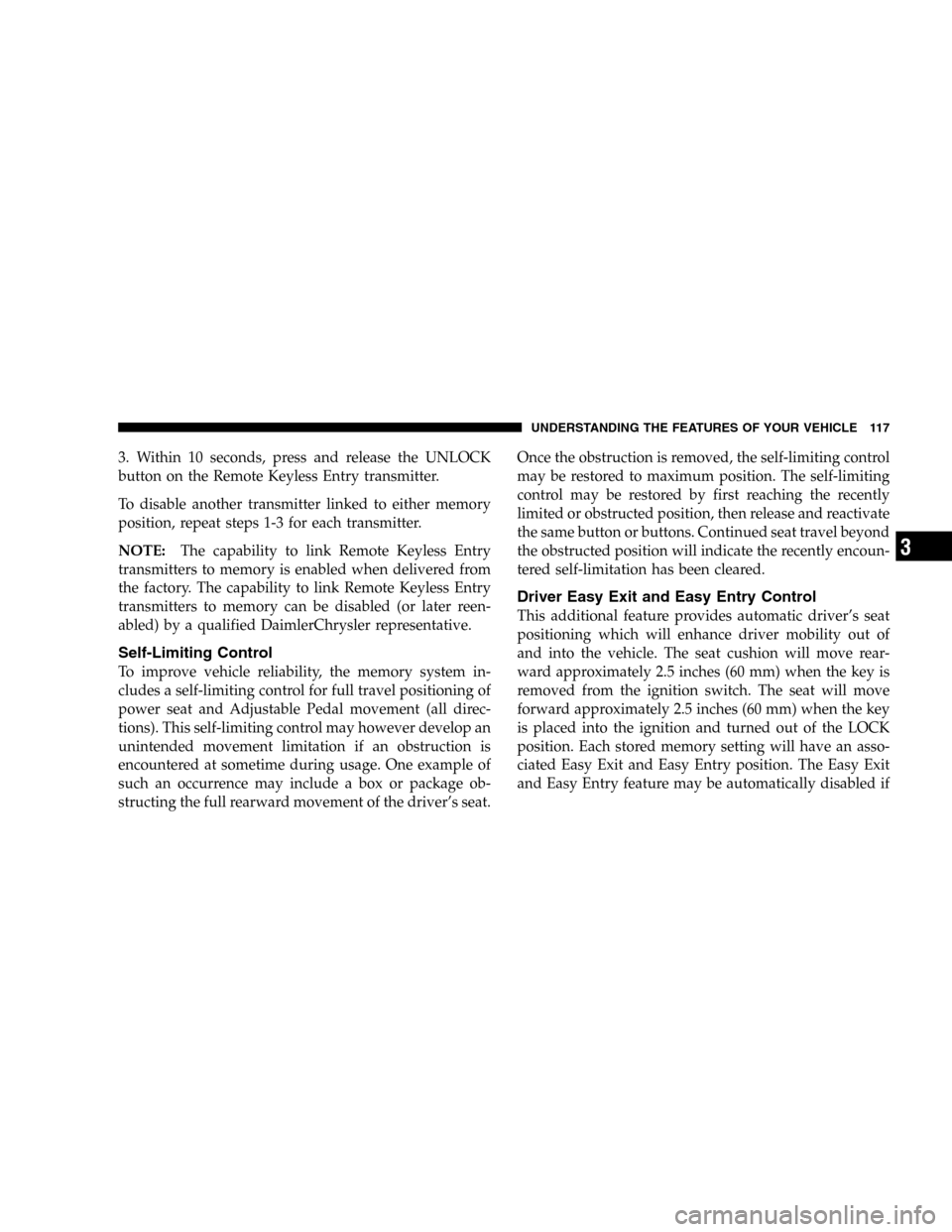

3. Within 10 seconds, press and release the UNLOCK
button on the Remote Keyless Entry transmitter.
To disable another transmitter linked to either memory
position, repeat steps 1-3 for each transmitter.
NOTE:The capability to link Remote Keyless Entry
transmitters to memory is enabled when delivered from
the factory. The capability to link Remote Keyless Entry
transmitters to memory can be disabled (or later reen-
abled) by a qualified DaimlerChrysler representative.
Self-Limiting Control
To improve vehicle reliability, the memory system in-
cludes a self-limiting control for full travel positioning of
power seat and Adjustable Pedal movement (all direc-
tions). This self-limiting control may however develop an
unintended movement limitation if an obstruction is
encountered at sometime during usage. One example of
such an occurrence may include a box or package ob-
structing the full rearward movement of the driver’s seat.Once the obstruction is removed, the self-limiting control
may be restored to maximum position. The self-limiting
control may be restored by first reaching the recently
limited or obstructed position, then release and reactivate
the same button or buttons. Continued seat travel beyond
the obstructed position will indicate the recently encoun-
tered self-limitation has been cleared.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver’s seat
positioning which will enhance driver mobility out of
and into the vehicle. The seat cushion will move rear-
ward approximately 2.5 inches (60 mm) when the key is
removed from the ignition switch. The seat will move
forward approximately 2.5 inches (60 mm) when the key
is placed into the ignition and turned out of the LOCK
position. Each stored memory setting will have an asso-
ciated Easy Exit and Easy Entry position. The Easy Exit
and Easy Entry feature may be automatically disabled if
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
3
