mirror DODGE DURANGO 2005 2.G User Guide

Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the SET (S) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Adjust the driver’s seat, recliner, and both side view
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time.
Please refer to the 8-way power seat description.
2. Adjust the brake and accelerator pedals to the desired
positions.
3. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
4. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.5. Press and release the SET (S) button located on the
driver’s door.
6. Within 5 seconds, press and release memory button 1
or 2 on the driver’s door. The next step must be per-
formed within 10 seconds if you desire to also use a
Remote Keyless Entry transmitter to recall memory po-
sitions.
7. Press and release the LOCK button on one of the
transmitters.
8. Insert the ignition key and turn the ignition switch to
the ON position.
9. Repeat the above steps to set the next memory posi-
tion using the other numbered memory button or to link
another Remote Keyless Entry transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

the seat is positioned rearward enough and no benefit
from moving the seat any farther rearward.
NOTE:The Easy Exit Easy Entry feature is not enabled
when delivered from the factory. The Easy Exit Easy
Entry feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
Tilt Mirrors in Reverse
This additional feature provides automatic outside mir-
ror positioning which will aid the driver’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into Reverse position. The
outside mirrors will then return to the original position
when the vehicle is shifted out of Reverse position. Each
stored memory setting will have an associated Tilt Mir-
rors in Reverse position.
NOTE:The Tilt Mirrors in Reverse feature is not en-
abled when delivered from the factory. The Tilt Mirrors inReverse feature may be enabled (or later disabled) by a
qualified DaimlerChrysler service representative.
TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released. First pull
the hood release lever located under the left side of the
instrument panel.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the rear wiper is operating when the ignition is turned
off, the wiper will automatically return to the “Park”
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A push-button type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn On. An amber indicator on the
push-button will light when the defroster is turned On.
An symbol will be displayed when the defroster is turned
on with an ATC control. Push again to turn Off prior to
time-out. The defroster will automatically turn Off after
fifteen minutes. For ten more minutes of operation, push
the button again. To prevent excessive battery drain, use
the defroster only when the engine is operating.
CAUTION!
Use care when washing the inside of the rear win-
dow to prevent damage to heating elements. Use a
soft cloth and a mild washing solution, wiping
parallel to the heating elements. Also, keep all
objects a safe distance from the window to prevent
damaging the heating elements.
INSTRUMENT PANEL AND CONTROLS 213
4

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with any commercial household-type glass cleaner.
Never use an abrasive type cleaner. Use caution when
cleaning inside rear windows equipped with electric
defrosters or windshields equipped with a windshield
wiper de-icer. Do not use scrapers or other sharp instru-
ments which may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
340 MAINTAINING YOUR VEHICLE

Cavity Fuse/Color Description
F1 15 Amp BlueInstrument Clus-
ter Battery Feed
F 2 10 Amp RedOccupant Classi-
fication Module
(OCM) Battery
Feed
F3 10 Amp RedIgnition Run/
Start for Control-
ler (NGC), Inte-
grated Power
Module (IPM),
AC Relay and
Fuel Pump Re-
lay
F4 10 Amp RedDoor Node and
Non-Memory
Power Mirror
Switch Battery
Feed
Fuse Block
MAINTAINING YOUR VEHICLE 343
7

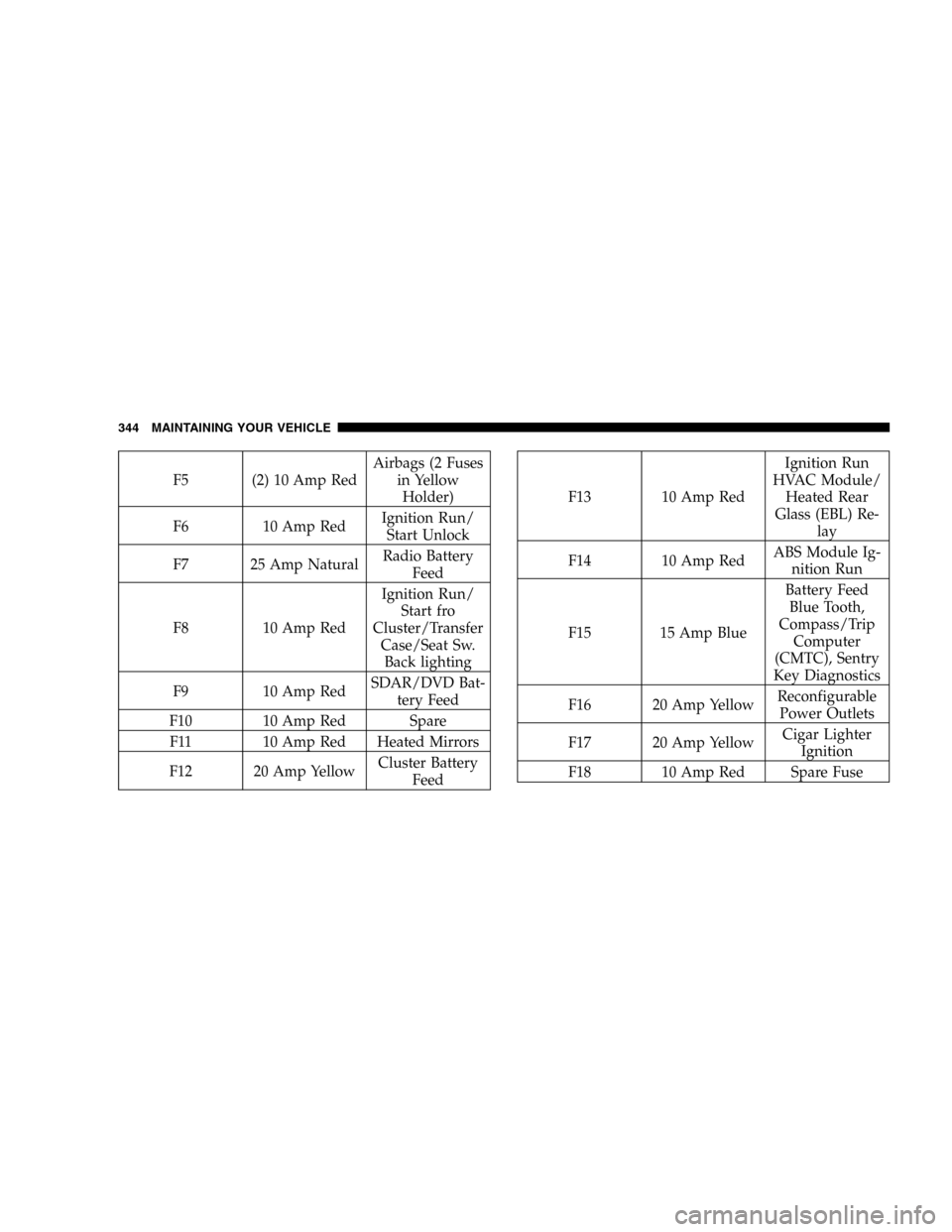

F5 (2) 10 Amp RedAirbags (2 Fuses
in Yellow
Holder)
F6 10 Amp RedIgnition Run/
Start Unlock
F7 25 Amp NaturalRadio Battery
Feed
F8 10 Amp RedIgnition Run/
Start fro
Cluster/Transfer
Case/Seat Sw.
Back lighting
F9 10 Amp RedSDAR/DVD Bat-
tery Feed
F10 10 Amp Red Spare
F11 10 Amp Red Heated Mirrors
F12 20 Amp YellowCluster Battery
Feed
F13 10 Amp RedIgnition Run
HVAC Module/
Heated Rear
Glass (EBL) Re-
lay
F14 10 Amp RedABS Module Ig-
nition Run
F15 15 Amp BlueBattery Feed
Blue Tooth,
Compass/Trip
Computer
(CMTC), Sentry
Key Diagnostics
F16 20 Amp YellowReconfigurable
Power Outlets
F17 20 Amp YellowCigar Lighter
Ignition
F18 10 Amp Red Spare Fuse
344 MAINTAINING YOUR VEHICLE

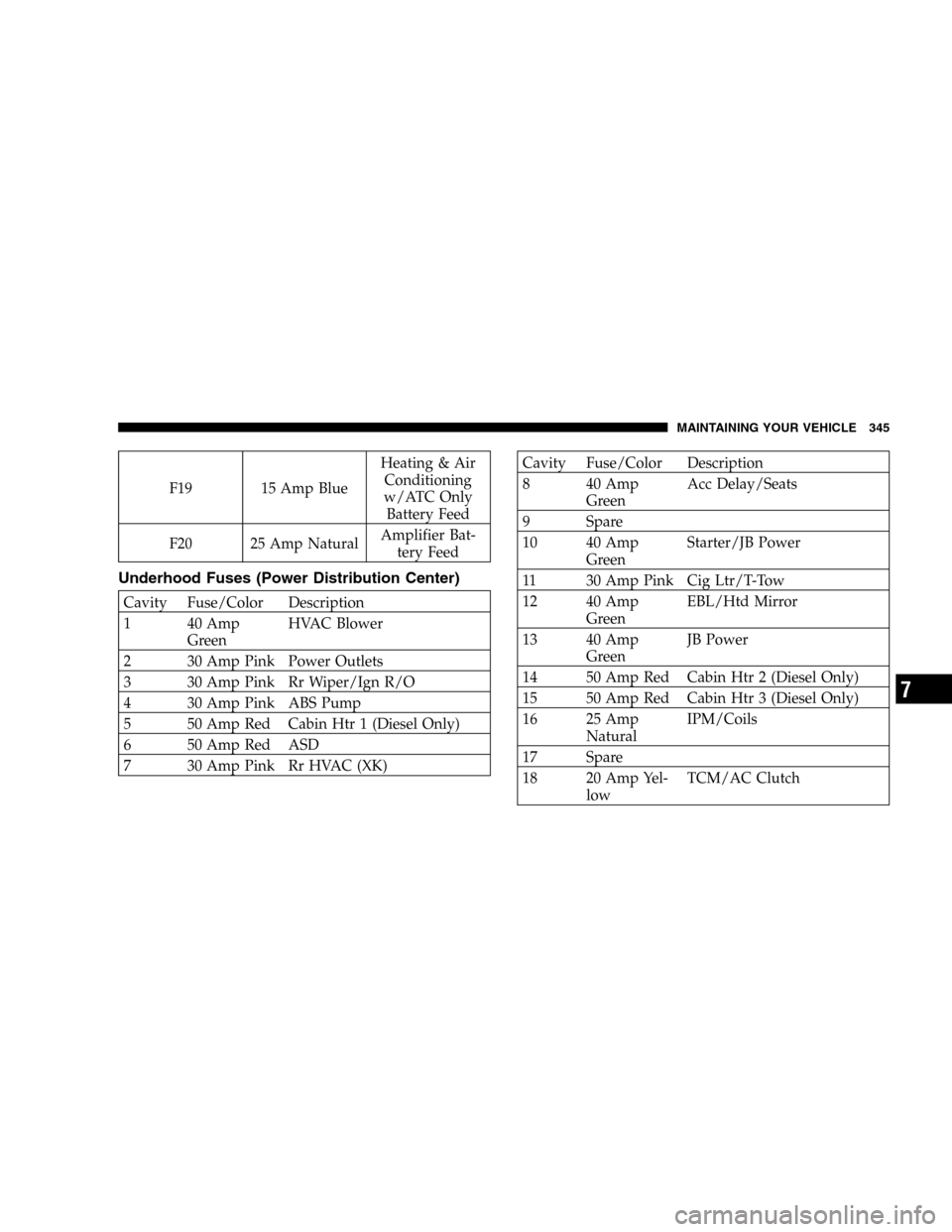

F19 15 Amp BlueHeating & Air
Conditioning
w/ATC Only
Battery Feed
F20 25 Amp NaturalAmplifier Bat-
tery Feed
Underhood Fuses (Power Distribution Center)
Cavity Fuse/Color Description
1 40 Amp
GreenHVAC Blower
2 30 Amp Pink Power Outlets
3 30 Amp Pink Rr Wiper/Ign R/O
4 30 Amp Pink ABS Pump
5 50 Amp Red Cabin Htr 1 (Diesel Only)
6 50 Amp Red ASD
7 30 Amp Pink Rr HVAC (XK)
Cavity Fuse/Color Description
8 40 Amp
GreenAcc Delay/Seats
9 Spare
10 40 Amp
GreenStarter/JB Power
11 30 Amp Pink Cig Ltr/T-Tow
12 40 Amp
GreenEBL/Htd Mirror
13 40 Amp
GreenJB Power
14 50 Amp Red Cabin Htr 2 (Diesel Only)
15 50 Amp Red Cabin Htr 3 (Diesel Only)
16 25 Amp
NaturalIPM/Coils
17 Spare
18 20 Amp Yel-
lowTCM/AC Clutch
MAINTAINING YOUR VEHICLE 345
7

ABS (Anti-Lock Brake) System............167,236
Adding Fuel........................262,286
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 316
Air Conditioner Maintenance............198,319
Air Conditioning........................ 197
Air Conditioning, Operating Tips............ 209
Air Conditioning, Rear Zone................ 201
Air Conditioning Refrigerant.............319,320
Air Conditioning System................197,319
Air Filter.............................. 316
Air Pressure, Tires....................249,257
Airbag.............................38,171
Airbag Light............................ 51
Alarm..............................24,167
Alarm, Panic............................ 21
Alignment and Balance................... 256
Alterations/Modifications, Vehicle............. 6
Antenna, Satellite Radio................... 194
Antifreeze (Engine Coolant)...........326,327,357Anti-Lock Brake System (ABS).............. 236
Anti-Lock Warning Light.................. 167
Anti-Theft System.....................24,167
Appearance Care........................ 337
Arming Theft System...................... 25
Auto Unlock, Doors....................... 16
Automatic Dimming Mirror...............74,78
Automatic Door Locks..................... 15
Automatic Headlights.................... 122
Automatic Transaxle...................... 221
Automatic Transmission.............218,221,332
Adding Fluid......................... 333
Fluid and Filter Changes................. 334
Fluid Level Check...................... 332
Fluid Type........................334,360
Gear Ranges.......................... 221
Special Additives...................... 334
Torque Converter...................... 225
Axle Fluid............................. 360
394 INDEX

Points to Remember.................... 328
Radiator Cap......................... 327
Selection of Coolant...............326,357,359
Temperature Gauge..................... 164
Cruise Control (Speed Control).............. 132
Cup Holder............................ 154
Customer Assistance..................... 385
Data Recorder, Event...................... 52
Daytime Running Lights................... 123
Dealer Service.......................... 310
Defroster, Rear Window................... 213
Defroster, Windshield................66,200,205
Delay (Intermittent) Wipers................. 126
Diagnostic System, Onboard................ 307
Dimmer Switch, Headlight................. 165
Dipsticks
Automatic Transmission................. 332
Oil (Engine).......................... 311Power Steering........................ 320
Disarming, Theft System................... 25
Disc Brakes............................ 330
Disposal
Used Coolant......................... 325
Door Ajar Light......................... 169
Door Locks............................. 13
Door Opener, Garage..................... 142
Drive Belts............................ 315
Drive Shaft Universal Joints................ 321
Electric Remote Mirrors.................... 76
Electrical Power Outlets................... 151
Electronic Speed Control................... 132
Emergency, In Case of
Freeing Vehicle When Stuck............... 239
Jacking............................. 291
Overheating.......................... 327
Tow Hooks.......................... 298
INDEX 397
10

Odometer........................... 168
Speedometer......................... 166
Tachometer.......................... 167
Gear Ranges........................... 221
Glass Cleaning.......................... 340
Grease............................... 336
Gross Axle Weight Rating.................. 269
Gross Cargo Weight...................... 268
GVWR............................268,271
Hands-Free Phone........................ 78
Hazard Warning Flasher................... 286
Headlights............................ 349
Delay.............................. 122
High Beam........................... 126
High Beam/Low Beam Select Switch........ 126
Lights On Reminder.................... 124
Passing............................. 125
Replacing............................ 349Heated Mirrors.......................... 77
Heated Seats........................... 105
Heater............................... 197
Heater, Engine Block..................... 220
High Beam Indicator..................... 165
High Beam/Low Beam Select (Dimmer) Switch . . 126
Hitches
Trailer Towing........................ 275
Homelink Transmitter.................... 142
Hood Release.......................... 118
Hoses................................ 329
Ignition............................... 12
Key ................................. 9
Lock................................ 12
Illuminated Entry........................ 13
Infant Restraint........................54,55
Inflation Pressure Tires.................... 257
Inside Rearview Mirror.................... 74
400 INDEX
