Power Liftgate — If Equipped
The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once the
liftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.
When the remote keyless entry transmitter button is
press two times and the “Lamp Flash” feature is enabled
the turn signals will flash twice to signal that the liftgate
is opening or closing.
The power liftgate may also be opened by pressing the
switch located on the overhead console.
NOTE:
•In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to openthe liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the lift-
gate trim panel.Power Liftgate Switch
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
A beeping signal will sound two seconds before the
liftgate starts to open or close.
NOTE:
•If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
•There are also pinch sensors attached to the side of the
liftgate. Light pressure anywhere along these strips
will cause the liftgate to return to the open position.
•The power liftgate must be in the full open position for
any of the buttons to operate. If the liftgate is not fully
open, press the remote keyless entry transmitter or
overhead console button to fully open the liftgate and
then press again to close.
•If the liftgate handle is pulled while the power liftgate
is closing, the liftgate will reverse to the full open
position.
•If the liftgate handle is pulled while the power liftgate
is opening, the liftgate motor will disengage to allow
manual operation.
•The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
•The power liftgate will not operate in temperatures
below22°F(30° C) or temperatures above 150° F
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Air Bag System Components
The airbag system consists of the following:
•Occupant Restraint Controller
•Side Remote Acceleration Sensors (If Equipped)
•Airbag Warning Light
•Driver Airbag
•Passenger Airbag
•Window Bags above Side Windows (If Equipped)
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Knee Impact Bolsters
•Front Acceleration Sensors
•Driver and Front Passenger Seat Belt Pretensioners
•Occupant Classification System (OCS) for the Front
Passenger Seat
Occupant Classification Module
Passenger Airbag Disable (PAD) Indicator Light
Weight Sensors
How the Airbag System Works
•
TheOccupant Restraint Controller (ORC)determines
if a frontal collision is severe enough to require the
airbags to inflate. The front airbag inflators are de-
signed to provide different rates of airbag inflation
from direction provided by the ORC. The ORC may
also modify the rate of inflation based on the occupant
size provided by the Occupant Classification Module.
The ORC will not detect roll over.
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Headlights, Parking Lights, Panel Lights
When the headlight switch is rotated to the first position
to the right, the parking lights, taillights, side marker
lights, license plate light and instrument panel lights are
all turned on. The headlights will turn ON when the
switch is rotated to the second position.
Your vehicle is equipped with plastic headlight lenses
that are lighter and less susceptible to stone breakage
than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other abrasive materials to clean the lenses.
Illuminated Entry
Headlights turn on for 90 seconds, when the Remote
Keyless Entry UNLOCK button is pressed.
NOTE:This feature can be activated by your authorized
dealer.
Daytime Running Lights (Canada Only)
The headlights on your Durango will illuminate when
the engine is started. This provides a constant “Lights
ON” condition until the ignition is turned OFF. The lights
illuminate at reduced intensity. If the parking brake is
applied the Daytime Running Lights will turn off. If the
headlights are activated, the Daytime Running Lights
feature will transition to the normal headlight operating
mode.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the rear wiper is operating when the ignition is turned
off, the wiper will automatically return to the “Park”
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A push-button type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn On. An amber indicator on the
push-button will light when the defroster is turned On.
An symbol will be displayed when the defroster is turned
on with an ATC control. Push again to turn Off prior to
time-out. The defroster will automatically turn Off after
fifteen minutes. For ten more minutes of operation, push
the button again. To prevent excessive battery drain, use
the defroster only when the engine is operating.
CAUTION!
Use care when washing the inside of the rear win-
dow to prevent damage to heating elements. Use a
soft cloth and a mild washing solution, wiping
parallel to the heating elements. Also, keep all
objects a safe distance from the window to prevent
damaging the heating elements.
238 INSTRUMENT PANEL AND CONTROLS

CavityCartridge
Fuse / RelayMini Fuse Description
12 40 Amp Green JB Feed / EBL
/TCase
Brake
13 30 Amp Pink JB Feed RR
14 40 Amp Green ABS Pump
15 50 Amp Red JB Feed
16 10 Amp Red Crank
17 Spare
18 20 Amp Yellow Fuel Pump
19 20 Amp Yellow NGC
20 Spare
21 20 Amp Yellow ABS Batt
22 20 Amp Yellow NGC Batt
23 20 Amp Yellow Trailer Tow
24 15 Amp Blue A/C Clutch
25 15 Amp Blue JB Feed Stop
26 SpareCavityCartridge
Fuse / RelayMini Fuse Description
27 10 Amp Red JB Feed Acc #
1
28 Spare
29 Relay Run Start
30 Relay Run Remote
31 Spare
32 Relay Starter
33 Relay ETAX
34 Relay AC Clutch
35 Relay Fuel Pump
Rly
36 Spare
37 Spare Brake Supres-
sion
38 Spare
39 Relay Blower Motor
40 Relay ASD Rly
374 MAINTAINING YOUR VEHICLE

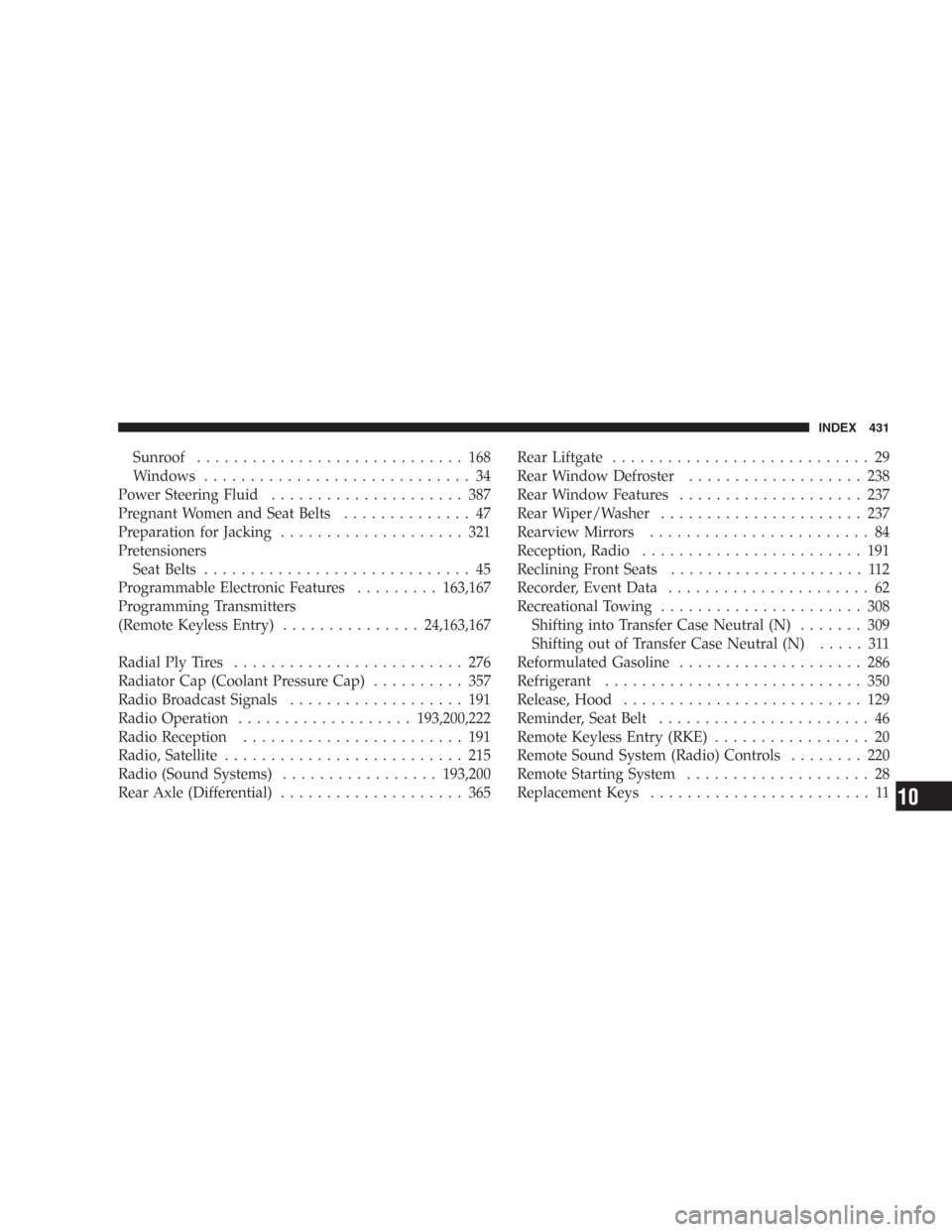

Sunroof............................. 168
Windows............................. 34
Power Steering Fluid..................... 387
Pregnant Women and Seat Belts.............. 47
Preparation for Jacking.................... 321
Pretensioners
Seat Belts............................. 45
Programmable Electronic Features.........163,167
Programming Transmitters
(Remote Keyless Entry)...............24,163,167
Radial Ply Tires......................... 276
Radiator Cap (Coolant Pressure Cap).......... 357
Radio Broadcast Signals................... 191
Radio Operation...................193,200,222
Radio Reception........................ 191
Radio, Satellite.......................... 215
Radio (Sound Systems).................193,200
Rear Axle (Differential).................... 365Rear Liftgate............................ 29
Rear Window Defroster................... 238
Rear Window Features.................... 237
Rear Wiper/Washer...................... 237
Rearview Mirrors........................ 84
Reception, Radio........................ 191
Reclining Front Seats..................... 112
Recorder, Event Data...................... 62
Recreational Towing...................... 308
Shifting into Transfer Case Neutral (N)....... 309
Shifting out of Transfer Case Neutral (N)..... 311
Reformulated Gasoline.................... 286
Refrigerant............................ 350
Release, Hood.......................... 129
Reminder, Seat Belt....................... 46
Remote Keyless Entry (RKE)................. 20
Remote Sound System (Radio) Controls........ 220
Remote Starting System.................... 28
Replacement Keys........................ 11
INDEX 431
10

Sentry Key Programming................... 12
Service and Maintenance.............340,390,391
Service Assistance....................... 412
Service Contract......................... 414
Service Manuals........................ 416
Setting the Clock................192,195,202,215
Shifting
Automatic Transmission................. 245
Transfer Case......................... 250
Transfer Case, Shifting into Transfer
Case Neutral (N)..................... 309
Transfer Case, Shifting out of Transfer
Case Neutral (N)..................... 311
Shoulder Belt Upper Anchorage.............. 41
Shoulder Belts........................... 37
Signals, Turn.....................136,183,378
Snow Chains (Tire Chains)................. 282
Snow Plow............................ 307
Snow Tires............................ 283Spare Tire..........................277,278
Spark Plugs............................ 345
Speed Control (Cruise Control).............. 142
Speedometer........................... 185
Starting............................... 242
Automatic Transmission................. 242
Emergency (Jump Starting)............... 325
Engine Block Heater.................... 244
Engine Fails to Start.................... 243
Remote.............................. 28
Starting Procedures...................... 242
Steering
Column Controls...................... 135
Column Lock.......................... 13
Power...........................262,350
Wheel, Tilt........................... 140
Steering Wheel Mounted Sound System
Controls............................. 220
Storage, Vehicle......................... 410
INDEX 433
10

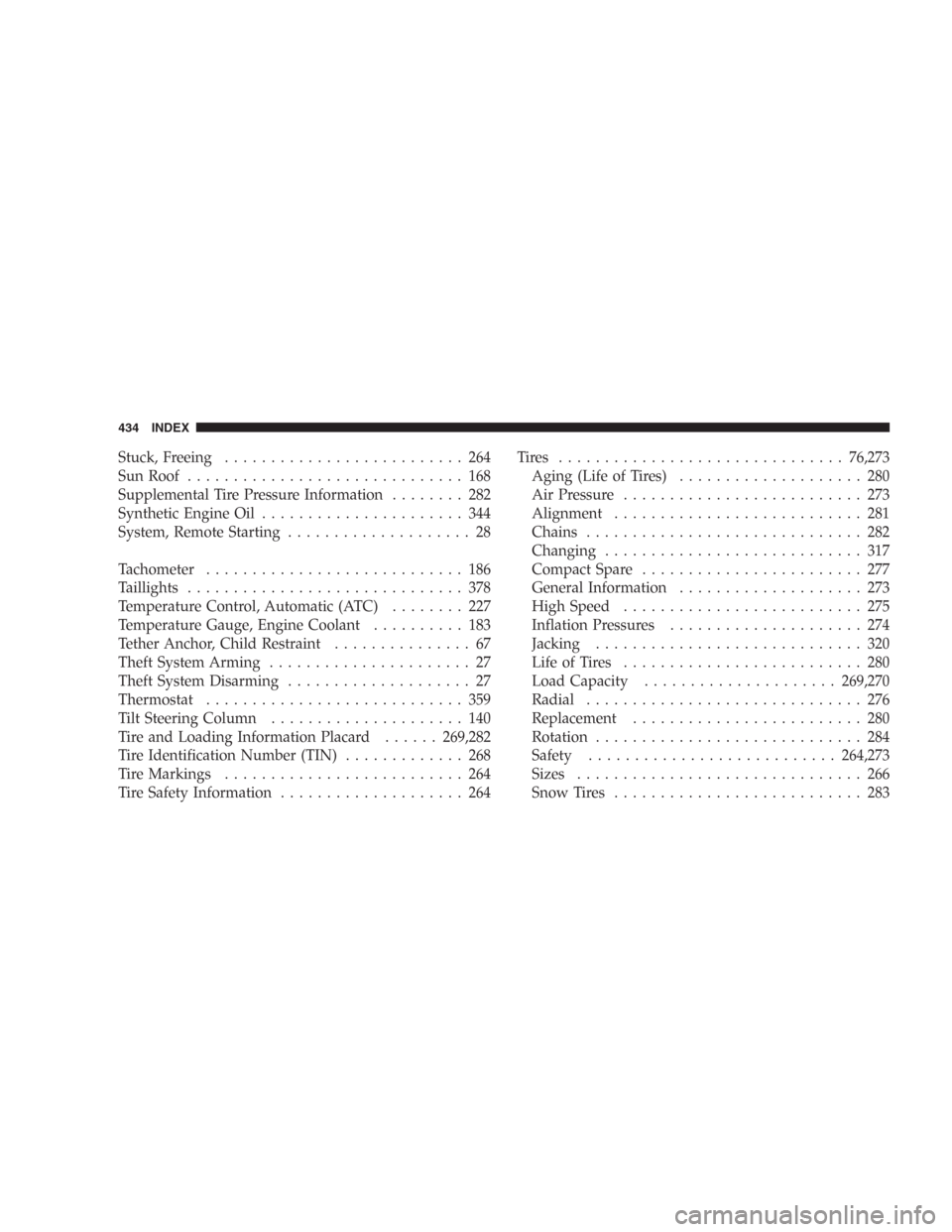

Stuck, Freeing.......................... 264
Sun Roof.............................. 168
Supplemental Tire Pressure Information........ 282
Synthetic Engine Oil...................... 344
System, Remote Starting.................... 28
Tachometer............................ 186
Taillights.............................. 378
Temperature Control, Automatic (ATC)........ 227
Temperature Gauge, Engine Coolant.......... 183
Tether Anchor, Child Restraint............... 67
Theft System Arming...................... 27
Theft System Disarming.................... 27
Thermostat............................ 359
Tilt Steering Column..................... 140
Tire and Loading Information Placard......269,282
Tire Identification Number (TIN)............. 268
Tire Markings.......................... 264
Tire Safety Information.................... 264Tires ...............................76,273
Aging (Life of Tires).................... 280
Air Pressure.......................... 273
Alignment........................... 281
Chains.............................. 282
Changing............................ 317
Compact Spare........................ 277
General Information.................... 273
High Speed.......................... 275
Inflation Pressures..................... 274
Jacking............................. 320
Life of Tires.......................... 280
Load Capacity.....................269,270
Radial.............................. 276
Replacement......................... 280
Rotation............................. 284
Safety...........................264,273
Sizes............................... 266
Snow Tires........................... 283
434 INDEX
