the A/C snowflake button has not been pressed. This
dehumidifies the air to help dry the windshield.
Rear Temperature Control (ATC)
The “REAR” button cycles through the following modes:
Rear Control from Front
This allows the driver or passenger to control the rear
blower speeds using the FAN +/– rocker switch and the
rear temperature using the TEMP +/– rocker switch.
While in this mode, pressing the POWER button will turn
the rear system off. Pressing the POWER, TEMP or FAN
buttons will turn the rear system back on.
NOTE:The display will show a “REAR” fan speed
graph and a “REAR” temperature graph.
CONTROL IN REAR
This allows the passengers in the second row seats to
control the blower speed and temperature by means ofthe rear control located in the rear of the center floor
console as described under theRear Zone Climate
Control.
NOTE:The display will show “CONTROL IN REAR.”
REAR OFF
This turns the rear system off. The control will return to
the front system display after approximately 5 seconds if
no buttons are pushed while in one of the rear system
displays. You may also return to the front system display
sooner by pushing any button except the POWER, REAR,
TEMP or FAN buttons.
NOTE:The display will show “REAR OFF.”
Rear Window Defrosting and Rear Window
Washer/Wiper
See the “Rear Window Features” section of this book.
INSTRUMENT PANEL AND CONTROLS 231
4

Rear Zone Climate Control — If Equipped
Headliner air comes from the outlets in the headliner.
Each of these outlets can be individually adjusted to
direct the flow of air. Moving the air vane knobs on the
outlets to one side will shut off the airflow.The rear compartment control uses two rotary knobs: one
for the temperature control and the other for the fan
speed control. The mode for the rear air conditioning and
heating system is always controlled by the front control
unit. Fan and temperature can be controlled from the
front control unit or the rear control unit.
232 INSTRUMENT PANEL AND CONTROLS

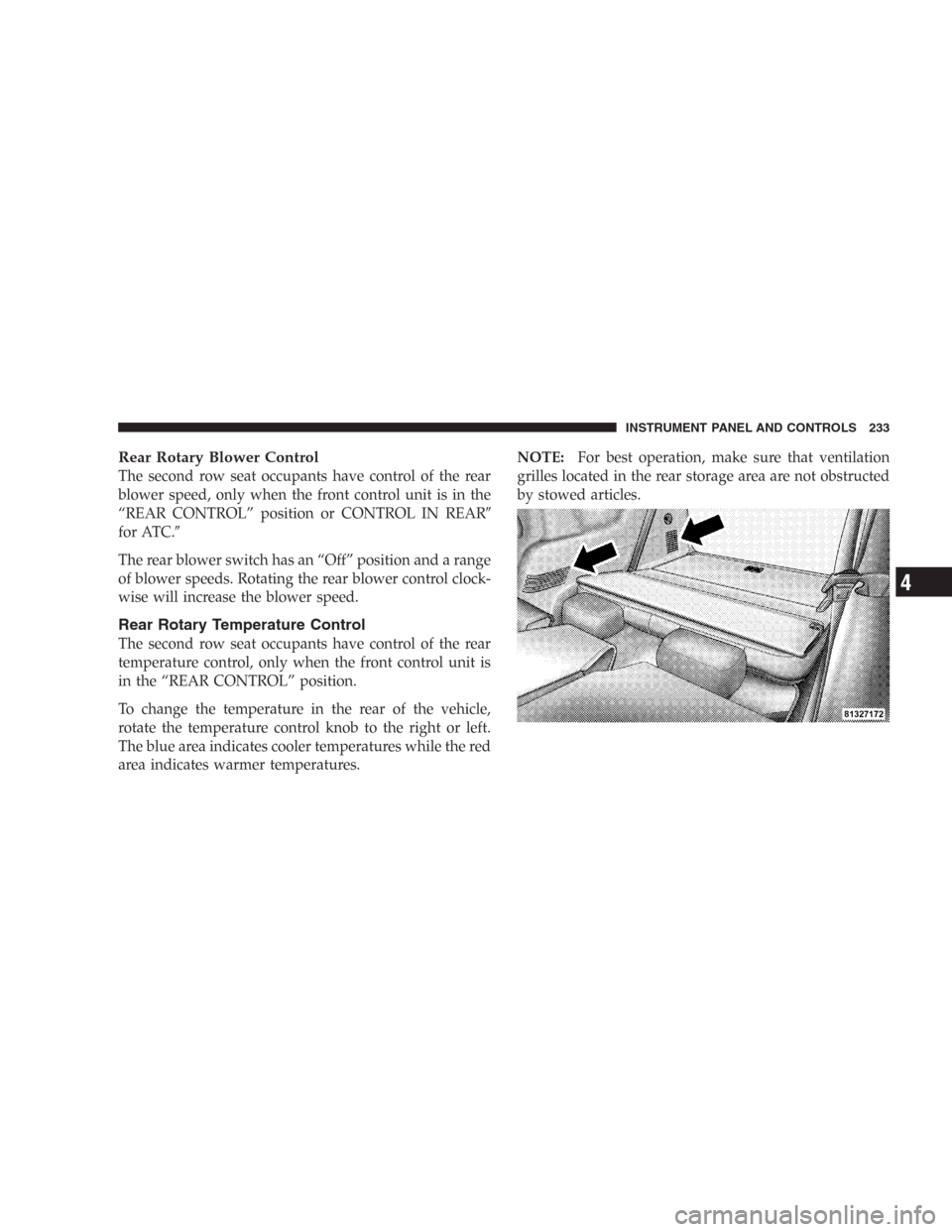

Rear Rotary Blower Control
The second row seat occupants have control of the rear
blower speed, only when the front control unit is in the
“REAR CONTROL” position or CONTROL IN REAR
for ATC.
The rear blower switch has an “Off” position and a range
of blower speeds. Rotating the rear blower control clock-
wise will increase the blower speed.
Rear Rotary Temperature Control
The second row seat occupants have control of the rear
temperature control, only when the front control unit is
in the “REAR CONTROL” position.
To change the temperature in the rear of the vehicle,
rotate the temperature control knob to the right or left.
The blue area indicates cooler temperatures while the red
area indicates warmer temperatures.NOTE:For best operation, make sure that ventilation
grilles located in the rear storage area are not obstructed
by stowed articles.
INSTRUMENT PANEL AND CONTROLS 233
4

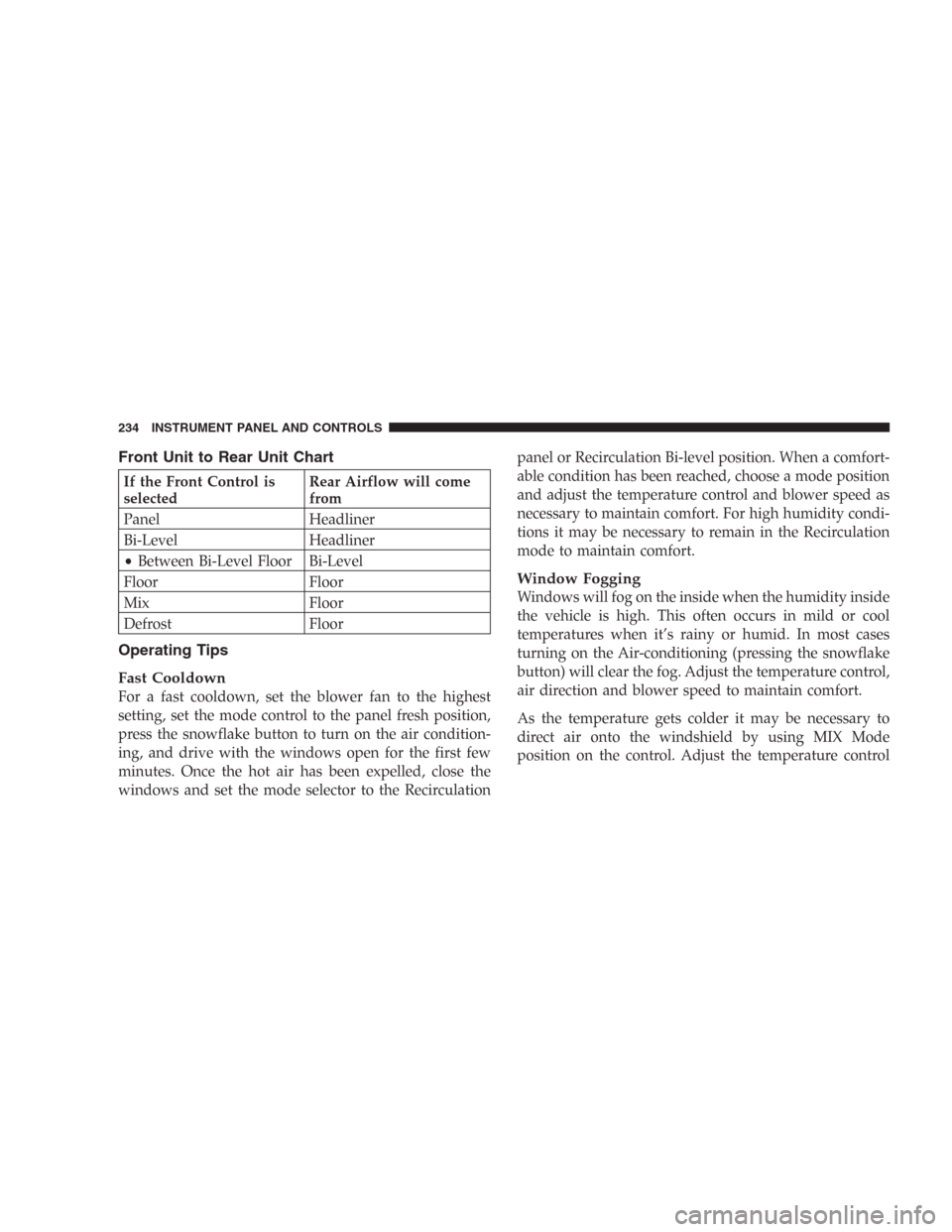

Front Unit to Rear Unit Chart
If the Front Control is
selectedRear Airflow will come
from
Panel Headliner
Bi-Level Headliner
•Between Bi-Level Floor Bi-Level
Floor Floor
Mix Floor
Defrost Floor
Operating Tips
Fast Cooldown
For a fast cooldown, set the blower fan to the highest
setting, set the mode control to the panel fresh position,
press the snowflake button to turn on the air condition-
ing, and drive with the windows open for the first few
minutes. Once the hot air has been expelled, close the
windows and set the mode selector to the Recirculationpanel or Recirculation Bi-level position. When a comfort-
able condition has been reached, choose a mode position
and adjust the temperature control and blower speed as
necessary to maintain comfort. For high humidity condi-
tions it may be necessary to remain in the Recirculation
mode to maintain comfort.
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases
turning on the Air-conditioning (pressing the snowflake
button) will clear the fog. Adjust the temperature control,
air direction and blower speed to maintain comfort.
As the temperature gets colder it may be necessary to
direct air onto the windshield by using MIX Mode
position on the control. Adjust the temperature control
234 INSTRUMENT PANEL AND CONTROLS

and blower speed to maintain comfort. Interior fogging
on the windshield can be quickly removed by selecting
the defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
Air conditioned vehicles must be protected with a high
quality antifreeze coolant during summer to provide
proper corrosion protection and to raise the boiling point
of the coolant for protection against overheating. A 50 %
concentration is recommended.When using the air conditioner in extremely heavy traffic
in hot weather especially when towing a trailer, addi-
tional engine cooling may be required. If this situation is
encountered, operate the transmission in a lower gear.
When stopped in heavy traffic, it may be necessary to
shift into NEUTRAL and press the accelerator slightly for
fast idle operation.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
INSTRUMENT PANEL AND CONTROLS 235
4

Operating Tips Chart
236 INSTRUMENT PANEL AND CONTROLS

REAR WINDOW FEATURES
Rear Window Wiper/Washer
A rotating switch located on the climate control
panel turns the rear wiper On or Off. Pressing the
rotating switch inward activates the rear window
washer. Rotating the switch will enable one of five
intermittent delay times for the rear wiper. The delay
times range from 20 to 1 second.
INSTRUMENT PANEL AND CONTROLS 237
4

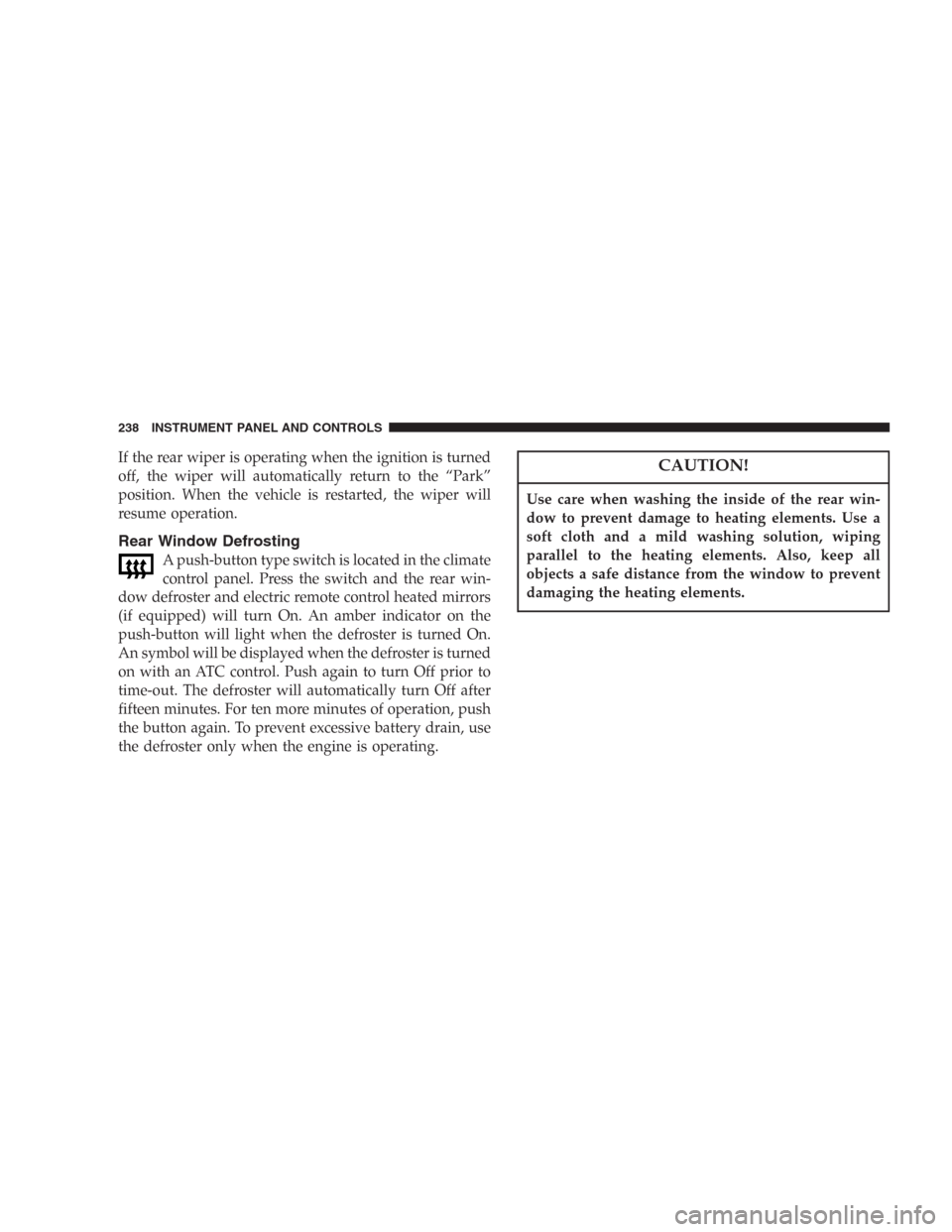

If the rear wiper is operating when the ignition is turned
off, the wiper will automatically return to the “Park”
position. When the vehicle is restarted, the wiper will
resume operation.
Rear Window Defrosting
A push-button type switch is located in the climate
control panel. Press the switch and the rear win-
dow defroster and electric remote control heated mirrors
(if equipped) will turn On. An amber indicator on the
push-button will light when the defroster is turned On.
An symbol will be displayed when the defroster is turned
on with an ATC control. Push again to turn Off prior to
time-out. The defroster will automatically turn Off after
fifteen minutes. For ten more minutes of operation, push
the button again. To prevent excessive battery drain, use
the defroster only when the engine is operating.
CAUTION!
Use care when washing the inside of the rear win-
dow to prevent damage to heating elements. Use a
soft cloth and a mild washing solution, wiping
parallel to the heating elements. Also, keep all
objects a safe distance from the window to prevent
damaging the heating elements.
238 INSTRUMENT PANEL AND CONTROLS

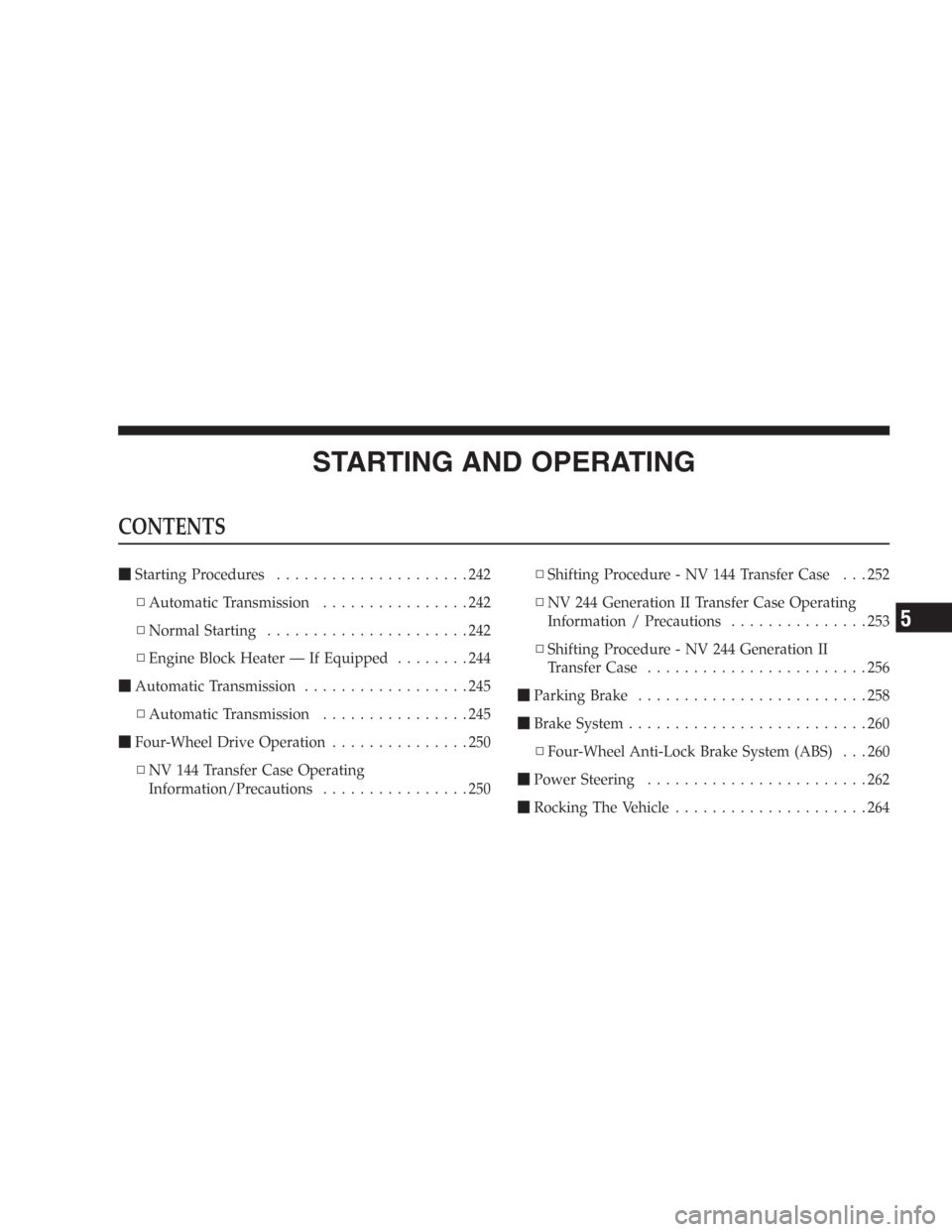

STARTING AND OPERATING
CONTENTS
Starting Procedures.....................242
▫Automatic Transmission................242
▫Normal Starting......................242
▫Engine Block Heater — If Equipped........244
Automatic Transmission..................245
▫Automatic Transmission................245
Four-Wheel Drive Operation...............250
▫NV 144 Transfer Case Operating
Information/Precautions................250▫Shifting Procedure - NV 144 Transfer Case . . . 252
▫NV 244 Generation II Transfer Case Operating
Information / Precautions...............253
▫Shifting Procedure - NV 244 Generation II
Transfer Case........................256
Parking Brake.........................258
Brake System..........................260
▫Four-Wheel Anti-Lock Brake System (ABS) . . . 260
Power Steering........................262
Rocking The Vehicle.....................264
5

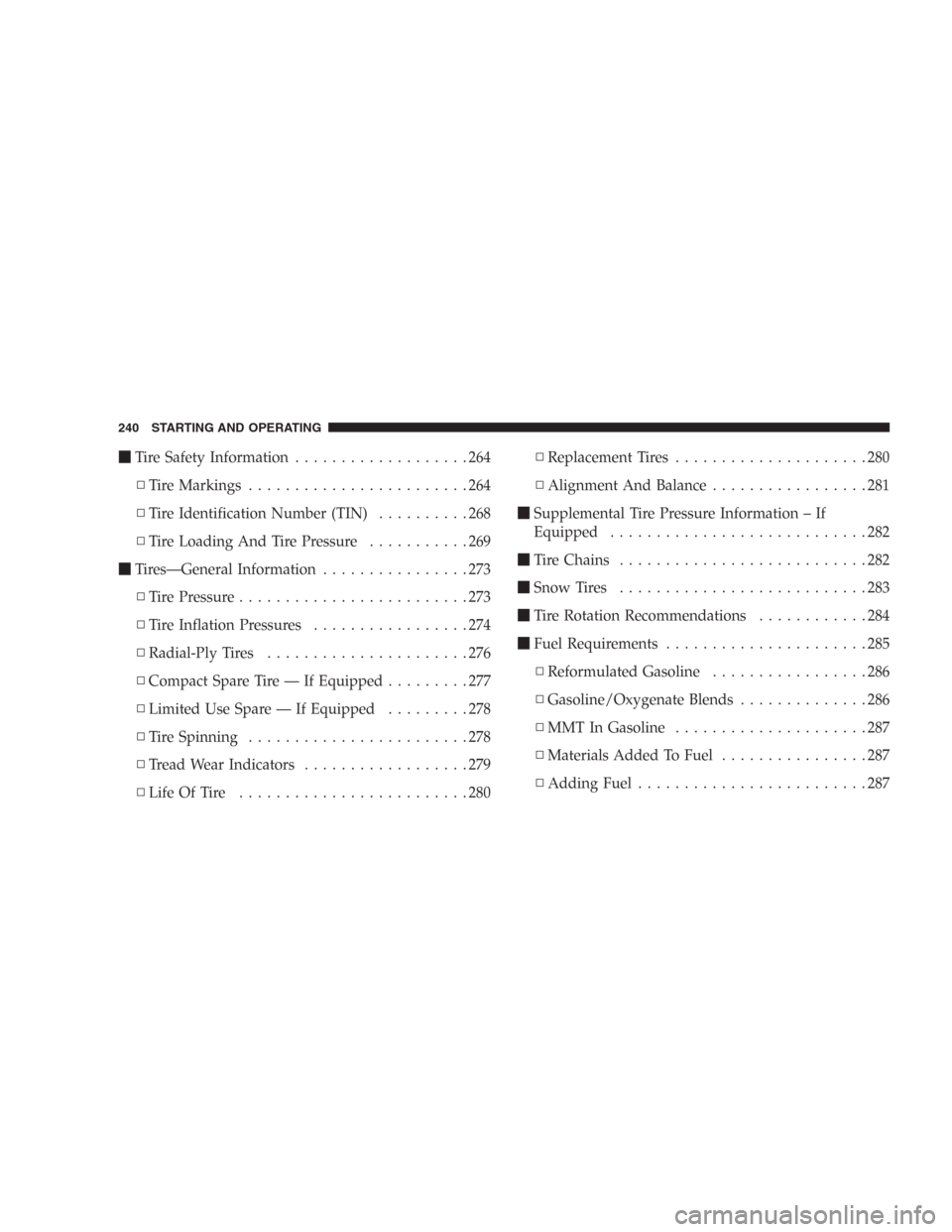

Tire Safety Information...................264
▫Tire Markings........................264
▫Tire Identification Number (TIN)..........268
▫Tire Loading And Tire Pressure...........269
Tires—General Information................273
▫Tire Pressure.........................273
▫Tire Inflation Pressures.................274
▫Radial-Ply Tires......................276
▫Compact Spare Tire — If Equipped.........277
▫Limited Use Spare — If Equipped.........278
▫Tire Spinning........................278
▫Tread Wear Indicators..................279
▫Life Of Tire.........................280▫Replacement Tires.....................280
▫Alignment And Balance.................281
Supplemental Tire Pressure Information – If
Equipped............................282
Tire Chains...........................282
Snow Tires...........................283
Tire Rotation Recommendations............284
Fuel Requirements......................285
▫Reformulated Gasoline.................286
▫Gasoline/Oxygenate Blends..............286
▫MMT In Gasoline.....................287
▫Materials Added To Fuel................287
▫Adding Fuel.........................287
