DODGE DURANGO 2006 2.G Owners Manual

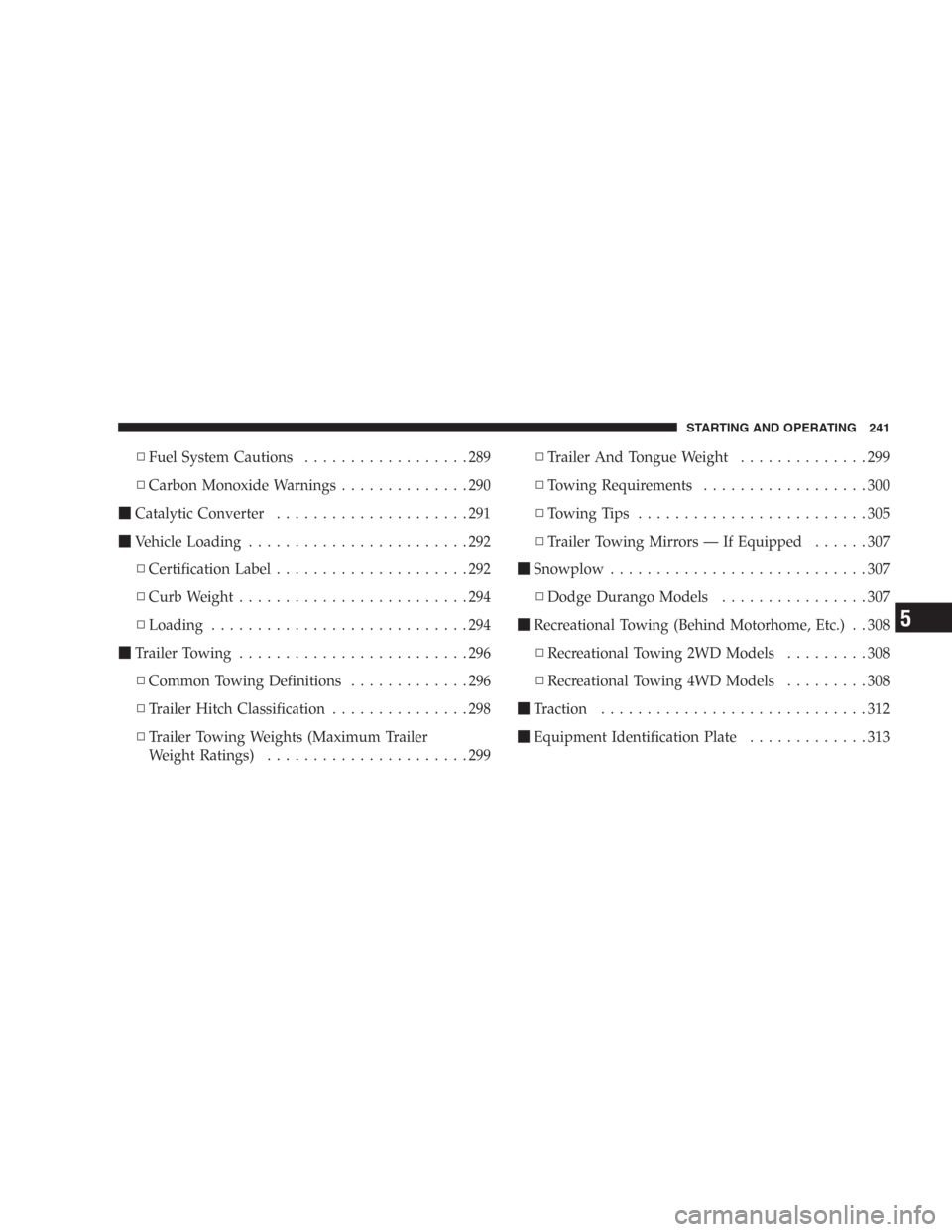

▫Fuel System Cautions..................289
▫Carbon Monoxide Warnings..............290
Catalytic Converter.....................291
Vehicle Loading........................292
▫Certification Label.....................292
▫Curb Weight.........................294
▫Loading............................294
Trailer Towing.........................296
▫Common Towing Definitions.............296
▫Trailer Hitch Classification...............298
▫Trailer Towing Weights (Maximum Trailer
Weight Ratings)......................299▫Trailer And Tongue Weight..............299
▫Towing Requirements..................300
▫Towing Tips.........................305
▫Trailer Towing Mirrors — If Equipped......307
Snowplow............................307
▫Dodge Durango Models................307
Recreational Towing (Behind Motorhome, Etc.) . . 308
▫Recreational Towing 2WD Models.........308
▫Recreational Towing 4WD Models.........308
Traction.............................312
Equipment Identification Plate.............313
STARTING AND OPERATING 241
5

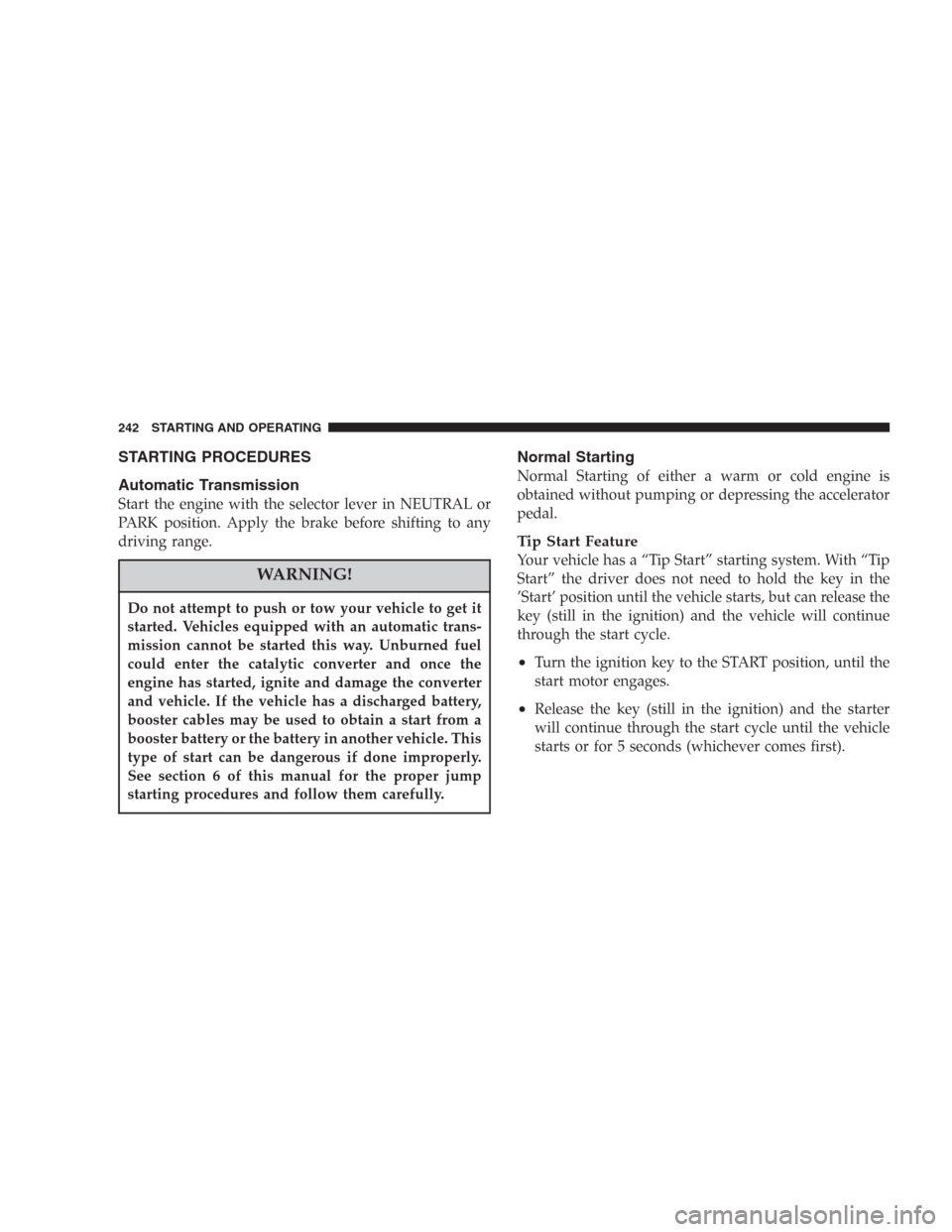

STARTING PROCEDURES
Automatic Transmission
Start the engine with the selector lever in NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
WARNING!
Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle. If the vehicle has a discharged battery,
booster cables may be used to obtain a start from a
booster battery or the battery in another vehicle. This
type of start can be dangerous if done improperly.
See section 6 of this manual for the proper jump
starting procedures and follow them carefully.
Normal Starting
Normal Starting of either a warm or cold engine is
obtained without pumping or depressing the accelerator
pedal.
Tip Start Feature
Your vehicle has a “Tip Start” starting system. With “Tip
Start” the driver does not need to hold the key in the
’Start’ position until the vehicle starts, but can release the
key (still in the ignition) and the vehicle will continue
through the start cycle.
•Turn the ignition key to the START position, until the
start motor engages.
•Release the key (still in the ignition) and the starter
will continue through the start cycle until the vehicle
starts or for 5 seconds (whichever comes first).
242 STARTING AND OPERATING

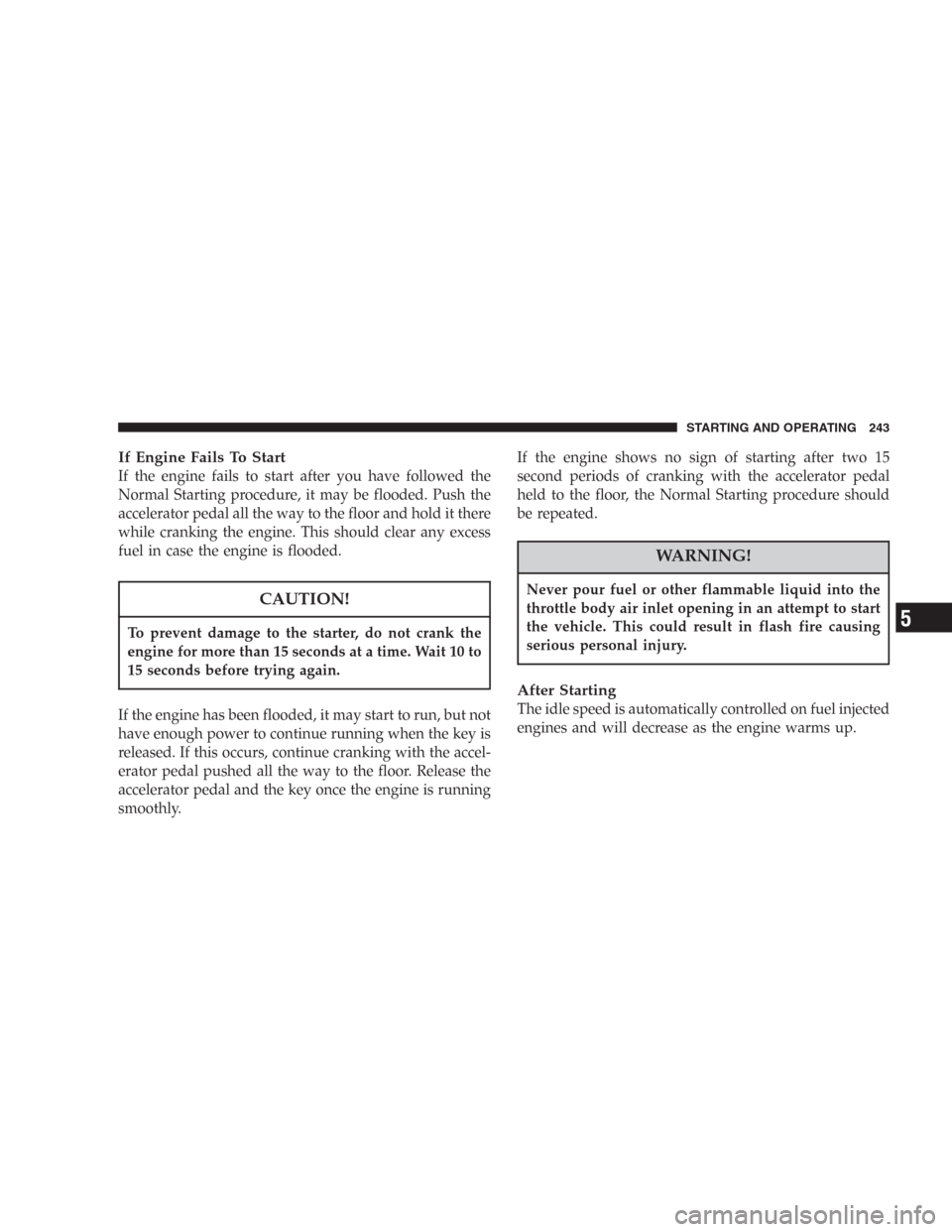

If Engine Fails To Start
If the engine fails to start after you have followed the
Normal Starting procedure, it may be flooded. Push the
accelerator pedal all the way to the floor and hold it there
while cranking the engine. This should clear any excess
fuel in case the engine is flooded.
CAUTION!
To prevent damage to the starter, do not crank the
engine for more than 15 seconds at a time. Wait 10 to
15 seconds before trying again.
If the engine has been flooded, it may start to run, but not
have enough power to continue running when the key is
released. If this occurs, continue cranking with the accel-
erator pedal pushed all the way to the floor. Release the
accelerator pedal and the key once the engine is running
smoothly.If the engine shows no sign of starting after two 15
second periods of cranking with the accelerator pedal
held to the floor, the Normal Starting procedure should
be repeated.
WARNING!
Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
After Starting
The idle speed is automatically controlled on fuel injected
engines and will decrease as the engine warms up.
STARTING AND OPERATING 243
5

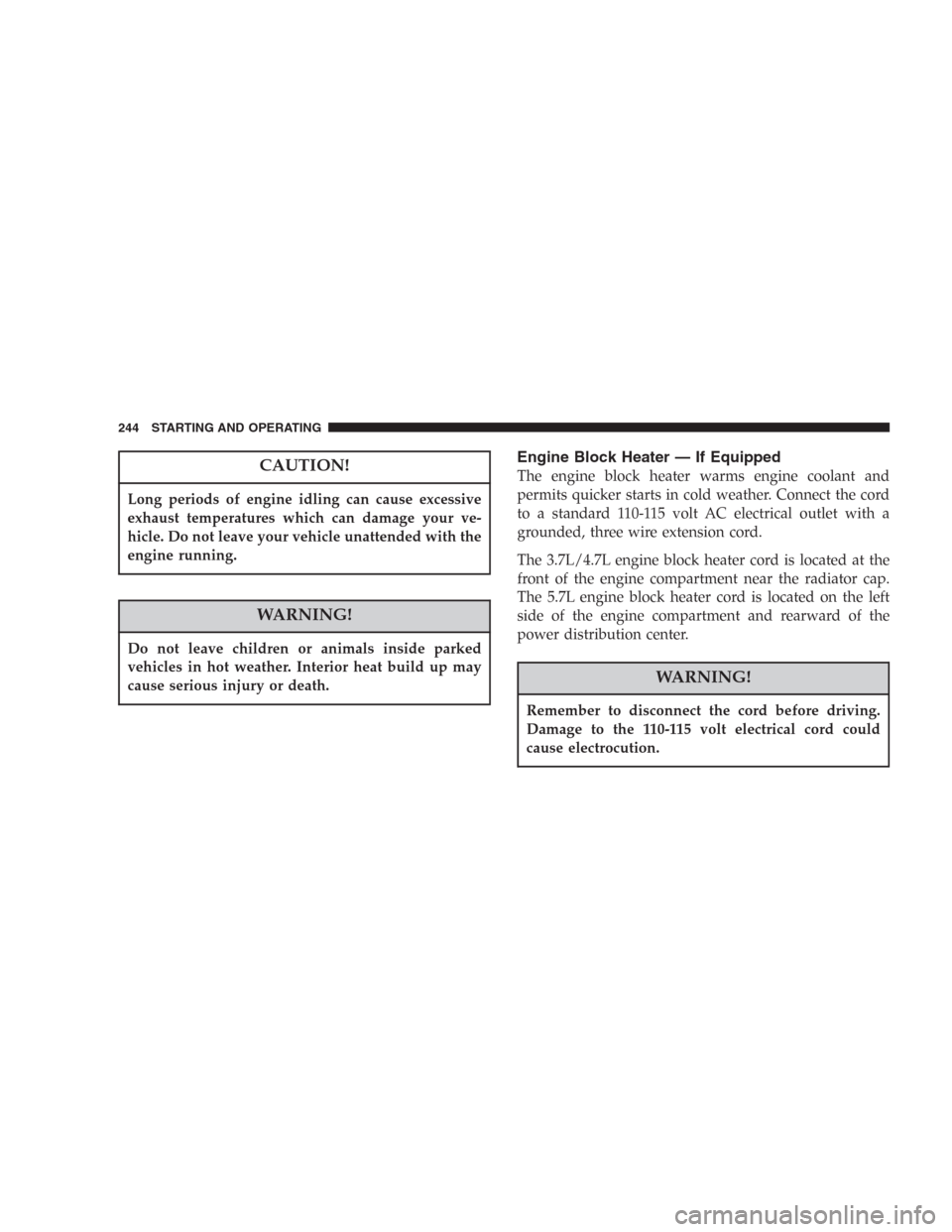

CAUTION!
Long periods of engine idling can cause excessive
exhaust temperatures which can damage your ve-
hicle. Do not leave your vehicle unattended with the
engine running.
WARNING!
Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build up may
cause serious injury or death.
Engine Block Heater — If Equipped
The engine block heater warms engine coolant and
permits quicker starts in cold weather. Connect the cord
to a standard 110-115 volt AC electrical outlet with a
grounded, three wire extension cord.
The 3.7L/4.7L engine block heater cord is located at the
front of the engine compartment near the radiator cap.
The 5.7L engine block heater cord is located on the left
side of the engine compartment and rearward of the
power distribution center.
WARNING!
Remember to disconnect the cord before driving.
Damage to the 110-115 volt electrical cord could
cause electrocution.
244 STARTING AND OPERATING

AUTOMATIC TRANSMISSION
Automatic Transmission
The electronic PRNDL on the instrument cluster indicates
the transmission gear selected. The selector lever is
mounted on the right side of the steering column. To
drive, move the selector lever from Park or Neutral to the
desired drive position. Pull selector lever toward you
when shifting into Reverse, Second, First or Park, or
when shifting out of Park.
Brake/Transmission Interlock System
This system prevents you from moving the gear shift out
of Park and into any gear unless the brake pedal is
pressed. This system is active only while the ignition
switch is in the ON position. Always depress thebrake
pedal first,before moving the gear selector out of PARK.
Gear Ranges
DO NOT race the engine when shifting from Park or
Neutral position into another gear range.“P” Park
Supplements parking brake by locking the transmission.
Engine can be started in this range. Never use Park while
vehicle is in motion. Apply parking brake when leaving
vehicle in this range. Always apply parking brake first,
then place selector in Park position.
WARNING!
Your vehicle could move and injure you and others if
it is not completely in P (Park). Check by trying to
move the gearshift lever back and forth without first
pulling the lever toward you, after you have set it in
P (Park). Make sure it is in Park before leaving the
vehicle.
STARTING AND OPERATING 245
5

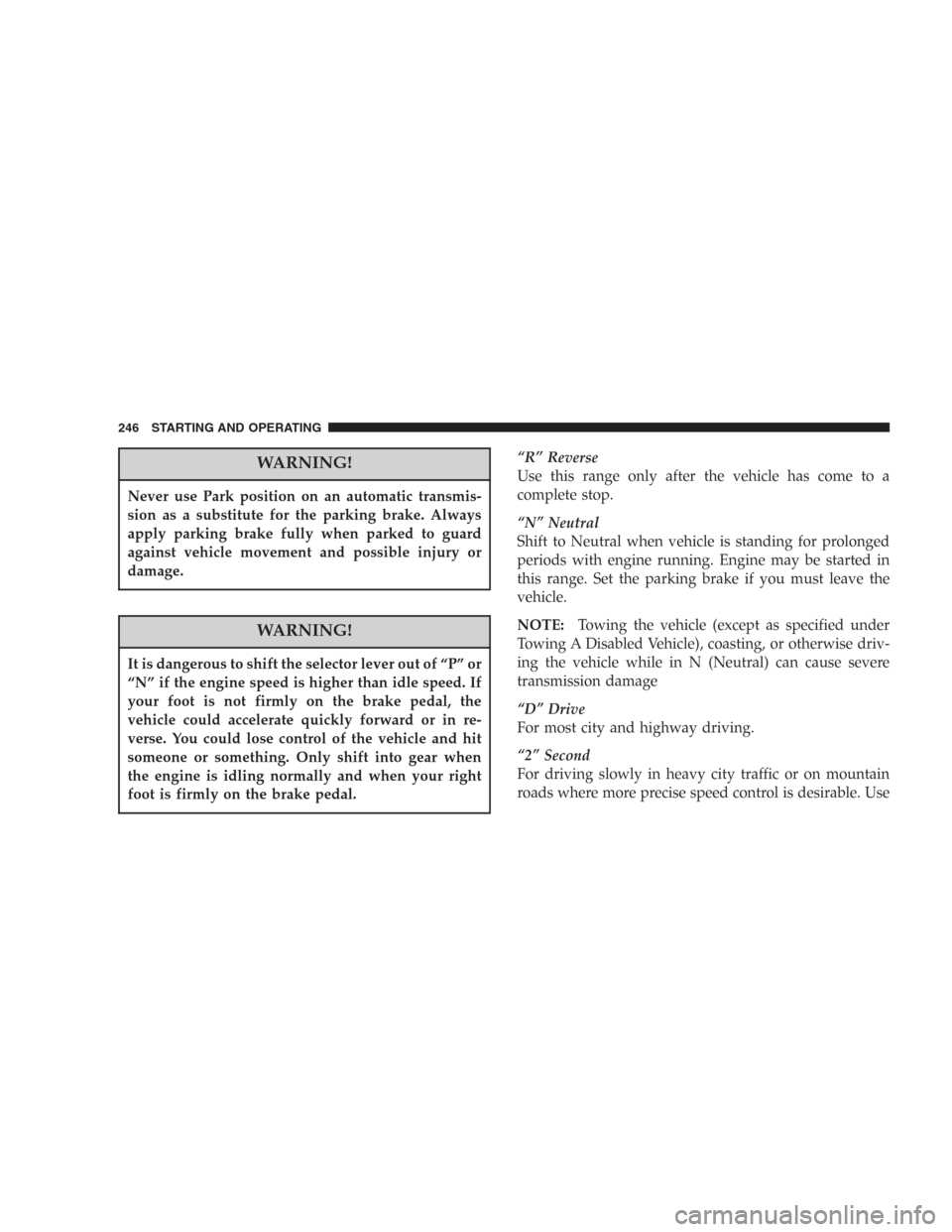

WARNING!
Never use Park position on an automatic transmis-
sion as a substitute for the parking brake. Always
apply parking brake fully when parked to guard
against vehicle movement and possible injury or
damage.
WARNING!
It is dangerous to shift the selector lever out of “P” or
“N” if the engine speed is higher than idle speed. If
your foot is not firmly on the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when
the engine is idling normally and when your right
foot is firmly on the brake pedal.
“R” Reverse
Use this range only after the vehicle has come to a
complete stop.
“N” Neutral
Shift to Neutral when vehicle is standing for prolonged
periods with engine running. Engine may be started in
this range. Set the parking brake if you must leave the
vehicle.
NOTE:Towing the vehicle (except as specified under
Towing A Disabled Vehicle), coasting, or otherwise driv-
ing the vehicle while in N (Neutral) can cause severe
transmission damage
“D” Drive
For most city and highway driving.
“2” Second
For driving slowly in heavy city traffic or on mountain
roads where more precise speed control is desirable. Use
246 STARTING AND OPERATING

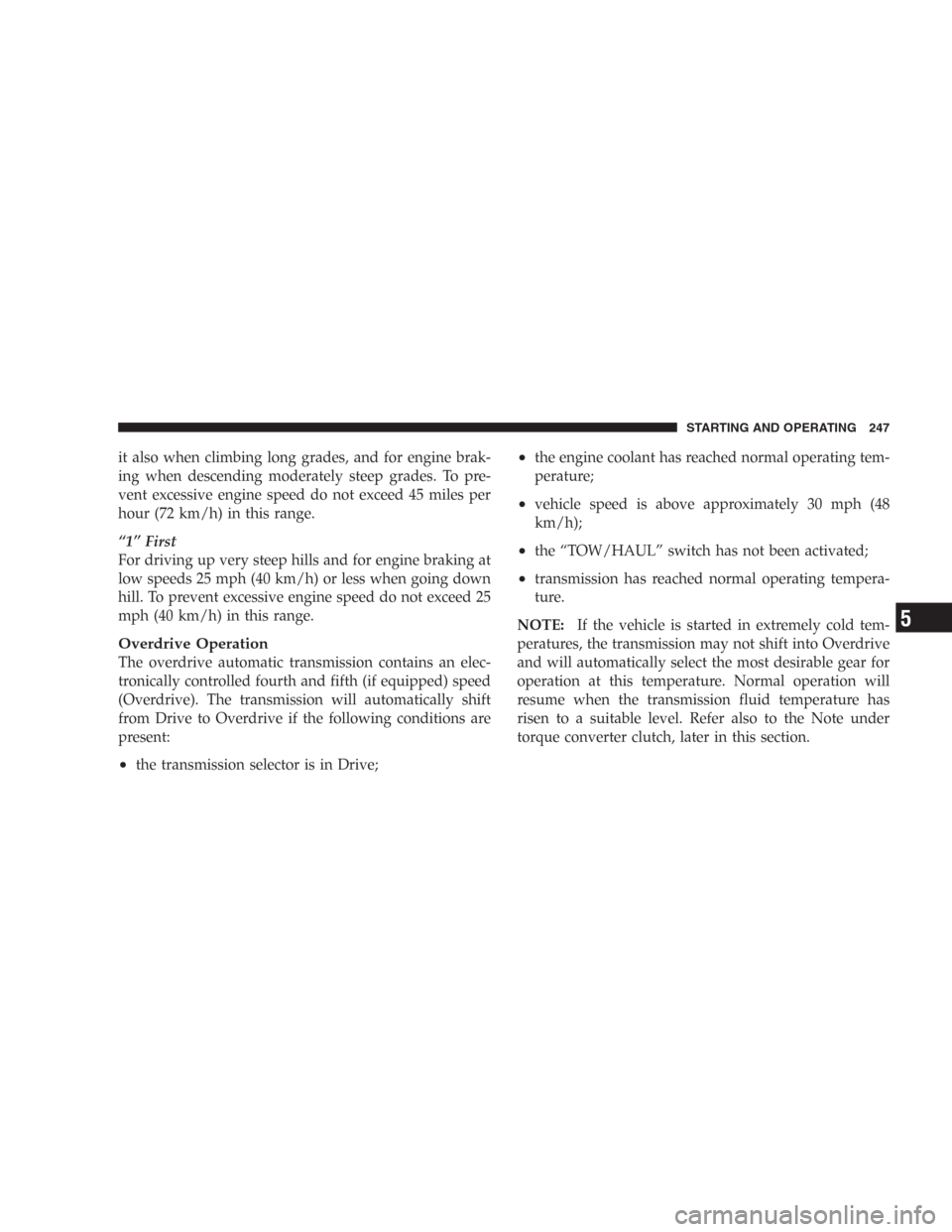

it also when climbing long grades, and for engine brak-
ing when descending moderately steep grades. To pre-
vent excessive engine speed do not exceed 45 miles per
hour (72 km/h) in this range.
“1” First
For driving up very steep hills and for engine braking at
low speeds 25 mph (40 km/h) or less when going down
hill. To prevent excessive engine speed do not exceed 25
mph (40 km/h) in this range.
Overdrive Operation
The overdrive automatic transmission contains an elec-
tronically controlled fourth and fifth (if equipped) speed
(Overdrive). The transmission will automatically shift
from Drive to Overdrive if the following conditions are
present:
•the transmission selector is in Drive;
•the engine coolant has reached normal operating tem-
perature;
•vehicle speed is above approximately 30 mph (48
km/h);
•the “TOW/HAUL” switch has not been activated;
•transmission has reached normal operating tempera-
ture.
NOTE:If the vehicle is started in extremely cold tem-
peratures, the transmission may not shift into Overdrive
and will automatically select the most desirable gear for
operation at this temperature. Normal operation will
resume when the transmission fluid temperature has
risen to a suitable level. Refer also to the Note under
torque converter clutch, later in this section.
STARTING AND OPERATING 247
5

If the transmission temperature gets extremely hot, the
transmission will automatically select the most desirable
gear for operation at this temperature. If the transmission
temperature becomes hot enough the TRANS TEMP light
may illuminate and the transmission may downshift out
of Overdrive until the transmission cools down. After
cooldown, the transmission will resume normal opera-
tion.
The transmission will downshift from Overdrive to Drive
if the accelerator pedal is fully depressed at vehicle
speeds above approximately 35 mph (56 km/h).When To Use “TOW/HAUL” Mode
When driving in hilly areas, towing a trailer, carrying a
heavy load, etc., and frequent transmission shifting oc-
curs, press the “TOW/HAUL” button. This will improve
performance and reduce the potential for transmission
overheating or failure due to excessive shifting. When
operating in “TOW/HAUL” mode, 5th gear (if
248 STARTING AND OPERATING

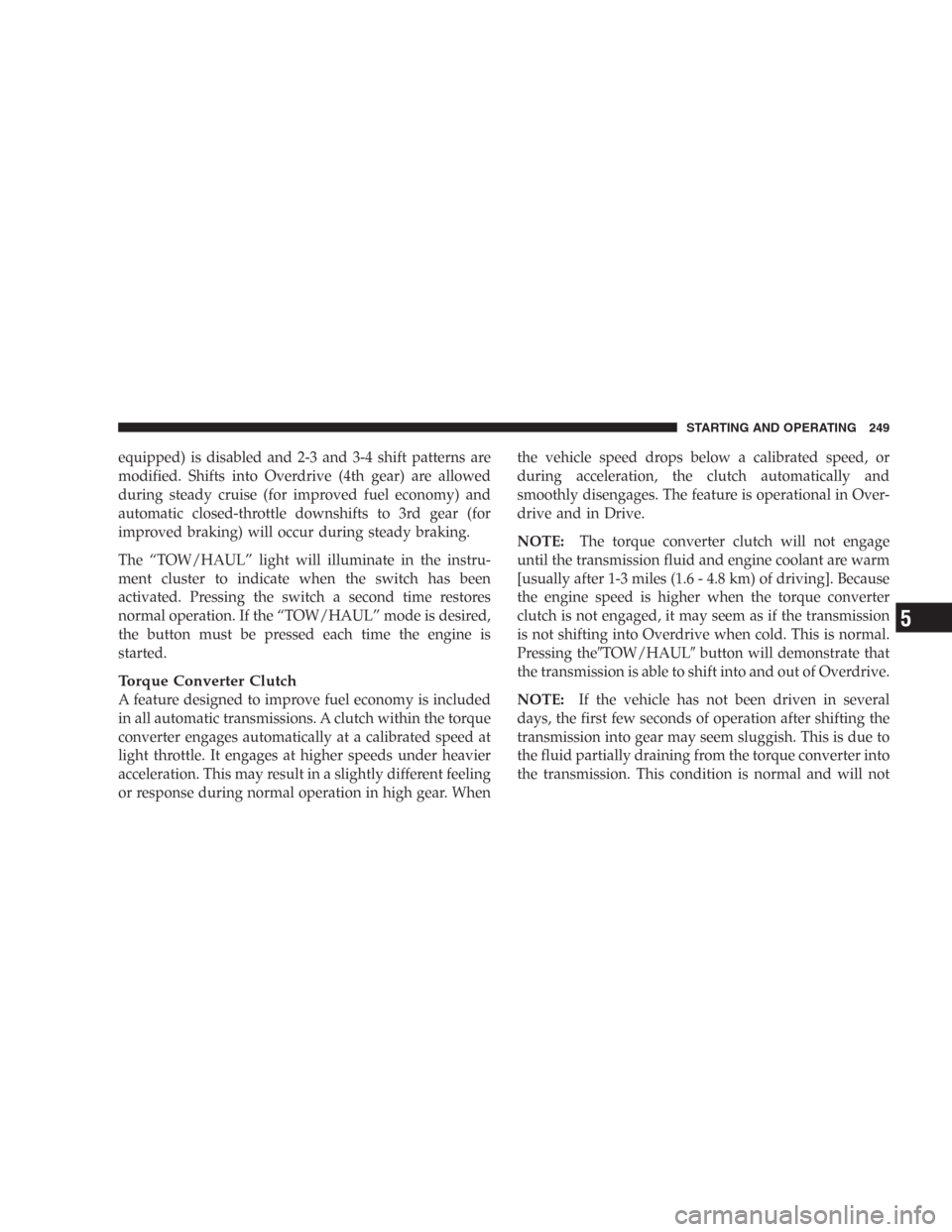

equipped) is disabled and 2-3 and 3-4 shift patterns are
modified. Shifts into Overdrive (4th gear) are allowed
during steady cruise (for improved fuel economy) and
automatic closed-throttle downshifts to 3rd gear (for
improved braking) will occur during steady braking.
The “TOW/HAUL” light will illuminate in the instru-
ment cluster to indicate when the switch has been
activated. Pressing the switch a second time restores
normal operation. If the “TOW/HAUL” mode is desired,
the button must be pressed each time the engine is
started.
Torque Converter Clutch
A feature designed to improve fuel economy is included
in all automatic transmissions. A clutch within the torque
converter engages automatically at a calibrated speed at
light throttle. It engages at higher speeds under heavier
acceleration. This may result in a slightly different feeling
or response during normal operation in high gear. Whenthe vehicle speed drops below a calibrated speed, or
during acceleration, the clutch automatically and
smoothly disengages. The feature is operational in Over-
drive and in Drive.
NOTE:The torque converter clutch will not engage
until the transmission fluid and engine coolant are warm
[usually after 1-3 miles (1.6 - 4.8 km) of driving]. Because
the engine speed is higher when the torque converter
clutch is not engaged, it may seem as if the transmission
is not shifting into Overdrive when cold. This is normal.
Pressing theTOW/HAULbutton will demonstrate that
the transmission is able to shift into and out of Overdrive.
NOTE:If the vehicle has not been driven in several
days, the first few seconds of operation after shifting the
transmission into gear may seem sluggish. This is due to
the fluid partially draining from the torque converter into
the transmission. This condition is normal and will not
STARTING AND OPERATING 249
5

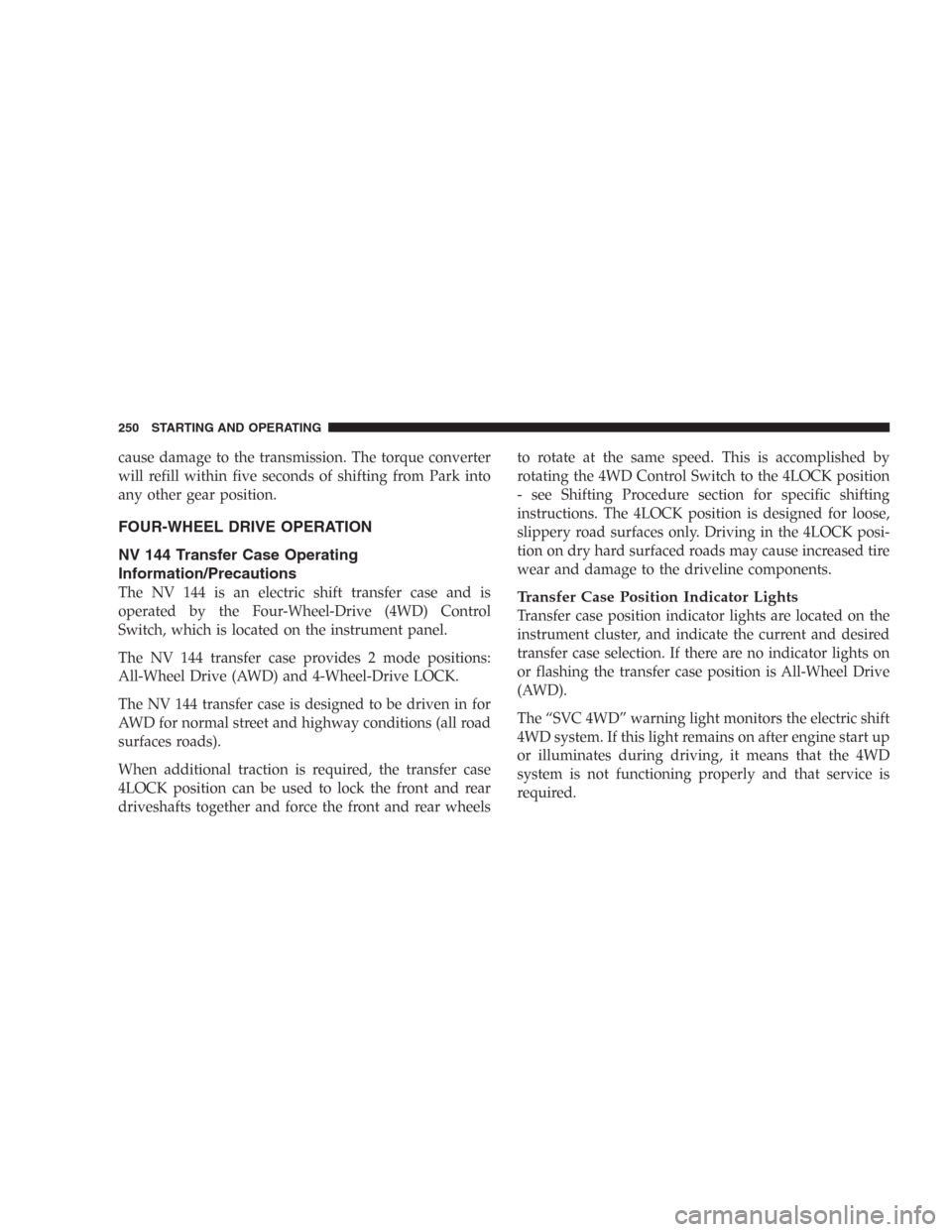

cause damage to the transmission. The torque converter
will refill within five seconds of shifting from Park into
any other gear position.
FOUR-WHEEL DRIVE OPERATION
NV 144 Transfer Case Operating
Information/Precautions
The NV 144 is an electric shift transfer case and is
operated by the Four-Wheel-Drive (4WD) Control
Switch, which is located on the instrument panel.
The NV 144 transfer case provides 2 mode positions:
All-Wheel Drive (AWD) and 4-Wheel-Drive LOCK.
The NV 144 transfer case is designed to be driven in for
AWD for normal street and highway conditions (all road
surfaces roads).
When additional traction is required, the transfer case
4LOCK position can be used to lock the front and rear
driveshafts together and force the front and rear wheelsto rotate at the same speed. This is accomplished by
rotating the 4WD Control Switch to the 4LOCK position
- see Shifting Procedure section for specific shifting
instructions. The 4LOCK position is designed for loose,
slippery road surfaces only. Driving in the 4LOCK posi-
tion on dry hard surfaced roads may cause increased tire
wear and damage to the driveline components.Transfer Case Position Indicator Lights
Transfer case position indicator lights are located on the
instrument cluster, and indicate the current and desired
transfer case selection. If there are no indicator lights on
or flashing the transfer case position is All-Wheel Drive
(AWD).
The “SVC 4WD” warning light monitors the electric shift
4WD system. If this light remains on after engine start up
or illuminates during driving, it means that the 4WD
system is not functioning properly and that service is
required.
250 STARTING AND OPERATING
