DODGE DURANGO 2009 2.G Owners Manual

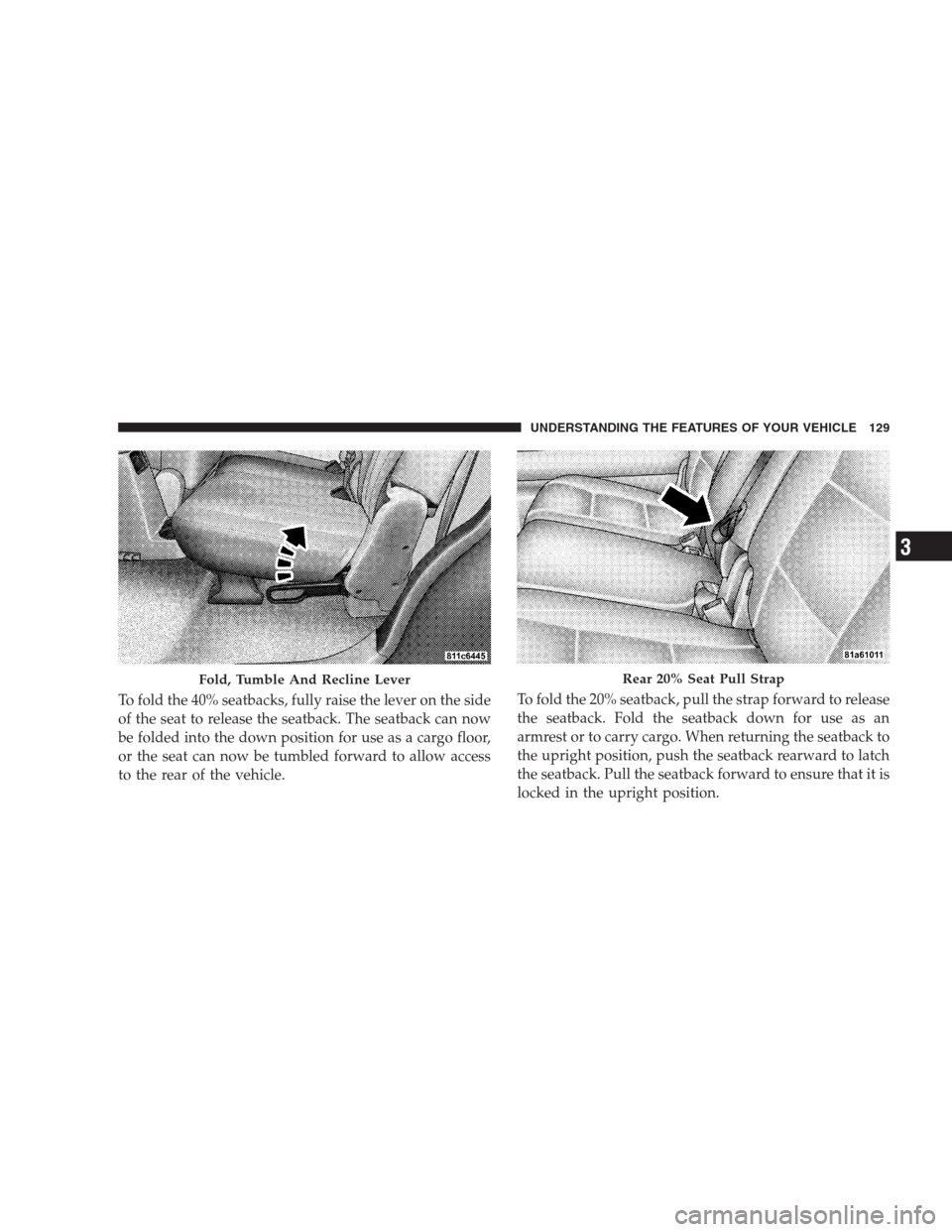

To fold the 40% seatbacks, fully raise the lever on the side
of the seat to release the seatback. The seatback can now
be folded into the down position for use as a cargo floor,
or the seat can now be tumbled forward to allow access
to the rear of the vehicle.To fold the 20% seatback, pull the strap forward to release
the seatback. Fold the seatback down for use as an
armrest or to carry cargo. When returning the seatback to
the upright position, push the seatback rearward to latch
the seatback. Pull the seatback forward to ensure that it is
locked in the upright position.
Fold, Tumble And Recline LeverRear 20% Seat Pull Strap
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

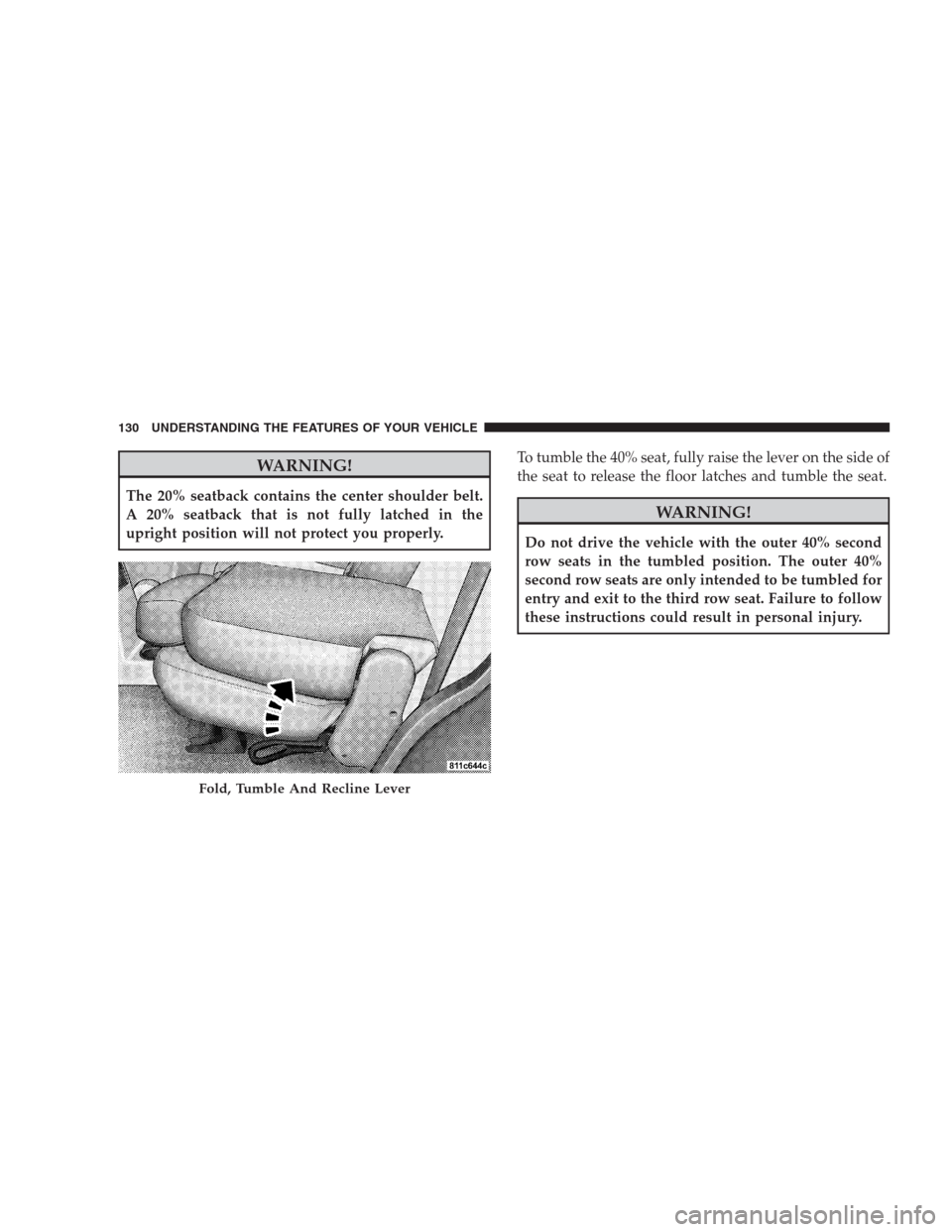

WARNING!
The 20% seatback contains the center shoulder belt.
A 20% seatback that is not fully latched in the
upright position will not protect you properly.To tumble the 40% seat, fully raise the lever on the side of
the seat to release the floor latches and tumble the seat.
WARNING!
Do not drive the vehicle with the outer 40% second
row seats in the tumbled position. The outer 40%
second row seats are only intended to be tumbled for
entry and exit to the third row seat. Failure to follow
these instructions could result in personal injury.
Fold, Tumble And Recline Lever
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The seatback must be fully folded into the down
position to allow the lever to be raised enough to release
the floor latches.To fold and tumble the second row 40% seats from the
third row, fully raise the lever at the rear of the seat to
fold the seatback. Continue raising the lever to release the
floor latches to tumble the seat.
NOTE:The head restraints must be lowered but do not
have to be removed to fold and tumble the seats.
Tumble Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

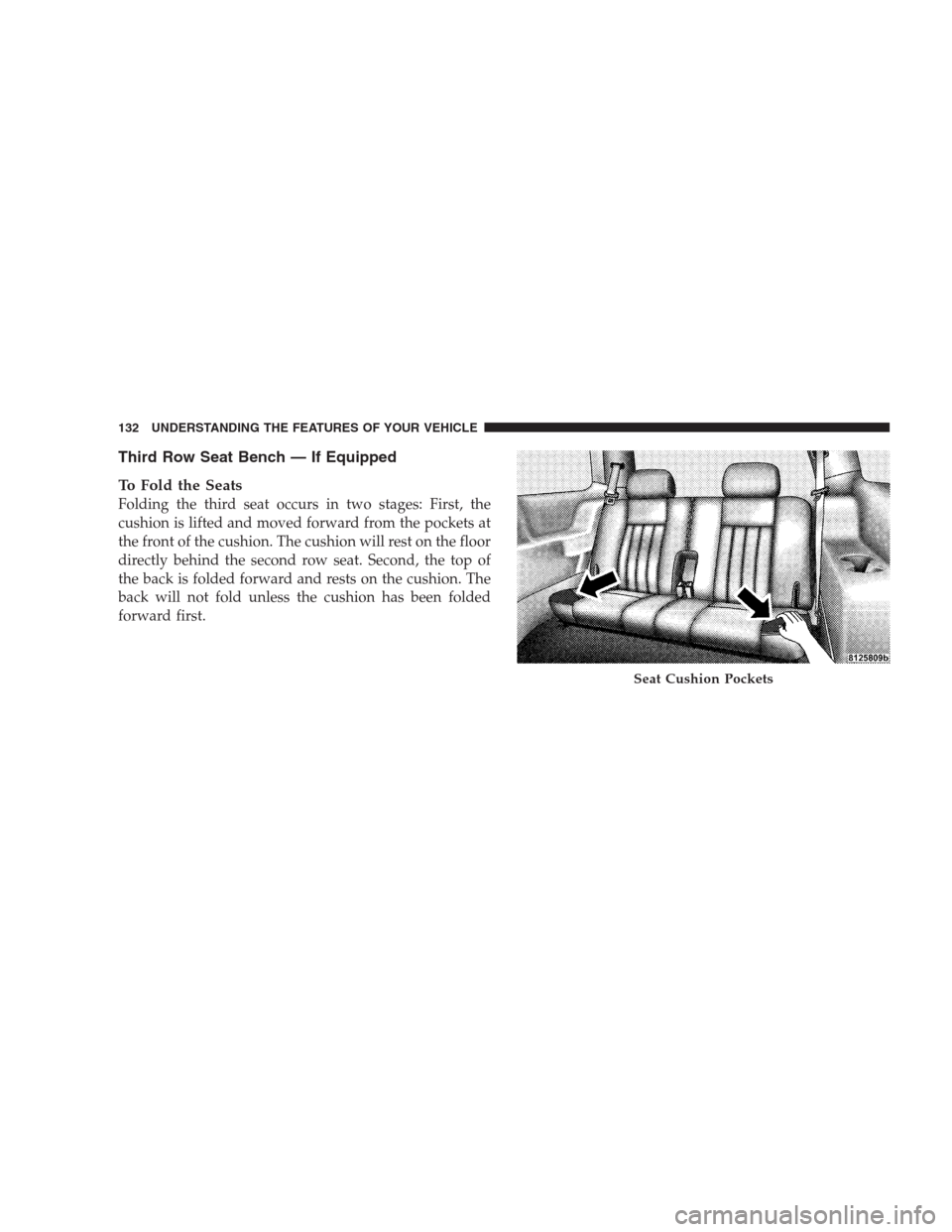

Third Row Seat Bench — If Equipped
To Fold the Seats
Folding the third seat occurs in two stages: First, the
cushion is lifted and moved forward from the pockets at
the front of the cushion. The cushion will rest on the floor
directly behind the second row seat. Second, the top of
the back is folded forward and rests on the cushion. The
back will not fold unless the cushion has been folded
forward first.
Seat Cushion Pockets
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
When loading cargo into the rear of your vehicle with
the third row seat folded flat, be careful not to
damage the material on the head restraints.

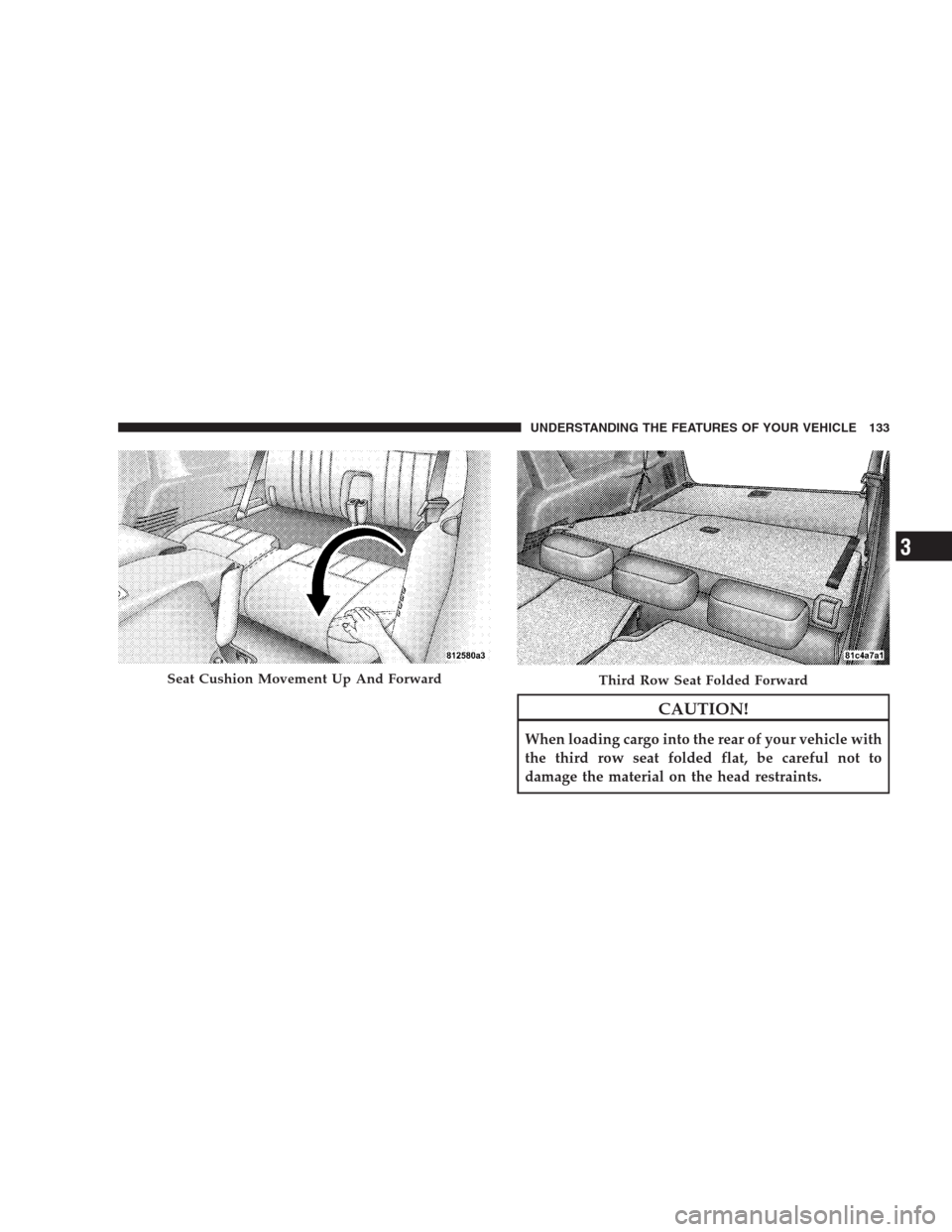

Seat Cushion Movement Up And ForwardThird Row Seat Folded Forward
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

NOTE:The seat belt buckles are hinged to fold with the
seatback.
WARNING!
•Do not sit in the third row seat unless the cushion
and back are properly engaged. Proper engage-
ment can be verified by pushing/pulling on the
upright seatback. The seatback will not move
unless properly engaged.
•Do not sit in the third row seat with the second
row seatback(s) folded or tumbled. In a collision,
you could slide under the seat belt and be seri-
ously or even fatally injured.
Third Row 60/40 Folding — If Equipped
The third row can be equipped with a 60/40 folding seat.
Either side of the third row seat can be folded to extend
the cargo area.The seatback release lever and a seatback return strap
located on both sides of the rear seating sections.
Third Row Seat
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Use the seatback release lever to unlatch the seatback to
fold either seatback forward.
Third Row Seat Features
1 — Seatback Return Strap
2 — Seatback Release LeverThird Row Seat 40% Seatback Fold
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

To return a seatback to its upright position, pull on the
return strap and latch the seatback.DRIVER MEMORY SEAT — IF EQUIPPED
The memory buttons 1 and 2 on the driver’s door panel
can be programmed to recall the driver’s seat position,
driver’s outside mirror position, adjustable brake, accel-
erator pedals position, Automatic Temperature Control

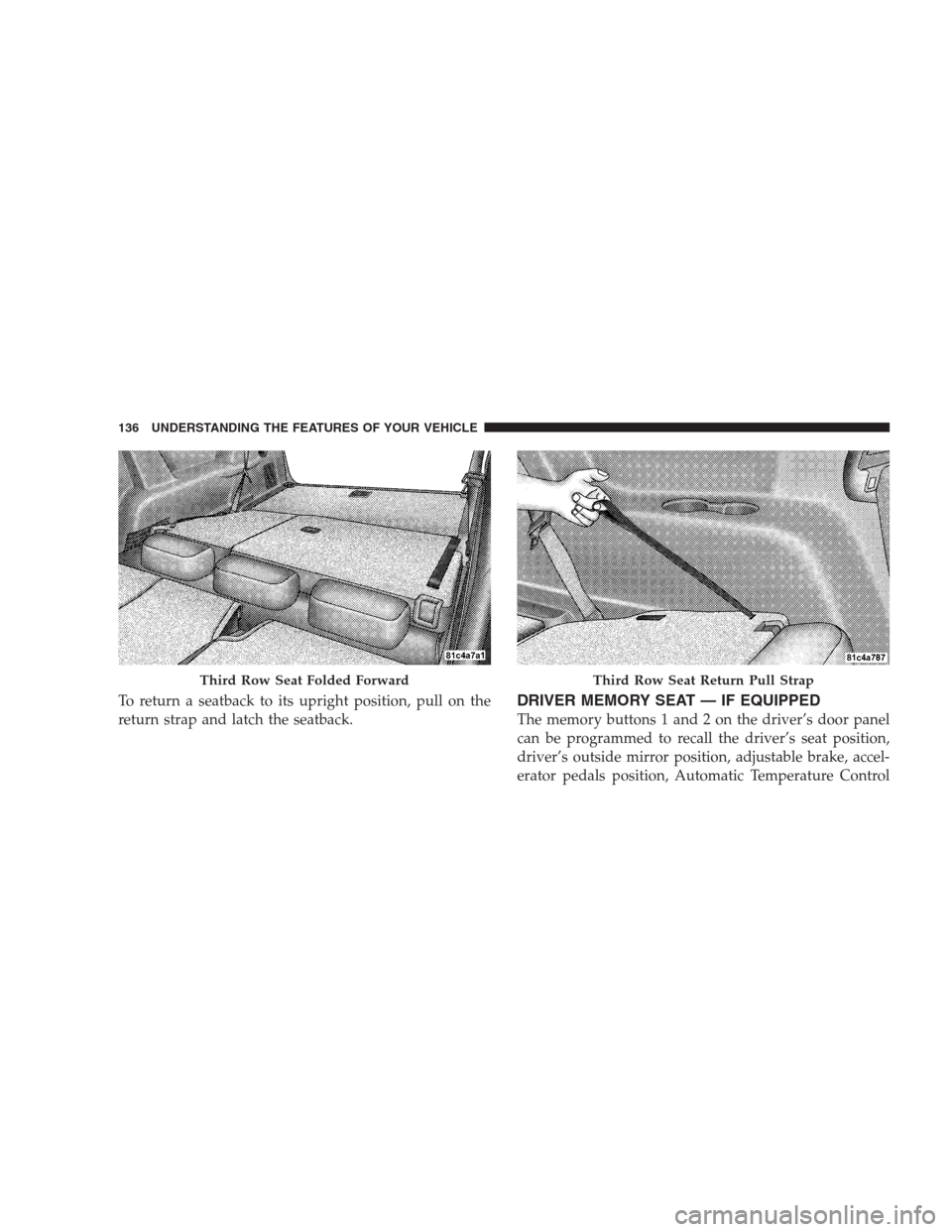

Third Row Seat Folded ForwardThird Row Seat Return Pull Strap
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

(ATC) temperature setting and radio station preset set-
tings. Your Remote Keyless Entry (RKE) transmitters can
also be programmed to recall the same positions when
the UNLOCK button is pressed.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to eithermemory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Setting Memory Positions and Linking RKE
Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Turn the vehicle key to the ON/RUN position.
2. Adjust the driver’s seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time. Refer
to the eight-way power seat description in this section.
3. Adjust the brake and accelerator pedals to the desired
positions.
Memory Buttons
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s door.
7. Within five seconds, press and release memory button
1 or 2 on the driver’s door. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the vehicle off and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Insert the ignition key and turn the ignition switch to
the ON position.11. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
NOTE:A chime sound may be heard if Setting Memory
was inhibited for any reason.
Memory Position Recall
NOTE:
•The driver’s seat belt must be unbuckled to recall
memory positions.
•The vehicle must be in PARK to recall memory posi-
tions.
•Not all motors may be moved at one time. Please refer
to the eight-way power seat description in this section.
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
