DODGE DURANGO 2009 2.G Owners Manual

System Status (EVIC Displays)
When the appropriate conditions exist, the EVIC displays
the following messages:
•TURN SIGNALS ON (with a continuous warning
chime)
•PERSONAL SETTINGS NOT AVAILABLE – Vehicle
not in PARK
•LEFT/RIGHT FRONT DOOR AJAR (one or more,
with a single chime if speed is above 1 mph/1 km/h)
•LEFT/RIGHT REAR DOOR AJAR (one or more, with
a single chime if speed is above 1 mph/1 km/h)
•DOOR(S) AJAR (with a single chime if vehicle is in
motion)
•LOW WASHER FLUID (with a single chime)
•OIL CHANGE REQUIRED (with a single chime)
•SERVICE PARK ASSIST SYSTEM (with a single chime)
•SERVICE PARK ASSIST SYSTEM
•COOLANT LOW
•LIFTGATE OPEN
•CHECK TPM SYSTEM (with single chime) (Premium
TPM System Only)
Oil Change Required — If Equipped
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately 10 sec-
onds after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
3

Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the MENU button. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
refer to the following procedure.
1. Turn the ignition switch to the ON position(Do not
start the engine).
2. Fully depress the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transmission is in PARK. If the trans-
mission is not in PARK the EVIC will display NOT
AVAILABLE and VEHICLE NOT IN PARK.
Press and release the MENU button until the
Personal Settings displays on the EVIC.
Use the STEP button to display one of the following:
•“LANGUAGE” – When in this display, you may select
one of several different languages for all display
nomenclature, including the trip functions. Press the
RESET button while in this display to select your
preferred language. Then, as you continue, the infor-
mation will display in the selected language.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•“AUTO DOOR LOCK > ON” – When ON is selected,
all doors will lock automatically when the vehicle
reaches a speed of 15 mph (24 km/h). To make your
selection, press and release the RESET button until
“ON” or “OFF” appears.
•“AUTO UNLOCK ON EXIT > ON” – When ON is
selected, all doors will unlock when the vehicle is
stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened.
To make your selection, press and release the RESET
button until “ON” or “OFF” appears.
•“RKE UNLOCK DRV DR 1st” – WhenDRV DR 1stis
selected, only the driver’s door will unlock on the first
press of the RKE UNLOCK button. When Driver Door
1st Press is selected, you must press the Remote
Keyless Entry UNLOCK button twice to unlock the
passenger’s doors. To make your selection, press and
release the RESET button until “DRV DR 1st ” appears.
•“RKE UNLOCK ALL DR 1ST” – When AllALL DR
1STis selected, all of the doors will unlock on the first
press of the RKE UNLOCK button. To make your
selection, press and release the RESET button until
“All DR 1st” appears.
•MEM. RECALL WITH RKE > ON – When ON is
selected, pressing the UNLOCK button on the RKE
will recall the memory settings for the seat, mirror and
radio. To make your selection, press and release the
RESET button until “ONor “OFF” appears.
•“SOUND HORN W/LOCK > ON” – When ON is
selected, a short horn sound will occur when the
Remote Keyless Entry LOCK button is pressed. This
feature may be selected with or without the flash lights
on lock/unlock feature. To make your selection, press
and release the RESET button until “ON” or “OFF”
appears.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
3

•“FLASH LAMPS W/LOCK >ON” – When ON is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the RKE Trans-
mitter. This feature may be selected with or without
the sound horn on lock feature selected. To make your
selection, press and release the RESET button until
“ON” or “OFF” appears.
•“HEADLAMP OFF DELAY > 0 SEC” – When this
feature is selected, the driver can choose to have the
headlamps remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To make your selection, press and
release the RESET button until “0,” “30,” “60,” or “90”
appears.
NOTE:The headlamp switch must be in the “A” auto
mode before this feature will work.
•HEADLAMPS W/WIPERS > ON – When ON is
selected, the headlamps will automatically turn on
when the wiper switch is activated.
•EASY EXIT SEAT > ON – When ON is selected, and
the key is removed from the ignition, the driver’s seat
will automatically move rearward to allow easy exit.
•TILT MIRRORS IN “R” > ON – When ON is selected,
and the transmission is put in REVERSE, the outside
mirrors will tilt downward.
•“KEY OFF POWER DELAY> OFF” – When this feature
is selected, the power window switches, radio, hands–
free system (if equipped), and power outlets will
remain active for up to 10 minutes after the ignition
switch is turned off. Opening a vehicle door will
cancel this feature. To make your selection, press and
release the RESET button until “Off,” “45 sec.,”
“5 min.,” “10 min.” appears.
•“ILLUMINATED APRCH > OFF” – When this feature
is selected, the headlights will activate and remain on
for up to 90 seconds when the doors are unlocked with
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

the RKE Transmitter. To make your selection, press
and release the RESET button until “OFF,” “30 sec.,”
“60 sec.,” or “90 sec.” appears.
•PARK ASST. SYSTEM > ON – When YES is selected,
the Rear Park Assist System is activated. When NO is
selected, the System is deactivated.
•“UNIT IN > U.S./METRIC” – The EVIC odometer can
be changed between English and Metric units of
measure. To make your selection, press and release the
RESET button until “US” or “METRIC” appears.
•“COMPASS VARIANCE > 8” – Press the RESET
button to change the compass variance setting. Set this
to your current location. If you change location,
change your variance according to your variance on
the variance map. Refer to Compass Variance Map in
this section.
•“COMPASS CALIBRATE > YES” – Press the RESET
button to manually calibrate the compass. Refer to
Manual Compass Calibration in this section.
Compass/Temperature Button
Pressing the Compass/Temperature button
will return the display to the normal compass/
temperature display.
NOTE:Temperature accuracy can be affected from heat
soak. For best accuracy, the vehicle should be driven at a
speed greater than 20 mph (32 km/h) for several min-
utes.
Automatic Compass Calibration
This compass is self-calibrating, which reduces the need
to calibrate the compass manually. When the vehicle is
new, the compass may appear erratic and the EVIC will
display “CAL” until the compass is calibrated. You may
also calibrate the compass by completing one or more
360° turns at speeds less than 5 mph (8 km/h) (in an area
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173
3

free from large metal or metallic objects) until the “CAL”
message displayed in the EVIC turns off. The compass
will now function normally.
Manual Compass Calibration
If the compass appears erratic and the “CAL” message
does not appear in the EVIC display, you must put the
compass into the Calibration Mode manually as follows:
1.Turn the ignition switch to the ON/RUN position.
2.Press the MENU buttonuntil “Personal
Settings” is displayed.
3.Press the STEP buttonuntil “Calibrate Compass YES”
is displayed.
4.Press and release the RESET buttonto start the
calibration. The message “CAL” will display on the
compass temperature screen in the EVIC.5.Slowly drive the vehicle at a speed of 5 mph (8 km/h)
in a complete 360°circle, (in an area free from large
metal or metallic objects) until the “CAL” message
turns off. The compass will now function normally.Compass Variance
Compass variance is the difference between magnetic
North and geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. If this occurs, the compass variance must be set
using the following procedure:
NOTE:Magnetic materials should be kept away from
the overhead console. This is where the compass sensor is
located.
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

1.Turn the ignition switch to the ON/RUN position.
2.Press the MENU buttonuntil “Personal
Settings” is displayed.3.Press the STEP buttonuntil “Compass Variance” is
displayed.
4.Press and release RESET buttonuntil the proper
variance zone is selected according to the variance map.
5.Press and release the Compass/Temperature button
to exit.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinkunit operates off your vehicle’s
battery.
Compass Variance Map
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

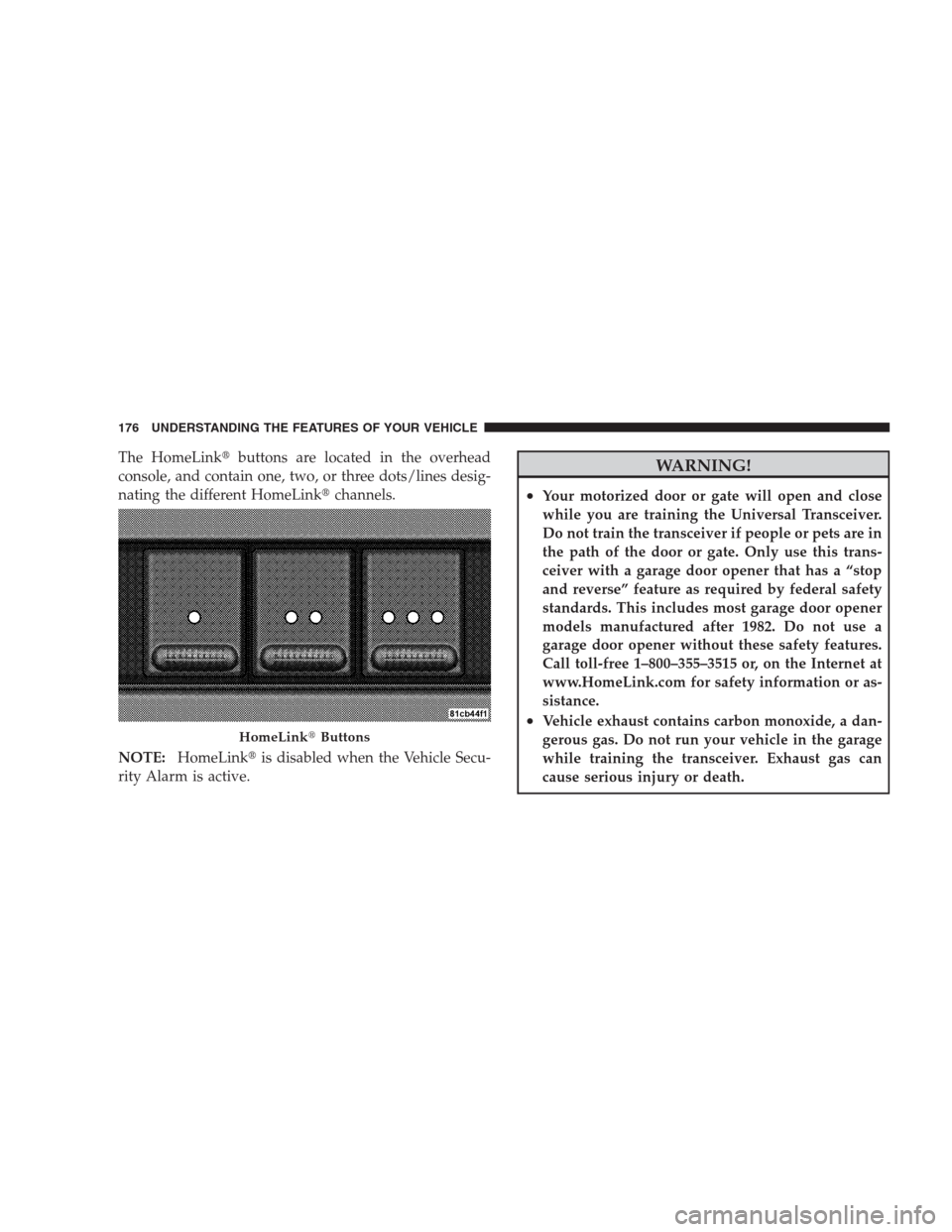

The HomeLinkbuttons are located in the overhead
console, and contain one, two, or three dots/lines desig-
nating the different HomeLinkchannels.
NOTE:HomeLinkis disabled when the Vehicle Secu-
rity Alarm is active.WARNING!
•Your motorized door or gate will open and close
while you are training the Universal Transceiver.
Do not train the transceiver if people or pets are in
the path of the door or gate. Only use this trans-
ceiver with a garage door opener that has a “stop
and reverse” feature as required by federal safety
standards. This includes most garage door opener
models manufactured after 1982. Do not use a
garage door opener without these safety features.
Call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for safety information or as-
sistance.
•Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death.
HomeLinkButtons
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Programming HomeLink
Before You Begin
If you have not trained any of the HomeLinkbuttons,
erase all channels before you begin training.
To do this, press and hold the two outside buttons for up
to 20 seconds. The EVIC will display “CLEARING
CHANNELS.” Release the buttons when the EVIC mes-
sage states “CHANNELS CLEARED.”
It is recommended that a new battery be placed in the
hand-held transmitter of the device being programmed
to HomeLinkfor more efficient training and accurate
transmission of the radio-frequency signal.
Your vehicle should be parked outside of the garage
while training.
1. Turn the ignition switch to the ON/RUN position.2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
from the HomeLinkbuttons while keeping the EVIC
display in view.
For optimal training, point the battery end of the hand-
held transmitter away from the HomeLink.
3. Simultaneously, press and hold both the chosen
HomeLinkbutton and the hand-held transmitter button
until the EVIC display changes from “CHANNEL #
TRAINING” to “CHANNEL # TRAINED.”
Then release both the HomeLinkand hand-held trans-
mitter buttons.
If the EVIC display states “DID NOT TRAIN” repeat
Step 3. If the signal is too weak, replace the battery in the
original hand-held transmitter.
It may take up to 30 seconds, or longer, in rare cases. The
garage door may open and close while you train.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

NOTE:Some gate operators and garage door openers
may require you to replace Step 3 with procedures noted
in the “Gate Operator/Canadian Programming” section.
4. Press and hold the just-trained HomeLinkbutton. If
the channel has been trained, the EVIC display will now
state “CHANNEL # TRANSMIT.”
If the EVIC display still states “CHANNEL # TRAIN-
ING” repeat Step 3.
NOTE:After training a HomeLinkchannel, if the
garage door does not operate with HomeLinkand the
garage door opener was manufactured after 1995, the
garage door opener may have rolling code. If so, proceed
to the heading “Programming A Rolling Code System.”
5. PROGRAMMING A ROLLING CODE SYSTEM
At the garage door opener motor (in the garage), locate
the “learn” or “training” button.This can usually be found where the hanging antenna
wire is attached to the garage door opener motor (it is
NOT the button normally used to open and close the
door).
1 — Garage Door Opener
2 — Training Button 178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
