DODGE DURANGO 2009 2.G User Guide

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Locking Doors With The Key............. 14
Steering Wheel Lock — If Equipped......... 14
▫To Manually Lock The Steering Wheel...... 14
▫To Release The Steering Wheel Lock........ 14
▫Automatic Transaxle Ignition Interlock
System — If Equipped.................. 14Sentry Key.......................... 15
▫Replacement Keys..................... 16
▫Customer Key Programming............. 17
▫General Information................... 18
Vehicle Security Alarm — If Equipped........ 18
▫To Set The Alarm..................... 18
▫To Disarm The System................. 19
Illuminated Entry...................... 20
▫Vehicles Equipped With Power Door Locks . . . 20
2

Remote Keyless Entry (RKE).............. 20
▫To Unlock The Doors And Liftgate......... 21
▫To Lock The Doors And Liftgate.......... 22
▫Using The Panic Alarm................. 24
▫General Information................... 24
▫Programming Additional Transmitters...... 25
▫Battery Replacement................... 25
Remote Starting System — If Equipped....... 26
▫How To Use Remote Start............... 26
Door Locks........................... 28
▫Manual Door Locks................... 28
▫Power Door Locks.................... 29
▫Child Protection Door Lock.............. 32Windows............................ 33
▫Power Windows...................... 33
▫Auto Down......................... 34
▫Auto Up Feature With Anti-Pinch Protection
(Driver’s And Front Passenger Door Only) . . . 34
▫Window Lockout Switch................ 35
Liftgate............................. 35
▫Power Liftgate — If Equipped............ 36
Occupant Restraints..................... 39
▫Lap/Shoulder Belts.................... 40
▫Adjustable Upper Shoulder Belt Anchorage . . . 44
▫Automatic Locking Retractors (ALR) Mode –
If Equipped......................... 45
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Rear 60/40 Seat Third Row Center Three
Point Belt — If Equipped................ 46
▫Seat Belt Pretensioners................. 48
▫Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 49
▫Seat Belts And Pregnant Women.......... 50
▫Seat Belt Extender..................... 50
▫Driver And Right Front Passenger
Supplemental Restraint System
(SRS)—Airbags....................... 51
▫Event Data Recorder (EDR).............. 60▫Child Restraint....................... 62
Engine Break-In Recommendations.......... 71
Safety Tips........................... 72
▫Transporting Passengers................ 72
▫Exhaust Gas......................... 73
▫Safety Checks You Should Make Inside The
Vehicle............................. 74
▫Periodic Safety Checks You Should Make
Outside The Vehicle................... 74
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

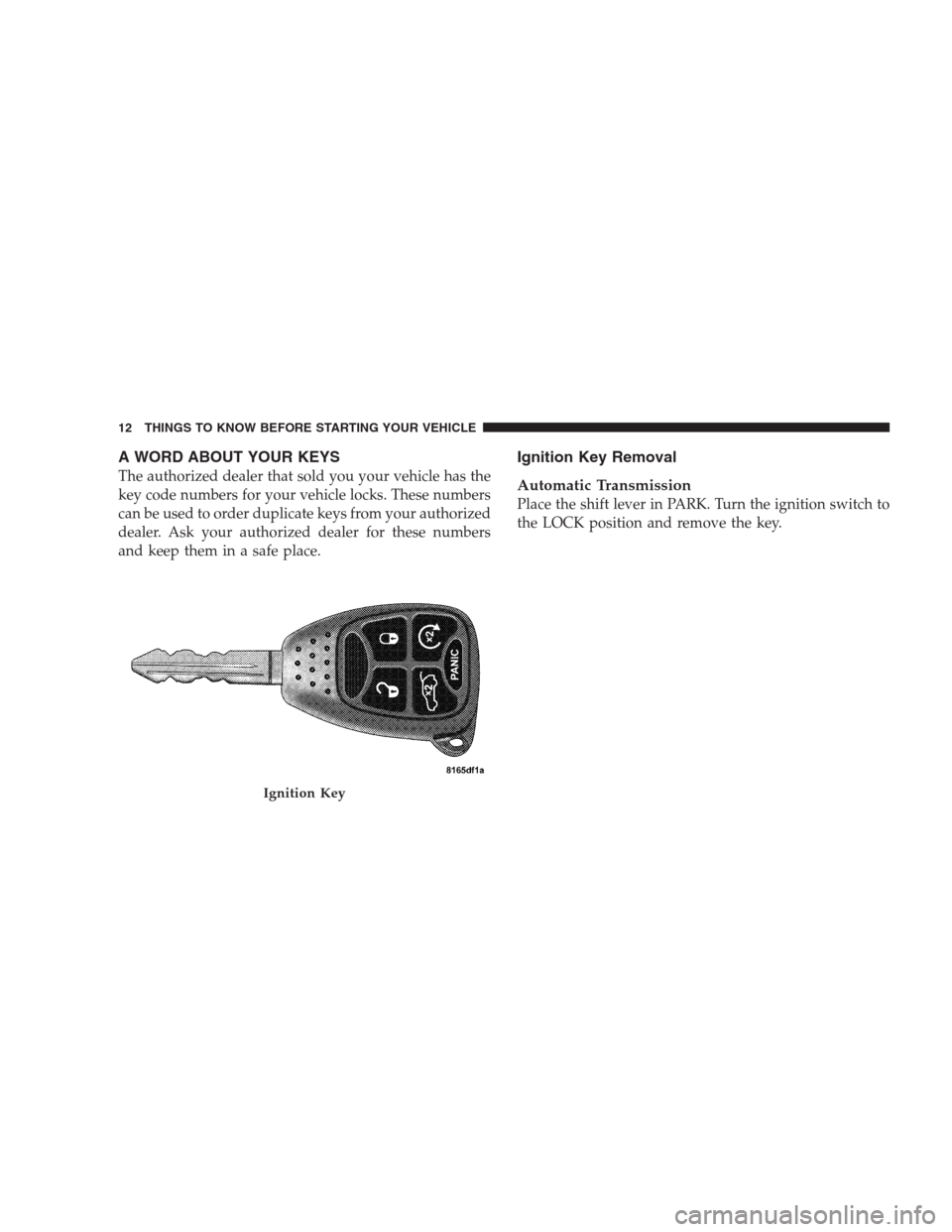

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
Ignition Key Removal
Automatic Transmission
Place the shift lever in PARK. Turn the ignition switch to
the LOCK position and remove the key.
Ignition Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition cylinder. If this occurs, rotate thekey to the right slightly, then remove the key as de-
scribed. If a malfunction occurs, the system will trap the
key in the ignition cylinder to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key cannot be removed until you obtain
service.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Ignition Switch Positions
1 — ACC 4 — ON/RUN
2 — LOCK 5 — START
3 — OFFTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. For external door lock lubrication, refer to
“Body Lubrication” in Section 7.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved
approximately a half turn in either direction and the key
is not in the ignition switch, the steering wheel will lock.
To Manually Lock the Steering Wheel
To manually lock the steering wheel, with the engine
running, turn the steering wheel upside down, turn off
the engine and remove the key. Turn the steering wheel
slightly in either direction until the lock engages.
To Release the Steering Wheel Lock
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
Automatic Transaxle Ignition Interlock System —
If Equipped
This system prevents the key from being removed unless
the shift lever is in PARK and the shift knob pushbutton
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

is out. It also prevents shifting out of PARK unless the
key is in the ON position and the brake pedal is
depressed.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speedpass™, additional Sentry Keys,
or any other transponder-equipped components on
the same key chain willnotcause a key-related
(transponder) fault unless the additional part isphysi-
cally held against the ignition keybeing used when
starting the vehicle. Cell phones, pagers, or other
Radio Frequency (RF) electronics will not cause inter-
ference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Keyis programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keysfrom the vehicle
and lock all doors when leaving the vehicle unat-
tended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:When having the Sentry KeyImmobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
If you have two valid Sentry Keys, you can program
new Sentry Keysto the system by performing the
following procedure:
1. Cut the additional Sentry KeyTransponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Keyis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
This Vehicle Security Alarm monitors the vehicle doors,
liftgate, and ignition for unauthorized operation. When
the alarm is activated, the Vehicle Security Alarm pro-
vides both audible and visual signals. The horn will
sound repeatedly for three minutes and the headlights
and Vehicle Security Light in the instrument cluster will
flash for an additional 15 minutes. The engine will not
run until the Vehicle Security Alarm is disarmed.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
closed and locked, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
