DODGE DURANGO 2009 2.G Owner's Manual

Vehicle Security Alarm is arming. The Vehicle Security
Light in the instrument panel cluster will flash rapidly for
about 15 seconds to indicate that the alarm is being set.
After the alarm is set, the Vehicle Security Light will flash
at a slower rate to indicate that the Vehicle Security
Alarm is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the Vehicle Security
Alarm checked by your authorized dealer.
To Disarm the System
Use the RKE transmitter to unlock the doors. If some-
thing has triggered the Vehicle Security Alarm in your
absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
The Vehicle Security Alarm will also disarm if the vehicle
is started with a programmed Sentry Key. If an unpro-
grammed Sentry Keyis used to start a vehicle, the
engine will start and run for two seconds and then shutdown. After six unsuccessful attempts at starting the
engine, the Vehicle Security Alarm will shut down until
the correct key is used. To exit alarming mode, press the
RKE transmitter UNLOCK button or start the vehicle
with a programmed Sentry Key.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will arm unexpectedly. If you
remain in the vehicle and lock the doors with the
transmitter, the alarm will sound when you pull the door
handle to exit.
NOTE:You may accidentally activate the Vehicle Secu-
rity Alarm (horn sounds and lights flash) by entering the
vehicle without using the RKE transmitter to unlock the
door(s). The Vehicle Security Alarm can be disarmed with
the RKE transmitters unlock button or by inserting a
programmed Sentry Keyinto the ignition and turning
the key to the ON position.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

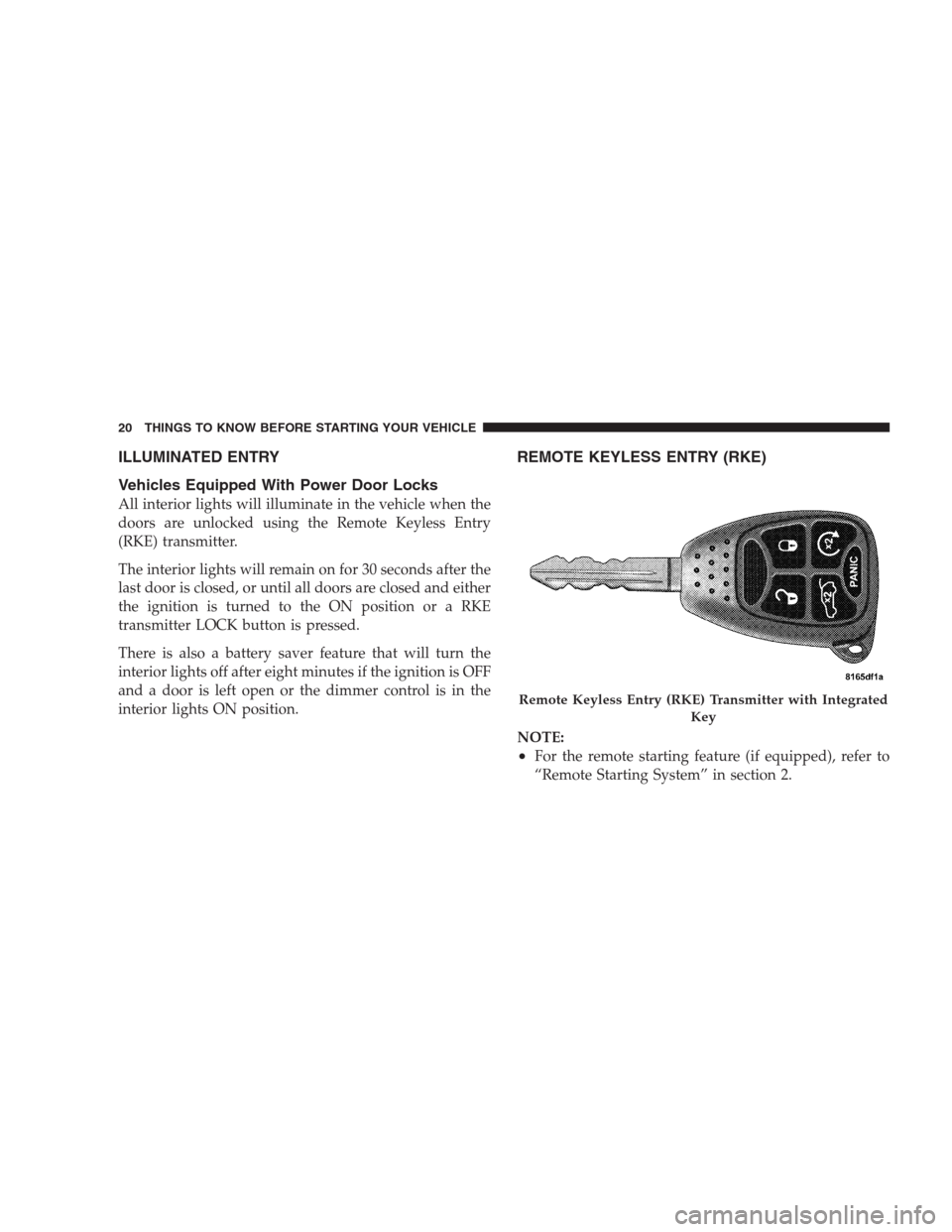

ILLUMINATED ENTRY
Vehicles Equipped With Power Door Locks
All interior lights will illuminate in the vehicle when the
doors are unlocked using the Remote Keyless Entry
(RKE) transmitter.
The interior lights will remain on for 30 seconds after the
last door is closed, or until all doors are closed and either
the ignition is turned to the ON position or a RKE
transmitter LOCK button is pressed.
There is also a battery saver feature that will turn the
interior lights off after eight minutes if the ignition is OFF
and a door is left open or the dimmer control is in the
interior lights ON position.
REMOTE KEYLESS ENTRY (RKE)
NOTE:
•For the remote starting feature (if equipped), refer to
“Remote Starting System” in section 2.
Remote Keyless Entry (RKE) Transmitter with Integrated
Key
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

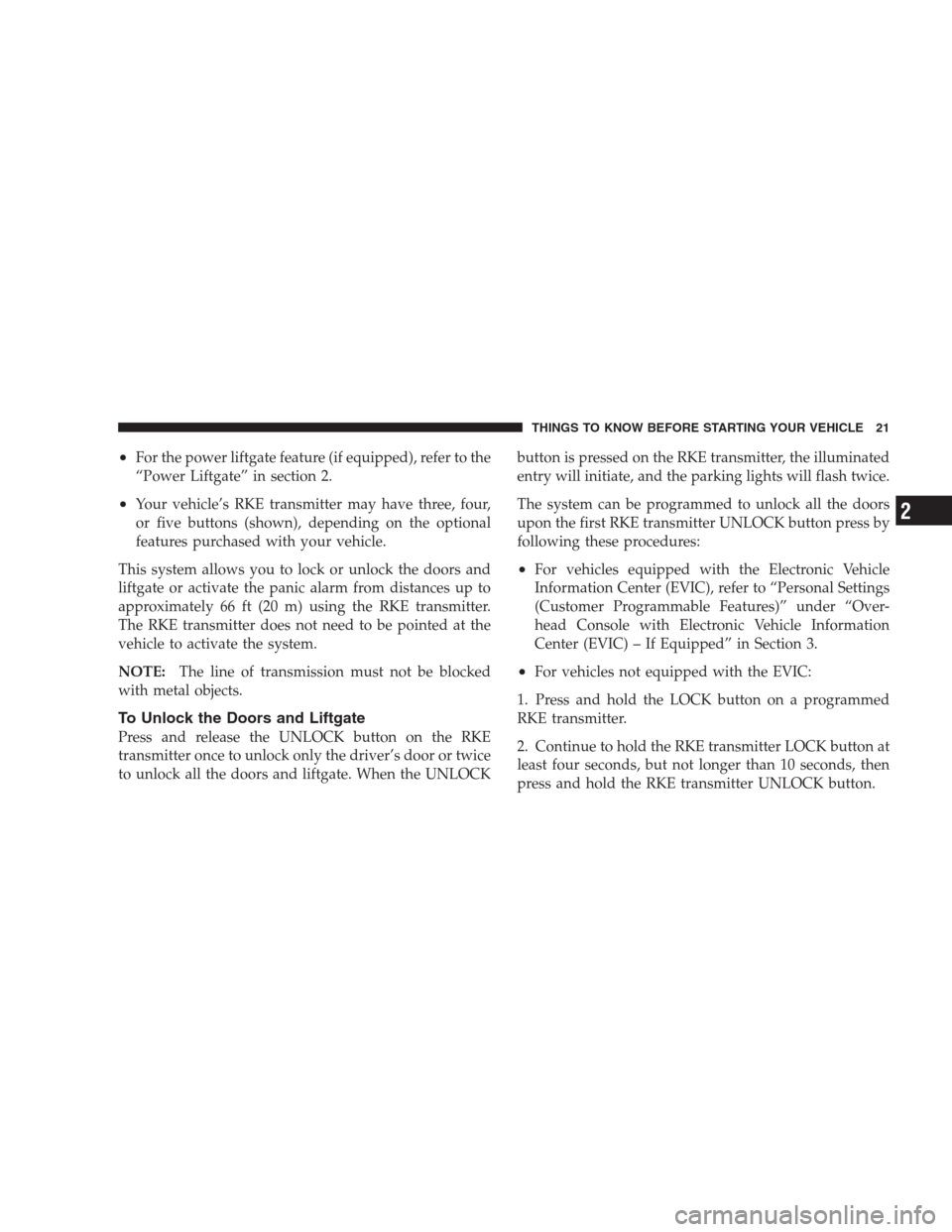

•For the power liftgate feature (if equipped), refer to the
“Power Liftgate” in section 2.
•Your vehicle’s RKE transmitter may have three, four,
or five buttons (shown), depending on the optional
features purchased with your vehicle.
This system allows you to lock or unlock the doors and
liftgate or activate the panic alarm from distances up to
approximately 66 ft (20 m) using the RKE transmitter.
The RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE:The line of transmission must not be blocked
with metal objects.
To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors and liftgate. When the UNLOCKbutton is pressed on the RKE transmitter, the illuminated
entry will initiate, and the parking lights will flash twice.
The system can be programmed to unlock all the doors
upon the first RKE transmitter UNLOCK button press by
following these procedures:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings
(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the RKE transmitter LOCK button at
least four seconds, but not longer than 10 seconds, then
press and hold the RKE transmitter UNLOCK button.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

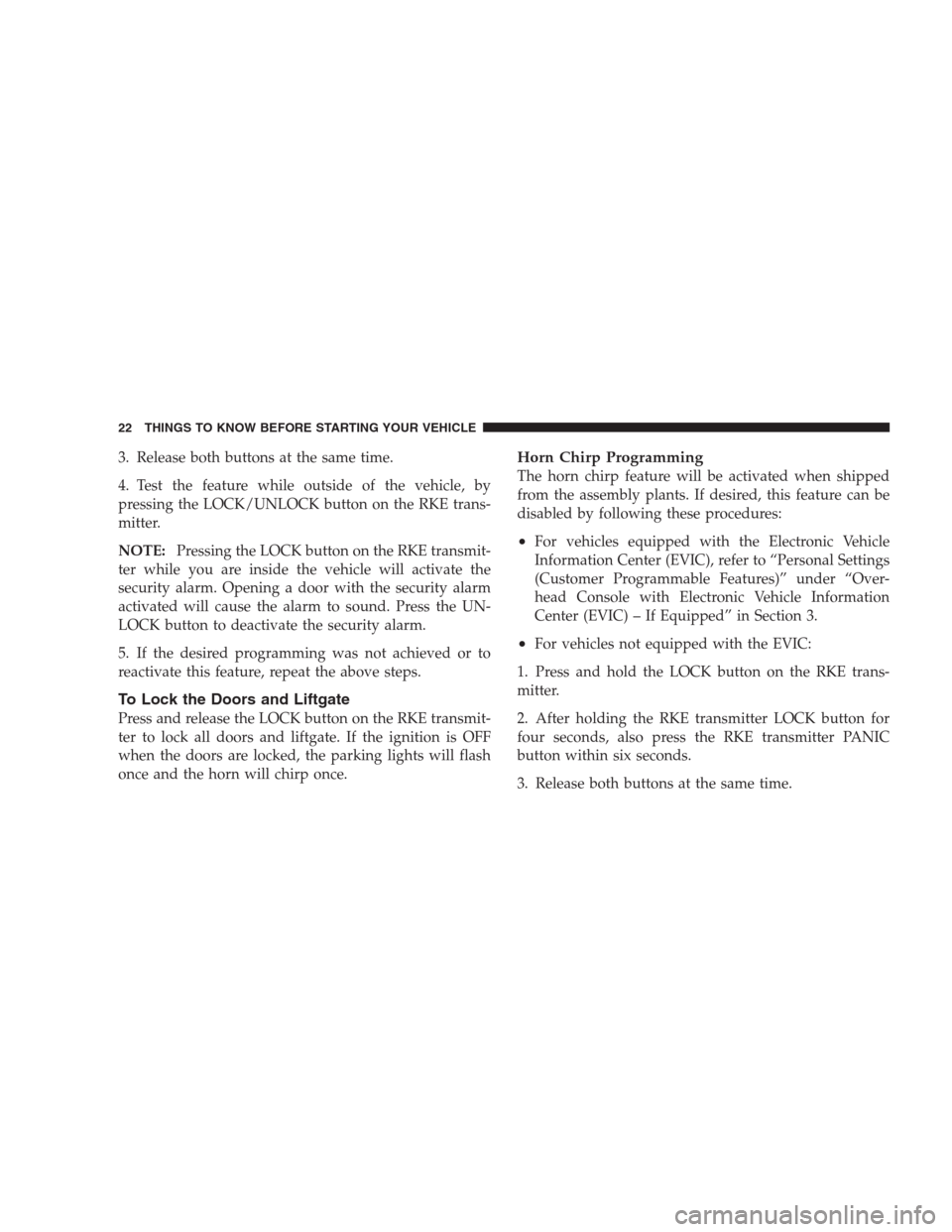

3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the RKE trans-
mitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the security alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the security alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock the Doors and Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. If the ignition is OFF
when the doors are locked, the parking lights will flash
once and the horn will chirp once.
Horn Chirp Programming
The horn chirp feature will be activated when shipped
from the assembly plants. If desired, this feature can be
disabled by following these procedures:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings
(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC:
1. Press and hold the LOCK button on the RKE trans-
mitter.
2. After holding the RKE transmitter LOCK button for
four seconds, also press the RKE transmitter PANIC
button within six seconds.
3. Release both buttons at the same time.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

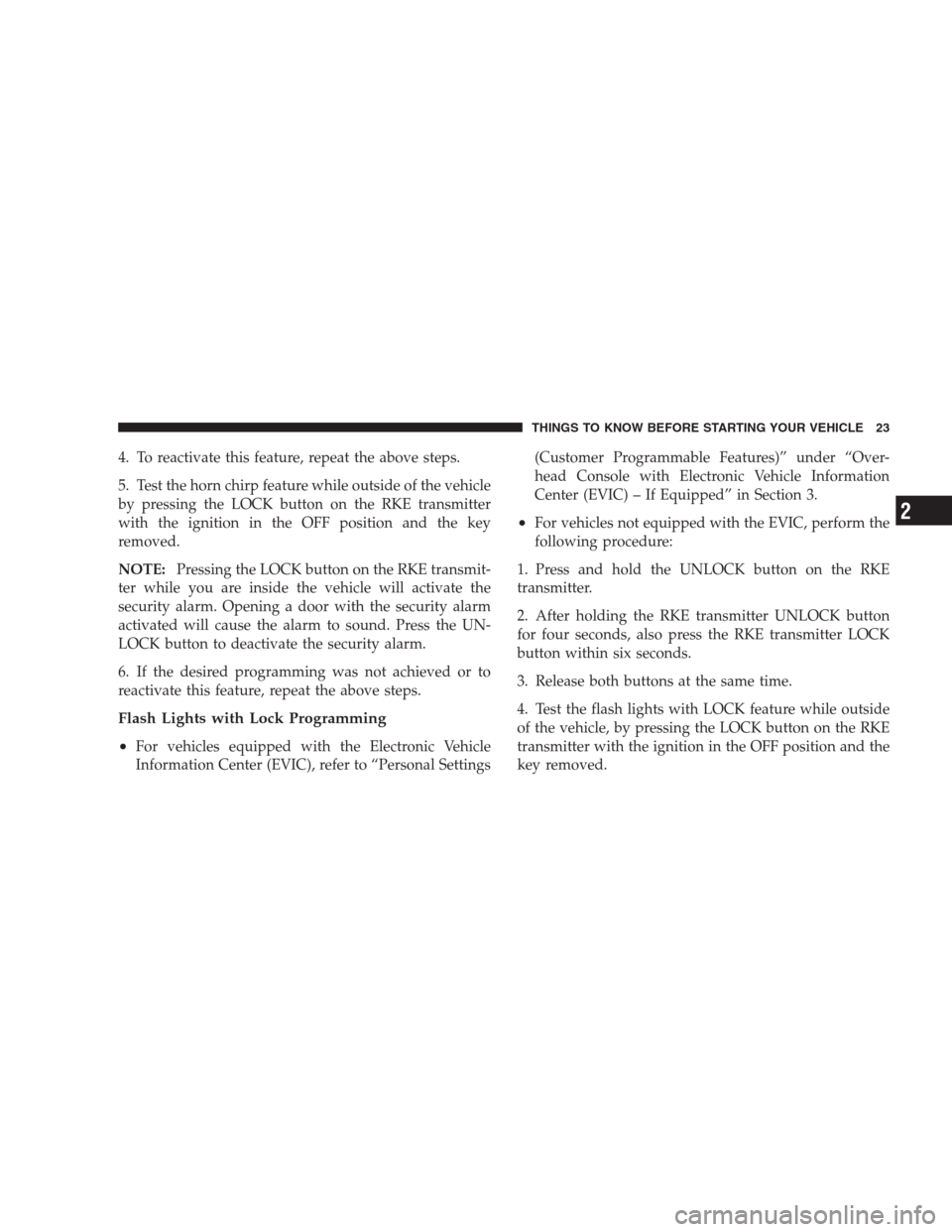

4. To reactivate this feature, repeat the above steps.
5. Test the horn chirp feature while outside of the vehicle
by pressing the LOCK button on the RKE transmitter
with the ignition in the OFF position and the key
removed.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the security alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the security alarm.
6. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Flash Lights with Lock Programming
•
For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Personal Settings(Customer Programmable Features)” under “Over-
head Console with Electronic Vehicle Information
Center (EVIC) – If Equipped” in Section 3.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the UNLOCK button on the RKE
transmitter.
2. After holding the RKE transmitter UNLOCK button
for four seconds, also press the RKE transmitter LOCK
button within six seconds.
3. Release both buttons at the same time.
4. Test the flash lights with LOCK feature while outside
of the vehicle, by pressing the LOCK button on the RKE
transmitter with the ignition in the OFF position and the
key removed.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

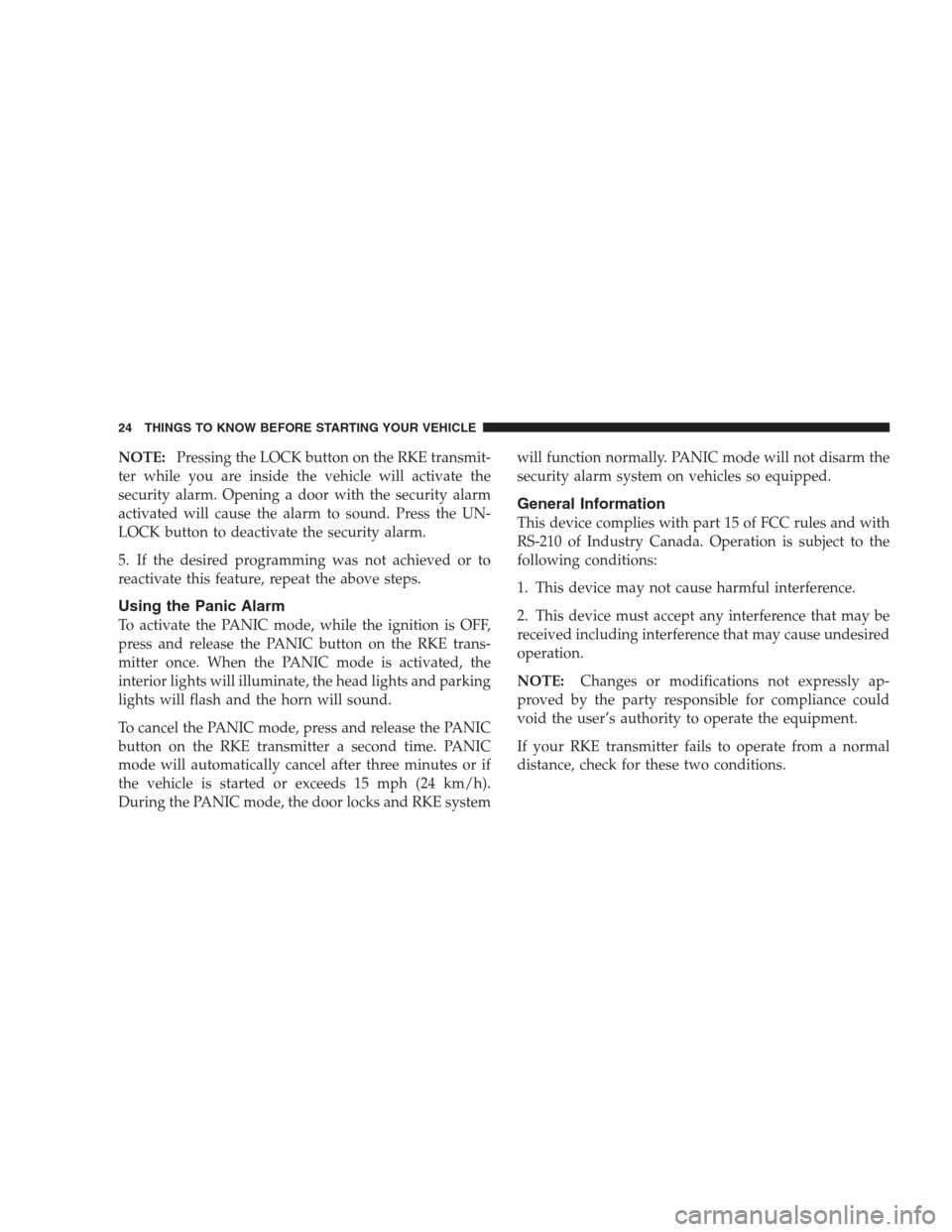

NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
security alarm. Opening a door with the security alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the security alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
Using the Panic Alarm
To activate the PANIC mode, while the ignition is OFF,
press and release the PANIC button on the RKE trans-
mitter once. When the PANIC mode is activated, the
interior lights will illuminate, the head lights and parking
lights will flash and the horn will sound.
To cancel the PANIC mode, press and release the PANIC
button on the RKE transmitter a second time. PANIC
mode will automatically cancel after three minutes or if
the vehicle is started or exceeds 15 mph (24 km/h).
During the PANIC mode, the door locks and RKE systemwill function normally. PANIC mode will not disarm the
security alarm system on vehicles so equipped.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

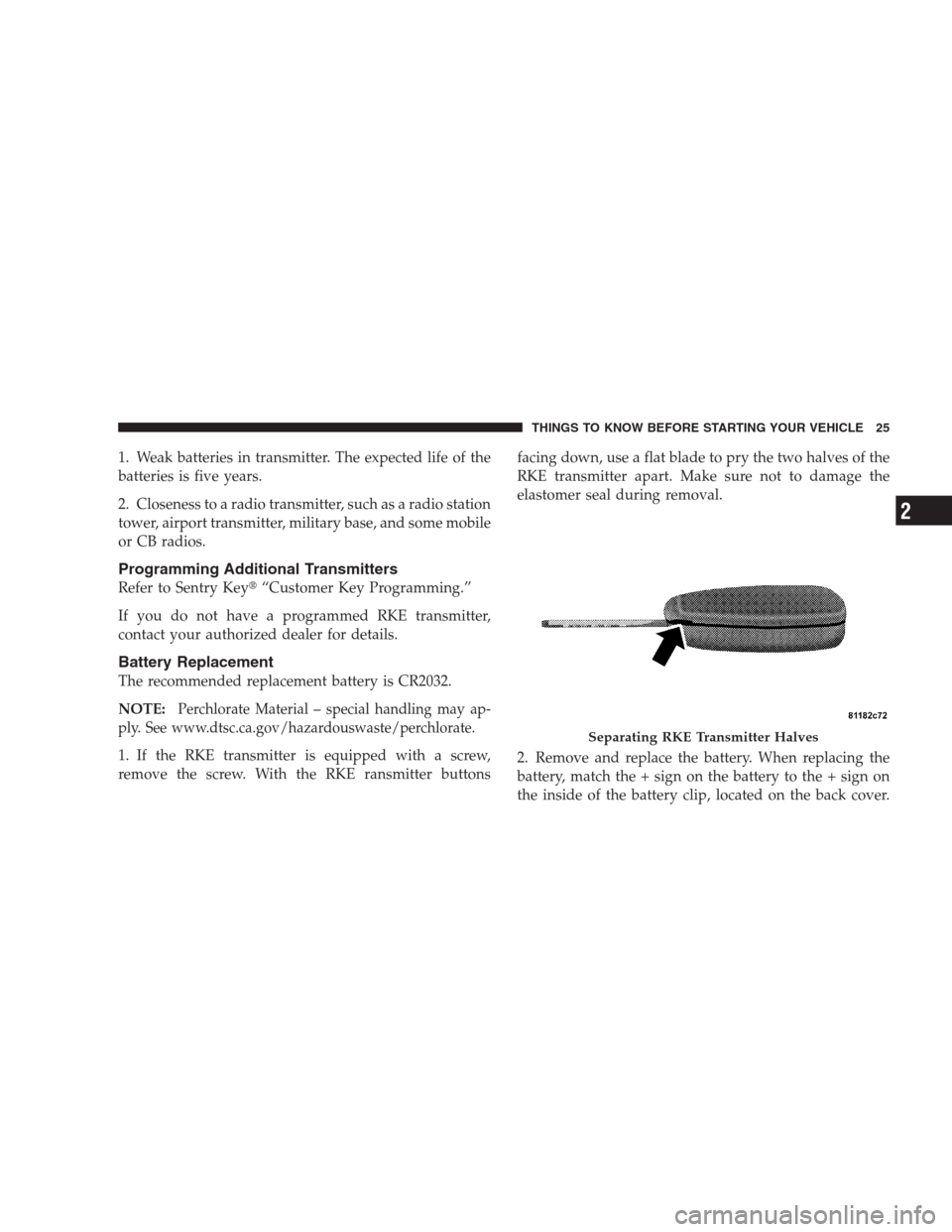

1. Weak batteries in transmitter. The expected life of the
batteries is five years.
2. Closeness to a radio transmitter, such as a radio station
tower, airport transmitter, military base, and some mobile
or CB radios.
Programming Additional Transmitters
Refer to Sentry Key“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may ap-
ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE ransmitter buttonsfacing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.
2. Remove and replace the battery. When replacing the
battery, match the + sign on the battery to the + sign on
the inside of the battery clip, located on the back cover.
Separating RKE Transmitter Halves
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

Avoid touching the new battery with your fingers. Skin
oils may cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test RKE transmitter
operation.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
328 ft (100 m).
NOTE:The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How to Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

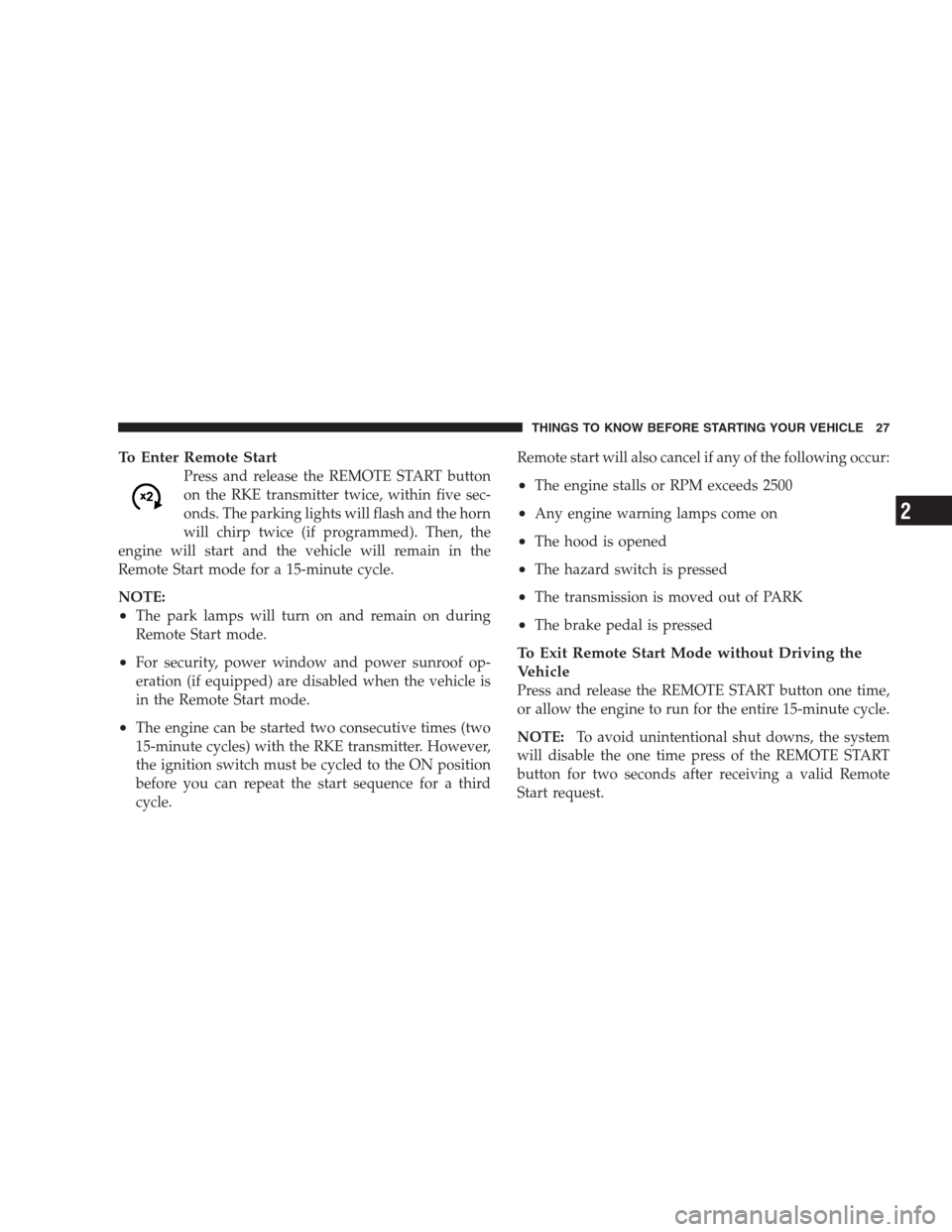

To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode without Driving the
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

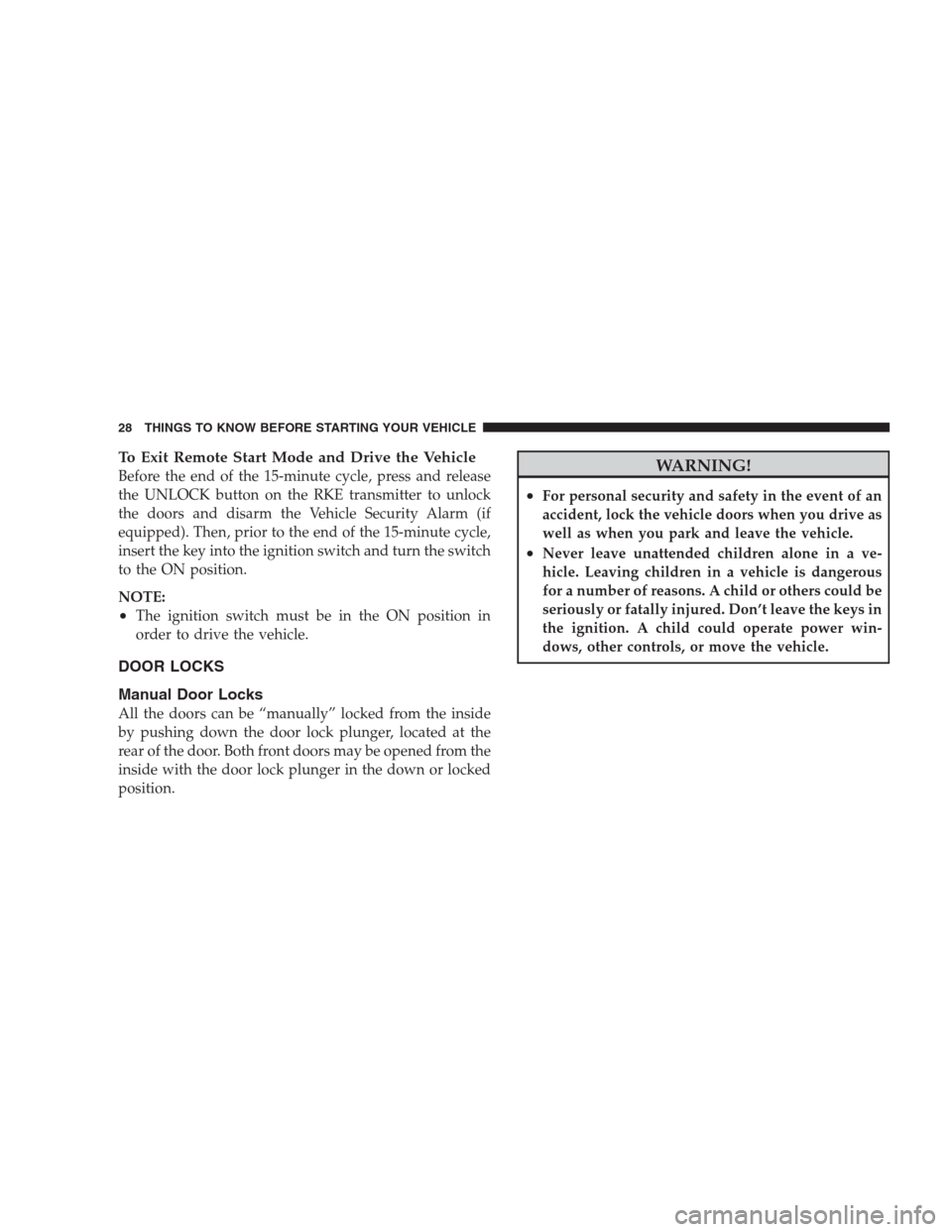

To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON position.
NOTE:
•The ignition switch must be in the ON position in
order to drive the vehicle.
DOOR LOCKS
Manual Door Locks
All the doors can be “manually” locked from the inside
by pushing down the door lock plunger, located at the
rear of the door. Both front doors may be opened from the
inside with the door lock plunger in the down or locked
position.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•Never leave unattended children alone in a ve-
hicle. Leaving children in a vehicle is dangerous
for a number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the keys in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
