If One Or More Shift Conditions Are Not Met:
1. The indicator light for the current position will remain
ON.
2. The newly selected position indicator light will con-
tinue to flash.
3. The transfer casewill notshift.
NOTE: Before retrying a selection, make certain that all
the necessary requirements for selecting a new transfer
case position have been met. To retry the selection, turn
the control knob back to the current position, wait five
seconds, and retry selection. To find the shift require-
ments, refer to the Shifting Procedure for your transfer
case, located in this section of the owner’s manual. The “SERV AWD Warning Light” monitors the electronic
shift all-wheel drive system. If this light remains on after
engine start up or illuminates during driving, it means
that the all-wheel drive system is not functioning prop-
erly and that service is required.
WARNING!
Always engage the parking brake when powering
down the vehicle if the “SERV AWD Warning Light”
is illuminated. Not engaging the parking brake may
allow the vehicle to roll which may cause personal
injury.
NOTE: Do not attempt to make a shift while only the
front or rear wheels are spinning. This could cause
damage to driveline components.
5
STARTING AND OPERATING 353

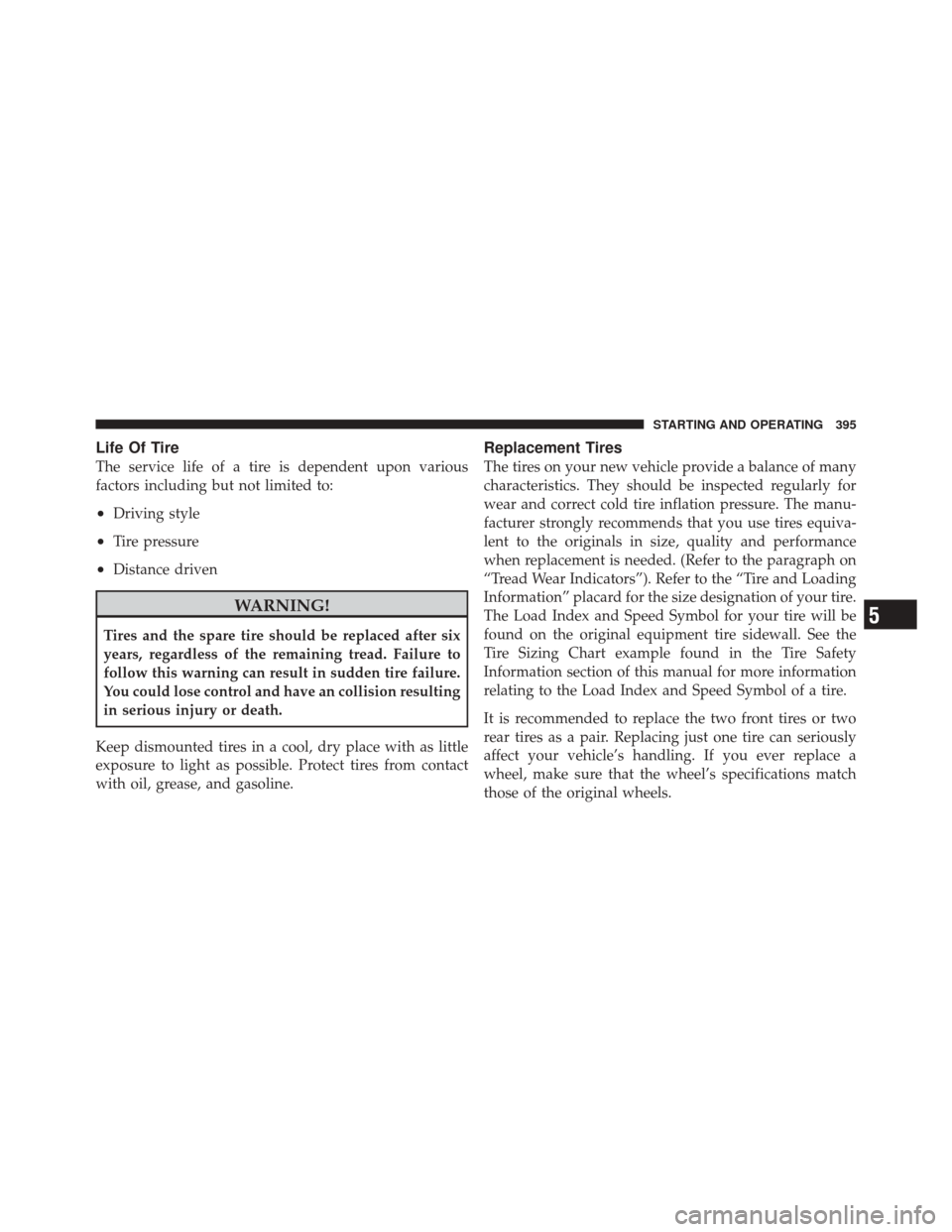

Life Of Tire
The service life of a tire is dependent upon various
factors including but not limited to:
•Driving style
•Tire pressure
•Distance driven
WARNING!
Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have an collision resulting
in serious injury or death.
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressure. The manu-
facturer strongly recommends that you use tires equiva-
lent to the originals in size, quality and performance
when replacement is needed. (Refer to the paragraph on
“Tread Wear Indicators”). Refer to the “Tire and Loading
Information” placard for the size designation of your tire.
The Load Index and Speed Symbol for your tire will be
found on the original equipment tire sidewall. See the
Tire Sizing Chart example found in the Tire Safety
Information section of this manual for more information
relating to the Load Index and Speed Symbol of a tire.
It is recommended to replace the two front tires or two
rear tires as a pair. Replacing just one tire can seriously
affect your vehicle’s handling. If you ever replace a
wheel, make sure that the wheel’s specifications match
those of the original wheels.
5
STARTING AND OPERATING 395

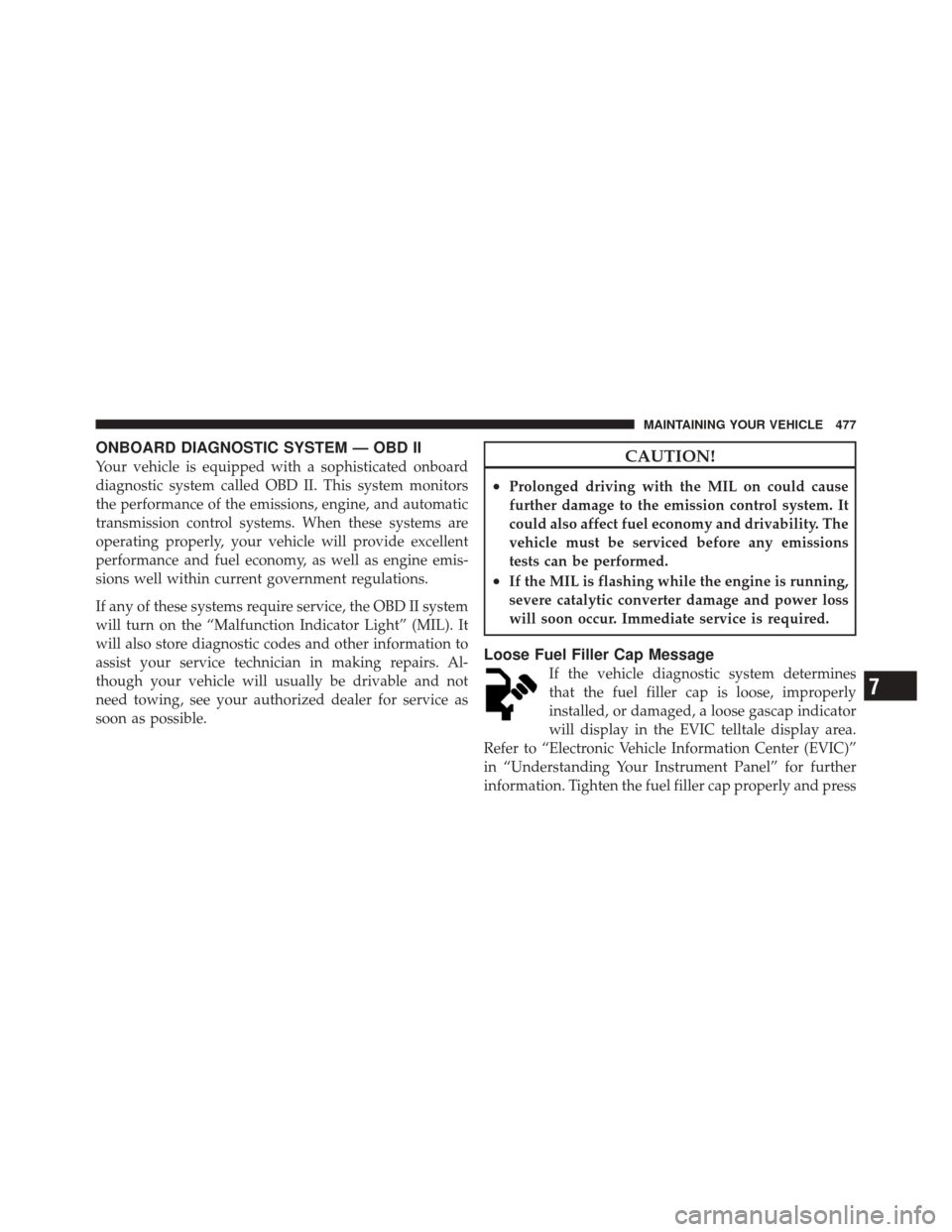

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the EVIC telltale display area.
Refer to “Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for further
information. Tighten the fuel filler cap properly and press
7
MAINTAINING YOUR VEHICLE 477

the SELECT button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
478 MAINTAINING YOUR VEHICLE

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that serviceis required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oil
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or 6 months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S528 MAINTENANCE SCHEDULES

Cargo Compartment...................... 225
Light ............................. 226
Luggage Carrier ..................... 230
Cargo Light ............................ 226
Cargo Tie-Downs ........................ 227
Cellular Phone ....................... 1 19,319
Center High Mounted Stop Light ............ 523
Certification Label ....................... 422
Chains, Tire ............................ 397
Changing A Flat Tire ..................... 449
Chart, Tire Sizing ........................ 379
Check Engine Light
(Malfunction Indicator Light) .............262,478
Checking Your Vehicle For Safety ............. 96
Checks, Safety ........................... 96
Child Restraint .................... 82,83,88,90
Child Restraint Tether Anchors .............86,88
Child Safety Locks ........................ 36
Clean Air Gasoline ....................... 411 Climate Control
......................... 319
Clock ............................. 285,294
Cold Weather Operation ................... 339
Compact Disc (CD) Maintenance ............. 318
Compact Spare Tire ...................... 391
Compass .............................. 271
Compass Calibration ..................... 273
Compass Variance ....................... 272
Computer, Trip/Travel .................... 269
Connector UCI .............................. 308
Universal Consumer Interface (UCI) ....... 308
Conserving Fuel ........................ 268
Console, Overhead ....................... 204
Contract, Service ........................ 547
Cooling System ......................... 494
Adding Coolant (Antifreeze) ............. 496
Coolant Capacity ..................... 524
Coolant Level ....................... 498
556 INDEX

Center Mounted Stop.................. 523
Check Engine (Malfunction Indicator) ...... 262
Daytime Running .................... 149
Dimmer Switch, Headlight .............. 146
Electronic Stability Program (ESP) Indicator . . 377
Exterior ........................... 100
Fog ............................ 248,520
Fuses ............................. 511
Hazard Warning Flasher ............... 448
Headlights ...................... 518,519
Headlights On With Wipers ............. 147
High Beam Indicator .................. 248
Illuminated Entry ..................... 23
Low Fuel .......................... 263
Malfunction Indicator (Check Engine) ...... 245
Map Reading ....................... 152
Reading ........................ 152,204
Rear Servicing ....................... 521
Rear Tail ........................... 521 Seat Belt Reminder
................... 252
Security Alarm (Theft Alarm) ............ 250
Service ............................ 518
Service Engine Soon
(Malfunction Indicator) ................ 245
Side Marker ........................ 521
SmartBeams ........................ 148
Tire Pressure Monitoring (TPMS) ......... 244
Traction Control ..................... 377
Turn Signal ................ 100,146,519,521
Vanity Mirror ....................... 110
Loading Vehicle ......................... 422
Tires .............................. 383
Locks ................................. 33
Automatic Door ...................... 35
Child Protection ...................... 36
Door .............................. 33
Power Door ......................... 34
10
INDEX 563

Lower Anchors and Tether for CHildren
(LATCH)............................ 86,88
Lubrication, Body ....................... 488
Luggage Rack (Roof Rack) ................. 230
Maintenance Free Battery .................. 485
Maintenance Procedures ................... 480
Maintenance Schedule .................... 528
Malfunction Indicator Light (Check Engine) . . 245,478
Manual, Service ......................... 549
Memory Feature (Memory Seat) ............. 140
Memory Seat ........................... 140
Memory Seats and Radio .................. 140
Methanol .............................. 411
Mini-Trip Computer ...................... 269
Mirrors ............................... 107
Automatic Dimming .................. 108
Electric Powered ..................... 109
Electric Remote ...................... 109 Exterior Folding
..................... 109
Heated ............................ 110
Outside ........................... 109
Rearview .......................... 107
Vanity ............................ 110
Mode Fuel Saver ......................... 268
Modifications/Alterations, Vehicle ............. 9
Monitor, Tire Pressure System ............... 399
Mopar Parts ......................... 479,548
MTBE/ETBE ........................... 411
Multi-Displacement Engine System ........... 365
Multi-Function Control Lever ............... 146
New Vehicle Break-In Period ................ 95
Occupant Restraints ................... 48,74,78
Occupant Restraints (Sedan) ...........71,72,74,77
564 INDEX

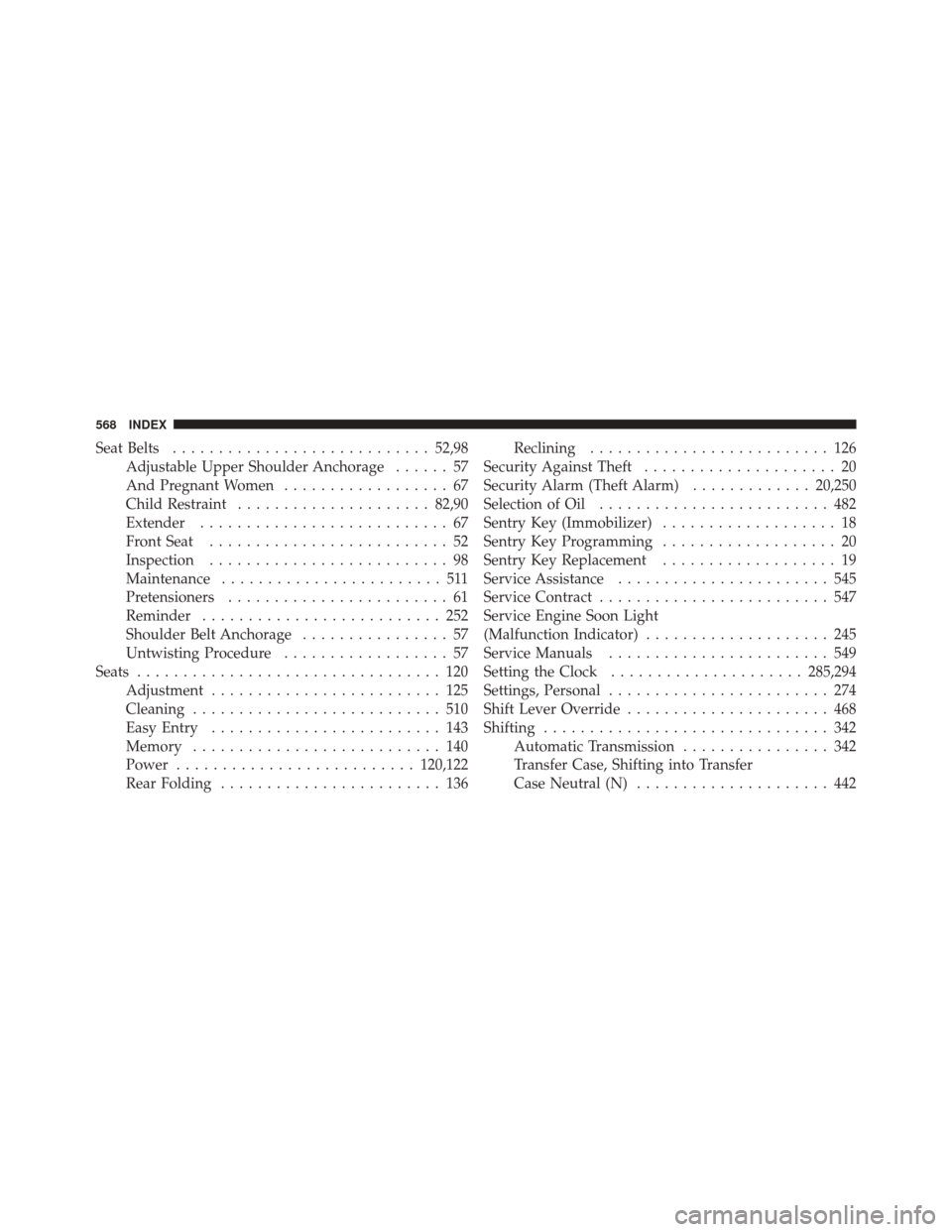

Seat Belts............................ 52,98
Adjustable Upper Shoulder Anchorage ...... 57
And Pregnant Women .................. 67
Child Restraint ..................... 82,90
Extender ........................... 67
Front Seat .......................... 52
Inspection .......................... 98
Maintenance ........................ 511
Pretensioners ........................ 61
Reminder .......................... 252
Shoulder Belt Anchorage ................ 57
Untwisting Procedure .................. 57
Seats ................................. 120
Adjustment ......................... 125
Cleaning ........................... 510
Easy Entry ......................... 143
Memory ........................... 140
Power .......................... 120,122
Rear Folding ........................ 136 Reclining
.......................... 126
Security Against Theft ..................... 20
Security Alarm (Theft Alarm) .............20,250
Selection of Oil ......................... 482
Sentry Key (Immobilizer) ................... 18
Sentry Key Programming ................... 20
Sentry Key Replacement ................... 19
Service Assistance ....................... 545
Service Contract ......................... 547
Service Engine Soon Light
(Malfunction Indicator) .................... 245
Service Manuals ........................ 549
Setting the Clock ..................... 285,294
Settings, Personal ........................ 274
Shift Lever Override ...................... 468
Shifting ............................... 342
Automatic Transmission ................ 342
Transfer Case, Shifting into Transfer
Case Neutral (N) ..................... 442
568 INDEX

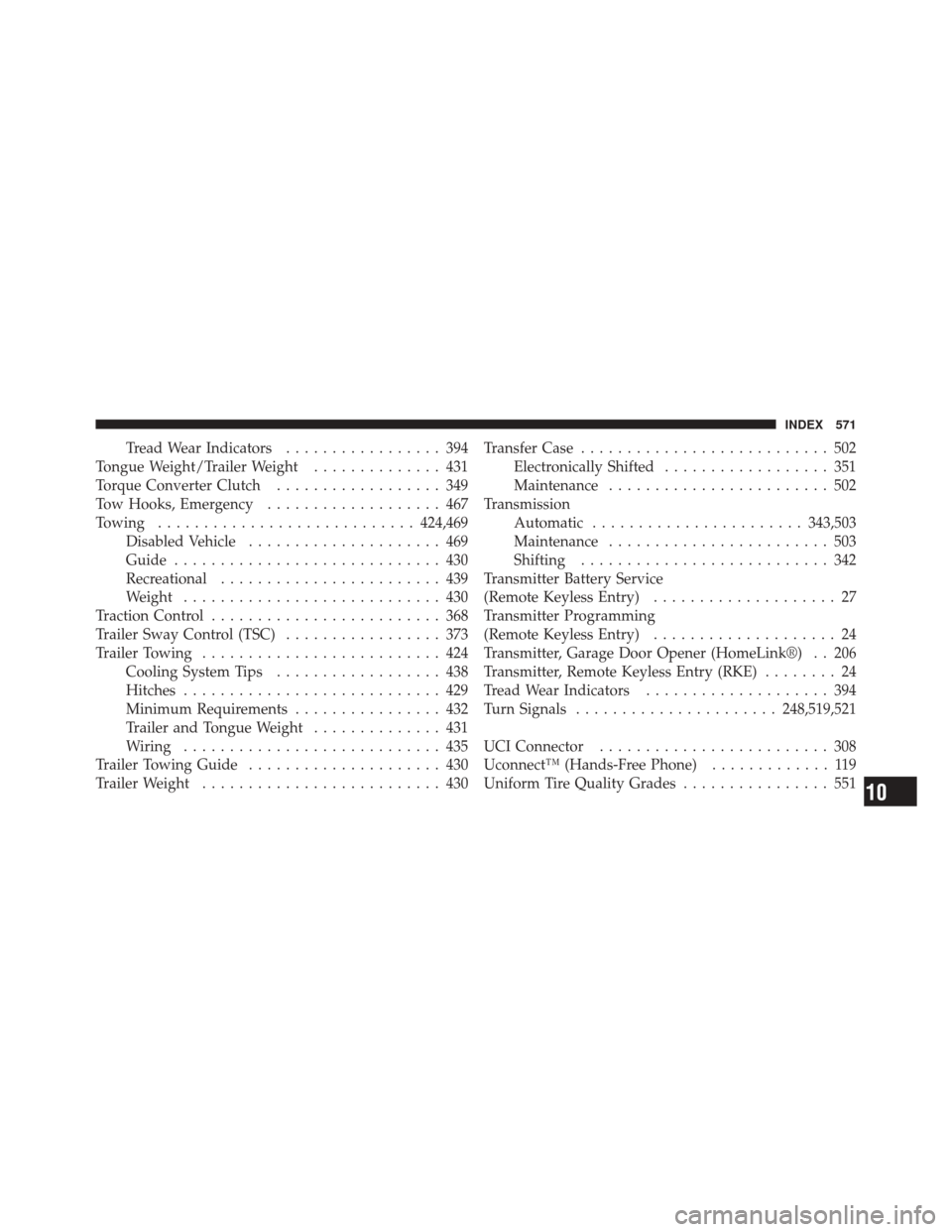

Tread Wear Indicators................. 394
Tongue Weight/Trailer Weight .............. 431
Torque Converter Clutch .................. 349
Tow Hooks, Emergency ................... 467
Towing ............................ 424,469
Disabled Vehicle ..................... 469
Guide ............................. 430
Recreational ........................ 439
Weight ............................ 430
Traction Control ......................... 368
Trailer Sway Control (TSC) ................. 373
Trailer Towing .......................... 424
Cooling System Tips .................. 438
Hitches ............................ 429
Minimum Requirements ................ 432
Trailer and Tongue Weight .............. 431
Wiring ............................ 435
Trailer Towing Guide ..................... 430
Trailer Weight .......................... 430 Transfer Case
........................... 502
Electronically Shifted .................. 351
Maintenance ........................ 502
Transmission Automatic ....................... 343,503
Maintenance ........................ 503
Shifting ........................... 342
Transmitter Battery Service
(Remote Keyless Entry) .................... 27
Transmitter Programming
(Remote Keyless Entry) .................... 24
Transmitter, Garage Door Opener (HomeLink®) . . 206
Transmitter, Remote Keyless Entry (RKE) ........ 24
Tread Wear Indicators .................... 394
Turn Signals ...................... 248,519,521
UCI Connector ......................... 308
Uconnect™ (Hands-Free Phone) ............. 119
Uniform Tire Quality Grades ................ 551
10
INDEX 571
