DODGE DURANGO 2011 3.G Owners Manual

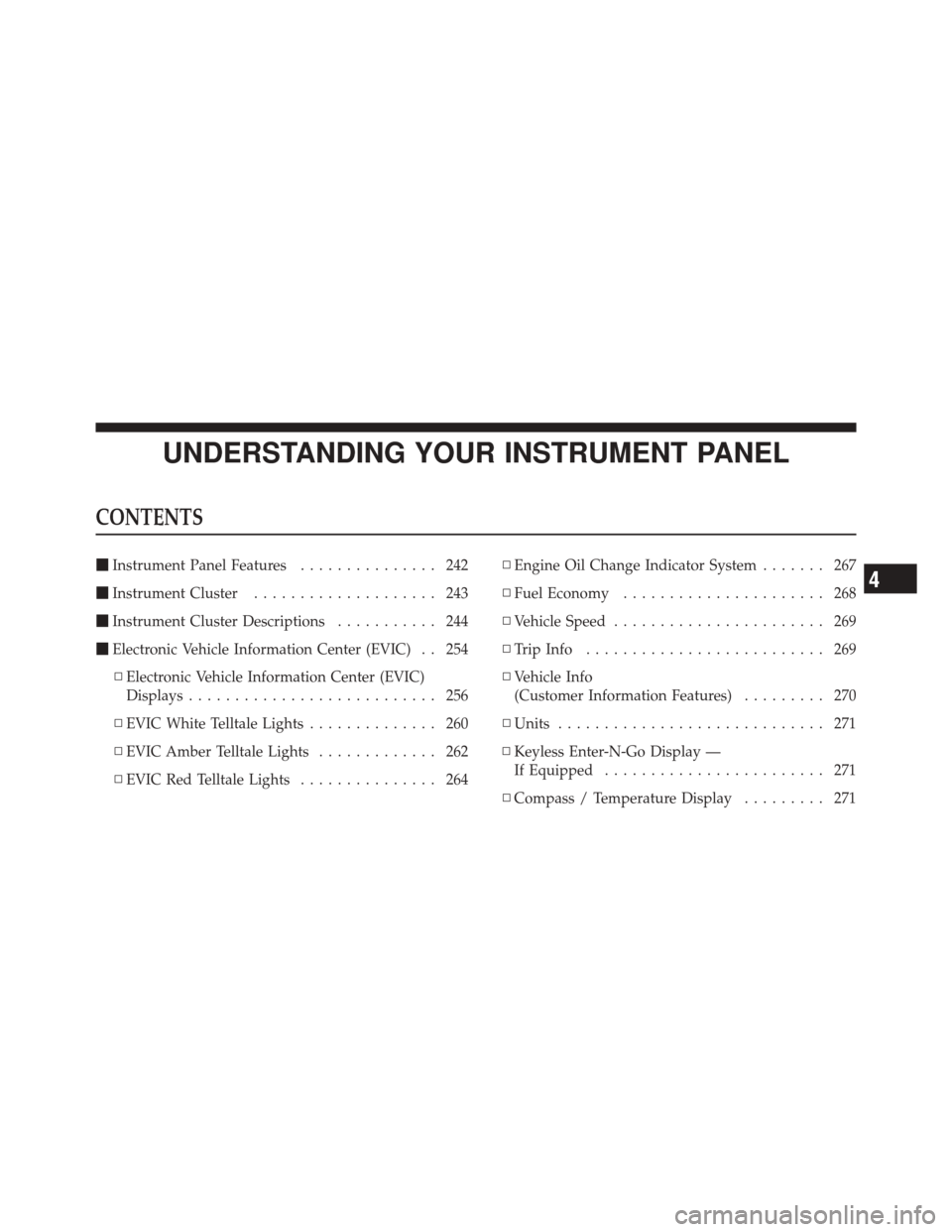

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 242
 Instrument Cluster .................... 243
 Instrument Cluster Descriptions ........... 244
 Electronic Vehicle Information Center (EVIC) . . 254
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 256
▫ EVIC White Telltale Lights .............. 260
▫ EVIC Amber Telltale Lights ............. 262
▫ EVIC Red Telltale Lights ............... 264 ▫
Engine Oil Change Indicator System ....... 267
▫ Fuel Economy ...................... 268
▫ Vehicle Speed ....................... 269
▫ Trip Info .......................... 269
▫ Vehicle Info
(Customer Information Features) ......... 270
▫ Units ............................. 271
▫ Keyless Enter-N-Go Display —
If Equipped ........................ 271
▫ Compass / Temperature Display ......... 271
4

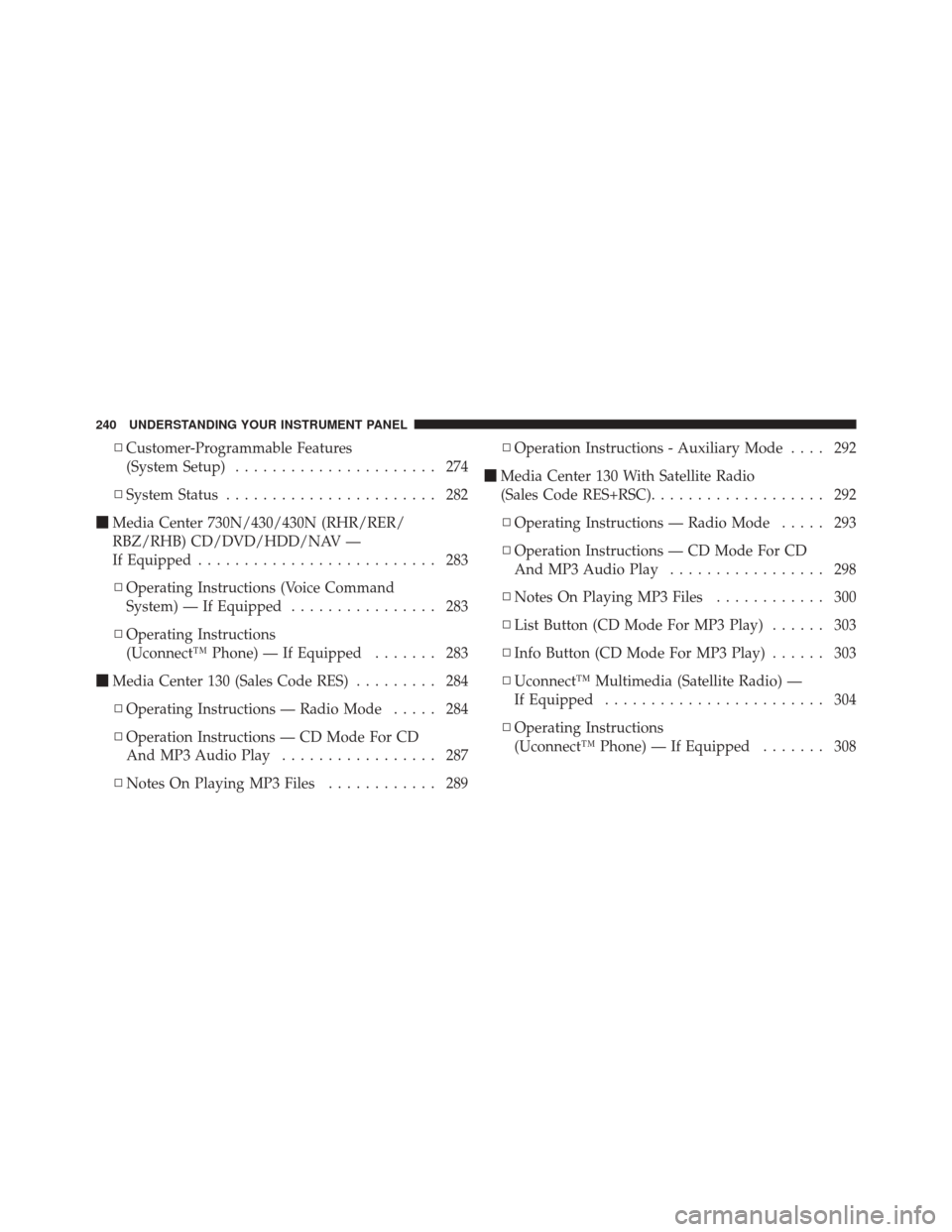

▫Customer-Programmable Features
(System Setup) ...................... 274
▫ System Status ....................... 282
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 283
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 283
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 283
 Media Center 130 (Sales Code RES) ......... 284
▫ Operating Instructions — Radio Mode ..... 284
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 287
▫ Notes On Playing MP3 Files ............ 289▫
Operation Instructions - Auxiliary Mode .... 292
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 292
▫ Operating Instructions — Radio Mode ..... 293
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 298
▫ Notes On Playing MP3 Files ............ 300
▫ List Button (CD Mode For MP3 Play) ...... 303
▫ Info Button (CD Mode For MP3 Play) ...... 303
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 304
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 308
240 UNDERSTANDING YOUR INSTRUMENT PANEL

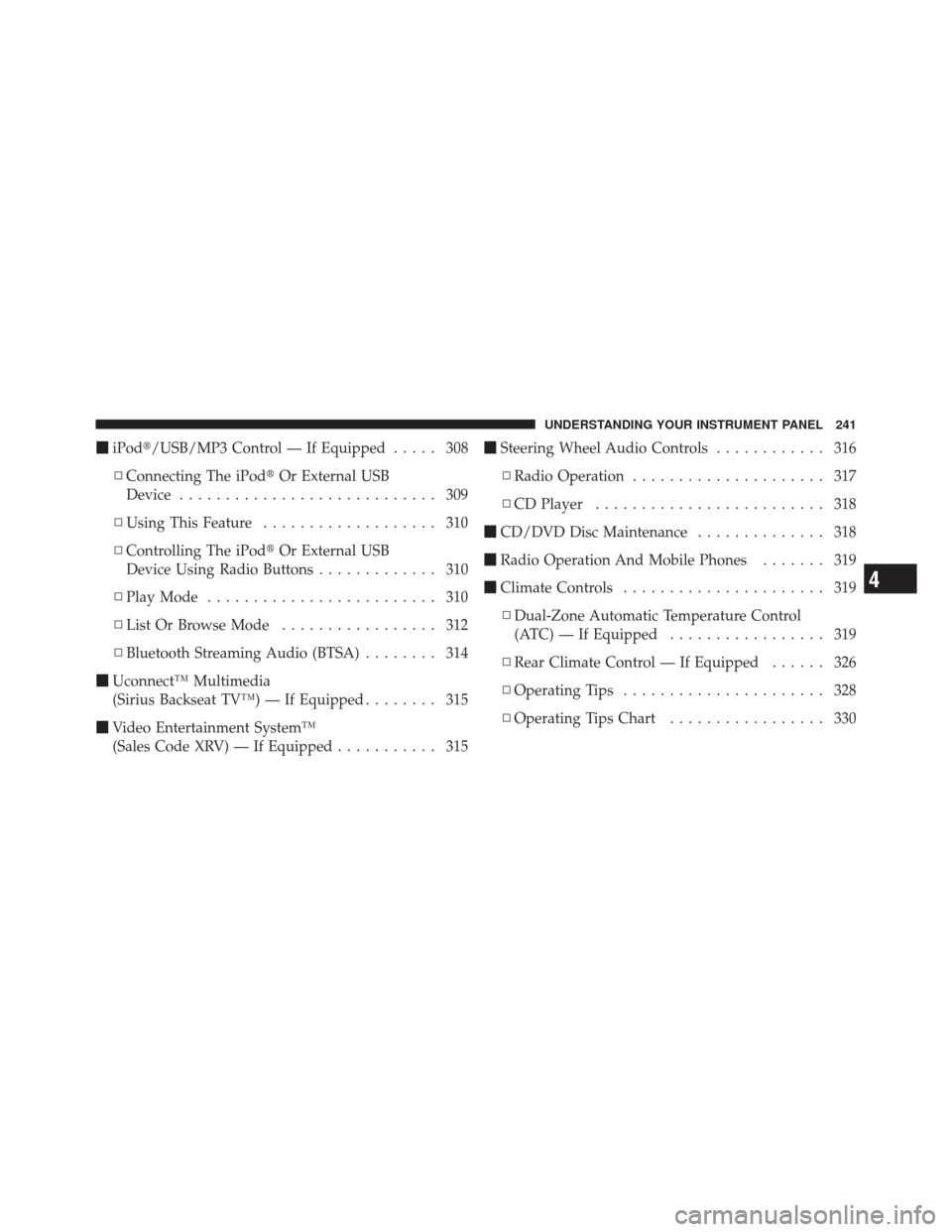

iPod/USB/MP3 Control — If Equipped ..... 308
▫ Connecting The iPod Or External USB
Device ............................ 309
▫ Using This Feature ................... 310
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 310
▫ Play Mode ......................... 310
▫ List Or Browse Mode ................. 312
▫ Bluetooth Streaming Audio (BTSA) ........ 314
 Uconnect™ Multimedia
(Sirius Backseat TV™) — If Equipped ........ 315
 Video Entertainment System™
(Sales Code XRV) — If Equipped ........... 315
Steering Wheel Audio Controls ............ 316
▫ Radio Operation ..................... 317
▫ CD Player ......................... 318
 CD/DVD Disc Maintenance .............. 318
 Radio Operation And Mobile Phones ....... 319
 Climate Controls ...................... 319
▫ Dual-Zone Automatic Temperature Control
(ATC) — If Equipped ................. 319
▫ Rear Climate Control — If Equipped ...... 326
▫ Operating Tips ...................... 328
▫ Operating Tips Chart ................. 330
4
UNDERSTANDING YOUR INSTRUMENT PANEL 241

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Lower Switch Bank11 — Headlight Switch
2 — Instrument Cluster 7 — Hazard Switch12 — Hood Release
3 — Radio 8 — Storage Bin13 — Fuel Door Release
4 — Glove Compartment 9 — ESC Off Switch14 — Dimmer Control
5 — Climate Controls 10 — Ignition Switch
242 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 243

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Tire Pressure Monitoring Telltale LightEach tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those
tires.) As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illumi-
nates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver ’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
244 UNDERSTANDING YOUR INSTRUMENT PANEL

Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon subse-
quent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the sys-
tem may not be able to detect or signal low tire pressure
as intended. TPMS malfunctions may occur for a variety
of reasons, including the installation of replacement or
alternate tires or wheels on the vehicle that prevent the
TPMS from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow the TPMS
to continue to function properly.CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system opera-
tion or sensor damage may result when using re-
placement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Do not use tire sealant from a can or
balance beads if your vehicle is equipped with a
TPMS, as damage to the sensors may result.
3. Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system called OBD II that
monitors engine and automatic transmission con-
trol systems. The light will illuminate when the key is in
the ON/RUN position before engine start. If the bulb
4
UNDERSTANDING YOUR INSTRUMENT PANEL 245

does not come on when turning the key from OFF to
ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations, the vehicle will drive normally and will
not require towing.
CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants, wood, cardboard, etc. This could result
in death or serious injury to the driver, occupants or
others.
4. Electronic Stability Control (ESC) Activation/
Malfunction Indicator Light — If Equipped The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is turned to the
ON/RUN position. It should go out with the
engine running. If the “ESC Activation/Malfunction In-
dicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC
246 UNDERSTANDING YOUR INSTRUMENT PANEL

system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles
(kilometers) at speeds greater than 30 mph (48 km/h), see
your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
NOTE:
•The “ESC Off Indicator Light” and the “ESC
Activation/Malfunction Indicator Light” come on mo-
mentarily each time the ignition switch is turned to
ON/RUN.
•Each time the ignition is turned to ON/RUN, the ESC
system will be ON, even if it was turned off previously.
•The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.5. Electronic Stability Control (ESC) OFF Indicator
Light — If Equipped
This light indicates the Electronic Stability Con-
trol (ESC) is off.
6. Anti-Lock Brake (ABS) Light This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
4
UNDERSTANDING YOUR INSTRUMENT PANEL 247

brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.
7. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front fog
lights are on.
8. Park/Headlight ON Indicator — If Equipped This indicator will illuminate when the park
lights or headlights are turned on.
9. Turn Signal Indicator The arrows will flash with the exterior turn signals
when the turn signal lever is operated. A tone will
chime, and an EVIC message will appear if the turn
signals are left on for more than 1 mile (1.6 km).
NOTE: If either indicator flashes at a rapid rate, check
for a defective outside light bulb. 10. High Beam Indicator
This light indicates that the headlights are on high
beam. Pull the turn signal lever toward the steer-
ing wheel to switch the headlights to low beam.
11. Electronic Vehicle Information Center (EVIC) Red
Telltale Area
This area will display the EVIC reconfigurable red tell-
tales. For further information, refer to “Electronic vehicle
Information Center (EVIC)”.
12. Electronic Vehicle Information Center (EVIC)
Display/Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
odometer needs to be repaired or serviced, the repair
technician should leave the odometer reading the same
248 UNDERSTANDING YOUR INSTRUMENT PANEL
