windshield wipers DODGE DURANGO 2011 3.G Owners Manual

▫Daytime Running Lights — If Equipped .... 149
▫ Headlight Delay ..................... 149
▫ Parking Lights And Panel Lights ......... 150
▫ Fog Lights — If Equipped .............. 150
▫ Interior Lights ...................... 151
▫ Lights-On Reminder .................. 152
▫ Battery Saver ....................... 152
▫ Front Map/Reading Lights ............. 152
▫ Ambient Light ...................... 153
▫ Multifunction Lever .................. 154
▫ Turn Signals ........................ 154
▫ Lane Change Assist ................... 154
▫ Flash-To-Pass ....................... 154 ▫
High/Low Beam Switch ............... 155
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 156
▫ Intermittent Wiper System .............. 156
▫ Windshield Washer Operation ........... 157
▫ Mist ............................. 158
▫ Rain Sensing Wipers — If Equipped ....... 158
 Tilt/Telescoping Steering Column .......... 160
 Power Tilt/Telescoping Steering Column —
If Equipped .......................... 160
 Heated Steering Wheel — If Equipped ...... 162
 Electronic Speed Control ................ 163
▫ To Activate ......................... 164
3

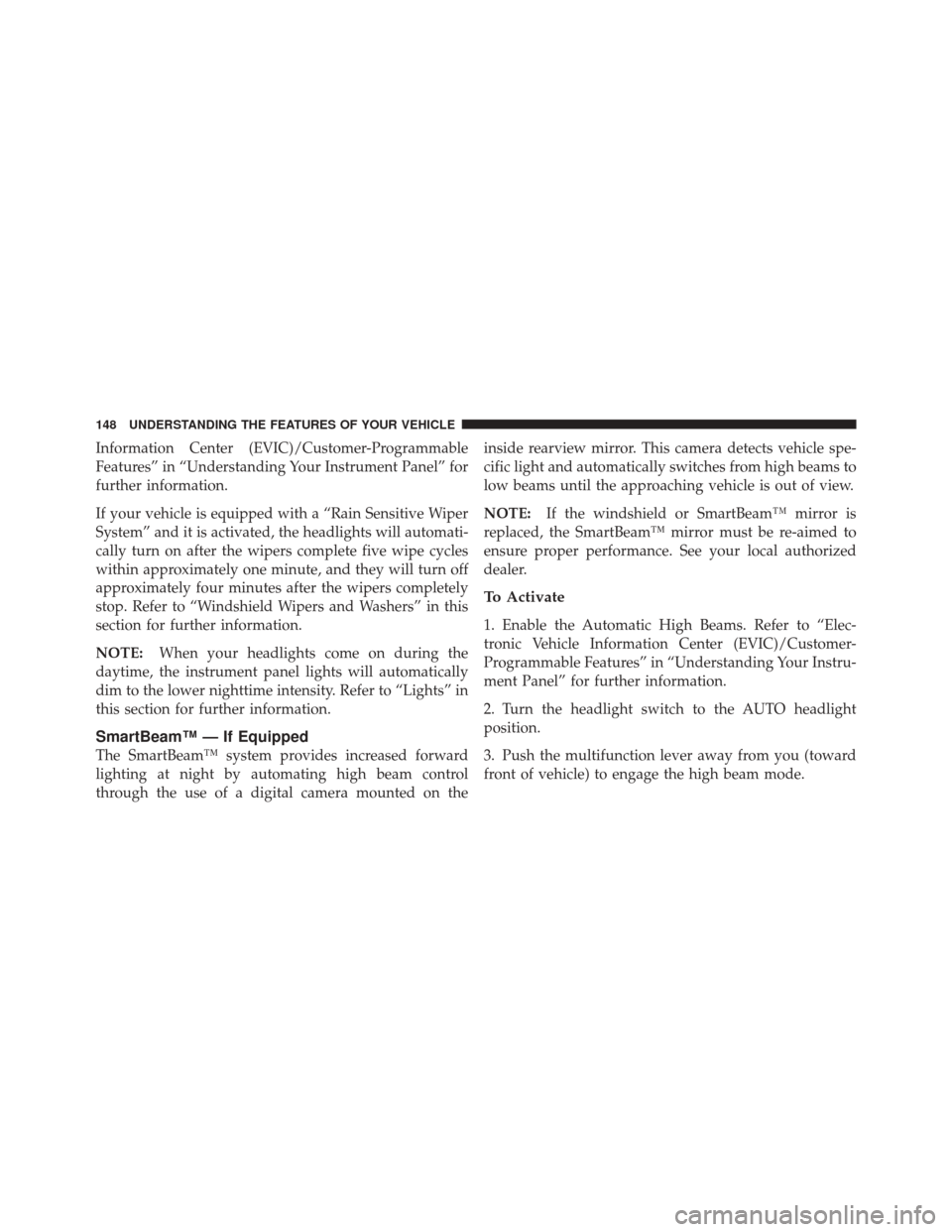

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

Information Center (EVIC)/Customer-Programmable
Features” in “Understanding Your Instrument Panel” for
further information.
If your vehicle is equipped with a “Rain Sensitive Wiper
System” and it is activated, the headlights will automati-
cally turn on after the wipers complete five wipe cycles
within approximately one minute, and they will turn off
approximately four minutes after the wipers completely
stop. Refer to “Windshield Wipers and Washers” in this
section for further information.
NOTE:When your headlights come on during the
daytime, the instrument panel lights will automatically
dim to the lower nighttime intensity. Refer to “Lights” in
this section for further information.
SmartBeam™ — If Equipped
The SmartBeam™ system provides increased forward
lighting at night by automating high beam control
through the use of a digital camera mounted on the inside rearview mirror. This camera detects vehicle spe-
cific light and automatically switches from high beams to
low beams until the approaching vehicle is out of view.
NOTE:
If the windshield or SmartBeam™ mirror is
replaced, the SmartBeam™ mirror must be re-aimed to
ensure proper performance. See your local authorized
dealer.
To Activate
1. Enable the Automatic High Beams. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding Your Instru-
ment Panel” for further information.
2. Turn the headlight switch to the AUTO headlight
position.
3. Push the multifunction lever away from you (toward
front of vehicle) to engage the high beam mode.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

High/Low Beam Switch
Push the multifunction lever toward the instrument
panel to switch the headlights to high beam. Pulling the
multifunction back toward the steering wheel will turn
the low beams back on, or shut the high beams off.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the left side of the steering column. The front wipers are
operated by rotating a switch, located on the end of the
lever. For information on the rear wiper/washer, refer to
“Rear Window Features” in “Understanding the Features
of Your Vehicle”.
Windshield Wiper/Washer Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

NOTE:If the vehicle is moving less than 10 mph
(16 km/h), delay times will be doubled.
Windshield Washer Operation
To use the washer, push on the end of the lever (toward
the steering wheel) and hold while spray is desired. If the
lever is pushed while in the intermittent setting, the
wipers will turn on and operate for several wipe cycles
after the end of the lever is released, and then resume the
intermittent interval previously selected.
Intermittent Wiper Operation
Windshield Washer Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

If the end of the lever is pushed while the wipers are in
the off position, the wipers will operate for several wipe
cycles, then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist
Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Rotate the end
of the lever downward to the Mist position and release
for a single wiping cycle.Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
Mist Control
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SELECT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Auto High Beams
(Available With SmartBeam™ Only)
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Refer to “Lights/SmartBeam™ — If Equipped” in “Un-
derstanding The Features Of Your Vehicle” for further
information.
Intermittent Wiper — If Equipped
When this feature is selected, the system will automatically
activate the windshield wipers if it senses moisture on thewindshield. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated. When this feature is deactivated, the system
reverts to the standard intermittent wiper operation.
Blind Spot Alert
There are three selections when operating Blind Spot Alert.
By pressing and releasing the SELECT button once, the
Blind Spot Alert feature can be activated in “Blind Spot:
Lights Only” mode. When this mode is selected the Blind
Spot Monitor (BSM) system is activated and will only
show a visual alert in the outside mirrors. By pressing and
releasing the SELECT button a second time “Blind Spot:
Lights/CHM” mode is activated. In this mode the Blind
Spot Monitor (BSM) will show a visual alert in the outside
mirrors as well as an audible alert when the turn signal is
on. When “Blind Spot: Off” is selected the Blind Spot
Monitor (BSM) system is deactivated.
280 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING! (Continued)
•HSA is not a parking brake. If you stop the vehicle
on a hill without putting the transmission in
PARK and using the parking brake, it will roll
down the hill and could cause a collision with
another vehicle or object. Always remember to use
the parking brake while parking on a hill, and that
the driver is responsible for braking the vehicle.
HSA Off
If you wish to turn off the HSA system, it can be done
using the Customer Programmable Features in the Elec-
tronic Vehicle Information Center (EVIC). Refer to “Elec-
tronic Vehicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further information.
Ready Alert Braking
Ready Alert Braking may reduce the time required to
reach full braking during emergency braking situations.
It anticipates when an emergency braking situation may
occur by monitoring how fast the throttle is released by
the driver. When the throttle is released very quickly,
Ready Alert Braking applies a small amount of brake
pressure. This brake pressure will not be noticed by the
driver. The brake system uses this brake pressure to allow
a fast brake response if the driver applies the brakes.
Rain Brake Support
Rain Brake Support may improve braking performance
in wet conditions. It will periodically apply a small
amount of brake pressure to remove any water buildup
on the front brake rotors. It only functions when the
windshield wipers are in the slow or fast mode, it does
not function in the intermittent mode. When Rain Brake
Support is active, there is no notification to the driver and
the driver should not notice it.
376 STARTING AND OPERATING

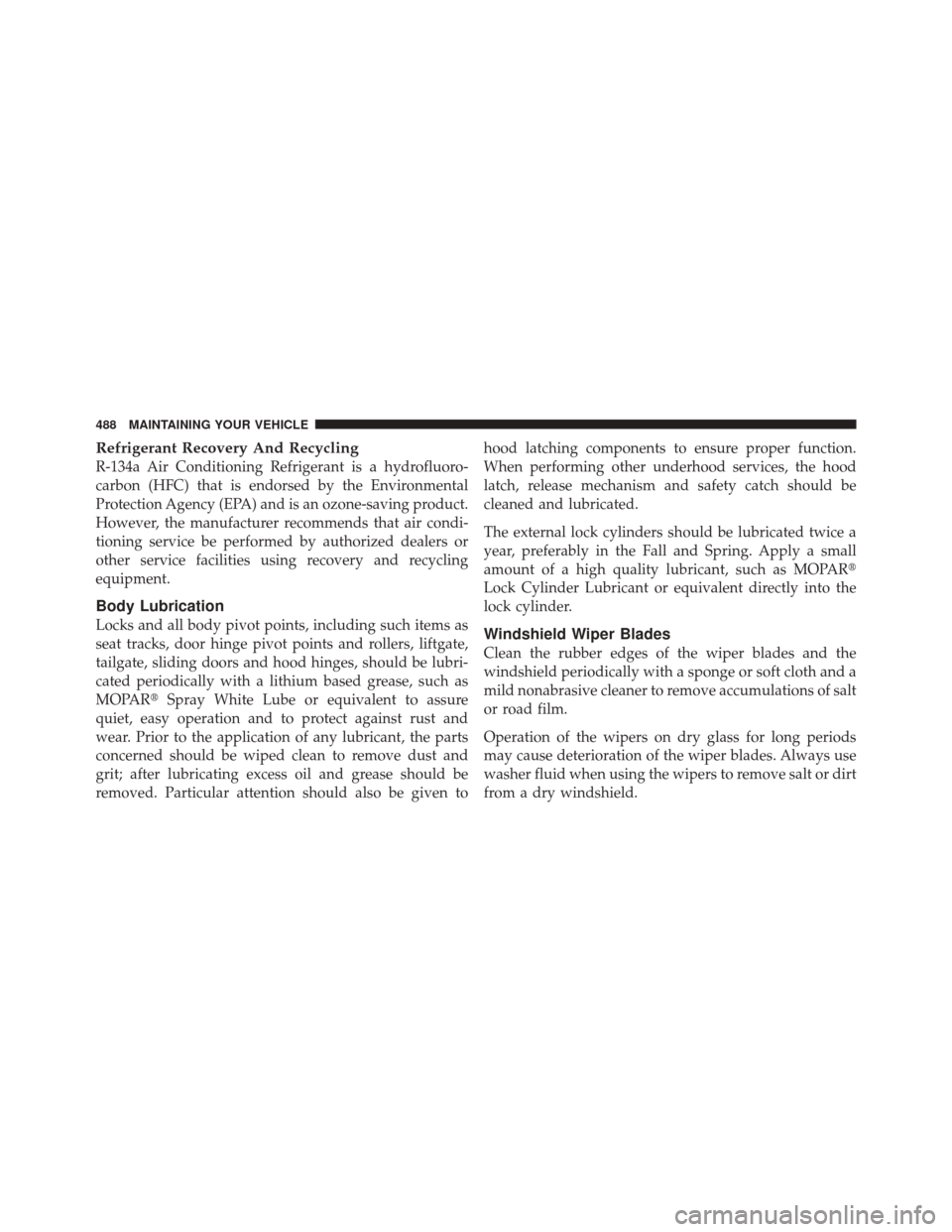

Refrigerant Recovery And Recycling
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency (EPA) and is an ozone-saving product.
However, the manufacturer recommends that air condi-
tioning service be performed by authorized dealers or
other service facilities using recovery and recycling
equipment.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPARSpray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner to remove accumulations of salt
or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
488 MAINTAINING YOUR VEHICLE

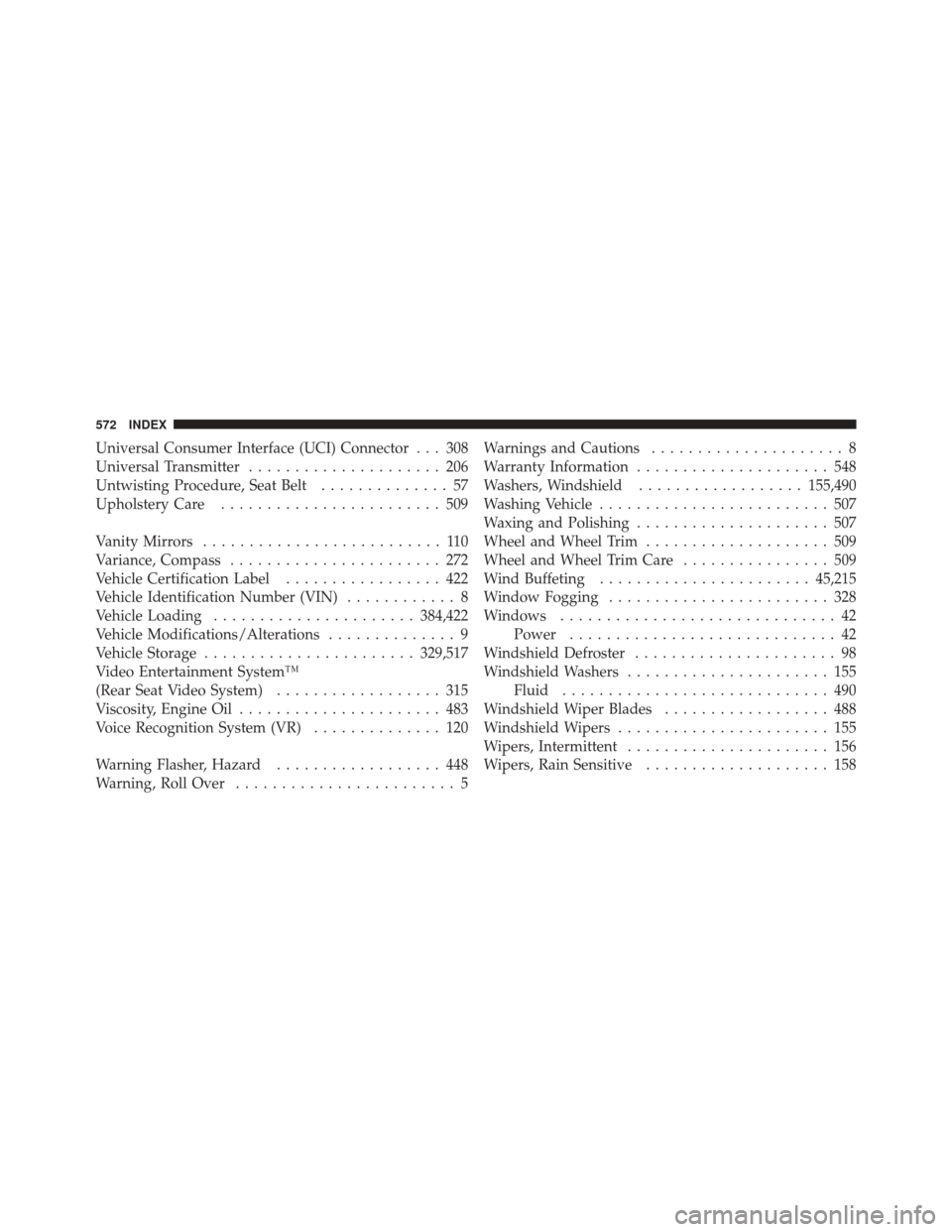

Universal Consumer Interface (UCI) Connector . . . 308
Universal Transmitter..................... 206
Untwisting Procedure, Seat Belt .............. 57
Upholstery Care ........................ 509
Vanity Mirrors .......................... 110
Variance, Compass ....................... 272
Vehicle Certification Label ................. 422
Vehicle Identification Number (VIN) ............ 8
Vehicle Loading ...................... 384,422
Vehicle Modifications/Alterations .............. 9
Vehicle Storage ....................... 329,517
Video Entertainment System™
(Rear Seat Video System) .................. 315
Viscosity, Engine Oil ...................... 483
Voice Recognition System (VR) .............. 120
Warning Flasher, Hazard .................. 448
Warning, Roll Over ........................ 5 Warnings and Cautions
..................... 8
Warranty Information ..................... 548
Washers, Windshield .................. 155,490
Washing Vehicle ......................... 507
Waxing and Polishing ..................... 507
Wheel and Wheel Trim .................... 509
Wheel and Wheel Trim Care ................ 509
Wind Buffeting ....................... 45,215
Window Fogging ........................ 328
Windows .............................. 42
Power ............................. 42
Windshield Defroster ...................... 98
Windshield Washers ...................... 155
Fluid ............................. 490
Windshield Wiper Blades .................. 488
Windshield Wipers ....................... 155
Wipers, Intermittent ...................... 156
Wipers, Rain Sensitive .................... 158
572 INDEX
