seat adjustment DODGE DURANGO 2011 3.G User Guide

Installing The Child Restraint Using The Vehicle Seat Belts
• To install a child restraint, first pull enough of the seat belt webbing from the
retractor to route it through the belt path of the child restraint and slide the seat
belt latch plate into the buckle.
• Next, extract all the seat belt webbing out of the retractor and then allow the belt
to retract into the retractor. Finally, pull on any excess webbing to tighten the lap
portion around the child restraint. Any seat belt system will loosen with time, so
check the belt occasionally, and pull it tight if necessary.
• Once you have completed securing the child restraint with the seat belt, secure the
top tether strap. The tether strap should be attached to the tether anchor on the
rear of the seatback (behind the gap panel) using the most direct path.DO NOT USE
the cargo tie down loops located on the load floor.
WARNING!
• In a collision, an unrestrained child, even a tiny baby, can become a
projectile inside the vehicle. The force required to hold even an infant on
your lap could become so great that you could not hold the child, no matter
how strong you are. The child and others could be severely injured or killed.
Any child riding in your vehicle should be in a proper restraint for the child's
size.
• Improper installation of a child restraint to the LATCH anchorages can lead to
failure of an infant or child restraint. The child could be severely injured or
killed. Follow the manufacturer’s directions exactly when installing an infant
or child restraint.
• An incorrectly anchored tether strap could lead to increased head motion and
possible injury to the child. Use only the anchor positions directly behind the
child seat to secure a child restraint top tether strap.
• Rearward-facing child seats must never be used in the front seat of a vehicle
with a front passenger airbag. An airbag deployment could cause infants in
this position to be severely injured or killed.
FRONT SEATS
Power Seats
• The power recline switch, located on
the outboard side of the seat, controls
seatback adjustment.
• The power seat switch controls
forward/back, up/down and tilt
adjustment.
GETTING STARTED
16

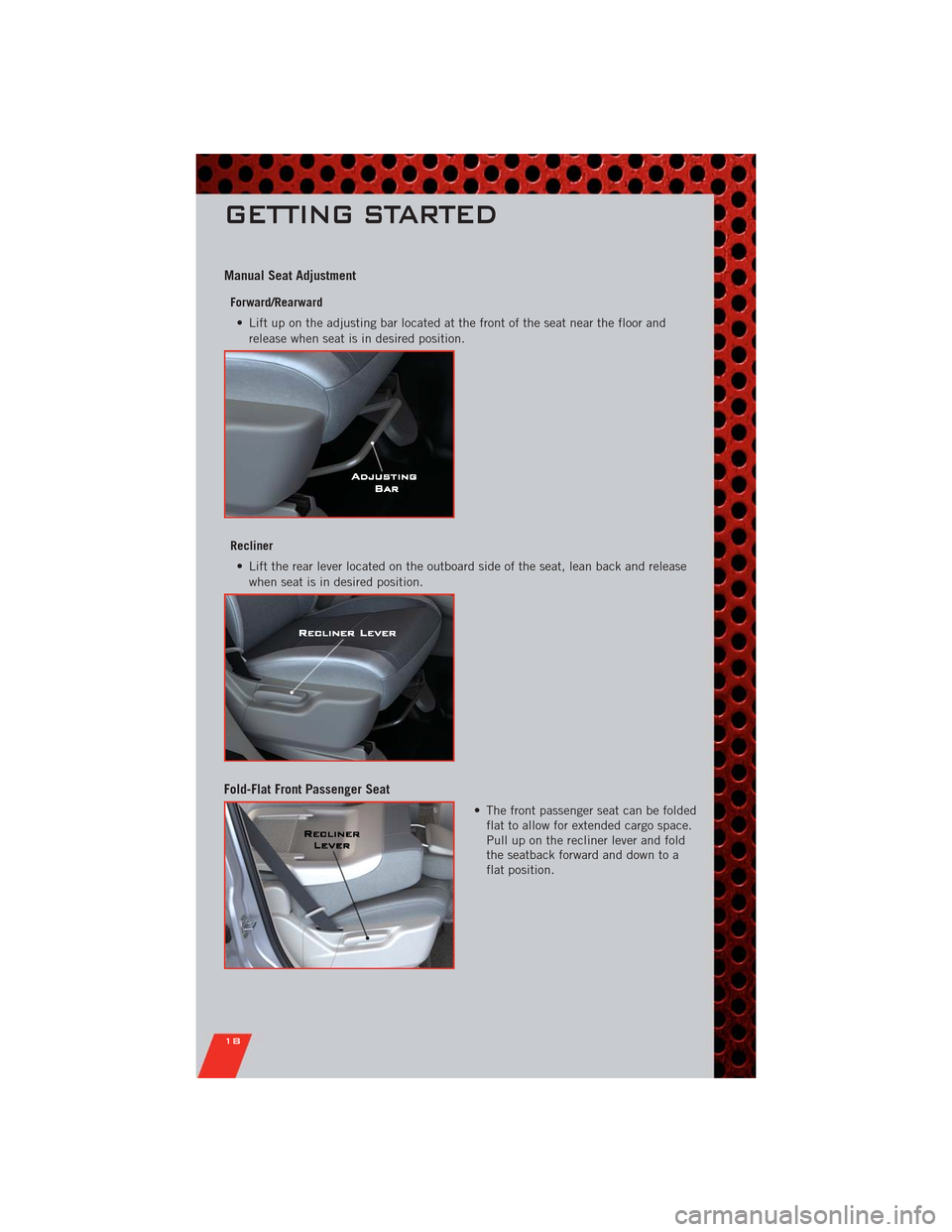

Manual Seat Adjustment
Forward/Rearward
• Lift up on the adjusting bar located at the front of the seat near the floor and
release when seat is in desired position.
Recliner
• Lift the rear lever located on the outboard side of the seat, lean back and release
when seat is in desired position.
Fold-Flat Front Passenger Seat
• The front passenger seat can be folded
flat to allow for extended cargo space.
Pull up on the recliner lever and fold
the seatback forward and down to a
flat position.
GETTING STARTED
18

Inverter................ 56
LiftGate ................ 8
Outlet (Auxiliary Electrical Outlet).. 57
Seats ................. 16
Steering.............. 82,83
Tilt/Telescoping Steering Column.. 23
Preparation for Jacking........ 69
Programmable Electronic Features . . 54
Radio
Non-Touch-Screen.......... 38
Touch-Screen............ 40
Radio Operation.......... 38,40
Rain Sensitive Wiper System..... 25
RearCamera .............. 32
Rear Cross Path............ 32
Rear Heated Seats........... 21
Rear Park Sense System..... 31,32
Rear Seat, Folding........... 19
Recreational Towing.......... 62
Shifting into Transfer Case
Neutral (N).............. 62
Remote Starting System........ 9
Replacement Bulbs.......... 91
Reporting Safety Defects....... 93
Restraints, Child............ 14
RollOverWarning ............ 3
Roof Rack (Luggage Rack)...... 60
Seat Belts................ 13
Child Restraint............ 16
Seats ................... 16
Adjustment .............. 18
Fold and Tumble Rear........ 19
Folding Front Passenger...... 18
Heated ................ 21
Lumbar Support........... 17
Memory ................ 17
Power................. 16
RearFolding ........... 19,20
Ventilated............... 21
SeekButton ............. 39,41
Setting the Clock.......... 39,41
Shift Lever Override.......... 75
Signals, Turn.............. 25
Sirius Backseat TV™......... 52
SIRIUS Travel Link........... 46
SmartBeams.............. 24SparkPlugs ............... 82
Speed Control
Accel/Decel.............. 26
Accel/Decel (ACC Only)....... 27
Cancel ................ 27
Distance Setting (ACC Only).... 27
Mode Setting (ACC Only)...... 27
Resume ................ 28
Speed Control (Cruise Control).... 26
Starting
Remote ................. 9
Steering
TiltColumn .............. 22
Wheel, Heated............ 22
Steering Wheel Audio Controls.... 46
Store Radio Presets........ 39,41
SunRoof ................ 33
Supplemental Restraint System -
Airbag .................. 13
Temperature Control, Automatic
(ATC) ................... 30
Theft Alarm (Security Alarm)..... 12
Theft System Arming......... 12
Theft System Disarming........ 12
Tilt Steering Column.......... 22
Tires
Air Pressure............. 90
Pressure Warning Light....... 64
Touch-Screen Radio.......... 40
Tow Hooks, Emergency........ 75
Tow/Haul ................ 62
Towing .................. 61
24-Hour Towing Assistance..... 64
Disabled Vehicle........... 76
Recreational............. 62
Towing Vehicle Behind a Motorhome.. 62
Trailer Towing
Trailer and Tongue Weight..... 61
Trailer Weight.............. 61
Transfer Case
Electronically Shifted........ 58
Fluid ............... 82,83
Transmission
Fluid ................. 82
TurnSignals ............... 25
INDEX
97
