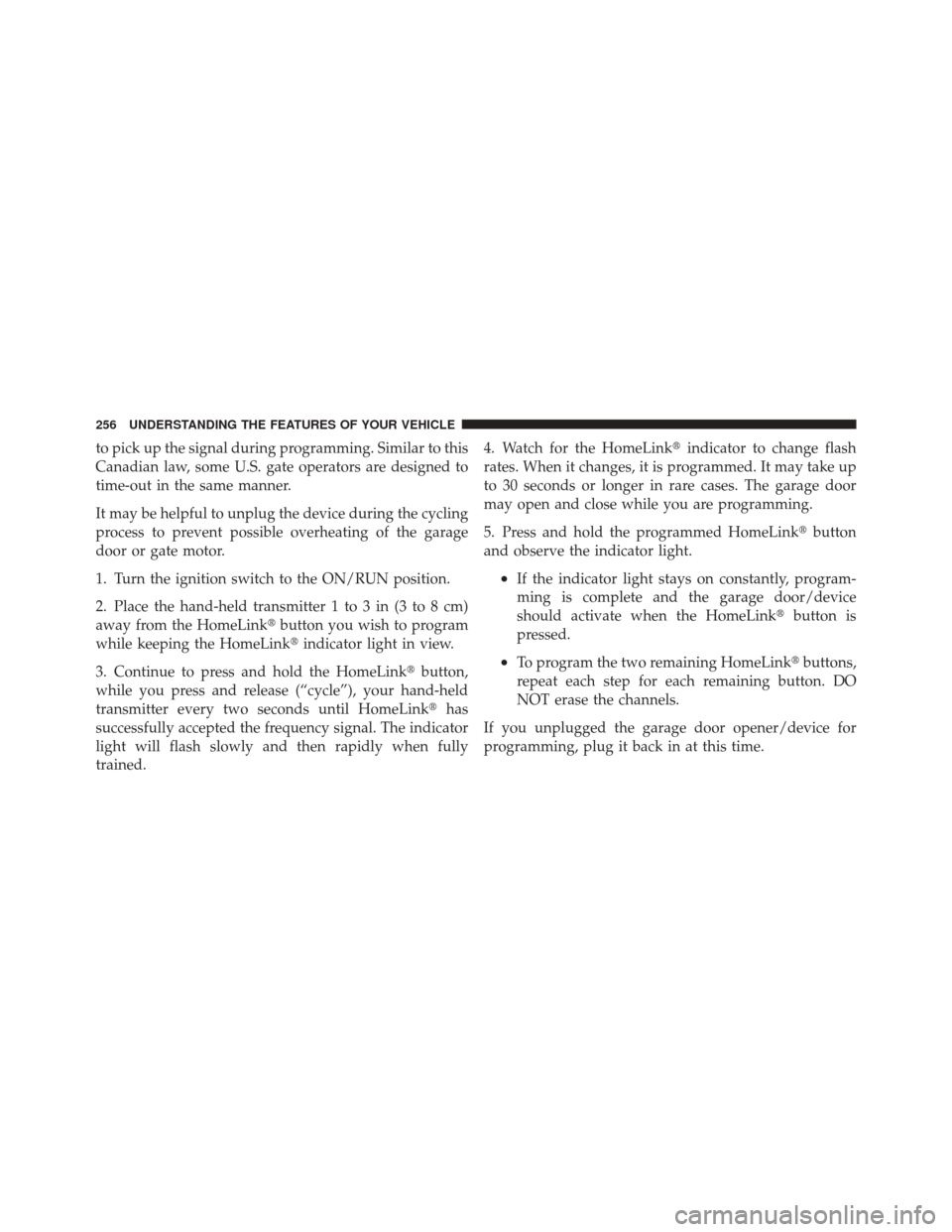

to pick up the signal during programming. Similar to this
Canadian law, some U.S. gate operators are designed to
time-out in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
1. Turn the ignition switch to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 in (3 to 8 cm)
away from the HomeLinkbutton you wish to program
while keeping the HomeLink indicator light in view.
3. Continue to press and hold the HomeLink button,
while you press and release (“cycle”), your hand-held
transmitter every two seconds until HomeLink has
successfully accepted the frequency signal. The indicator
light will flash slowly and then rapidly when fully
trained. 4. Watch for the HomeLink
indicator to change flash
rates. When it changes, it is programmed. It may take up
to 30 seconds or longer in rare cases. The garage door
may open and close while you are programming.
5. Press and hold the programmed HomeLink button
and observe the indicator light.
•If the indicator light stays on constantly, program-
ming is complete and the garage door/device
should activate when the HomeLink button is
pressed.
•To program the two remaining HomeLink buttons,
repeat each step for each remaining button. DO
NOT erase the channels.
If you unplugged the garage door opener/device for
programming, plug it back in at this time.
256 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

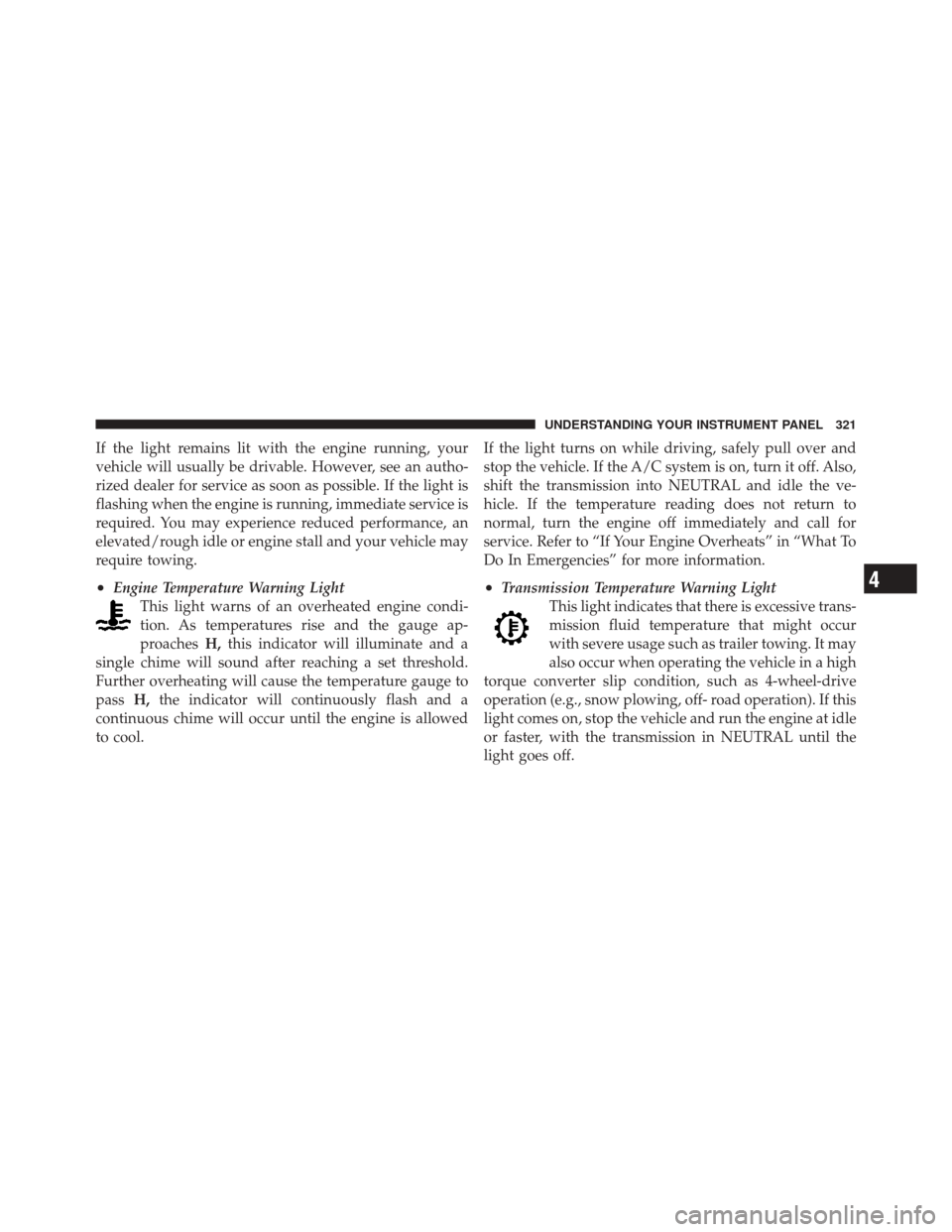

Page 323 of 686
If the light remains lit with the engine running, your
vehicle will usually be drivable. However, see an autho-
rized dealer for service as soon as possible. If the light is
flashing when the engine is running, immediate service is
required. You may experience reduced performance, an
elevated/rough idle or engine stall and your vehicle may
require towing.
•Engine Temperature Warning LightThis light warns of an overheated engine condi-
tion. As temperatures rise and the gauge ap-
proaches H,this indicator will illuminate and a
single chime will sound after reaching a set threshold.
Further overheating will cause the temperature gauge to
pass H,the indicator will continuously flash and a
continuous chime will occur until the engine is allowed
to cool. If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.•Transmission Temperature Warning Light
This light indicates that there is excessive trans-
mission fluid temperature that might occur
with severe usage such as trailer towing. It may
also occur when operating the vehicle in a high
torque converter slip condition, such as 4-wheel-drive
operation (e.g., snow plowing, off- road operation). If this
light comes on, stop the vehicle and run the engine at idle
or faster, with the transmission in NEUTRAL until the
light goes off.4
UNDERSTANDING YOUR INSTRUMENT PANEL 321

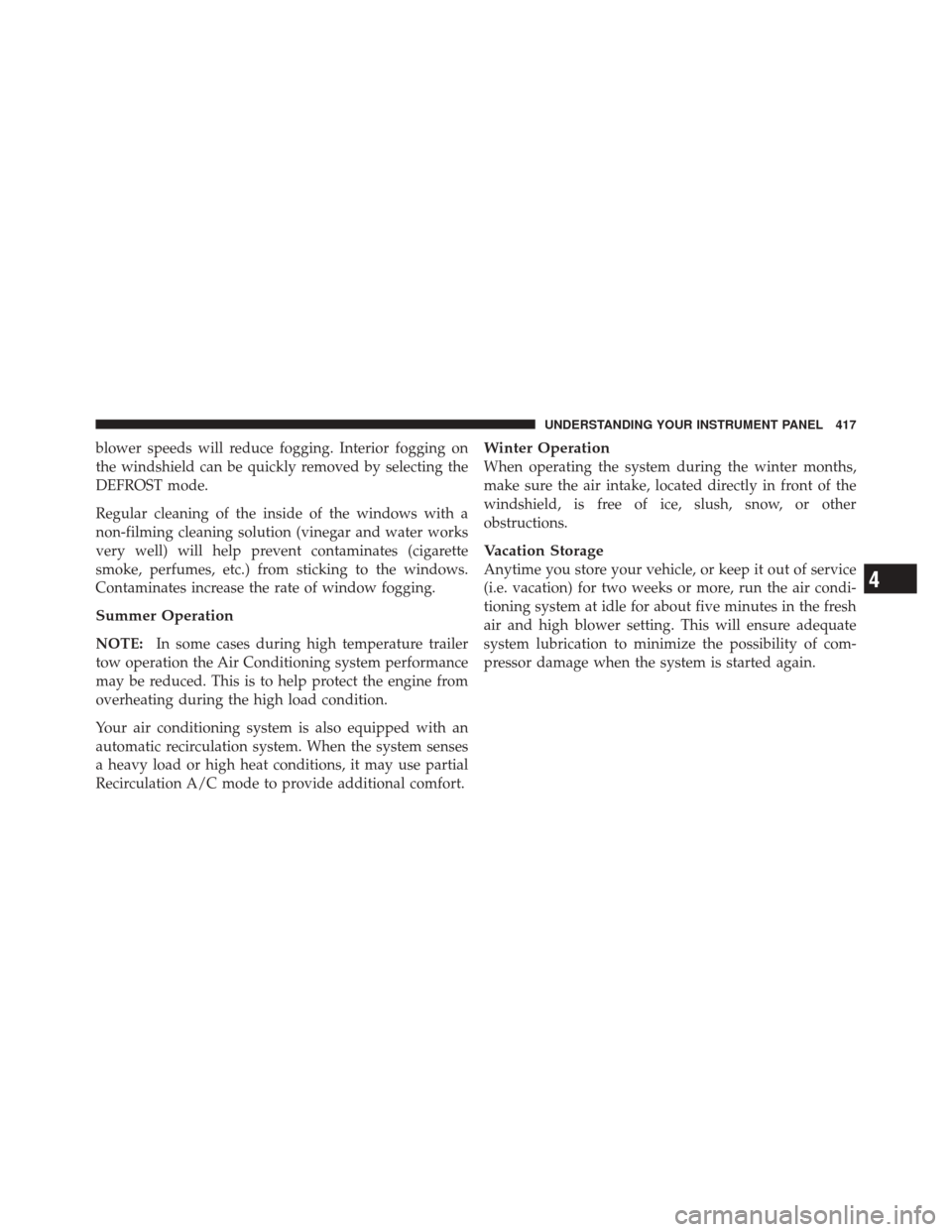

Page 419 of 686
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
DEFROST mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.
Summer Operation
NOTE:In some cases during high temperature trailer
tow operation the Air Conditioning system performance
may be reduced. This is to help protect the engine from
overheating during the high load condition.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use partial
Recirculation A/C mode to provide additional comfort.
Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other
obstructions.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e. vacation) for two weeks or more, run the air condi-
tioning system at idle for about five minutes in the fresh
air and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.4
UNDERSTANDING YOUR INSTRUMENT PANEL 417

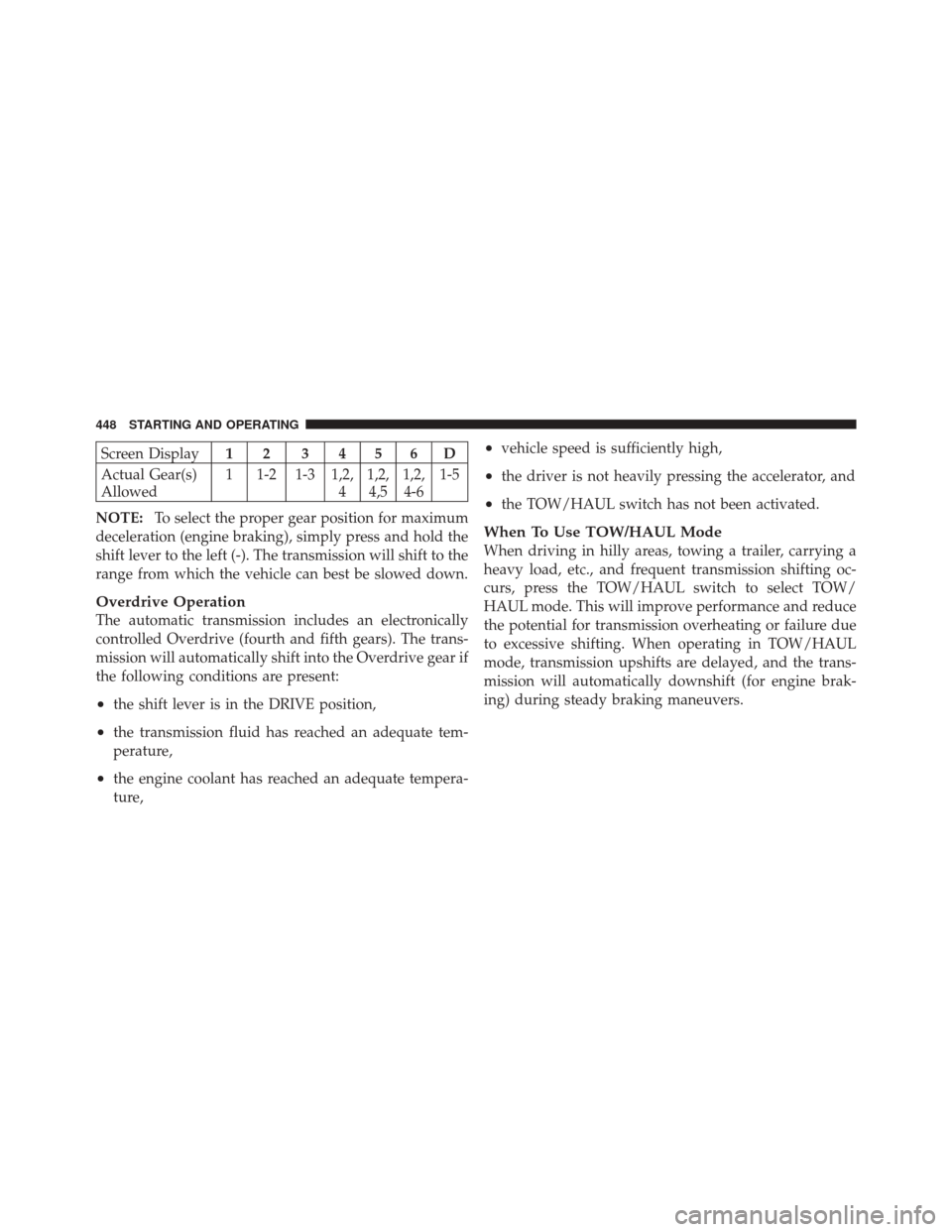

Page 450 of 686
Screen Display12 3456D
Actual Gear(s)
Allowed 1 1-2 1-3 1,2,
41,2,
4,5 1,2,
4-6 1-5
NOTE: To select the proper gear position for maximum
deceleration (engine braking), simply press and hold the
shift lever to the left (-). The transmission will shift to the
range from which the vehicle can best be slowed down.
Overdrive Operation
The automatic transmission includes an electronically
controlled Overdrive (fourth and fifth gears). The trans-
mission will automatically shift into the Overdrive gear if
the following conditions are present:
•the shift lever is in the DRIVE position,
•the transmission fluid has reached an adequate tem-
perature,
•the engine coolant has reached an adequate tempera-
ture,
•vehicle speed is sufficiently high,
•the driver is not heavily pressing the accelerator, and
•the TOW/HAUL switch has not been activated.
When To Use TOW/HAUL Mode
When driving in hilly areas, towing a trailer, carrying a
heavy load, etc., and frequent transmission shifting oc-
curs, press the TOW/HAUL switch to select TOW/
HAUL mode. This will improve performance and reduce
the potential for transmission overheating or failure due
to excessive shifting. When operating in TOW/HAUL
mode, transmission upshifts are delayed, and the trans-
mission will automatically downshift (for engine brak-
ing) during steady braking maneuvers.
448 STARTING AND OPERATING

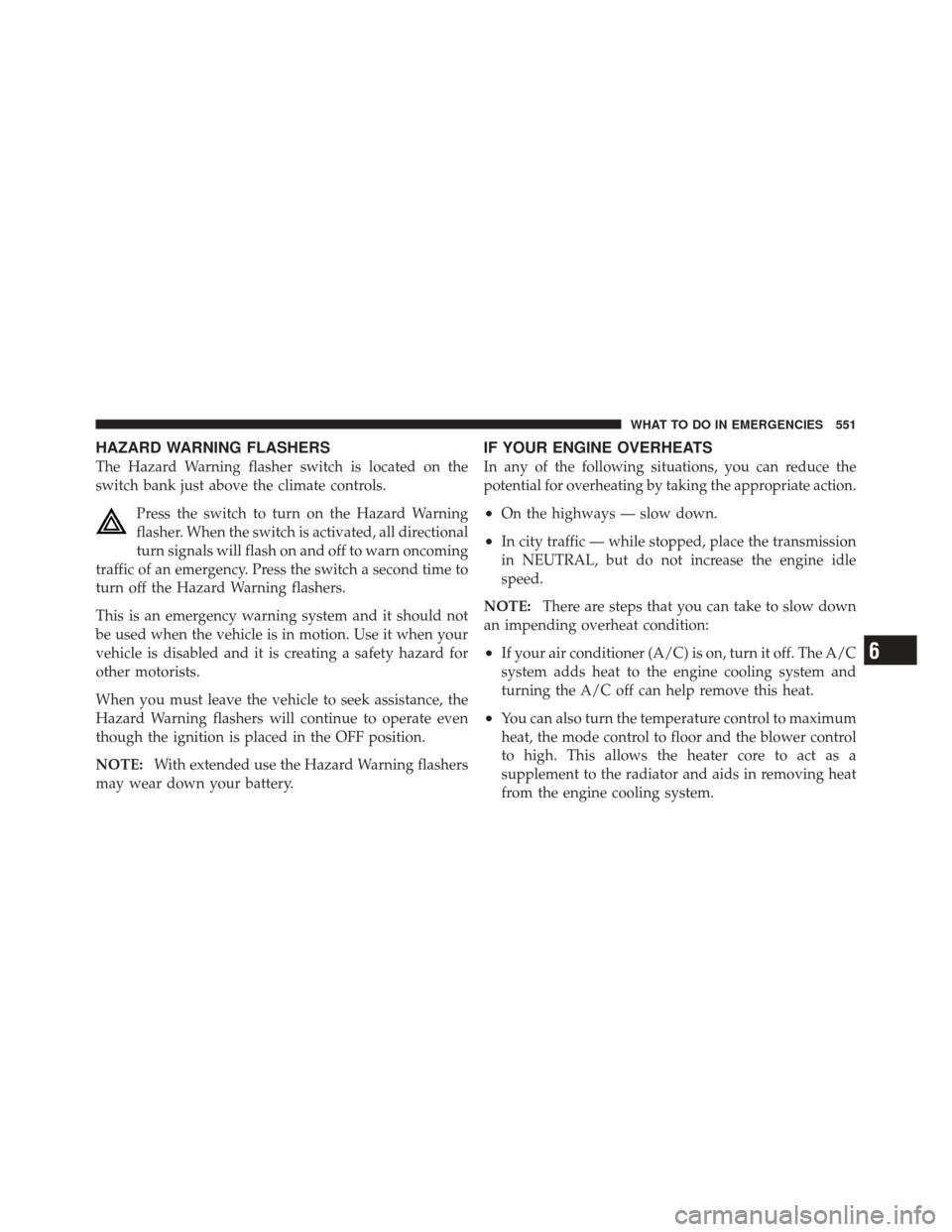

Page 553 of 686
HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
switch bank just above the climate controls.Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
•On the highways — slow down.
•In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase the engine idle
speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
•If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
6
WHAT TO DO IN EMERGENCIES 551

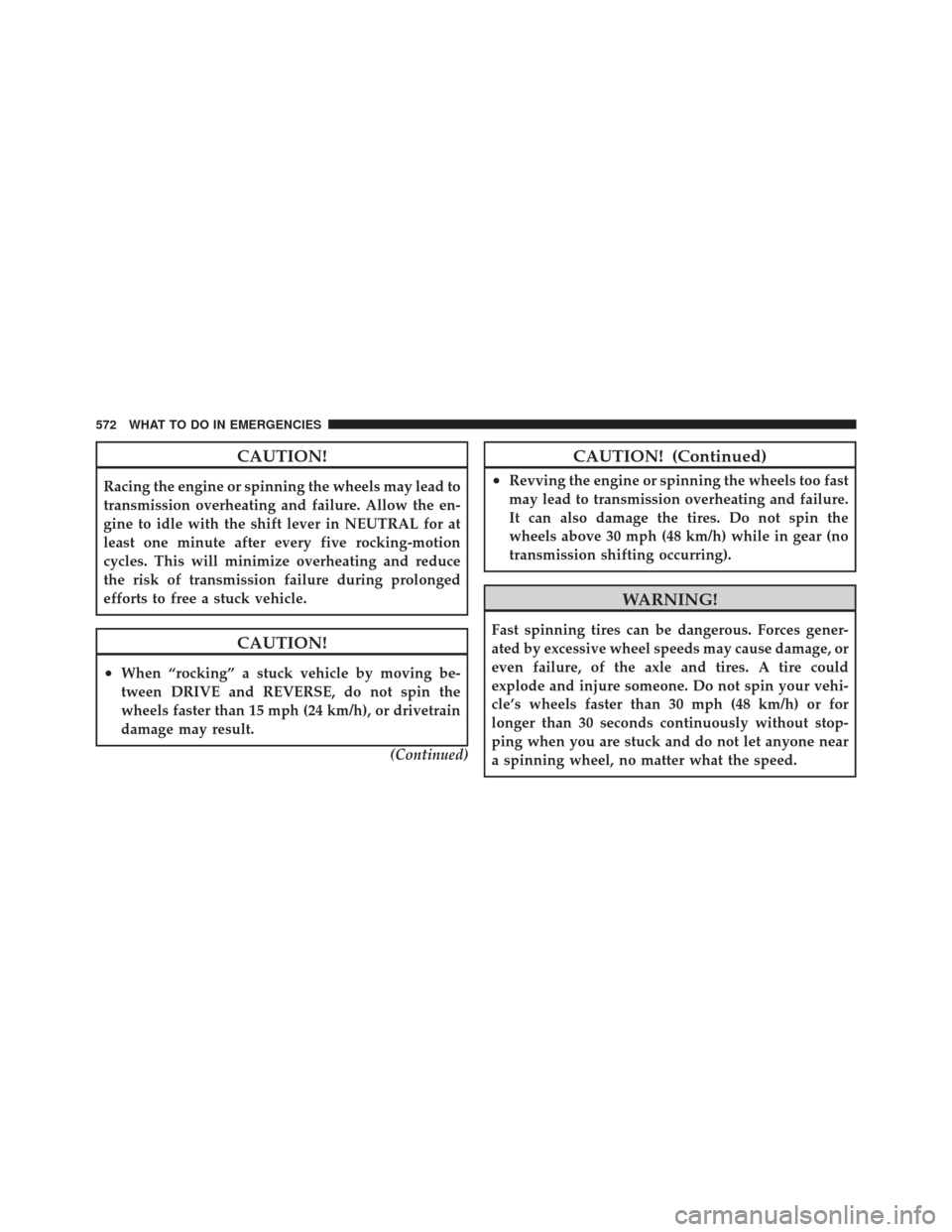

Page 574 of 686
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the shift lever in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.
CAUTION!
•When “rocking” a stuck vehicle by moving be-
tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.(Continued)
CAUTION! (Continued)
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the
wheels above 30 mph (48 km/h) while in gear (no
transmission shifting occurring).
WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
572 WHAT TO DO IN EMERGENCIES

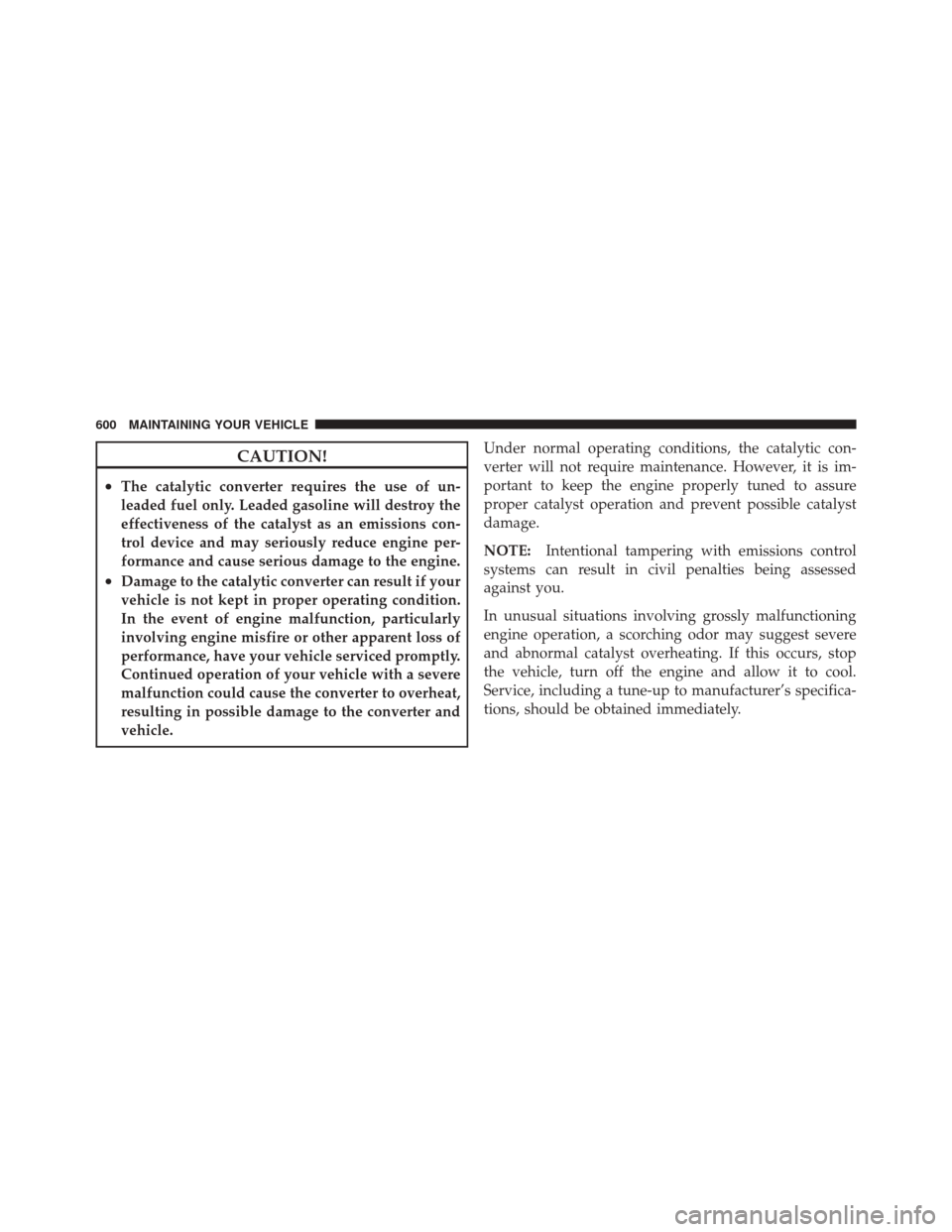

Page 602 of 686
CAUTION!
•The catalytic converter requires the use of un-
leaded fuel only. Leaded gasoline will destroy the
effectiveness of the catalyst as an emissions con-
trol device and may seriously reduce engine per-
formance and cause serious damage to the engine.
•Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition.
In the event of engine malfunction, particularly
involving engine misfire or other apparent loss of
performance, have your vehicle serviced promptly.
Continued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.Under normal operating conditions, the catalytic con-
verter will not require maintenance. However, it is im-
portant to keep the engine properly tuned to assure
proper catalyst operation and prevent possible catalyst
damage.
NOTE:
Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool.
Service, including a tune-up to manufacturer’s specifica-
tions, should be obtained immediately.
600 MAINTAINING YOUR VEHICLE

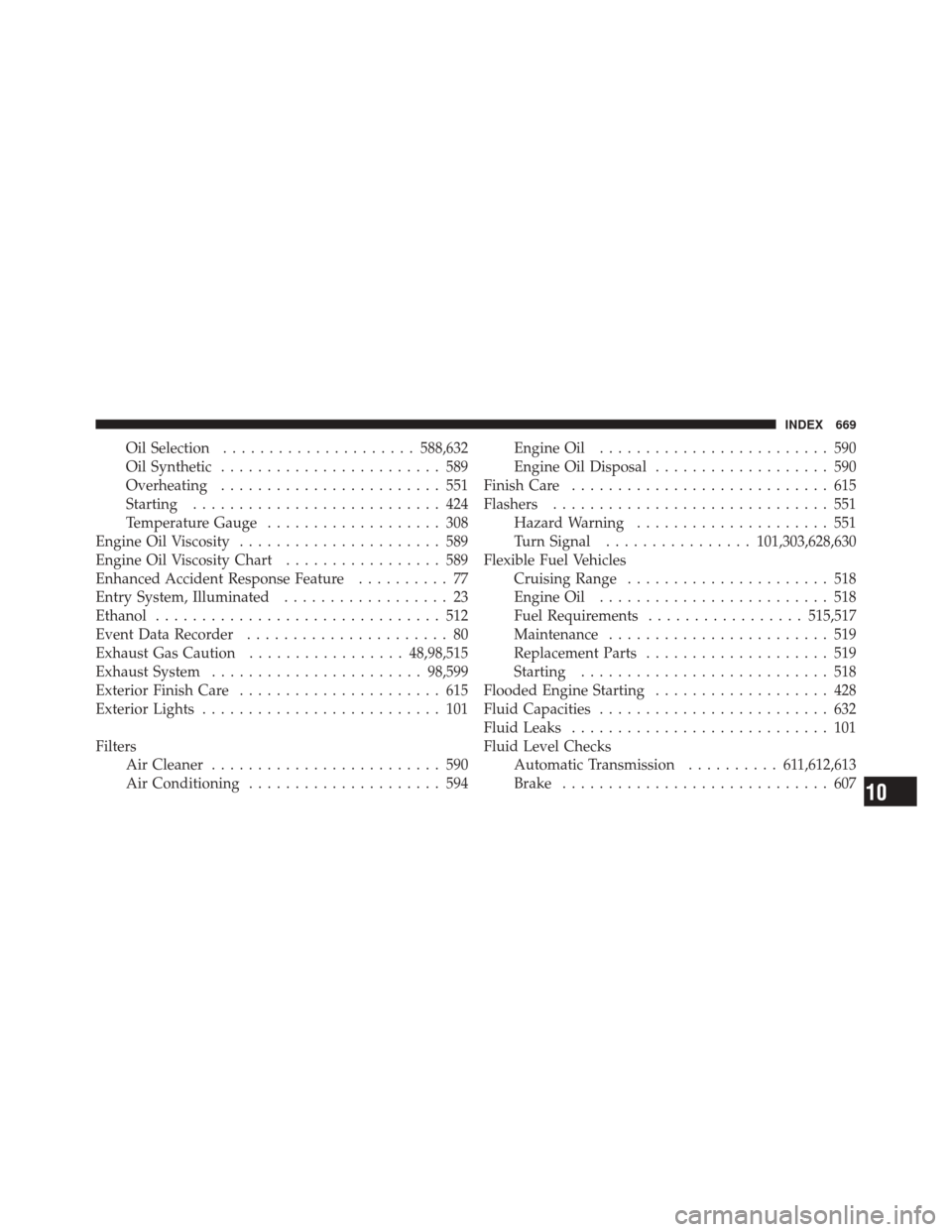

Page 671 of 686
Oil Selection..................... 588,632
Oil Synthetic ........................ 589
Overheating ........................ 551
Starting ........................... 424
Temperature Gauge ................... 308
Engine Oil Viscosity ...................... 589
Engine Oil Viscosity Chart ................. 589
Enhanced Accident Response Feature .......... 77
Entry System, Illuminated .................. 23
Ethanol ............................... 512
Event Data Recorder ...................... 80
Exhaust Gas Caution ................. 48,98,515
Exhaust System ....................... 98,599
Exterior Finish Care ...................... 615
Exterior Lights .......................... 101
Filters Air Cleaner ......................... 590
Air Conditioning ..................... 594 Engine Oil
......................... 590
Engine Oil Disposal ................... 590
Finish Care ............................ 615
Flashers .............................. 551
Hazard Warning ..................... 551
Turn Signal ................ 101,303,628,630
Flexible Fuel Vehicles Cruising Range ...................... 518
Engine Oil ......................... 518
Fuel Requirements ................. 515,517
Maintenance ........................ 519
Replacement Parts .................... 519
Starting ........................... 518
Flooded Engine Starting ................... 428
Fluid Capacities ......................... 632
Fluid Leaks ............................ 101
Fluid Level Checks Automatic Transmission .......... 611,612,613
Brake ............................. 607
10
INDEX 669
Page 677 of 686

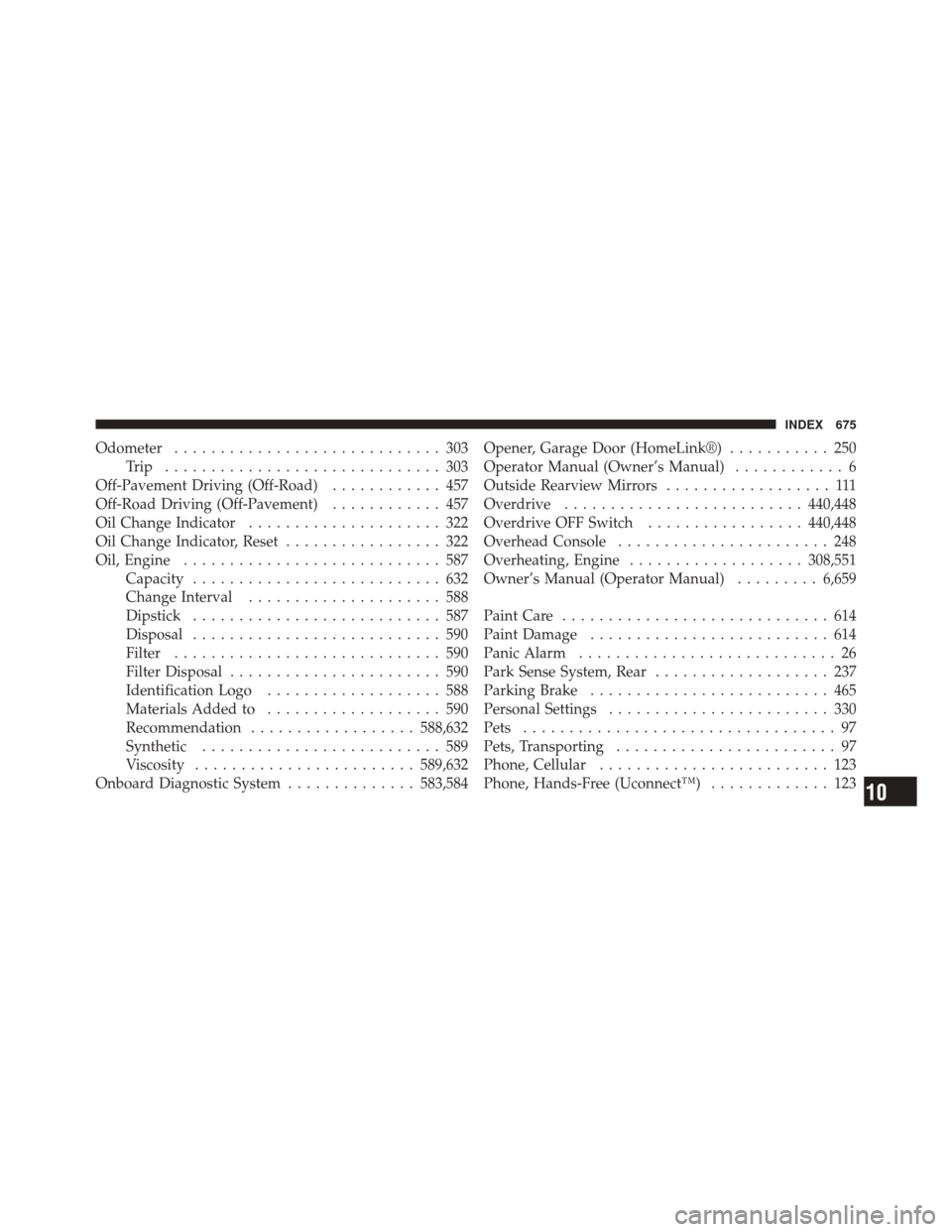

Odometer............................. 303
Trip .............................. 303
Off-Pavement Driving (Off-Road) ............ 457
Off-Road Driving (Off-Pavement) ............ 457
Oil Change Indicator ..................... 322
Oil Change Indicator, Reset ................. 322
Oil, Engine ............................ 587
Capacity ........................... 632
Change Interval ..................... 588
Dipstick ........................... 587
Disposal ........................... 590
Filter ............................. 590
Filter Disposal ....................... 590
Identification Logo ................... 588
Materials Added to ................... 590
Recommendation .................. 588,632
Synthetic .......................... 589
Viscosity ........................ 589,632
Onboard Diagnostic System ..............583,584Opener, Garage Door (HomeLink®)
........... 250
Operator Manual (Owner’s Manual) ............ 6
Outside Rearview Mirrors .................. 111
Overdrive .......................... 440,448
Overdrive OFF Switch .................440,448
Overhead Console ....................... 248
Overheating, Engine ................... 308,551
Owner’s Manual (Operator Manual) .........6,659
Paint Care ............................. 614
Paint Damage .......................... 614
Panic Alarm ............................ 26
Park Sense System, Rear ................... 237
Parking Brake .......................... 465
Personal Settings ........................ 330
Pets .................................. 97
Pets, Transporting ........................ 97
Phone, Cellular ......................... 123
Phone, Hands-Free (Uconnect™) ............. 123
10
INDEX 675
