DODGE DURANGO 2013 3.G Owners Manual

Air Conditioning (A/C)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When in A/C mode and the ATC is set to a cool
temperature, dehumidified air flows through the air
outlets. If Economy mode is desired, press the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system. Also, make sure to select only
Panel, Bi-Level or Floor modes.
NOTE:
•If the system is in Mix, Floor or Defrost Mode, the A/C
can be turned off, but the A/C system shall remain
active to prevent fogging of the windows.
• If fog or mist appears on the windshield or side glass,
select Defrost mode and increase blower speed.
Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the Recirculation control button. Re-
circulation mode should only be used temporarily. The
recirculation LED will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode LED and allow outside air into the
vehicle.
NOTE: In cold weather, use of Recirculation mode may
lead to excessive window fogging. The Recirculation
mode is not allowed in the Defrost modes to improve
window clearing operation. Recirculation will be dis-
abled automatically if Defrost is selected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 429

Rear Climate Control — If Equipped
The Rear Climate Control system has floor air outlets,
and overhead outlets at each outboard rear seating
position. The unit provides warm or cool air through the
floor and upper outlets.
The rear blower and temperature controls for the rear
seat passengers are located in the headliner, near the
center of the vehicle.
If the rear system is off, changing the rear setting to a
position other than off will turn the rear system on. If
both the front and rear systems are off, the rear system
will not turn on. The rear system will not operate with
the front system off.
Rear Blower Control
The primary control for the rear blower is on the front
climate control unit, located on the instrument panel.
Rear Manual Climate Controls
1 – Rear Blower3 – Rear Temperature
2 – Rear Climate Control Icon
430 UNDERSTANDING YOUR INSTRUMENT PANEL

Only when the Rear Control Icon is illuminated do the
second row seat occupants have control of the rear
blower speed.
The rear blower control, located in the rear overhead
console, has an off position and a range of blower speeds.
This allows the second row seat occupants to control the
volume of air circulated in the rear of the vehicle.
CAUTION!
Interior air enters the Rear Manual Climate Control
system through an intake grille, located in the right
side trim panel behind the third row seats. The
heater outlets are located in the right side trim panel,
just behind the sliding door. Do not block or place
objects directly in front of the inlet grille or heater
outlets. The electrical system could overload, causing
damage to the blower motor.
Rear Temperature Control
Only when the Rear Control Icon is illuminated do the
second row seat occupants have control of the rear
temperature control knob.
To change the temperature in the rear of the vehicle,
rotate the temperature control knob counterclockwise for
cold air, and clockwise for heated air.
Rear Mode Control
Headliner ModeAir comes from the outlets in the headliner. Each
of these outlets can be individually adjusted to
direct the flow of air. Moving the air vanes of the outlets
to one side will shut off the airflow.
Bi-Level Mode
Air comes from both the headliner outlets and the
floor outlets.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 431

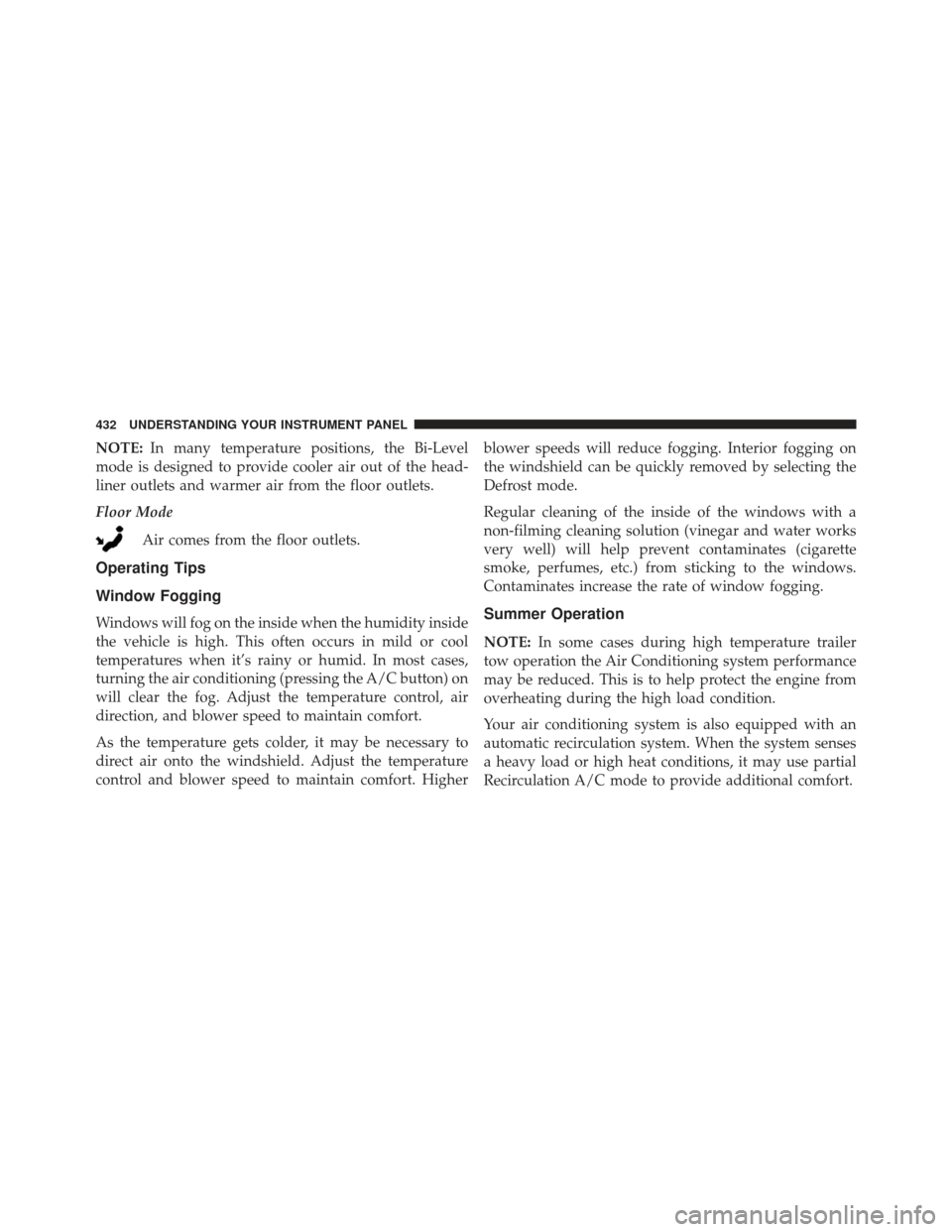

NOTE:In many temperature positions, the Bi-Level
mode is designed to provide cooler air out of the head-
liner outlets and warmer air from the floor outlets.
Floor Mode
Air comes from the floor outlets.
Operating Tips
Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.
As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
Defrost mode.
Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.Summer Operation
NOTE:
In some cases during high temperature trailer
tow operation the Air Conditioning system performance
may be reduced. This is to help protect the engine from
overheating during the high load condition.
Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use partial
Recirculation A/C mode to provide additional comfort.
432 UNDERSTANDING YOUR INSTRUMENT PANEL

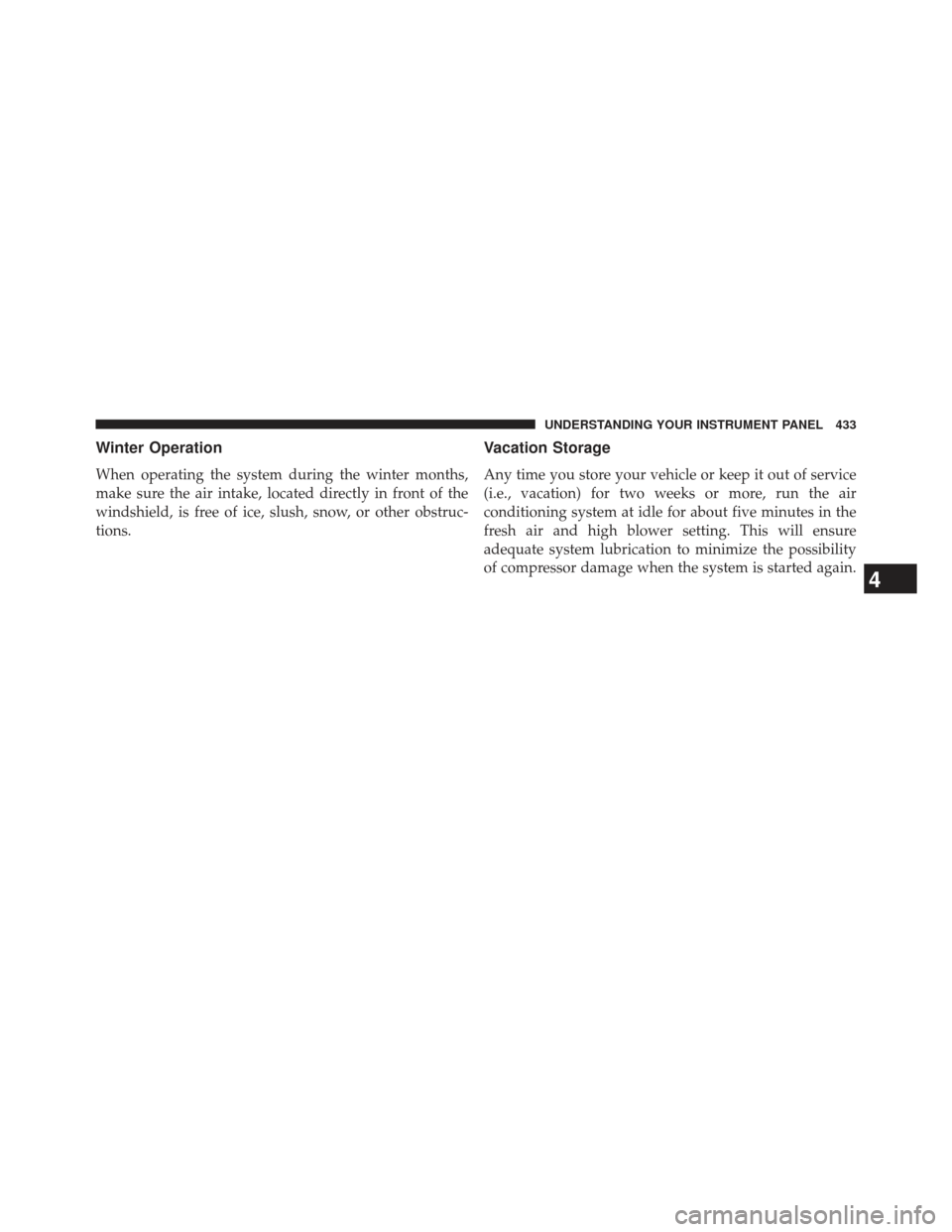

Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.
Vacation Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 433

Operating Tips Chart
434 UNDERSTANDING YOUR INSTRUMENT PANEL

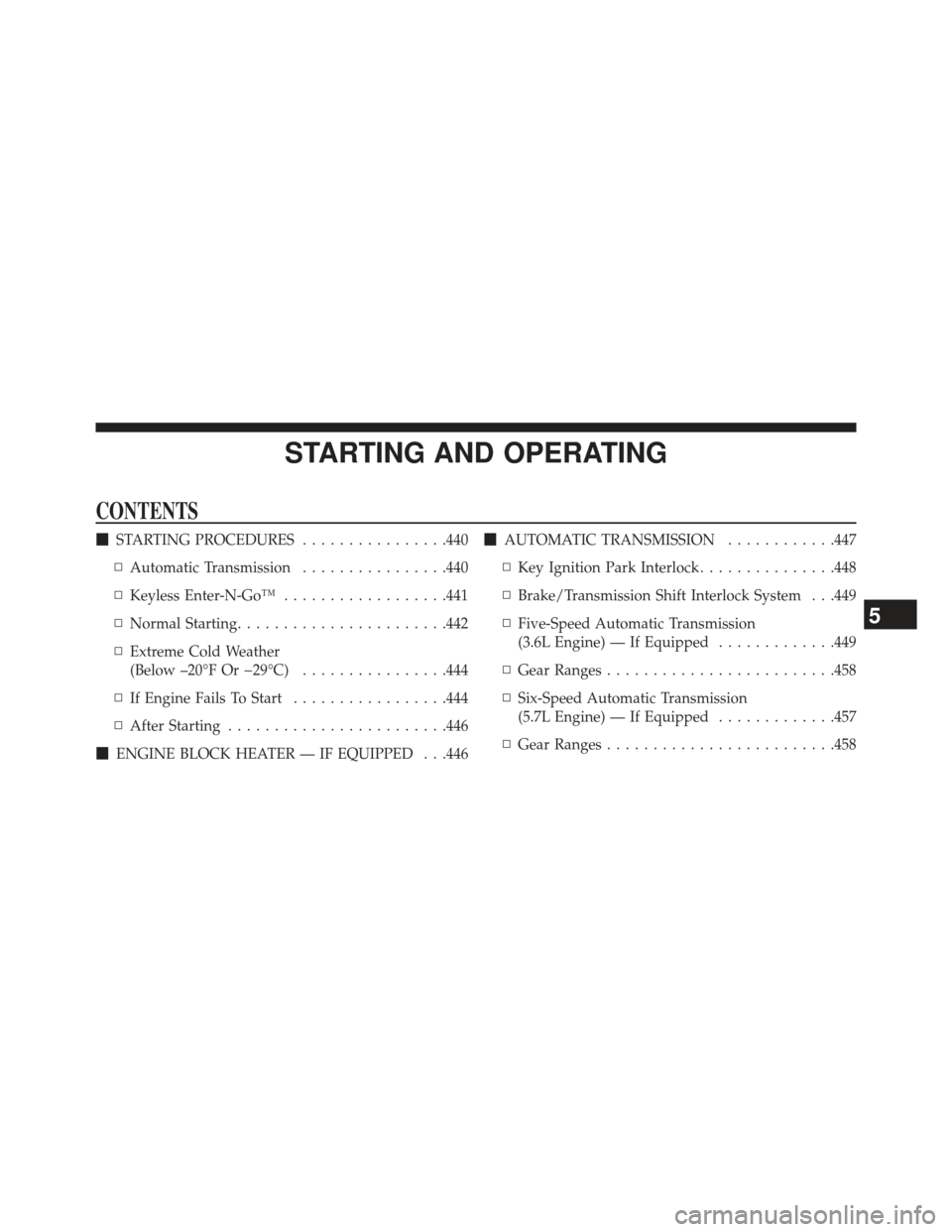

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................440
▫ Automatic Transmission ................440
▫ Keyless Enter-N-Go™ ..................441
▫ Normal Starting ...................... .442
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................444
▫ If Engine Fails To Start .................444
▫ After Starting ....................... .446
 ENGINE BLOCK HEATER — IF EQUIPPED . . .446
AUTOMATIC TRANSMISSION ............447
▫ Key Ignition Park Interlock ...............448
▫ Brake/Transmission Shift Interlock System . . .449
▫ Five-Speed Automatic Transmission
(3.6L Engine) — If Equipped .............449
▫ Gear Ranges ........................ .458
▫ Six-Speed Automatic Transmission
(5.7L Engine) — If Equipped .............457
▫ Gear Ranges ........................ .458
5

ALL-WHEEL DRIVE OPERATION ..........468
▫ Single-Speed Operating Instructions/Precautions
(3.6L Engine) – If Equipped ..............468
▫ Electronically Shifted Transfer Case (Three-
Position Switch) (5.7L Engine) – If Equipped . .469
▫ Shifting Procedure .....................473
 ON-ROAD DRIVING TIPS ................475
 OFF-ROAD DRIVING TIPS ................476
▫ When To Use LOW Range – If Equipped .....476
▫ Driving Through Water .................476
▫ Driving In Snow, Mud And Sand ..........478
▫ Hill Climbing ....................... .478
▫ Traction Downhill .....................479
▫ After Driving Off-Road .................479
POWER STEERING .....................480
▫ 3.6L Engine ......................... .480
▫ 5.7L Engine ......................... .482
▫ Power Steering Fluid Check ..............482
 FUEL SAVER TECHNOLOGY (IF EQUIPPED) —
5.7L ENGINE ONLY .....................483
 PARKING BRAKE ..................... .483
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .486
▫ Anti-Lock Brake System (ABS) ............486
▫ Traction Control System (TCS) ............487
▫ Brake Assist System (BAS) ...............488
▫ Electronic Roll Mitigation (ERM) ..........489
▫ Electronic Stability Control (ESC) ..........490
436 STARTING AND OPERATING

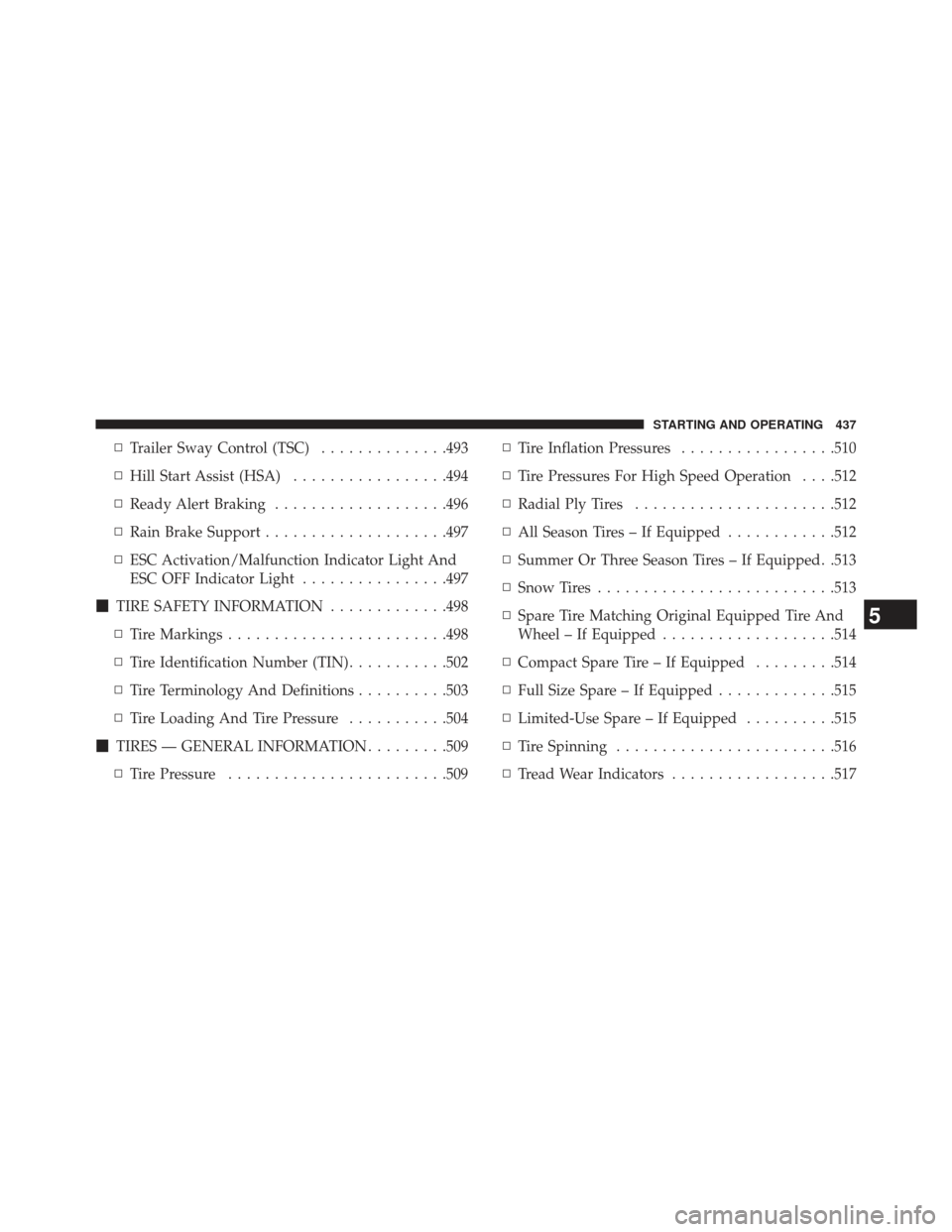

▫Trailer Sway Control (TSC) ..............493
▫ Hill Start Assist (HSA) .................494
▫ Ready Alert Braking ...................496
▫ Rain Brake Support ....................497
▫ ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light ................497
 TIRE SAFETY INFORMATION .............498
▫ Tire Markings ....................... .498
▫ Tire Identification Number (TIN) ...........502
▫ Tire Terminology And Definitions ..........503
▫ Tire Loading And Tire Pressure ...........504
 TIRES — GENERAL INFORMATION .........509
▫ Tire Pressure ....................... .509▫
Tire Inflation Pressures .................510
▫ Tire Pressures For High Speed Operation . . . .512
▫ Radial Ply Tires ..................... .512
▫ All Season Tires – If Equipped ............512
▫ Summer Or Three Season Tires – If Equipped. .513
▫ Snow Tires ......................... .513
▫ Spare Tire Matching Original Equipped Tire And
Wheel – If Equipped ...................514
▫ Compact Spare Tire – If Equipped .........514
▫ Full Size Spare – If Equipped .............515
▫ Limited-Use Spare – If Equipped ..........515
▫ Tire Spinning ....................... .516
▫ Tread Wear Indicators ..................517
5
STARTING AND OPERATING 437

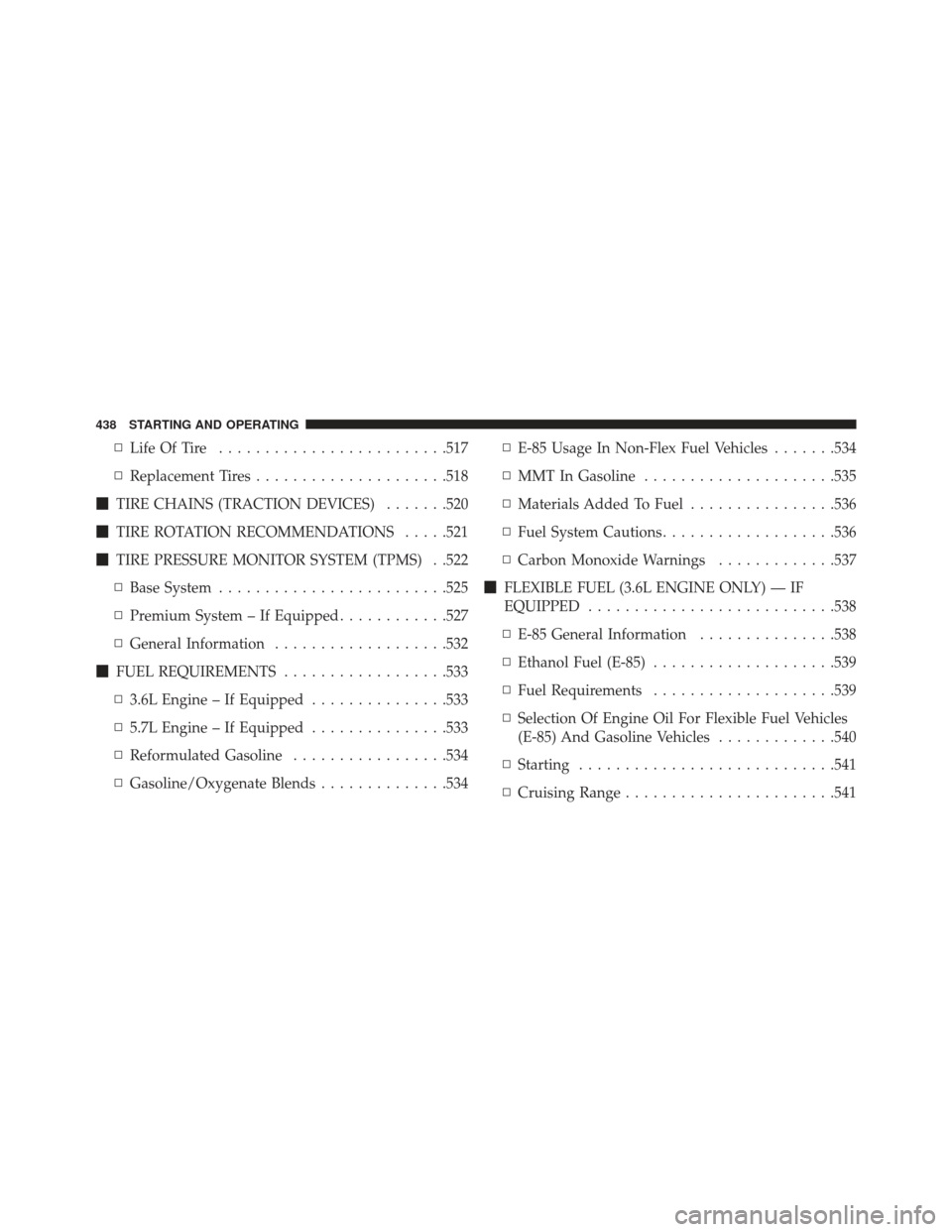

▫Life Of Tire ........................ .517
▫ Replacement Tires .....................518
 TIRE CHAINS (TRACTION DEVICES) .......520
 TIRE ROTATION RECOMMENDATIONS .....521
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .522
▫ Base System ........................ .525
▫ Premium System – If Equipped ............527
▫ General Information ...................532
 FUEL REQUIREMENTS ..................533
▫ 3.6L Engine – If Equipped ...............533
▫ 5.7L Engine – If Equipped ...............533
▫ Reformulated Gasoline .................534
▫ Gasoline/Oxygenate Blends ..............534▫
E-85 Usage In Non-Flex Fuel Vehicles .......534
▫ MMT In Gasoline .....................535
▫ Materials Added To Fuel ................536
▫ Fuel System Cautions ...................536
▫ Carbon Monoxide Warnings .............537
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED .......................... .538
▫ E-85 General Information ...............538
▫ Ethanol Fuel (E-85) ....................539
▫ Fuel Requirements ....................539
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles .............540
▫ Starting ........................... .541
▫ Cruising Range ...................... .541
438 STARTING AND OPERATING
