NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:
With the Uconnect® system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
WARNING!
• When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
Emergency Key Removal
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious in-
jury or death when inhaled.
• Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
Remote Start Abort Message On Electronic Vehicle
Information Center (EVIC) — If Equipped
The following messages will display in the EVIC if the
vehicle fails to remote start or exits remote start prema-
turely:
• Remote Start Aborted — Door Ajar •
Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Liftgate Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start Vehicle To Reset
The EVIC message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The vehicle doors will lock, the parking
lights will flash and the horn will chirp twice (if
programmed). Then, the engine will start and the vehicle
will remain in the Remote Start mode for a 15 minute
cycle.
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

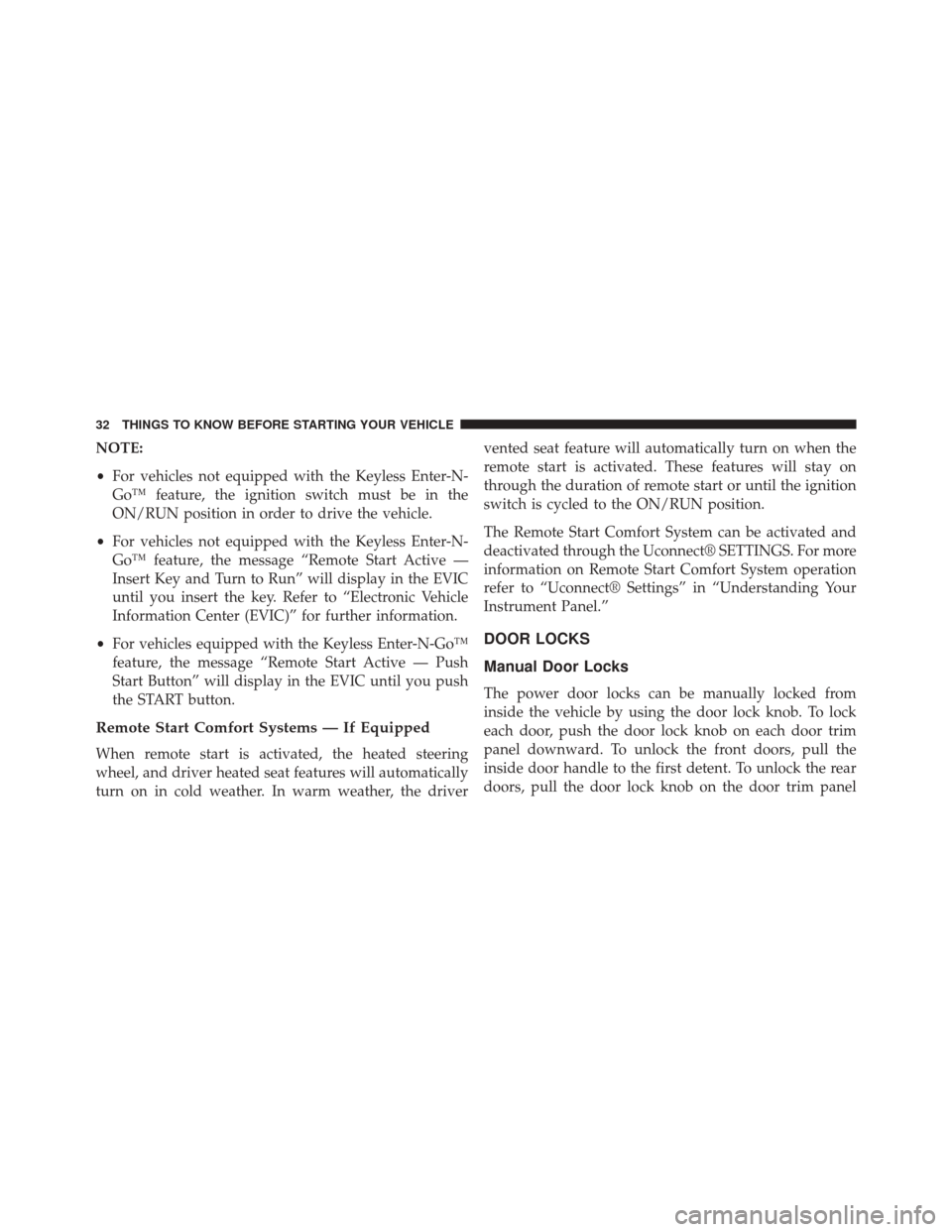

NOTE:
•For vehicles not equipped with the Keyless Enter-N-
Go™ feature, the ignition switch must be in the
ON/RUN position in order to drive the vehicle.
• For vehicles not equipped with the Keyless Enter-N-
Go™ feature, the message “Remote Start Active —
Insert Key and Turn to Run” will display in the EVIC
until you insert the key. Refer to “Electronic Vehicle
Information Center (EVIC)” for further information.
• For vehicles equipped with the Keyless Enter-N-Go™
feature, the message “Remote Start Active — Push
Start Button” will display in the EVIC until you push
the START button.
Remote Start Comfort Systems — If Equipped
When remote start is activated, the heated steering
wheel, and driver heated seat features will automatically
turn on in cold weather. In warm weather, the driver vented seat feature will automatically turn on when the
remote start is activated. These features will stay on
through the duration of remote start or until the ignition
switch is cycled to the ON/RUN position.
The Remote Start Comfort System can be activated and
deactivated through the Uconnect® SETTINGS. For more
information on Remote Start Comfort System operation
refer to “Uconnect® Settings” in “Understanding Your
Instrument Panel.”
DOOR LOCKS
Manual Door Locks
The power door locks can be manually locked from
inside the vehicle by using the door lock knob. To lock
each door, push the door lock knob on each door trim
panel downward. To unlock the front doors, pull the
inside door handle to the first detent. To unlock the rear
doors, pull the door lock knob on the door trim panel
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .194
▫ To Activate ......................... .195
▫ To Set A Desired Speed .................195
▫ To Deactivate ....................... .196
▫ To Resume Speed .....................196
▫ To Vary The Speed Setting ...............196
▫ To Accelerate For Passing ................197
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED .......................... .198
▫ Adaptive Cruise Control (ACC) Operation . . . .201
▫ Activating Adaptive Cruise Control (ACC) . . . .202
▫ To Activate/Deactivate ..................202
▫ To Set A Desired ACC Speed .............204▫
To Cancel .......................... .204
▫ ToTurnOff......................... .205
▫ To Resume ......................... .205
▫ To Vary The Speed Setting ...............206
▫ Setting The Following Distance In ACC ......208
▫ Overtake Aid ....................... .212
▫ ACC Operation At Stop .................212
▫ Adaptive Cruise Control (ACC) Menu .......213
▫ Display Warnings And Maintenance ........214
▫ Precautions While Driving With ACC .......217
▫ General Information ...................221
▫ Normal (Fixed Speed) Electronic Speed Control
Mode ............................. .221
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED ............225
▫ Forward Collision Warning (FCW) With
Mitigation Operation ...................225
▫ Turning FCW ON Or OFF ...............227
▫ Changing FCW And Active Braking Status. . . .228
▫ FCW Limited Warning ..................229
▫ Service FCW Warning ..................229
 PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED .......................... .229
▫ ParkSense® Sensors ....................230
▫ ParkSense® Warning Display .............231
▫ ParkSense® Display ....................231
▫ Enabling And Disabling ParkSense® ........235▫
Service The ParkSense® Rear Park Assist
System ............................ .235
▫ Cleaning The ParkSense® System ..........236
▫ ParkSense® System Usage Precautions .......236
 PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .239
 OVERHEAD CONSOLE ..................241
▫ Front Map/Reading Lights — If Equipped . . .242
▫ Courtesy Lights ...................... .243
▫ Sunglasses Bin Door ...................243
 GARAGE DOOR OPENER — IF EQUIPPED . . .244
▫ Before You Begin Programming HomeLink® . .245
▫ Programming A Rolling Code .............246
▫ Programming A Non-Rolling Code .........248
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

WARNING!(Continued)
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the Assist
and 9-1-1 buttons will continuously be illuminated
red. •
The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”
• An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
WARNING!
• Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
• The ORC turns on the air bag Warning Light on the
instrument panel if a malfunction in any part of the
system is detected. If the air bag Warning Light is
illuminated, have an authorized dealer service the
ORC system immediately.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

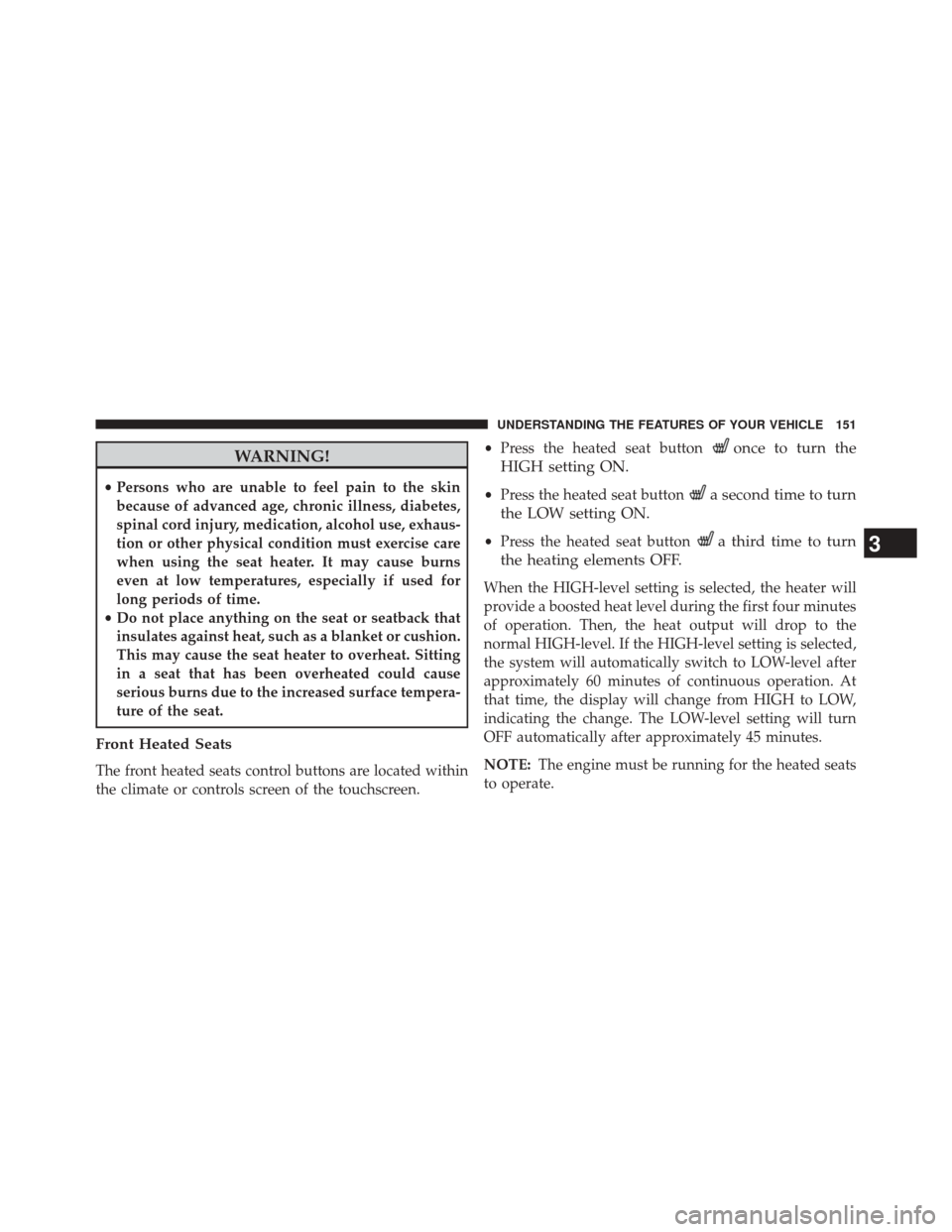

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
Front Heated Seats
The front heated seats control buttons are located within
the climate or controls screen of the touchscreen. •
Press the heated seat button
once to turn the
HIGH setting ON.
• Press the heated seat buttona second time to turn
the LOW setting ON.
• Press the heated seat buttona third time to turn
the heating elements OFF.
When the HIGH-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal HIGH-level. If the HIGH-level setting is selected,
the system will automatically switch to LOW-level after
approximately 60 minutes of continuous operation. At
that time, the display will change from HIGH to LOW,
indicating the change. The LOW-level setting will turn
OFF automatically after approximately 45 minutes.
NOTE: The engine must be running for the heated seats
to operate.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

WARNING!
Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the outboard head re-
straints are in their upright positions when the seat is
to be occupied.
NOTE: For proper routing of a Child Seat Tether refer to
“Occupant Restraints” in “Things to Know Before Start-
ing Your Vehicle” for further information.
Power Folding Third Row Head Restraints
For improved visibility when in reverse, the third row
head restraints can be folded using the Uconnect® Sys-
tem. Touch the “Controls” soft-key located on the bottom of
the Uconnect® display.
Touch the Headrest Fold soft-key to
power fold the third row head
restraints.
NOTE:
• The head restraints can only be folded downward
using the Headrest Fold soft-key. The head restraints
must be raised manually when occupying the third
row.
• Do not fold if there are passengers seated in the third
row seats.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

Programming The Memory Feature
NOTE:To create a new memory profile, perform the
following:
Vehicles Equipped With Keyless Enter-N-Go™
1. Without pressing the brake pedal, push the ENGINE START/STOP button and cycle the ignition to the
ON/RUN position (Do not start the engine).
2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column
[if equipped], and radio station presets).
3. Press and release the S (Set) button on the memory switch. 4. Within five seconds, press and release either of the
memory buttons (1) or (2). The Electronic Vehicle
Information Center (EVIC) will display which
memory position has been set.
Vehicles Not Equipped With Keyless Enter-N-Go™
1. Insert the ignition key fob, and turn the ignition switch to the ON/RUN position.
2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror, adjustable pedals [if
equipped], power tilt and telescopic steering column
[if equipped], and radio station presets).
3. Press and release the S (Set) button on the memory switch.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

4. Within five seconds, press and release either of thememory buttons (1) or (2). The Electronic Vehicle
Information Center (EVIC) will display which
memory position has been set.
NOTE:
• Memory profiles can be set without the vehicle in
PARK, but the vehicle must be in PARK to recall a
memory profile.
• The Recall Memory with the “Memory To FOB” fea-
ture can be enabled through the Uconnect® system
screen. Refer to “Customer- Programmable Features —
Uconnect® Access 8.4 Settings ” in “Understanding
Your Instrument Panel” for further information.Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory
Your RKE transmitters can be programmed to recall one
of two pre-programmed memory profiles by pressing the
UNLOCK button on the RKE transmitter.
NOTE: Before programming your RKE transmitters you
must select the “Memory To FOB” feature through the
Uconnect® system screen. Refer to “Uconnect® Settings ”
in “Understanding Your Instrument Panel” for further
information.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
