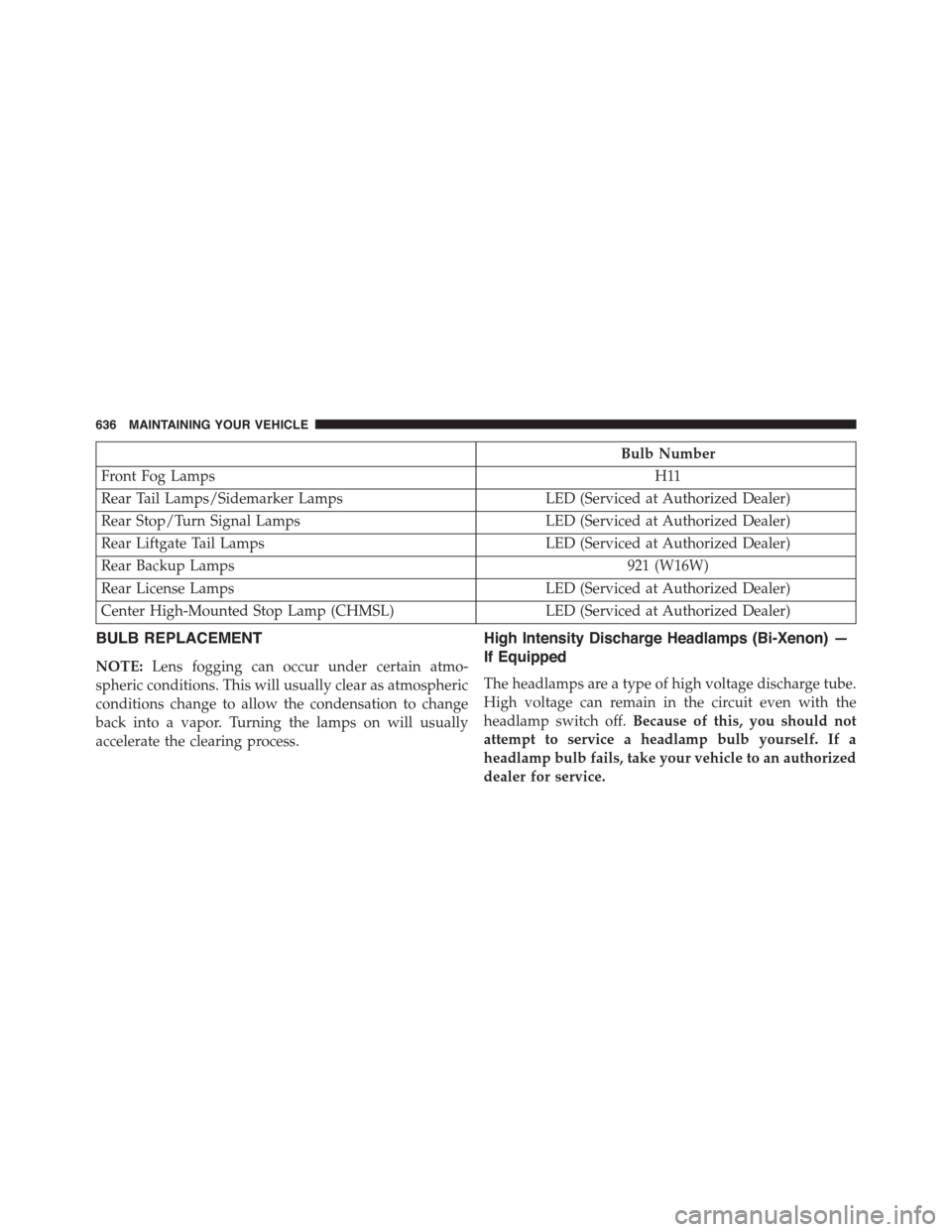

Bulb Number
Front Fog LampsH11
Rear Tail Lamps/Sidemarker LampsLED (Serviced at Authorized Dealer)
Rear Stop/Turn Signal LampsLED (Serviced at Authorized Dealer)
Rear Liftgate Tail LampsLED (Serviced at Authorized Dealer)
Rear Backup Lamps921 (W16W)
Rear License LampsLED (Serviced at Authorized Dealer)
Center High-Mounted Stop Lamp (CHMSL)LED (Serviced at Authorized Dealer)
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
High Intensity Discharge Headlamps (Bi-Xenon) —
If Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off.Because of this, you should not
attempt to service a headlamp bulb yourself. If a
headlamp bulb fails, take your vehicle to an authorized
dealer for service.
636 MAINTAINING YOUR VEHICLE

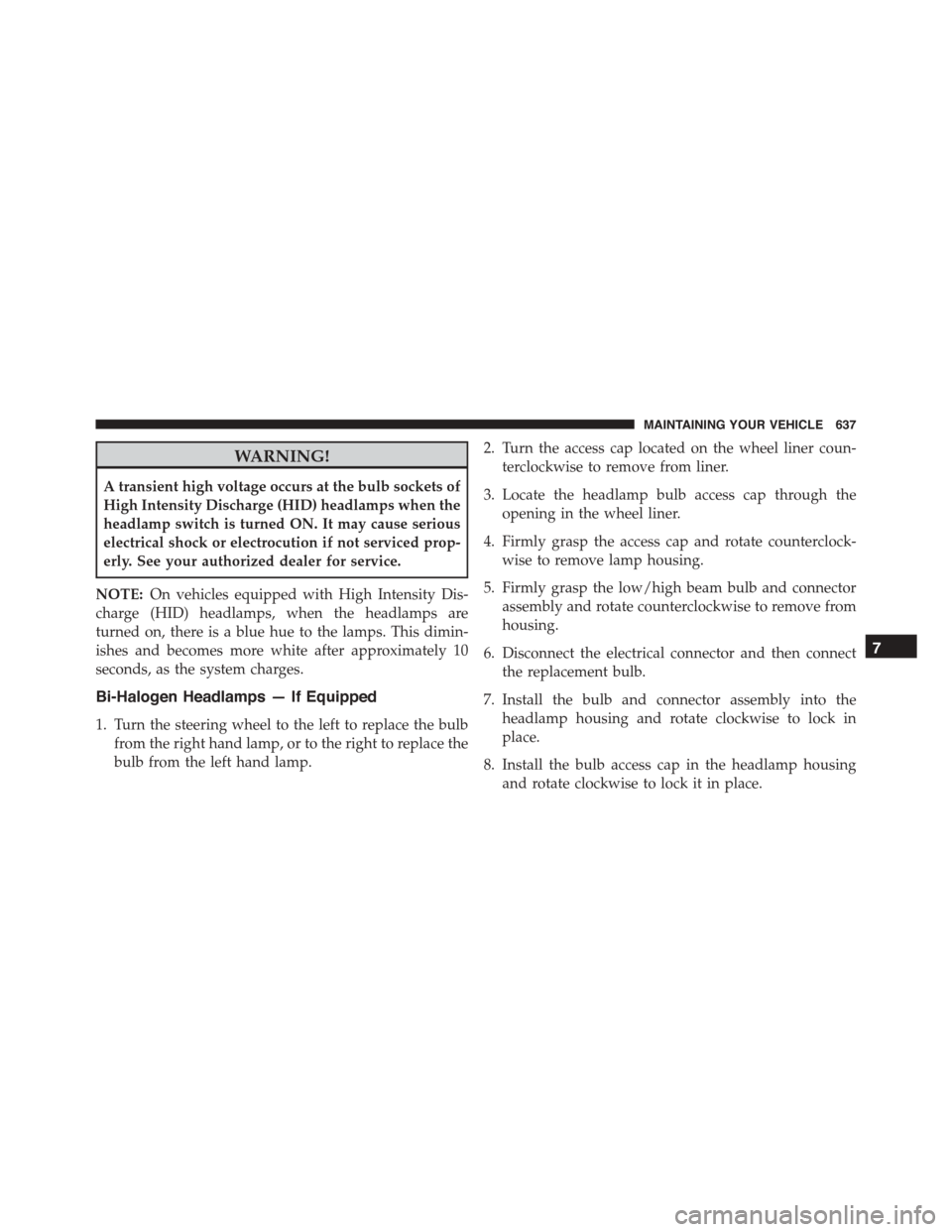

WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE:On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately 10
seconds, as the system charges.
Bi-Halogen Headlamps — If Equipped
1. Turn the steering wheel to the left to replace the bulb
from the right hand lamp, or to the right to replace the
bulb from the left hand lamp.
2. Turn the access cap located on the wheel liner coun-
terclockwise to remove from liner.
3. Locate the headlamp bulb access cap through the
opening in the wheel liner.
4. Firmly grasp the access cap and rotate counterclock-
wise to remove lamp housing.
5. Firmly grasp the low/high beam bulb and connector
assembly and rotate counterclockwise to remove from
housing.
6. Disconnect the electrical connector and then connect
the replacement bulb.
7. Install the bulb and connector assembly into the
headlamp housing and rotate clockwise to lock in
place.
8. Install the bulb access cap in the headlamp housing
and rotate clockwise to lock it in place.
7
