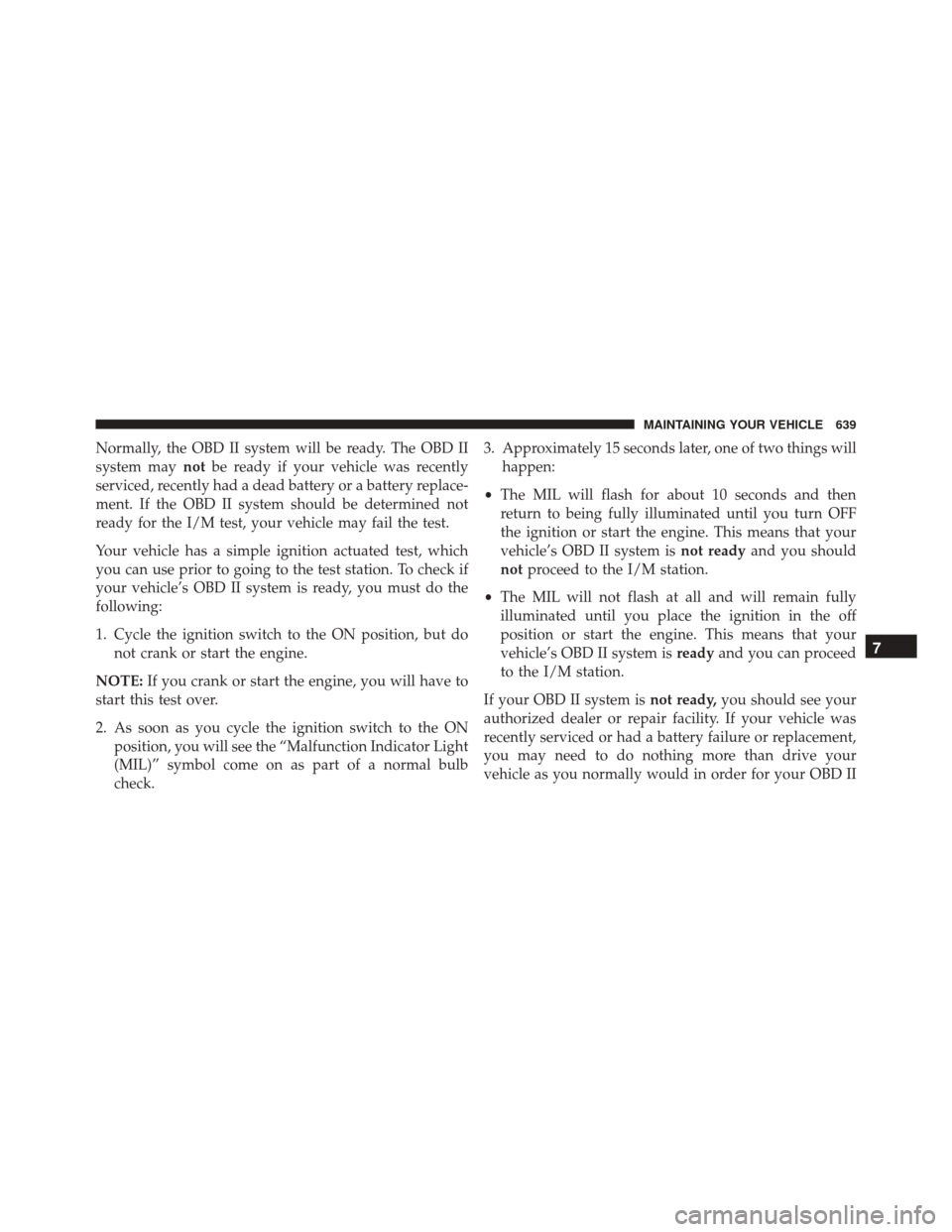

Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition actuated test, which
you can use prior to going to the test station. To check if
your vehicle’s OBD II system is ready, you must do the
following:
1. Cycle the ignition switch to the ON position, but do not crank or start the engine.
NOTE: If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON position, you will see the “Malfunction Indicator Light
(MIL)” symbol come on as part of a normal bulb
check. 3. Approximately 15 seconds later, one of two things will
happen:
• The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off
position or start the engine. This means that your
vehicle’s OBD II system is readyand you can proceed
to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
7
MAINTAINING YOUR VEHICLE 639

3. Grab the bottom of the wiper blade and rotate itforward to unsnap the blade pivot pin from the wiper
blade holder. 4. Install the wiper blade pivot pin into the wiper blade
holder at the end of the wiper arm, and firmly press
the wiper blade until it snaps into place.
5. Lower the wiper blade and snap the pivot cap into place.
Adding Washer Fluid
This vehicle is equipped with a Driver Information
Display (DID), the DID will indicate when the washer
fluid level is low. When the sensor detects a low fluid
level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.
The fluid reservoir for the windshield washers and the
rear window washer is shared. The fluid reservoir is
located in the engine compartment, be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent only (not radiator antifreeze).
1—WiperBlade
2 — Blade Pivot Pin
3—WiperArm
4 — Wiper Blade Holder 654 MAINTAINING YOUR VEHICLE

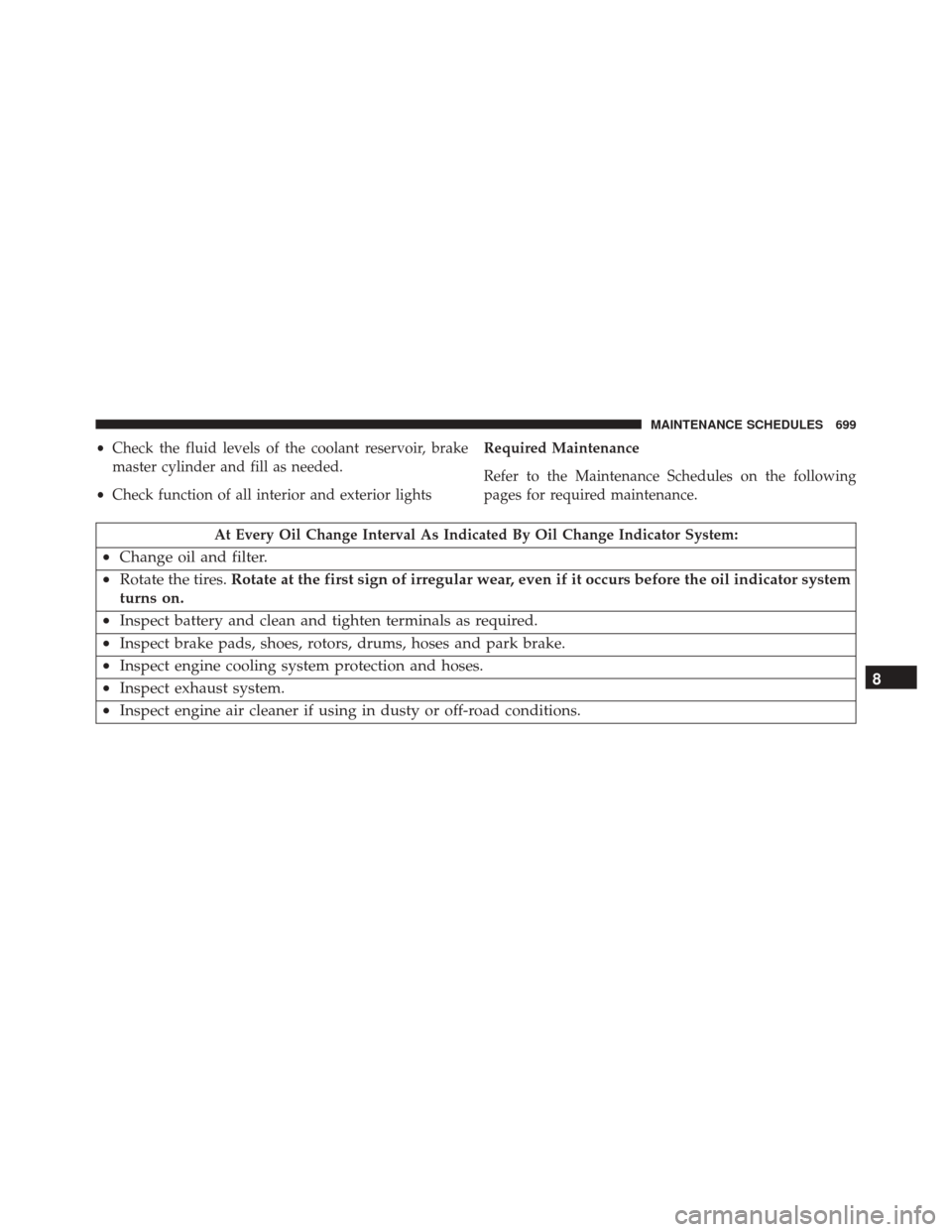

•Check the fluid levels of the coolant reservoir, brake
master cylinder and fill as needed.
• Check function of all interior and exterior lights Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•
Change oil and filter.
• Rotate the tires. Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system
turns on.
• Inspect battery and clean and tighten terminals as required.
• Inspect brake pads, shoes, rotors, drums, hoses and park brake.
• Inspect engine cooling system protection and hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or off-road conditions. 8
MAINTENANCE SCHEDULES 699

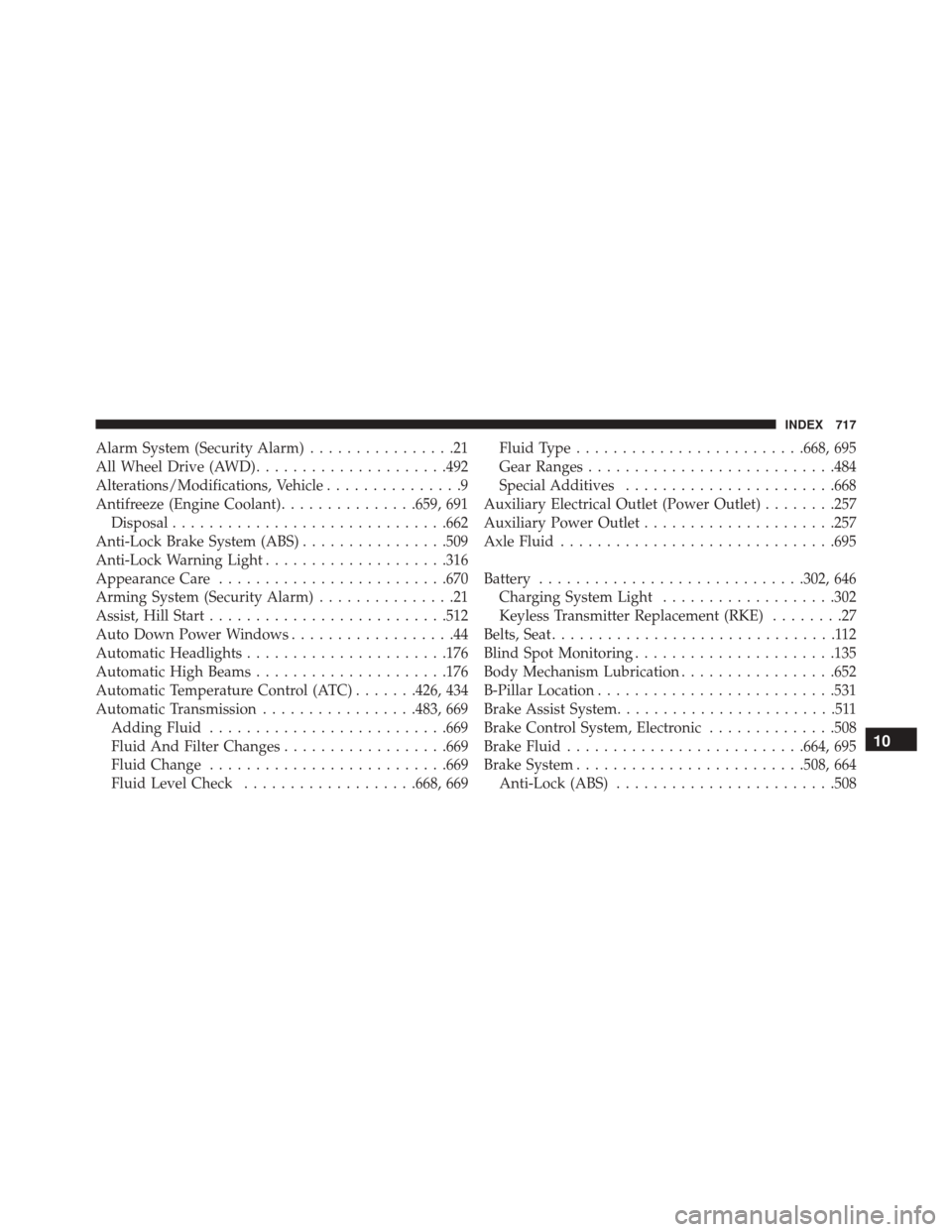

Alarm System (Security Alarm)................21
All Wheel Drive (AWD) .....................492
Alterations/Modifications, Vehicle ...............9
Antifreeze (Engine Coolant) ...............659, 691
Disposal ............................. .662
Anti-Lock Brake System (ABS) ................509
Anti-Lock Warning Light ....................316
Appearance Care ........................ .670
Arming System (Security Alarm) ...............21
Assist, Hill Start ......................... .512
Auto Down Power Windows ..................44
Automatic Headlights ..................... .176
Automatic High Beams .....................176
Automatic Temperature Control (ATC) .......426, 434
Automatic Transmission .................483, 669
Adding Fluid ......................... .669
Fluid And Filter Changes ..................669
Fluid Change ......................... .669
Fluid Level Check ...................668, 669 Fluid Type
........................ .668, 695
Gear Ranges .......................... .484
Special Additives ...................... .668
Auxiliary Electrical Outlet (Power Outlet) ........257
Auxiliary Power Outlet .....................257
Axle Fluid ............................. .695
Battery ............................ .302, 646
Charging System Light ...................302
Keyless Transmitter Replacement (RKE) ........27
Belts, Seat ...............................112
Blind Spot Monitoring ..................... .135
Body Mechanism Lubrication .................652
B-Pillar Location ......................... .531
Brake Assist System ........................511
Brake Control System, Electronic ..............508
Brake Fluid ......................... .664, 695
Brake System ........................ .508, 664
Anti-Lock (ABS) ....................... .508
10
INDEX 717

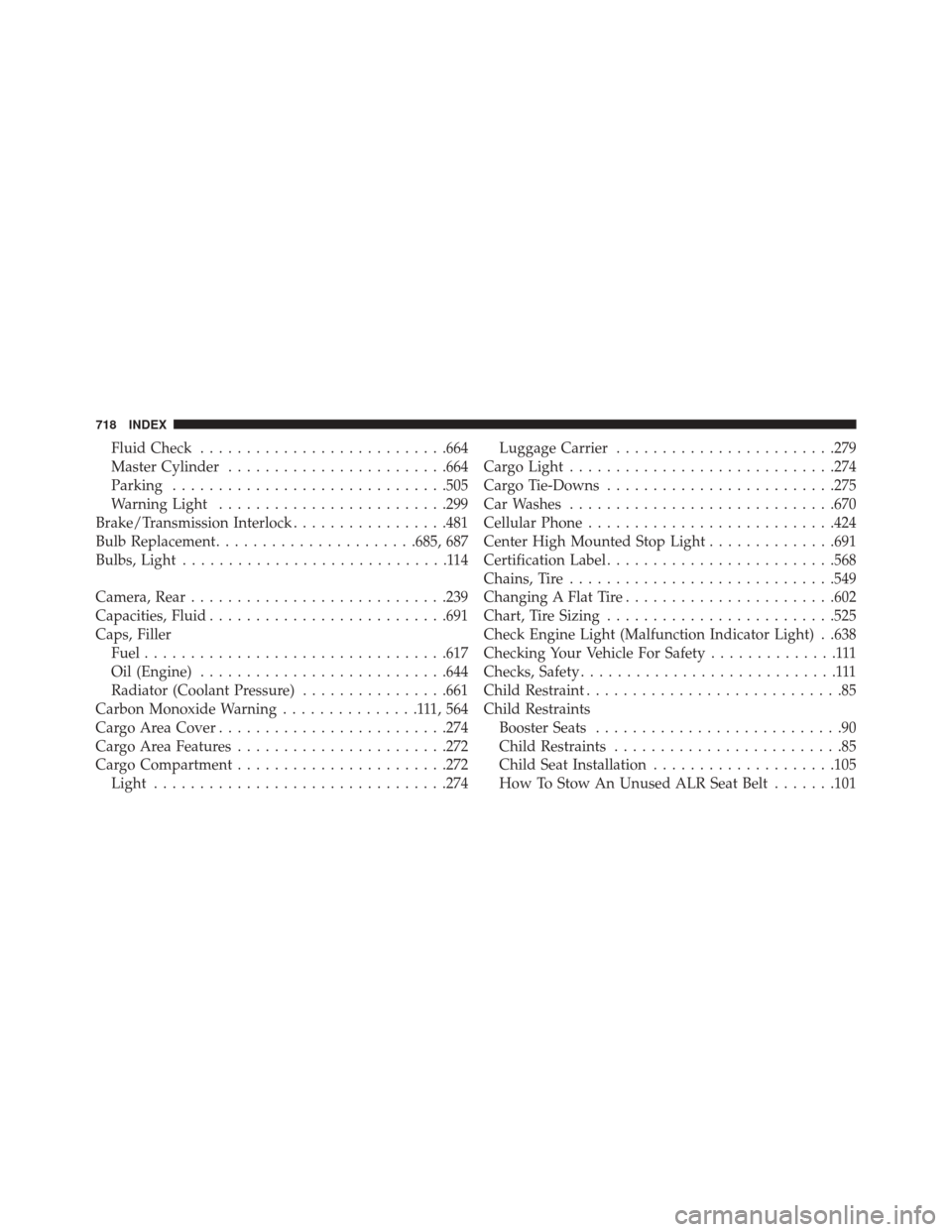

Fluid Check.......................... .664
Master Cylinder ....................... .664
Parking ............................. .505
Warning Light ........................ .299
Brake/Transmission Interlock .................481
Bulb Replacement ..................... .685, 687
Bulbs, Light .............................114
Camera, Rear ........................... .239
Capacities, Fluid ......................... .691
Caps, Filler Fuel ................................ .617
Oil (Engine) .......................... .644
Radiator (Coolant Pressure) ................661
Carbon Monoxide Warning ...............111,564
Cargo Area Cover ........................ .274
Cargo Area Features ...................... .272
Cargo Compartment ...................... .272
Light ............................... .274Luggage Carrier
....................... .279
Cargo Light ............................ .274
Cargo Tie-Downs ........................ .275
Car Washes ............................ .670
Cellular Phone .......................... .424
Center High Mounted Stop Light ..............691
Certification Label ........................ .568
Chains, Tire ............................ .549
Changing A Flat Tire ...................... .602
Chart, Tire Sizing ........................ .525
Check Engine Light (Malfunction Indicator Light) . .638
Checking Your Vehicle For Safety ..............111
Checks, Safety ............................111
Child Restraint ............................85
Child Restraints Booster Seats ...........................90
Child Restraints .........................85
Child Seat Installation ....................105
How To Stow An Unused ALR Seat Belt .......101
718 INDEX

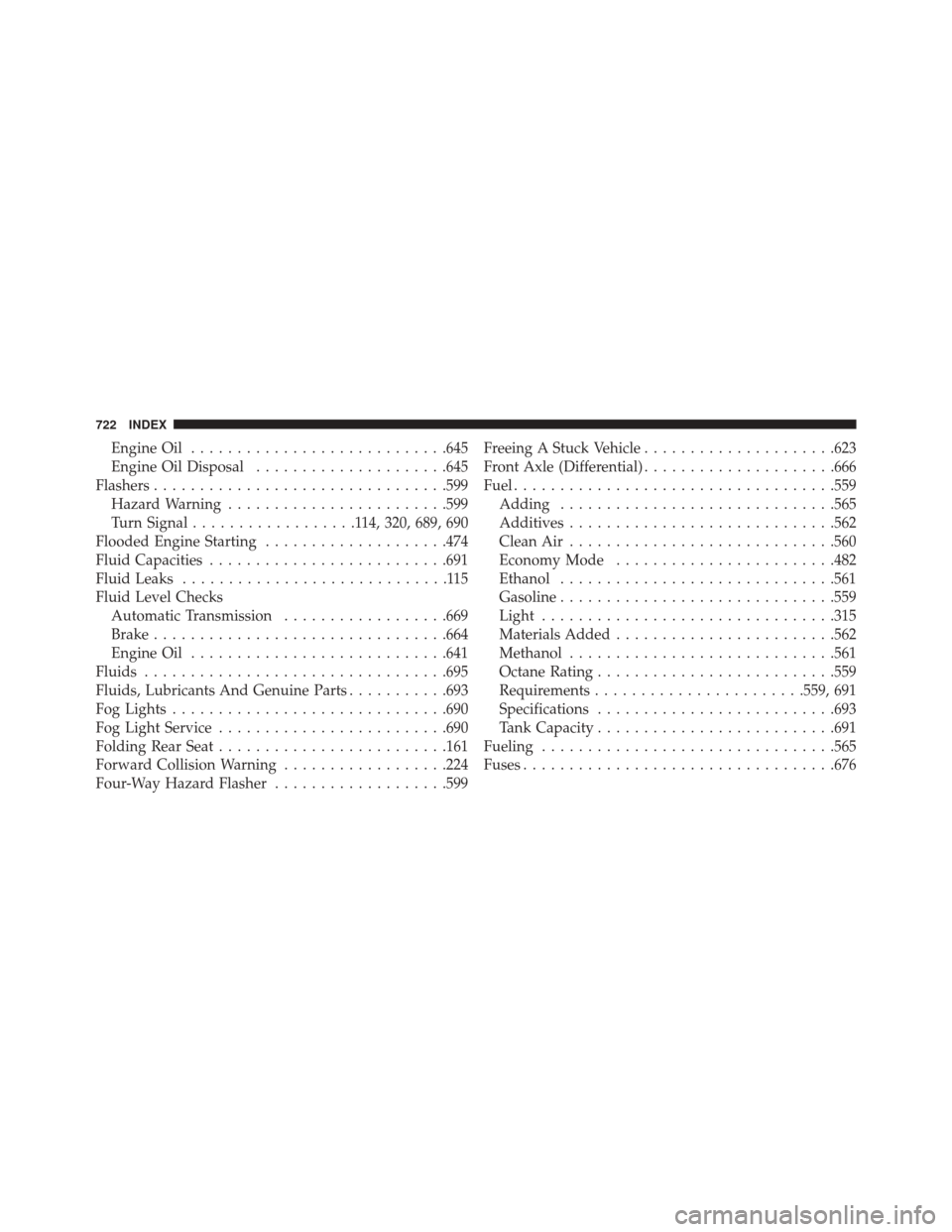

Engine Oil........................... .645
Engine Oil Disposal .....................645
Flashers ............................... .599
Hazard Warning ....................... .599
Turn Signal ..................114, 320, 689, 690
Flooded Engine Starting ....................474
Fluid Capacities ......................... .691
Fluid Leaks .............................115
Fluid Level Checks Automatic Transmission ..................669
Brake ............................... .664
Engine Oil ........................... .641
Fluids ................................ .695
Fluids, Lubricants And Genuine Parts ...........693
Fog Lights ............................. .690
Fog Light Service ........................ .690
Folding Rear Seat ........................ .161
Forward Collision Warning ..................224
Four-Way Hazard Flasher ...................599 Freeing A Stuck Vehicle
.....................623
Front Axle (Differential) .....................666
Fuel .................................. .559
Adding ............................. .565
Additives ............................ .562
Clean Air ............................ .560
Economy Mode ....................... .482
Ethanol ............................. .561
Gasoline ............................. .559
Light ............................... .315
Materials Added ....................... .562
Methanol ............................ .561
Octane Rating ......................... .559
Requirements ...................... .559, 691
Specifications ......................... .693
Tank Capacity ......................... .691
Fueling ............................... .565
Fuses ................................. .676
722 INDEX

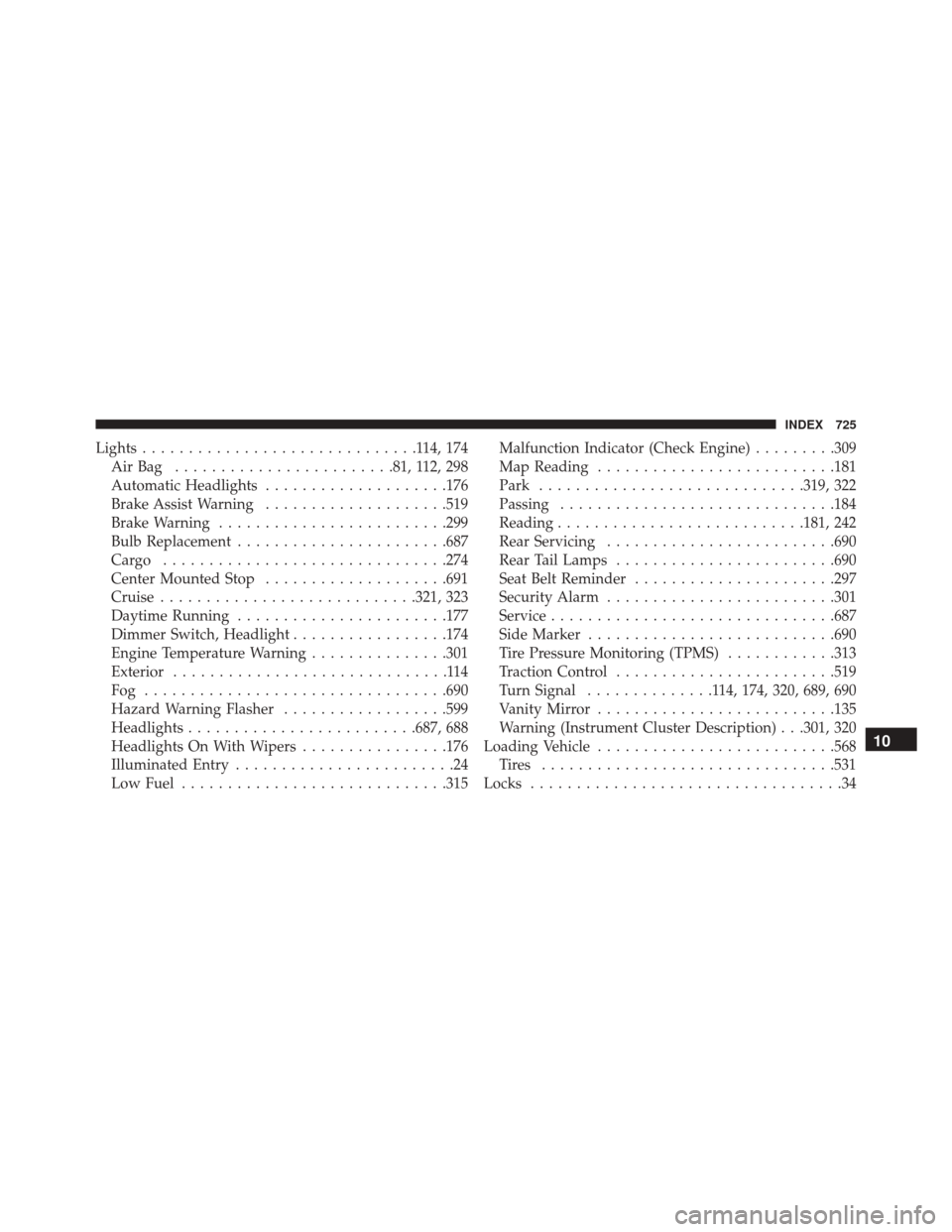

Lights..............................114,174
AirBag ........................81, 112, 298
Automatic Headlights ....................176
Brake Assist Warning ....................519
Brake Warning ........................ .299
Bulb Replacement ...................... .687
Cargo .............................. .274
Center Mounted Stop ....................691
Cruise ........................... .321, 323
Daytime Running ...................... .177
Dimmer Switch, Headlight .................174
Engine Temperature Warning ...............301
Exterior ..............................114
Fog ................................ .690
Hazard Warning Flasher ..................599
Headlights ........................ .687, 688
Headlights On With Wipers ................176
Illuminated Entry ........................24
Low Fuel ............................ .315Malfunction Indicator (Check Engine)
.........309
Map Reading ......................... .181
Park ............................ .319, 322
Passing ............................. .184
Reading .......................... .181, 242
Rear Servicing ........................ .690
Rear Tail Lamps ....................... .690
Seat Belt Reminder ..................... .297
Security Alarm ........................ .301
Service .............................. .687
Side Marker .......................... .690
Tire Pressure Monitoring (TPMS) ............313
Traction Control ....................... .519
Turn Signal ..............114, 174, 320, 689, 690
Vanity Mirror ......................... .135
Warning (Instrument Cluster Description) . . .301, 320
Loading Vehicle ......................... .568
Tires ............................... .531
Locks ..................................

34
10
INDEX 725

Child Protection.........................36
Door .................................34
Power Door ............................35
Lubrication, Body ........................ .652
Luggage Rack (Roof Rack) ...................279
Lug Nuts .............................. .600
Maintenance Free Battery ....................646
Maintenance Procedures ....................641
Maintenance Schedule ..................... .698
Malfunction Indicator Light (Check Engine) . . .309, 638
Manual, Service ......................... .710
Memory Feature (Memory Seat) ...............168
Memory Seat ........................... .168
Memory Seats And Radio ...................168
Methanol .............................. .561
Mirrors ............................... .124
Electric Powered ....................... .133
Electric Remote ........................ .133Exterior Folding
....................... .132
Heated .............................. .134
Outside ............................. .124
Rearview ......................... .124, 125
Vanity .............................. .135
Modifications/Alterations, Vehicle ...............9
Monitor, Tire Pressure System ................551
MOPAR Parts ........................ .640, 709
MTBE/ETBE ........................... .561
Multi-Function Control Lever .................174
New Vehicle Break-In Period .................110
Occupant Restraints ........................51
Octane Rating, Gasoline (Fuel) ................559
Oil, Engine ......................... .329, 641
Capacity ............................ .691
Change Interval ....................... .642
Dipstick ............................. .641
726 INDEX
