DODGE DURANGO 2016 3.G Special Service Supplement Manual
Manufacturer: DODGE, Model Year: 2016, Model line: DURANGO, Model: DODGE DURANGO 2016 3.GPages: 34, PDF Size: 0.46 MB
Page 1 of 34
Durango
OWNER’S MANUAL SUPPLEMENT
2016
2016 Durango Police
Second Edition
Printed in U.S.A.
16WD01-226-AA
©2015 FCA US LLC. All Rights Reserved.
Dodge is a registered trademark of FCA US LLC.
STICK WITH THE SPECIALISTS®
Police
Page 2 of 34

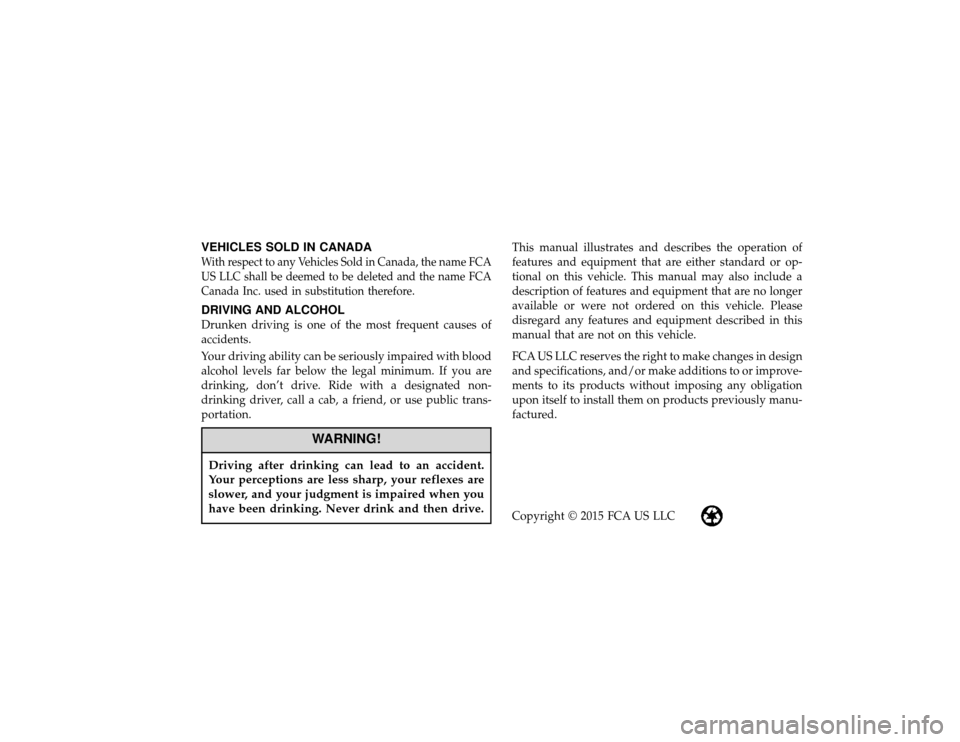

VEHICLES SOLD IN CANADAWith respect to any Vehicles Sold in Canada, the name FCA
US LLC shall be deemed to be deleted and the name FCA
Canada Inc. used in substitution therefore.DRIVING AND ALCOHOLDrunken driving is one of the most frequent causes of
accidents.
Your driving ability can be seriously impaired with blood
alcohol levels far below the legal minimum. If you are
drinking, don’t drive. Ride with a designated non-
drinking driver, call a cab, a friend, or use public trans-
portation.
WARNING!
Driving after drinking can lead to an accident.
Your perceptions are less sharp, your reflexes are
slower, and your judgment is impaired when you
have been drinking. Never drink and then drive.
This manual illustrates and describes the operation of
features and equipment that are either standard or op-
tional on this vehicle. This manual may also include a
description of features and equipment that are no longer
available or were not ordered on this vehicle. Please
disregard any features and equipment described in this
manual that are not on this vehicle.
FCA US LLC reserves the right to make changes in design
and specifications, and/or make additions to or improve-
ments to its products without imposing any obligation
upon itself to install them on products previously manu-
factured.
Copyright © 2015 FCA US LLC
Page 3 of 34
TABLE OF CONTENTSSECTIONPAGE
1INTRODUCTION .
..............................................................3
2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
..................................5
3UNDERSTANDING THE FEATURES OF YOUR VEHICLE
..................................21
4UNDERSTANDING YOUR INSTRUMENT PANEL
.......................................23
5MAINTAININGYOURVEHICLE ...................................................27
6INDEX ......................................................................29
1
2
3
4
5
6
Page 4 of 34
Page 5 of 34

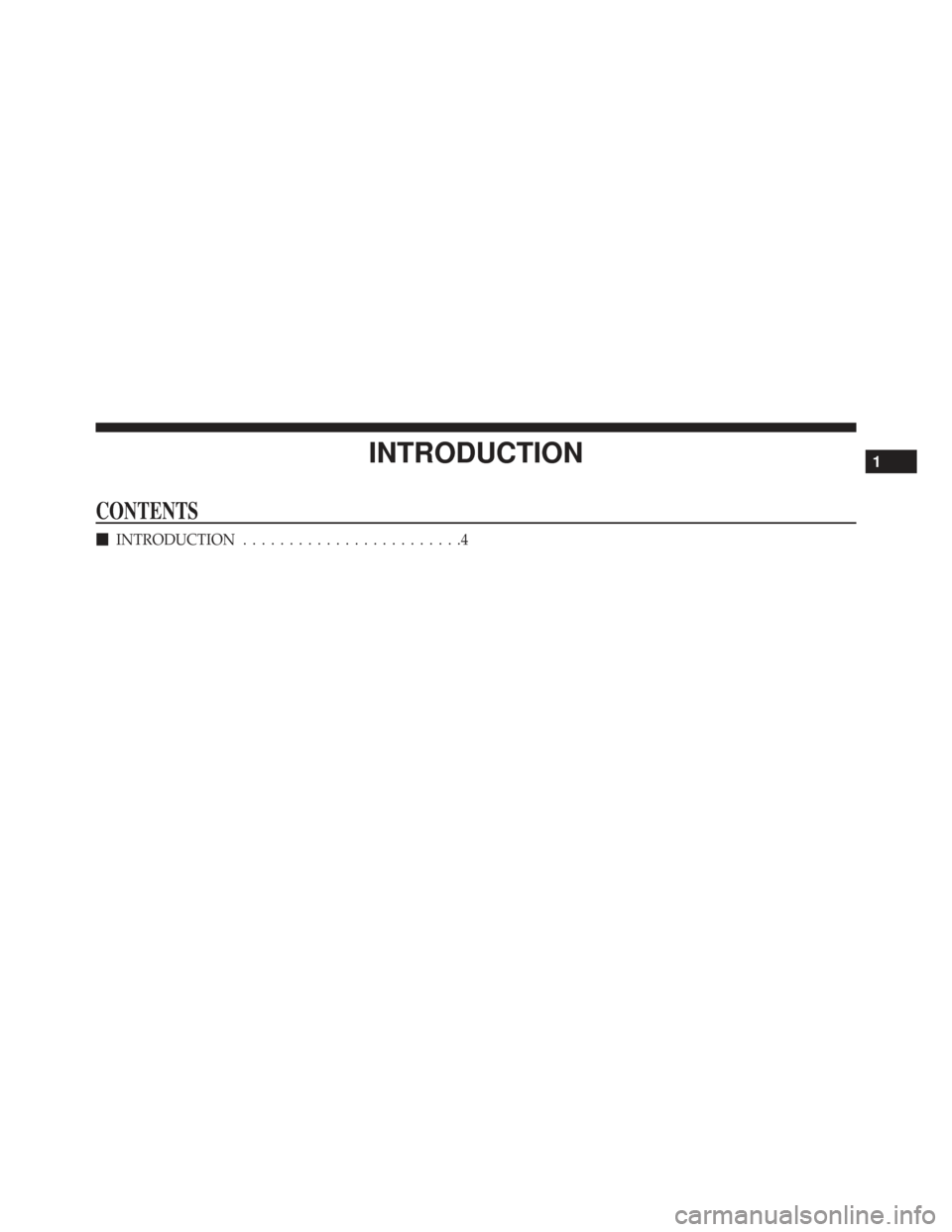

INTRODUCTION
CONTENTS
INTRODUCTION ........................4
1
Page 6 of 34

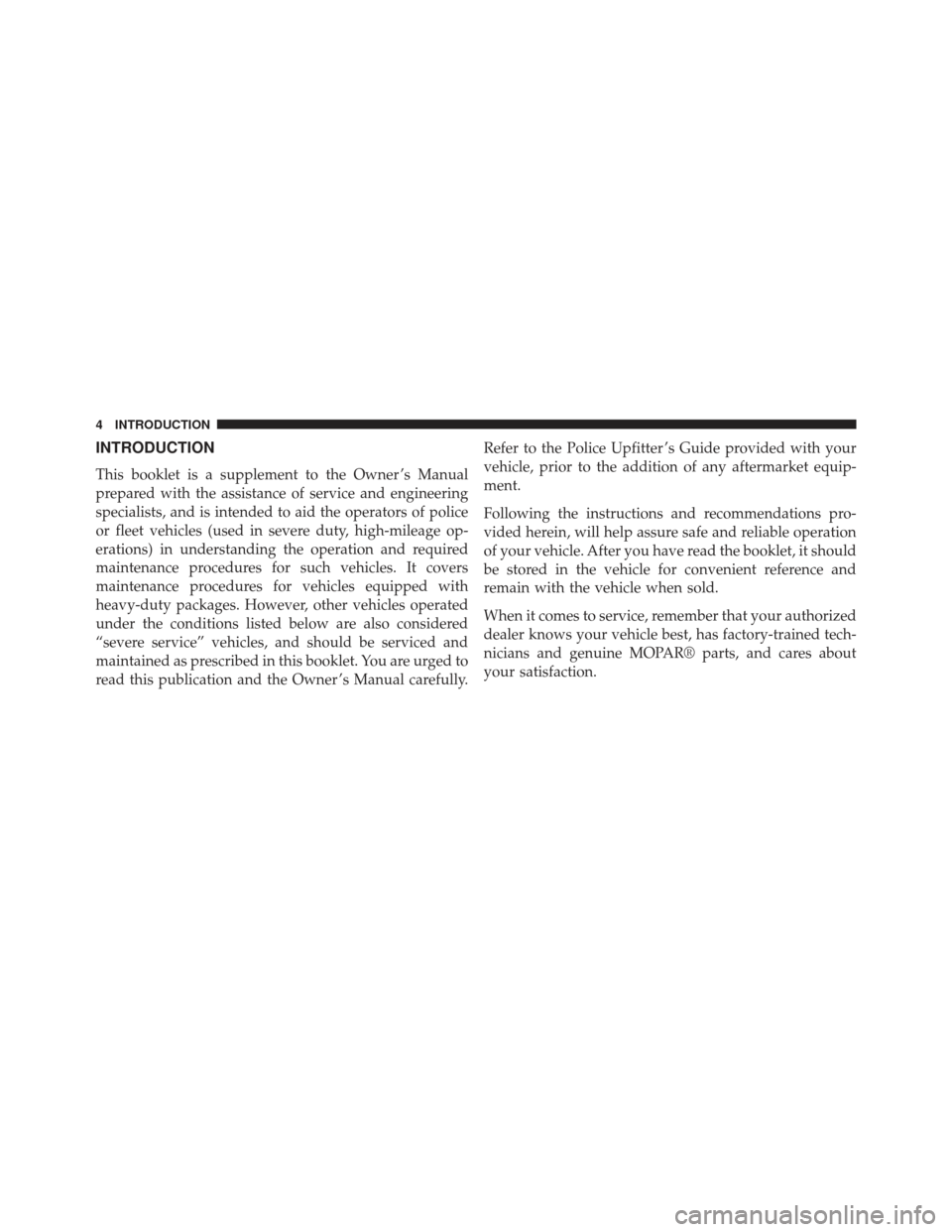

INTRODUCTION
This booklet is a supplement to the Owner ’s Manual
prepared with the assistance of service and engineering
specialists, and is intended to aid the operators of police
or fleet vehicles (used in severe duty, high-mileage op-
erations) in understanding the operation and required
maintenance procedures for such vehicles. It covers
maintenance procedures for vehicles equipped with
heavy-duty packages. However, other vehicles operated
under the conditions listed below are also considered
“severe service” vehicles, and should be serviced and
maintained as prescribed in this booklet. You are urged to
read this publication and the Owner ’s Manual carefully.Refer to the Police Upfitter ’s Guide provided with your
vehicle, prior to the addition of any aftermarket equip-
ment.
Following the instructions and recommendations pro-
vided herein, will help assure safe and reliable operation
of your vehicle. After you have read the booklet, it should
be stored in the vehicle for convenient reference and
remain with the vehicle when sold.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine MOPAR® parts, and cares about
your satisfaction.
4 INTRODUCTION
Page 7 of 34
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
DOOR LOCKS ..........................6
▫ Manual Door Locks ......................6
▫ Power Door Locks ......................7
PASSIVE ENTRY SYSTEM ..................8
OCCUPANT RESTRAINTS ................10
▫ Air Bag Deployment Zones ...............11
2
Page 8 of 34
DOOR LOCKS
Manual Door Locks
The power door locks can be manually locked from
inside the vehicle by using the door lock knob. To lock
each door, push the door lock knob on each door trim
panel downward. To unlock the front doors, pull the
inside door handle to the first detent. For Police vehicle,
both rear passenger doors are inoperable from the rear
seat position, inside of the vehicle. If the lock knob is
down when the door is closed, the door will lock.
Therefore, make sure the key is not inside the vehicle
before closing the door.
WARNING!
•For personal security and safety in the event of an
collision, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
(Continued)
Manual Door Lock Knob
6 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 9 of 34
WARNING!(Continued)
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the gear selector.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
Power Door Locks
The power door lock switch is located on each front door
panel. Push the switch to lock or unlock the doors.
If the lock knob is down when the door is closed, the door
will lock. Therefore, make sure the key fob is not inside
the vehicle before closing the door.
Power Door Lock Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 7
Page 10 of 34

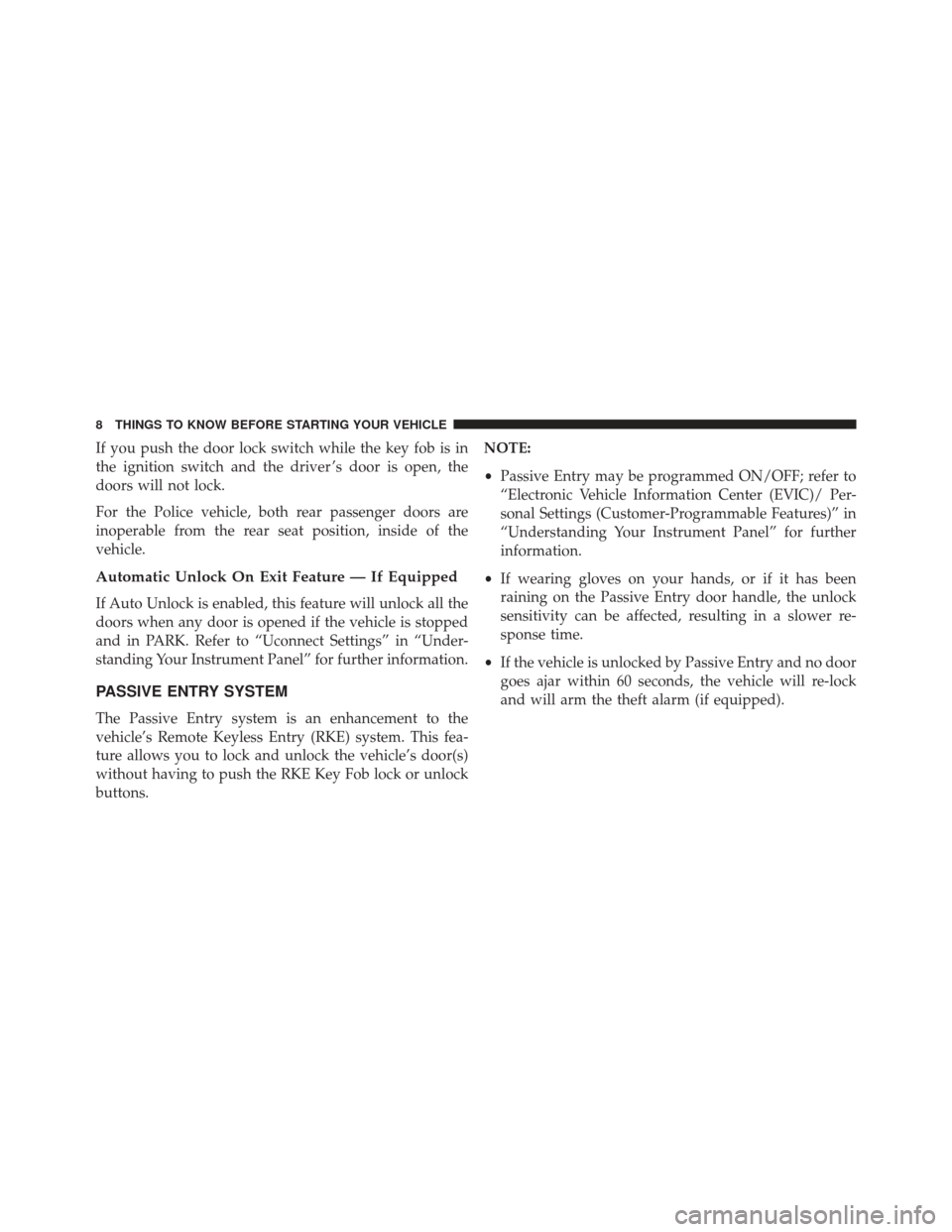

If you push the door lock switch while the key fob is in
the ignition switch and the driver ’s door is open, the
doors will not lock.
For the Police vehicle, both rear passenger doors are
inoperable from the rear seat position, inside of the
vehicle.
Automatic Unlock On Exit Feature — If Equipped
If Auto Unlock is enabled, this feature will unlock all the
doors when any door is opened if the vehicle is stopped
and in PARK. Refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
PASSIVE ENTRY SYSTEM
The Passive Entry system is an enhancement to the
vehicle’s Remote Keyless Entry (RKE) system. This fea-
ture allows you to lock and unlock the vehicle’s door(s)
without having to push the RKE Key Fob lock or unlock
buttons.NOTE:
•
Passive Entry may be programmed ON/OFF; refer to
“Electronic Vehicle Information Center (EVIC)/ Per-
sonal Settings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for further
information.
• If wearing gloves on your hands, or if it has been
raining on the Passive Entry door handle, the unlock
sensitivity can be affected, resulting in a slower re-
sponse time.
• If the vehicle is unlocked by Passive Entry and no door
goes ajar within 60 seconds, the vehicle will re-lock
and will arm the theft alarm (if equipped).
8 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
