display DODGE DURANGO 2016 3.G Owners Manual

▫Programming Additional Transmitters .......27
▫ Transmitter Battery Replacement ...........27
▫ General Information ....................29
 REMOTE STARTING SYSTEM — IF EQUIPPED .29
▫ How To Use Remote Start ................30
▫ Remote Start Abort Message On Driver
Information Display (DID) — If Equipped ....31
▫ To Enter Remote Start Mode ...............31
▫ To Exit Remote Start Mode Without Driving The
Vehicle .............................32
▫ To Exit Remote Start Mode And Drive The
Vehicle .............................32
▫ Remote Start Comfort Systems — If Equipped .33
▫ General Information ....................33
DOOR LOCKS .........................34
▫ Manual Door Locks ....................34
▫ Power Door Locks .....................35
▫ Child-Protection Door Lock System — Rear
Doors ..............................36
 KEYLESS ENTER-N-GO ..................38
▫ General Information ....................43
 WINDOWS ...........................43
▫ Power Windows .......................43
▫ Wind Buffeting .......................47
 LIFTGATE ............................47
▫ Power Liftgate — If Equipped .............49
 OCCUPANT RESTRAINT SYSTEMS ..........51
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.
Ignition Or Accessory On Message
Upon opening the driver’s door when the ignition is in
ACC or ON (engine not running), a chime will sound to
remind you to cycle the ignition to OFF. In addition to the
chime, the ignition or accessory on message will display
in the cluster.
NOTE: With the Uconnect system, the power window
switches, radio, power sunroof (if equipped), and power
outlets will remain active for up to 10 minutes after the
ignition is cycled to the OFF position. Opening either
front door will cancel this feature. The time for this
feature is programmable. Refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
Emergency Key Removal
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Remote Start Abort Message On Driver
Information Display (DID) — If Equipped
The following messages will display in the DID if the
vehicle fails to remote start or exits remote start prema-
turely:
•Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Liftgate Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start Vehicle To Reset
The DID message stays active until the ignition is turned
to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START buttonon the
RKE transmitter twice within five seconds. The vehicle
doors will lock, the parking lights will flash, and the
horn will chirp twice (if programmed). Then, the
engine will start, and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

•The engine can be started two consecutive times with
the RKE transmitter. However, the ignition must be
cycled by pushing the START/STOP button twice (or
the ignition switch must be cycled to the ON/RUN
position) before you can repeat the start sequence for a
third cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shutdowns, the system
will disable the one time push of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of 15 minute cycle, push and release the
UNLOCK button on the RKE transmitter to unlock the
doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15 minute cycle,
push and release the START/STOP button.
NOTE:
• For vehicles equipped with the Keyless Enter-N-Go
feature, the message “Remote Start Active — Push
Start Button” will display in the DID until you push
the START button.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫To Activate ......................... .194
▫ To Set A Desired Speed .................194
▫ To Deactivate ....................... .195
▫ To Resume Speed .....................195
▫ To Vary The Speed Setting ...............195
▫ To Accelerate For Passing ...............196
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED .......................... .197
▫ Adaptive Cruise Control (ACC) Operation . . . .199
▫ Activating Adaptive Cruise Control (ACC) . . . .200
▫ To Activate/Deactivate ..................201
▫ To Set A Desired ACC Speed .............202
▫ To Cancel .......................... .203▫
ToTurnOff......................... .203
▫ To Resume ......................... .204
▫ To Vary The Speed Setting ...............204
▫ Setting The Following Distance In ACC ......207
▫ Overtake Aid .........................211
▫ ACC Operation At Stop .................211
▫ Adaptive Cruise Control (ACC) Menu .......212
▫ Display Warnings And Maintenance ........213
▫ Precautions While Driving With ACC .......216
▫ General Information ....................220
▫ Normal (Fixed Speed) Electronic Speed Control
Mode ............................. .221
 FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED ............224
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Forward Collision Warning (FCW) With
Mitigation Operation ...................224
▫ Turning FCW ON Or OFF ...............226
▫ Changing FCW And Active Braking Status. . . .227
▫ FCW Limited Warning ..................228
▫ Service FCW Warning ..................228
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ........................ .229
▫ ParkSense Sensors .....................230
▫ ParkSense Warning Display ..............231
▫ ParkSense Display .....................231
▫ Enabling And Disabling ParkSense .........236
▫ Service The ParkSense Rear Park Assist
System ............................ .237▫
Cleaning The ParkSense System ...........237
▫ ParkSense System Usage Precautions ........237
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .239
 OVERHEAD CONSOLE ..................241
▫ Front Map/Reading Lights — If Equipped . . .242
▫ Courtesy Lights ...................... .243
▫ Sunglasses Bin Door ...................243
 GARAGE DOOR OPENER — IF EQUIPPED . . .244
▫ Before You Begin Programming HomeLink . . .245
▫ Programming A Rolling Code .............246
▫ Programming A Non-Rolling Code .........248
▫ Canadian/Gate Operator Programming ......249
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

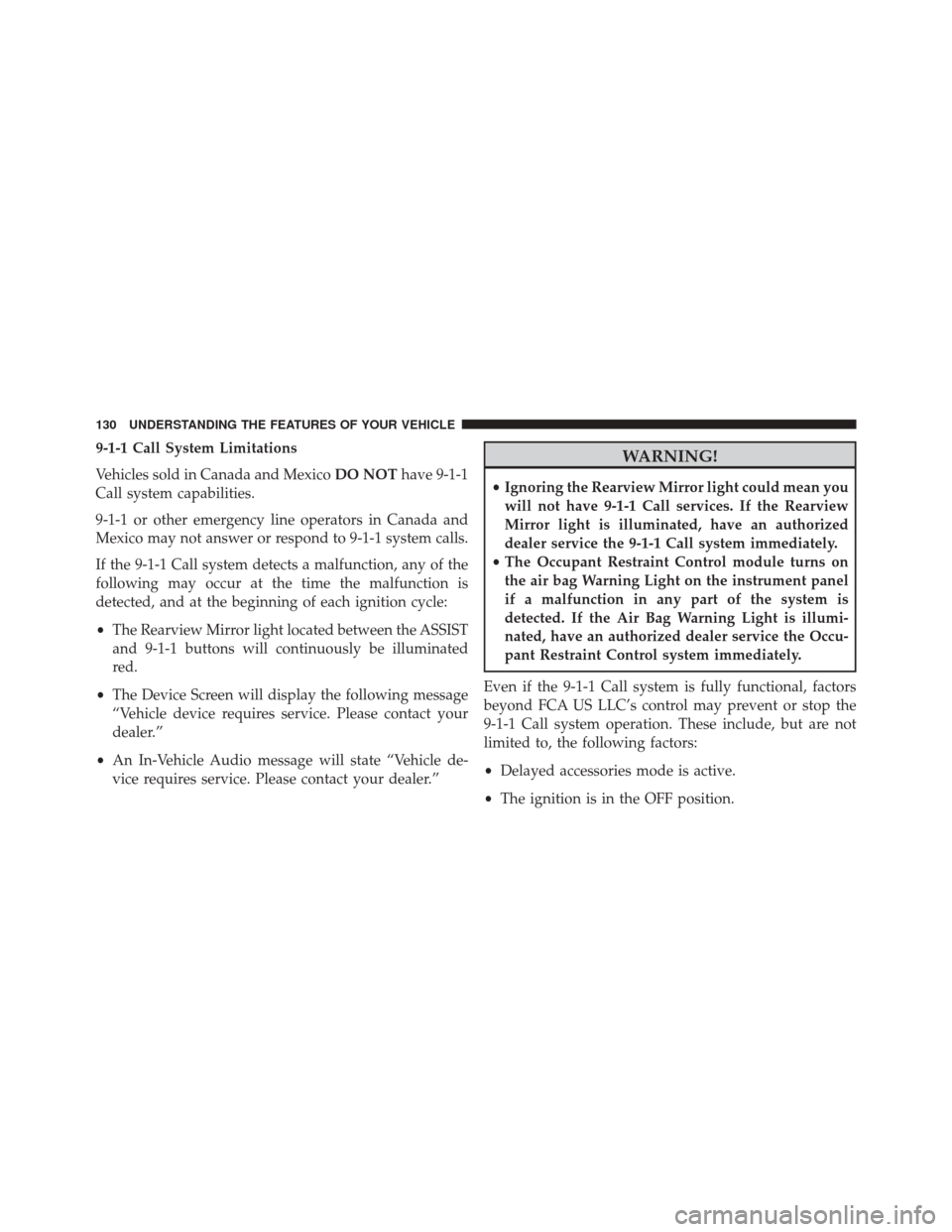

9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated
red.
• The Device Screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
• An In-Vehicle Audio message will state “Vehicle de-
vice requires service. Please contact your dealer.”WARNING!
• Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
• The Occupant Restraint Control module turns on
the air bag Warning Light on the instrument panel
if a malfunction in any part of the system is
detected. If the Air Bag Warning Light is illumi-
nated, have an authorized dealer service the Occu-
pant Restraint Control system immediately.
Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
• Delayed accessories mode is active.
• The ignition is in the OFF position.
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Heated Seats
The front heated seats control buttons are located within
the climate or controls screen of the touchscreen.
You can choose from HI, LO or OFF heat settings. The
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for
LO and none for OFF.
•Press the heated seat button
once to turn the HI
setting ON.
• Press the heated seat buttona second time to turn
the LO setting ON.
• Press the heated seat buttona third time to turn
the heating elements OFF.
If the HI-level setting is selected, the system will auto-
matically switch to LO-level after approximately 60 min-
utes of continuous operation. At that time, the display will change from HI to LO, indicating the change. The
LO-level setting will turn OFF automatically after ap-
proximately 45 minutes.
NOTE:
•
Once a heat setting is selected, heat will be felt within
two to five minutes.
• The engine must be running for the heated seats to
operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the
heated seats can be programmed to come on during a
remote start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the outboard head re-
straints are in their upright positions when the seat is
to be occupied.
NOTE: For proper routing of a Child Seat Tether, refer to
“Occupant Restraints” in “Things to Know Before Start-
ing Your Vehicle” for further information.
Power Folding Third Row Head Restraints
For improved visibility when in reverse, the third row
head restraints can be folded using the Uconnect System. Press the “Controls” button located on the bottom of the
Uconnect display.
Press the Headrest Fold button
to power fold the
third row head restraints.
NOTE:
• The head restraints can only be folded downward
using the Headrest button. The head restraints must be
raised manually when occupying the third row.
• Do not fold if there are passengers seated in the third
row seats.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Programming The Memory Feature
NOTE:To create a new memory profile, perform the
following:
1. Cycle the vehicles ignition to the ON/RUN position (Do not start the engine).
2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror, power tilt and telescopic
steering column [if equipped], and radio station pre-
sets).
3. Push and release the S (Set) button on the memory switch.
4. Within five seconds, push and release either of the memory buttons (1) or (2). The Driver Information
Display (DID) will display which memory position
has been set. NOTE:
•
Memory profiles can be set without the vehicle in
PARK, but the vehicle must be in PARK to recall a
memory profile.
• To set a memory profile to your RKE transmitter, refer
to “Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory” in this section.
Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory
Your RKE transmitters can be programmed to recall one
of two pre-programmed memory profiles by pushing the
UNLOCK button on the RKE transmitter.
NOTE: Before programming your RKE transmitters you
must select the “Memory To FOB” feature through the
Uconnect system screen. Refer to “Uconnect Settings ” in
“Understanding Your Instrument Panel” for further in-
formation.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
