fold seats DODGE DURANGO 2016 3.G Owners Manual

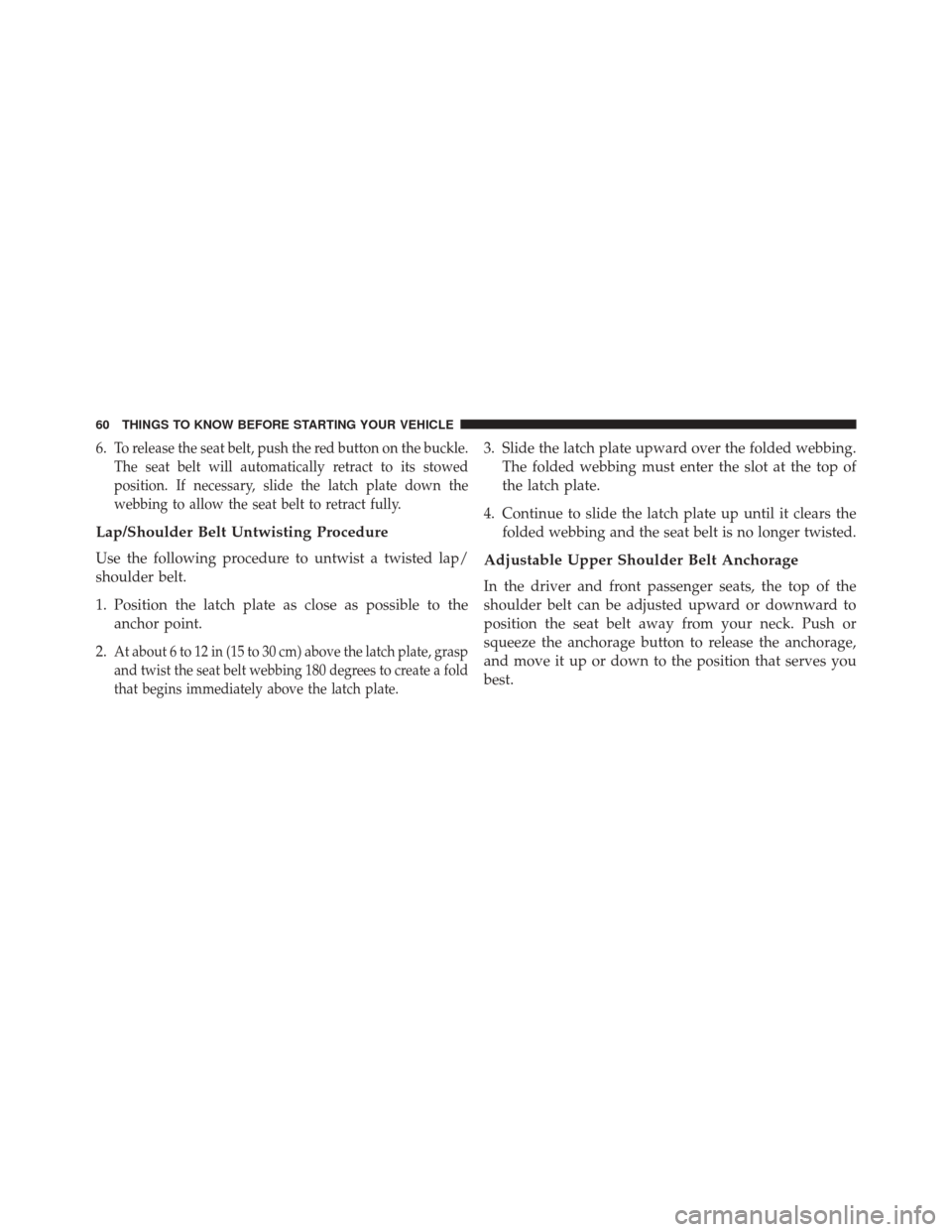

6.To release the seat belt, push the red button on the buckle.
The seat belt will automatically retract to its stowed
position. If necessary, slide the latch plate down the
webbing to allow the seat belt to retract fully.
Lap/Shoulder Belt Untwisting Procedure
Use the following procedure to untwist a twisted lap/
shoulder belt.
1. Position the latch plate as close as possible to theanchor point.
2.
At about 6 to 12 in (15 to 30 cm) above the latch plate, grasp
and twist the seat belt webbing 180 degrees to create a fold
that begins immediately above the latch plate.
3. Slide the latch plate upward over the folded webbing. The folded webbing must enter the slot at the top of
the latch plate.
4. Continue to slide the latch plate up until it clears the folded webbing and the seat belt is no longer twisted.
Adjustable Upper Shoulder Belt Anchorage
In the driver and front passenger seats, the top of the
shoulder belt can be adjusted upward or downward to
position the seat belt away from your neck. Push or
squeeze the anchorage button to release the anchorage,
and move it up or down to the position that serves you
best.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. Remove slack in the tether strap according to the childrestraint manufacturer ’s instructions.
WARNING!
•The top tether anchorages are not visible until the
gap panel is folded down. Do not use the visible
cargo tie down hooks, located on the floor behind
the seats, to attach a child restraint tether anchor.
• An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchorage position directly
behind the child seat to secure a child restraint top
tether strap.
• If your vehicle is equipped with a split rear seat,
make sure the tether strap does not slip into the
opening between the seatbacks as you remove
slack in the strap.
Top Tether Strap Mounting (Captain’s Chair)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 109

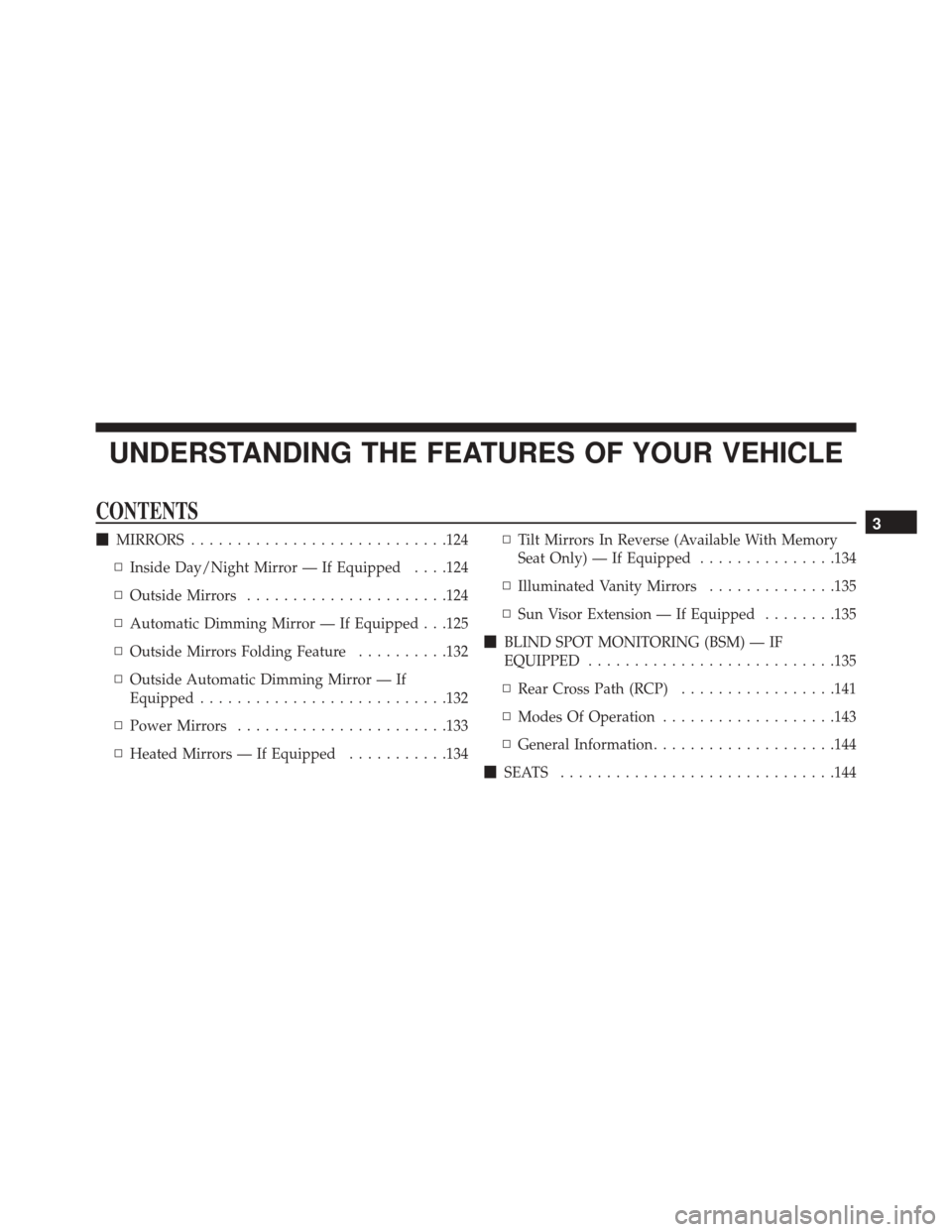

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .124
▫ Inside Day/Night Mirror — If Equipped . . . .124
▫ Outside Mirrors ..................... .124
▫ Automatic Dimming Mirror — If Equipped . . .125
▫ Outside Mirrors Folding Feature ..........132
▫ Outside Automatic Dimming Mirror — If
Equipped .......................... .132
▫ Power Mirrors ...................... .133
▫ Heated Mirrors — If Equipped ...........134▫
Tilt Mirrors In Reverse (Available With Memory
Seat Only) — If Equipped ...............134
▫ Illuminated Vanity Mirrors ..............135
▫ Sun Visor Extension — If Equipped ........135
 BLIND SPOT MONITORING (BSM) — IF
EQUIPPED .......................... .135
▫ Rear Cross Path (RCP) .................141
▫ Modes Of Operation ...................143
▫ General Information ....................144
 SEATS ............................. .1443

▫Power Seats — If Equipped ..............145
▫ Passenger’s Power Seat — If Equipped ......147
▫ Power Lumbar — If Equipped ............148
▫ Manual Front Passenger Seat Forward/Rearward
Adjustment ........................ .148
▫ Manual Front Passenger Seatback Adjustment —
Recline ........................... .149
▫ Front Passenger Seat Fold-Flat Feature — If
Equipped .......................... .150
▫ Heated Seats — If Equipped .............151
▫ Front Ventilated Seats — If Equipped .......155
▫ Head Restraints ..................... .155
▫ 60/40 Split Rear Seat ..................161
▫ Rear Captain Chairs — If Equipped .........164▫
Folding Third Row ....................167
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .168
▫ Programming The Memory Feature .........170
▫ Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory .................170
▫ Memory Position Recall .................171
▫ Easy Entry/Exit Seat ...................172
 TO OPEN AND CLOSE THE HOOD .........173
 LIGHTS ............................ .174
▫ Headlight Switch .....................174
▫ Automatic Headlights — If Equipped .......176
▫ Headlights On Automatically With Wipers . . .176
▫ Automatic High Beam — If Equipped ......176
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
•Active Head Restraints may be deployed if they are
struck by an object such as a hand, foot or loose
cargo. To avoid accidental deployment of the Ac-
tive Head Restraint ensure that all cargo is secured,
as loose cargo could contact the Active Head Re-
straint during sudden stops. Failure to follow this
warning could cause personal injury if the Active
Head Restraint is deployed.
Head Restraints — Rear Seats
The head restraints on the outboard seats are not adjust-
able. They automatically fold forward when the rear seat
is folded to a load floor position but do not return to their
normal position when the rear seat is raised. After
returning either seat to its upright position, raise the head
restraint until it locks in place. The outboard head
restraints are not removable. The center head restraint has limited adjustment. Lift
upward on the head restraint to raise it, or push down-
ward on the head restraint to lower it.
Rear Head Restraint
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

WARNING!
Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the outboard head re-
straints are in their upright positions when the seat is
to be occupied.
NOTE: For proper routing of a Child Seat Tether, refer to
“Occupant Restraints” in “Things to Know Before Start-
ing Your Vehicle” for further information.
Power Folding Third Row Head Restraints
For improved visibility when in reverse, the third row
head restraints can be folded using the Uconnect System. Press the “Controls” button located on the bottom of the
Uconnect display.
Press the Headrest Fold button
to power fold the
third row head restraints.
NOTE:
• The head restraints can only be folded downward
using the Headrest button. The head restraints must be
raised manually when occupying the third row.
• Do not fold if there are passengers seated in the third
row seats.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

60/40 Split Rear Seat
Fold-Flat
The second row seats can be folded flat to carry cargo.
Pull upward on the release lever located on the outboard
side of the seat.
Release Lever
Fold-Flat Second Row Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

WARNING!
Do not drive the vehicle with the second row seats in
the tumbled position. The second row seats are only
intended to be tumbled for entry and exit to the third
(Continued)
WARNING!(Continued)
row seat. Failure to follow these instructions could
result in personal injury.
To Raise Rear Seat
Fold the seat rearward and lock it into place.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Tumbled Second Row
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

Rear Captain Chairs — If Equipped
Fold-Flat
The second row seats can be folded flat to carry cargo.
Pull upward on the release lever located on the outboard
side of the seat.
Release Lever
Fold-Flat Second Row Seats
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To Raise Rear Seat
Fold the seat rearward and lock it into place.
WARNING!
Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Folding Third Row
Both third row seats can be folded forward to increase the
cargo area. To lower either seat pull on the release handle
located on back of the seat and lower the seat using the
pull strap located next to the release handle.Release Handles
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167
