3.Route the tether strap to provide the most direct path for
the strap between the anchor and the child seat. If your
vehicle is equipped with adjustable rear head restraints,
raise the head restraint, and where possible, route the
tether strap under the head restraint and between the two
posts. If not possible, lower the head restraint and pass the
tether strap around the outboard side of the head restraint.
4. For the center seating position, route the tether strapover the seatback and headrest then attach the hook to
the tether anchor located on the back of the seat.
5. Attach the tether strap hook of the child restraint to the top tether anchorage as shown in the diagram.
Top Tether Strap Anchorage (Located on Seatback)
Top Tether Strap Mounting (60/40 Seat)
108 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

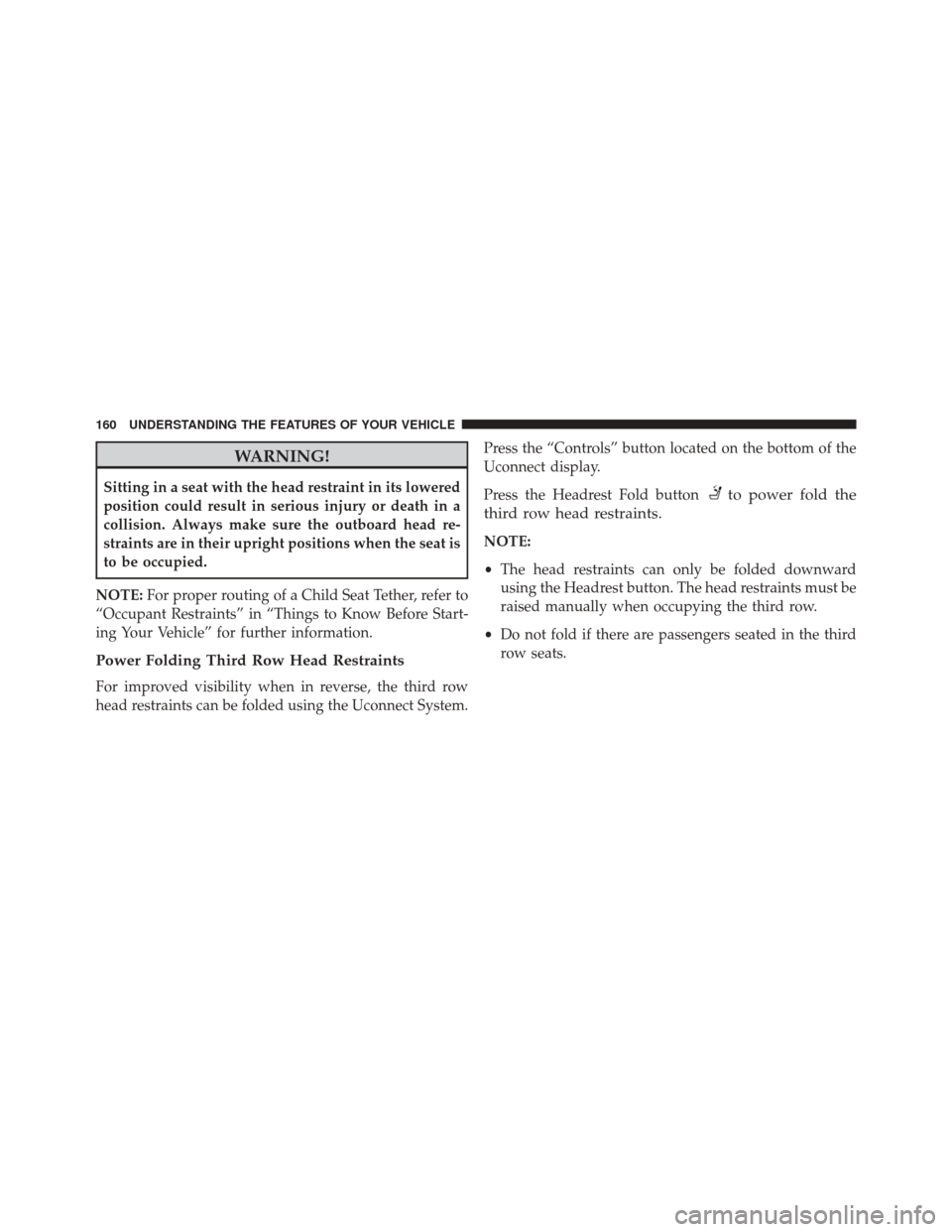

WARNING!
Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
collision. Always make sure the outboard head re-
straints are in their upright positions when the seat is
to be occupied.
NOTE: For proper routing of a Child Seat Tether, refer to
“Occupant Restraints” in “Things to Know Before Start-
ing Your Vehicle” for further information.
Power Folding Third Row Head Restraints
For improved visibility when in reverse, the third row
head restraints can be folded using the Uconnect System. Press the “Controls” button located on the bottom of the
Uconnect display.
Press the Headrest Fold button
to power fold the
third row head restraints.
NOTE:
• The head restraints can only be folded downward
using the Headrest button. The head restraints must be
raised manually when occupying the third row.
• Do not fold if there are passengers seated in the third
row seats.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

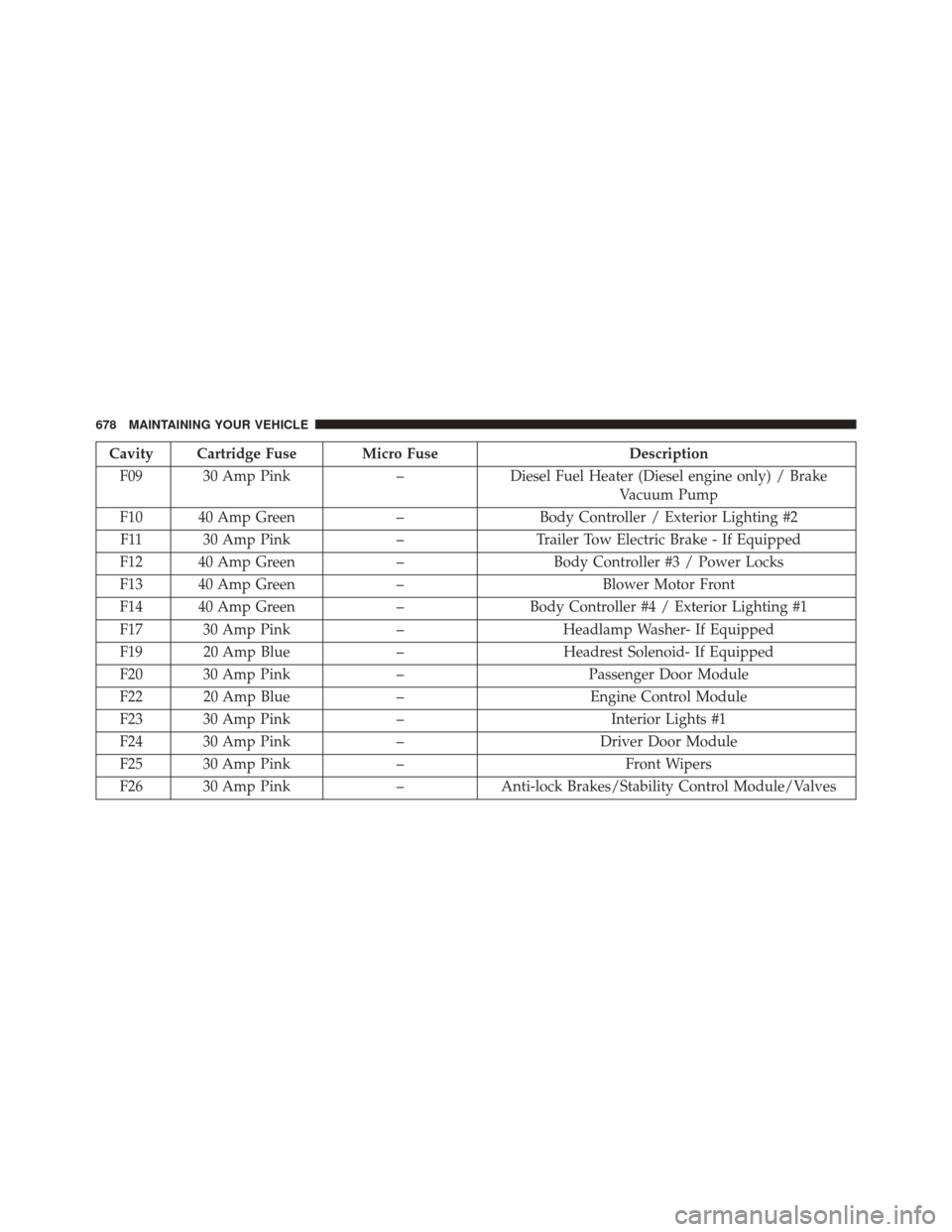

Cavity Cartridge Fuse Micro FuseDescription
F09 30 Amp Pink –Diesel Fuel Heater (Diesel engine only) / Brake
Vacuum Pump
F10 40 Amp Green –Body Controller / Exterior Lighting #2
F11 30 Amp Pink –Trailer Tow Electric Brake - If Equipped
F12 40 Amp Green –Body Controller #3 / Power Locks
F13 40 Amp Green –Blower Motor Front
F14 40 Amp Green –Body Controller #4 / Exterior Lighting #1
F17 30 Amp Pink –Headlamp Washer- If Equipped
F19 20 Amp Blue –Headrest Solenoid- If Equipped
F20 30 Amp Pink –Passenger Door Module
F22 20 Amp Blue –Engine Control Module
F23 30 Amp Pink –Interior Lights #1
F24 30 Amp Pink –Driver Door Module
F25 30 Amp Pink –Front Wipers
F26 30 Amp Pink –Anti-lock Brakes/Stability Control Module/Valves
678 MAINTAINING YOUR VEHICLE
