DODGE DURANGO 2016 3.G Special Service Supplement Manual

Figure 6
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

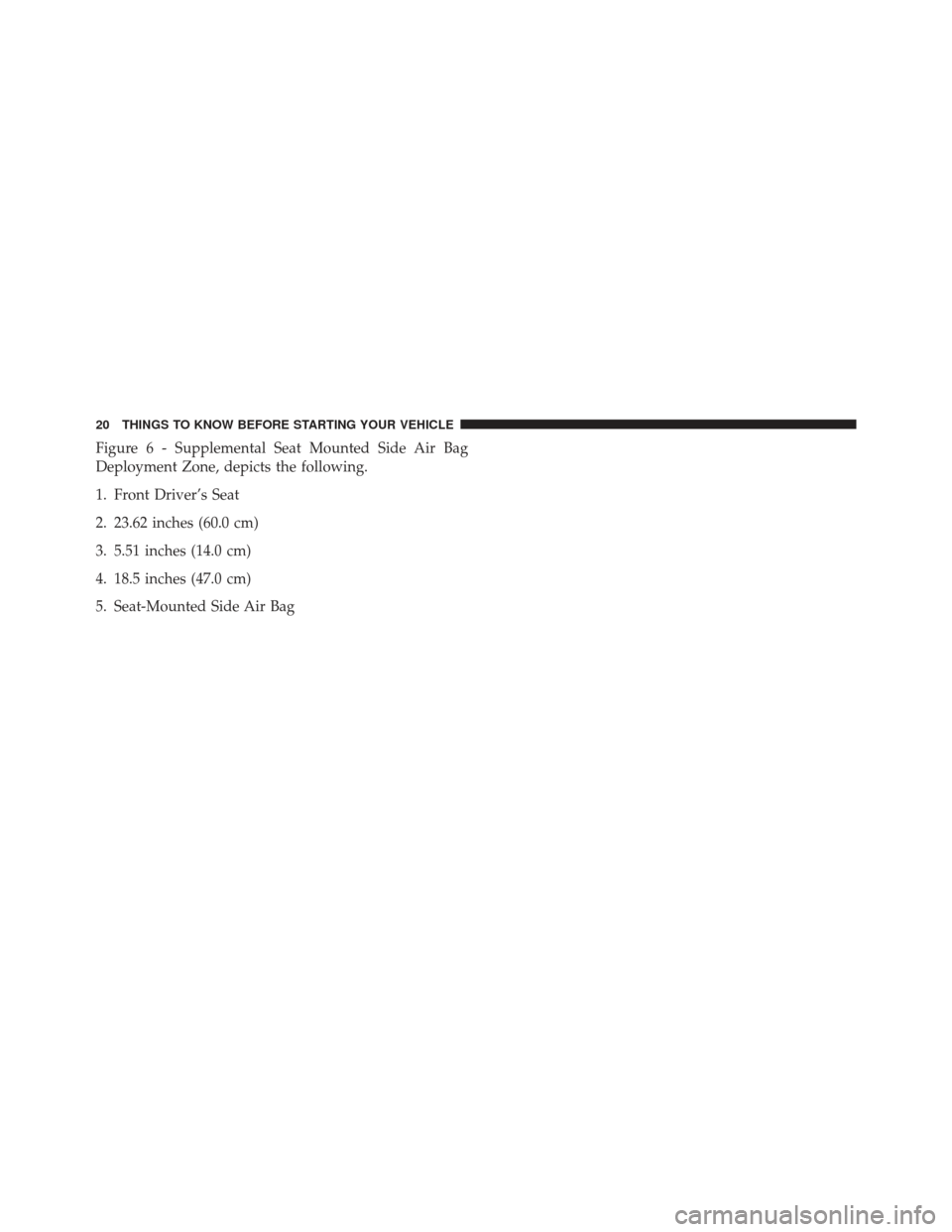

Figure 6 - Supplemental Seat Mounted Side Air Bag
Deployment Zone, depicts the following.
1. Front Driver’s Seat
2. 23.62 inches (60.0 cm)
3. 5.51 inches (14.0 cm)
4. 18.5 inches (47.0 cm)
5. Seat-Mounted Side Air Bag
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

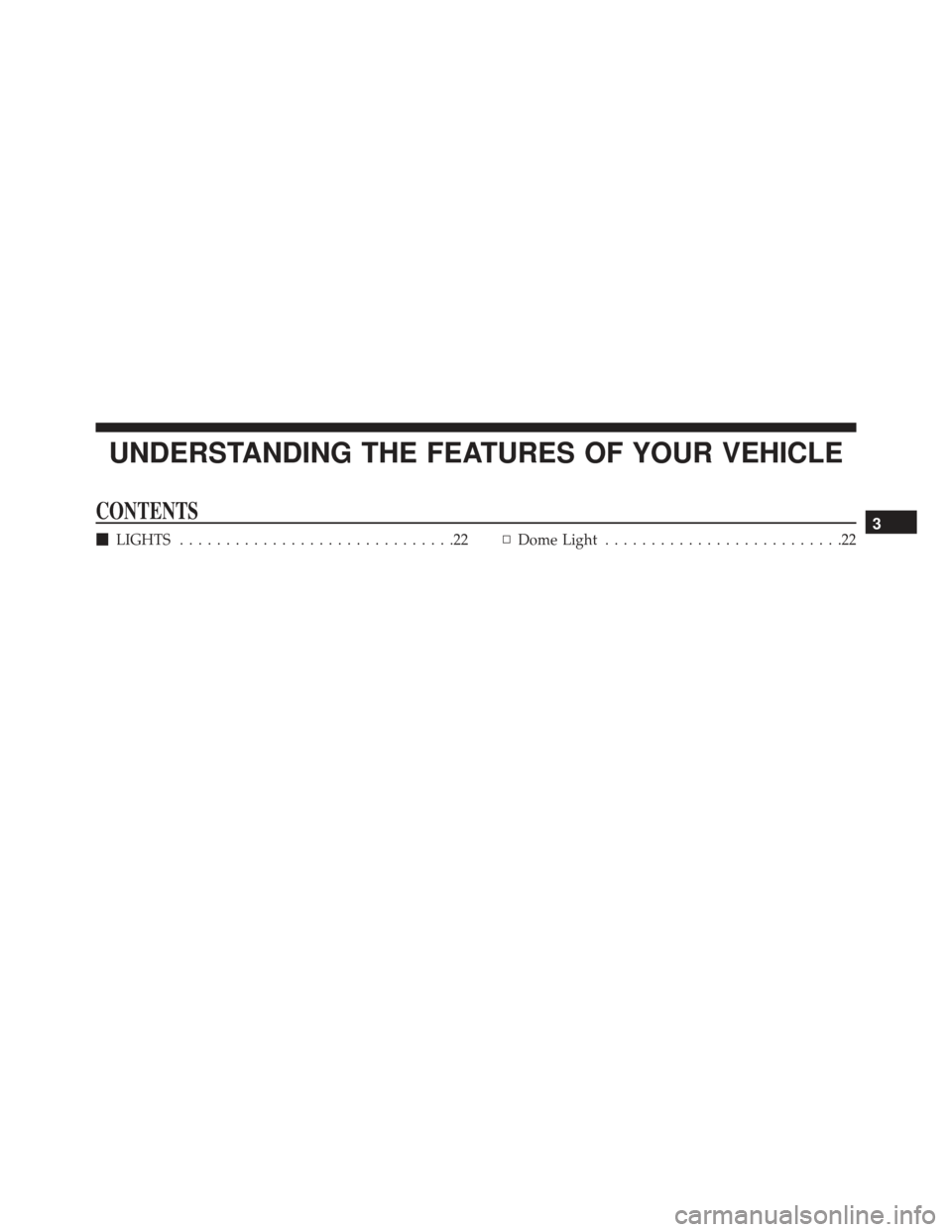

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
LIGHTS ..............................22 ▫Dome Light ..........................223

LIGHTS
Dome Light
The police dome light has three positions. Position one is
used for white light, and position two is used for red LED
light. Always remember to return the dome light switch
to the OFF (center) position when finished using to
prevent discharging the vehicle battery.
Dome Light
22 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

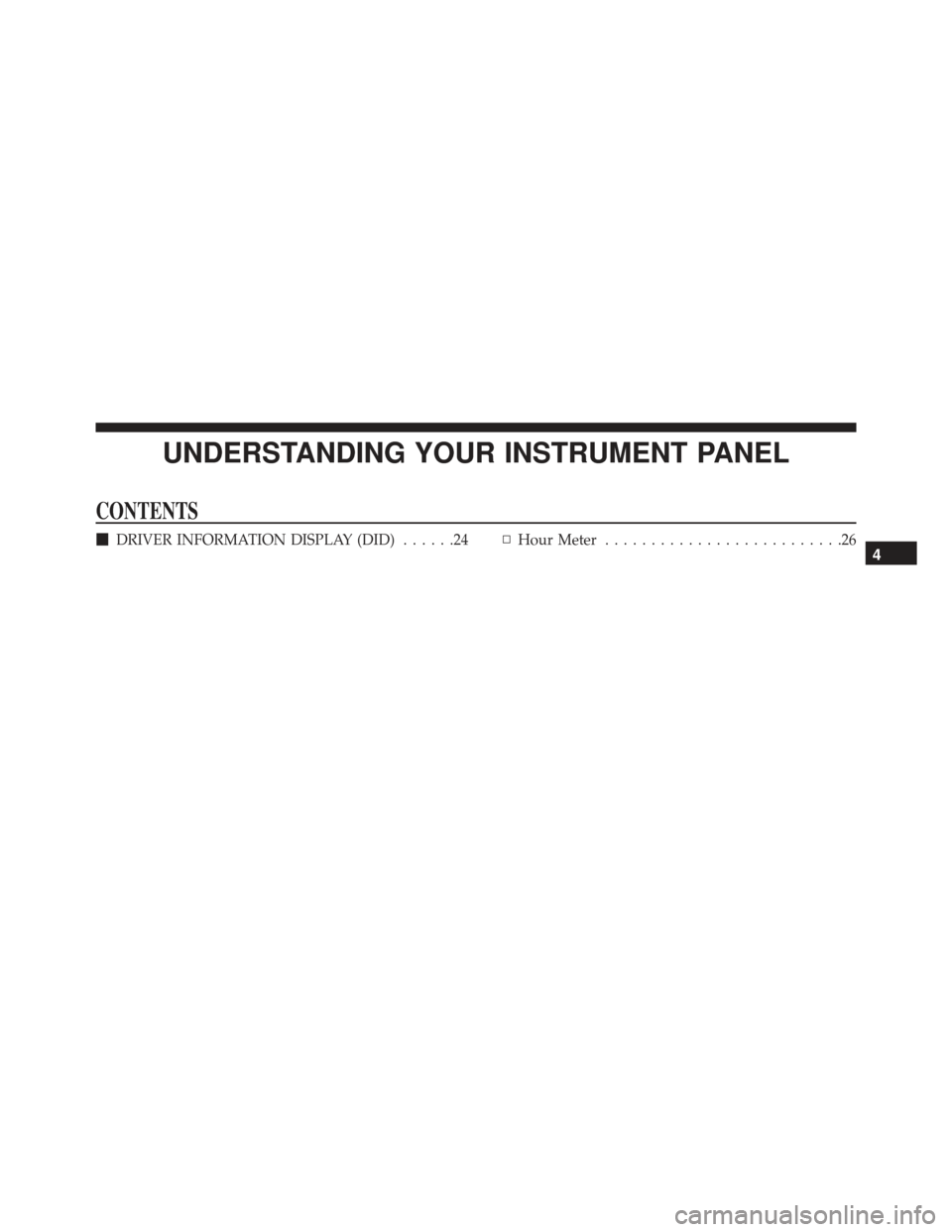

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
DRIVER INFORMATION DISPLAY (DID) ......24▫Hour Meter ..........................264

DRIVER INFORMATION DISPLAY (DID)
The Driver Information Display (DID) features a driver-
interactive display that is located in the instrument
cluster.This system conveniently allows the driver to select a
variety of useful information by pushing the arrow
buttons located on the left side of the steering wheel. The
DID Menu Items consists of the following:
•
Speedometer
• Vehicle Info
• Driver Assist
• Fuel Economy
• Trip
• Navigation — If Equipped
• Stop/Start — If Equipped
• Audio
• Stored Messages
• Screen Setup
Driver Information Display (DID) Display
24 UNDERSTANDING YOUR INSTRUMENT PANEL

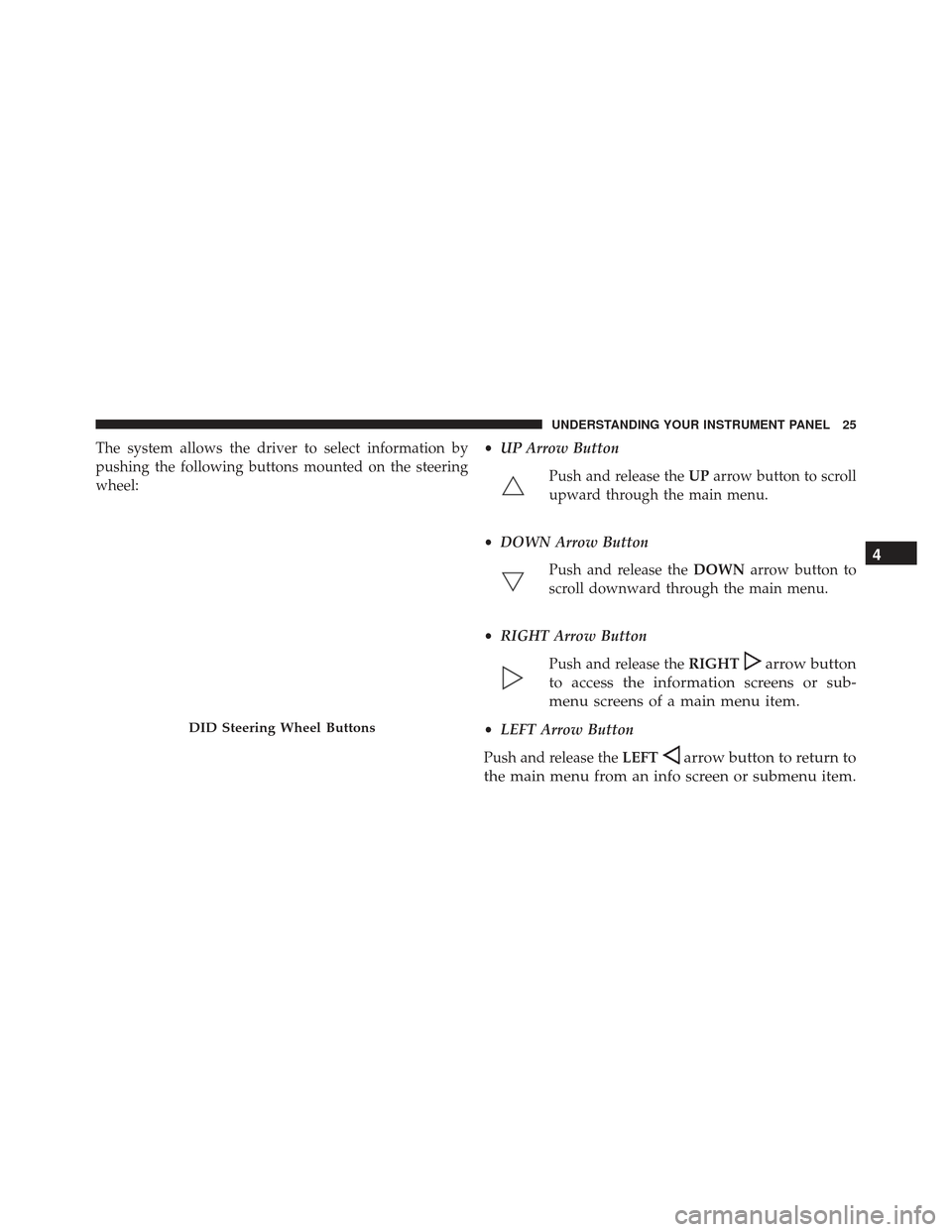

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:•
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu.
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu.
• RIGHT Arrow Button
Push and release the RIGHT
arrow button
to access the information screens or sub-
menu screens of a main menu item.
• LEFT Arrow Button
Push and release the LEFT
arrow button to return to
the main menu from an info screen or submenu item.
DID Steering Wheel Buttons
4
UNDERSTANDING YOUR INSTRUMENT PANEL 25

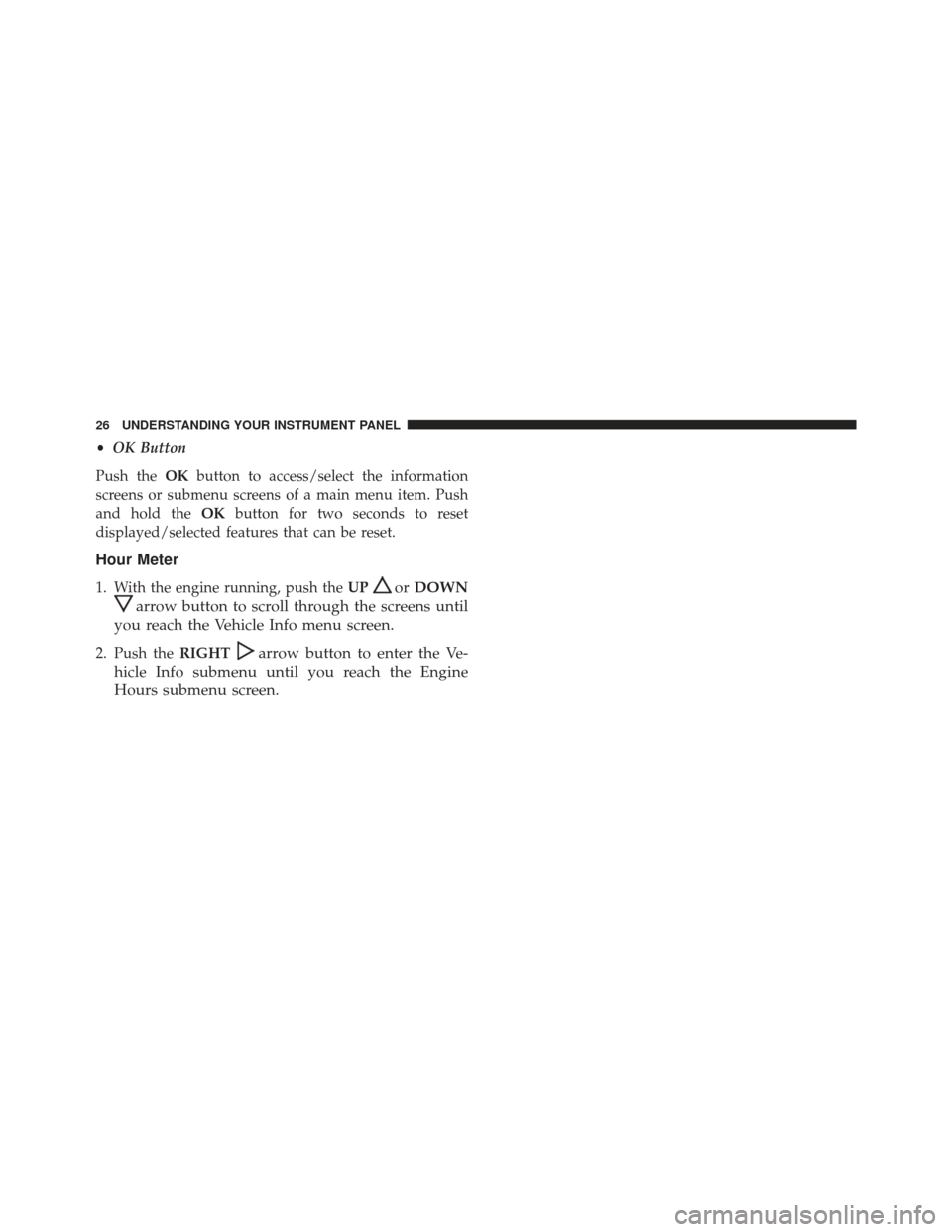

•OK Button
Push the OKbutton to access/select the information
screens or submenu screens of a main menu item. Push
and hold the OKbutton for two seconds to reset
displayed/selected features that can be reset.
Hour Meter
1. With the engine running, push the UPorDOWN
arrow button to scroll through the screens until
you reach the Vehicle Info menu screen.
2. Push the RIGHTarrow button to enter the Ve-
hicle Info submenu until you reach the Engine
Hours submenu screen.
26 UNDERSTANDING YOUR INSTRUMENT PANEL

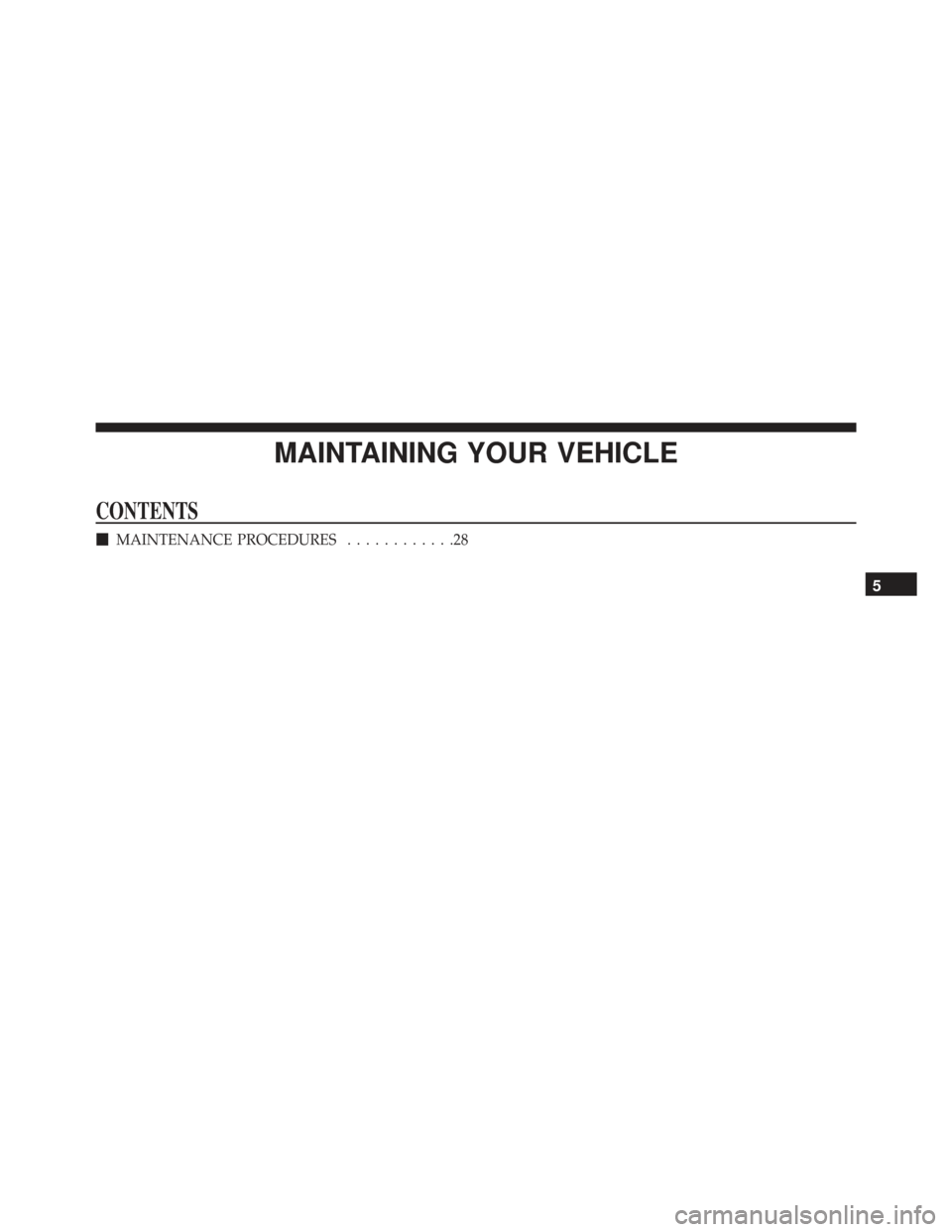

MAINTAINING YOUR VEHICLE
CONTENTS
MAINTENANCE PROCEDURES ............28
5

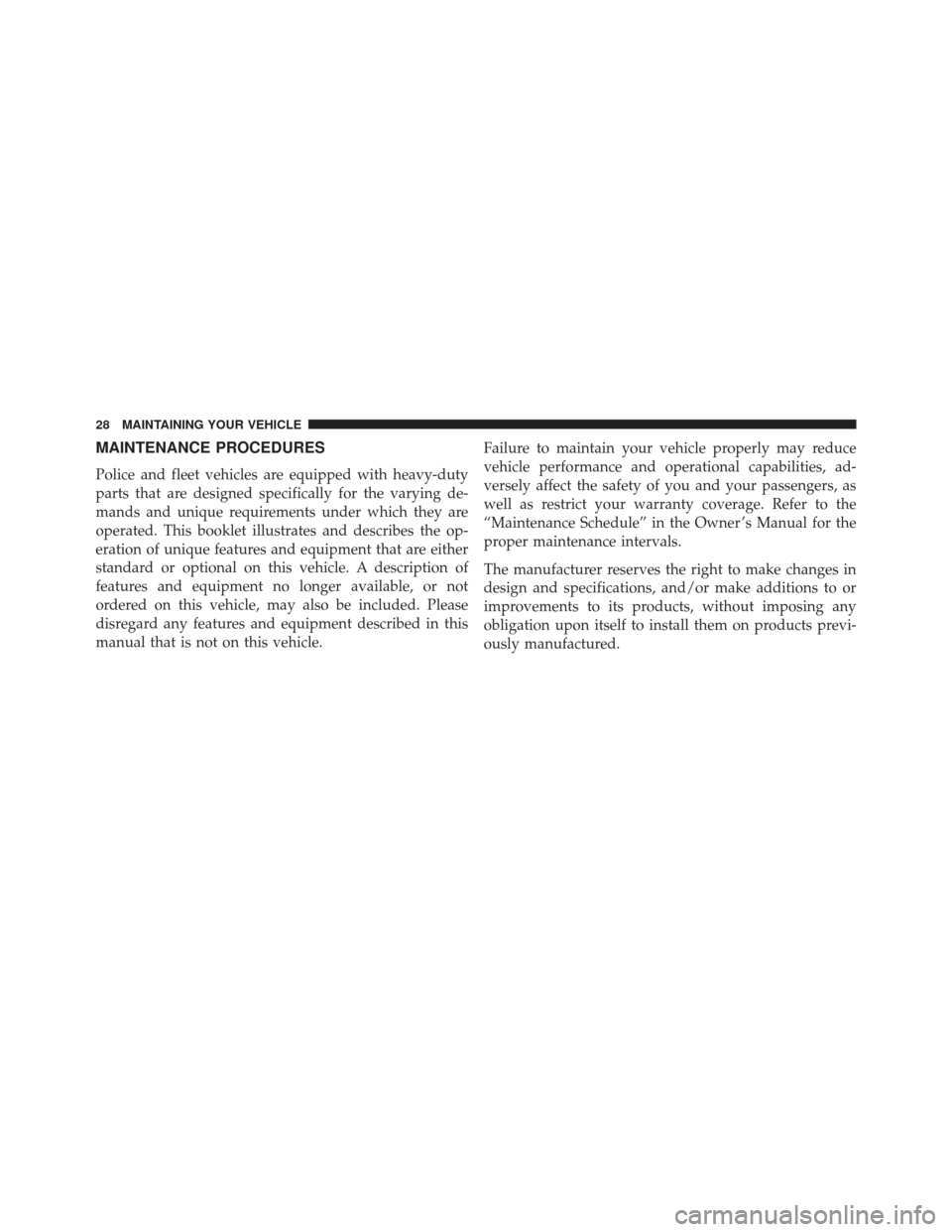

MAINTENANCE PROCEDURES
Police and fleet vehicles are equipped with heavy-duty
parts that are designed specifically for the varying de-
mands and unique requirements under which they are
operated. This booklet illustrates and describes the op-
eration of unique features and equipment that are either
standard or optional on this vehicle. A description of
features and equipment no longer available, or not
ordered on this vehicle, may also be included. Please
disregard any features and equipment described in this
manual that is not on this vehicle.Failure to maintain your vehicle properly may reduce
vehicle performance and operational capabilities, ad-
versely affect the safety of you and your passengers, as
well as restrict your warranty coverage. Refer to the
“Maintenance Schedule” in the Owner ’s Manual for the
proper maintenance intervals.
The manufacturer reserves the right to make changes in
design and specifications, and/or make additions to or
improvements to its products, without imposing any
obligation upon itself to install them on products previ-
ously manufactured.
28 MAINTAINING YOUR VEHICLE
