Light, either momentarily or continuously. A single chime
will sound to alert you if the light comes on again after
initial startup.
The ORC also includes diagnostics that will illuminate the
instrument panel Air Bag Warning Light if a malfunction is
detected that could affect the air bag system. The diagnos-
tics also record the nature of the malfunction. While the air
bag system is designed to be maintenance free, if any of the
following occurs, have an authorized dealer service the air
bag system immediately.
•The Air Bag Warning Light does not come on during the
four to eight seconds when the ignition switch is first in
the ON/RUN position.
• The Air Bag Warning Light remains on after the four to
eight-second interval.
• The Air Bag Warning Light comes on intermittently or
remains on while driving.
NOTE:
If the speedometer, tachometer, or any engine related
gauges are not working, the Occupant Restraint Controller
(ORC) may also be disabled. In this condition the air bags
may not be ready to inflate for your protection. Have an
authorized dealer service the air bag system immediately.
WARNING!
Ignoring the Air Bag Warning Light in your instrument
panel could mean you won’t have the air bags to
protect you in a collision. If the light does not come on
as a bulb check when the ignition is first turned on,
stays on after you start the vehicle, or if it comes on as
you drive, have an authorized dealer service the air bag
system immediately.
Redundant Air Bag Warning Light
If a fault with the Air Bag Warning Light is detected, which could affect the Supplemental Restraint System
(“SRS”), the Redundant Air Bag Warning Light
will illuminate on the instrument panel. The
Redundant Air Bag Warning Light will stay on
until the fault is cleared. In addition, a single chime will
sound to alert you that the Redundant Air Bag Warning
Light has come on and a fault has been detected. If the
Redundant Air Bag Warning Light comes on intermittently
or remains on while driving have an authorized dealer
service the vehicle immediately. For additional information
regarding the Redundant Air Bag Warning Light, refer to
“Warning/Indicator Lights and Messages” in “Getting to
Know Your Instrument Panel” section of this manual.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61
Page 240 of 584
Red Telltale Indicator Lights
Seat Belt Reminder Warning Light
Red TelltaleLight What It Means
Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN position, if the driver ’s seat belt is unbuckled, a
chime will sound and the light will turn on. When driving, if the driver or front passenger seat
belt remains unbuckled, the Seat Belt Reminder Light will flash or remain on continuously and a
chime will sound. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Ve-
hicle” for further information.
Air Bag Warning Light
Red Telltale
Light What It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition is placed in the
ON/RUN position. If the light is either not on during startup, stays on, or turns on while driv-
ing, have the system inspected at an authorized dealer as soon as possible. This light will illumi-
nate with a single chime when a fault with the Air Bag Warning Light has been detected, it will
stay on until the fault is cleared. If the light comes on intermittently or remains on while driving,
have an authorized dealer service the vehicle immediately.
238 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 243 of 584
Engine Temperature Warning Light
Red WarningLight What It Means
Engine Temperature Warning Light
This light warns of an overheated engine condition. As engine coolant temperatures rise and the
gauge approaches
H, this indicator will illuminate and a single chime will sound after reaching a
set threshold. Further overheating will cause a continuous chime sound for 4 minutes, or until
the engine is allowed to cool, whichever comes first.
If the light turns on while driving, safely pull over and stop the vehicle. If the A/C system is on,
turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature
reading does not return to normal, turn the engine off immediately and call for service. Refer to
“If Your Engine Overheats” in “What To Do In Emergencies” for further information.
Battery Charge Warning Light
Red Telltale Light What It Means
Battery Charge Warning Light
This light illuminates when the battery is not charging properly. If it stays on while the engine is run-
ning, there may be a malfunction with the charging system. Contact your authorized dealer as soon
as possible. This indicates a possible problem with the electrical system or a related component.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 241
Page 247 of 584
Liftgate Open Warning Light
Red TelltaleLight What It Means
Liftgate Open Warning Light
This indicator will turn on when the liftgate is open.
NOTE:
If the vehicle is moving, there will also be a single chime.
Yellow Telltale Indicator Lights
Engine Check/Malfunction Indicator Light (MIL)
Yellow Telltale
Light What It Means
Engine Check/Malfunction Indicator Light (MIL)The Engine Check/Malfunction Indicator Light (MIL) is a part of an Onboard Diagnostic System
called OBD II that monitors engine and automatic transmission control systems. The light will illu-
minate when the ignition is in the ON/RUN position before engine start. If the bulb does not come
on when turning the key from OFF to ON/RUN, have the condition checked promptly.
Certain conditions, such as a loose or missing gas cap, poor quality fuel, etc., may illuminate the
light after engine start. The vehicle should be serviced if the light stays on through several typical
driving styles. In most situations, the vehicle will drive normally and will not require towing.
When the engine is running, the MIL may flash to alert serious conditions that could lead to im-
mediate loss of power or severe catalytic converter damage. The vehicle should be serviced as
soon as possible if this occurs.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 245
Page 248 of 584
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you drive
slowly or park over flammable substances such as dry
plants, wood, cardboard, etc. This could result in death
or serious injury to the driver, occupants or others.
CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the engine
control system. It also could affect fuel economy and
driveability. If the MIL is flashing, severe catalytic
converter damage and power loss will soon occur.
Immediate service is required.
Electronic Stability Control (ESC) Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Electronic Stability Control (ESC) Indicator Light — If Equipped
The “ESC Indicator Light” in the instrument cluster will come on when the ignition is placed in
the ON/RUN position, and when ESC is activated. It should go out with the engine running. If
the “ESC Indicator Light” comes on continuously with the engine running, a malfunction has
been detected in the ESC system. If this light remains on after several ignition cycles, and the ve-
hicle has been driven several miles (kilometers) at speeds greater than 30 MPH (48 km/h), see
your authorized dealer as soon as possible to have the problem diagnosed and corrected.
•
The “ESC Off Indicator Light” and the “ESC Indicator Light” come on momentarily each
time the ignition is placed in the ON/RUN position.
• Each time the ignition is turned to ON/RUN, the ESC system will be ON, even if it was
turned off previously.
246 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 252 of 584
Low Fuel Indicator Light
Yellow TelltaleLight What It Means
Low Fuel Indicator Light
When the fuel level reaches approximately 2 gal (7.5 L) this light will turn on, and remain on un-
til fuel is added.
Anti-Lock Brake (ABS) Indicator Light
Yellow Telltale
Light What It Means
Anti-Lock Brake (ABS) Indicator Light
This light monitors the Anti-Lock Brake System (ABS). The light will turn on when the ignition is
placed in the ON/RUN position and may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, then the Anti-Lock portion of the brake
system is not functioning and service is required. However, the conventional brake system will
continue to operate normally if the brake warning light is not on.
If the ABS light is on, the brake system should be serviced as soon as possible to restore the ben-
efits of Anti-Lock Brakes. If the ABS light does not turn on when the ignition is placed in the
ON/RUN position, have the light inspected by an authorized dealer.
250 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 253 of 584
Service Forward Collision Warning Fault Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Forward Collision Warning Fault Indicator Light — If Equipped
This telltale will turn on to indicate a fault in the Forward Collision Warning System. Contact
your local authorized dealer for service.
Forward Collision Warning Off Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Forward Collision Warning Off Indicator Light — If Equipped
This light indicates the Forward Collision Warning is off.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 251
Page 254 of 584
Service Adaptive Cruise Control Light — If Equipped
Yellow TelltaleLight What It Means
Service Adaptive Cruise Control Light — If Equipped
This light will turn on when the ACC is not operating and needs service. For further information,
refer to “Adaptive Cruise Control (ACC)” in “Understanding The Features Of Your Vehicle.”
AWD Low Indicator Light — If Equipped
Yellow Telltale
Light What It Means
AWD Low Indicator Light
This light alerts the driver that the vehicle is in the all-wheel drive LOW mode. The front and
rear driveshafts are mechanically locked together forcing the front and rear wheels to rotate at
the same speed. AWD LOW is designed for loose, slippery road surfaces only.
Refer to “All Wheel Drive Operation” in “Starting And Operating” for further information on
all-wheel drive operation and proper use.
Service AWD Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Service AWD Indicator Light — If Equipped
This telltale will turn on to indicate the All Wheel Drive (AWD) system is not functioning prop-
erly and that service is required. Contact your authorized dealership.
252 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 255 of 584
Service Stop/Start System Indicator Light — If Equipped
Yellow TelltaleLight What It Means
Service Stop/Start System Indicator Light — If Equipped
This telltale will turn on to indicate the Stop/Start system is not functioning properly and service
is required.
LaneSense Indicator Light — If Equipped
Yellow Telltale
Light What It Means
LaneSense Indicator Light — If Equipped
The LaneSense is solid yellow when the system senses a lane drift situation.
The LaneSense is flashing yellow when the system senses the lane has been approached and is in
a lane departure situation.
Refer to “LaneSense - If Equipped
in “Understanding The Features Of Your Vehicle” for further
information.
LaneSense Failure Indicator Light — If Equipped
Yellow Telltale Light What It Means
LaneSense Failure Indicator Light
This light will turn on when the LaneSense system is not operating and needs service. Please see
your authorized dealer.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 253
Page 379 of 584

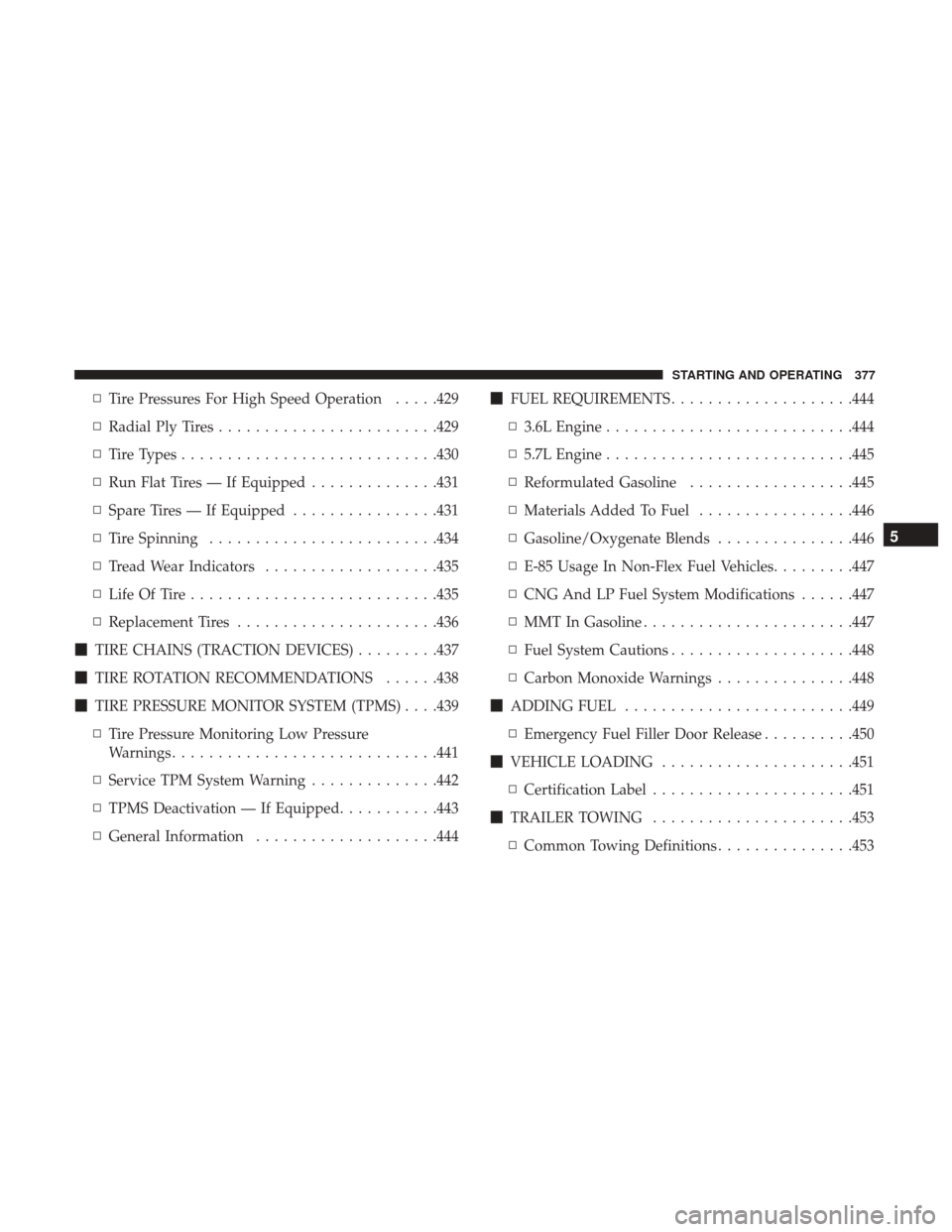

▫Tire Pressures For High Speed Operation .....429
▫ Radial Ply Tires ....................... .429
▫ Tire Types ........................... .430
▫ Run Flat Tires — If Equipped ..............431
▫ Spare Tires — If Equipped ................431
▫ Tire Spinning ........................ .434
▫ Tread Wear Indicators ...................435
▫ Life Of Tire .......................... .435
▫ Replacement Tires ..................... .436
TIRE CHAINS (TRACTION DEVICES) .........437
TIRE ROTATION RECOMMENDATIONS ......438
TIRE PRESSURE MONITOR SYSTEM (TPMS) . . . .439
▫ Tire Pressure Monitoring Low Pressure
Warnings ............................ .441
▫ Service TPM System Warning ..............442
▫ TPMS Deactivation — If Equipped ...........443
▫ General Information ....................444
FUEL REQUIREMENTS ....................444
▫ 3.6L Engine .......................... .444
▫ 5.7L Engine .......................... .445
▫ Reformulated Gasoline ..................445
▫ Materials Added To Fuel .................446
▫ Gasoline/Oxygenate Blends ...............446
▫ E-85 Usage In Non-Flex Fuel Vehicles .........447
▫ CNG And LP Fuel System Modifications ......447
▫ MMT In Gasoline ...................... .447
▫ Fuel System Cautions ....................448
▫ Carbon
Monoxide Warnings ...............448
ADDING FUEL ........................ .449
▫ Emergency Fuel Filler Door Release ..........450
VEHICLE LOADING .....................451
▫ Certification Label ..................... .451
TRAILER TOWING ..................... .453
▫ Common Towing Definitions ...............453
5
STARTING AND OPERATING 377
