Page 18 of 584
Customer Key Fob Programming
Programming key fobs may be performed at an authorized
dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors for
unauthorized entry and the Keyless Enter-N-Go — Ignition
for unauthorized operation. While the Vehicle Security
Alarm is armed, interior switches for door locks and
liftgate release are disabled. If something triggers the alarm, the Vehicle Security Alarm will provide the follow-
ing audible and visible signals: the horn will pulse, the
park lamps and/or turn signals will flash, and the Vehicle
Security Light in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn off
after 29 seconds, 5 seconds between cycles, up to 8 cycles if
the trigger remains active and then the Vehicle Security
Alarm will rearm itself.
To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicles ignition is cycled to the “OFF”
position (refer to Starting Procedures inStarting And
Operating for further information).
• For vehicles equipped with Keyless Enter-N-Go —
Passive Entry, make sure the vehicles keyless ignition
system is OFF.
• For vehicles not equipped with Keyless Enter-N-Go —
Passive Entry, make sure the vehicle ignition system is
OFF, and the key is physically removed from the
ignition.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 584
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lockor unlockthe
doors, open the power liftgate, or activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a hand-held key fob. The key fob does not need to
be pointed at the vehicle to activate the system.
NOTE: Driving at speeds 5 MPH (8 km/h) and above
disables the system from responding to all key fob buttons
for all key fobs.
To Unlock The Doors And Liftgate
Push and release the UNLOCKbutton on the key fob
once to unlock the driver’s door or twice within five
seconds to unlock all doors and liftgate. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Things To
Know Before Starting Your Vehicle” for further informa-
tion.
1st Press Of Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK
button on the key fob. To change the
current setting, refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further informa-
tion.
Flash Lamps With Lock
This feature will cause the turn signal lights to flash when
the doors are locked
or unlockedwith the key fob.
This feature can be turned on or turned off. To change
Key Fob
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
Page 22 of 584
the current setting, refer to “Uconnect Settings” in
“Understanding Your Instrument Panel” for further
information.
Headlight Illumination On Approach
This feature activates the headlights for up to 90 seconds
when the doors are unlocked
with the key fob. The
time for this feature is programmable on vehicles
equipped through Uconnect. To change the current
setting, refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
To Lock The Doors And Liftgate
Push and release the LOCKbutton on the key fob to
lock all doors and liftgate. The turn signal lights will
flash, and the horn will chirp to acknowledge the signal.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Things To Know
Before Starting Your Vehicle” for further information.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or turned off. To change the current setting, refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the
button on the key fob for at least one second and
release. When the Panic Alarm is activated, the turn
signals will flash, the horn will pulse on and off, and the
interior lights will turn on.
The Panic Alarm will stay on for three minutes unless you
turn it off by either pushing the
button a second time
or drive the vehicle at a speed of 15 MPH (24 km/h) or
greater.
NOTE:
• The interior lights will turn off if you place the ignition
in the ACC or ON/RUN position while the Panic Alarm
is activated. However, the exterior lights and horn will
remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the key fob to turn off the Panic
Alarm due to the radio frequency noises emitted by the
system.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 26 of 584
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Gear Selector in PARK
• Doors closed
• Hood closed
• Liftgate closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• PANIC
button not pushed
•System not disabled from previous remote start event
• Vehicle alarm system indicator flashing
• Ignition in STOP/OFF position
• Fuel level meets minimum requirement
• Vehicle Security Alarm is not signaling an intrusion
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message — If Equipped
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Liftgate Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Disabled — Start Vehicle To Reset
The Remote Start Abort message stays active until the
ignition is turned to the ON/RUN position.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 40 of 584

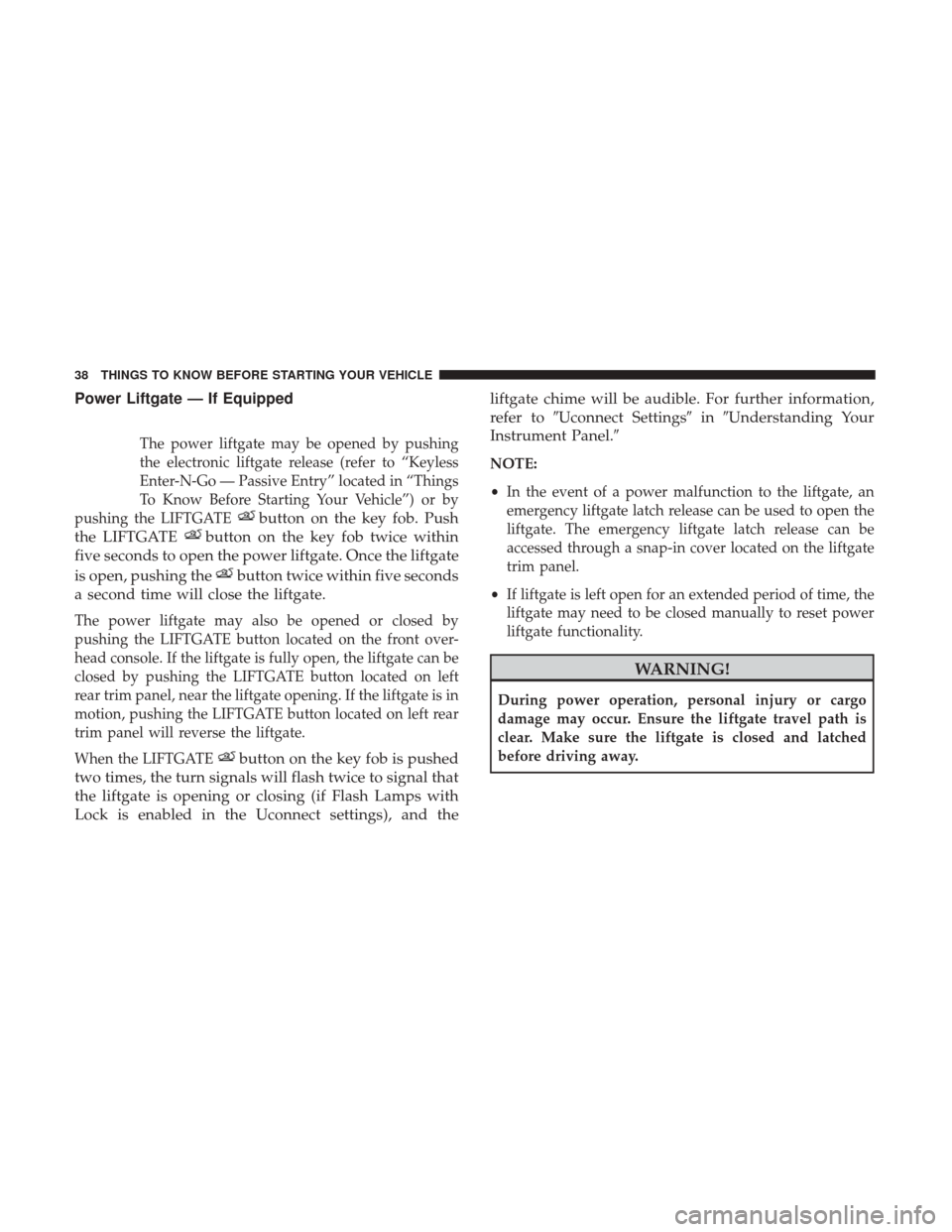

Power Liftgate — If Equipped
The power liftgate may be opened by pushing
the electronic liftgate release (refer to “Keyless
Enter-N-Go — Passive Entry” located in “Things
To Know Before Starting Your Vehicle”) or by
pushing the LIFTGATE
button on the key fob. Push
the LIFTGATE
button on the key fob twice within
five seconds to open the power liftgate. Once the liftgate
is open, pushing the
button twice within five seconds
a second time will close the liftgate.
The power liftgate may also be opened or closed by
pushing the LIFTGATE button located on the front over-
head console. If the liftgate is fully open, the liftgate can be
closed by pushing the LIFTGATE button located on left
rear trim panel, near the liftgate opening. If the liftgate is in
motion, pushing the LIFTGATE button located on left rear
trim panel will reverse the liftgate.
When the LIFTGATE
button on the key fob is pushed
two times, the turn signals will flash twice to signal that
the liftgate is opening or closing (if Flash Lamps with
Lock is enabled in the Uconnect settings), and the liftgate chime will be audible. For further information,
refer to
Uconnect Settings inUnderstanding Your
Instrument Panel.
NOTE:
• In the event of a power malfunction to the liftgate, an
emergency liftgate latch release can be used to open the
liftgate. The emergency liftgate latch release can be
accessed through a snap-in cover located on the liftgate
trim panel.
• If liftgate is left open for an extended period of time, the
liftgate may need to be closed manually to reset power
liftgate functionality.
WARNING!
During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 43 of 584
8. Do not lean against the door or window. If your vehiclehas side air bags, and deployment occurs, the side air
bags will inflate forcefully into the space between occu-
pants and the door and occupants could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, contact the Cus-
tomer Center. Phone numbers are provided under If
You Need Assistance.
WARNING!
• Never place a rear-facing child restraint in front of an
air bag. A deploying passenger front air bag can
cause death or serious injury to a child 12 years or
younger, including a child in a rear-facing child
restraint.
• Only use a rear-facing child restraint in a vehicle
with a rear seat.
Seat Belt Systems
Buckle up even though you are an excellent driver, even on
short trips. Someone on the road may be a poor driver and
could cause a collision that includes you. This can happen
far away from home or on your own street. Research has shown that seat belts save lives, and they can
reduce the seriousness of injuries in a collision. Some of the
worst injuries happen when people are thrown from the
vehicle. Seat belts reduce the possibility of ejection and the
risk of injury caused by striking the inside of the vehicle.
Everyone in a motor vehicle should be belted at all times.
Driver and Passenger BeltAlert — If Equipped
Front Seat BeltAlert
BeltAlert is a feature intended to remind the driver
and outboard front seat passenger (if equipped with
outboard front passenger seat BeltAlert) to buckle their
seat belts. The Belt Alert feature is active whenever the
ignition switch is in the START or ON/RUN position.
Initial Indication
If the driver is unbuckled when the ignition switch is first
in the START or ON/RUN position, a chime will signal for
a few seconds. If the driver or outboard front seat passen-
ger (if equipped with outboard front passenger seat
BeltAlert) is unbuckled when the ignition switch is first in
the START or ON/RUN position the Seat Belt Reminder
Light will turn on and remain on until both outboard front
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
Page 90 of 584
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 100 of 584

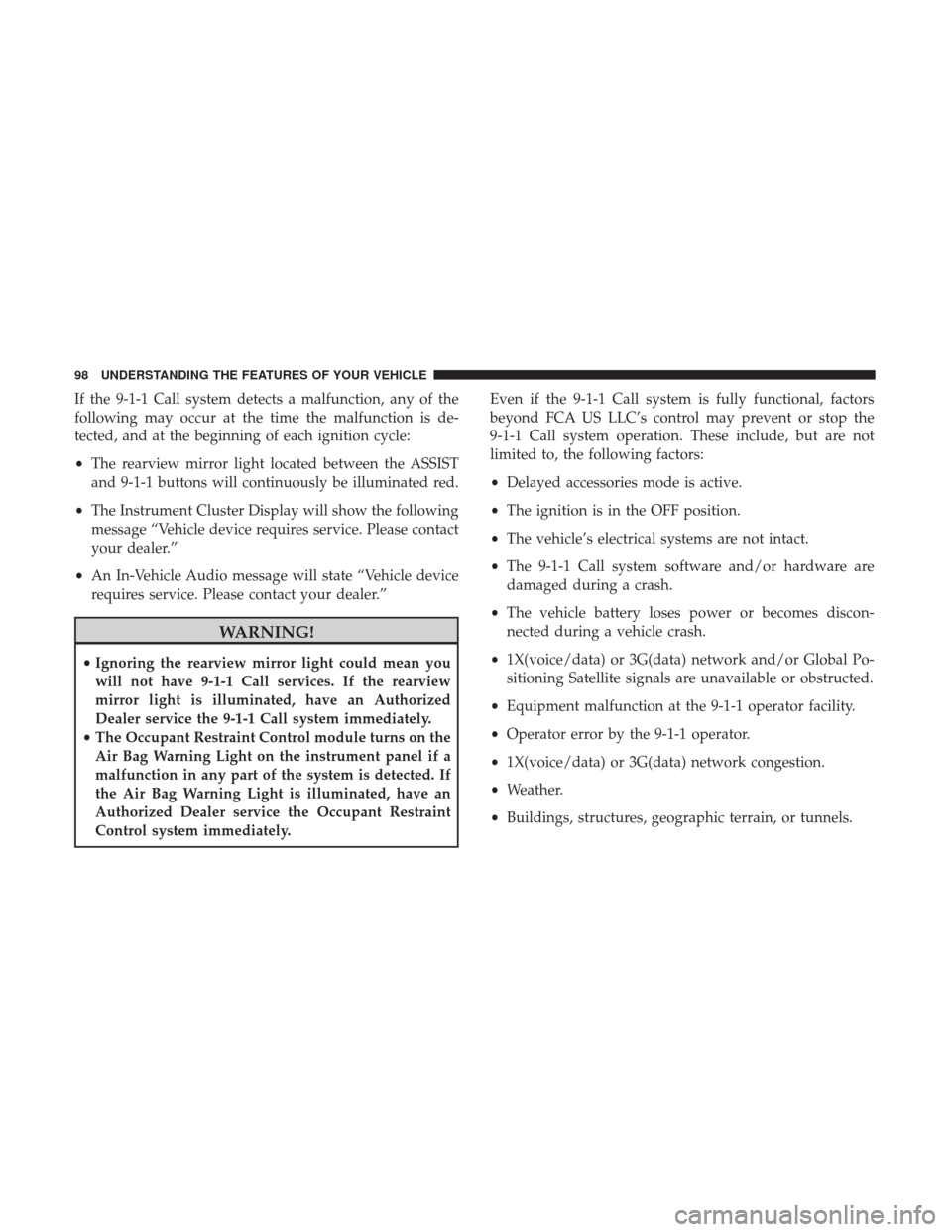

If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is de-
tected, and at the beginning of each ignition cycle:
•The rearview mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated red.
• The Instrument Cluster Display will show the following
message “Vehicle device requires service. Please contact
your dealer.”
• An In-Vehicle Audio message will state “Vehicle device
requires service. Please contact your dealer.”
WARNING!
• Ignoring the rearview mirror light could mean you
will not have 9-1-1 Call services. If the rearview
mirror light is illuminated, have an Authorized
Dealer service the 9-1-1 Call system immediately.
• The Occupant Restraint Control module turns on the
Air Bag Warning Light on the instrument panel if a
malfunction in any part of the system is detected. If
the Air Bag Warning Light is illuminated, have an
Authorized Dealer service the Occupant Restraint
Control system immediately. Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
•
Delayed accessories mode is active.
• The ignition is in the OFF position.
• The vehicle’s electrical systems are not intact.
• The 9-1-1 Call system software and/or hardware are
damaged during a crash.
• The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
• 1X(voice/data) or 3G(data) network and/or Global Po-
sitioning Satellite signals are unavailable or obstructed.
• Equipment malfunction at the 9-1-1 operator facility.
• Operator error by the 9-1-1 operator.
• 1X(voice/data) or 3G(data) network congestion.
• Weather.
• Buildings, structures, geographic terrain, or tunnels.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 108 of 584
The BSM system is designed not to issue an alert on
stationary objects such as guardrails, posts, walls, foliage,
berms, etc. However, occasionally the system may alert on
such objects. This is normal operation and your vehicle
does not require service.
The BSM system will not alert you of objects that are
traveling in the opposite direction of the vehicle in adjacent
lanes.
WARNING!
The Blind Spot Monitoring system is only an aid to
help detect objects in the blind spot zones. The BSM
system is not designed to detect pedestrians, bicyclists,
or animals. Even if your vehicle is equipped with the
BSM system, always check your vehicles mirrors,
glance over your shoulder, and use your turn signal
before changing lanes. Failure to do so can result in
serious injury or death.
Stationary Objects
Opposing Traffic
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 110 of 584

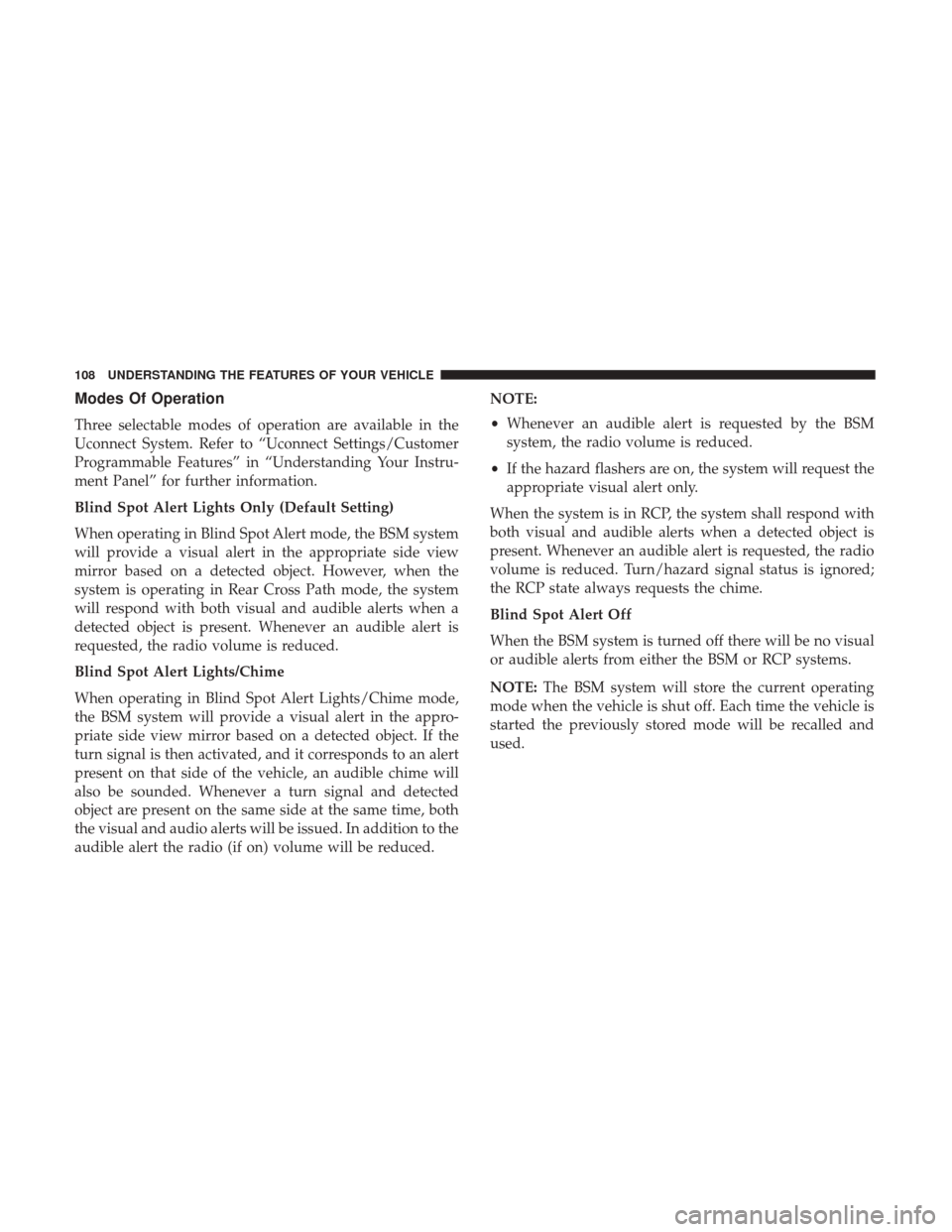

Modes Of Operation
Three selectable modes of operation are available in the
Uconnect System. Refer to “Uconnect Settings/Customer
Programmable Features” in “Understanding Your Instru-
ment Panel” for further information.
Blind Spot Alert Lights Only (Default Setting)
When operating in Blind Spot Alert mode, the BSM system
will provide a visual alert in the appropriate side view
mirror based on a detected object. However, when the
system is operating in Rear Cross Path mode, the system
will respond with both visual and audible alerts when a
detected object is present. Whenever an audible alert is
requested, the radio volume is reduced.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/Chime mode,
the BSM system will provide a visual alert in the appro-
priate side view mirror based on a detected object. If the
turn signal is then activated, and it corresponds to an alert
present on that side of the vehicle, an audible chime will
also be sounded. Whenever a turn signal and detected
object are present on the same side at the same time, both
the visual and audio alerts will be issued. In addition to the
audible alert the radio (if on) volume will be reduced.NOTE:
•
Whenever an audible alert is requested by the BSM
system, the radio volume is reduced.
• If the hazard flashers are on, the system will request the
appropriate visual alert only.
When the system is in RCP, the system shall respond with
both visual and audible alerts when a detected object is
present. Whenever an audible alert is requested, the radio
volume is reduced. Turn/hazard signal status is ignored;
the RCP state always requests the chime.
Blind Spot Alert Off
When the BSM system is turned off there will be no visual
or audible alerts from either the BSM or RCP systems.
NOTE: The BSM system will store the current operating
mode when the vehicle is shut off. Each time the vehicle is
started the previously stored mode will be recalled and
used.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
