DODGE DURANGO 2018 Owners Manual

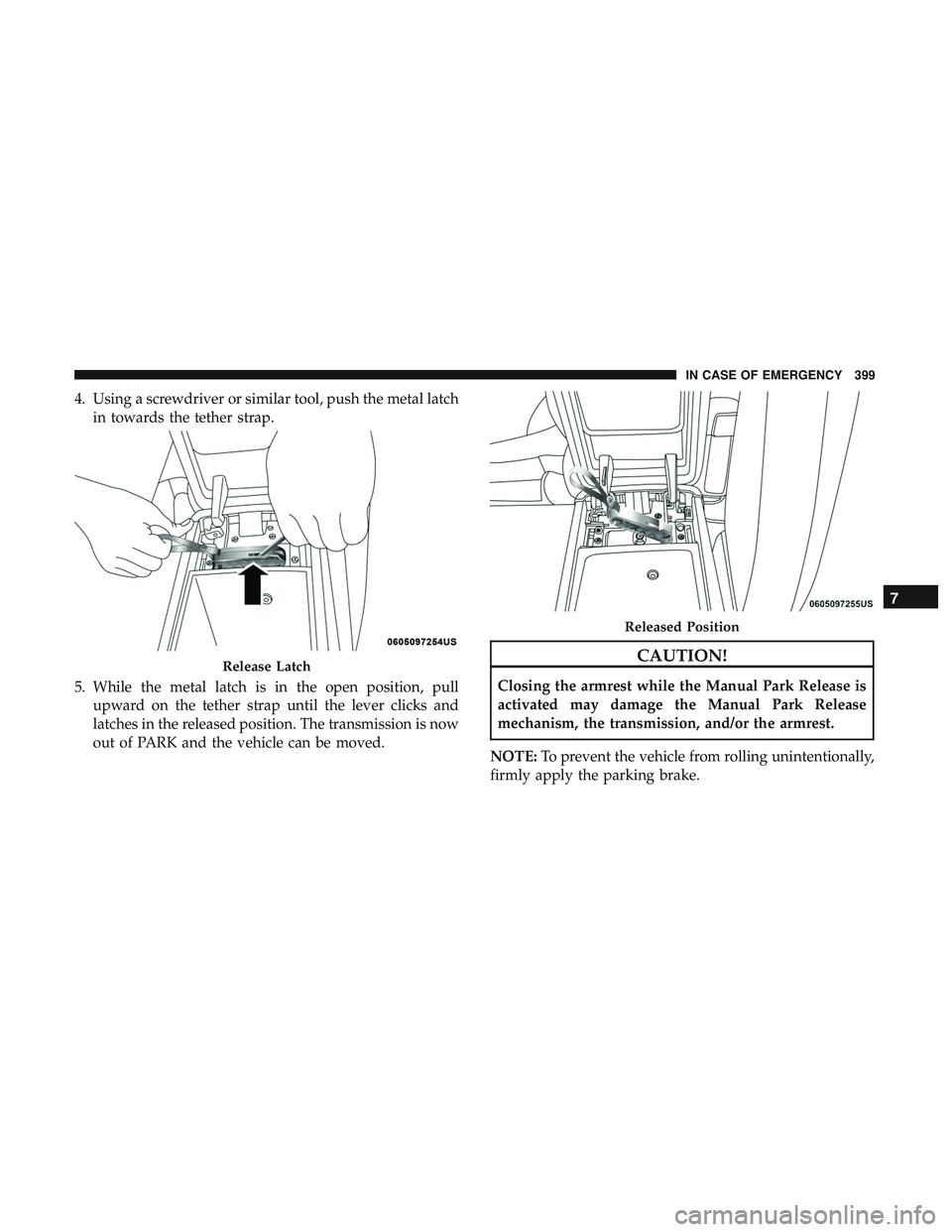

4. Using a screwdriver or similar tool, push the metal latchin towards the tether strap.
5. While the metal latch is in the open position, pull upward on the tether strap until the lever clicks and
latches in the released position. The transmission is now
out of PARK and the vehicle can be moved.
CAUTION!
Closing the armrest while the Manual Park Release is
activated may damage the Manual Park Release
mechanism, the transmission, and/or the armrest.
NOTE: To prevent the vehicle from rolling unintentionally,
firmly apply the parking brake.
Release Latch
Released Position
7
IN CASE OF EMERGENCY 399

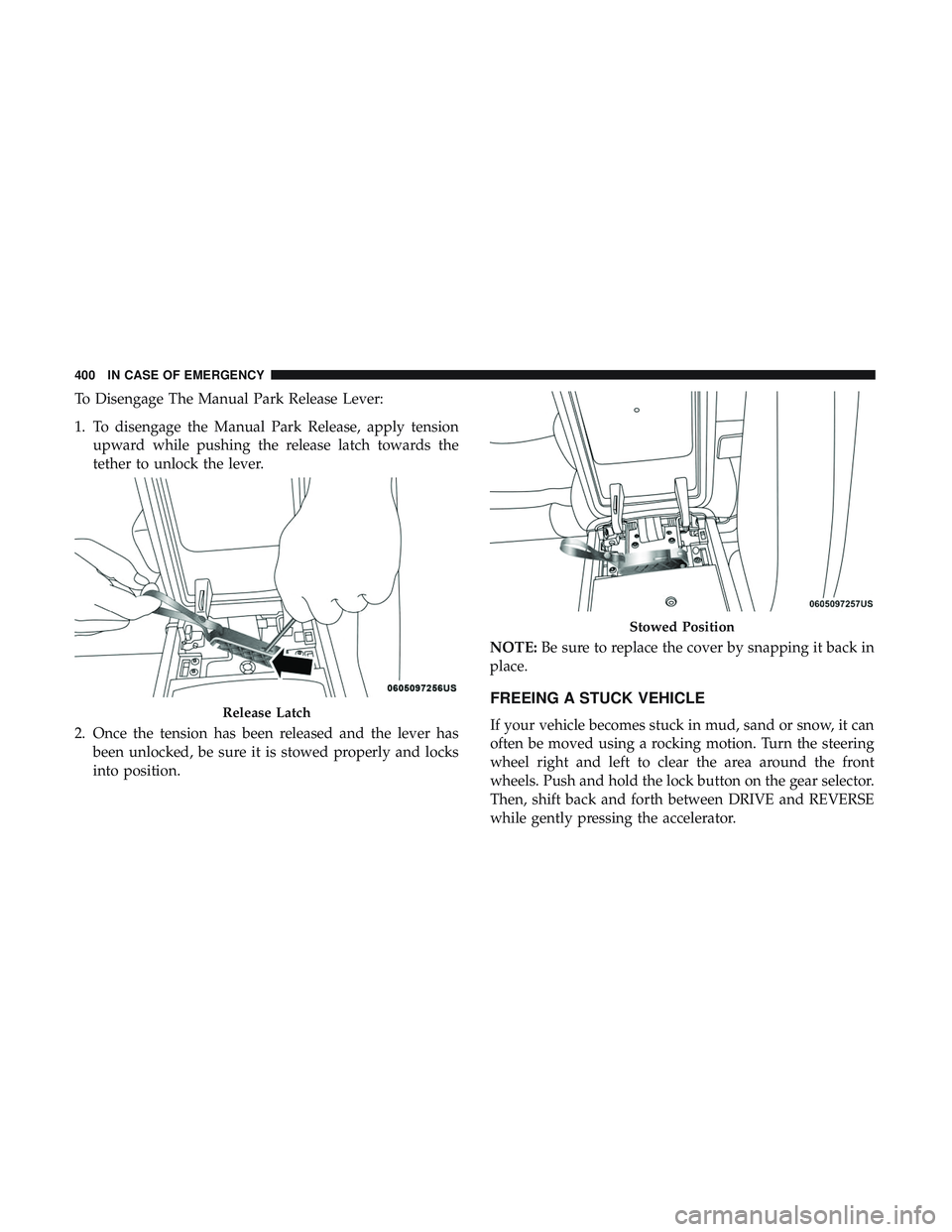

To Disengage The Manual Park Release Lever:
1. To disengage the Manual Park Release, apply tensionupward while pushing the release latch towards the
tether to unlock the lever.
2. Once the tension has been released and the lever has been unlocked, be sure it is stowed properly and locks
into position. NOTE:
Be sure to replace the cover by snapping it back in
place.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Push and hold the lock button on the gear selector.
Then, shift back and forth between DRIVE and REVERSE
while gently pressing the accelerator.Release Latch
Stowed Position
400 IN CASE OF EMERGENCY

NOTE:Shifts between DRIVE and REVERSE can only be
achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for more
than two seconds, you must press the brake pedal to
engage DRIVE or REVERSE.
Use the least amount of accelerator pedal pressure that will
maintain the rocking motion without spinning the wheels
or racing the engine.
NOTE:
Push the ESC Off switch, to place the Electronic
Stability Control (ESC) system in Partial Offmode, before
rocking the vehicle. Refer to “Electronic Brake Control” in
“Safety” for further information. Once the vehicle has been
freed, push the ESC Offswitch again to restore ESC Onmode.
WARNING!
Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.
CAUTION!
•Racing the engine or spinning the wheels may lead
to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of transmission failure during pro-
longed efforts to free a stuck vehicle.
•
When “rocking” a stuck vehicle by shifting between
DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may result.
• Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).
TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service. If the transmis-
sion and drivetrain are operable, disabled vehicles may
also be towed as described under “Recreational Towing” in
“Starting And Operating”.
7
IN CASE OF EMERGENCY 401

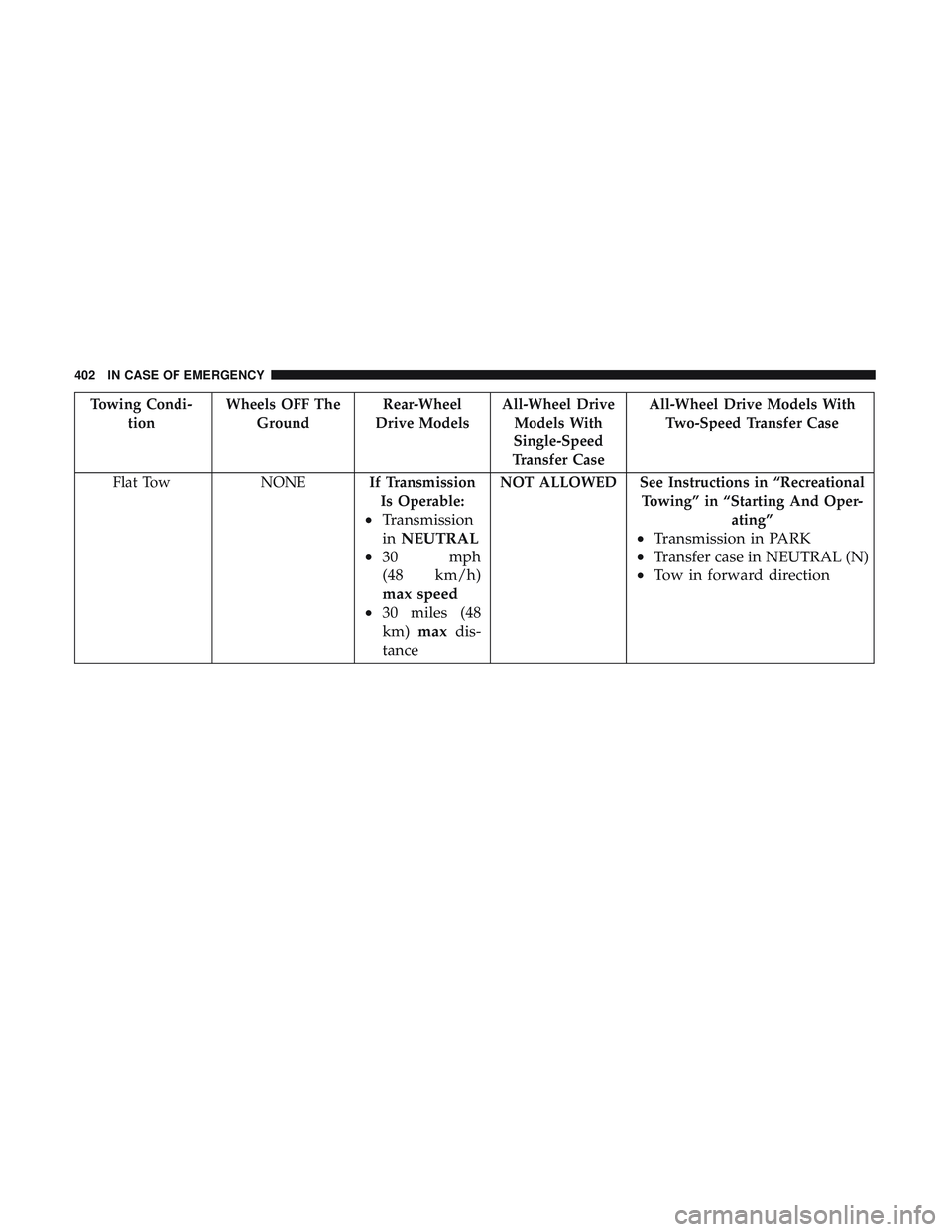

Towing Condi-tion Wheels OFF The
Ground Rear-Wheel
Drive Models All-Wheel Drive
Models With
Single-Speed
Transfer Case All-Wheel Drive Models With
Two-Speed Transfer Case
Flat Tow NONE If Transmission
Is Operable:
• Transmission
in NEUTRAL
• 30 mph
(48 km/h)
max speed
• 30 miles (48
km) max dis-
tance
NOT ALLOWED See Instructions in “Recreational Towing” in “Starting And Oper-ating”
•Transmission in PARK
• Transfer case in NEUTRAL (N)
• Tow in forward direction
402 IN CASE OF EMERGENCY

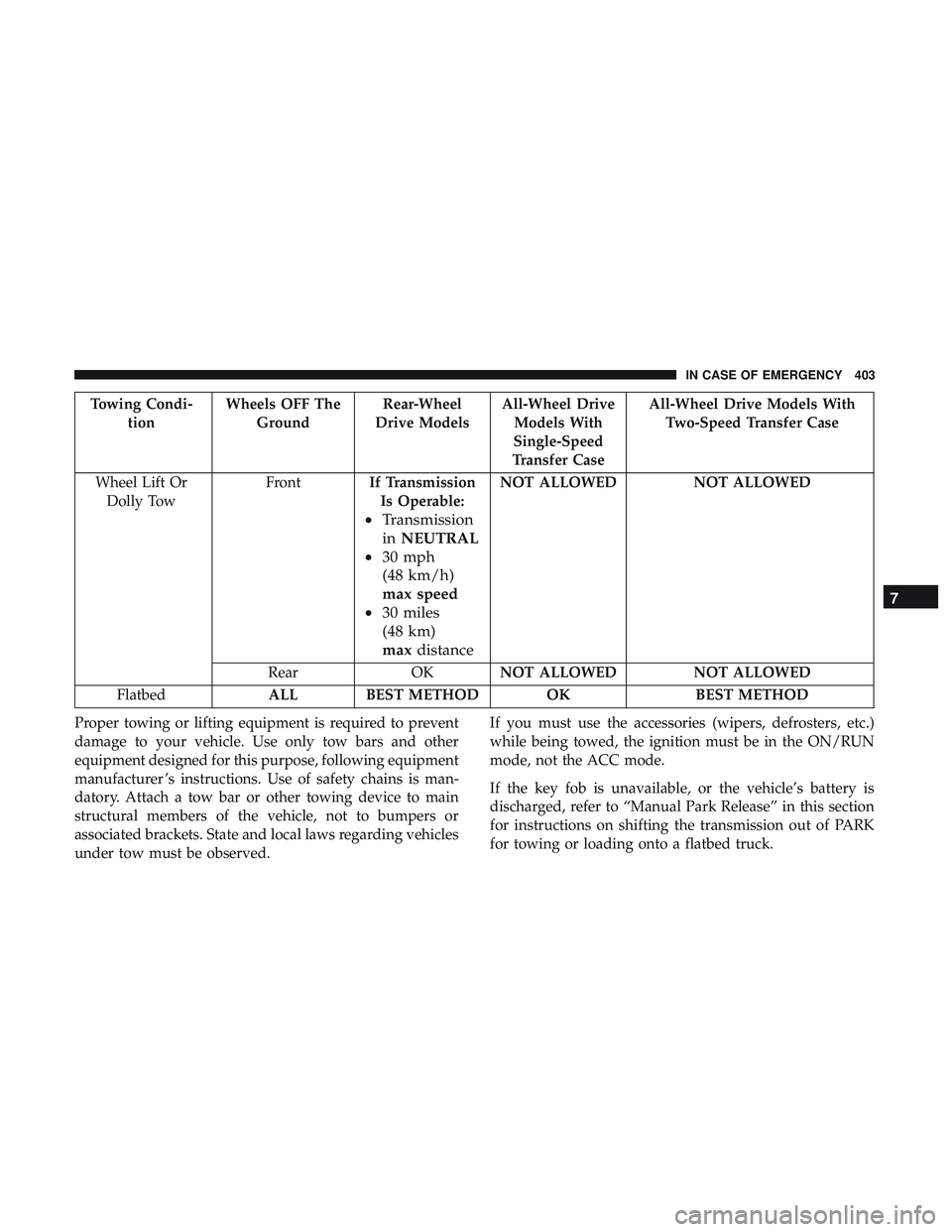

Towing Condi-tion Wheels OFF The
Ground Rear-Wheel
Drive Models All-Wheel Drive
Models With
Single-Speed
Transfer Case All-Wheel Drive Models With
Two-Speed Transfer Case
Wheel Lift Or Dolly Tow Front
If Transmission
Is Operable:
• Transmission
in NEUTRAL
• 30 mph
(48 km/h)
max speed
• 30 miles
(48 km)
max distance
NOT ALLOWED NOT ALLOWED
Rear OKNOT ALLOWED NOT ALLOWED
Flatbed ALL BEST METHOD OK BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer ’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed. If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing or loading onto a flatbed truck.
7
IN CASE OF EMERGENCY 403

CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flat bed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
Rear Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmission
is operable, the vehicle may be towed (with rear wheels on
the ground) under the following conditions:
• The transmission must be in NEUTRAL. Refer to
Manual Park Release in this section for instructions on
shifting the transmission to NEUTRAL when the engine
is off.
• The towing speed must not exceed 30 mph (48 km/h).
• The towing distance must not exceed 30 miles (48 km).
CAUTION!
•Towing faster than 30 mph (48 km/h) or farther than
30 miles (48 km) with rear wheels on the ground can
cause severe transmission damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 30
miles (48 km), tow with the rear wheels OFFthe ground.
Acceptable methods are to tow the vehicle on a flatbed, or
with the front wheels raised and the rear wheels on a
towing dolly, or (when using a suitable steering wheel
stabilizer to hold the front wheels in the straight position)
with the rear wheels raised and the front wheels on the
ground.
All Wheel Drive Models
The manufacturer recommends towing with all wheels
OFF the ground. Acceptable methods are to tow the vehicle
on a flatbed or with one end of the vehicle raised and the
opposite end on a towing dolly.
404 IN CASE OF EMERGENCY

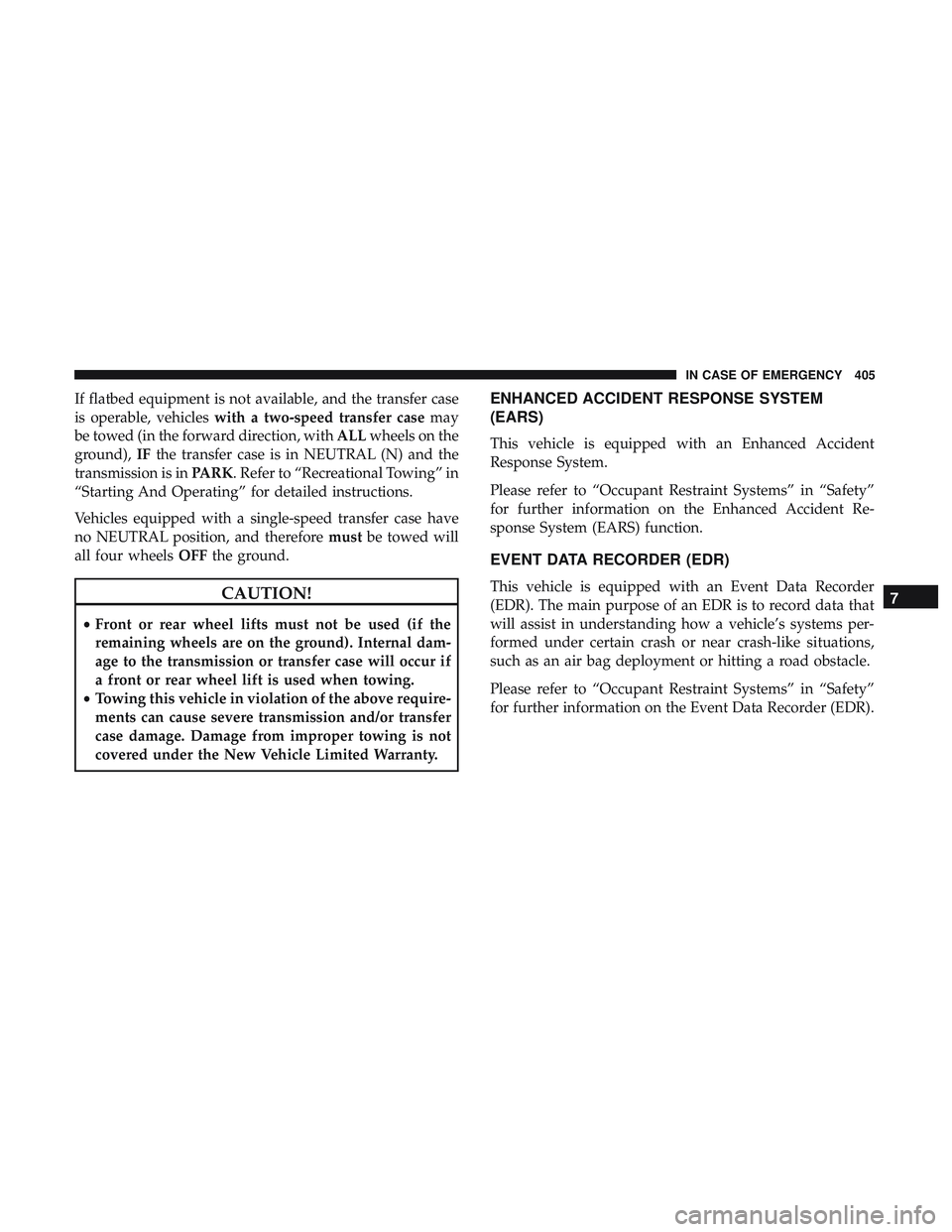

If flatbed equipment is not available, and the transfer case
is operable, vehicleswith a two-speed transfer case may
be towed (in the forward direction, with ALLwheels on the
ground), IFthe transfer case is in NEUTRAL (N) and the
transmission is in PARK. Refer to “Recreational Towing” in
“Starting And Operating” for detailed instructions.
Vehicles equipped with a single-speed transfer case have
no NEUTRAL position, and therefore mustbe towed will
all four wheels OFFthe ground.
CAUTION!
•Front or rear wheel lifts must not be used (if the
remaining wheels are on the ground). Internal dam-
age to the transmission or transfer case will occur if
a front or rear wheel lift is used when towing.
• Towing this vehicle in violation of the above require-
ments can cause severe transmission and/or transfer
case damage. Damage from improper towing is not
covered under the New Vehicle Limited Warranty.
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Enhanced Accident Re-
sponse System (EARS) function.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data that
will assist in understanding how a vehicle’s systems per-
formed under certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle.
Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Event Data Recorder (EDR).7
IN CASE OF EMERGENCY 405

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................409
▫ Maintenance Plan ..................... .410
▫ Heavy Duty Use Of The Vehicle ............413
 ENGINE COMPARTMENT .................414
▫ 3.6L Engine ..........................414
▫ 5.7L Engine ..........................415
▫ Checking Oil Level .....................416
▫ Adding Washer Fluid ...................416
▫ Maintenance-Free Battery .................416
 DEALER SERVICE .......................417
▫ Engine Oil .......................... .418
▫ Engine Oil Filter .......................420
▫ Engine Air Cleaner Filter .................420
▫ Air Conditioner Maintenance ..............420▫
Accessory Drive Belt Inspection ............424
▫ Body Lubrication ..................... .425
▫ Windshield Wiper Blades .................426
▫ Exhaust System ........................430
▫ Cooling System ........................432
▫ Brake System ........................ .436
▫ Automatic Transmission ..................438
▫ Front/Rear Axle Fluid ...................439
▫ Transfer Case ........................ .440
 RAISING THE VEHICLE ..................441
 TIRES ............................... .441
▫ Tire Safety Information ..................441
▫ Tir

es — General Information ..............450
▫ Tire Types ............................456
8

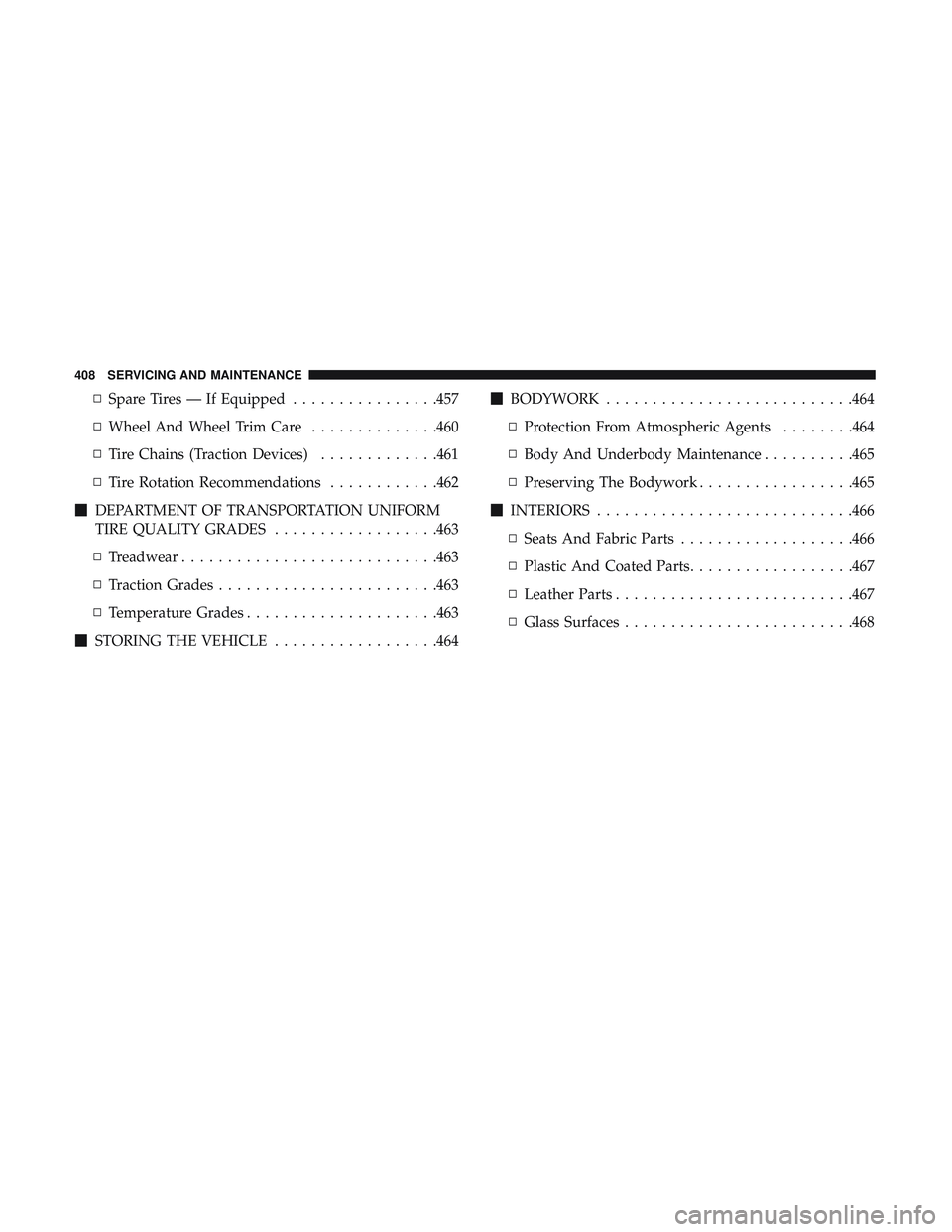

▫Spare Tires — If Equipped ................457
▫ Wheel And Wheel Trim Care ..............460
▫ Tire Chains (Traction Devices) .............461
▫ Tire Rotation Recommendations ............462
 DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES ..................463
▫ Treadwear ............................463
▫ Traction Grades ........................463
▫ Temperature Grades .....................463
 STORING THE VEHICLE ..................464
BODYWORK .......................... .464
▫ Protection From Atmospheric Agents ........464
▫ Body And Underbody Maintenance ..........465
▫ Preserving The Bodywork .................465
 INTERIORS ............................466
▫ Seats And Fabric Parts ...................466
▫ Plastic And Coated Parts ..................467
▫ Leather Parts ..........................467
▫ Glass Surfaces ........................ .468
408 SERVICING AND MAINTENANCE
