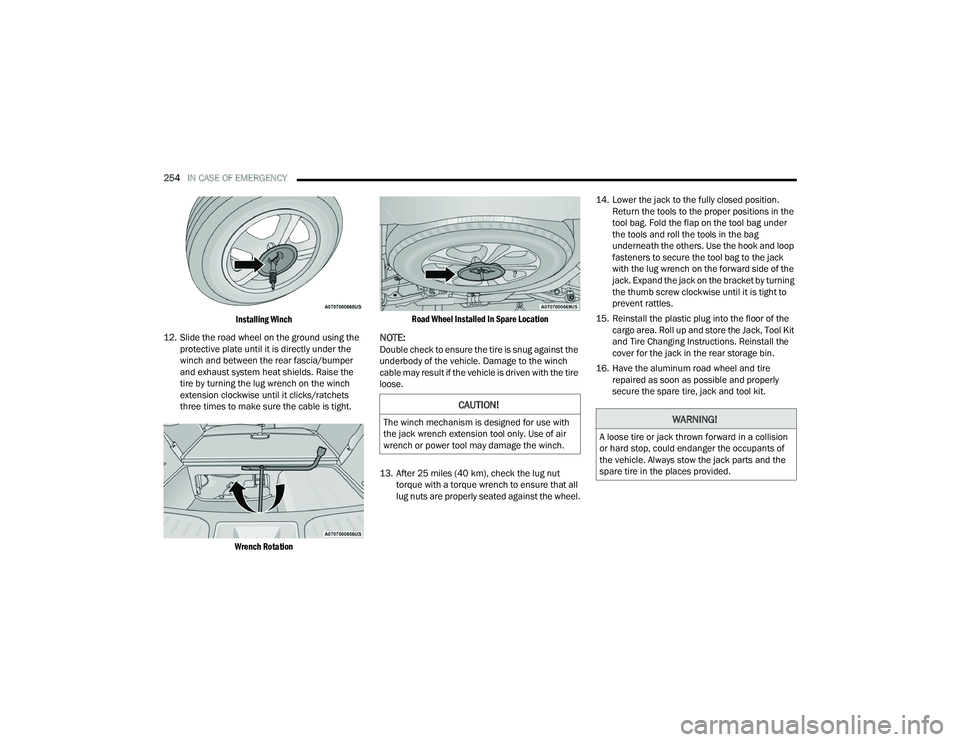

254IN CASE OF EMERGENCY

Installing Winch

12. Slide the road wheel on the ground using the protective plate until it is directly under the
winch and between the rear fascia/bumper
and exhaust system heat shields. Raise the
tire by turning the lug wrench on the winch
extension clockwise until it clicks/ratchets
three times to make sure the cable is tight.

Wrench Rotation Road Wheel Installed In Spare Location

NOTE:Double check to ensure the tire is snug against the
underbody of the vehicle. Damage to the winch
cable may result if the vehicle is driven with the tire
loose.
13. After 25 miles (40 km), check the lug nut
torque with a torque wrench to ensure that all
lug nuts are properly seated against the wheel. 14. Lower the jack to the fully closed position.
Return the tools to the proper positions in the
tool bag. Fold the flap on the tool bag under
the tools and roll the tools in the bag
underneath the others. Use the hook and loop
fasteners to secure the tool bag to the jack
with the lug wrench on the forward side of the
jack. Expand the jack on the bracket by turning
the thumb screw clockwise until it is tight to
prevent rattles.
15. Reinstall the plastic plug into the floor of the cargo area. Roll up and store the Jack, Tool Kit
and Tire Changing Instructions. Reinstall the
cover for the jack in the rear storage bin.
16. Have the aluminum road wheel and tire repaired as soon as possible and properly
secure the spare tire, jack and tool kit.
CAUTION!
The winch mechanism is designed for use with
the jack wrench extension tool only. Use of air
wrench or power tool may damage the winch.WARNING!
A loose tire or jack thrown forward in a collision
or hard stop, could endanger the occupants of
the vehicle. Always stow the jack parts and the
spare tire in the places provided.

21_WD_OM_EN_USC_t.book Page 254

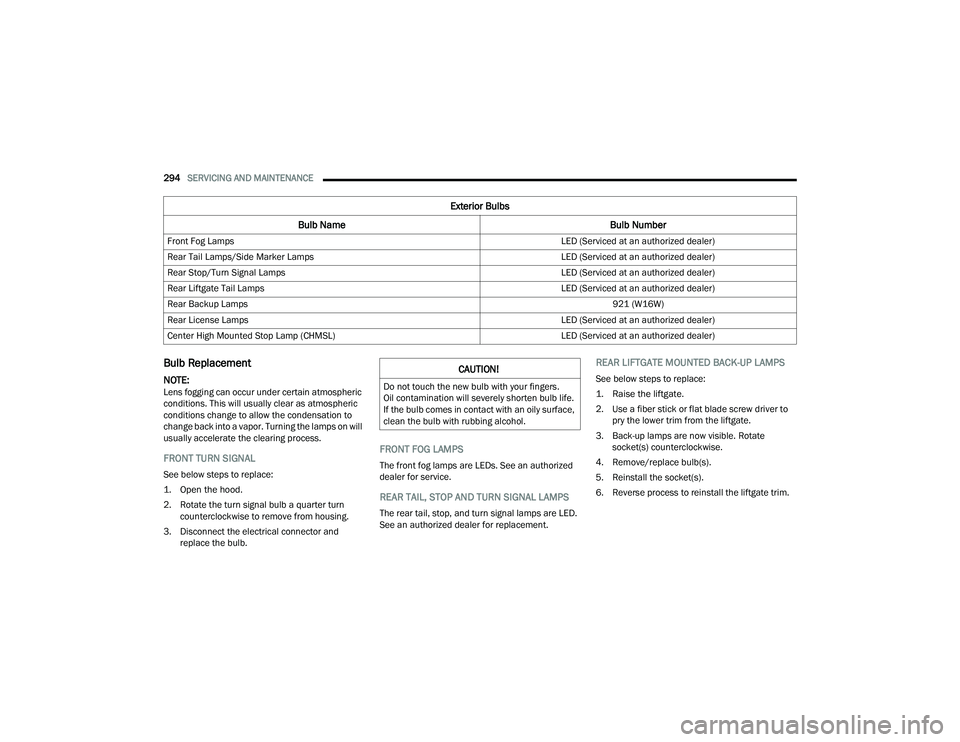

294SERVICING AND MAINTENANCE
Bulb Replacement
NOTE:Lens fogging can occur under certain atmospheric
conditions. This will usually clear as atmospheric
conditions change to allow the condensation to
change back into a vapor. Turning the lamps on will
usually accelerate the clearing process.
FRONT TURN SIGNAL
See below steps to replace:

1. Open the hood.

2. Rotate the turn signal bulb a quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and replace the bulb.
FRONT FOG LAMPS
The front fog lamps are LEDs. See an authorized
dealer for service.
REAR TAIL, STOP AND TURN SIGNAL LAMPS
The rear tail, stop, and turn signal lamps are LED.
See an authorized dealer for replacement.
REAR LIFTGATE MOUNTED BACK-UP LAMPS
See below steps to replace:

1. Raise the liftgate.

2. Use a fiber stick or flat blade screw driver to pry the lower trim from the liftgate.
3. Back-up lamps are now visible. Rotate socket(s) counterclockwise.
4. Remove/replace bulb(s).
5. Reinstall the socket(s).
6. Reverse process to reinstall the liftgate trim.
Front Fog Lamps
LED (Serviced at an authorized dealer)
Rear Tail Lamps/Side Marker Lamps LED (Serviced at an authorized dealer)
Rear Stop/Turn Signal Lamps LED (Serviced at an authorized dealer)
Rear Liftgate Tail Lamps LED (Serviced at an authorized dealer)
Rear Backup Lamps 921 (W16W)
Rear License Lamps LED (Serviced at an authorized dealer)
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an authorized dealer)
Exterior Bulbs
Bulb Name Bulb Number
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb life.
If the bulb comes in contact with an oily surface,
clean the bulb with rubbing alcohol.

21_WD_OM_EN_USC_t.book Page 294
