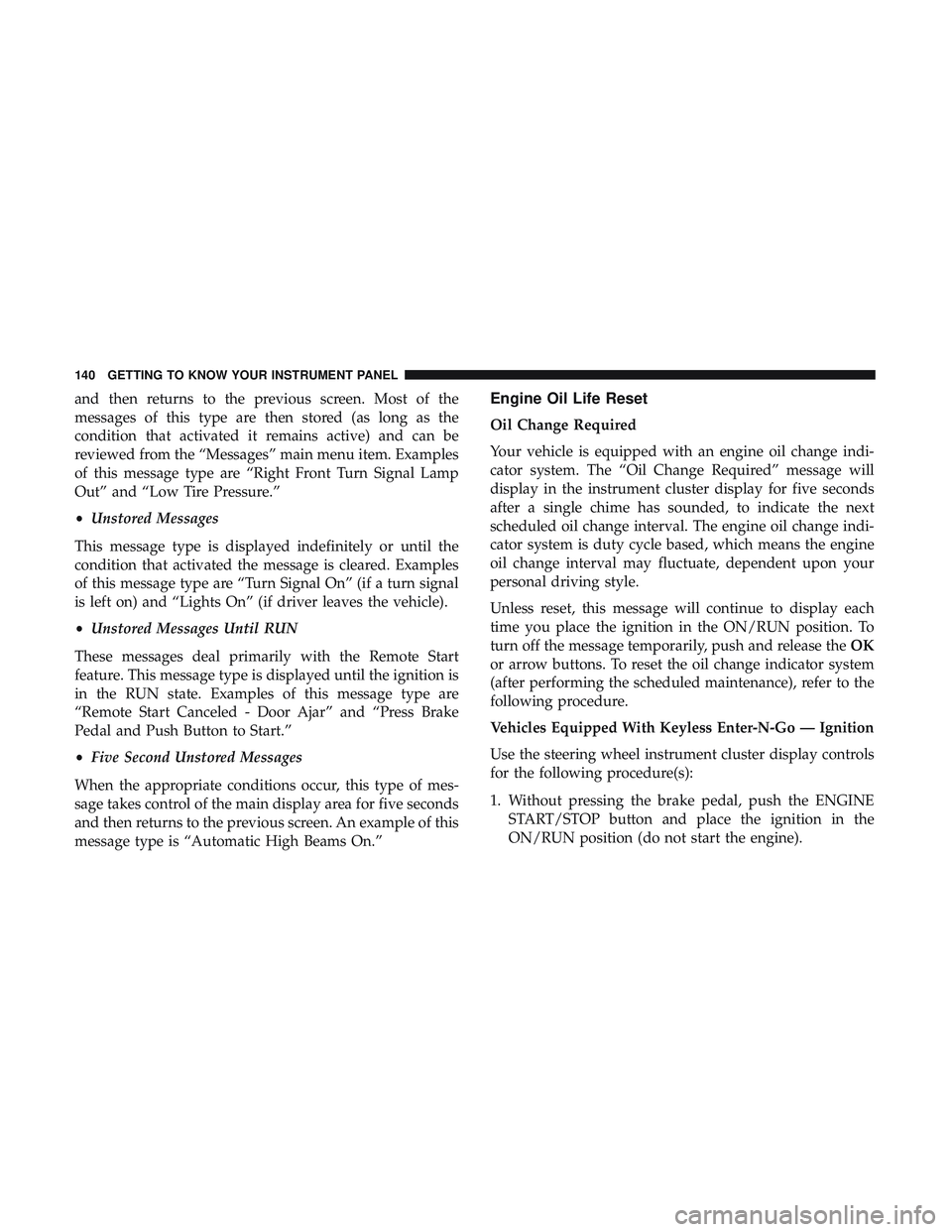

and then returns to the previous screen. Most of the
messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the “Messages” main menu item. Examples
of this message type are “Right Front Turn Signal Lamp
Out” and “Low Tire Pressure.”
•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition is
in the RUN state. Examples of this message type are
“Remote Start Canceled - Door Ajar” and “Press Brake
Pedal and Push Button to Start.”
• Five Second Unstored Messages
When the appropriate conditions occur, this type of mes-
sage takes control of the main display area for five seconds
and then returns to the previous screen. An example of this
message type is “Automatic High Beams On.”Engine Oil Life Reset
Oil Change Required
Your vehicle is equipped with an engine oil change indi-
cator system. The “Oil Change Required” message will
display in the instrument cluster display for five seconds
after a single chime has sounded, to indicate the next
scheduled oil change interval. The engine oil change indi-
cator system is duty cycle based, which means the engine
oil change interval may fluctuate, dependent upon your
personal driving style.
Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To
turn off the message temporarily, push and release the OK
or arrow buttons. To reset the oil change indicator system
(after performing the scheduled maintenance), refer to the
following procedure.
Vehicles Equipped With Keyless Enter-N-Go — Ignition
Use the steering wheel instrument cluster display controls
for the following procedure(s):
1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition in the
ON/RUN position (do not start the engine).
140 GETTING TO KNOW YOUR INSTRUMENT PANEL

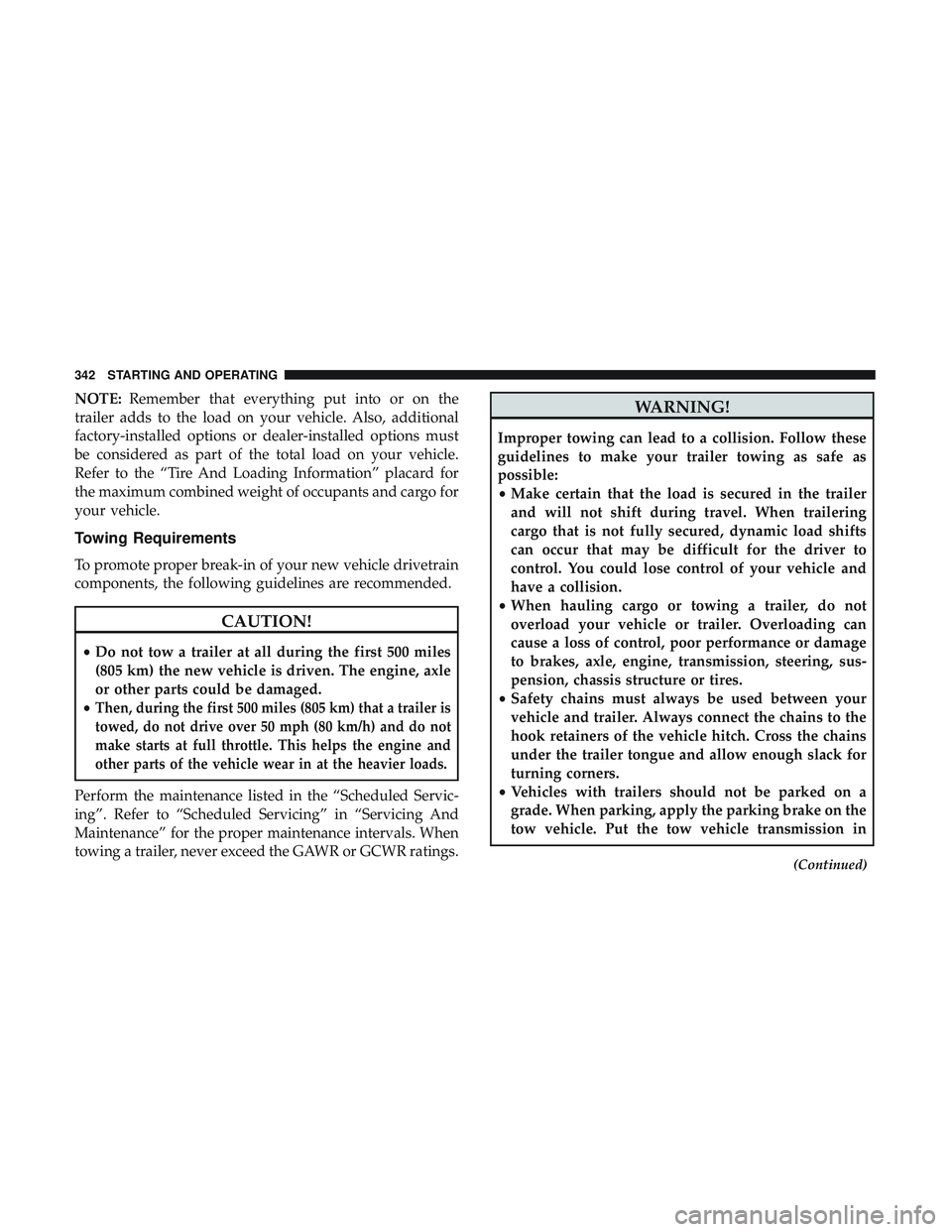

NOTE:Remember that everything put into or on the
trailer adds to the load on your vehicle. Also, additional
factory-installed options or dealer-installed options must
be considered as part of the total load on your vehicle.
Refer to the “Tire And Loading Information” placard for
the maximum combined weight of occupants and cargo for
your vehicle.
Towing Requirements
To promote proper break-in of your new vehicle drivetrain
components, the following guidelines are recommended.
CAUTION!
• Do not tow a trailer at all during the first 500 miles
(805 km) the new vehicle is driven. The engine, axle
or other parts could be damaged.
•
Then, during the first 500 miles (805 km) that a trailer is
towed, do not drive over 50 mph (80 km/h) and do not
make starts at full throttle. This helps the engine and
other parts of the vehicle wear in at the heavier loads.
Perform the maintenance listed in the “Scheduled Servic-
ing”. Refer to “Scheduled Servicing” in “Servicing And
Maintenance” for the proper maintenance intervals. When
towing a trailer, never exceed the GAWR or GCWR ratings.
WARNING!
Improper towing can lead to a collision. Follow these
guidelines to make your trailer towing as safe as
possible:
• Make certain that the load is secured in the trailer
and will not shift during travel. When trailering
cargo that is not fully secured, dynamic load shifts
can occur that may be difficult for the driver to
control. You could lose control of your vehicle and
have a collision.
• When hauling cargo or towing a trailer, do not
overload your vehicle or trailer. Overloading can
cause a loss of control, poor performance or damage
to brakes, axle, engine, transmission, steering, sus-
pension, chassis structure or tires.
• Safety chains must always be used between your
vehicle and trailer. Always connect the chains to the
hook retainers of the vehicle hitch. Cross the chains
under the trailer tongue and allow enough slack for
turning corners.
• Vehicles with trailers should not be parked on a
grade. When parking, apply the parking brake on the
tow vehicle. Put the tow vehicle transmission in
(Continued)
342 STARTING AND OPERATING

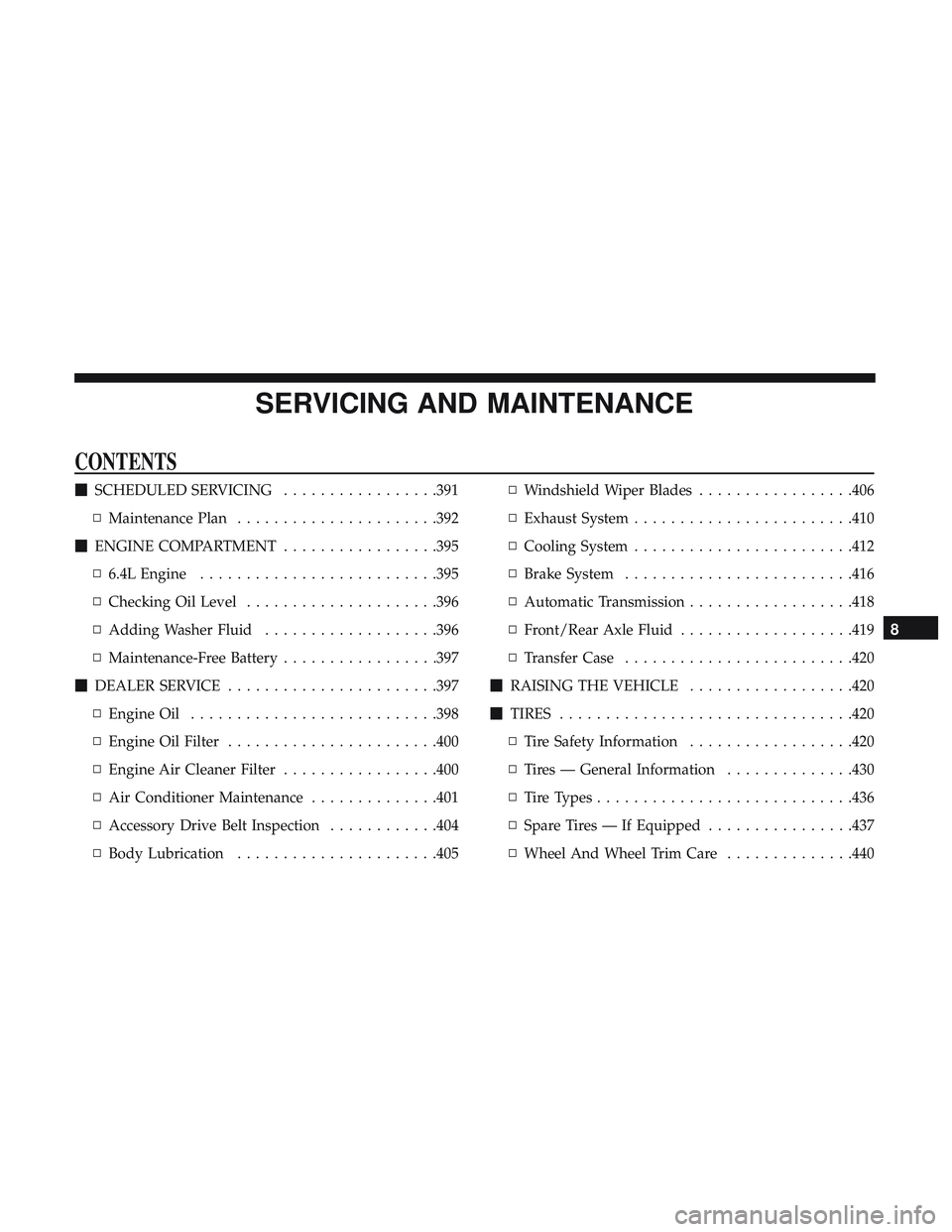

SERVICING AND MAINTENANCE
CONTENTS
SCHEDULED SERVICING .................391
▫ Maintenance Plan ..................... .392
 ENGINE COMPARTMENT .................395
▫ 6.4L Engine ..........................395
▫ Checking Oil Level .....................396
▫ Adding Washer Fluid ...................396
▫ Maintenance-Free Battery .................397
 DEALER SERVICE .......................397
▫ Engine Oil .......................... .398
▫ Engine Oil Filter .......................400
▫ Engine Air Cleaner Filter .................400
▫ Air Conditioner Maintenance ..............401
▫ Accessory Drive Belt Inspection ............404
▫ Body Lubrication ..................... .405▫
Windshield Wiper Blades .................406
▫ Exhaust System ........................410
▫ Cooling System ........................412
▫ Brake System ........................ .416
▫ Automatic Transmission ..................418
▫ Front/Rear Axle Fluid ...................419
▫ Transfer Case ........................ .420
 RAISING THE VEHICLE ..................420
 TIRES ............................... .420
▫ Tire Safety Information ..................420
▫ Tires — General Information ..............430
▫ Tire Types ............................436
▫ Spar e

Tires — If Equipped ................437
▫ Wheel And Wheel Trim Care ..............440
8

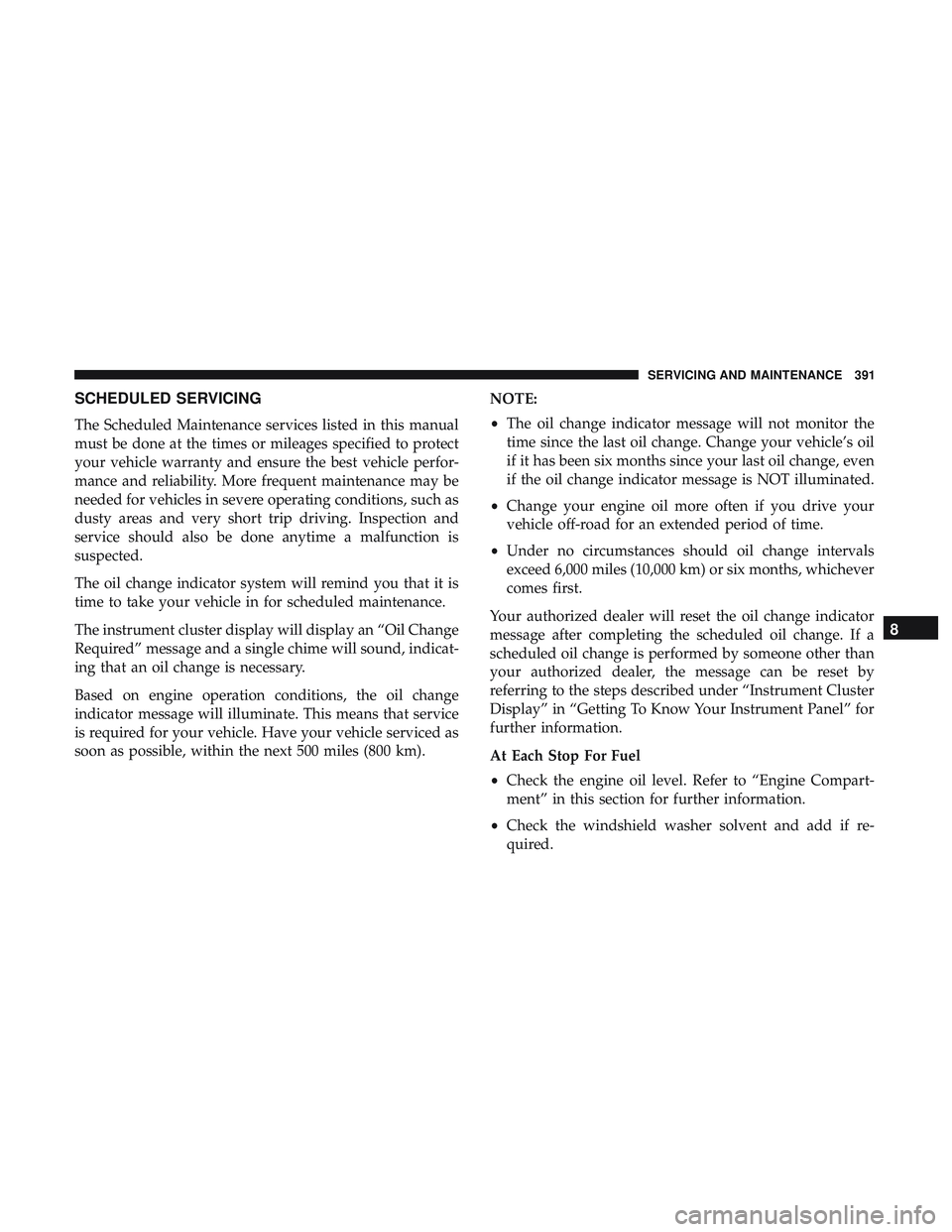

SCHEDULED SERVICING
The Scheduled Maintenance services listed in this manual
must be done at the times or mileages specified to protect
your vehicle warranty and ensure the best vehicle perfor-
mance and reliability. More frequent maintenance may be
needed for vehicles in severe operating conditions, such as
dusty areas and very short trip driving. Inspection and
service should also be done anytime a malfunction is
suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
The instrument cluster display will display an “Oil Change
Required” message and a single chime will sound, indicat-
ing that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Have your vehicle serviced as
soon as possible, within the next 500 miles (800 km).NOTE:
•
The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s oil
if it has been six months since your last oil change, even
if the oil change indicator message is NOT illuminated.
• Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
• Under no circumstances should oil change intervals
exceed 6,000 miles (10,000 km) or six months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information.
At Each Stop For Fuel
• Check the engine oil level. Refer to “Engine Compart-
ment” in this section for further information.
• Check the windshield washer solvent and add if re-
quired.
8
SERVICING AND MAINTENANCE 391

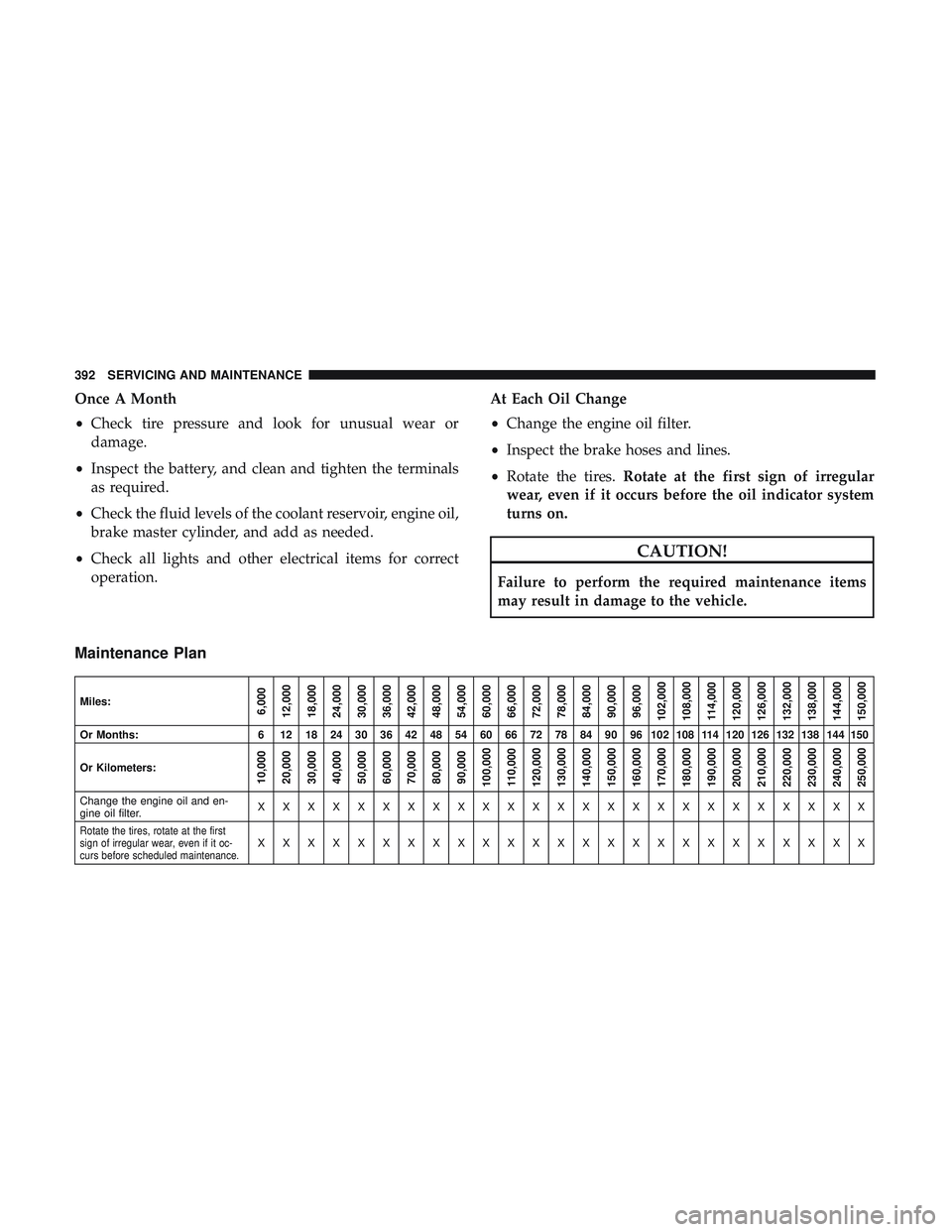

Once A Month
•Check tire pressure and look for unusual wear or
damage.
• Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, engine oil,
brake master cylinder, and add as needed.
• Check all lights and other electrical items for correct
operation. At Each Oil Change
•
Change the engine oil filter.
• Inspect the brake hoses and lines.
• Rotate the tires. Rotate at the first sign of irregular
wear, even if it occurs before the oil indicator system
turns on.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Maintenance Plan
Miles:6,000
12,000
18,000
24,000
30,000
36,000
42,000
48,000
54,000
60,000
66,000
72,000
78,000
84,000
90,000
96,000
102,000
108,000 114,000
120,000
126,000
132,000
138,000
144,000
150,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120 126 132 138 144 150
Or Kilometers:
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
160,000
170,000
180,000
190,000
200,000
210,000
220,000
230,000
240,000
250,000
Change the engine oil and en-
gine oil filter. XXXXXXXXXXXXXXXXXXXXXXXXX
Rotate the tires, rotate at the first
sign of irregular wear, even if it oc-
curs before scheduled maintenance.XXXXXXXXXXXXXXXXXXXXXXXXX
392 SERVICING AND MAINTENANCE

WARNING!
You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a service
job, take your vehicle to a competent mechanic.

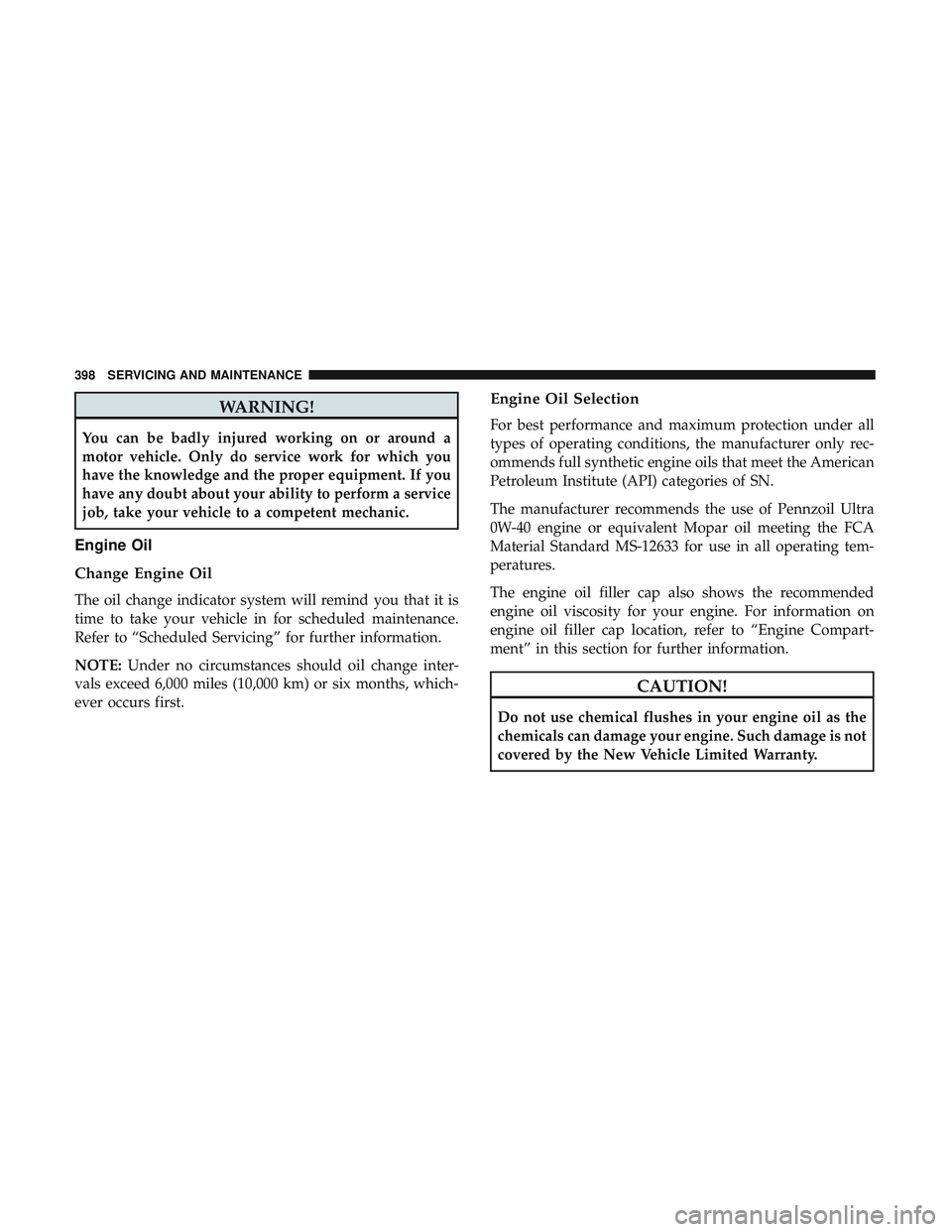

Engine Oil
Change Engine Oil
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to “Scheduled Servicing” for further information.
NOTE:Under no circumstances should oil change inter-
vals exceed 6,000 miles (10,000 km) or six months, which-
ever occurs first.
Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer only rec-
ommends full synthetic engine oils that meet the American
Petroleum Institute (API) categories of SN.
The manufacturer recommends the use of Pennzoil Ultra
0W-40 engine or equivalent Mopar oil meeting the FCA
Material Standard MS-12633 for use in all operating tem-
peratures.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in this section for further information.
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is not
covered by the New Vehicle Limited Warranty.
398 SERVICING AND MAINTENANCE

NOTE:Use only manufacturer approved A/C system
PAG compressor oil, and refrigerants.

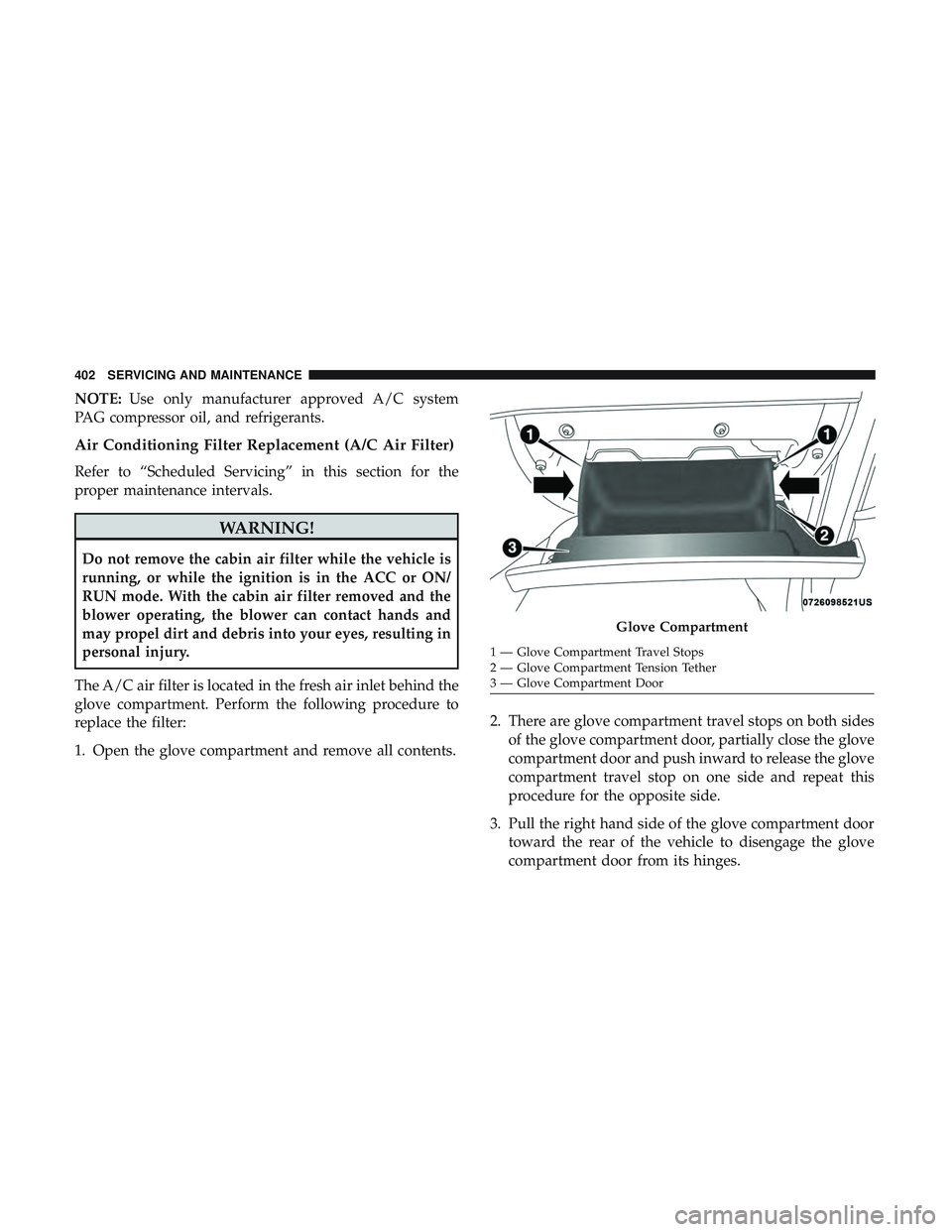

Air Conditioning Filter Replacement (A/C Air Filter)
Refer to “Scheduled Servicing” in this section for the
proper maintenance intervals.
WARNING!
Do not remove the cabin air filter while the vehicle is
running, or while the ignition is in the ACC or ON/
RUN mode. With the cabin air filter removed and the
blower operating, the blower can contact hands and
may propel dirt and debris into your eyes, resulting in
personal injury.
The A/C air filter is located in the fresh air inlet behind the
glove compartment. Perform the following procedure to
replace the filter:
1. Open the glove compartment and remove all contents. 2. There are glove compartment travel stops on both sides
of the glove compartment door, partially close the glove
compartment door and push inward to release the glove
compartment travel stop on one side and repeat this
procedure for the opposite side.
3. Pull the right hand side of the glove compartment door toward the rear of the vehicle to disengage the glove
compartment door from its hinges.
Glove Compartment
1 — Glove Compartment Travel Stops
2 — Glove Compartment Tension Tether
3 — Glove Compartment Door
402 SERVICING AND MAINTENANCE

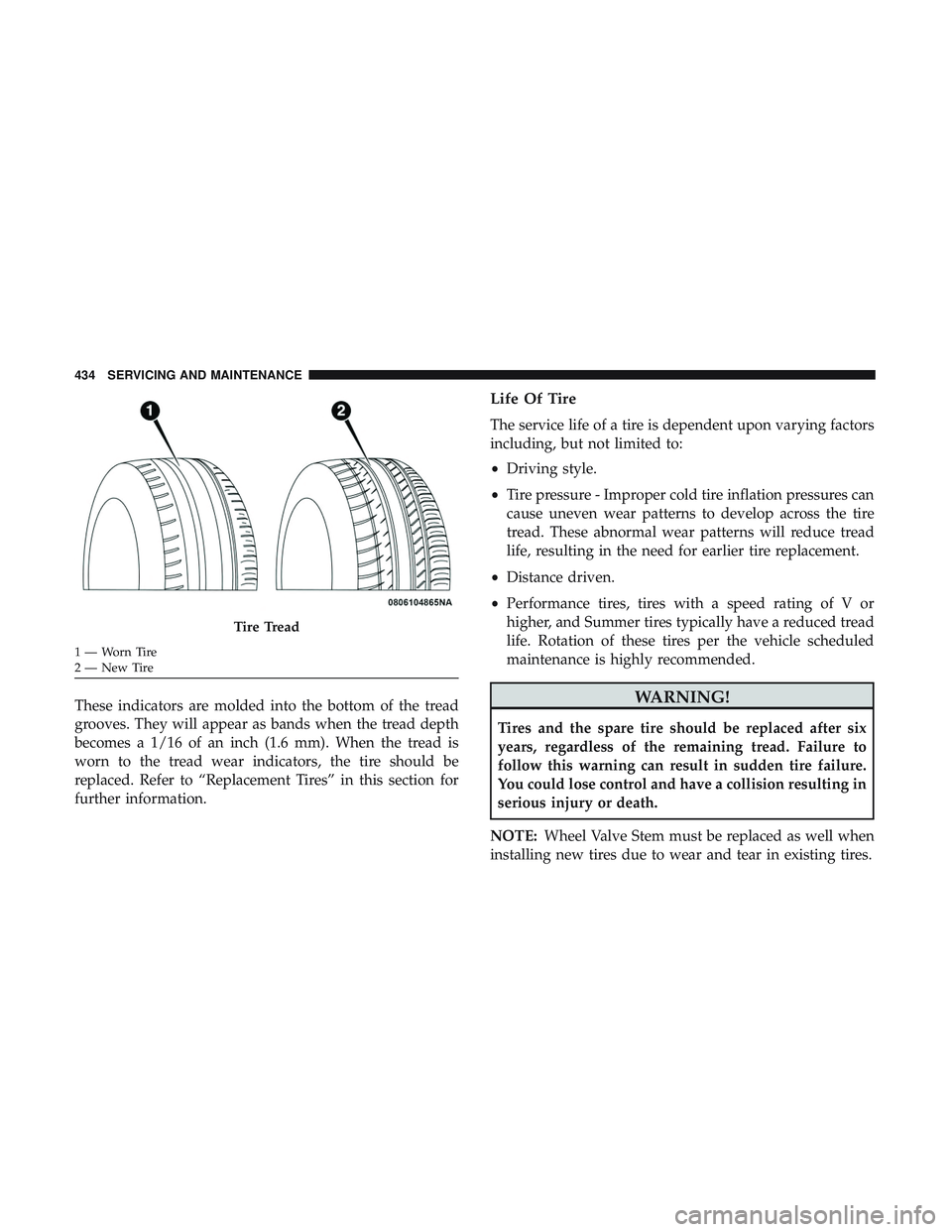

These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes a 1/16 of an inch (1.6 mm). When the tread is
worn to the tread wear indicators, the tire should be
replaced. Refer to “Replacement Tires” in this section for
further information.
Life Of Tire
The service life of a tire is dependent upon varying factors
including, but not limited to:
•Driving style.
• Tire pressure - Improper cold tire inflation pressures can
cause uneven wear patterns to develop across the tire
tread. These abnormal wear patterns will reduce tread
life, resulting in the need for earlier tire replacement.
• Distance driven.
• Performance tires, tires with a speed rating of V or
higher, and Summer tires typically have a reduced tread
life. Rotation of these tires per the vehicle scheduled
maintenance is highly recommended.
WARNING!
Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have a collision resulting in
serious injury or death.
NOTE: Wheel Valve Stem must be replaced as well when
installing new tires due to wear and tear in existing tires.
Tire Tread
1—WornTire
2—NewTire 434 SERVICING AND MAINTENANCE

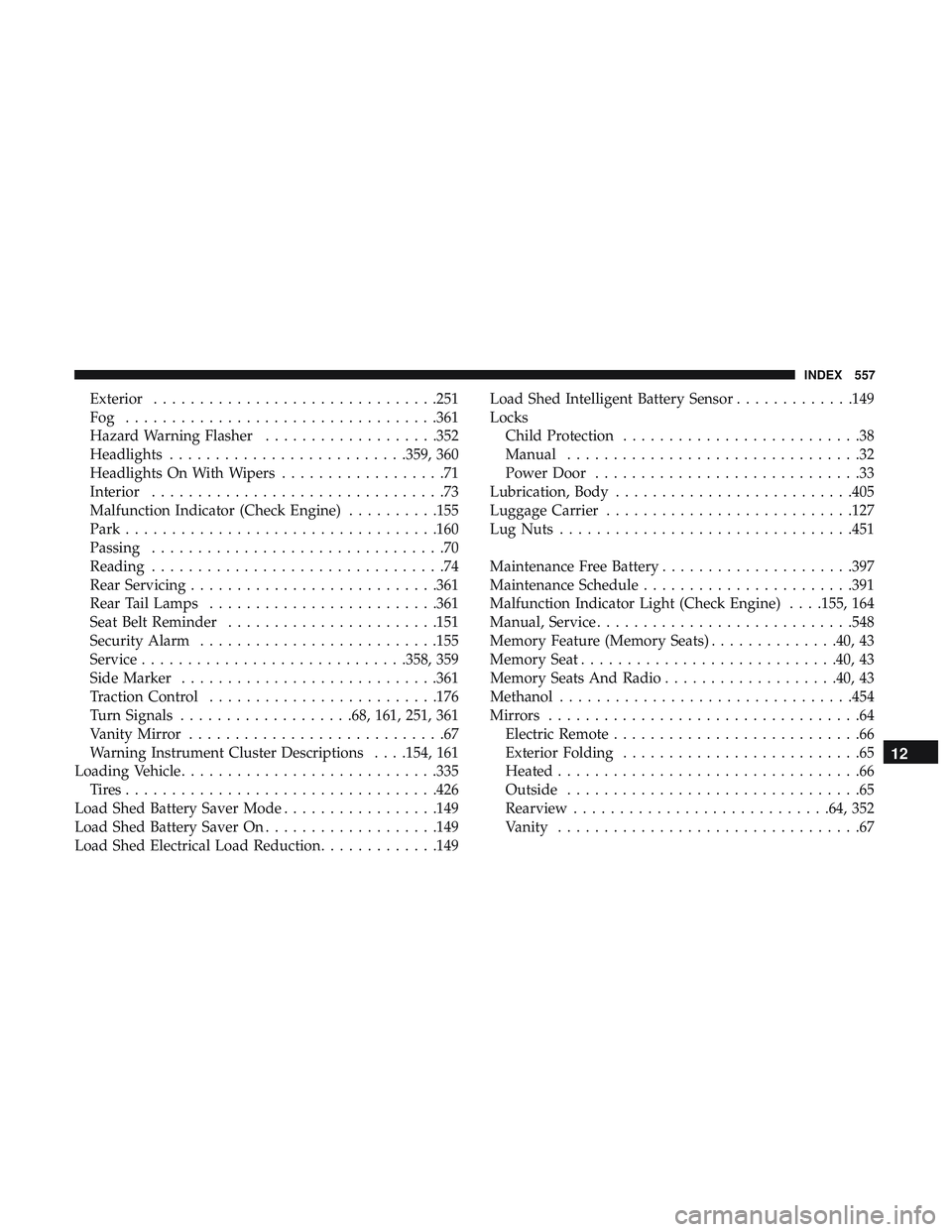

Exterior...............................251
Fog ..................................361
Hazard Warning Flasher ...................352
Headlights ..........................359, 360
Headlights On With Wipers ..................71
Interior ................................73
Malfunction Indicator (Check Engine) ..........155
Park ................................. .160
Passing ................................70
Reading ................................74
Rear Servicing .......................... .361
Rear Tail Lamps ........................ .361
Seat Belt Reminder .......................151
Security Alarm ..........................155
Service ............................ .358, 359
Side Marker ............................361
Traction Control ........................ .176
Turn Signals ...................68, 161, 251, 361
Vanity Mirror ............................67
Warning Instrument Cluster Descriptions . . . .154, 161
Loading Vehicle ............................335
Tires................................. .426
Load Shed Battery Saver Mode .................149
Load Shed Battery Saver On ...................149
Load Shed Electrical Load Reduction .............149Load Shed Intelligent Battery Sensor
.............149
Locks Child Protection ..........................38
Manual ................................32
Power Door .............................33
Lubrication, Body ..........................405
Luggage Carrier .......................... .127
Lug Nuts ............................... .451
Maintenance Free Battery .....................397
Maintenance Schedule .......................391
Malfunction Indicator Light (Check Engine) . . . .155, 164
Manual, Service ............................548
Memory Feature (Memory Seats) ..............40, 43
Memory Seat ............................40, 43
Memory

Seats And Radio ...................40, 43
Methanol ............................... .454
Mirrors ..................................64
Electric Remote ...........................66
Exterior Folding ..........................65
Heated .................................66
Outside ................................65
Rearview ............................64, 352
Vanity .................................67
12
INDEX 557

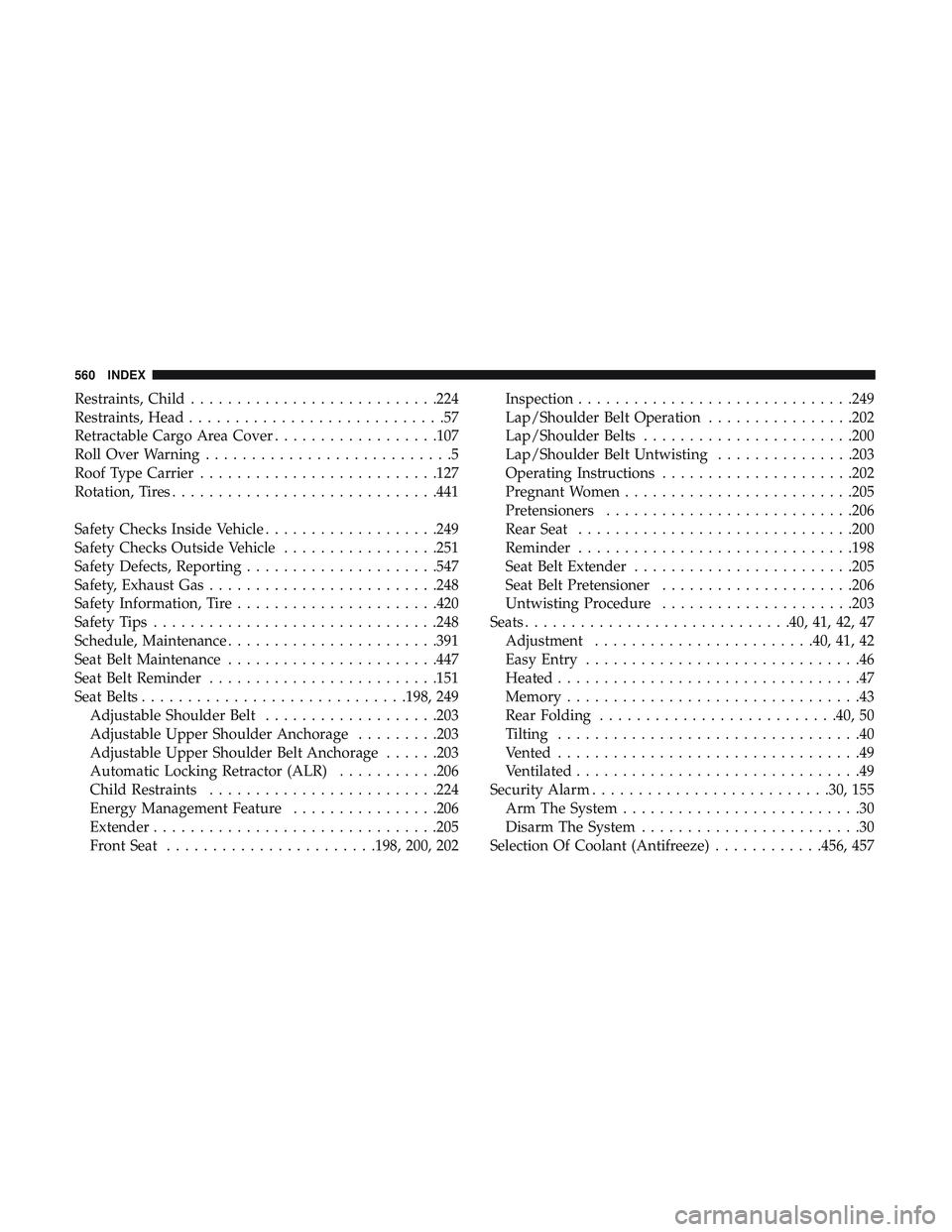

Restraints, Child.......................... .224
Restraints, Head ............................57
Retractable Cargo Area Cover ..................107
Roll Over Warning ...........................5
Roof Type Carrier ..........................127
Rotation, Tires ............................ .441
Safety Checks Inside Vehicle ...................249
Safety Checks Outside Vehicle .................251
Safety Defects, Reporting .....................547
Safety, Exhaust Gas ........................ .248
Safety Information, Tire ..................... .420
Safety Tips ...............................248
Schedule, Maintenance .......................391
Seat Belt Maintenance .......................447
Seat Belt Reminder ........................ .151
Seat Belts ............................ .198, 249
Adjustable Shoulder Belt ...................203
Adjustable Upper Shoulder Anchorage .........203
Adjustable Upper Shoulder Belt Anchorage ......203
Automatic Locking Retractor (ALR) ...........206
Child Restraints ........................ .224
Energy Management Feature ................206
Extender ...............................205
Front Seat .......................198, 200, 202 Inspection
............................. .249
Lap/Shoulder Belt Operation ................202
Lap/Shoulder Belts .......................200
Lap/Shoulder Belt Untwisting ...............203
Operating Instructions .....................202
Pregnant Women ........................ .205
Pretensioners .......................... .206
Rear Seat ............................. .200
Reminder ............................. .198
Seat Belt Extender ........................205
Seat Belt Pretensioner .....................206
Untwisting Pr

ocedure .....................203
Seats ............................ .40, 41, 42, 47
Adjustment ........................40, 41, 42
Easy Entry ..............................46
Heated .................................47
Memory ................................43
Rear Folding ..........................40, 50
Tilting .................................40
Vented .................................49
Ventilated ...............................49
Security Alarm ..........................30, 155
Arm The System ..........................30
Disarm The System ........................30
Selection Of Coolant (Antifreeze) ............456, 457
560 INDEX
