DODGE GRAND CARAVAN 2004 Owner's Guide

If the inside or outside door handles are used while the
power sliding door is activated, the power sliding door
feature will be canceled and the door must be opened or
closed manually.
To avoid unintentional operation of the power sliding
door from the rear seats, press the button located in the
overhead console to disable the switches for the rear seat
passengers.
NOTE:
² If anything obstructs the power sliding door while it is
closing or opening, the door will automatically reverse
to the closed or open position, provided it meets
sufficient resistance.
² The driver's side sliding door cannot be opened while
the fuel door is open. This feature operates only when
the sliding door is fully closed prior to opening the
fuel door. ² The power sliding door must be in the full open or
close position for any of the switches to operate. If the
door is not in the full open or close positions it must be
opened or closed manually.
² The power sliding door switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
² If the power sliding door encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop and must be opened or closed manually.
WARNING!You or others could be injured if caught in the path
of the sliding door. Make sure the door path is clear
before closing the door. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

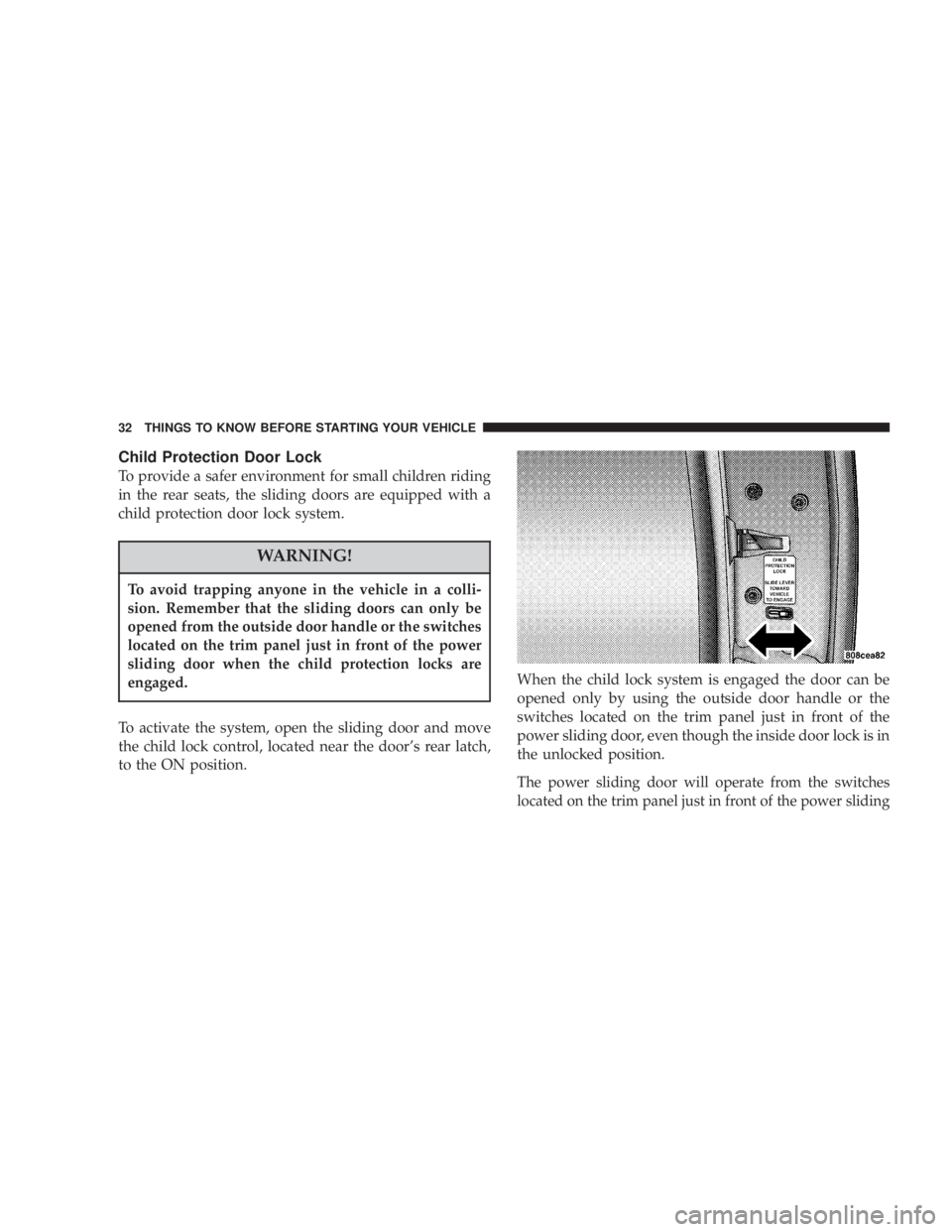

Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the sliding doors are equipped with a
child protection door lock system.
WARNING!To avoid trapping anyone in the vehicle in a colli-
sion. Remember that the sliding doors can only be
opened from the outside door handle or the switches
located on the trim panel just in front of the power
sliding door when the child protection locks are
engaged.
To activate the system, open the sliding door and move
the child lock control, located near the door's rear latch,
to the ON position. When the child lock system is engaged the door can be
opened only by using the outside door handle or the
switches located on the trim panel just in front of the
power sliding door, even though the inside door lock is in
the unlocked position.
The power sliding door will operate from the switches

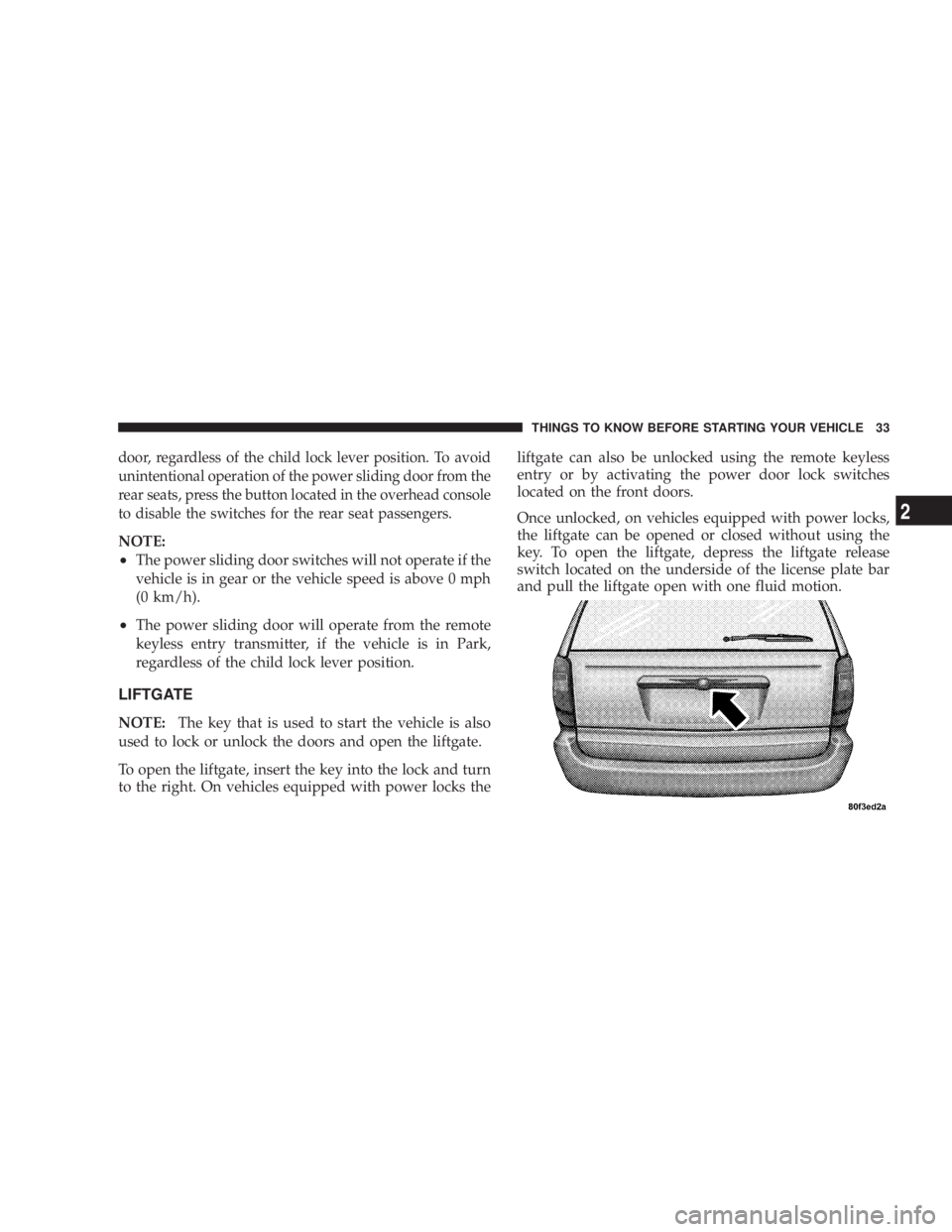

located on the trim panel just in front of the power sliding32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

door, regardless of the child lock lever position. To avoid
unintentional operation of the power sliding door from the
rear seats, press the button located in the overhead console
to disable the switches for the rear seat passengers.
NOTE:
² The power sliding door switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
² The power sliding door will operate from the remote
keyless entry transmitter, if the vehicle is in Park,
regardless of the child lock lever position.
LIFTGATE
NOTE: The key that is used to start the vehicle is also
used to lock or unlock the doors and open the liftgate.
To open the liftgate, insert the key into the lock and turn
to the right. On vehicles equipped with power locks the liftgate can also be unlocked using the remote keyless
entry or by activating the power door lock switches
located on the front doors.
Once unlocked, on vehicles equipped with power locks,
the liftgate can be opened or closed without using the
key. To open the liftgate, depress the liftgate release
switch located on the underside of the license plate bar
and pull the liftgate open with one fluid motion. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

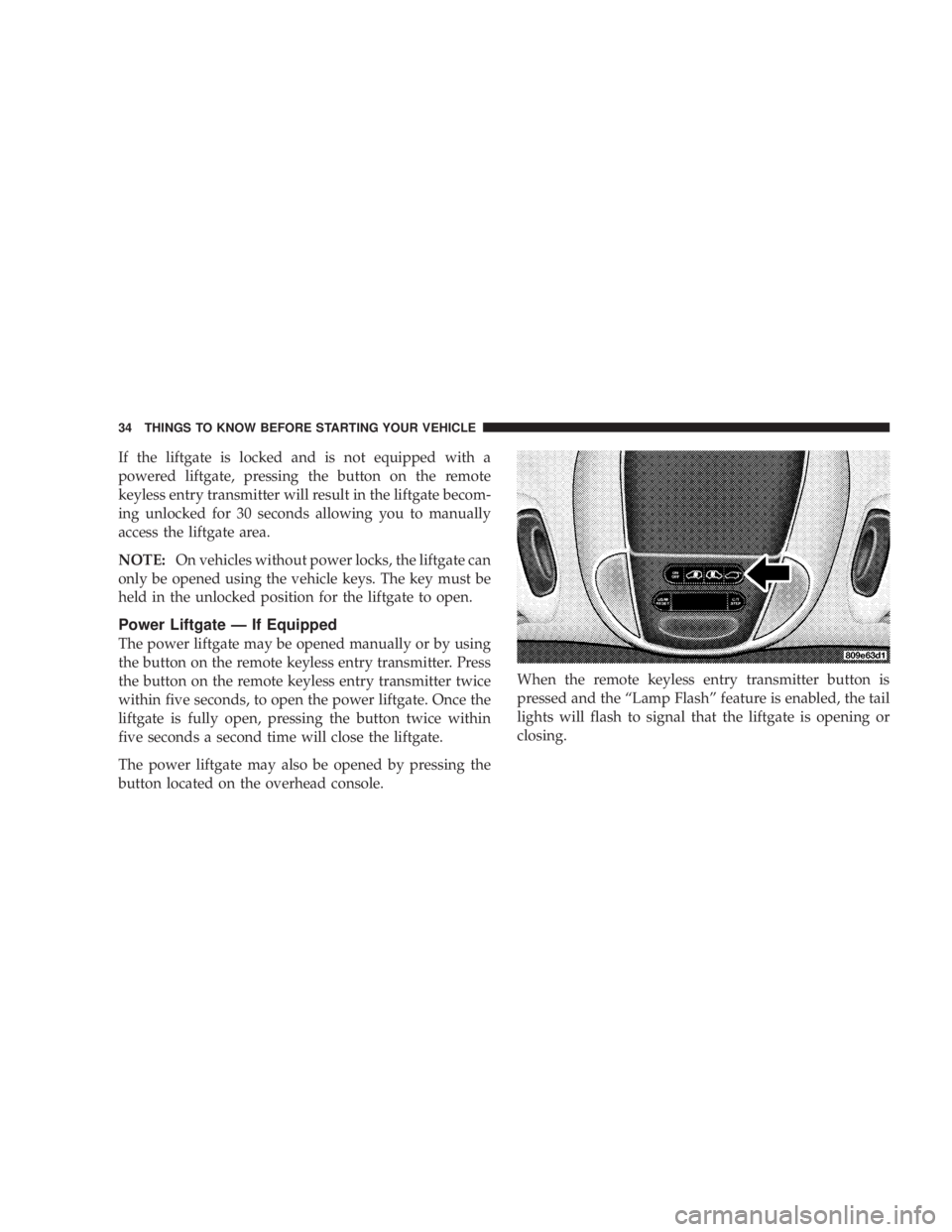

If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button on the remote
keyless entry transmitter will result in the liftgate becom-
ing unlocked for 30 seconds allowing you to manually
access the liftgate area.
NOTE: On vehicles without power locks, the liftgate can
only be opened using the vehicle keys. The key must be
held in the unlocked position for the liftgate to open.
Power Liftgate Ð If Equipped
The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once the
liftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.
The power liftgate may also be opened by pressing the
button located on the overhead console. When the remote keyless entry transmitter button is
pressed and the ªLamp Flashº feature is enabled, the tail
lights will flash to signal that the liftgate is opening or
closing.34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
NOTE:
² If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
² There are also pinch sensors attached to the side of the
liftgate opening. Light pressure anywhere along these
strips will cause the liftgate to return to the open
position. ² The power liftgate must be in the full open or close
positions for any of the buttons to operate. If the
liftgate is not in the full open or close positions it must
be opened or closed manually.
² If the liftgate release button is activated while the
power liftgate is closing, the liftgate will reverse to the
full open position.
² The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
² The power liftgate will not operate in temperatures
below 2 12ÉF ( 2 24ÉC) or temperatures above 143ÉF
(62ÉC). Be sure to remove any build-up of snow or ice
from the liftgate before pressing any of the power
liftgate buttons. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

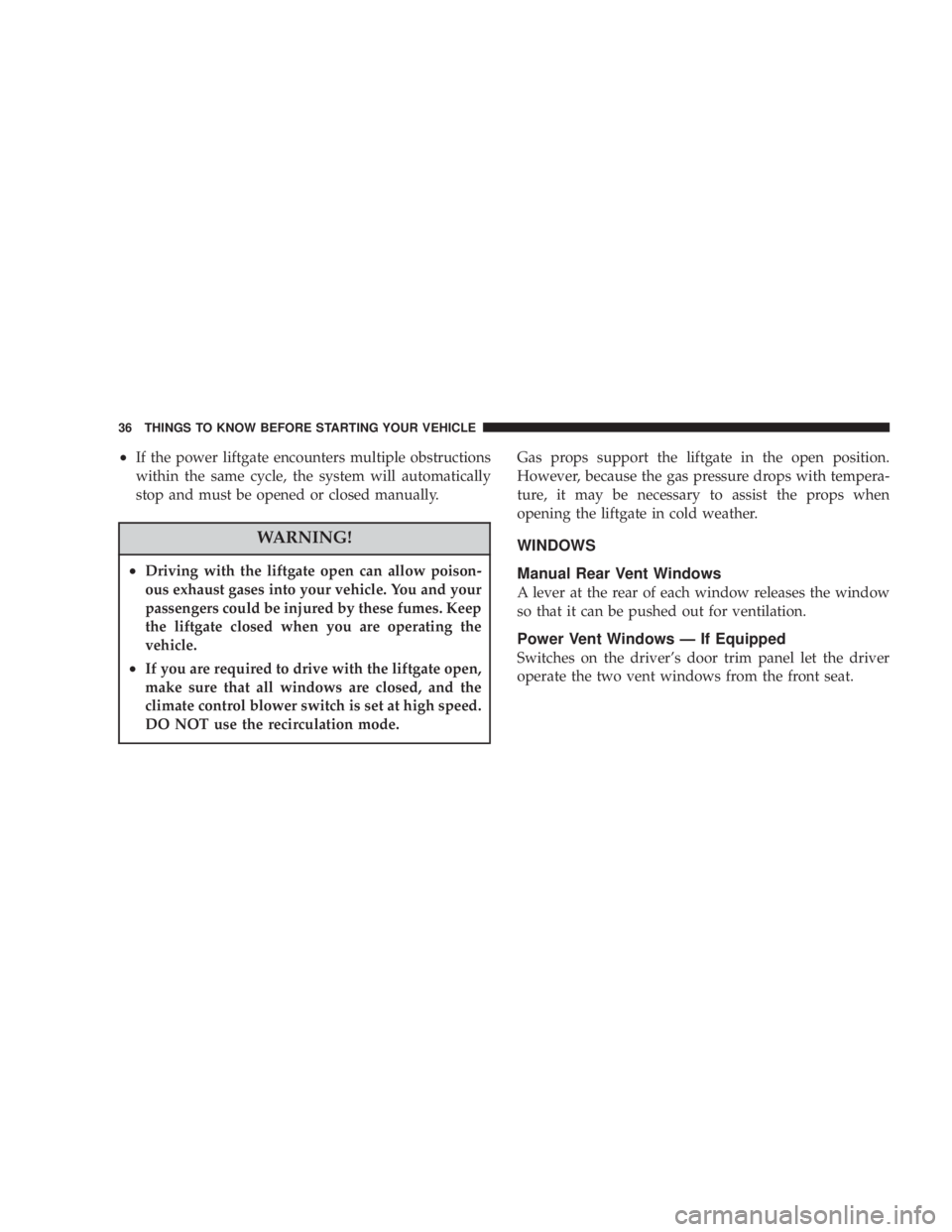

² If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
WARNING!² Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
² If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode. Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
WINDOWS
Manual Rear Vent Windows
A lever at the rear of each window releases the window
so that it can be pushed out for ventilation.
Power Vent Windows Ð If Equipped
Switches on the driver's door trim panel let the driver
operate the two vent windows from the front seat.36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

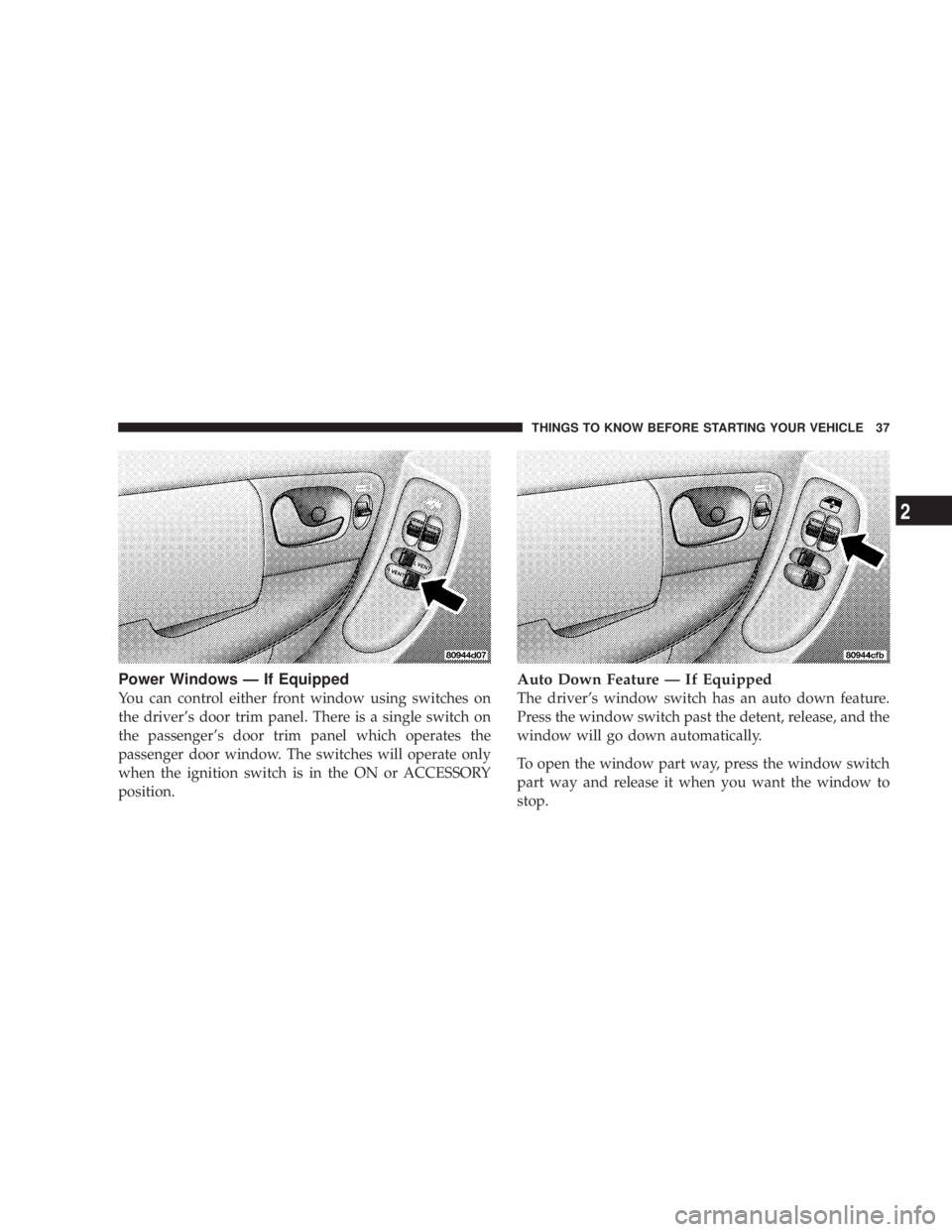

Power Windows Ð If Equipped
You can control either front window using switches on
the driver's door trim panel. There is a single switch on
the passenger's door trim panel which operates the
passenger door window. The switches will operate only
when the ignition switch is in the ON or ACCESSORY
position. Auto Down Feature Ð If Equipped
The driver's window switch has an auto down feature.
Press the window switch past the detent, release, and the
window will go down automatically.
To open the window part way, press the window switch
part way and release it when you want the window to
stop. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

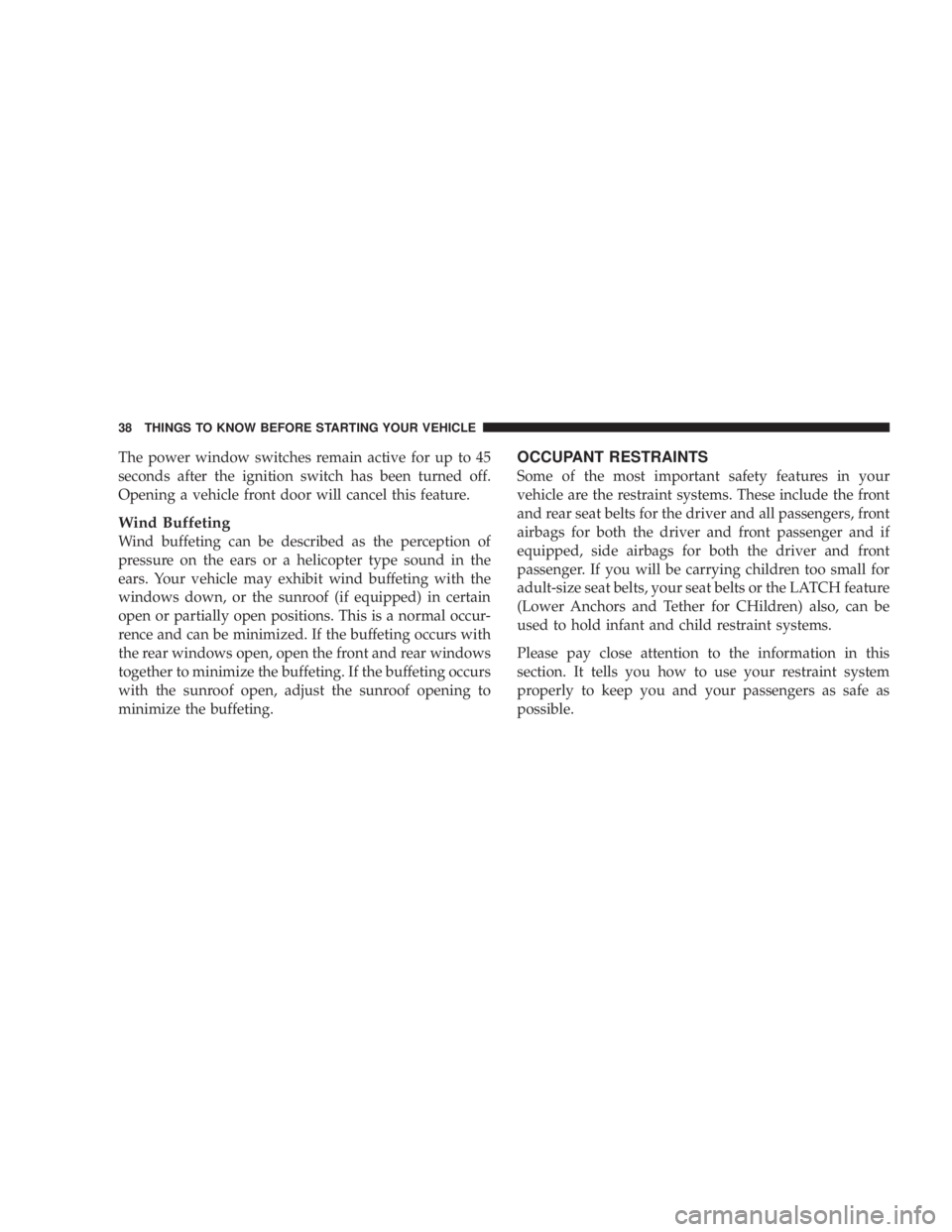

The power window switches remain active for up to 45
seconds after the ignition switch has been turned off.
Opening a vehicle front door will cancel this feature.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting. OCCUPANT RESTRAINTS
Some of the most important safety features in your
vehicle are the restraint systems. These include the front
and rear seat belts for the driver and all passengers, front
airbags for both the driver and front passenger and if
equipped, side airbags for both the driver and front
passenger. If you will be carrying children too small for
adult-size seat belts, your seat belts or the LATCH feature
(Lower Anchors and Tether for CHildren) also, can be
used to hold infant and child restraint systems.
Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly to keep you and your passengers as safe as
possible.38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

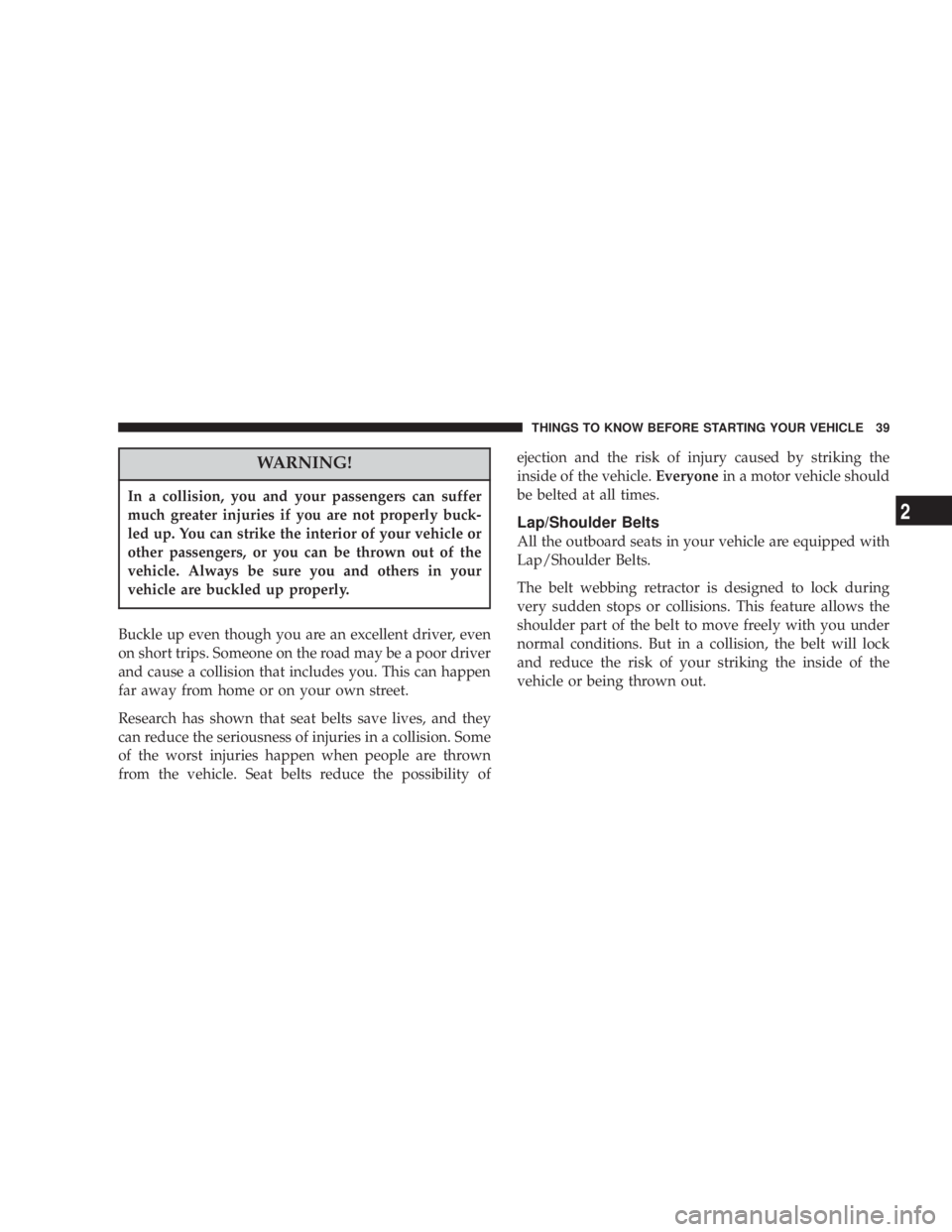

WARNING!In a collision, you and your passengers can suffer
much greater injuries if you are not properly buck-
led up. You can strike the interior of your vehicle or
other passengers, or you can be thrown out of the
vehicle. Always be sure you and others in your
vehicle are buckled up properly.
Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause a collision that includes you. This can happen
far away from home or on your own street.
Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in a collision. Some
of the worst injuries happen when people are thrown
from the vehicle. Seat belts reduce the possibility of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.
Lap/Shoulder Belts
All the outboard seats in your vehicle are equipped with
Lap/Shoulder Belts.
The belt webbing retractor is designed to lock during
very sudden stops or collisions. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. But in a collision, the belt will lock
and reduce the risk of your striking the inside of the
vehicle or being thrown out. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2

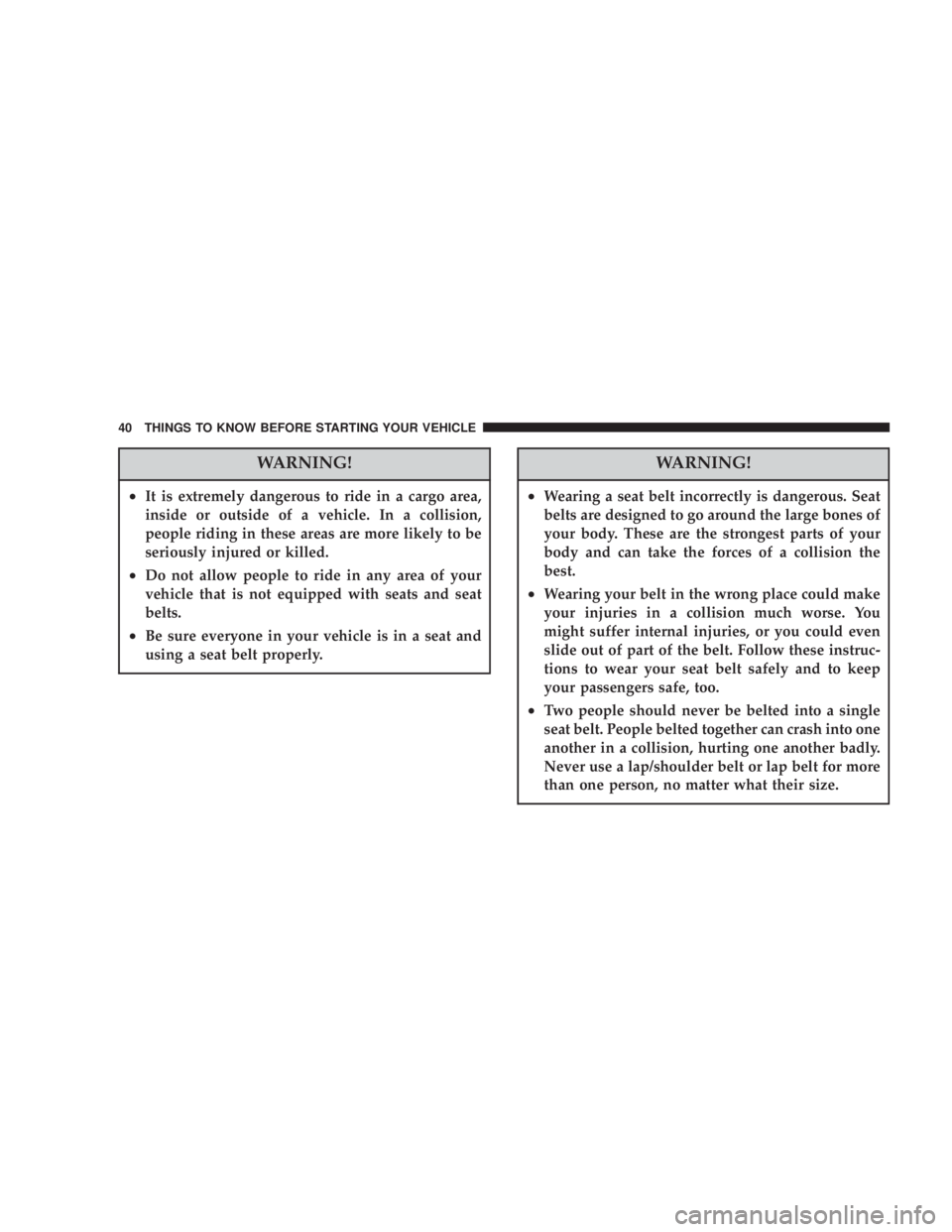

WARNING!² It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
² Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
² Be sure everyone in your vehicle is in a seat and
using a seat belt properly. WARNING!² Wearing a seat belt incorrectly is dangerous. Seat
belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of a collision the
best.
² Wearing your belt in the wrong place could make
your injuries in a collision much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instruc-
tions to wear your seat belt safely and to keep
your passengers safe, too.
² Two people should never be belted into a single
seat belt. People belted together can crash into one
another in a collision, hurting one another badly.
Never use a lap/shoulder belt or lap belt for more
than one person, no matter what their size.40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
