Page 351 of 480

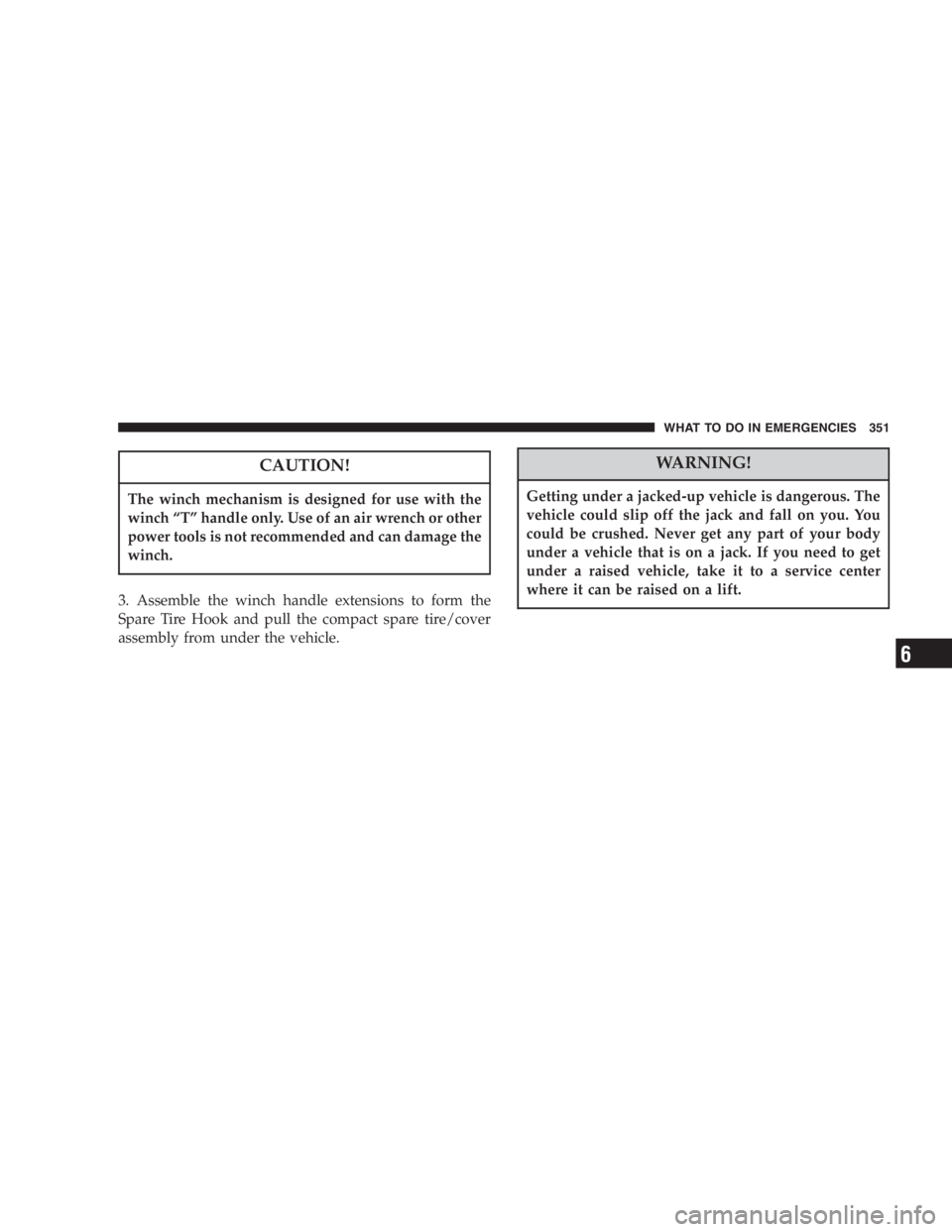

DODGE GRAND CARAVAN 2005  Owners Manual CAUTION!The winch mechanism is designed for use with the
winch “ T ” handle only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
3. Assemble the winch handl

Page 352 of 480

DODGE GRAND CARAVAN 2005  Owners Manual NOTE: If either front tire is flat, it may be necessary to
jack up the vehicle to remove the compact spare tire/
cover assembly from under the vehicle. Refer to jack
engagement locations in the follow

Page 353 of 480

DODGE GRAND CARAVAN 2005  Owners Manual Jack Engagement Locations WHAT TO DO IN EMERGENCIES 353
6

Page 354 of 480

DODGE GRAND CARAVAN 2005  Owners Manual 6. These locations are on the sill flange of the body and
consist of a pair of downstanding tabs. The jack is to be
located, engaging the flange, between the pair of tabs
closest to the wheel to be ch

Page 355 of 480

DODGE GRAND CARAVAN 2005  Owners Manual 10. Lower the vehicle by turning the jack screw to the
left.
11. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
lug nuts until each nut has

Page 356 of 480

DODGE GRAND CARAVAN 2005  Owners Manual Rotate the nut to the right approximately 33 turns until
the winch mechanism clicks at least three times.
15. Stow the jack, jack handle and winch handle tools.
WARNING!A loose jack, thrown forward in

Page 357 of 480

DODGE GRAND CARAVAN 2005  Owners Manual WARNING!A loose compact spare tire/cover assembly, thrown
forward in a collision or hard stop could endanger
the occupants of the vehicle. Always stow the com-
pact spare tire with the cover assembly

Page 358 of 480

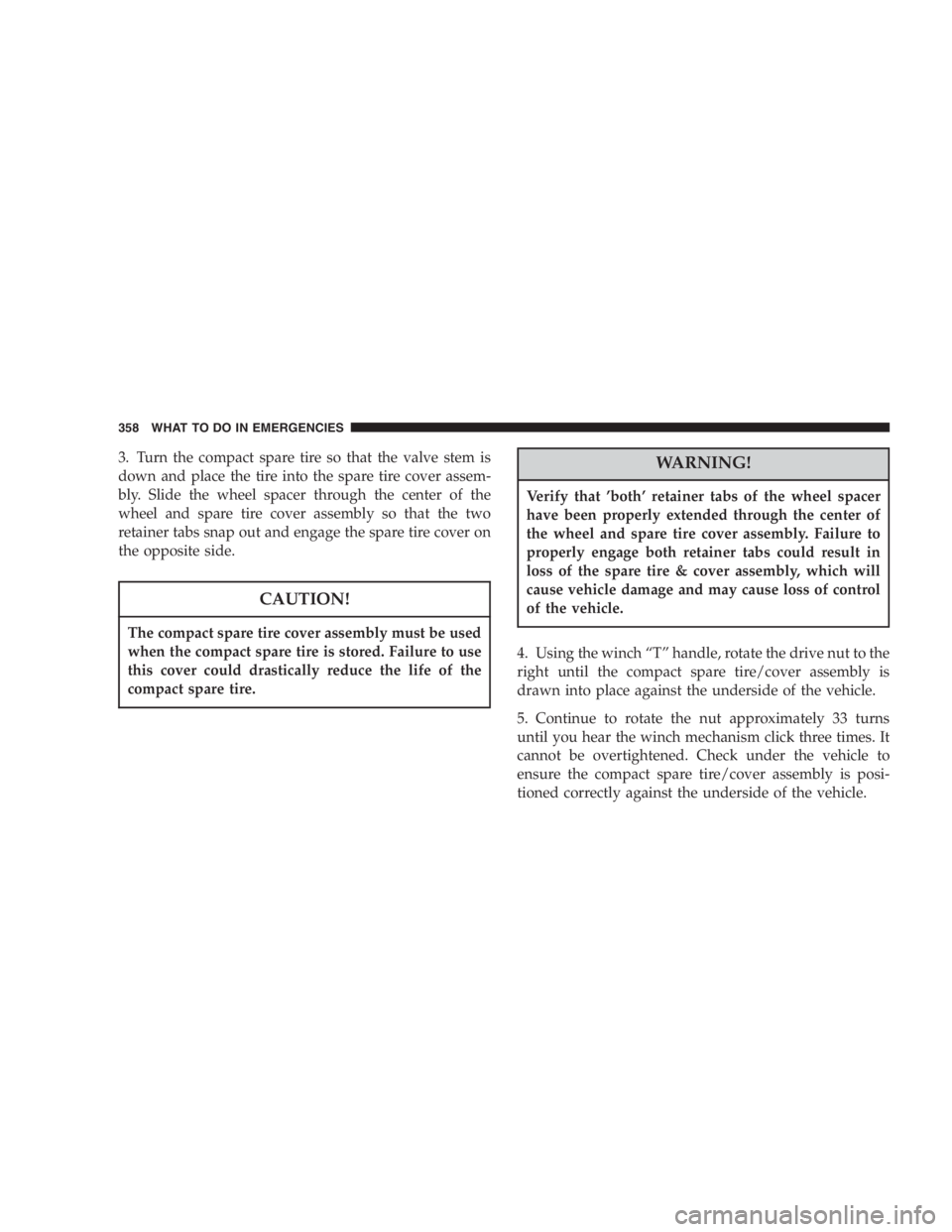

DODGE GRAND CARAVAN 2005  Owners Manual 3. Turn the compact spare tire so that the valve stem is
down and place the tire into the spare tire cover assem-
bly. Slide the wheel spacer through the center of the
wheel and spare tire cover assem

Page 359 of 480

DODGE GRAND CARAVAN 2005  Owners Manual CAUTION!For vehicles equipped with fold-in-floor seating, the
Winch Mechanism is designed specifically to stow a
COMPACT Spare Tire ONLY. Do not attempt to use
the Winch to stow the Full Size ’ Flat

Page 360 of 480

DODGE GRAND CARAVAN 2005  Owners Manual Jack Location — Non Fold-in-Floor Seating
The jack, jack handle are stowed behind the rear left side
trim panel in the rear cargo area. Pull up on the lever to
release the cover.
Remove the spare wh
