Page 361 of 480

DODGE GRAND CARAVAN 2005  Owners Manual Jacking Instructions — Non Fold-in-Floor Seating
1. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground. 2. Fit the jack handle

Page 362 of 480

DODGE GRAND CARAVAN 2005  Owners Manual Jack Engagement Locations362 WHAT TO DO IN EMERGENCIES

Page 363 of 480

DODGE GRAND CARAVAN 2005  Owners Manual 5. These locations are on the sill flange of the body and
consist of a pair of downstanding tabs. The jack is to be
located, engaging the flange, between the pair of tabs
closest to the wheel to be ch

Page 364 of 480

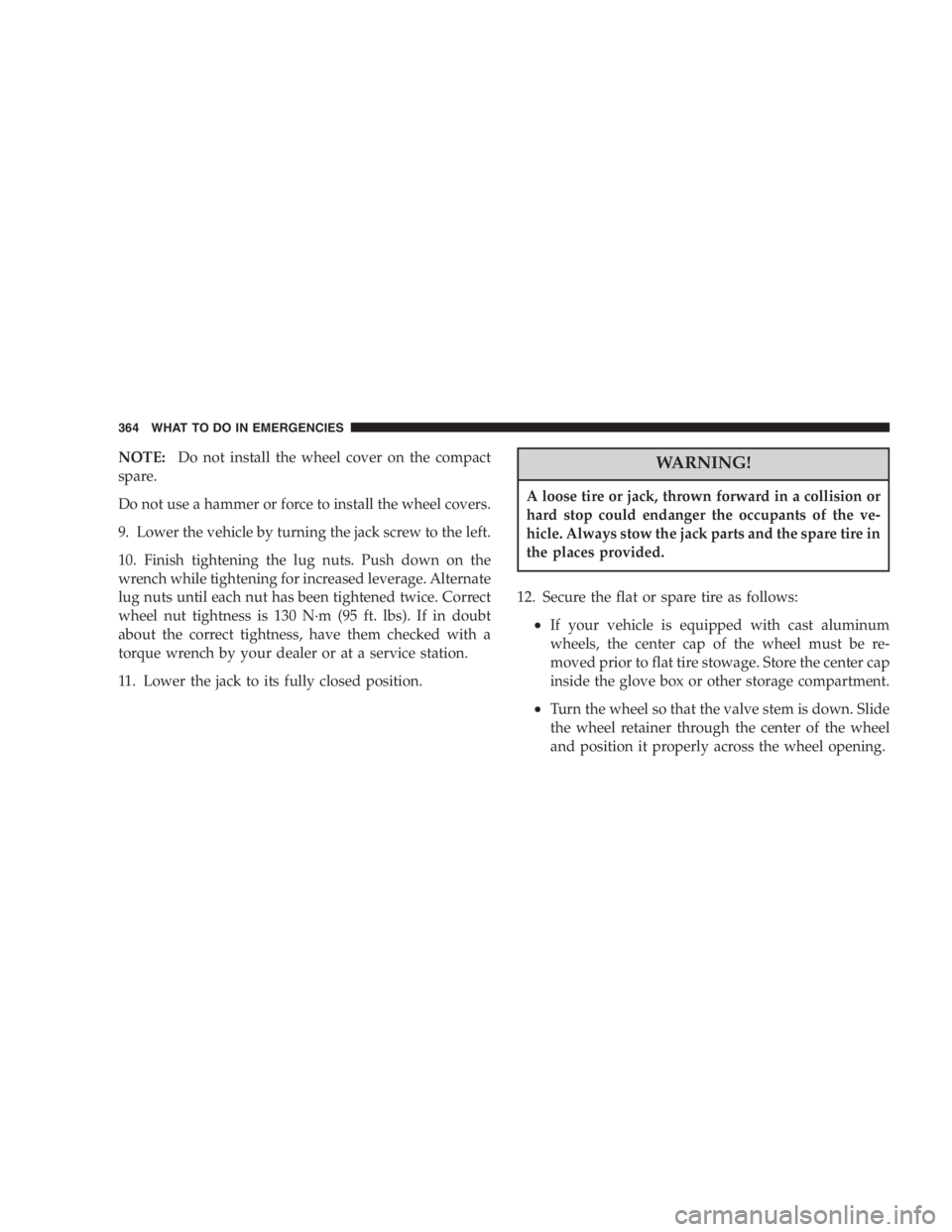

DODGE GRAND CARAVAN 2005  Owners Manual NOTE: Do not install the wheel cover on the compact
spare.
Do not use a hammer or force to install the wheel covers.
9. Lower the vehicle by turning the jack screw to the left.
10. Finish tightening t

Page 365 of 480

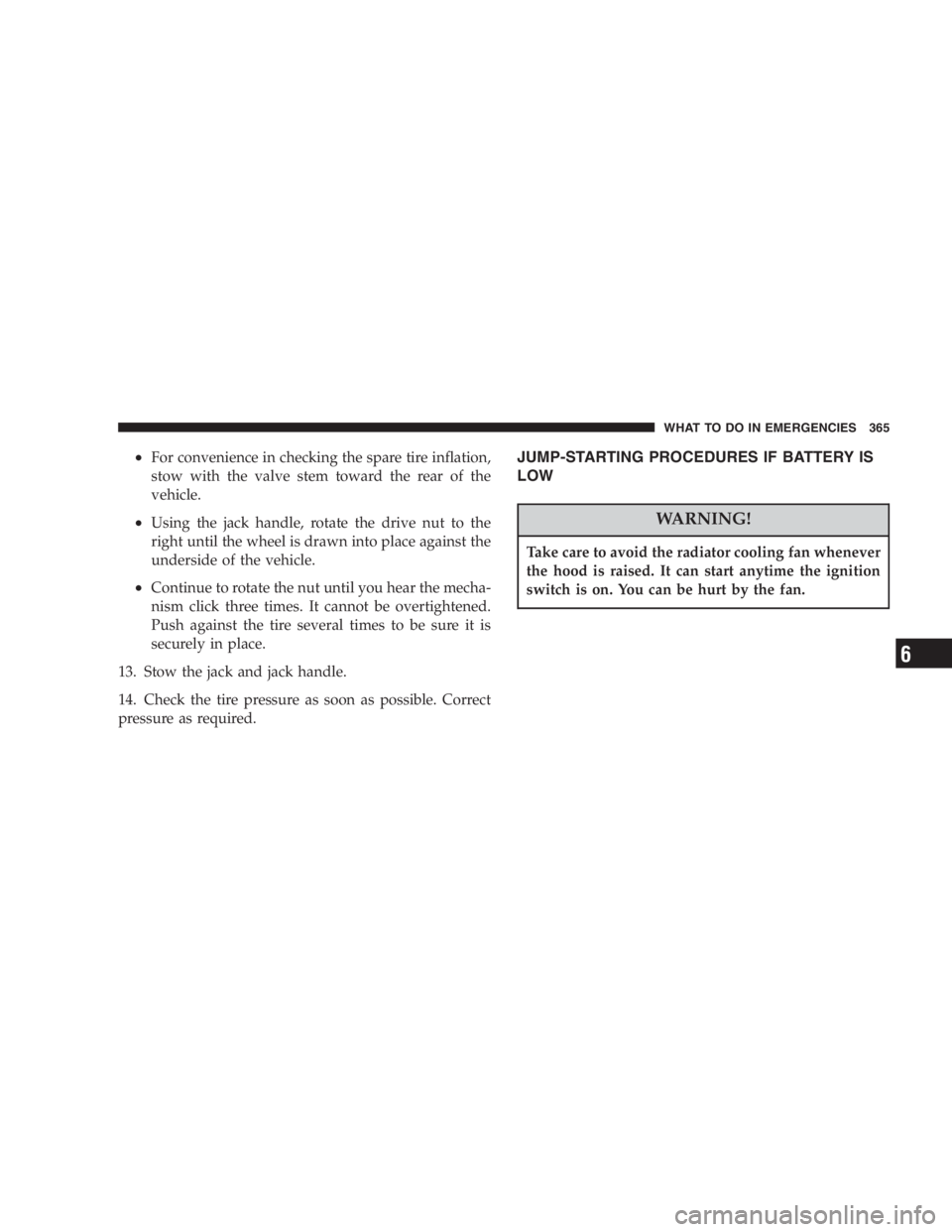

DODGE GRAND CARAVAN 2005  Owners Manual • For convenience in checking the spare tire inflation,
stow with the valve stem toward the rear of the
vehicle.
• Using the jack handle, rotate the drive nut to the
right until the wheel is drawn

Page 366 of 480

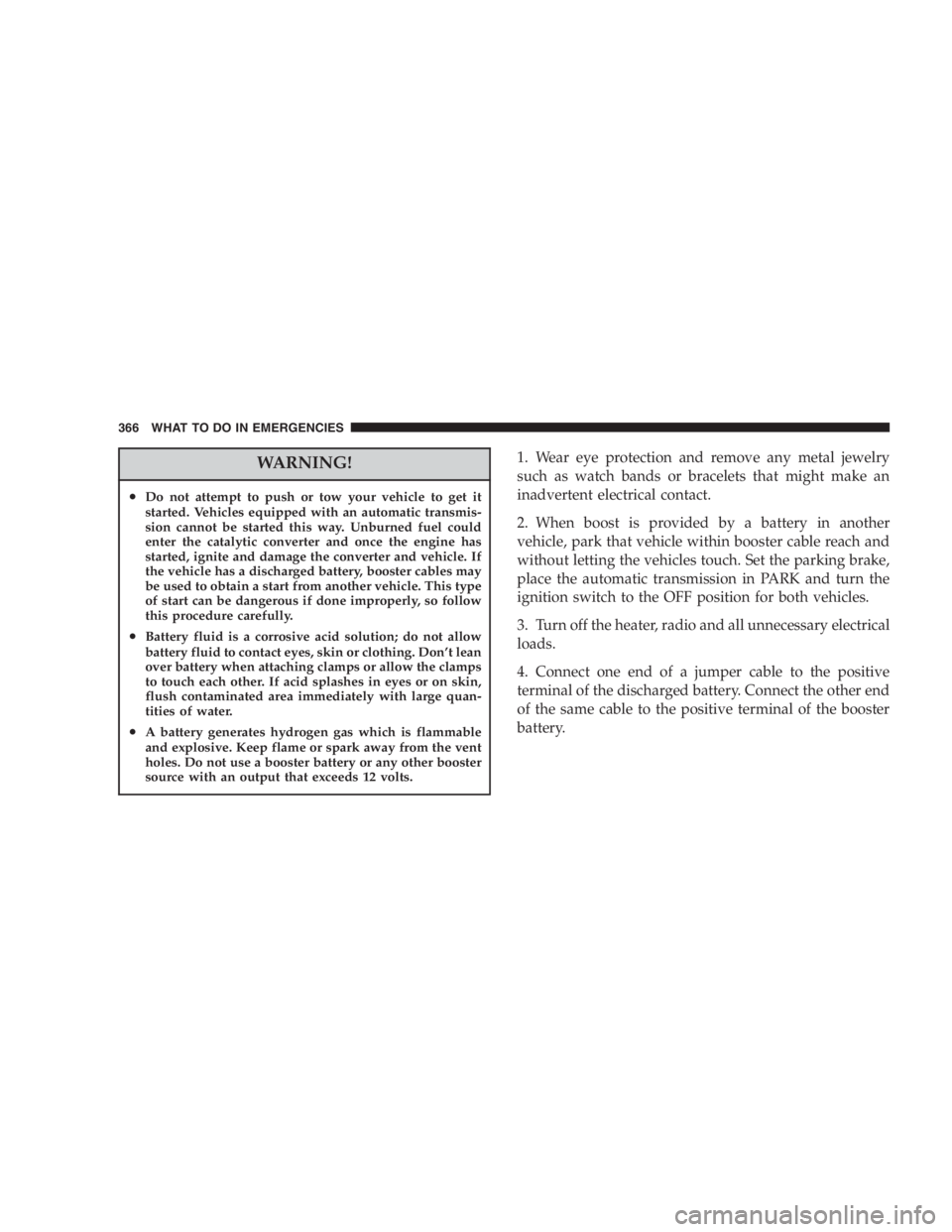

DODGE GRAND CARAVAN 2005  Owners Manual WARNING!• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic transmis-
sion cannot be started this way. Unburned fuel could
enter the catalytic convert

Page 367 of 480

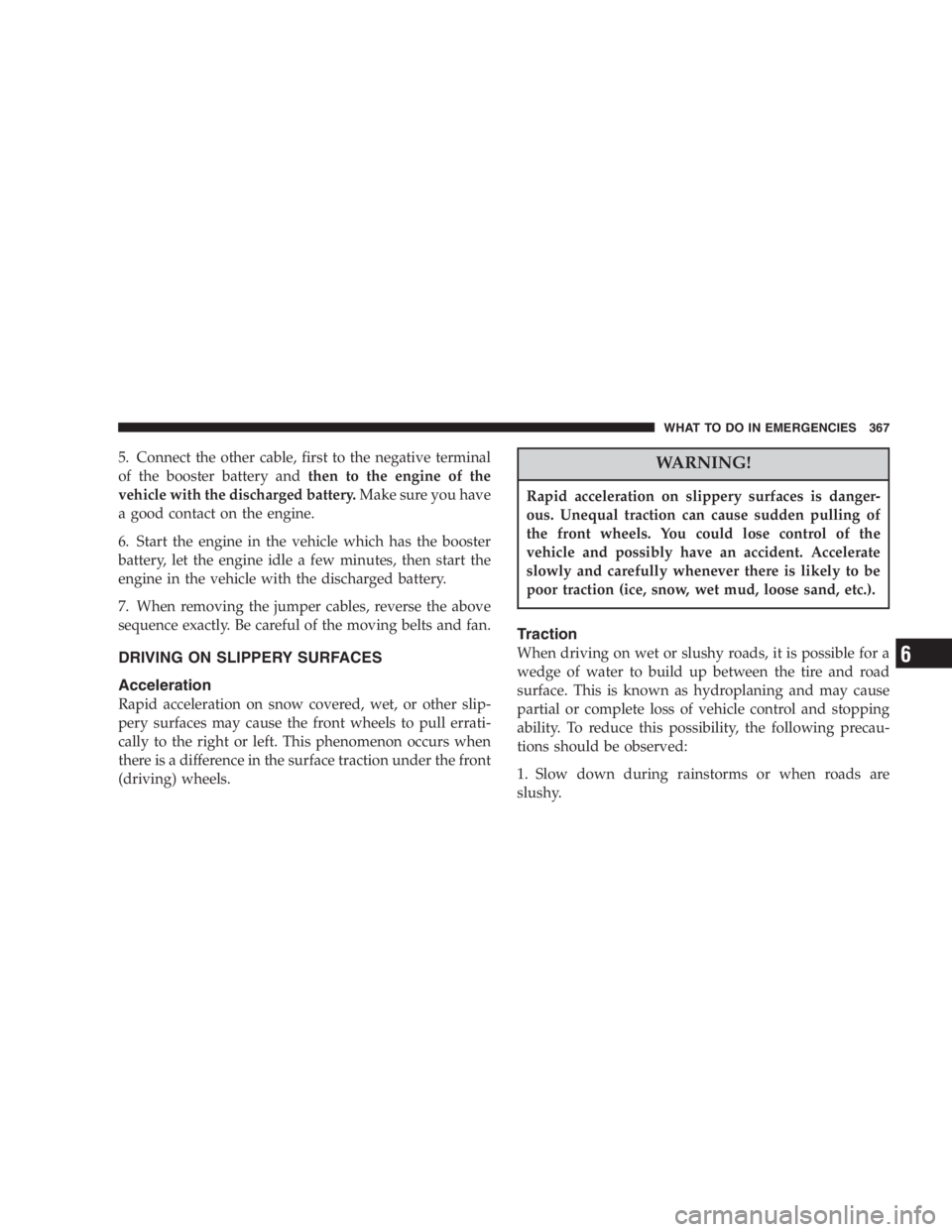

DODGE GRAND CARAVAN 2005  Owners Manual 5. Connect the other cable, first to the negative terminal
of the booster battery and then to the engine of the
vehicle with the discharged battery. Make sure you have
a good contact on the engine.
6.

Page 368 of 480

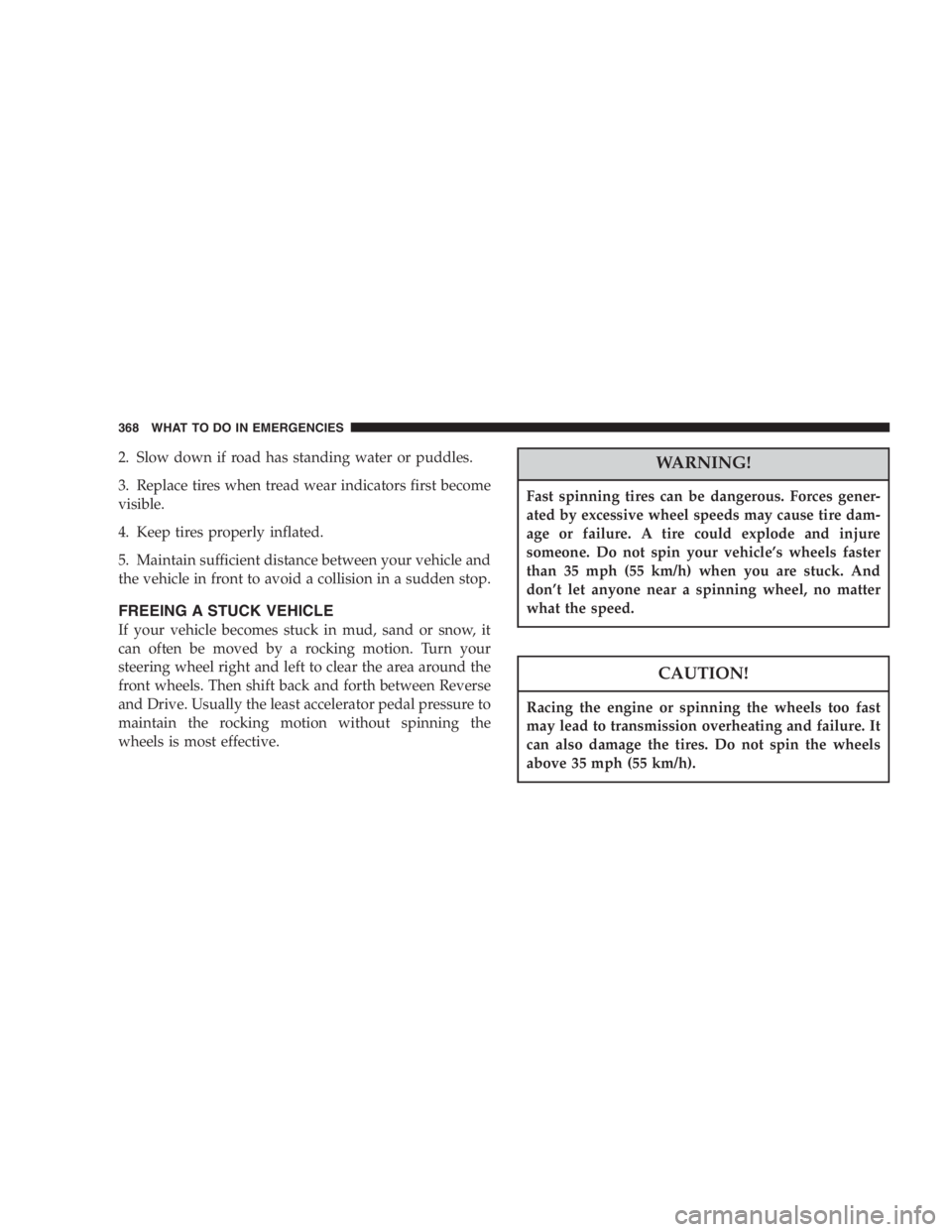

DODGE GRAND CARAVAN 2005  Owners Manual 2. Slow down if road has standing water or puddles.
3. Replace tires when tread wear indicators first become
visible.
4. Keep tires properly inflated.
5. Maintain sufficient distance between your vehi

Page 369 of 480

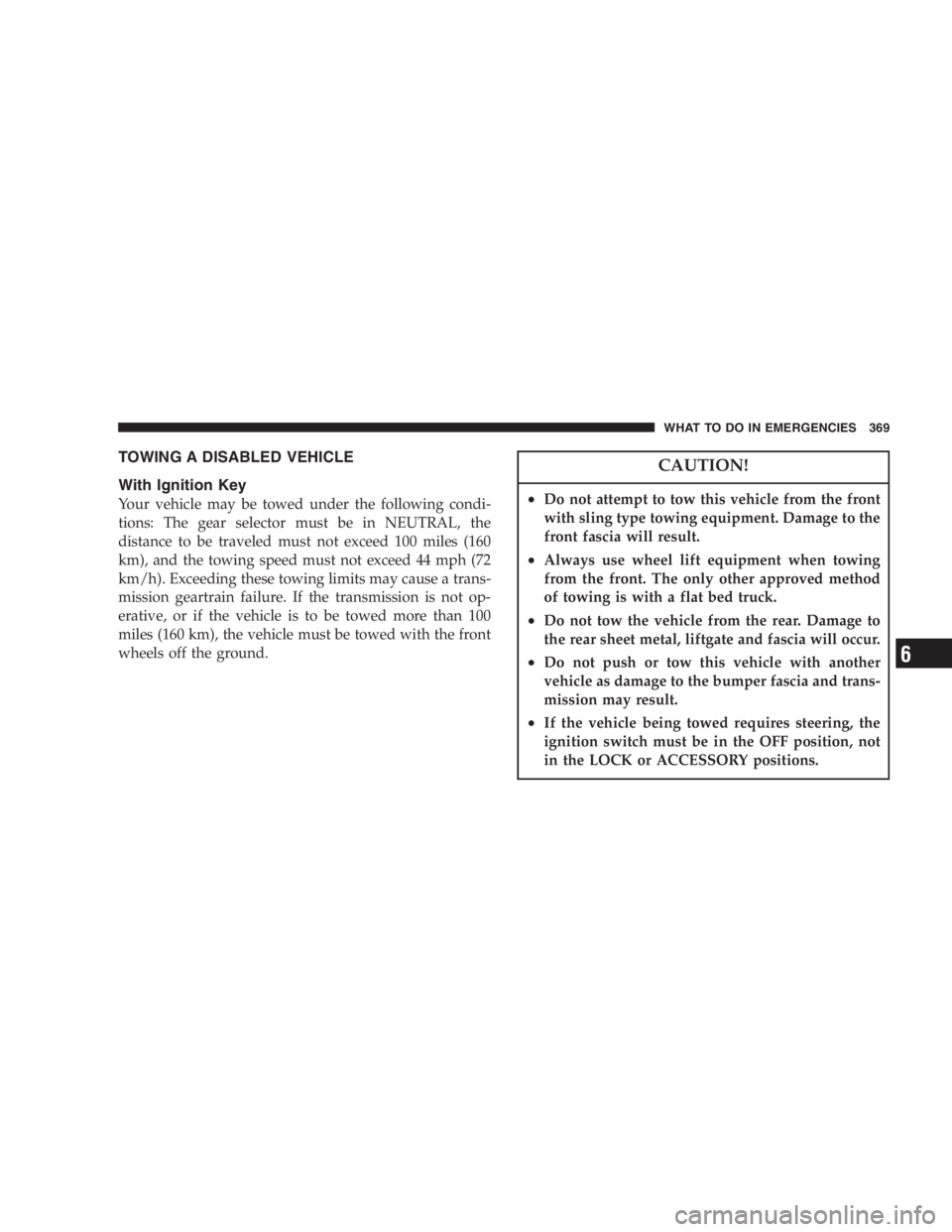

DODGE GRAND CARAVAN 2005  Owners Manual TOWING A DISABLED VEHICLE
With Ignition Key
Your vehicle may be towed under the following condi-
tions: The gear selector must be in NEUTRAL, the
distance to be traveled must not exceed 100 miles (160

Page 370 of 480

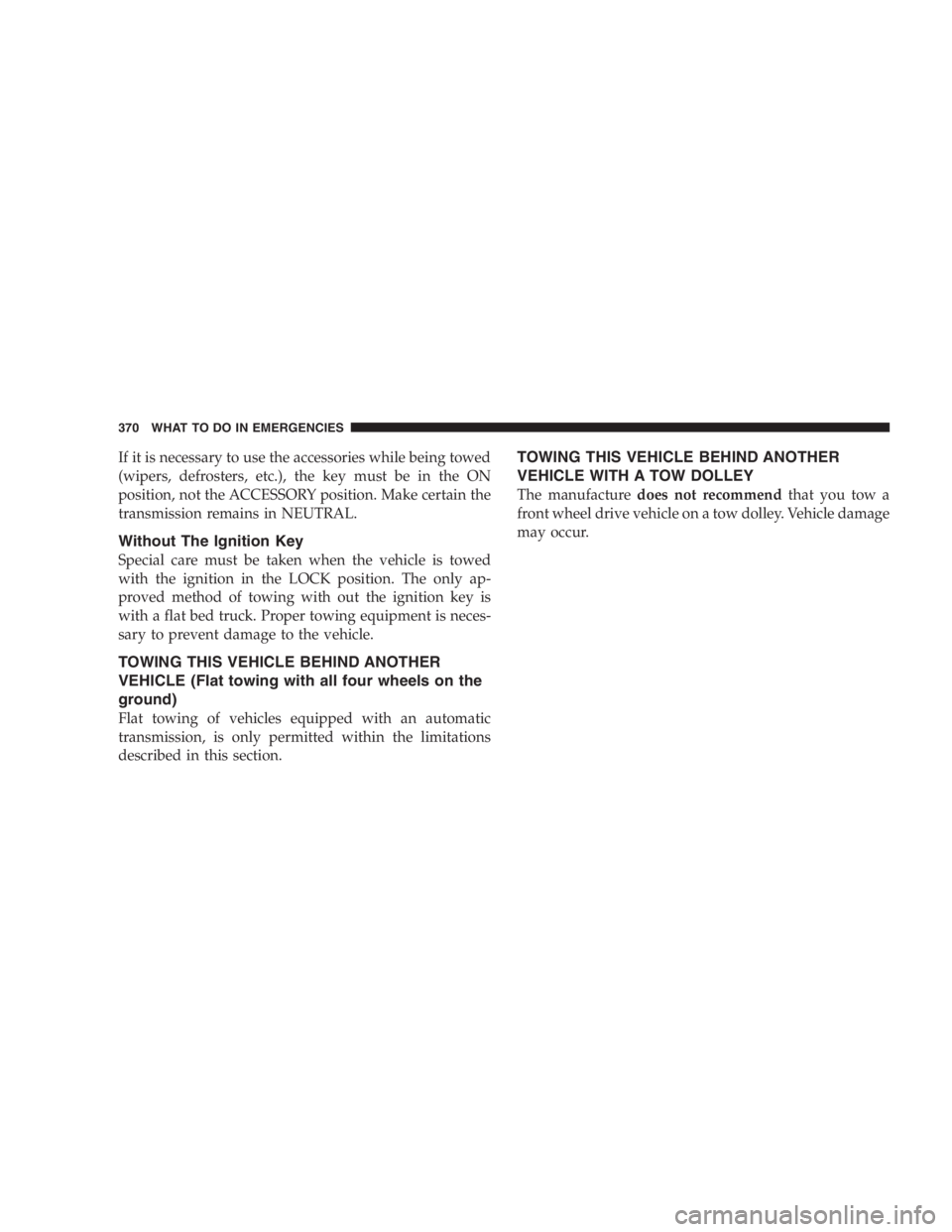

DODGE GRAND CARAVAN 2005  Owners Manual If it is necessary to use the accessories while being towed
(wipers, defrosters, etc.), the key must be in the ON
position, not the ACCESSORY position. Make certain the
transmission remains in NEUTRAL
