DODGE GRAND CARAVAN 2005 Owner's Guide

4. A single chime will sound to signify that you have
successfully completed the programming.
You can turn the feature back on by repeating the above
mentioned procedure or by performing the procedure in
the Electronic Vehicle Information Center (EVIC), Cus-
tomer Programmable Features section on vehicles so
equipped.
Power Sliding Door — If Equipped
NOTE: The power sliding door must be unlocked before
the switches located on the trim panel, just in front of the
power sliding door will operate.
The power sliding door may be opened manually or by
using the buttons on the remote keyless entry transmitter.
Press the buttons on the remote keyless entry transmitter
twice within five seconds, to open a power sliding door.
Once the door is fully open, pressing the button twice
within five seconds a second time will close the door. The power sliding door may also be opened by pressing
the switches on the overhead console or the switch
located on the trim panel just in front of the sliding door.
To keep your door operating properly, observe the fol-
lowing guidelines.
• Always open the door smoothly.
• Avoid high impacts against the door stop when open-
ing the door manually. This is very important when
your vehicle is parked on an incline as the door will
slide faster in the downhill direction.
• There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the power
sliding door after the hold-open latch is activated, you
must press any one of the power sliding door
switches, push the button on the inside grab handle or
pull out on the outside sliding door handle. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

There are power sliding door switches located on the
trim panel just in front of the power sliding door for the
rear seat passengers. Pressing the switch once will open
the power sliding door, once the door is fully open
pressing the switch a second time will close the door. If the inside or outside door handles are used while the
power sliding door is activated, the power sliding door
feature will be canceled and the door must be opened or
closed manually.
To avoid unintentional operation of the power sliding
door from the rear seats, press the button located in the
overhead console to disable the switches for the rear seat
passengers.
NOTE:
• If anything obstructs the power sliding door while it is
closing or opening, the door will automatically reverse
to the closed or open position, provided it meets
sufficient resistance.
• The driver ’ s side sliding door cannot be opened while
the fuel door is open. This feature operates only when
the sliding door is fully closed prior to opening the
fuel door.Power Sliding Door Switch32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• If the power sliding door is not in the full open or close
position, it will fully open when a power sliding door
switch is pressed. To close the door, wait until it is fully
open and then press the switch again.
• The power sliding door switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
• If the power sliding door encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop and must be opened or closed manually.
WARNING!You or others could be injured if caught in the path
of the sliding door. Make sure the door path is clear
before closing the door. Child Protection Door Lock
To provide a safer environment for small children riding
in the rear seats, the sliding doors are equipped with a
child protection door lock system.
WARNING!To avoid trapping anyone in the vehicle in a colli-
sion. Remember that the sliding doors can only be
opened from the outside door handle or the switches
located on the trim panel just in front of the power
sliding door when the child protection locks are
engaged. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2

To activate the system, open the sliding door and move
the child lock control, located near the door ’ s rear latch,
to the ON position.
When the child lock system is engaged the door can be
opened only by using the outside door handle, remote keyless entry transmitter, switches on the overhead con-
sole or the switches located on the trim panel just in front
of the power sliding door, even though the inside door
lock is in the unlocked position.
The power sliding door will operate from the switches
located on the trim panel just in front of the power sliding
door, regardless of the child lock lever position. To avoid
unintentional operation of the power sliding door from
the rear seats, press the button located in the overhead
console to disable the switches for the rear seat passen-
gers.
NOTE:
• The power sliding door switches will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
• The power sliding door will operate from the remote
keyless entry transmitter, if the vehicle is in Park,
regardless of the child lock lever position.Child Lock Control34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

LIFTGATE
NOTE: The key that is used to start the vehicle is also
used to lock or unlock the doors and open the liftgate.
To open the liftgate, insert the key into the lock and turn
to the right. On vehicles equipped with power locks the
liftgate can also be unlocked using the remote keyless
entry or by activating the power door lock switches
located on the front doors.
Once unlocked, on vehicles equipped with power locks,
the liftgate can be opened or closed without using the
key. To open the liftgate, depress the liftgate release
switch located on the underside of the license plate bar
and pull the liftgate open with one fluid motion. If the liftgate is locked and is not equipped with a
powered liftgate, pressing the button on the remote
keyless entry transmitter will result in the liftgate becom-
ing unlocked for 30 seconds allowing you to manually
access the liftgate area. Liftgate Release SwitchTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2

NOTE: On vehicles without power locks, the liftgate can
only be opened using the vehicle keys. The key must be
held in the unlocked position for the liftgate to open.
Power Liftgate — If Equipped
The power liftgate may be opened manually or by using
the button on the remote keyless entry transmitter. Press
the button on the remote keyless entry transmitter twice
within five seconds, to open the power liftgate. Once the
liftgate is fully open, pressing the button twice within
five seconds a second time will close the liftgate.
The power liftgate may also be opened by pressing the
button located on the overhead console.
When the remote keyless entry transmitter button is
pressed and the “ Lamp Flash ” feature is enabled, the tail
lights will flash to signal that the liftgate is opening or
closing. Power Liftgate Switch36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

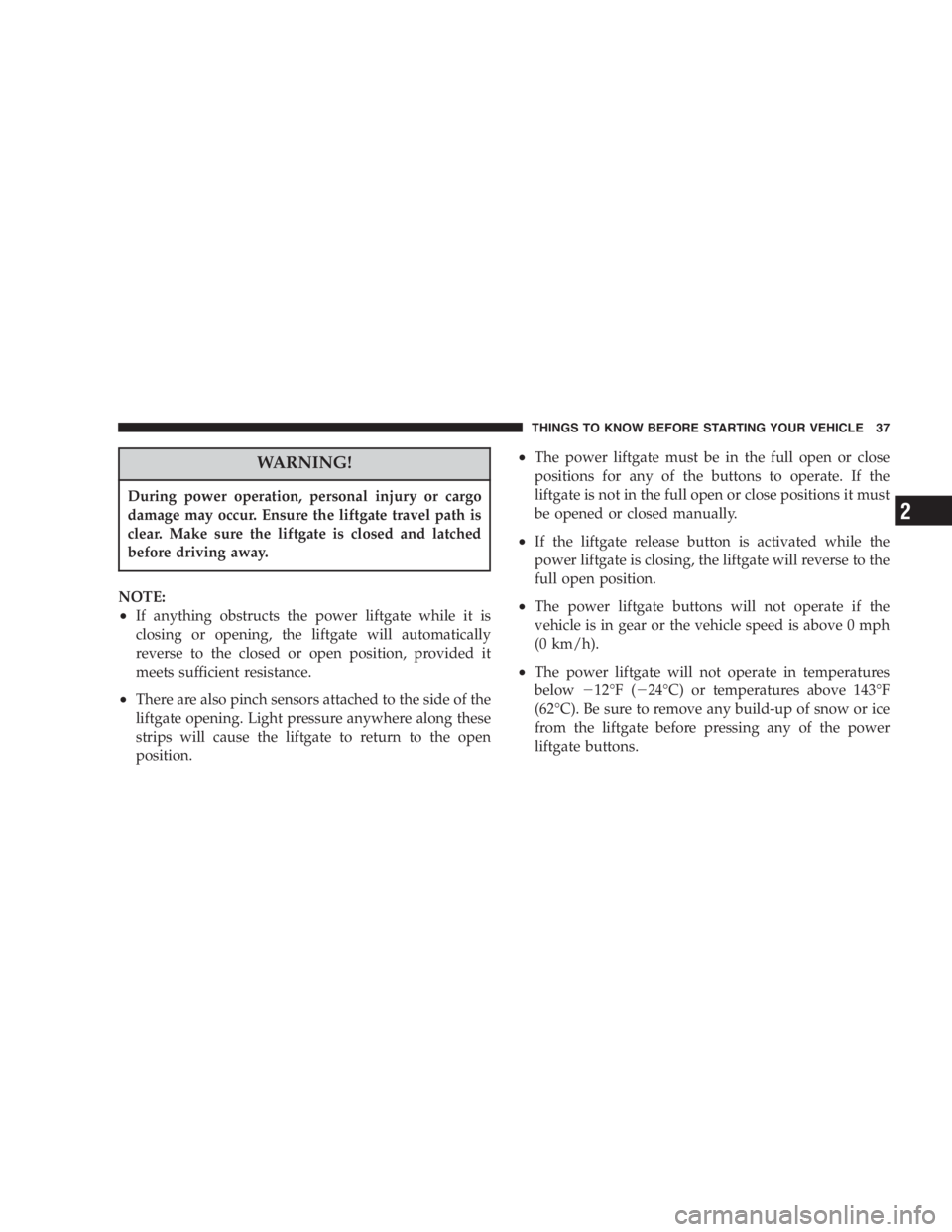

WARNING!During power operation, personal injury or cargo
damage may occur. Ensure the liftgate travel path is
clear. Make sure the liftgate is closed and latched
before driving away.
NOTE:
• If anything obstructs the power liftgate while it is
closing or opening, the liftgate will automatically
reverse to the closed or open position, provided it
meets sufficient resistance.
• There are also pinch sensors attached to the side of the
liftgate opening. Light pressure anywhere along these
strips will cause the liftgate to return to the open
position. • The power liftgate must be in the full open or close
positions for any of the buttons to operate. If the
liftgate is not in the full open or close positions it must
be opened or closed manually.
• If the liftgate release button is activated while the
power liftgate is closing, the liftgate will reverse to the
full open position.
• The power liftgate buttons will not operate if the
vehicle is in gear or the vehicle speed is above 0 mph
(0 km/h).
• The power liftgate will not operate in temperatures
below
12 ° F(
24 ° C) or temperatures above 143 ° F
(62 ° C). Be sure to remove any build-up of snow or ice
from the liftgate before pressing any of the power
liftgate buttons. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2

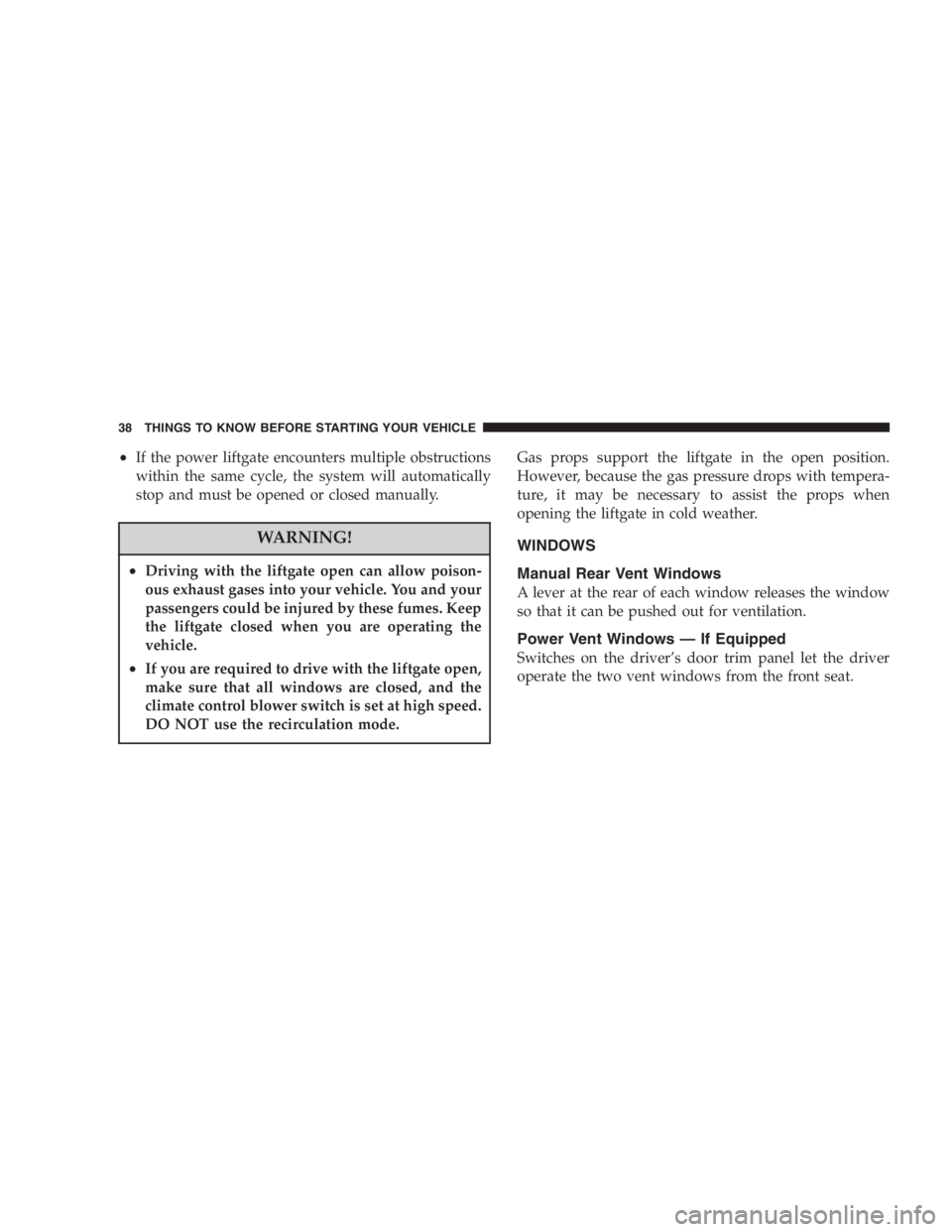

• If the power liftgate encounters multiple obstructions
within the same cycle, the system will automatically
stop and must be opened or closed manually.
WARNING!• Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
• If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode. Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
WINDOWS
Manual Rear Vent Windows
A lever at the rear of each window releases the window
so that it can be pushed out for ventilation.
Power Vent Windows — If Equipped
Switches on the driver ’ s door trim panel let the driver
operate the two vent windows from the front seat.38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Power Windows — If Equipped
You can control either front window using switches on
the driver ’ s door trim panel. There is a single switch on
the passenger ’ s door trim panel which operates the passenger door window. The switches will operate only
when the ignition switch is in the ON or ACCESSORY
position.
Power Vent Window Switches
Power Window SwitchesTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
2

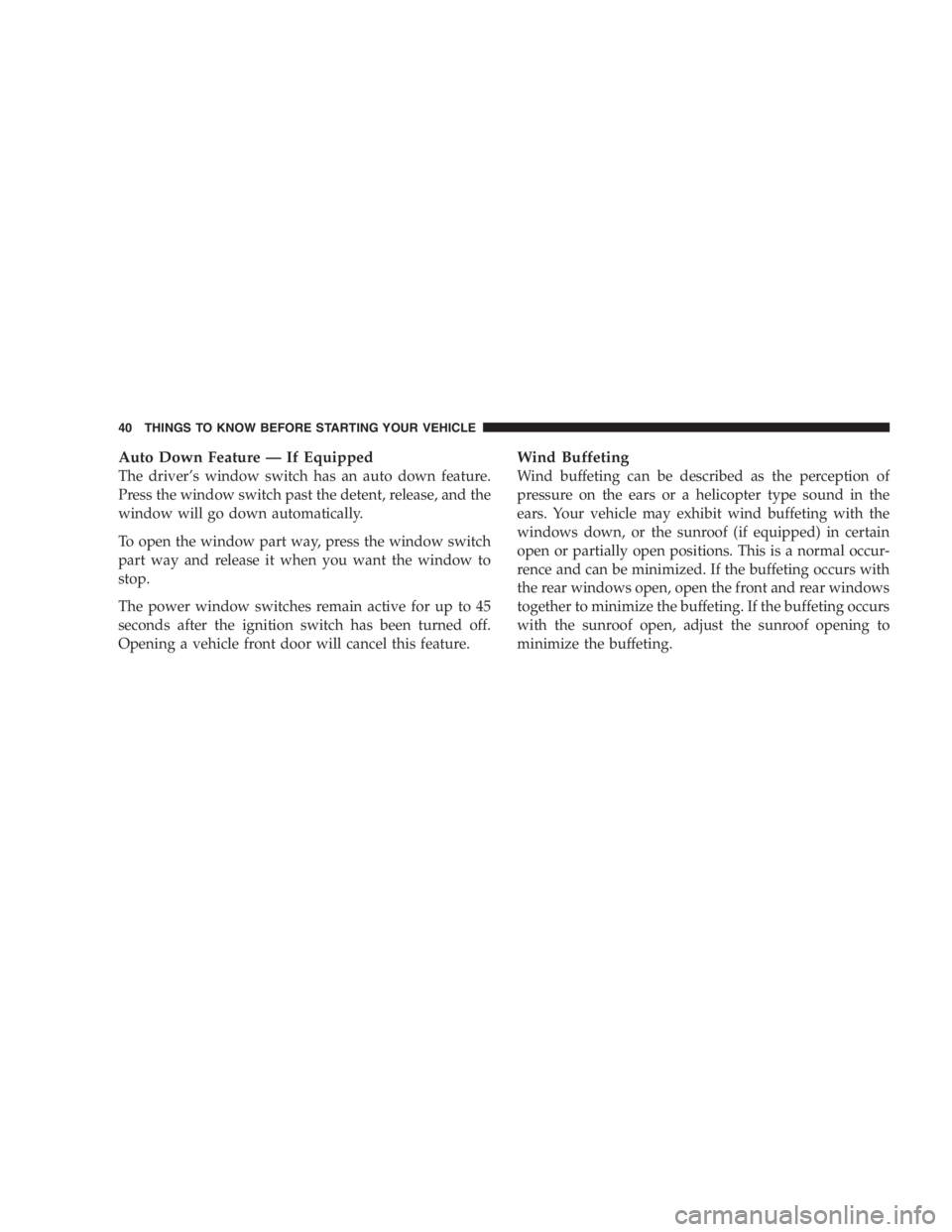

Auto Down Feature — If Equipped
The driver ’ s window switch has an auto down feature.
Press the window switch past the detent, release, and the
window will go down automatically.
To open the window part way, press the window switch
part way and release it when you want the window to
stop.
The power window switches remain active for up to 45
seconds after the ignition switch has been turned off.
Opening a vehicle front door will cancel this feature. Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting.40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
