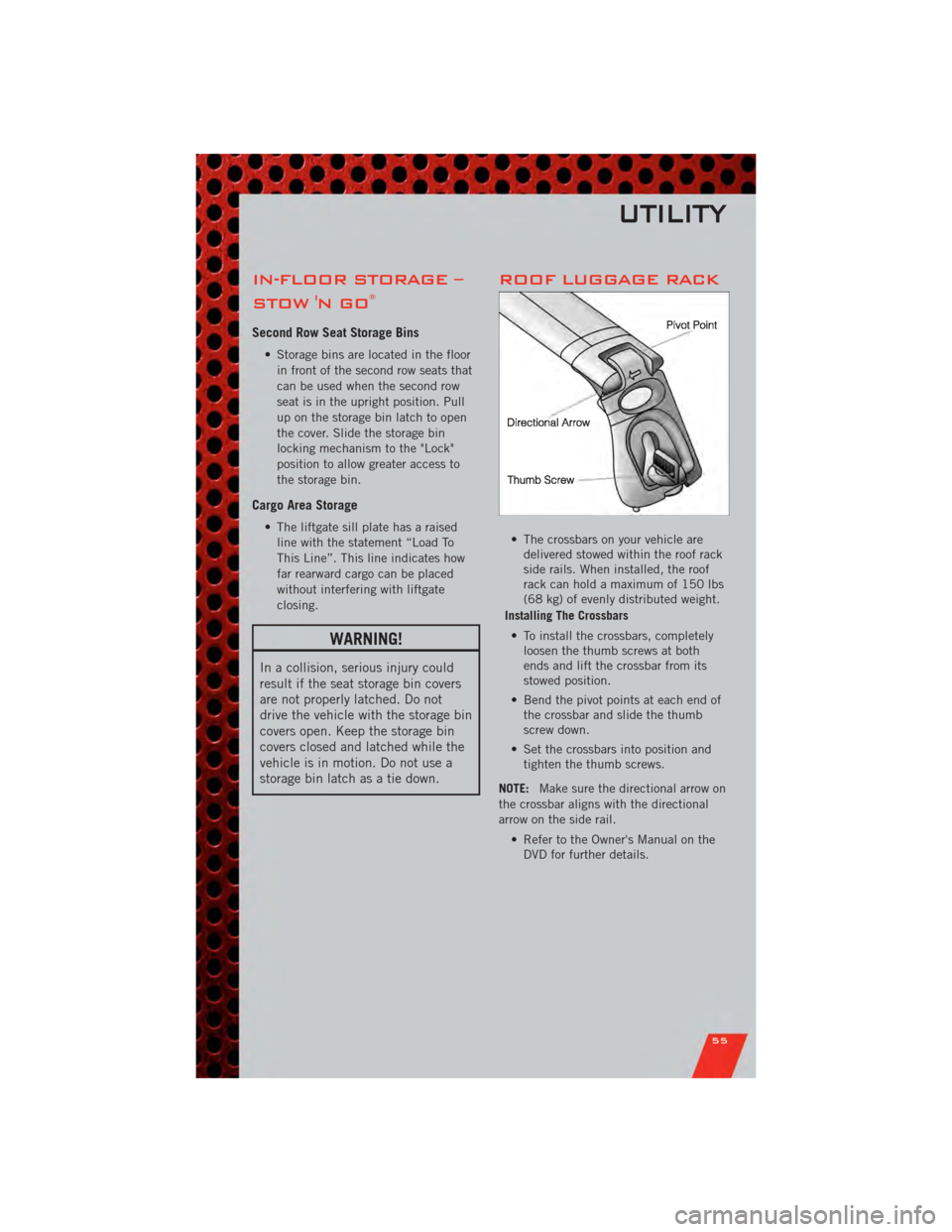

IN-FLOOR STORAGE –
STOW 'N GO®
Second Row Seat Storage Bins
• Storage bins are located in the floorin front of the second row seats that
can be used when the second row
seat is in the upright position. Pull
up on the storage bin latch to open
the cover. Slide the storage bin
locking mechanism to the "Lock"
position to allow greater access to
the storage bin.
Cargo Area Storage
• The liftgate sill plate has a raisedline with the statement “Load To
This Line”. This line indicates how
far rearward cargo can be placed
without interfering with liftgate
closing.
WARNING!
In a collision, serious injury could
result if the seat storage bin covers
are not properly latched. Do not
drive the vehicle with the storage bin
covers open. Keep the storage bin
covers closed and latched while the
vehicle is in motion. Do not use a
storage bin latch as a tie down.
ROOF LUGGAGE RACK
• The crossbars on your vehicle aredelivered stowed within the roof rack
side rails. When installed, the roof
rack can hold a maximum of 150 lbs
(68 kg) of evenly distributed weight.
Installing The Crossbars
• To install the crossbars, completely loosen the thumb screws at both
ends and lift the crossbar from its
stowed position.
• Bend the pivot points at each end of the crossbar and slide the thumb
screw down.
• Set the crossbars into position and tighten the thumb screws.
NOTE: Make sure the directional arrow on
the crossbar aligns with the directional
arrow on the side rail.
• Refer to the Owner's Manual on theDVD for further details.
