DODGE GRAND CARAVAN 2014 5.G Owners Manual

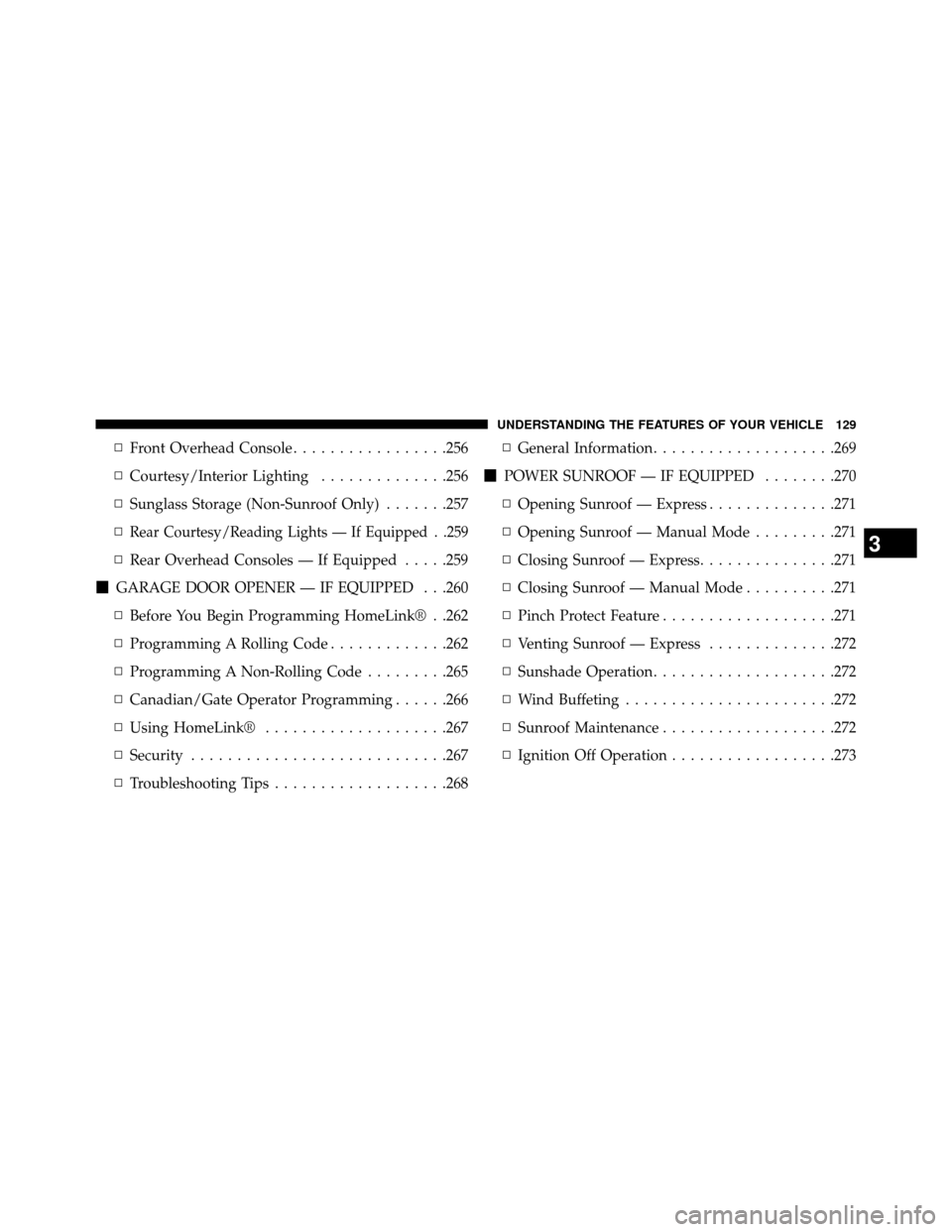

▫Front Overhead Console .................256
▫ Courtesy/Interior Lighting ..............256
▫ Sunglass Storage (Non-Sunroof Only) .......257
▫
Rear Courtesy/Reading Lights — If Equipped . .259
▫ Rear Overhead Consoles — If Equipped .....259
 GARAGE DOOR OPENER — IF EQUIPPED . . .260
▫ Before You Begin Programming HomeLink® . .262
▫ Programming A Rolling Code .............262
▫ Programming A Non-Rolling Code .........265
▫ Canadian/Gate Operator Programming ......266
▫ Using HomeLink® ....................267
▫ Security ............................267
▫ Troubleshooting Tips ...................268 ▫
General Information ....................269
 POWER SUNROOF — IF EQUIPPED ........270
▫ Opening Sunroof — Express ..............271
▫ Opening Sunroof — Manual Mode .........271
▫ Closing Sunroof — Express ...............271
▫ Closing Sunroof — Manual Mode ..........271
▫ Pinch Protect Feature ...................271
▫ Venting Sunroof — Express ..............272
▫ Sunshade Operation ....................272
▫ Wind Buffeting .......................272
▫ Sunroof Maintenance ...................272
▫ Ignition Off Operation ..................2733
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

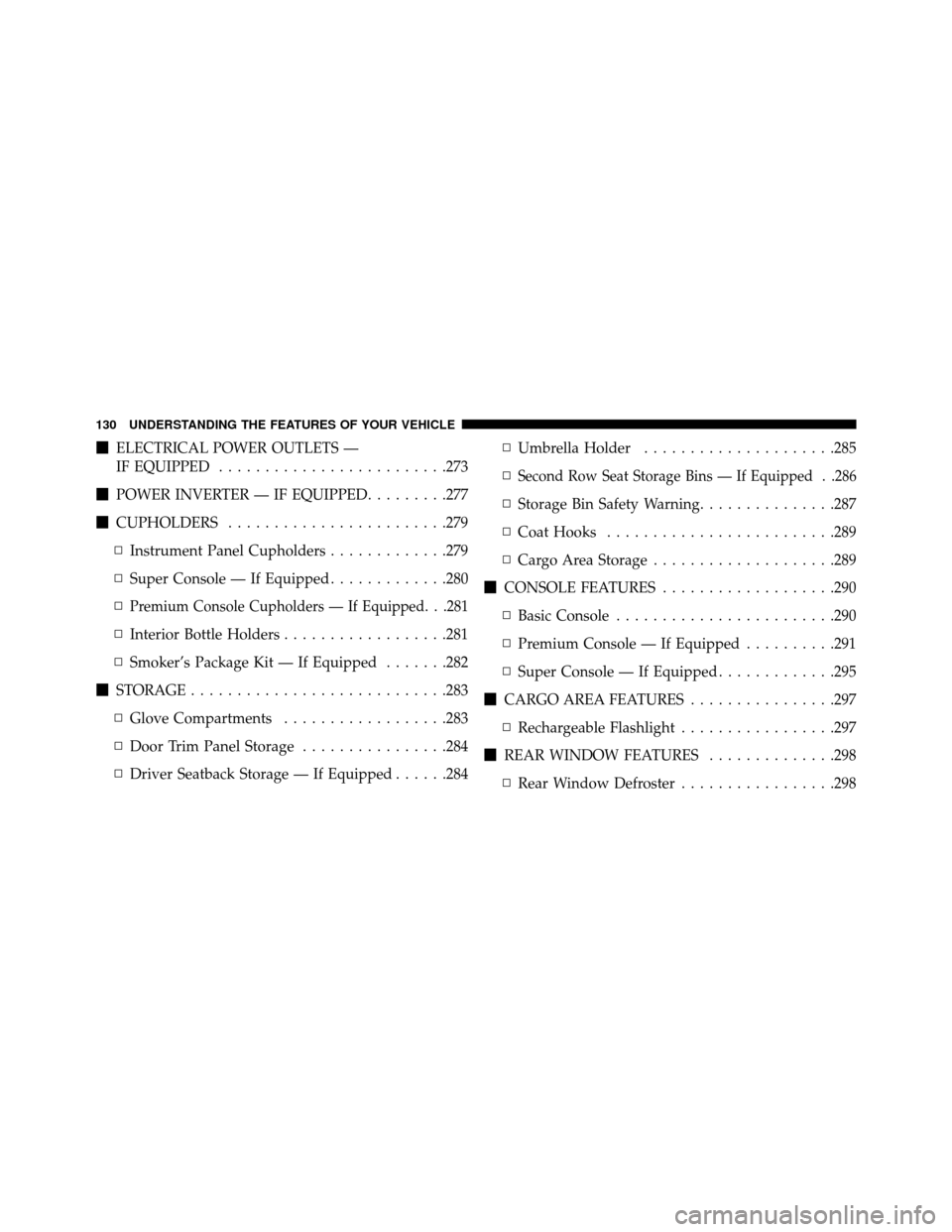

ELECTRICAL POWER OUTLETS —
IF EQUIPPED .........................273
 POWER INVERTER — IF EQUIPPED .........277
 CUPHOLDERS ........................279
▫ Instrument Panel Cupholders .............279
▫ Super Console — If Equipped .............280
▫
Premium Console Cupholders — If Equipped. . .281
▫ Interior Bottle Holders ..................281
▫ Smoker’s Package Kit — If Equipped .......282
 STORAGE ............................283
▫ Glove Compartments ..................283
▫ Door Trim Panel Storage ................284
▫ Driver Seatback Storage — If Equipped ......284▫
Umbrella Holder .....................285
▫
Second Row Seat Storage Bins — If Equipped . .286
▫ Storage Bin Safety Warning ...............287
▫ Coat Hooks .........................289
▫ Cargo Area Storage ....................289
 CONSOLE FEATURES ...................290
▫ Basic Console ........................290
▫ Premium Console — If Equipped ..........291
▫ Super Console — If Equipped .............295
 CARGO AREA FEATURES ................297
▫ Rechargeable Flashlight .................297
 REAR WINDOW FEATURES ..............298
▫ Rear Window Defroster .................298
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

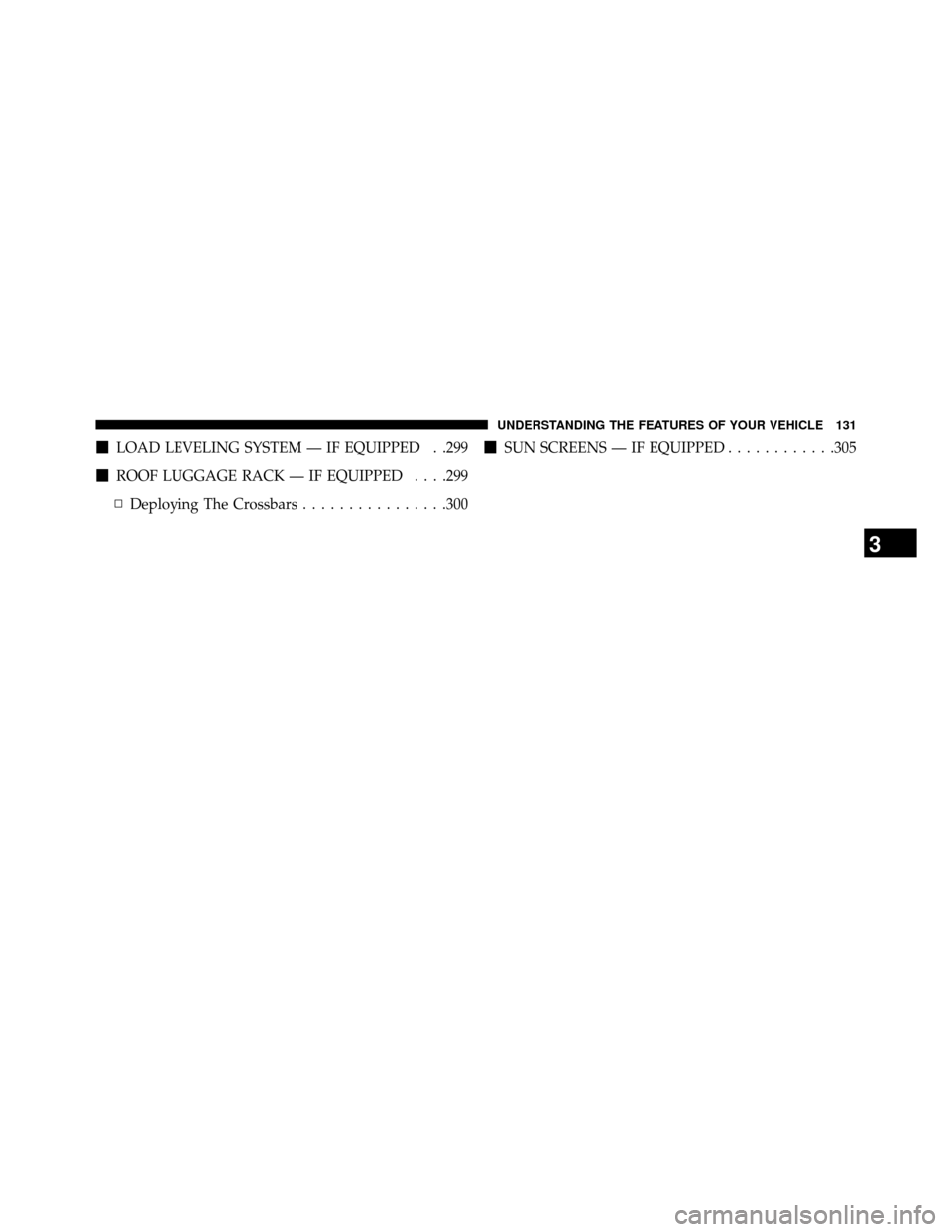

LOAD LEVELING SYSTEM — IF EQUIPPED . .299
 ROOF LUGGAGE RACK — IF EQUIPPED ....299
▫ Deploying The Crossbars ................300
SUN SCREENS — IF EQUIPPED ............305
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

MIRRORS
Inside Day/Night Mirror — If Equipped
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Manual Rearview Mirror
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
to the left of the button will illuminate to indicate when
the dimming feature is activated. The sensor to the right
of the button does not illuminate.
NOTE:This feature is disabled when the vehicle is
moving in reverse.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

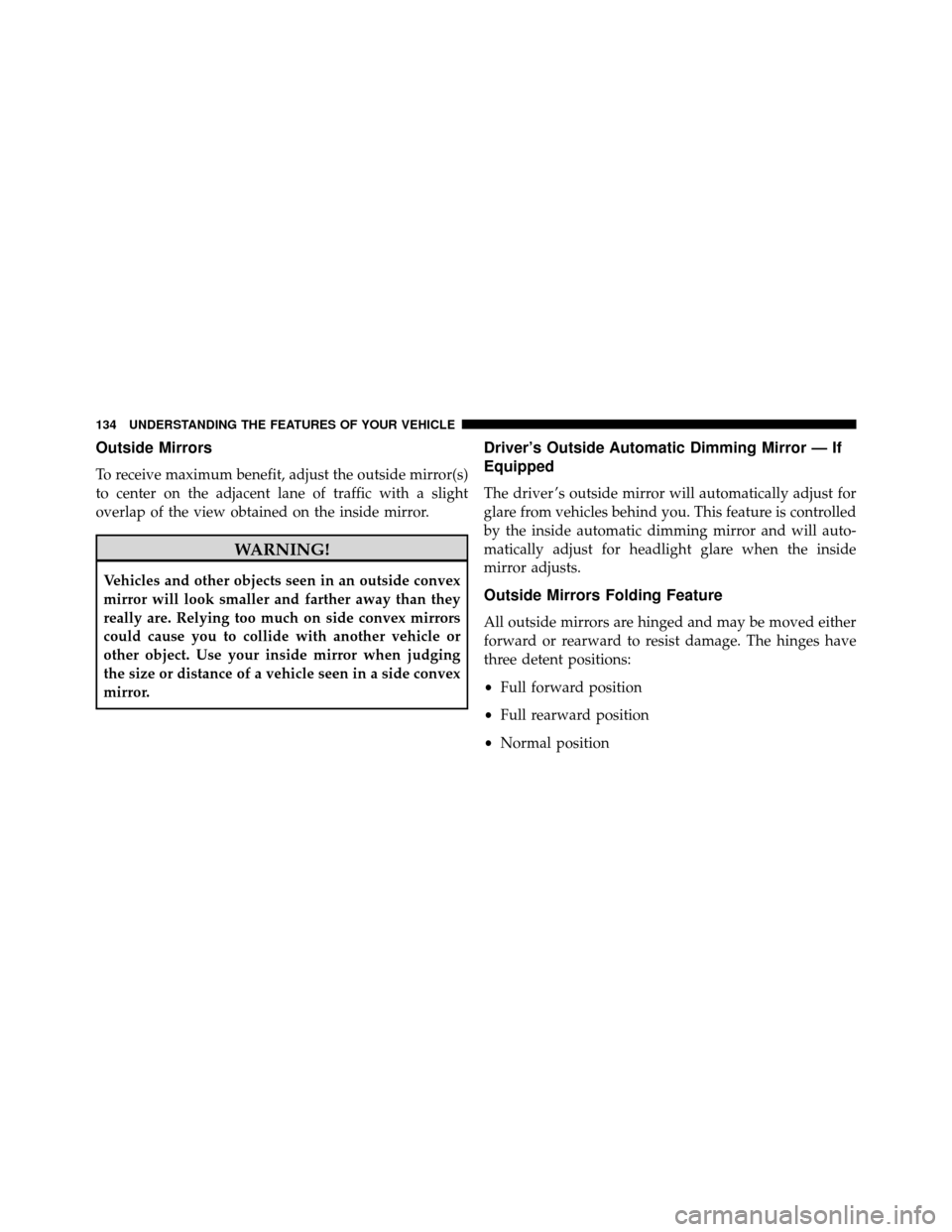

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or
other object. Use your inside mirror when judging
the size or distance of a vehicle seen in a side convex
mirror.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
The driver ’s outside mirror will automatically adjust for
glare from vehicles behind you. This feature is controlled
by the inside automatic dimming mirror and will auto-
matically adjust for headlight glare when the inside
mirror adjusts.
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions:
•Full forward position
• Full rearward position
• Normal position
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Mirrors — If Equipped
The power mirror controls are located on the driver-side
door trim panel.The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a
mirror, press either the L (left) or R (right) to select the
mirror that you want to adjust.
NOTE:
A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
Using the mirror control switch, press on any of the four
arrows for the direction that you want the mirror to
move.
Left and Right side power mirror preselected positions
can be controlled by the optional Driver Memory Seat
Feature. Refer to “Driver Memory Seat” in “Understand-
ing The Features Of Your Vehicle” for further informa-
tion.
Power Mirror Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Rear
Window Features” in “Understanding The Features Of
Your Vehicle” for further information.
Tilt Mirrors In Reverse (Available With Memory
Seat Only) — If Equipped
Tilt Mirrors in Reverse provides automatic outside mirror
positioning which will aid the drivers view of the ground
rearward of the front doors. The driver’s outside mirror
will move slightly downward from the present position
when the vehicle is shifted into REVERSE. The driver’s
outside mirror will then return to the original position
when the vehicle is shifted out of REVERSE position.
Each stored memory setting will have an associated Tilt
Mirrors in Reverse position. NOTE:
The Tilt Mirrors in Reverse feature is not enabled
when delivered from the factory. The Tilt Mirrors in
Reverse feature can be enabled or disabled in the Elec-
tronic Vehicle Information Center (EVIC). Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding Your
Instrument Panel” for further information.
Power Folding Mirrors — If Equipped
The switch for the power folding mirrors is located
between the power mirror switches L (left) and R (right).
Press the switch once and the mirrors will fold in,
pressing the switch a second time will return the mirrors
to the normal driving position.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If the vehicle speed is greater than 10 mph
(16 km/h) the folding feature will be disabled.
If the mirrors are in the folded position, and vehicle
speed is equal or greater than 10 mph (16 km/h), they
will automatically unfold. Resetting the Power Folding Outside Mirrors
You may need to reset the power folding mirrors if the
following occurs:
•
The mirrors are accidentally blocked while folding.
• The mirrors are accidentally manually folded/
unfolded.
• The mirrors come out of the unfolded position.
• The mirrors shake and vibrate at normal driving
speeds.
To reset the power folding mirrors: Fold and unfold them
by pressing the button. (This may require multiple button
pushes). This resets them to their normal position.
Power Folding Mirror Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137

Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on the sun visor.
To use the mirror, rotate the sun visor down and swing
the mirror cover upward. The lights turn on automati-
cally. Closing the mirror cover turns off the lights.
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway licensable vehicles (automobiles, trucks,
motorcycles, etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.
Illuminated Mirror
