DODGE GRAND CARAVAN 2017 5.G Owners Manual

Once the crossbars are set into position, tighten the thumb
screws completely.
Stowing The Crossbars
Reverse the procedure to stow the crossbars, again, taking
care to keep hand clear of pivoting joint. Crossbars are
identical and can be stowed in either rail nest. Once the
crossbars are stowed, tighten the thumb screws completely.NOTE:
Load should always be secured to crossbars first,
with rail tie down loops used as additional securing points
if needed. Tie loops are intended as supplementary tie
down points only. Do not use ratcheting mechanisms with
the tie loops.
Tightening Crossbar
Rail Tie Loops
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 229

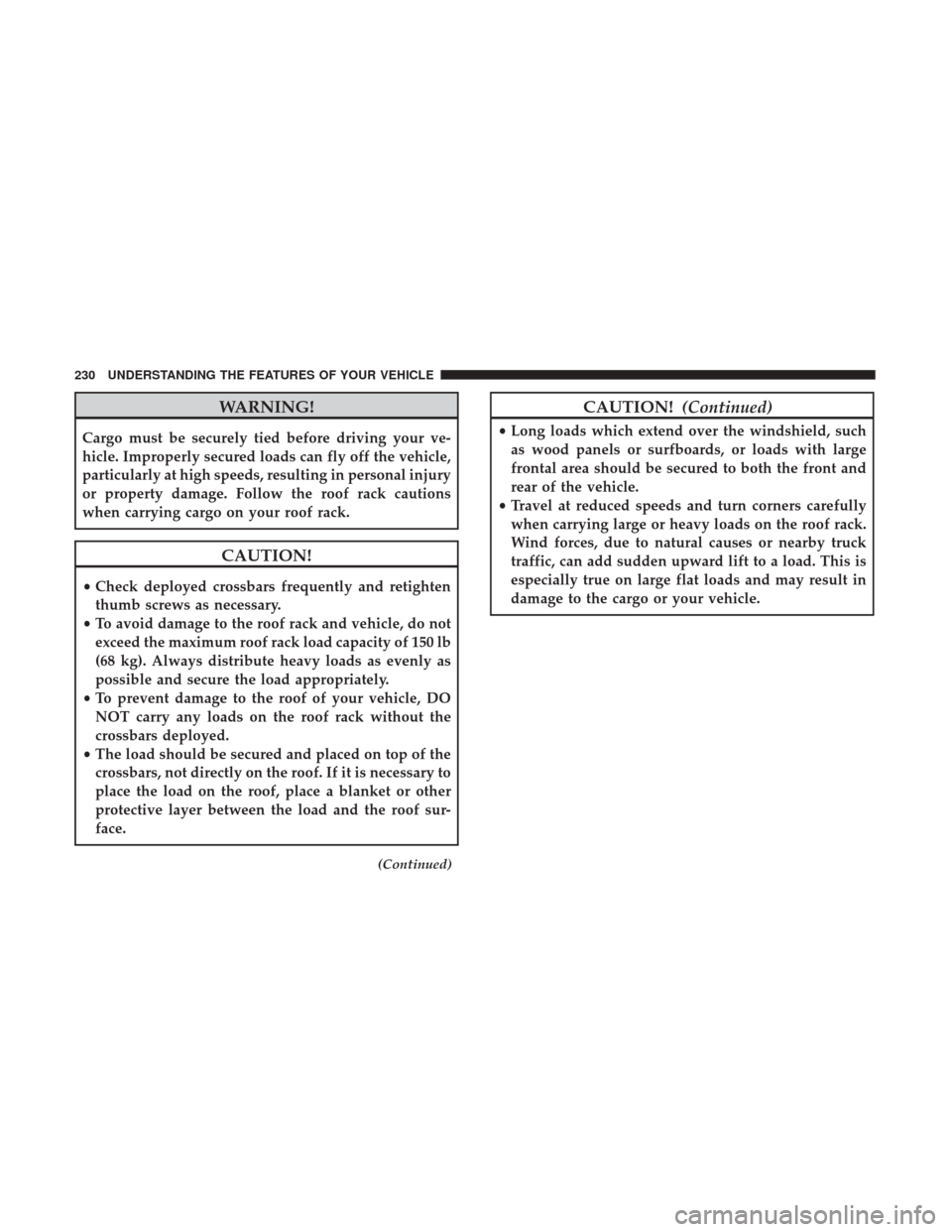

WARNING!
Cargo must be securely tied before driving your ve-
hicle. Improperly secured loads can fly off the vehicle,
particularly at high speeds, resulting in personal injury
or property damage. Follow the roof rack cautions
when carrying cargo on your roof rack.
CAUTION!
•Check deployed crossbars frequently and retighten
thumb screws as necessary.
• To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed.
• The load should be secured and placed on top of the
crossbars, not directly on the roof. If it is necessary to
place the load on the roof, place a blanket or other
protective layer between the load and the roof sur-
face.
(Continued)
CAUTION! (Continued)
•Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
230 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

SUN SCREENS — IF EQUIPPED
Sun screens are available for second and third row seating
windows. The screens store in the sill trim panels, and the
tops of the windows are equipped with hooks that the sun
screens attach to when pulled out.Gently pull up on the tab to raise the sun screen. Continue
pulling the sun screen until the tab is near the top of the
window.
Once the screen is completely to the top of the window,
extend the top bar of the sun screen over the two hooks
attached to the top of the window.
To lower the sun screen, gently lift the tab upward to
disengage the hooks, and feed the screen back into the base
sill.
Sun Screen Retracted
Sun Screen Extended
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

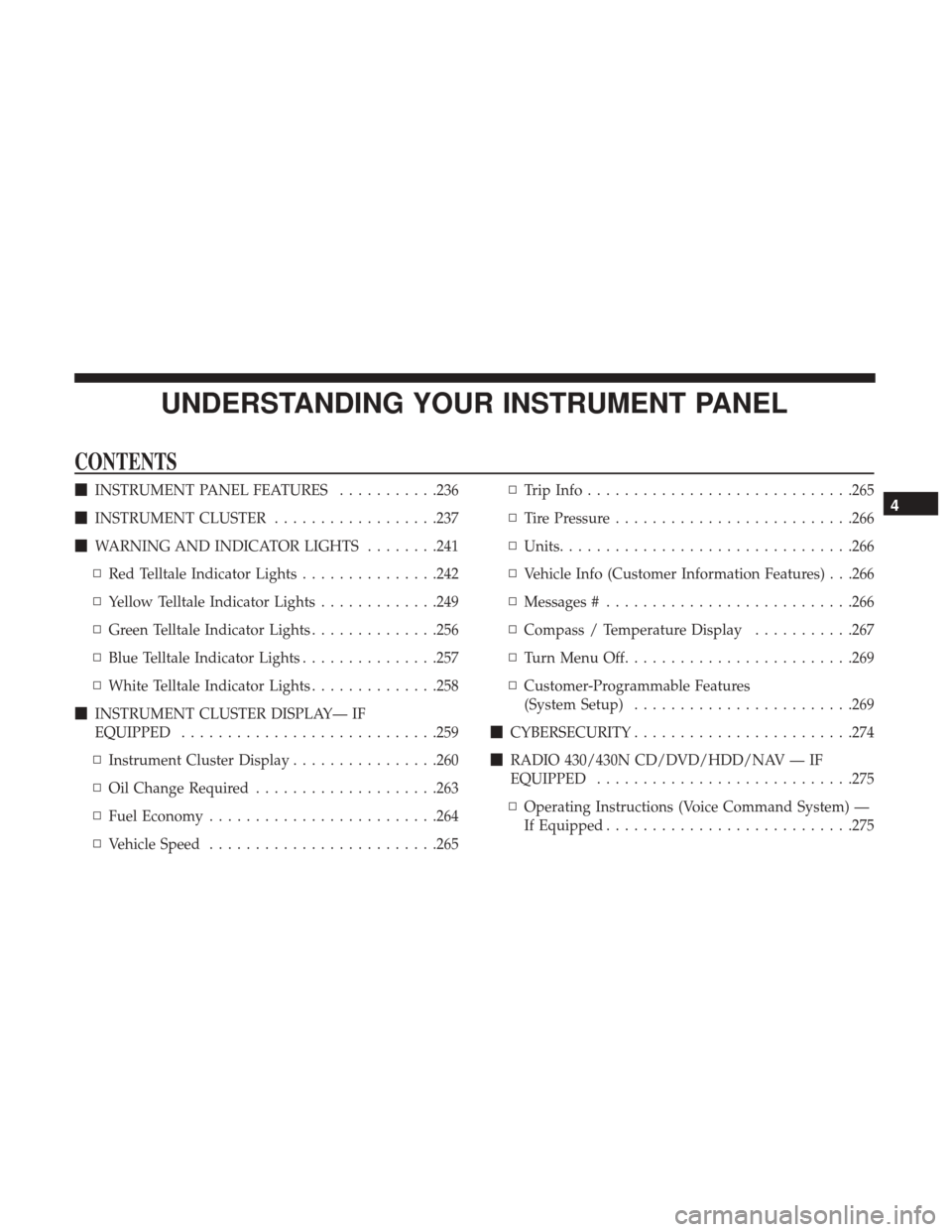

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ...........236
 INSTRUMENT CLUSTER ..................237
 WARNING AND INDICATOR LIGHTS ........241
â–« Red Telltale Indicator Lights ...............242
â–« Yellow Telltale Indicator Lights .............249
â–« Green Telltale Indicator Lights ..............256
â–« Blue Telltale Indicator Lights ...............257
â–« White Telltale Indicator Lights ..............258
 INSTRUMENT CLUSTER DISPLAY— IF
EQUIPPED ............................259
â–« Instrument Cluster Display ................260
â–« Oil Change Required ....................263
â–« Fuel Economy ........................ .264
â–« Vehicle Speed ........................ .265â–«
Trip Info ............................ .265
â–« Tire Pressure ..........................266
â–« Units ............................... .266
â–« Vehicle Info (Customer Information Features) . . .266
â–« Messages # .......................... .266
â–« Compass / Temperature Display ...........267
â–« Turn Menu Off ........................ .269
â–« Customer-Programmable Features
(System Setup) ........................269
 CYBERSECURITY ........................274
 RADIO 430/430N CD/DVD/HDD/NAV — IF
EQUIPPED ............................275
▫ Operating Instructions (Voice Command System) —
If Equipped .......................... .2754

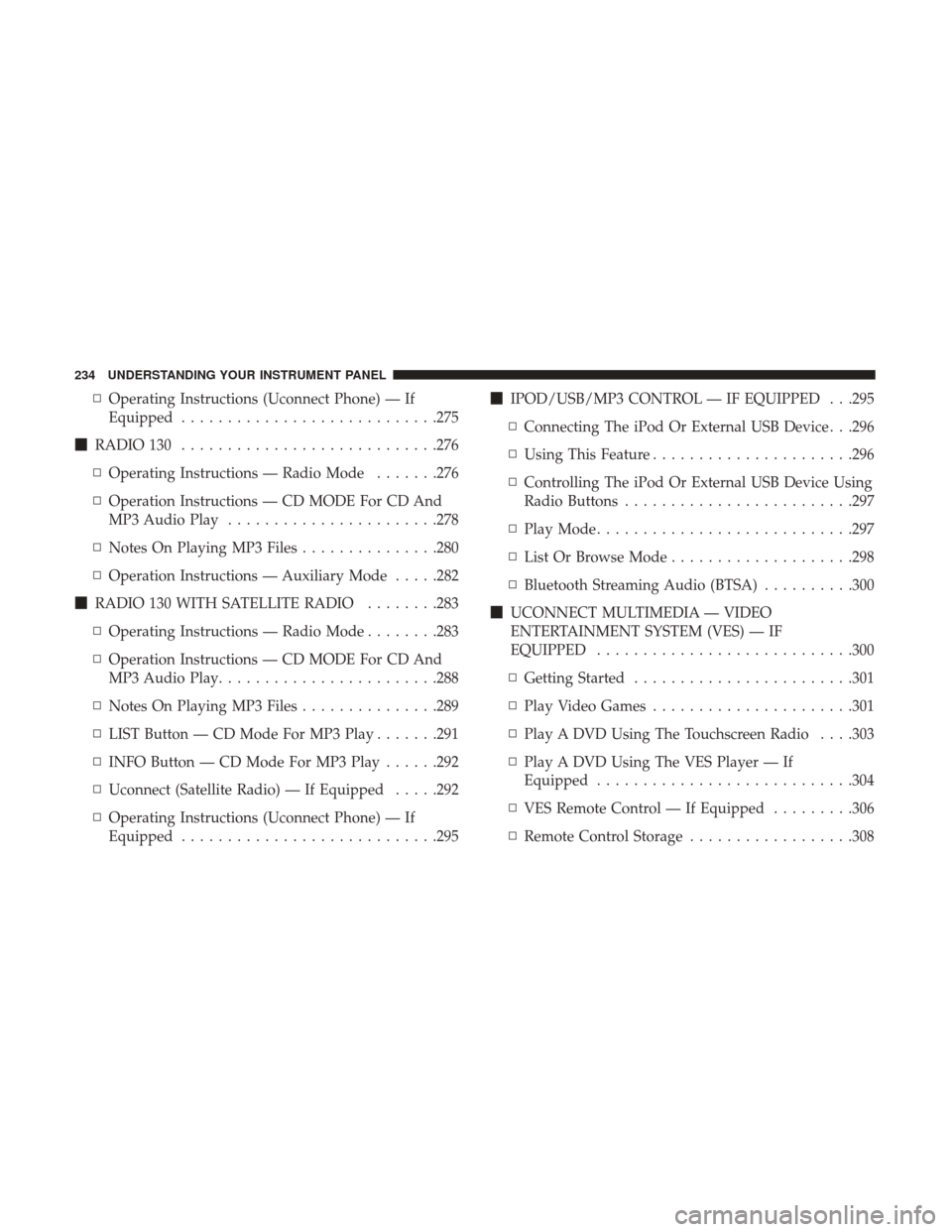

▫Operating Instructions (Uconnect Phone) — If
Equipped ............................275
 RADIO 130 ............................276
▫ Operating Instructions — Radio Mode .......276
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play .......................278
â–« Notes On Playing MP3 Files ...............280
▫ Operation Instructions — Auxiliary Mode .....282
 RADIO 130 WITH SATELLITE RADIO ........283
▫ Operating Instructions — Radio Mode ........283
▫ Operation Instructions — CD MODE For CD And
MP3 Audio Play ........................288
â–« Notes On Playing MP3 Files ...............289
▫ LIST Button — CD Mode For MP3 Play .......291
▫ INFO Button — CD Mode For MP3 Play ......292
▫ Uconnect (Satellite Radio) — If Equipped .....292
▫ Operating Instructions (Uconnect Phone) — If
Equipped ............................295
IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .295
â–« Connecting The iPod Or External USB Device . . .296
â–« Using This Feature ..................... .296
â–« Controlling The iPod Or External USB Device Using
Radio Buttons ........................ .297
â–« Play Mode ............................297
â–« List Or Browse Mode ....................298
â–« Bluetooth Streaming Audio (BTSA) ..........300
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) — IF
EQUIPPED ............................300
â–« Getting Started ........................301
â–« Play Video Games ..................... .301
â–« Play A DVD Using The Touchscreen Radio . . . .303
▫ Play A DVD Using The VES Player — If
Equipped ............................304
â–« VES

Remote Control — If Equipped .........306
â–« Remote Control Storage ..................308
234 UNDERSTANDING YOUR INSTRUMENT PANEL

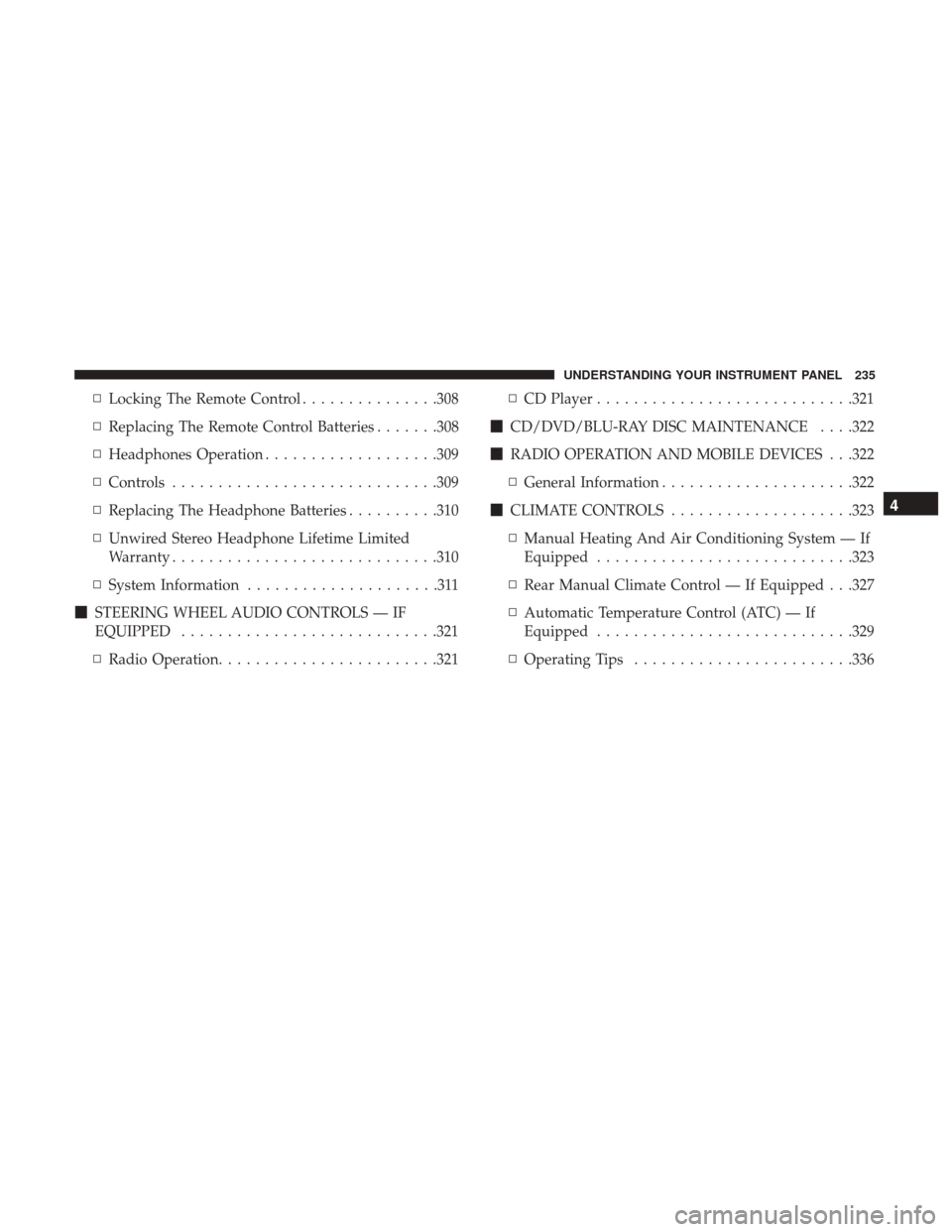

â–«Locking The Remote Control ...............308
â–« Replacing The Remote Control Batteries .......308
â–« Headphones Operation ...................309
â–« Controls ............................ .309
â–« Replacing The Headphone Batteries ..........310
â–« Unwired Stereo Headphone Lifetime Limited
Warranty ............................ .310
â–« System Information .....................311
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED ............................321
â–« Radio Operation ........................321 â–«
CD Player ............................321
 CD/DVD/BLU-RAY DISC MAINTENANCE . . . .322
 RADIO OPERATION AND MOBILE DEVICES . . .322
â–« General Information .....................322
 CLIMATE CONTROLS ....................323
▫ Manual Heating And Air Conditioning System — If
Equipped ............................323
▫ Rear Manual Climate Control — If Equipped . . .327
▫ Automatic Temperature Control (ATC) — If
Equipped ............................329
â–« Operating Tips ........................336
4
UNDERSTANDING YOUR INSTRUMENT PANEL 235

INSTRUMENT PANEL FEATURES
Instrument Panel
1 — Air Vents5 — Upper Glove Compartment 9 — Storage Bin 13 — Hood Release
2 — Instrument Cluster 6 — Lower Glove Compartment 10 — Cup Holders 14 — Dimmer Switch
3 — Gear Selector 7 — Climate Controls11 — Switch Bank15 — Headlight Switch
4 — Radio 8 — DVD – If Equipped12 — Ignition Switch
236 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
Base Instrument Cluster
4
UNDERSTANDING YOUR INSTRUMENT PANEL 237

1. Tachometer•This gauge measures engine revolutions per minute
(RPM x 1000). Before the pointer reaches the red area,
ease up on the accelerator to prevent engine damage. 2. Instrument Cluster Display— If Equipped / Odometer
Display / Trip Odometer Display
Premium Instrument Cluster
238 UNDERSTANDING YOUR INSTRUMENT PANEL
