Headphones Operation
Front seat occupants receive some headphone audio cov-
erage to allow them to adjust the headphone volume for
the young rear seat occupants that may not be able to do so
for themselves.
If no audio is heard after increasing the volume control,
verify that the screen is turned on and in the down position
and that the channel is not muted. If audio is still not heard,
check that fully charged batteries are installed in the
headphones.
Controls
The headphone power indicator and controls are located
on the right ear cup.
NOTE:The rear video system must be turned on before
sound can be heard from the headphones. To conserve
battery life, the headphones will automatically turn off
approximately three minutes after the rear video system is
turned off.
VES Headphones
1 — Volume Control 3 — Channel Selection Switch
2 — Power Button 4 — Power Indicator
4
UNDERSTANDING YOUR INSTRUMENT PANEL 309

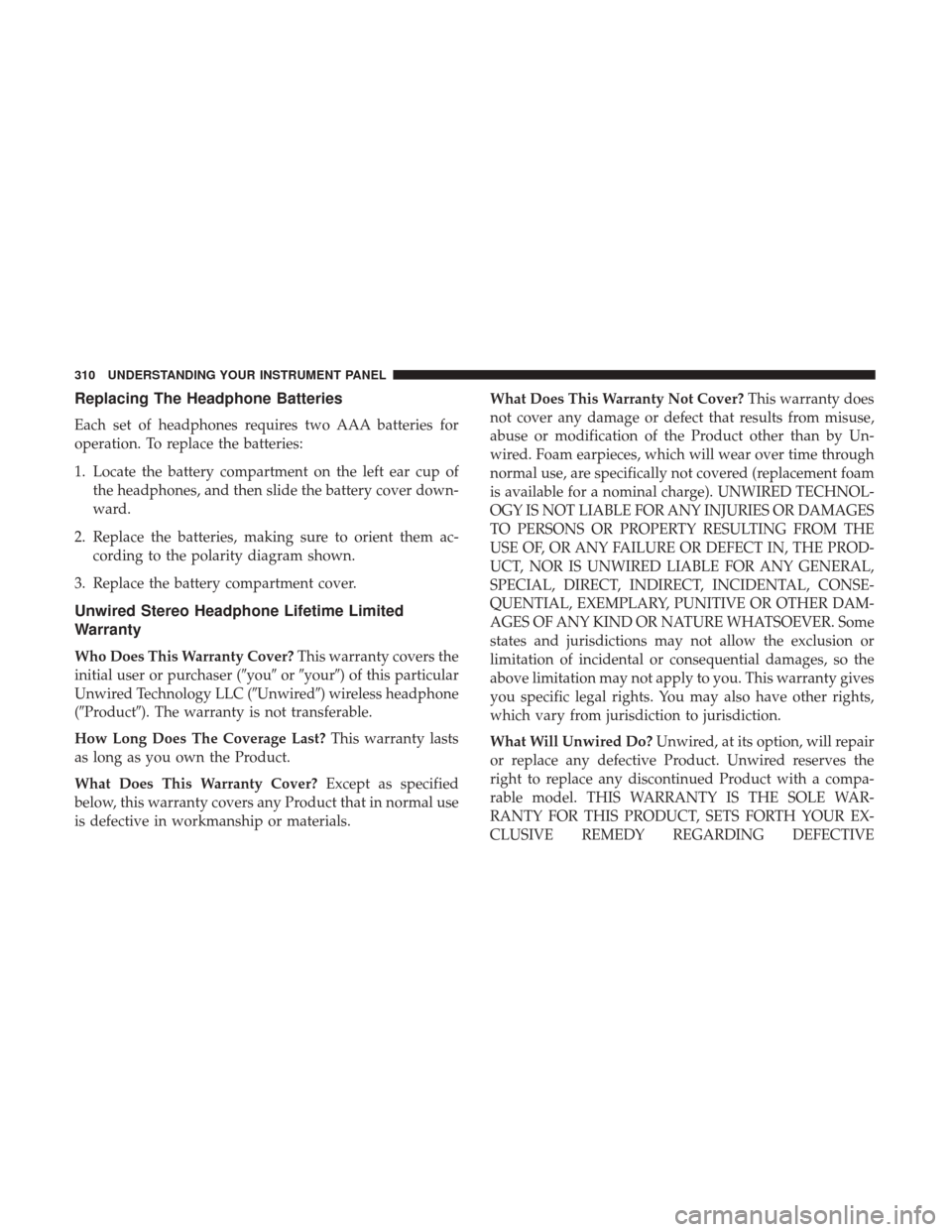

Replacing The Headphone Batteries
Each set of headphones requires two AAA batteries for
operation. To replace the batteries:
1. Locate the battery compartment on the left ear cup ofthe headphones, and then slide the battery cover down-
ward.
2. Replace the batteries, making sure to orient them ac- cording to the polarity diagram shown.
3. Replace the battery compartment cover.
Unwired Stereo Headphone Lifetime Limited
Warranty
Who Does This Warranty Cover? This warranty covers the
initial user or purchaser (you oryour) of this particular
Unwired Technology LLC (Unwired) wireless headphone
(Product). The warranty is not transferable.
How Long Does The Coverage Last? This warranty lasts
as long as you own the Product.
What Does This Warranty Cover? Except as specified
below, this warranty covers any Product that in normal use
is defective in workmanship or materials. What Does This Warranty Not Cover?
This warranty does
not cover any damage or defect that results from misuse,
abuse or modification of the Product other than by Un-
wired. Foam earpieces, which will wear over time through
normal use, are specifically not covered (replacement foam
is available for a nominal charge). UNWIRED TECHNOL-
OGY IS NOT LIABLE FOR ANY INJURIES OR DAMAGES
TO PERSONS OR PROPERTY RESULTING FROM THE
USE OF, OR ANY FAILURE OR DEFECT IN, THE PROD-
UCT, NOR IS UNWIRED LIABLE FOR ANY GENERAL,
SPECIAL, DIRECT, INDIRECT, INCIDENTAL, CONSE-
QUENTIAL, EXEMPLARY, PUNITIVE OR OTHER DAM-
AGES OF ANY KIND OR NATURE WHATSOEVER. Some
states and jurisdictions may not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation may not apply to you. This warranty gives
you specific legal rights. You may also have other rights,
which vary from jurisdiction to jurisdiction.
What Will Unwired Do? Unwired, at its option, will repair
or replace any defective Product. Unwired reserves the
right to replace any discontinued Product with a compa-
rable model. THIS WARRANTY IS THE SOLE WAR-
RANTY FOR THIS PRODUCT, SETS FORTH YOUR EX-
CLUSIVE REMEDY REGARDING DEFECTIVE
310 UNDERSTANDING YOUR INSTRUMENT PANEL

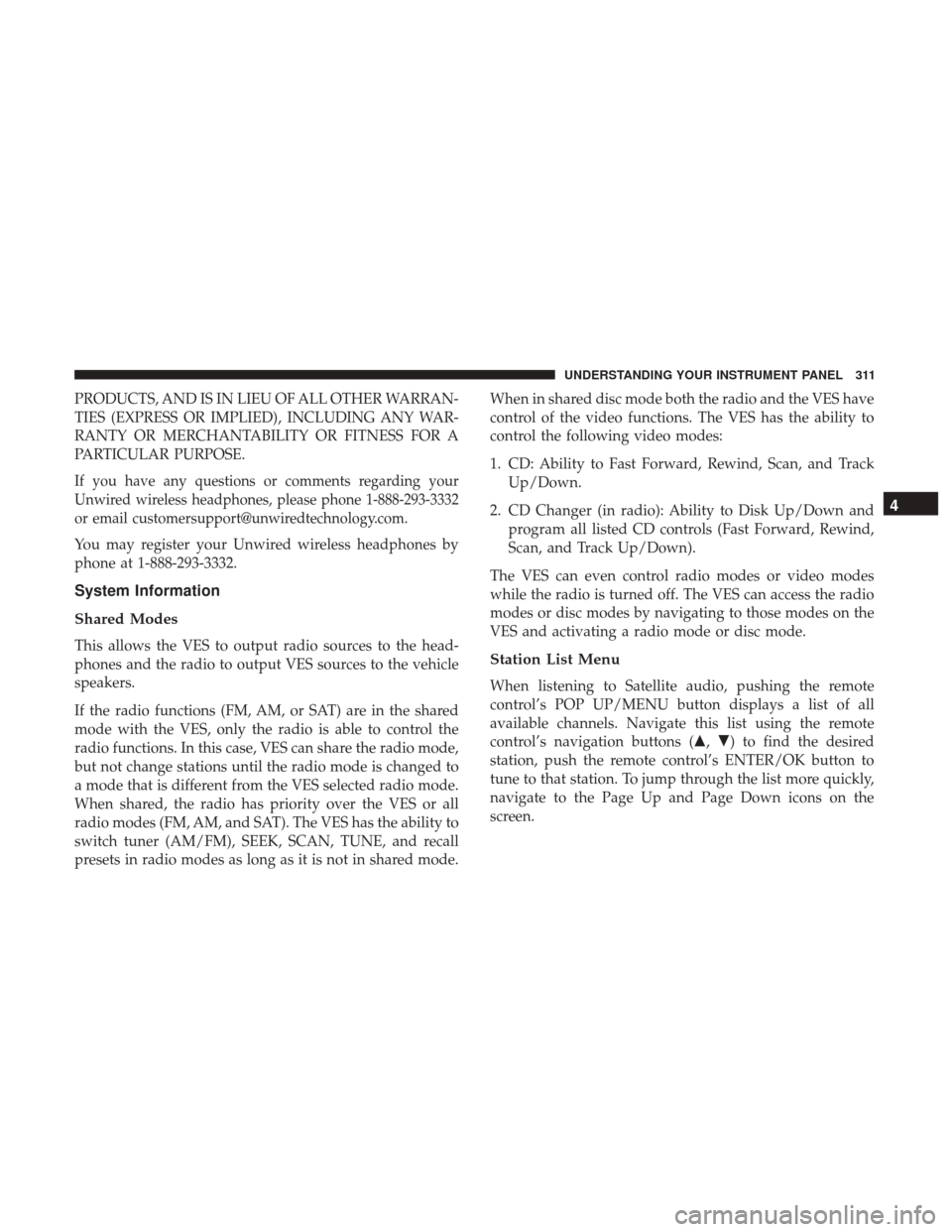

PRODUCTS, AND IS IN LIEU OF ALL OTHER WARRAN-
TIES (EXPRESS OR IMPLIED), INCLUDING ANY WAR-
RANTY OR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If you have any questions or comments regarding your
Unwired wireless headphones, please phone 1-888-293-3332
or email [email protected].
You may register your Unwired wireless headphones by
phone at 1-888-293-3332.
System Information
Shared Modes
This allows the VES to output radio sources to the head-
phones and the radio to output VES sources to the vehicle
speakers.
If the radio functions (FM, AM, or SAT) are in the shared
mode with the VES, only the radio is able to control the
radio functions. In this case, VES can share the radio mode,
but not change stations until the radio mode is changed to
a mode that is different from the VES selected radio mode.
When shared, the radio has priority over the VES or all
radio modes (FM, AM, and SAT). The VES has the ability to
switch tuner (AM/FM), SEEK, SCAN, TUNE, and recall
presets in radio modes as long as it is not in shared mode.When in shared disc mode both the radio and the VES have
control of the video functions. The VES has the ability to
control the following video modes:
1. CD: Ability to Fast Forward, Rewind, Scan, and Track
Up/Down.
2. CD Changer (in radio): Ability to Disk Up/Down and program all listed CD controls (Fast Forward, Rewind,
Scan, and Track Up/Down).
The VES can even control radio modes or video modes
while the radio is turned off. The VES can access the radio
modes or disc modes by navigating to those modes on the
VES and activating a radio mode or disc mode.Station List Menu
When listening to Satellite audio, pushing the remote
control’s POP UP/MENU button displays a list of all
available channels. Navigate this list using the remote
control’s navigation buttons (, ) to find the desired
station, push the remote control’s ENTER/OK button to
tune to that station. To jump through the list more quickly,
navigate to the Page Up and Page Down icons on the
screen.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 311

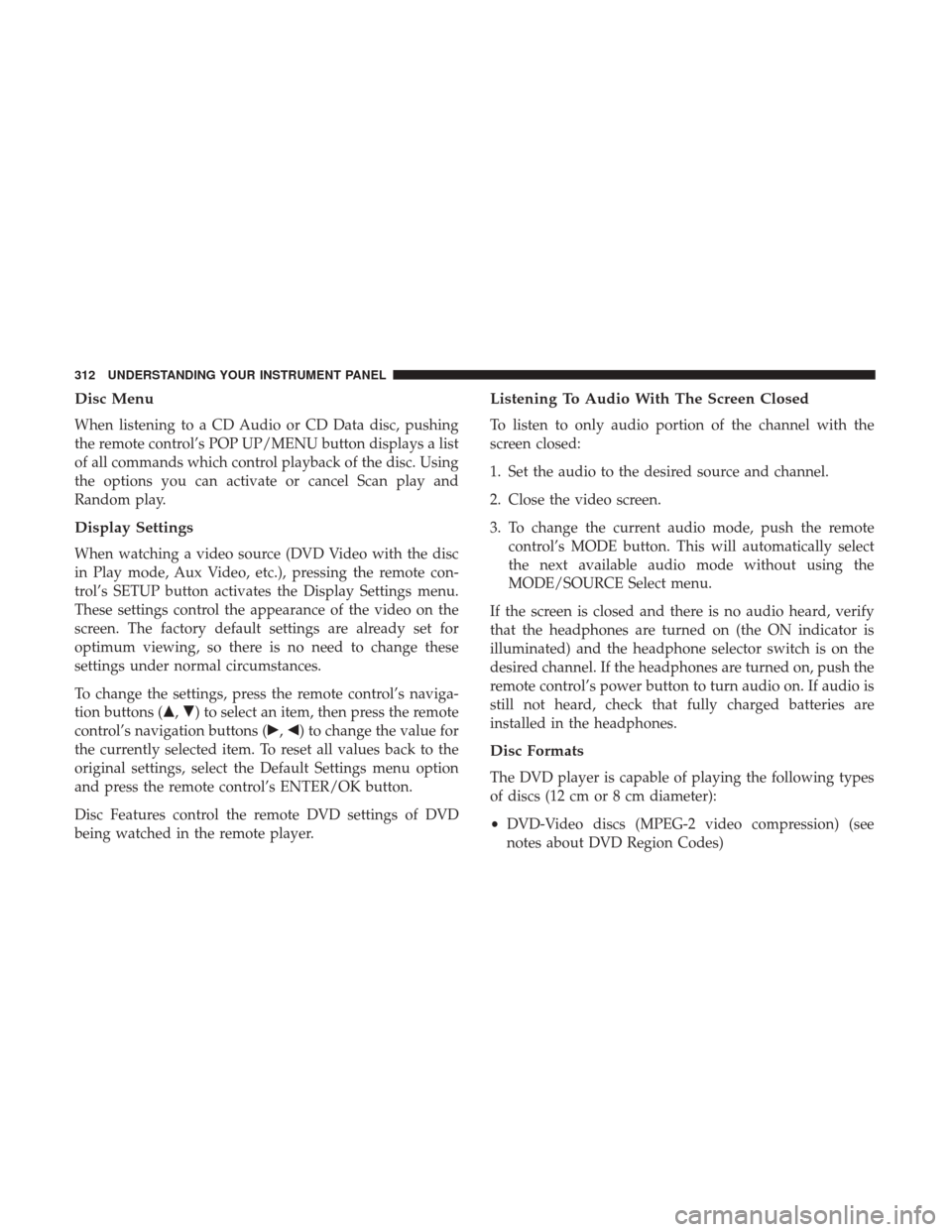

Disc Menu
When listening to a CD Audio or CD Data disc, pushing
the remote control’s POP UP/MENU button displays a list
of all commands which control playback of the disc. Using
the options you can activate or cancel Scan play and
Random play.
Display Settings
When watching a video source (DVD Video with the disc
in Play mode, Aux Video, etc.), pressing the remote con-
trol’s SETUP button activates the Display Settings menu.
These settings control the appearance of the video on the
screen. The factory default settings are already set for
optimum viewing, so there is no need to change these
settings under normal circumstances.
To change the settings, press the remote control’s naviga-
tion buttons (,) to select an item, then press the remote
control’s navigation buttons (, ) to change the value for
the currently selected item. To reset all values back to the
original settings, select the Default Settings menu option
and press the remote control’s ENTER/OK button.
Disc Features control the remote DVD settings of DVD
being watched in the remote player.
Listening To Audio With The Screen Closed
To listen to only audio portion of the channel with the
screen closed:
1. Set the audio to the desired source and channel.
2. Close the video screen.
3. To change the current audio mode, push the remote control’s MODE button. This will automatically select
the next available audio mode without using the
MODE/SOURCE Select menu.
If the screen is closed and there is no audio heard, verify
that the headphones are turned on (the ON indicator is
illuminated) and the headphone selector switch is on the
desired channel. If the headphones are turned on, push the
remote control’s power button to turn audio on. If audio is
still not heard, check that fully charged batteries are
installed in the headphones.
Disc Formats
The DVD player is capable of playing the following types
of discs (12 cm or 8 cm diameter):
• DVD-Video discs (MPEG-2 video compression) (see
notes about DVD Region Codes)
312 UNDERSTANDING YOUR INSTRUMENT PANEL

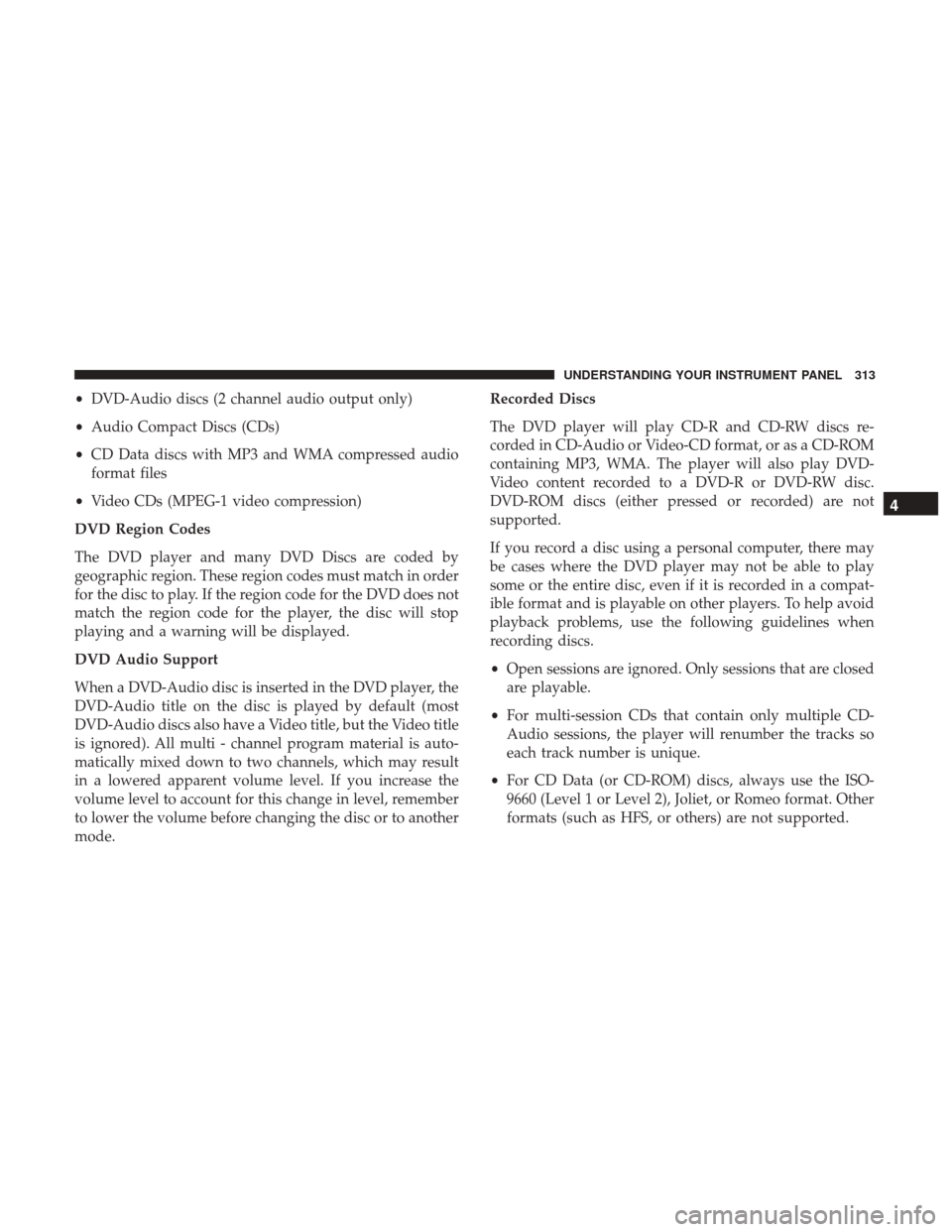

•DVD-Audio discs (2 channel audio output only)
• Audio Compact Discs (CDs)
• CD Data discs with MP3 and WMA compressed audio
format files
• Video CDs (MPEG-1 video compression)
DVD Region Codes
The DVD player and many DVD Discs are coded by
geographic region. These region codes must match in order
for the disc to play. If the region code for the DVD does not
match the region code for the player, the disc will stop
playing and a warning will be displayed.
DVD Audio Support
When a DVD-Audio disc is inserted in the DVD player, the
DVD-Audio title on the disc is played by default (most
DVD-Audio discs also have a Video title, but the Video title
is ignored). All multi - channel program material is auto-
matically mixed down to two channels, which may result
in a lowered apparent volume level. If you increase the
volume level to account for this change in level, remember
to lower the volume before changing the disc or to another
mode. Recorded Discs
The DVD player will play CD-R and CD-RW discs re-
corded in CD-Audio or Video-CD format, or as a CD-ROM
containing MP3, WMA. The player will also play DVD-
Video content recorded to a DVD-R or DVD-RW disc.
DVD-ROM discs (either pressed or recorded) are not
supported.
If you record a disc using a personal computer, there may
be cases where the DVD player may not be able to play
some or the entire disc, even if it is recorded in a compat-
ible format and is playable on other players. To help avoid
playback problems, use the following guidelines when
recording discs.
•
Open sessions are ignored. Only sessions that are closed
are playable.
• For multi-session CDs that contain only multiple CD-
Audio sessions, the player will renumber the tracks so
each track number is unique.
• For CD Data (or CD-ROM) discs, always use the ISO-
9660 (Level 1 or Level 2), Joliet, or Romeo format. Other
formats (such as HFS, or others) are not supported.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 313

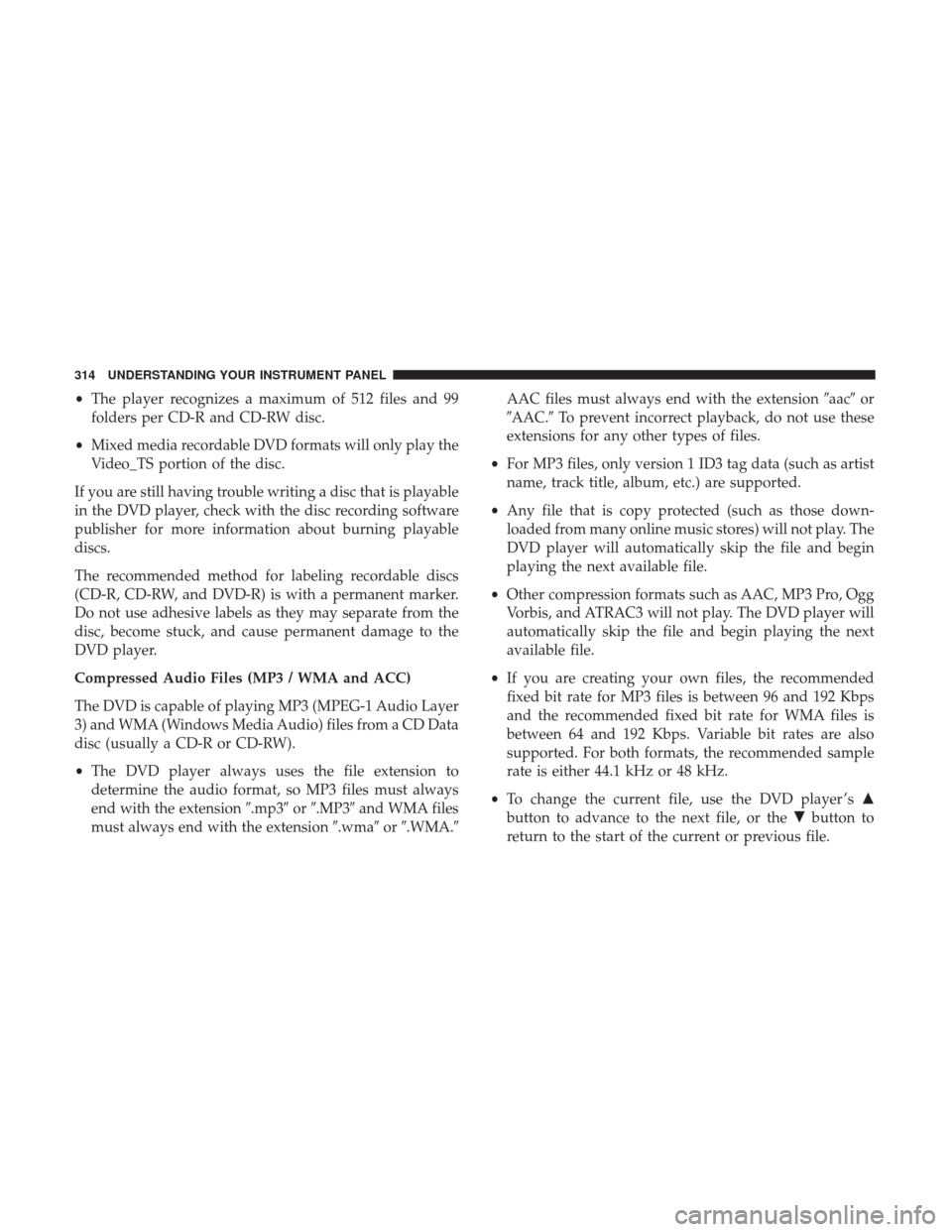

•The player recognizes a maximum of 512 files and 99
folders per CD-R and CD-RW disc.
• Mixed media recordable DVD formats will only play the
Video_TS portion of the disc.
If you are still having trouble writing a disc that is playable
in the DVD player, check with the disc recording software
publisher for more information about burning playable
discs.
The recommended method for labeling recordable discs
(CD-R, CD-RW, and DVD-R) is with a permanent marker.
Do not use adhesive labels as they may separate from the
disc, become stuck, and cause permanent damage to the
DVD player.
Compressed Audio Files (MP3 / WMA and ACC)
The DVD is capable of playing MP3 (MPEG-1 Audio Layer
3) and WMA (Windows Media Audio) files from a CD Data
disc (usually a CD-R or CD-RW).
• The DVD player always uses the file extension to
determine the audio format, so MP3 files must always
end with the extension .mp3or.MP3 and WMA files
must always end with the extension .wmaor.WMA. AAC files must always end with the extension
aacor
AAC. To prevent incorrect playback, do not use these
extensions for any other types of files.
• For MP3 files, only version 1 ID3 tag data (such as artist
name, track title, album, etc.) are supported.
• Any file that is copy protected (such as those down-
loaded from many online music stores) will not play. The
DVD player will automatically skip the file and begin
playing the next available file.
• Other compression formats such as AAC, MP3 Pro, Ogg
Vorbis, and ATRAC3 will not play. The DVD player will
automatically skip the file and begin playing the next
available file.
• If you are creating your own files, the recommended
fixed bit rate for MP3 files is between 96 and 192 Kbps
and the recommended fixed bit rate for WMA files is
between 64 and 192 Kbps. Variable bit rates are also
supported. For both formats, the recommended sample
rate is either 44.1 kHz or 48 kHz.
• To change the current file, use the DVD player ’s
button to advance to the next file, or the button to
return to the start of the current or previous file.
314 UNDERSTANDING YOUR INSTRUMENT PANEL

•To change the current directory, use the remote control’s
PROG UP and Down buttons or Rewind/skip back and
fast fwd/skip forward.
Disc Errors
If the DVD player is unable to read the disc, a Disc Error
message is displayed on the Radio display and the disc is
automatically ejected. A dirty, damaged, or incompatible
disc format are all potential causes for a Disc Error
message.
If a disc has a damaged track which results in audible or
visible errors that persists for 2.0 seconds, the DVD player
will attempt to continue playing the disc by skipping
forward 1.0 to 3.0 seconds at a time. If the end of the disc
is reached, the DVD player will return to the beginning of
the disc and attempt to play the start of the first track.
The DVD player may shut down during extremely hot
conditions, such as when the vehicle’s interior temperature
is above 120° F (49° C). When this occurs, the DVD Player
will display High Temp and will shut off the display until
a safe temperature is reached. This shutdown is necessary
to protect the optics of the DVD.Display
Other Language Setup
All of the Language settings have a special Othersetting
to accommodate languages other than Japanese or English.
These languages are selected using a special four-digit
code.
DVD Player Language Menu
4
UNDERSTANDING YOUR INSTRUMENT PANEL 315

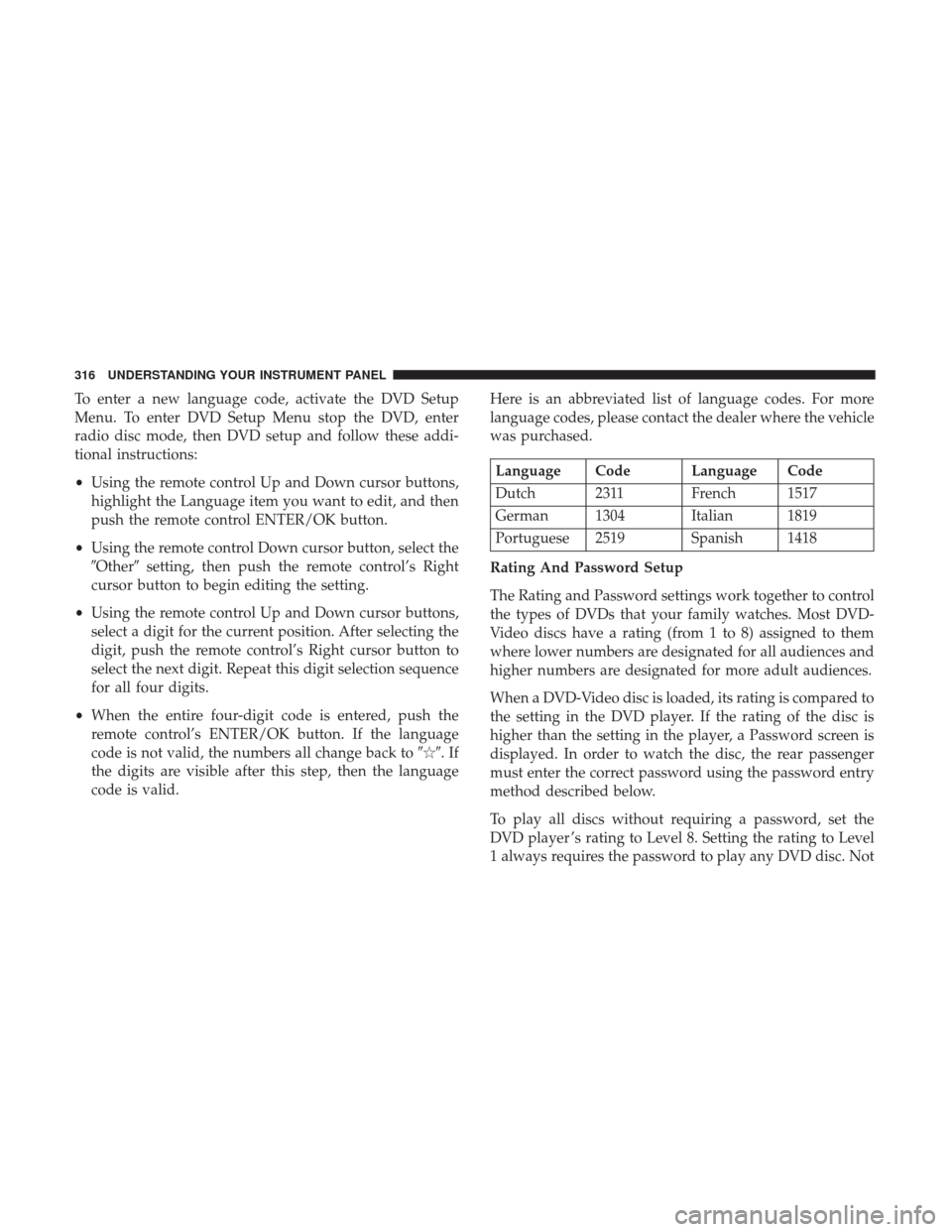

To enter a new language code, activate the DVD Setup
Menu. To enter DVD Setup Menu stop the DVD, enter
radio disc mode, then DVD setup and follow these addi-
tional instructions:
•Using the remote control Up and Down cursor buttons,
highlight the Language item you want to edit, and then
push the remote control ENTER/OK button.
• Using the remote control Down cursor button, select the
Other setting, then push the remote control’s Right
cursor button to begin editing the setting.
• Using the remote control Up and Down cursor buttons,
select a digit for the current position. After selecting the
digit, push the remote control’s Right cursor button to
select the next digit. Repeat this digit selection sequence
for all four digits.
• When the entire four-digit code is entered, push the
remote control’s ENTER/OK button. If the language
code is not valid, the numbers all change back to .If
the digits are visible after this step, then the language
code is valid. Here is an abbreviated list of language codes. For more
language codes, please contact the dealer where the vehicle
was purchased.
Language Code Language Code
Dutch 2311 French 1517
German 1304 Italian 1819
Portuguese 2519 Spanish 1418
Rating And Password Setup
The Rating and Password settings work together to control
the types of DVDs that your family watches. Most DVD-
Video discs have a rating (from 1 to 8) assigned to them
where lower numbers are designated for all audiences and
higher numbers are designated for more adult audiences.
When a DVD-Video disc is loaded, its rating is compared to
the setting in the DVD player. If the rating of the disc is
higher than the setting in the player, a Password screen is
displayed. In order to watch the disc, the rear passenger
must enter the correct password using the password entry
method described below.
To play all discs without requiring a password, set the
DVD player ’s rating to Level 8. Setting the rating to Level
1 always requires the password to play any DVD disc. Not
316 UNDERSTANDING YOUR INSTRUMENT PANEL

all DVD discs encode a Rating, so it is still possible that
discs designed for adult audiences can still play without
requiring a password.
The default rating is Level 8 (play all discs without a
password) and the default password is 0000.To set the password, activate the DVD Setup Menu and
follow these additional instructions:
•
Using the remote control Left and Right cursor buttons,
select the Rating tab.
• Highlight Change Password, and then push the remote
control’s ENTER/OK button.
• Enter the current password. Select a digit, use the remote
control Up and Down cursor buttons to set the value for
the current digit, and then push the remote control’s
Right cursor button to select the next digit. Repeat this
digit selection sequence for all four digits.
• After the four-digit password is entered, push the re-
mote control’s ENTER/OK button. If the password is
correct, the set password screen is displayed.
• Using the remote control’s Up and Down cursor buttons
to set the value for the current digit and the remote
control’s Right cursor button to select digits, enter the
new password.
• After the four-digit password is entered, push the re-
mote control’s ENTER/OK button to accept the change.
DVD Password Entry
4
UNDERSTANDING YOUR INSTRUMENT PANEL 317

To set the rating, activate the DVD Setup Menu and follow
these additional instructions:
•Using the remote control’s Left and Right cursor but-
tons, select the Rating tab.
• Highlight Change Rating, and then push the remote
control’s ENTER/OK button. •
Enter the current password. Select a digit, use the remote
control’s Up and Down cursor buttons to set the value
for the current digit, and then push the remote control’s
Right cursor button to select the next digit. Repeat this
digit selection sequence for all four digits.
• After the four-digit password is entered, push the re-
mote control’s ENTER/OK button. If the password is
correct, the Rating Level menu is displayed.
• Using the remote control’s Up and Down cursor buttons,
select the new rating level, and then push the remote
control’s ENTER/OK button to accept the change.
Product Agreement
Software
This product contains software licensed under GNU Gen-
eral Public License (GPL) or GNU Lesser General Public
License (LGPL), etc. You have the right of acquisition,
modification, and distribution of the source code of the
GPL/LGPL software. You may download Source Code
from the following website at no charge.
http://www.embedded-carmultimedia.jp/linux/oss/
download/MP_632_34W821
DVD Player Level Menu
318 UNDERSTANDING YOUR INSTRUMENT PANEL
