THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS ...............9
▫ Wireless Ignition Node (WIN) ...............9
▫ KeyFob...............................9
▫ Removing Key Fob From Ignition ............10
▫ Key-In-Ignition Reminder .................11
 SENTRY KEY ...........................11
▫ Replacement Keys .......................12
▫ Customer Key Fob Programming ............13
▫ General Information .....................13
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .13
▫ Rearming Of The System ..................13
▫ To Arm The System ......................14
▫ To Disarm The System ....................14
▫ Tamper Alert ...........................15 ▫
Security System Manual Override ............15
 ILLUMINATED APPROACH ................15
 REMOTE KEYLESS ENTRY .................16
▫ Using The Key Fob ......................16
▫ Power Open/Close Power Liftgate — If
Equipped .............................19
▫ Programming Additional Key Fobs ...........20
▫ Key Fob Battery Replacement ..............21
▫ General Information .....................23
 REMOTE STARTING SYSTEM — IF EQUIPPED . . .23
▫ How To Use Remote Start ..................23
▫ Remote Start Abort Messages ...............24
▫ To Enter Remote Start Mode ................24
▫ To Enter The Vehicle After Remote Start ........25
2

NOTE:When having the Sentry Key Immobilizer system
serviced, bring all vehicle key fobs with you to the autho-
rized dealer.
Customer Key Fob Programming
Programming key fobs may be performed at an authorized
dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors for
unauthorized entry and the ignition switch for unauthor-
ized operation. When the alarm is activated, the interior
switches for door locks, power sliding doors and power
liftgate are disabled. The Vehicle Security Alarm provides
both audible and visible signals. For the first three minutes,
the headlights will turn on, the park lamps and/or turn
signals will flash and Vehicle Security Light will flash
repeatedly and the horn will sound. For an additional 15
minutes, only the headlights, park lamps and/or turn
signals and Vehicle Security Light will flash.
Rearming Of The System
The Vehicle Security Alarm will rearm itself after the 15
additional minutes of headlights and Vehicle Security Light
flashing, if the Vehicle Security Alarm has not been dis-
abled. If the condition which initiated the alarm is still
present, the Vehicle Security Alarm will ignore that condi-
tion and monitor the remaining doors and ignition.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

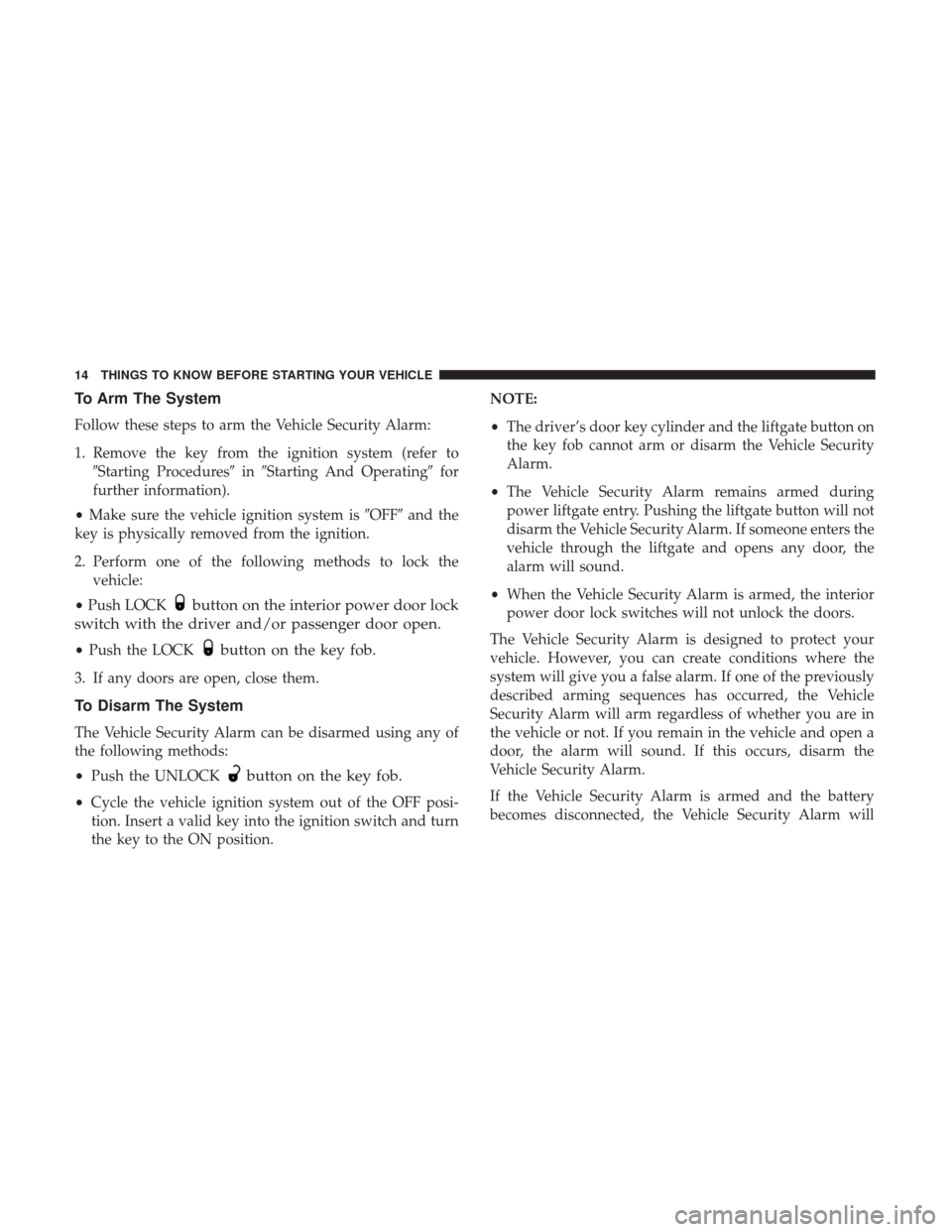

To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Remove the key from the ignition system (refer toStarting Procedures inStarting And Operating for
further information).
• Make sure the vehicle ignition system is OFFand the
key is physically removed from the ignition.
2. Perform one of the following methods to lock the vehicle:
• Push LOCK
button on the interior power door lock
switch with the driver and/or passenger door open.
• Push the LOCKbutton on the key fob.
3. If any doors are open, close them.
To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Push the UNLOCK
button on the key fob.
•Cycle the vehicle ignition system out of the OFF posi-
tion. Insert a valid key into the ignition switch and turn
the key to the ON position. NOTE:
•
The driver’s door key cylinder and the liftgate button on
the key fob cannot arm or disarm the Vehicle Security
Alarm.
• The Vehicle Security Alarm remains armed during
power liftgate entry. Pushing the liftgate button will not
disarm the Vehicle Security Alarm. If someone enters the
vehicle through the liftgate and opens any door, the
alarm will sound.
• When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previously
described arming sequences has occurred, the Vehicle
Security Alarm will arm regardless of whether you are in
the vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

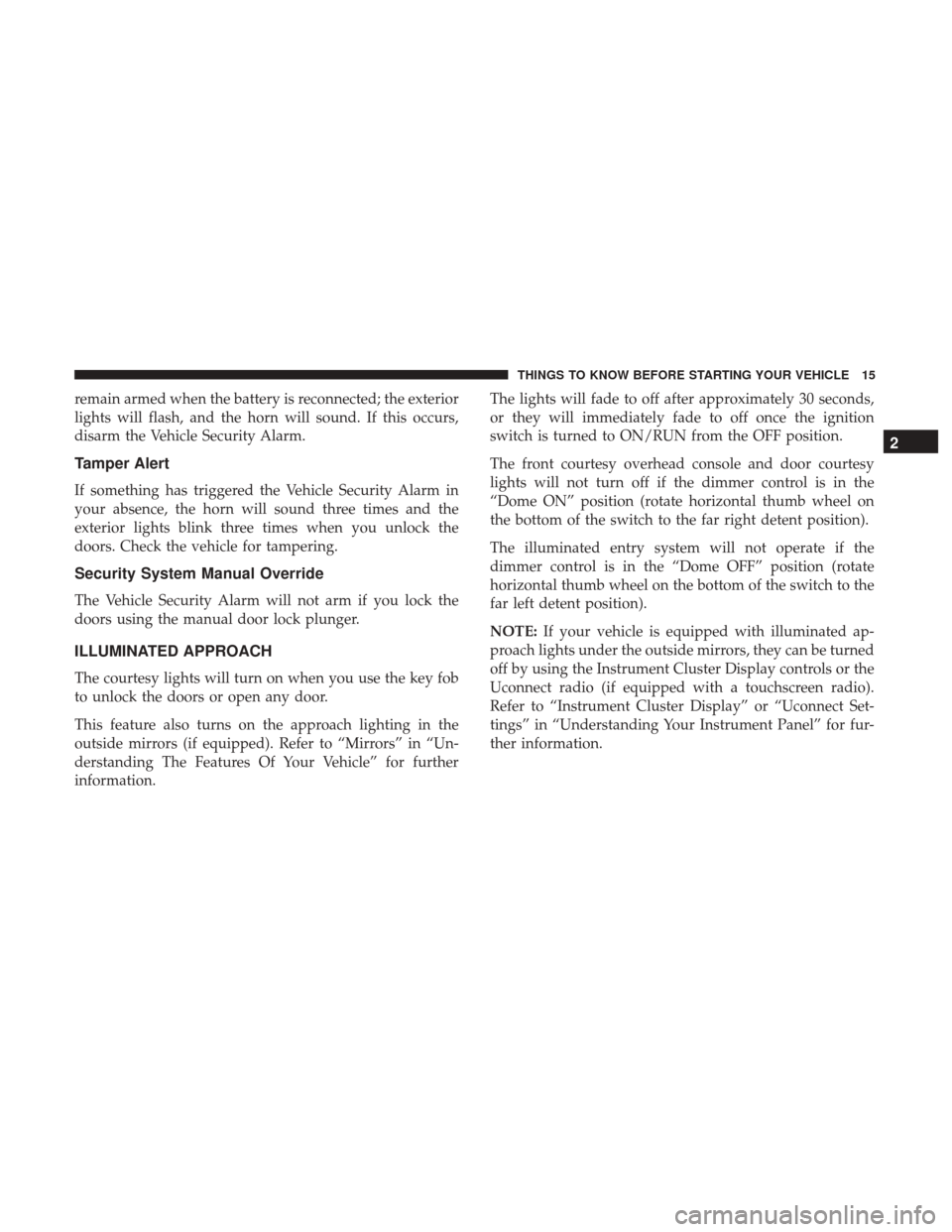

remain armed when the battery is reconnected; the exterior
lights will flash, and the horn will sound. If this occurs,
disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights blink three times when you unlock the
doors. Check the vehicle for tampering.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED APPROACH
The courtesy lights will turn on when you use the key fob
to unlock the doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in “Un-
derstanding The Features Of Your Vehicle” for further
information.The lights will fade to off after approximately 30 seconds,
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
The front courtesy overhead console and door courtesy
lights will not turn off if the dimmer control is in the
“Dome ON” position (rotate horizontal thumb wheel on
the bottom of the switch to the far right detent position).
The illuminated entry system will not operate if the
dimmer control is in the “Dome OFF” position (rotate
horizontal thumb wheel on the bottom of the switch to the
far left detent position).
NOTE:
If your vehicle is equipped with illuminated ap-
proach lights under the outside mirrors, they can be turned
off by using the Instrument Cluster Display controls or the
Uconnect radio (if equipped with a touchscreen radio).
Refer to “Instrument Cluster Display” or “Uconnect Set-
tings” in “Understanding Your Instrument Panel” for fur-
ther information.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate, and activate the Panic Alarm, optional power
liftgate, left power sliding door, and right power sliding
door from distances up to approximately 66 ft (20 m) using
a handheld Remote Keyless Entry key fob. The key fob
does not need to be pointed at the vehicle to activate the
system.
NOTE:Inserting the key fob into the ignition switch
disables the system from responding to any button pushes
from that key fob. Driving at speeds 5 mph (8 km/h) and
above disables the system from responding to all key fob
buttons for all key fobs.
Two key fobs may be supplied with the vehicle. Vehicles
built without the powered options will be equipped from
the factory with three-button key fobs, and those built with
power options will be equipped with up to seven-button
key fobs.
Using The Key Fob
Three-button key fobs will provide basic UNLOCK, LOCK,
and PANIC functions.
Seven-button key fobs will provide functions that allow the
same basic operation as the three-button, but may also be
used to operate the power liftgate (optional), power sliding
doors, and Remote Start feature (optional). Some features
can be programmed to the customers preferences. For
example, lights flash, or sound horn on lock.
Three-Button Key Fob
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:Pushing the LOCKbutton on the key fob
while you are inside the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Secu-
rity Alarm activated will cause the alarm to sound. Push
the UNLOCK
button to deactivate the Vehicle Secu-
rity Alarm.
Remote Lock Doors And Liftgate
Push and release the LOCK button on the key fob to lock all
doors and liftgate. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn With Remote Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off. To change the current setting, proceed as
follows:
• For vehicles equipped with the Instrument Cluster Dis-
play, refer to “Instrument Cluster Display/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further
information. •
For vehicles not equipped with the Instrument Cluster
Display, perform the following steps:
1. Perform this operation while standing outside the ve- hicle.
2. Push the LOCK button on a programmed key fob for at least 4 seconds, but no longer than 10 seconds. Then,
push the PANIC button while still holding the LOCK
button.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by pushing the LOCK button on the key fob with the ignition switch
in the OFF position and the key fob removed.
5. Repeat these steps if you want to return this feature to its previous setting.
NOTE: Pushing the LOCK button on the key fob while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Push the UN-
LOCK button to deactivate the Vehicle Security Alarm.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC button on the key fob for at least one second
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

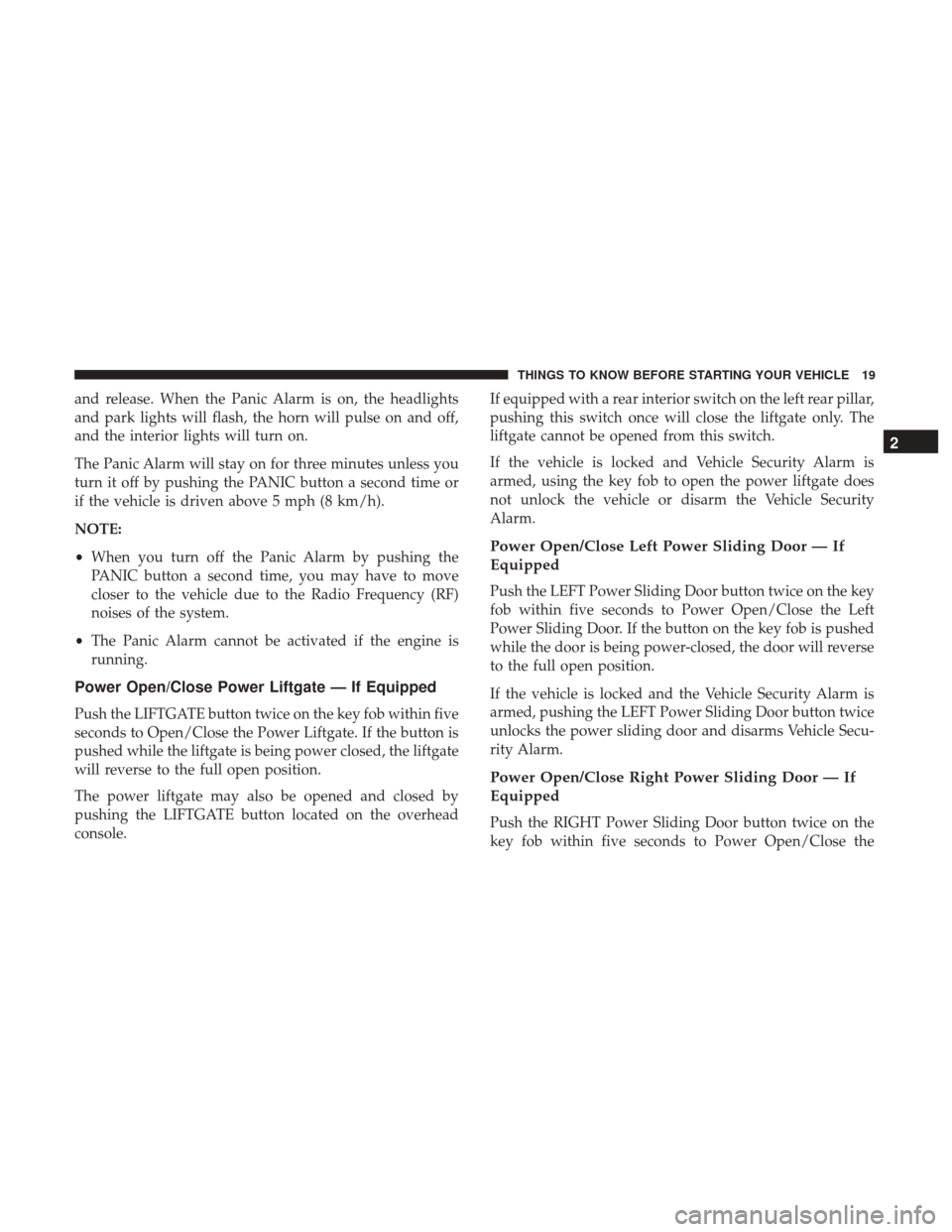

and release. When the Panic Alarm is on, the headlights
and park lights will flash, the horn will pulse on and off,
and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless you
turn it off by pushing the PANIC button a second time or
if the vehicle is driven above 5 mph (8 km/h).
NOTE:
•When you turn off the Panic Alarm by pushing the
PANIC button a second time, you may have to move
closer to the vehicle due to the Radio Frequency (RF)
noises of the system.
• The Panic Alarm cannot be activated if the engine is
running.
Power Open/Close Power Liftgate — If Equipped
Push the LIFTGATE button twice on the key fob within five
seconds to Open/Close the Power Liftgate. If the button is
pushed while the liftgate is being power closed, the liftgate
will reverse to the full open position.
The power liftgate may also be opened and closed by
pushing the LIFTGATE button located on the overhead
console. If equipped with a rear interior switch on the left rear pillar,
pushing this switch once will close the liftgate only. The
liftgate cannot be opened from this switch.
If the vehicle is locked and Vehicle Security Alarm is
armed, using the key fob to open the power liftgate does
not unlock the vehicle or disarm the Vehicle Security
Alarm.
Power Open/Close Left Power Sliding Door — If
Equipped
Push the LEFT Power Sliding Door button twice on the key
fob within five seconds to Power Open/Close the Left
Power Sliding Door. If the button on the key fob is pushed
while the door is being power-closed, the door will reverse
to the full open position.
If the vehicle is locked and the Vehicle Security Alarm is
armed, pushing the LEFT Power Sliding Door button twice
unlocks the power sliding door and disarms Vehicle Secu-
rity Alarm.
Power Open/Close Right Power Sliding Door — If
Equipped
Push the RIGHT Power Sliding Door button twice on the
key fob within five seconds to Power Open/Close the
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

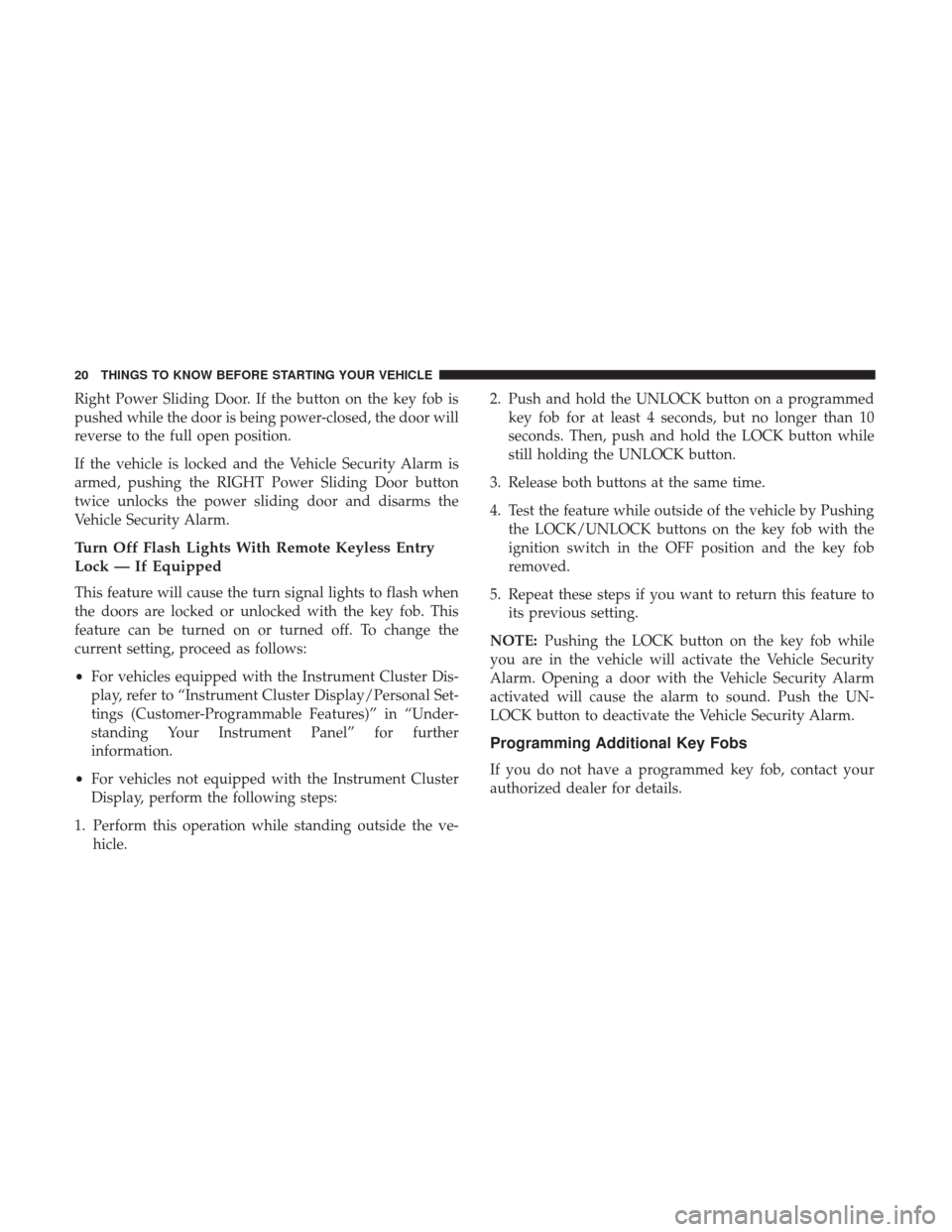

Right Power Sliding Door. If the button on the key fob is
pushed while the door is being power-closed, the door will
reverse to the full open position.
If the vehicle is locked and the Vehicle Security Alarm is
armed, pushing the RIGHT Power Sliding Door button
twice unlocks the power sliding door and disarms the
Vehicle Security Alarm.
Turn Off Flash Lights With Remote Keyless Entry
Lock — If Equipped
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the key fob. This
feature can be turned on or turned off. To change the
current setting, proceed as follows:
•For vehicles equipped with the Instrument Cluster Dis-
play, refer to “Instrument Cluster Display/Personal Set-
tings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further
information.
• For vehicles not equipped with the Instrument Cluster
Display, perform the following steps:
1. Perform this operation while standing outside the ve- hicle. 2. Push and hold the UNLOCK button on a programmed
key fob for at least 4 seconds, but no longer than 10
seconds. Then, push and hold the LOCK button while
still holding the UNLOCK button.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle by Pushing the LOCK/UNLOCK buttons on the key fob with the
ignition switch in the OFF position and the key fob
removed.
5. Repeat these steps if you want to return this feature to its previous setting.
NOTE: Pushing the LOCK button on the key fob while
you are in the vehicle will activate the Vehicle Security
Alarm. Opening a door with the Vehicle Security Alarm
activated will cause the alarm to sound. Push the UN-
LOCK button to deactivate the Vehicle Security Alarm.
Programming Additional Key Fobs
If you do not have a programmed key fob, contact your
authorized dealer for details.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•Vehicle security alarm not active
• Ignition in Off position
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Messages
The following messages will display in the Instrument
Cluster Display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Ajar
• Remote Start Disabled — Start Vehicle To Reset The Instrument Cluster Display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start Mode
Push and release the REMOTE START button on
the key fob twice within five seconds. The ve-
hicle doors will lock, the parking lights will flash,
and horn will chirp twice (if programmed). Then,
the engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
NOTE:
• If your power door locks were unlocked, Remote Start
will automatically lock the doors.
• The park lights will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
• The engine can be started two consecutive 15-minute
cycles with the key fob. However, the ignition switch
must be turned to the ON/RUN position.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Enter The Vehicle After Remote Start
To enter the vehicle while the engine is running during a
Remote Start, you must first unlock the vehicle using the
UNLOCK button on the key fob. After the vehicle is
unlocked, you can enter the vehicle, insert the key fob into
the ignition switch, and turn it to the ON/RUN position.
Otherwise, the engine will shut off at the end of 15-minute
cycle.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, push and release the
UNLOCK button on the key fob to unlock the doors and
disarm the Vehicle Security Alarm (if equipped). Then,
prior to the end of the 15-minute cycle, insert the key fob
into the ignition switch and turn the switch to the ON/
RUN position.
NOTE:
•The ignition switch must be in the ON/RUN position in
order to drive the vehicle.
• The message “Remote Start Active — Key To Run” will
display in the Instrument Cluster Display until you
insert and turn the key to ON/RUN position.
Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
•The engine stalls or engine speed exceeds 2500 rpm.
• Any engine warning lights come on.
• Low Fuel Light turns on.
• The hood is opened.
• The hazard switch is pushed.
• The gear selector is moved out of PARK.
• The engine is allowed to run for the entire 15-minute
cycle.
• The brake pedal is pushed.
To Turn Off The Engine While In Remote Start
Mode
Push and release the REMOTE START button 1 time or
allow the engine to run for the entire 15-minute cycle.
NOTE: To avoid unintentional shutdowns while in the
Remote Start Mode, the system will not allow the REMOTE
START button to shut down the engine for two seconds
after receiving a valid Remote Start request.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
