Outside Temperature
Because engine temperature can increase the displayed
temperature, temperature readings are slowly updated
when vehicle speed is below 20 MPH (30 km/h).
ELECTRICAL POWER OUTLET
Your vehicle may be equipped with a power outlet. This
is located in the center of the instrument panel if your
vehicle has bench or split bench seats. Accessories pow-
ered through this outlet are protected by a 15 amp fuse.
The outlet may be converted to a cigar lighter by install-
ing the dealer obtained smoker’s package. The outlet is
operated by the ignition switch, when in the “run” or
“acc” positions only. You may convert the outlet from
ignition to battery power by performing the following:
•Remove the fuse cover from the left end of the
instrument panel (see the paragraph on fuses in sec-
tion 7 of this manual.)
•Remove fuse #6 (its on the upper right of the fuse
block) from its “IGN” position.
•Move the fuse slightly right and insert it in the fuse #6
“BAT” location in the fuse block.
•Reinstall the fuse cover.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

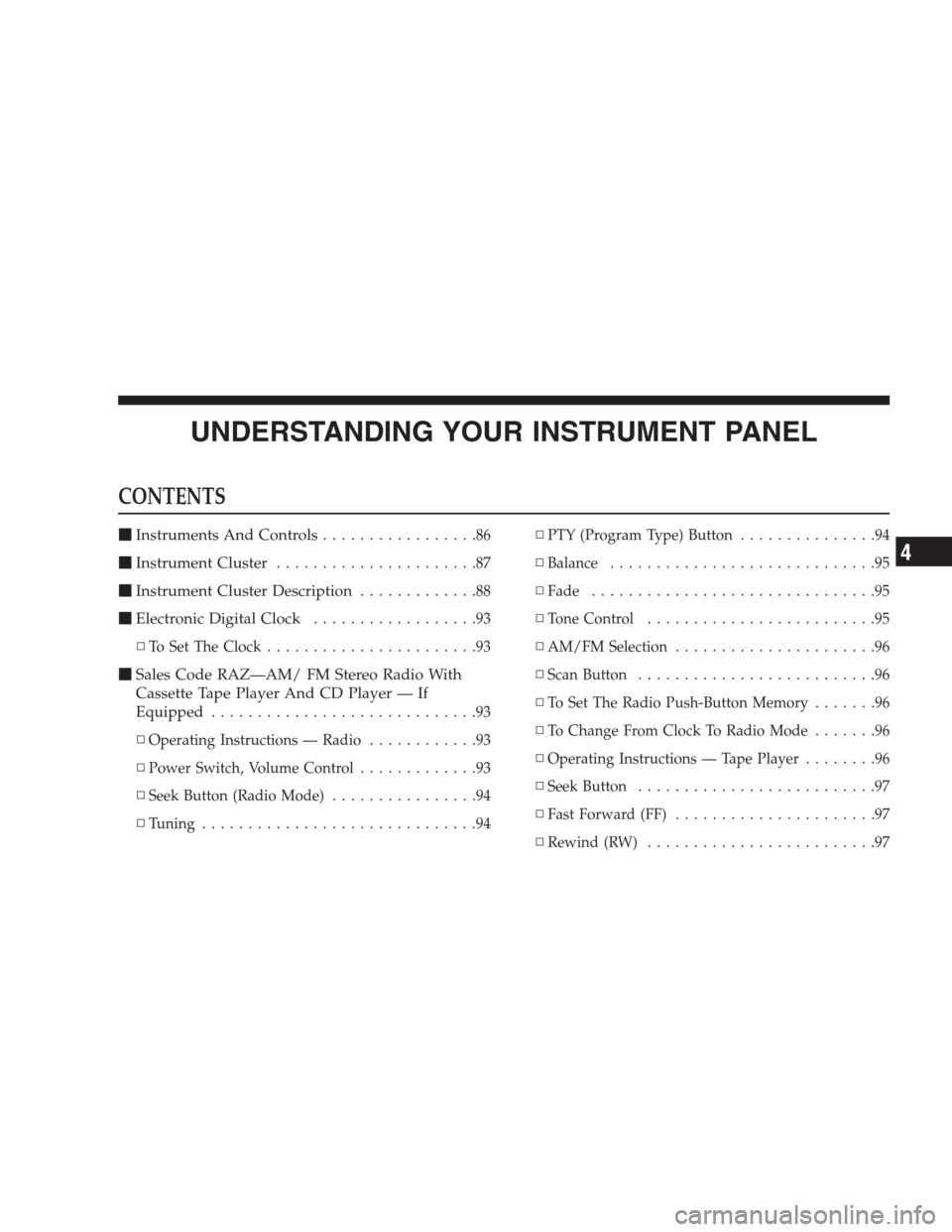

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instruments And Controls.................86
Instrument Cluster......................87
Instrument Cluster Description.............88
Electronic Digital Clock..................93
▫To Set The Clock.......................93
Sales Code RAZ—AM/ FM Stereo Radio With
Cassette Tape Player And CD Player — If
Equipped
.............................93
▫Operating Instructions — Radio............93
▫Power Switch, Volume Control.............93
▫Seek Button (Radio Mode)................94
▫Tuning..............................94▫PTY (Program Type) Button...............94
▫Balance.............................95
▫Fade...............................95
▫Tone Control.........................95
▫AM/FM Selection......................96
▫Scan Button..........................96
▫To Set The Radio Push-Button Memory.......96
▫To Change From Clock To Radio Mode.......96
▫Operating Instructions — Tape Player........96
▫Seek Button..........................97
▫Fast Forward (FF)......................97
▫Rewind (RW).........................97
4

▫Tape Eject............................97
▫Scan Button..........................97
▫Changing Tape Direction.................97
▫Metal Tape Selection....................97
▫Pinch Roller Release....................97
▫Noise Reduction.......................98
▫Operating Instructions — CD Player.........98
▫Inserting The Compact Disc...............98
▫Seek Button..........................98
▫EJT CD (Eject) Button...................99
▫FF/Tune/RW Button....................99
▫Program Button 4 (Random Play)...........99
▫Mode...............................99
▫Tape CD Button......................100
▫Time Button.........................100
▫Scan Button.........................100Sales Code RBB—AM/FM Stereo Radio
With Cassette Tape Player And CD Changer
Capability
...........................100
▫Operating Instructions..................100
▫Power Button........................100
▫Electronic Volume Control...............100
▫Seek..............................101
▫Tune ..............................101
▫To Set The Push-Button Memory..........101
▫Balance............................101
▫Fade..............................101
▫Bass And Treble Tone Control............102
▫AM/FM Selection.....................102
▫Mode Button........................102
▫Cassette Player Features................102
▫CD Changer Control Capability —
If Equipped.........................103
84 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Radio Display Messages................105
Sales Code RBK—AM/ FM Stereo Radio
With CD Player And CD Changer Controls
...105
▫Radio Operation......................105
▫CD Player Operation...................107
▫CD Changer Operation — If Equipped......109
6 Disc CD Changer — If Equipped.........110
▫Loading The CD Changer...............110
▫Playing Discs........................111
▫Seek Button.........................111
▫FF/Tune/RW........................111
▫Mode Button........................111
▫Program Button 1.....................111
▫Program Button 4 (Random Play)..........111▫Program Button 5.....................111
▫Time Button.........................112
▫Changing Modes......................112
▫Removing Discs From The CD Changer.....112
▫CD Changer Operation With The
Changer Off.........................112Cassette Tape And Player Maintenance......112
Compact Disc Maintenance...............113
Radio Operation And Cellular Phones.......114
Climate Controls......................114
▫Manual Air Conditioning/Heater Operation . . 114
▫Automatic Temperature Control (ATC) — If
Equipped...........................117
UNDERSTANDING YOUR INSTRUMENT PANEL 85
4

INSTRUMENTS AND CONTROLS
86 UNDERSTANDING YOUR INSTRUMENT PANEL

Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 87
4

INSTRUMENT CLUSTER DESCRIPTION
1. Fuel Gauge
When the ignition is in the ON position, the
pointer will show the level of fuel remaining in
the tank.
2. Low Fuel Warning Light
When the fuel level drops to about 2 gallons (8
liters), the Low Fuel symbol will light and re-
main lit until fuel is added. A warning chime will
sound when the light comes on.
3. Low Oil Pressure Light
This light indicates low engine oil pressure. The
light should come on briefly as a bulb check
when the engine is first started. If the light stays on or
comes on while driving, stop the vehicle and shut off
the engine. DO NOT operate the vehicle until the
cause is corrected.This light does not show how
much oil is in the engine.The engine oil level must be
checked under the hood.4. TRAC ON/OFF Lights
The Traction Control On light (TRAC ON) will come on
momentarily as a bulb check when the ignition switch is
first turned ON. If the light does not come on, have the
bulb replaced.
The TRAC ON light will also come on when the system
is controlling traction.
The Traction Control Off light (TRAC OFF) will come on
momentarily as a bulb check when the ignition switch is
first turned ON. If the light does not come on, have the
bulb checked.
The TRAC OFF light will also come on when the Traction
Control switch has been used to turn the system off.
5. Trunk Ajar Light
This light indicates that the trunk is not latched
6. Tachometer
Measures engine revolutions-per-minute (R.P.M.). The
red numbers at the end on the scale show the maximum
permissible R.P.M. Ease off on the accelerator before
reaching the red area.
88 UNDERSTANDING YOUR INSTRUMENT PANEL

7. Turn Signal Indicators
The arrow will flash in unison with the exterior
turn signal, when using the turn signal lever.
8. High Beam Indicator
This light shows that the headlights are on high
beam. Pull the turn signal lever towards the
steering wheel to switch the headlights from high or
low beam.
9. Seat Belt Reminder Light
The light will come on after the ignition is
turned on. The light will remain lit until the
seatbelt is fastened.
10. Door Ajar Light
This light shows that a door is not completely
closed. A warning chime will sound if the vehicle
is moving with a door partially closed.
11. Speedometer
Shows vehicle speed in miles-per-hour or kilometers-per-
hour.
12. Low Washer Fluid Light
This symbol will light whenever the fluid reser-
voir is less than 1/4 filled. Adding washer fluid
will cause the light to go out the next time the
ignition is cycled. A warning chime will sound when
the light comes on.
13. Cruise (Speed Control) Light
This light shows that the Speed Control System is ON.
14. Temperature Light
This light warns of an overheated engine cool-
ant condition. A warning chime will sound
when the light comes on.
15. Engine Coolant Temperature Gauge
The temperature gauge shows engine coolant
temperature. Any reading within the 5 gauge
marks between Hot and Cold shows that the
engine cooling system is operating properly. The
gauge pointer may show a higher than normal tem-
perature when driving in hot weather, up mountain
grades, in heavy stop and go traffic, or when towing a
trailer.
UNDERSTANDING YOUR INSTRUMENT PANEL 89
4

If the pointer rises to the “H” mark, stop the vehicle and
turn off the engine until the problem is corrected.
CAUTION!
Continuing to drive with an overheated engine cool-
ing system can cause damage to the engine or other
components.
There are steps that you can take to slow down an
impending overheat condition. If your air conditioning is
on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to Floor and
the Fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
16. Malfunction Indicator Light
This light is part of an onboard diagnostic
system called OBD that monitors engine and
automatic transmission control systems. Thelight will illuminate when the key is in the ON
position before engine start. If the bulb does not come
on when turning the key from OFF to ON, have the
condition checked promptly.
Certain conditions such as a loose or missing gas cap or
poor fuel quality may illuminate the light after engine
start. The vehicle should be serviced if the light stays on
through several of your typical driving cycles. In most
situations the vehicle will drive normally and will not
require towing.
The Malfunction Indicator Light flashes to alert to serious
conditions that could lead to immediate loss of power or
severe catalytic converter damage. The vehicle should be
serviced as soon as possible if this occurs.
17. Trip Odometer Reset Knob
To reset the trip odometer, push the reset knob for about
two seconds.
18. Airbag Light
The light will come on and remain on for 6 to 8
seconds as a bulb check when the ignition switch
is first turned ON. If the bulb is not lit during starting,
90 UNDERSTANDING YOUR INSTRUMENT PANEL
