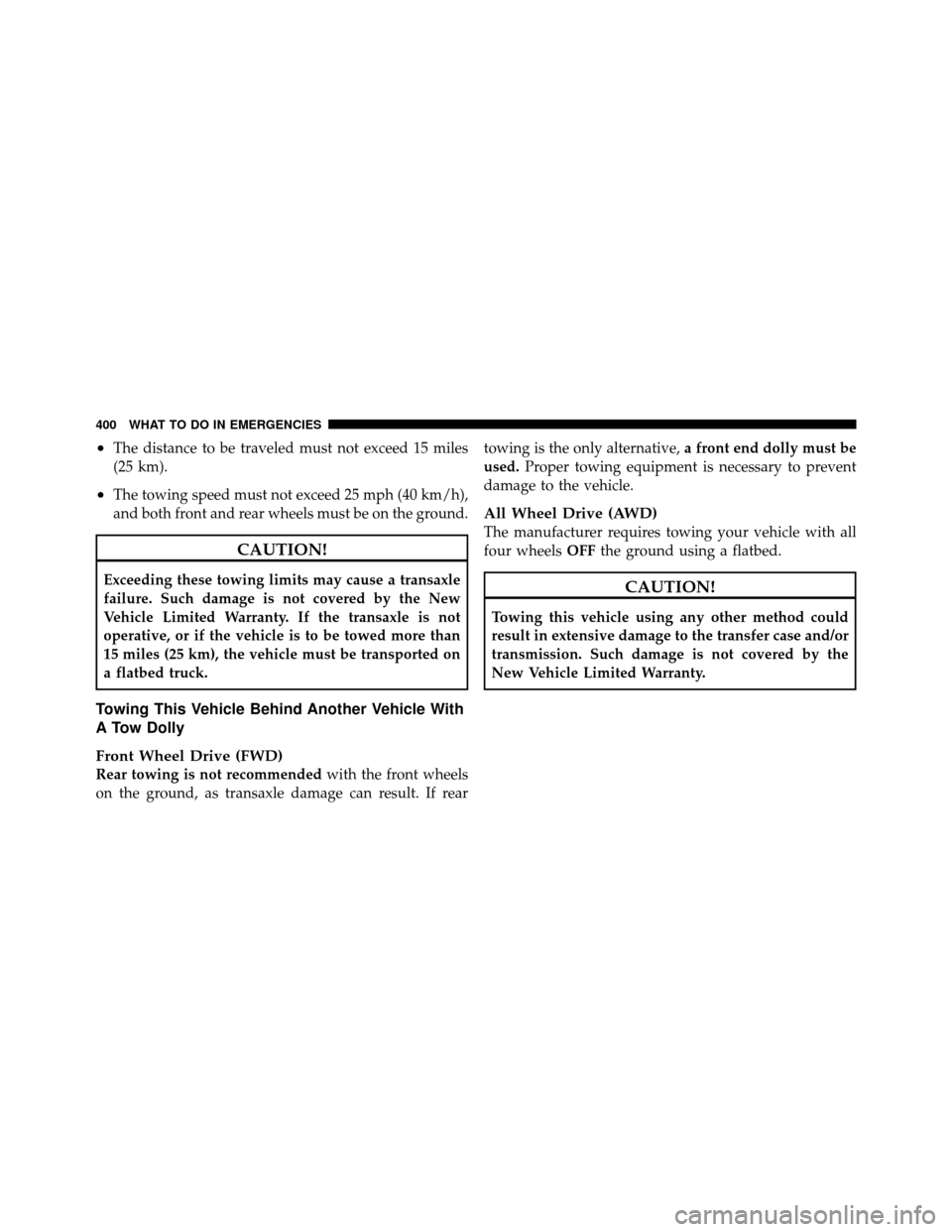

DODGE JOURNEY 2010 1.G Owners Manual

•The distance to be traveled must not exceed 15 miles
(25 km).
•The towing speed must not exceed 25 mph (40 km/h),
and both front and rear wheels must be on the ground.
CAUTION!
Exceeding these towing limits may cause a transaxle
failure. Such damage is not covered by the New
Vehicle Limited Warranty. If the transaxle is not
operative, or if the vehicle is to be towed more than
15 miles (25 km), the vehicle must be transported on
a flatbed truck.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
Front Wheel Drive (FWD)
Rear towing is not recommendedwith the front wheels
on the ground, as transaxle damage can result. If rear towing is the only alternative,
a front end dolly must be
used. Proper towing equipment is necessary to prevent
damage to the vehicle.
All Wheel Drive (AWD)
The manufacturer requires towing your vehicle with all
four wheels OFFthe ground using a flatbed.
CAUTION!
Towing this vehicle using any other method could
result in extensive damage to the transfer case and/or
transmission. Such damage is not covered by the
New Vehicle Limited Warranty.
400 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE

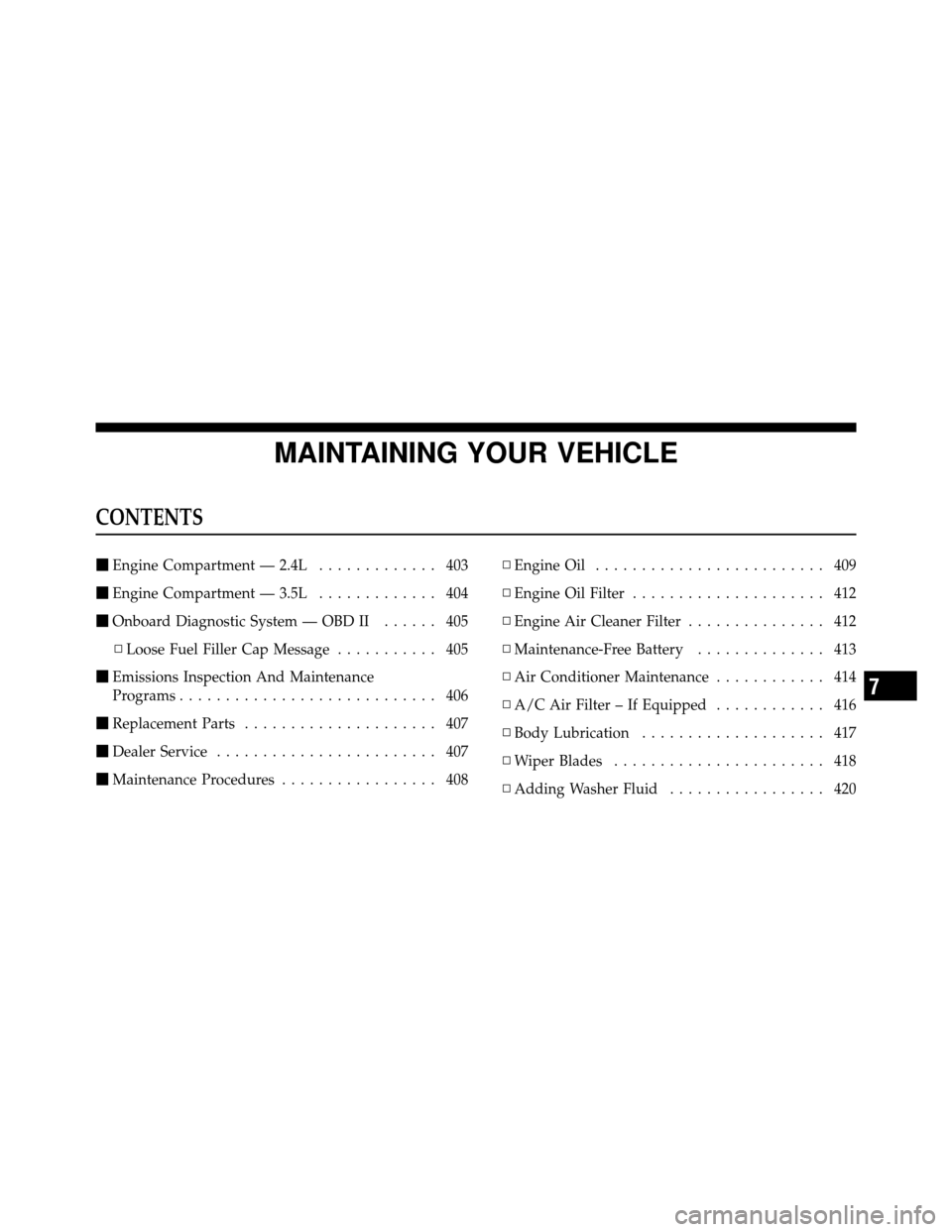

CONTENTS
Engine Compartment — 2.4L ............. 403
 Engine Compartment — 3.5L ............. 404
 Onboard Diagnostic System — OBD II ...... 405
▫ Loose Fuel Filler Cap Message ........... 405
 Emissions Inspection And Maintenance
Programs ............................ 406
 Replacement Parts ..................... 407
 Dealer Service ........................ 407
 Maintenance Procedures ................. 408 ▫
Engine Oil ......................... 409
▫ Engine Oil Filter ..................... 412
▫ Engine Air Cleaner Filter ............... 412
▫ Maintenance-Free Battery .............. 413
▫ Air Conditioner Maintenance ............ 414
▫ A/C Air Filter – If Equipped ............ 416
▫ Body Lubrication .................... 417
▫ Wiper Blades ....................... 418
▫ Adding Washer Fluid ................. 420
7

▫Exhaust System ..................... 421
▫ Cooling System ..................... 424
▫ Brake System ....................... 430
▫ Automatic Transmission ............... 432
▫ Appearance Care And Protection From
Corrosion .......................... 435
▫ Cleaning The Cupholders .............. 440
 Fuses .............................. 440
▫ Totally Integrated Power Module ......... 440
 Vehicle Storage ....................... 448
 Replacement Bulbs .................... 449
 Bulb Replacement ..................... 450 ▫
Low Beam Headlamp, High Beam
Headlamp, Front Turn Signal/Park Lamp,
Side Marker Lamp ................... 450
▫ Front Fog Lamp ..................... 451
▫ Tail/Stop Lamp, Rear Turn Signal Lamp, Tail
Lamp, Backup Lamp .................. 452
▫ License Plate Lamp ................... 454
 Fluid Capacities ...................... 455
 Fluids, Lubricants, And Genuine Parts ....... 456
▫ Engine ............................ 456
▫ Chassis ........................... 457
402 MAINTAINING YOUR VEHICLE

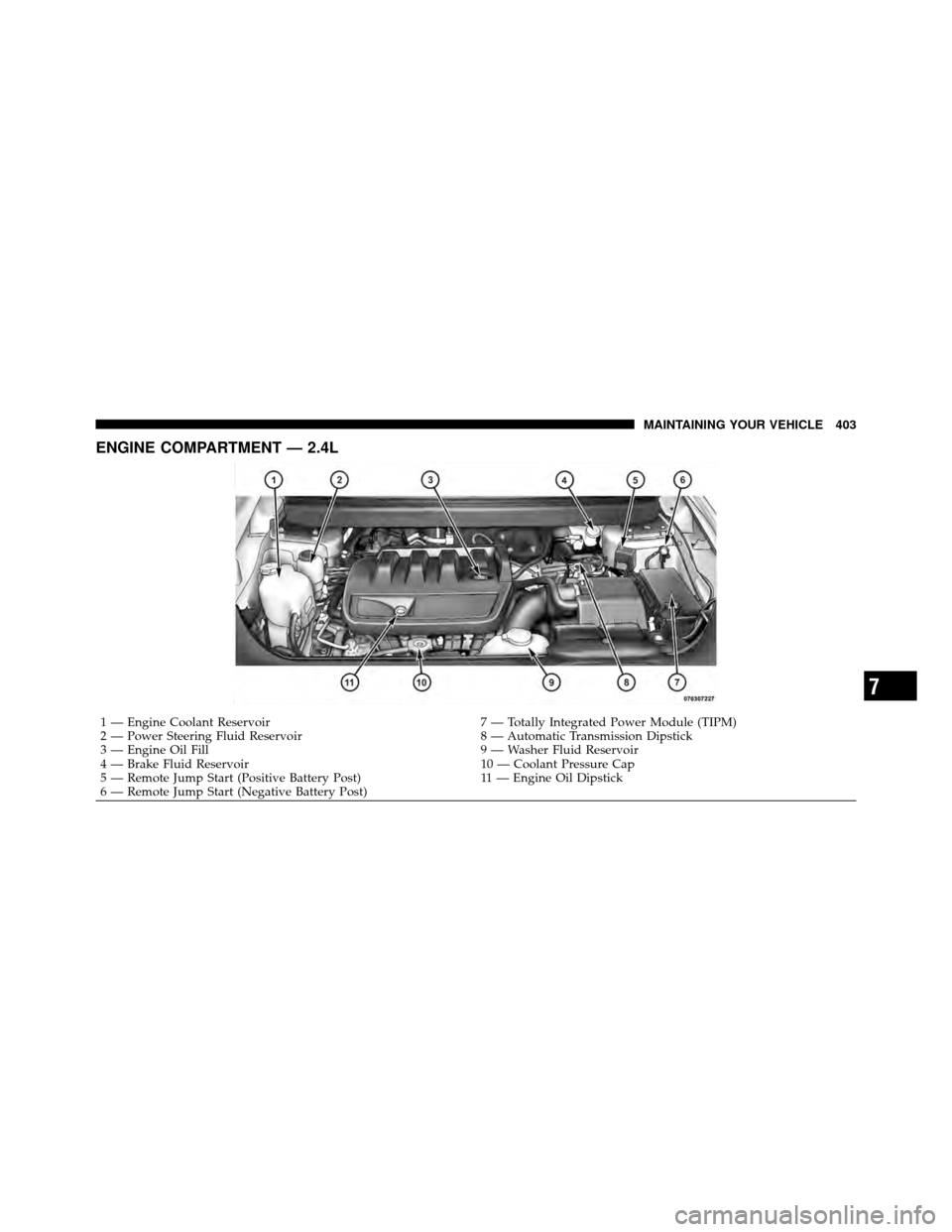

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir7 — Totally Integrated Power Module (TIPM)
2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick
3 — Engine Oil Fill 9 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Remote Jump Start (Positive Battery Post) 11 — Engine Oil Dipstick
6 — Remote Jump Start (Negative Battery Post)
7
MAINTAINING YOUR VEHICLE 403

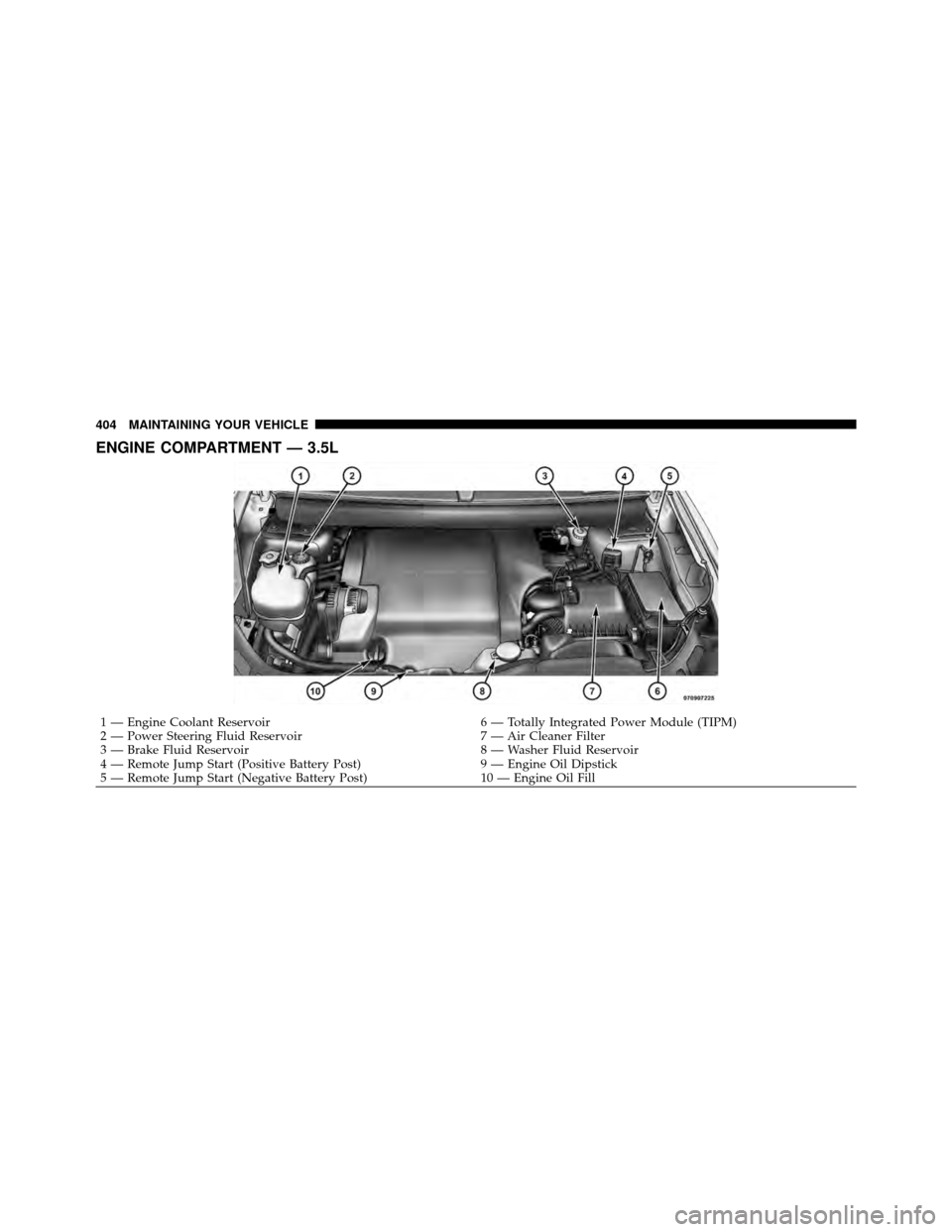

ENGINE COMPARTMENT — 3.5L
1 — Engine Coolant Reservoir6 — Totally Integrated Power Module (TIPM)
2 — Power Steering Fluid Reservoir 7 — Air Cleaner Filter
3 — Brake Fluid Reservoir 8 — Washer Fluid Reservoir
4 — Remote Jump Start (Positive Battery Post) 9 — Engine Oil Dipstick
5 — Remote Jump Start (Negative Battery Post) 10 — Engine Oil Fill
404 MAINTAINING YOUR VEHICLE

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emissions control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, the
word “gASCAP” will display in the odometer. If this
occurs, tighten the fuel filler cap until a “clicking” sound
is heard and press the TRIP ODOMETER button to turn
off the message. If the problem persists, the message will
appear the next time the vehicle is started.
7
MAINTAINING YOUR VEHICLE 405

A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of this vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if the vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, the vehicle may fail the test. This vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if this vehicle’s OBD II system is ready, you must
do the following:
1. Insert the ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn the ignition key to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
406 MAINTAINING YOUR VEHICLE

the ignition key or start the engine. This means that the
vehicle’s OBD II system isnot readyand you should
not proceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition key or start
the engine. This means that the vehicle’s OBD II
system is ready,and you can proceed to the I/M
station.
If the OBD II system is not ready,you should see an
authorized dealer or repair facility. If this vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive the vehicle
as you normally would in order for the OBD II system to
update. A recheck with the above test routine may then
indicate that the system is now ready.
Regardless of whether the vehicle’s OBD II system is
ready or not ready, if the MIL is illuminated during
normal vehicle operation, you should have the vehicle serviced before going to the I/M station. The I/M station
can fail the vehicle because the MIL is on with the engine
running.
REPLACEMENT PARTS
Use of genuine MOPAR
parts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPAR parts for maintenance
and repairs will not be covered by the manufacturer’s
warranty.
DEALER SERVICE
Your authorized dealer has the qualified service person-
nel, special tools, and equipment to perform all service
operations in an expert manner. Service Manuals are
available which include detailed service information for
your vehicle. Refer to these Service Manuals before
attempting any procedure yourself.7
MAINTAINING YOUR VEHICLE 407

NOTE:Intentional tampering with emissions control
systems may void your warranty and could result in civil
penalties being assessed against you.

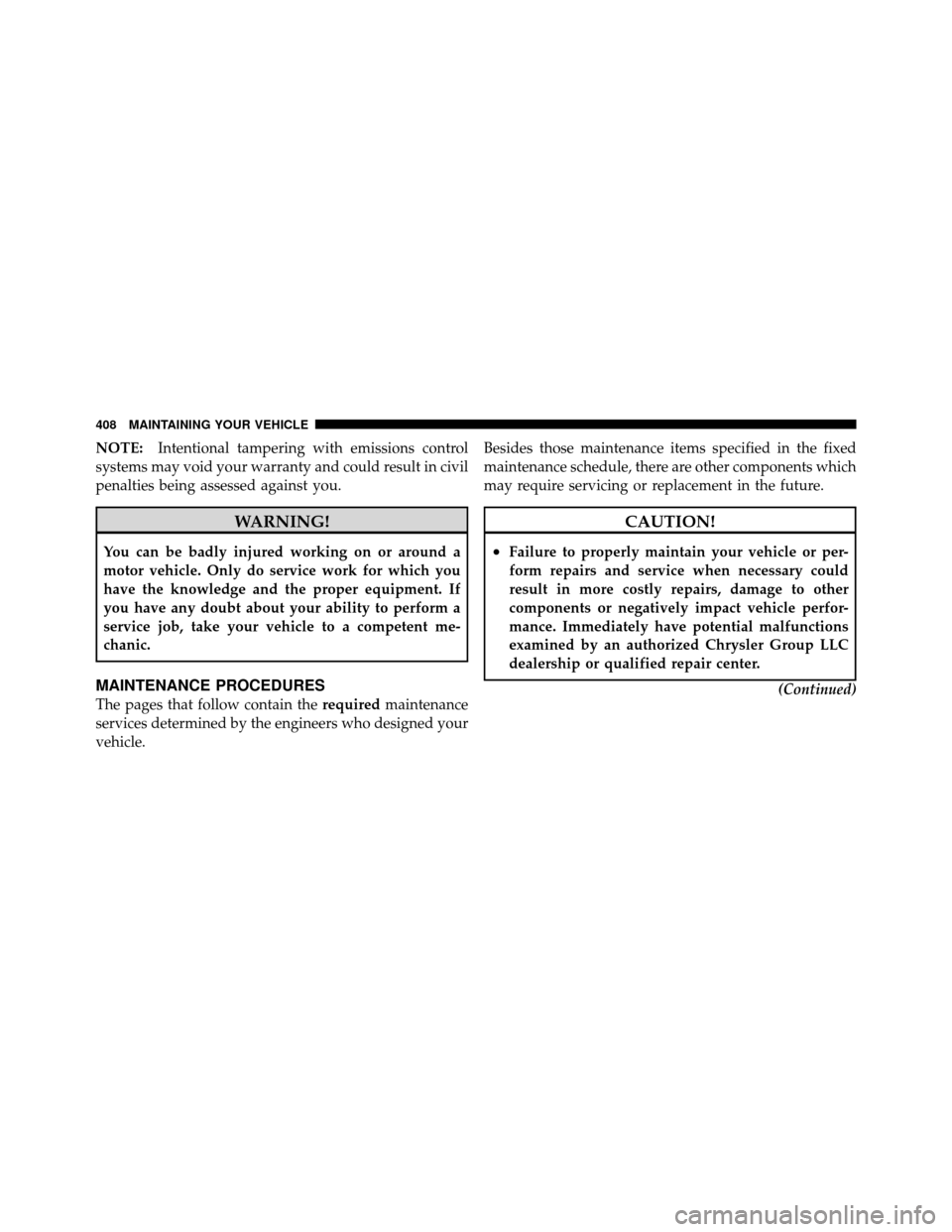

WARNING!
