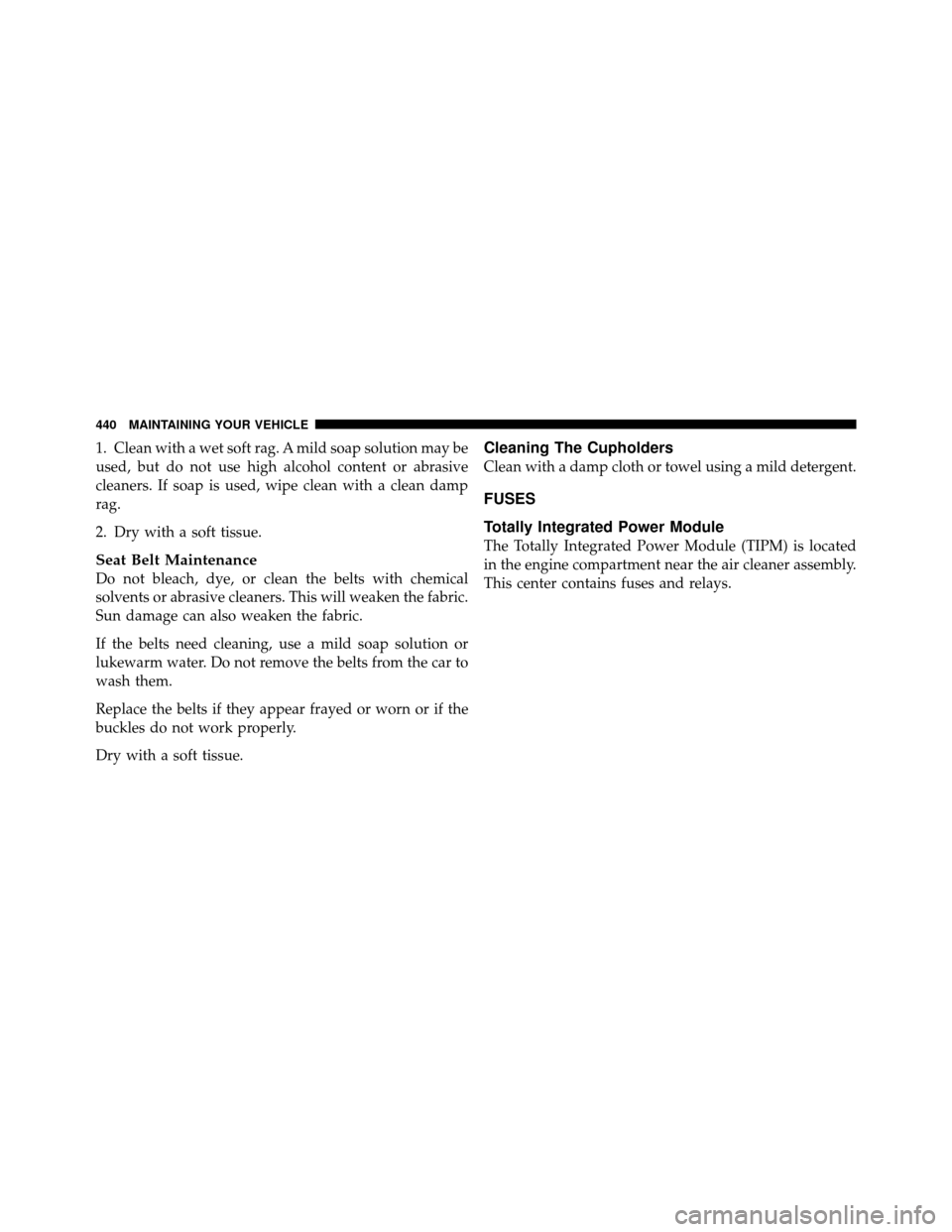

1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
Cleaning The Cupholders
Clean with a damp cloth or towel using a mild detergent.
FUSES
Totally Integrated Power Module

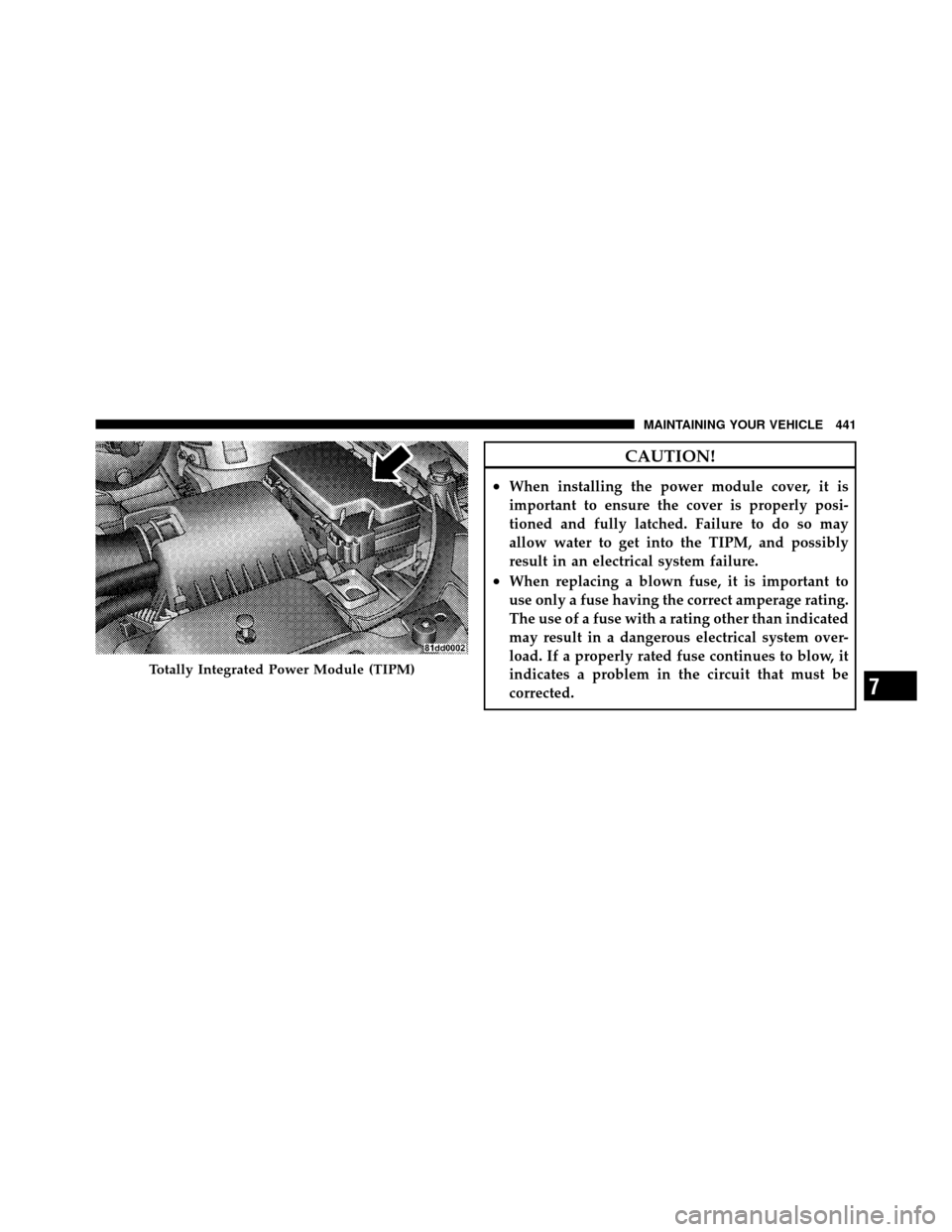

The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the air cleaner assembly.
This center contains fuses and relays.
440 MAINTAINING YOUR VEHICLE

CAUTION!
•When installing the power module cover, it is
important to ensure the cover is properly posi-
tioned and fully latched. Failure to do so may
allow water to get into the TIPM, and possibly
result in an electrical system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 441

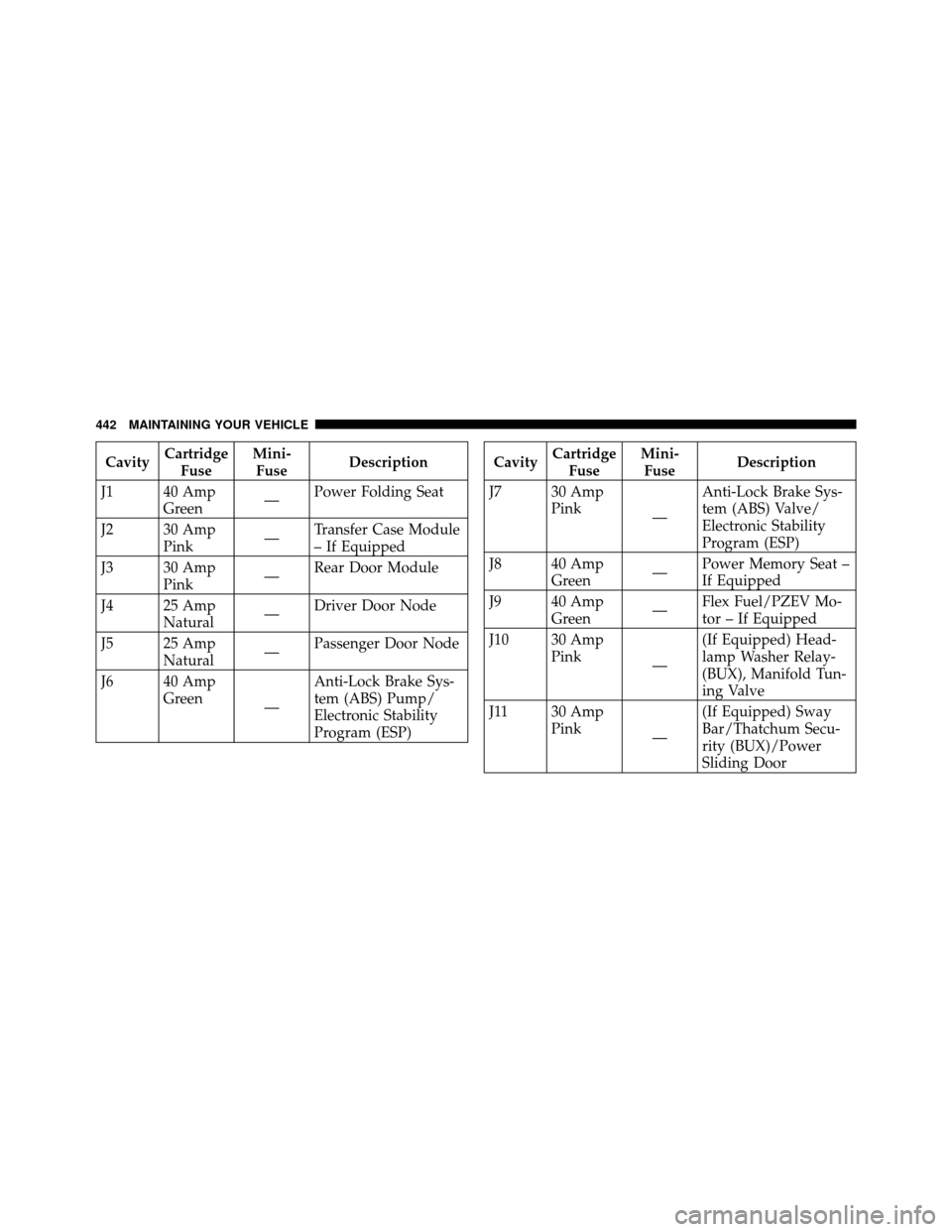

CavityCartridge
Fuse Mini-
Fuse Description
J1 40 Amp Green —Power Folding Seat
J2 30 Amp Pink —Transfer Case Module
– If Equipped
J3 30 Amp Pink —Rear Door Module
J4 25 Amp Natural —Driver Door Node
J5 25 Amp Natural —Passenger Door Node
J6 40 Amp Green —Anti-Lock Brake Sys-
tem (ABS) Pump/
Electronic Stability
Program (ESP)Cavity
Cartridge
Fuse Mini-
Fuse Description
J7 30 Amp Pink —Anti-Lock Brake Sys-
tem (ABS) Valve/
Electronic Stability
Program (ESP)
J8 40 Amp Green —Power Memory Seat –
If Equipped
J9 40 Amp Green —Flex Fuel/PZEV Mo-
tor – If Equipped
J10 30 Amp Pink —(If Equipped) Head-
lamp Washer Relay-
(BUX), Manifold Tun-
ing Valve
J11 30 Amp Pink —(If Equipped) Sway
Bar/Thatchum Secu-
rity (BUX)/Power
Sliding Door
442 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
J13 60 Amp Yellow —Ignition Off Draw
(IOD) Main
J14 40 Amp Green —Electric Back Light
(EBL)
J15 30 Amp Pink —Rear Blower – If
Equipped
J17 40 Amp Green —Starter Solenoid
J18 20 Amp Blue — NGC (Powertrain
Control Module)/
Transmission Range
J19 60 Amp Yellow —Radiator Fan Motor
J20 30 Amp Pink —Front Windshield
Wiper Hi/Low
J21 20 Amp Blue —Front/Rear WasherCavity Cartridge
Fuse Mini-
Fuse Description
J22 25 Amp Natural —Sunroof Module – If
Equipped
M1 —15 Amp
Blue Center High Mounted
Stop Light (CHMSL)
M2 —20 Amp
Yellow Trailer Lights – If
Equipped
M3 —20 Amp
Yellow Front/Rear Axle,
AWD Mod
M4 —10 Amp
Red Trailer Tow – If
Equipped
M5 —25 Amp
Natural Power Inverter – If
Equipped
M6 —20 Amp
Yellow Power Outlet #1/
Accessory (ACC) Rain
Sensor
7
MAINTAINING YOUR VEHICLE 443

CavityCartridge
Fuse Mini-
Fuse Description

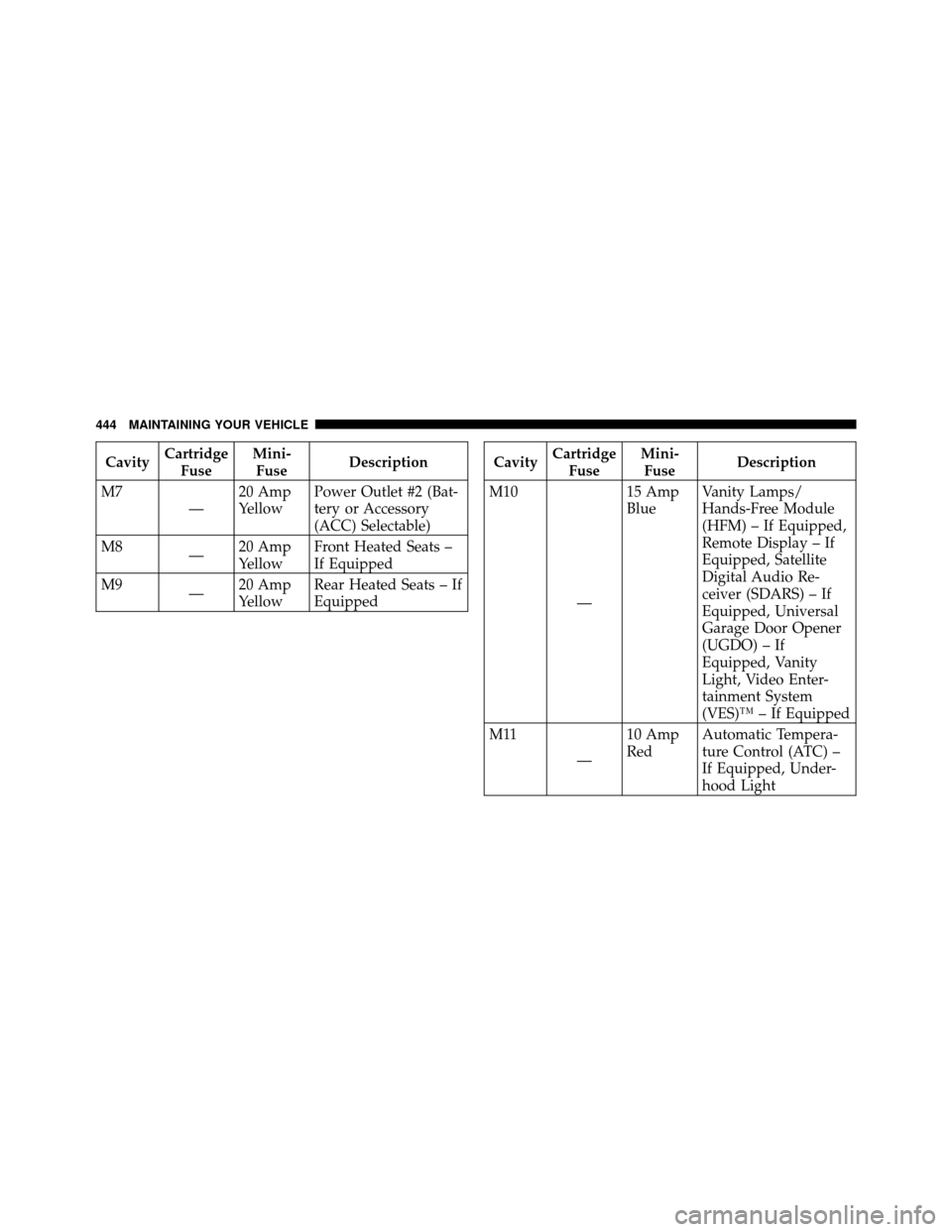

M7 —20 Amp
Yellow Power Outlet #2 (Bat-
tery or Accessory
(ACC) Selectable)
M8 —20 Amp
Yellow Front Heated Seats –
If Equipped
M9 —20 Amp
Yellow Rear Heated Seats – If
EquippedCavity
Cartridge
Fuse Mini-
Fuse Description
M10
—15 Amp
Blue
Vanity Lamps/
Hands-Free Module
(HFM) – If Equipped,
Remote Display – If
Equipped, Satellite
Digital Audio Re-
ceiver (SDARS) – If
Equipped, Universal
Garage Door Opener
(UGDO) – If
Equipped, Vanity
Light, Video Enter-
tainment System
(VES)™ – If Equipped
M11
—10 Amp
Red
Automatic Tempera-
ture Control (ATC) –
If Equipped, Under-
hood Light
444 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description

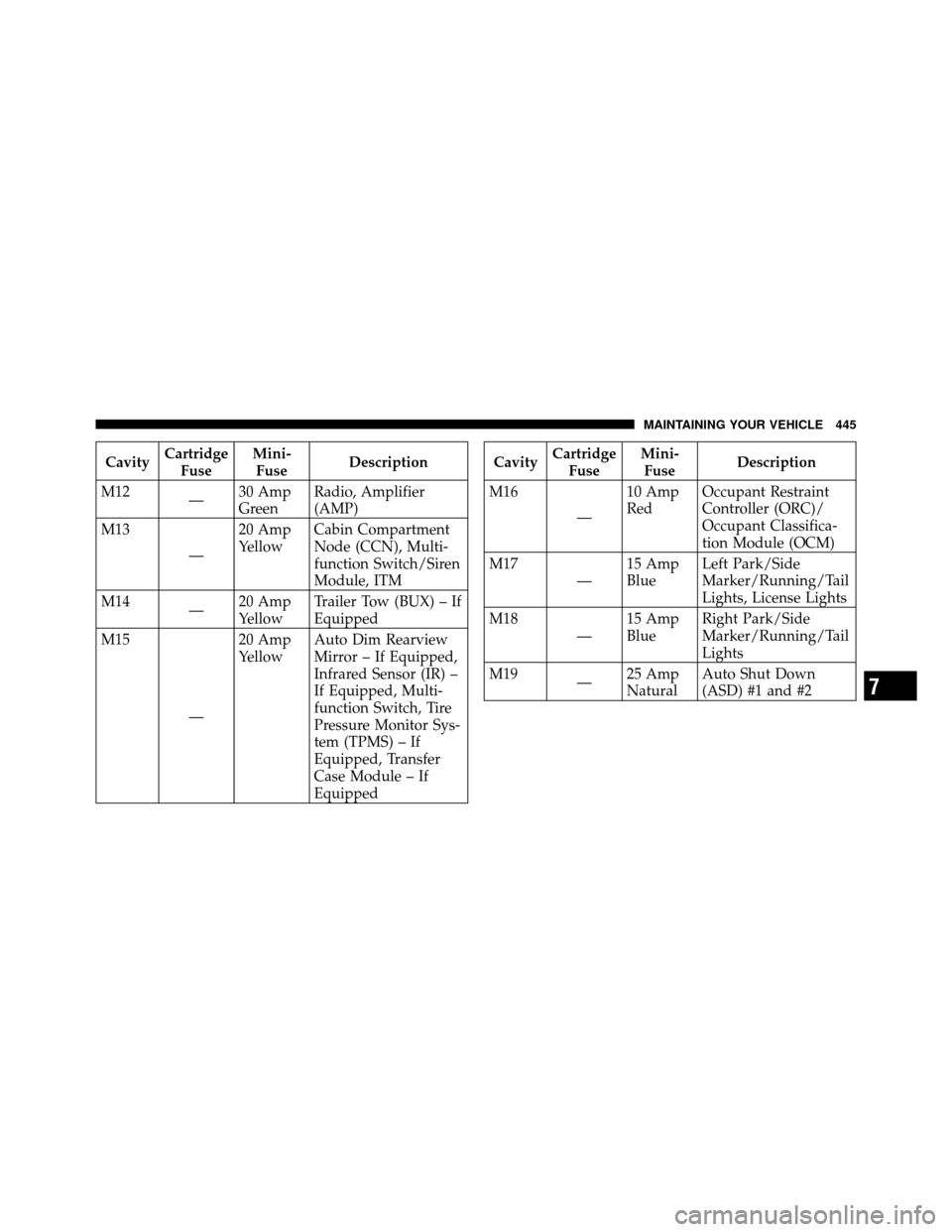

M12 —30 Amp
Green Radio, Amplifier
(AMP)
M13
—20 Amp
Yellow
Cabin Compartment
Node (CCN), Multi-
function Switch/Siren
Module, ITM
M14 —20 Amp
Yellow Trailer Tow (BUX) – If
Equipped
M15
—20 Amp
Yellow
Auto Dim Rearview
Mirror – If Equipped,
Infrared Sensor (IR) –
If Equipped, Multi-
function Switch, Tire
Pressure Monitor Sys-
tem (TPMS) – If
Equipped, Transfer
Case Module – If
EquippedCavity
Cartridge
Fuse Mini-
Fuse Description
M16 —10 Amp
Red
Occupant Restraint
Controller (ORC)/
Occupant Classifica-
tion Module (OCM)
M17 —15 Amp
Blue Left Park/Side
Marker/Running/Tail
Lights, License Lights
M18 —15 Amp
Blue Right Park/Side
Marker/Running/Tail
Lights
M19 —25 Amp
Natural Auto Shut Down
(ASD) #1 and #2
7
MAINTAINING YOUR VEHICLE 445

CavityCartridge
Fuse Mini-
Fuse Description

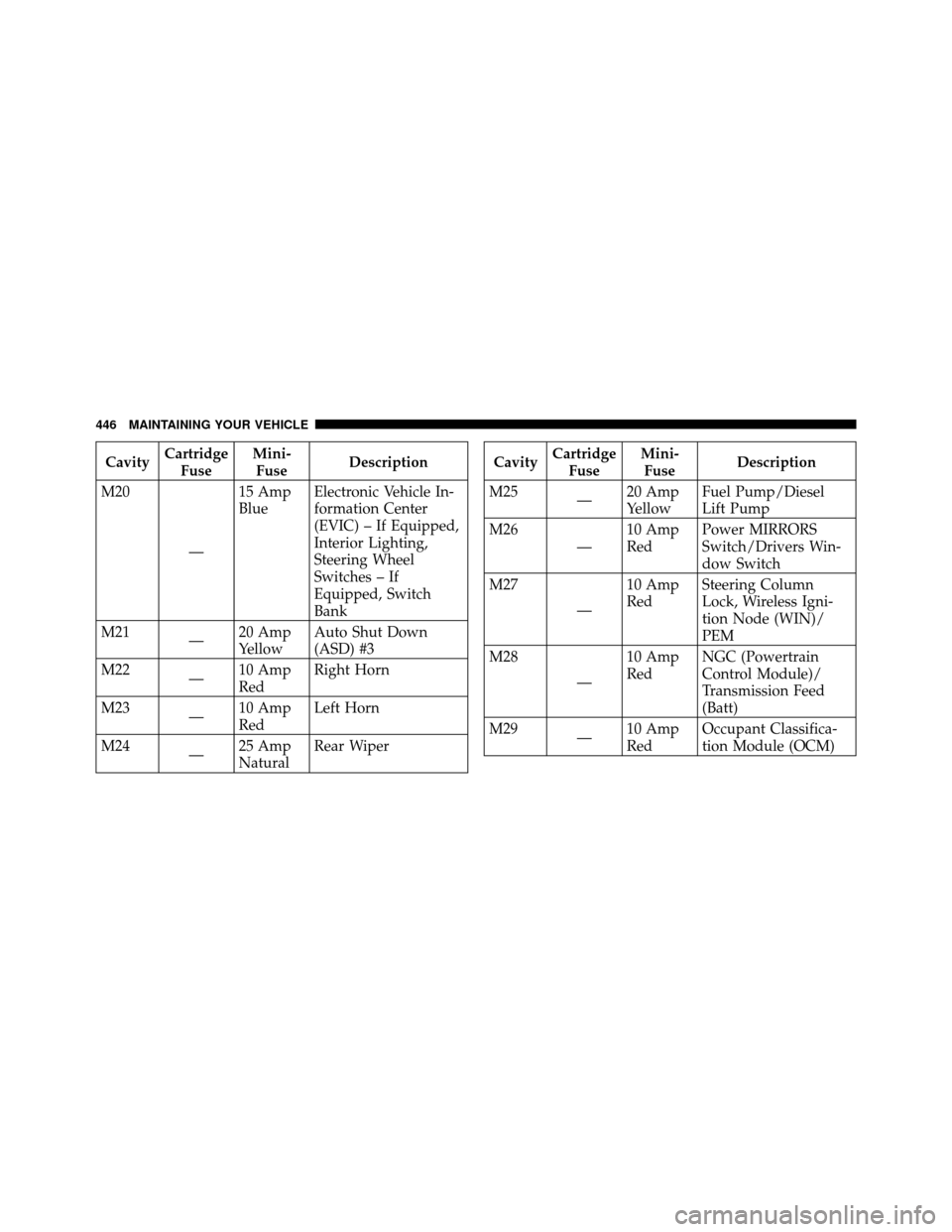

M20
—15 Amp
Blue
Electronic Vehicle In-
formation Center
(EVIC) – If Equipped,
Interior Lighting,
Steering Wheel
Switches – If
Equipped, Switch
Bank
M21 —20 Amp
Yellow Auto Shut Down
(ASD) #3
M22 —10 Amp
Red Right Horn
M23 —10 Amp
Red Left Horn
M24 —25 Amp
Natural Rear WiperCavity
Cartridge
Fuse Mini-
Fuse Description
M25 —20 Amp
Yellow Fuel Pump/Diesel
Lift Pump
M26 —10 Amp
Red Power MIRRORS
Switch/Drivers Win-
dow Switch
M27
—10 Amp
Red
Steering Column
Lock, Wireless Igni-
tion Node (WIN)/
PEM
M28
—10 Amp
Red
NGC (Powertrain
Control Module)/
Transmission Feed
(Batt)

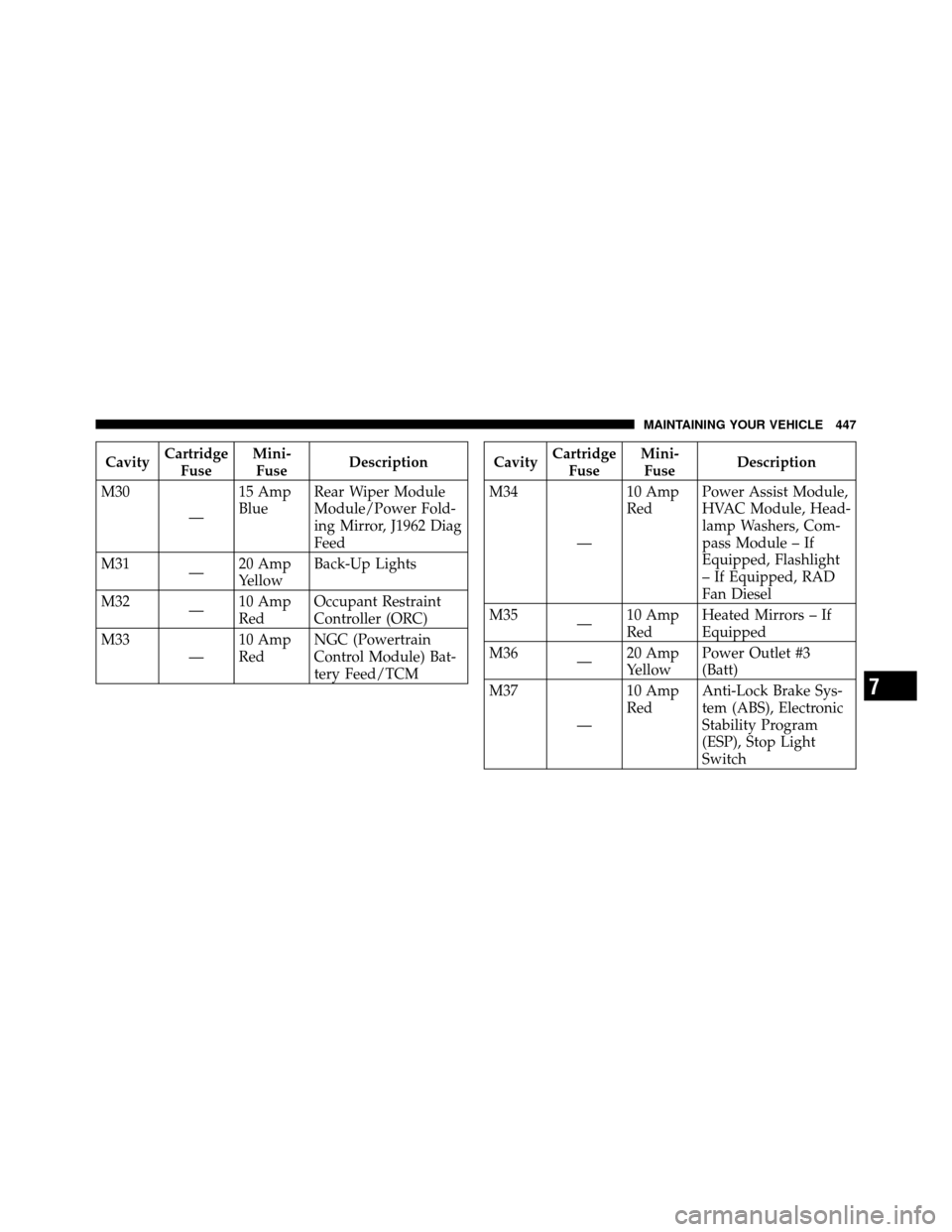

M29 —10 Amp
Red Occupant Classifica-
tion Module (OCM)
446 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
M30 —15 Amp
Blue
Rear Wiper Module
Module/Power Fold-
ing Mirror, J1962 Diag
Feed
M31 —20 Amp
Yellow Back-Up Lights
M32 —10 Amp
Red Occupant Restraint
Controller (ORC)
M33 —10 Amp
Red NGC (Powertrain
Control Module) Bat-
tery Feed/TCMCavity
Cartridge
Fuse Mini-
Fuse Description
M34
—10 Amp
Red
Power Assist Module,
HVAC Module, Head-
lamp Washers, Com-
pass Module – If
Equipped, Flashlight
– If Equipped, RAD
Fan Diesel
M35 —10 Amp
Red Heated Mirrors – If
Equipped
M36 —20 Amp
Yellow Power Outlet #3
(Batt)
M37
—10 Amp
Red
Anti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Light
Switch
7
MAINTAINING YOUR VEHICLE 447

CavityCartridge
Fuse Mini-
Fuse Description

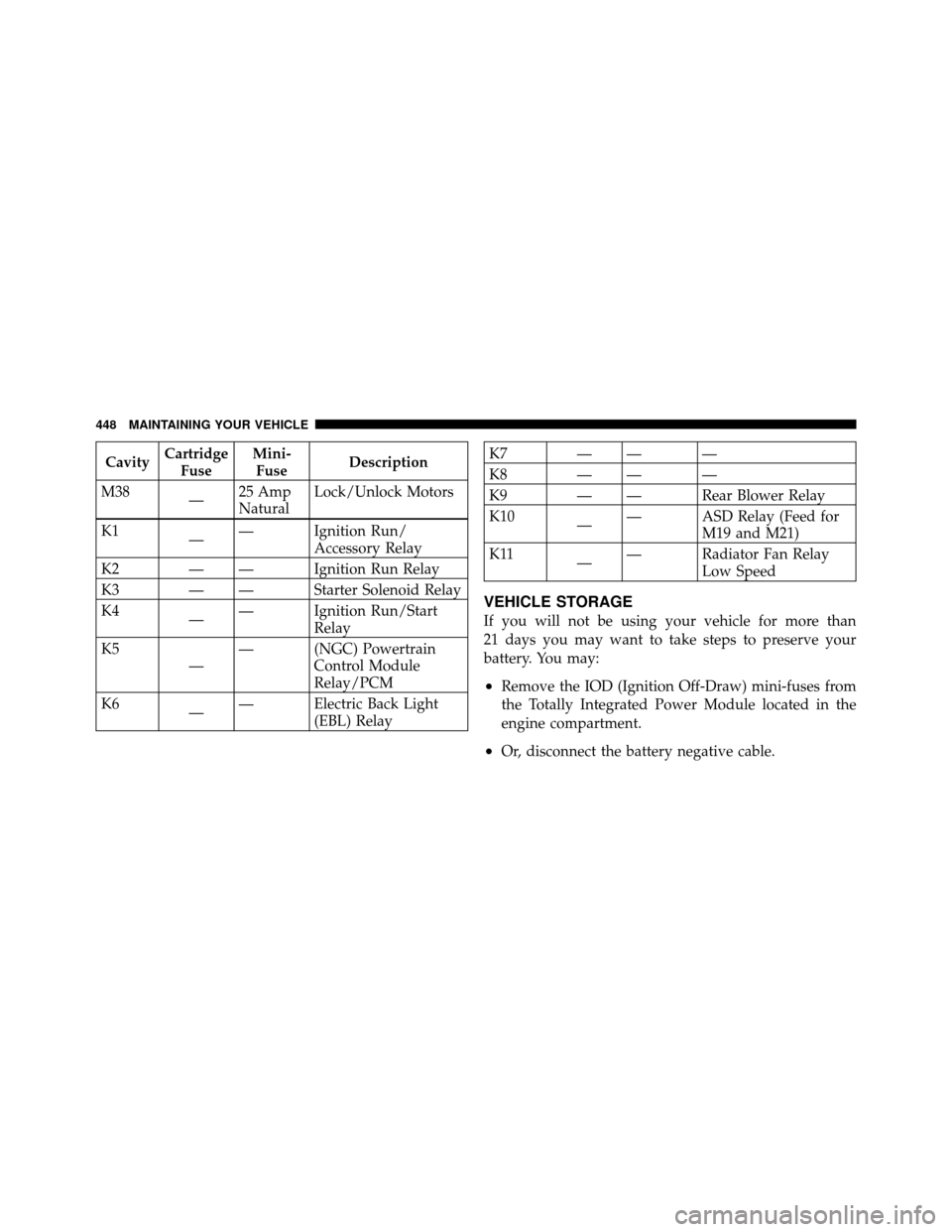

M38 —25 Amp
Natural Lock/Unlock Motors
K1
—— Ignition Run/
Accessory Relay
K2 — — Ignition Run Relay
K3 — — Starter Solenoid Relay
K4 —— Ignition Run/Start
Relay
K5 —— (NGC) Powertrain
Control Module
Relay/PCM
K6 —— Electric Back Light
(EBL) Relay
K7 — — —
K8 — — —
K9 — — Rear Blower Relay
K10 —— ASD Relay (Feed for
M19 and M21)
K11 —— Radiator Fan Relay
Low Speed
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days you may want to take steps to preserve your
battery. You may:
•Remove the IOD (Ignition Off-Draw) mini-fuses from
the Totally Integrated Power Module located in the
engine compartment.
•Or, disconnect the battery negative cable.
448 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Courtesy/Reading Lamps (Incandescent)........ 578
Courtesy/Reading Lamps
(Optional LED) ......................... LED
(Serviced at Authorized Dealer)
Glove Box Lamp ......................... 194
Cargo Lamp ............................ 579
Optional Door Map
Pocket/Cupholder ....................... LED
(Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS – Exterior
Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Lamp ........................ 168
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp
(CHMSL) ....... LED (Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal ...............3157K
Rear Tail ............................. 3157K
Backup Lamp ......................... 3157K
License Lamp ........................... 168
7
