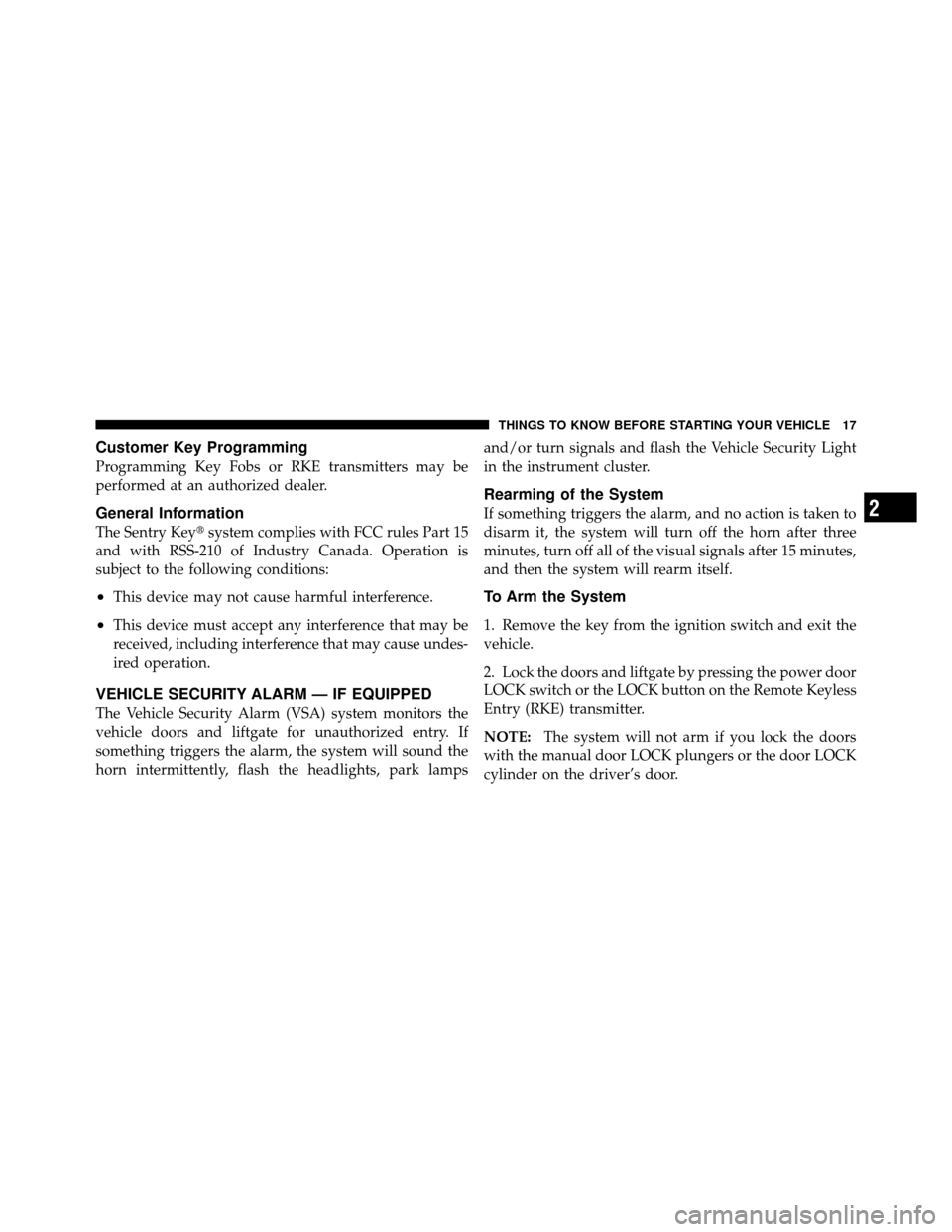

Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm (VSA) system monitors the
vehicle doors and liftgate for unauthorized entry. If
something triggers the alarm, the system will sound the
horn intermittently, flash the headlights, park lamps and/or turn signals and flash the Vehicle Security Light
in the instrument cluster.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after three
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
To Arm the System
1. Remove the key from the ignition switch and exit the
vehicle.
2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
NOTE:
The system will not arm if you lock the doors
with the manual door LOCK plungers or the door LOCK
cylinder on the driver’s door.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

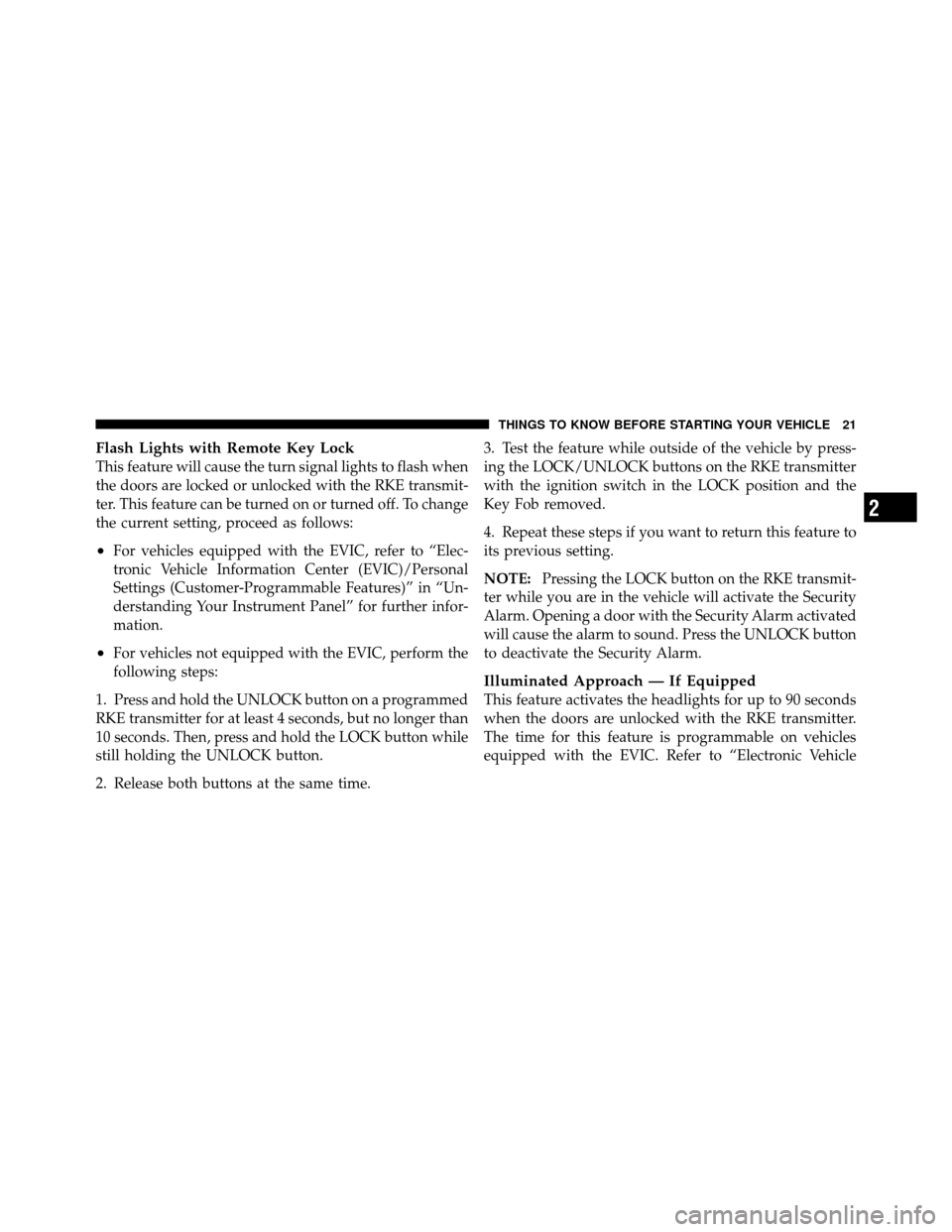

Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press and hold the UNLOCK button on a programmed
RKE transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time. 3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition switch in the LOCK position and the
Key Fob removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Illuminated Approach — If Equipped
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped with the EVIC. Refer to “Electronic Vehicle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

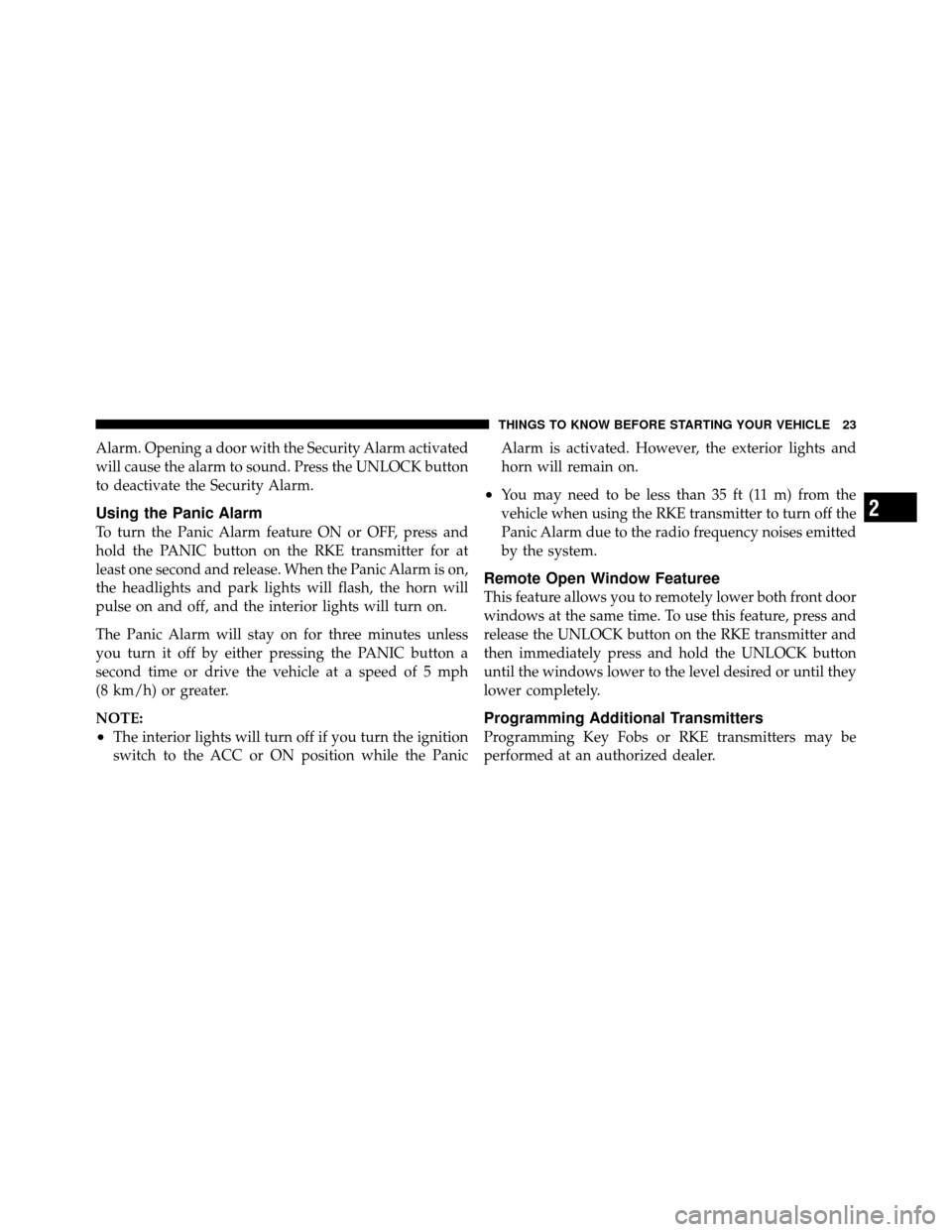

Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Using the Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 5 mph
(8 km/h) or greater.
NOTE:
•The interior lights will turn off if you turn the ignition
switch to the ACC or ON position while the PanicAlarm is activated. However, the exterior lights and
horn will remain on.
•You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Remote Open Window Featuree
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

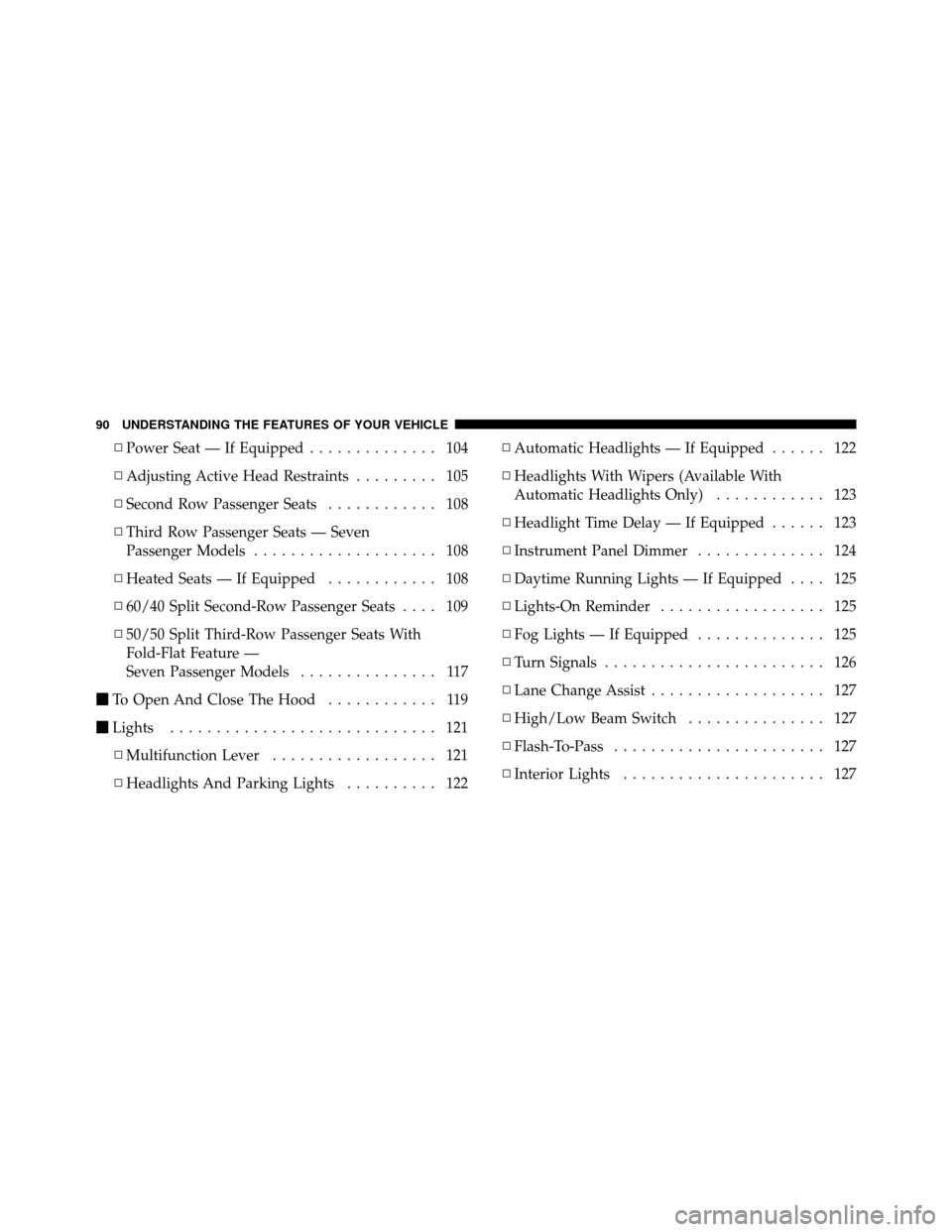

▫Power Seat — If Equipped .............. 104
▫ Adjusting Active Head Restraints ......... 105
▫ Second Row Passenger Seats ............ 108
▫ Third Row Passenger Seats — Seven
Passenger Models .................... 108
▫ Heated Seats — If Equipped ............ 108
▫ 60/40 Split Second-Row Passenger Seats .... 109
▫ 50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature —
Seven Passenger Models ............... 117
 To Open And Close The Hood ............ 119
 Lights ............................. 121
▫ Multifunction Lever .................. 121
▫ Headlights And Parking Lights .......... 122▫
Automatic Headlights — If Equipped ...... 122
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 123
▫ Headlight Time Delay — If Equipped ...... 123
▫ Instrument Panel Dimmer .............. 124
▫ Daytime Running Lights — If Equipped .... 125
▫ Lights-On Reminder .................. 125
▫ Fog Lights — If Equipped .............. 125
▫ Turn Signals ........................ 126
▫ Lane Change Assist ................... 127
▫ High/Low Beam Switch ............... 127
▫ Flash-To-Pass ....................... 127
▫ Interior Lights ...................... 127
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

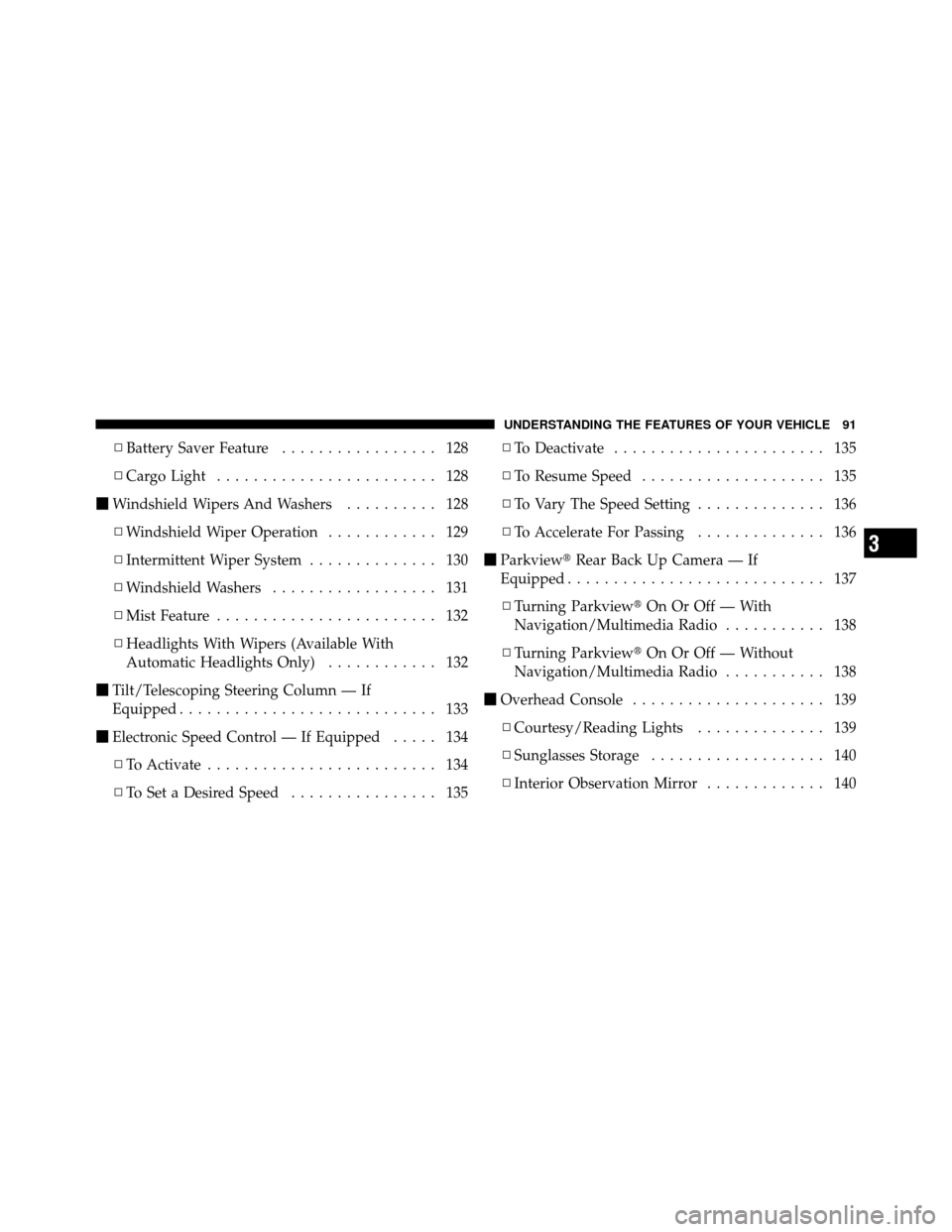

▫Battery Saver Feature ................. 128
▫ Cargo Light ........................ 128
 Windshield Wipers And Washers .......... 128
▫ Windshield Wiper Operation ............ 129
▫ Intermittent Wiper System .............. 130
▫ Windshield Washers .................. 131
▫ Mist Feature ........................ 132
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 132
 Tilt/Telescoping Steering Column — If
Equipped ............................ 133
 Electronic Speed Control — If Equipped ..... 134
▫ To Activate ......................... 134
▫ To Set a Desired Speed ................ 135 ▫
To Deactivate ....................... 135
▫ To Resume Speed .................... 135
▫ To Vary The Speed Setting .............. 136
▫ To Accelerate For Passing .............. 136
 Parkview Rear Back Up Camera — If
Equipped ............................ 137
▫ Turning Parkview On Or Off — With
Navigation/Multimedia Radio ........... 138
▫ Turning Parkview On Or Off — Without
Navigation/Multimedia Radio ........... 138
 Overhead Console ..................... 139
▫ Courtesy/Reading Lights .............. 139
▫ Sunglasses Storage ................... 140
▫ Interior Observation Mirror ............. 140
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

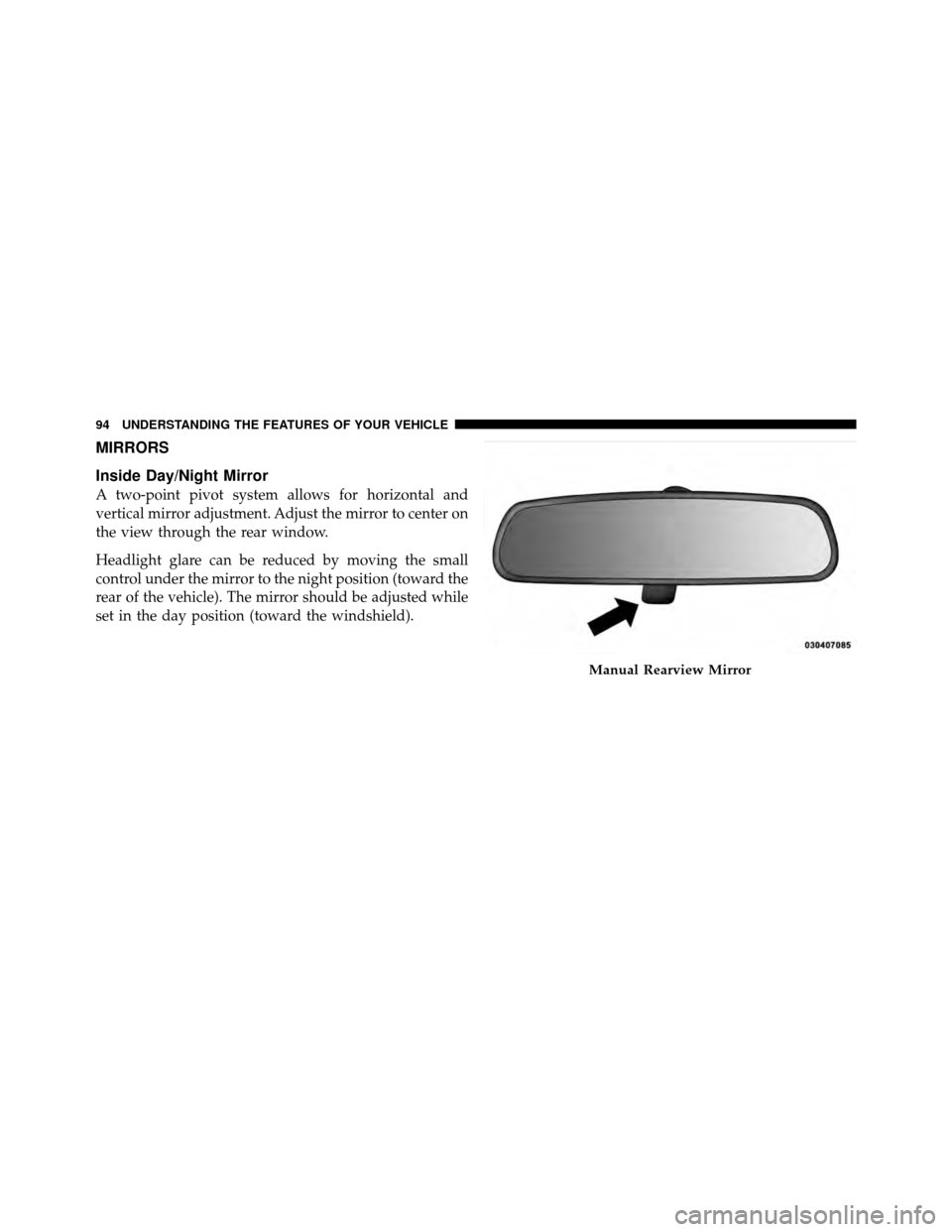

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Manual Rearview Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

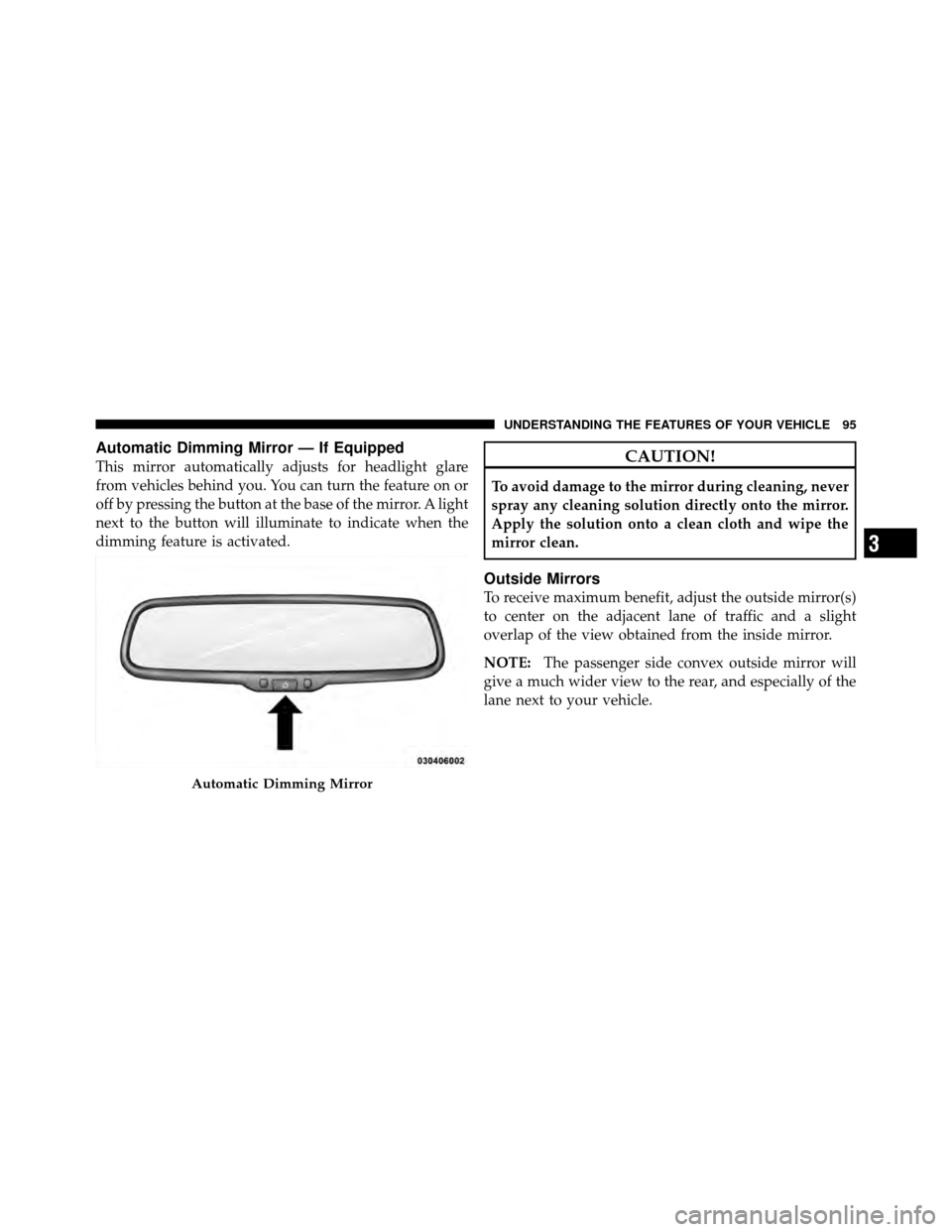

Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

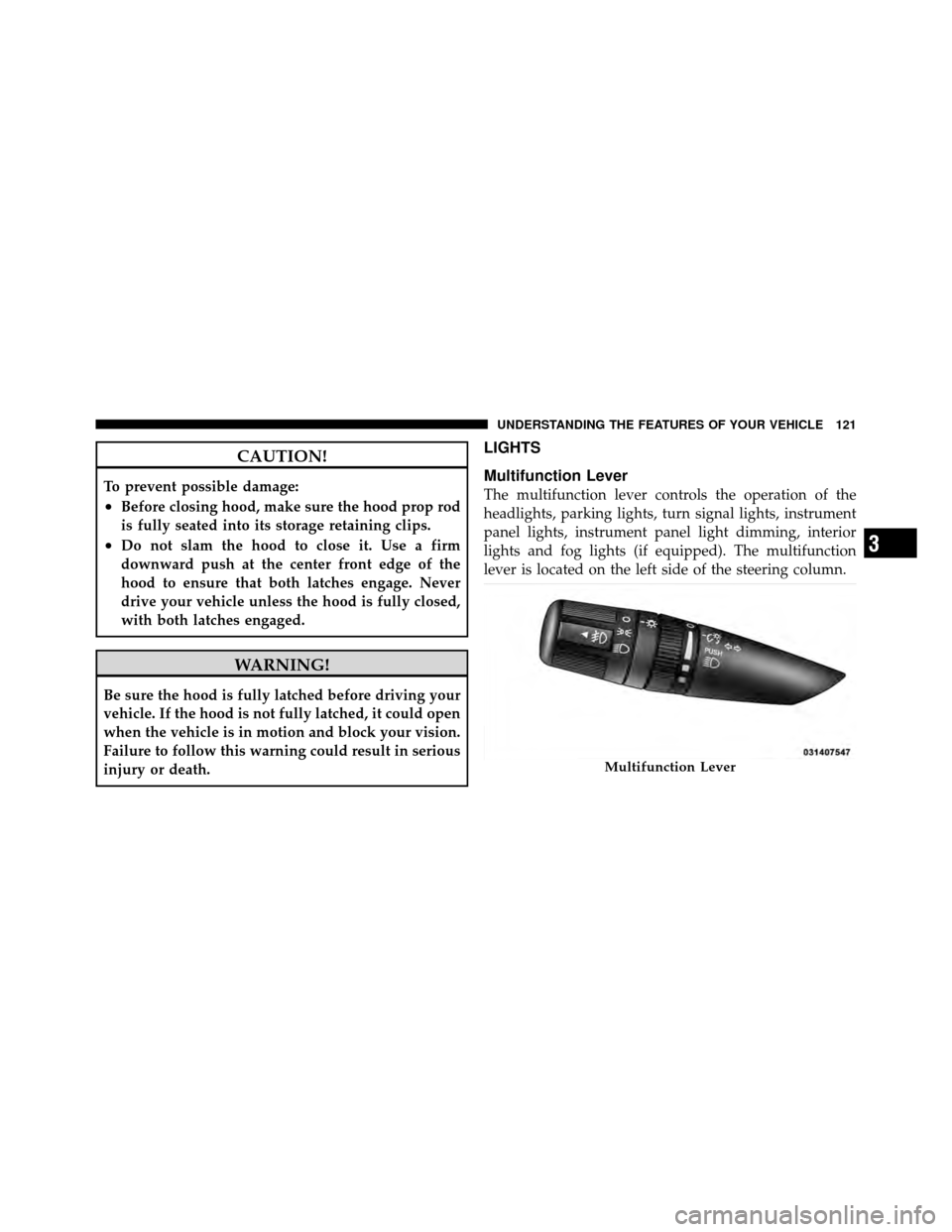

CAUTION!
To prevent possible damage:
•Before closing hood, make sure the hood prop rod
is fully seated into its storage retaining clips.
•Do not slam the hood to close it. Use a firm
downward push at the center front edge of the
hood to ensure that both latches engage. Never
drive your vehicle unless the hood is fully closed,
with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, parking lights, turn signal lights, instrument
panel lights, instrument panel light dimming, interior
lights and fog lights (if equipped). The multifunction
lever is located on the left side of the steering column.
Multifunction Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

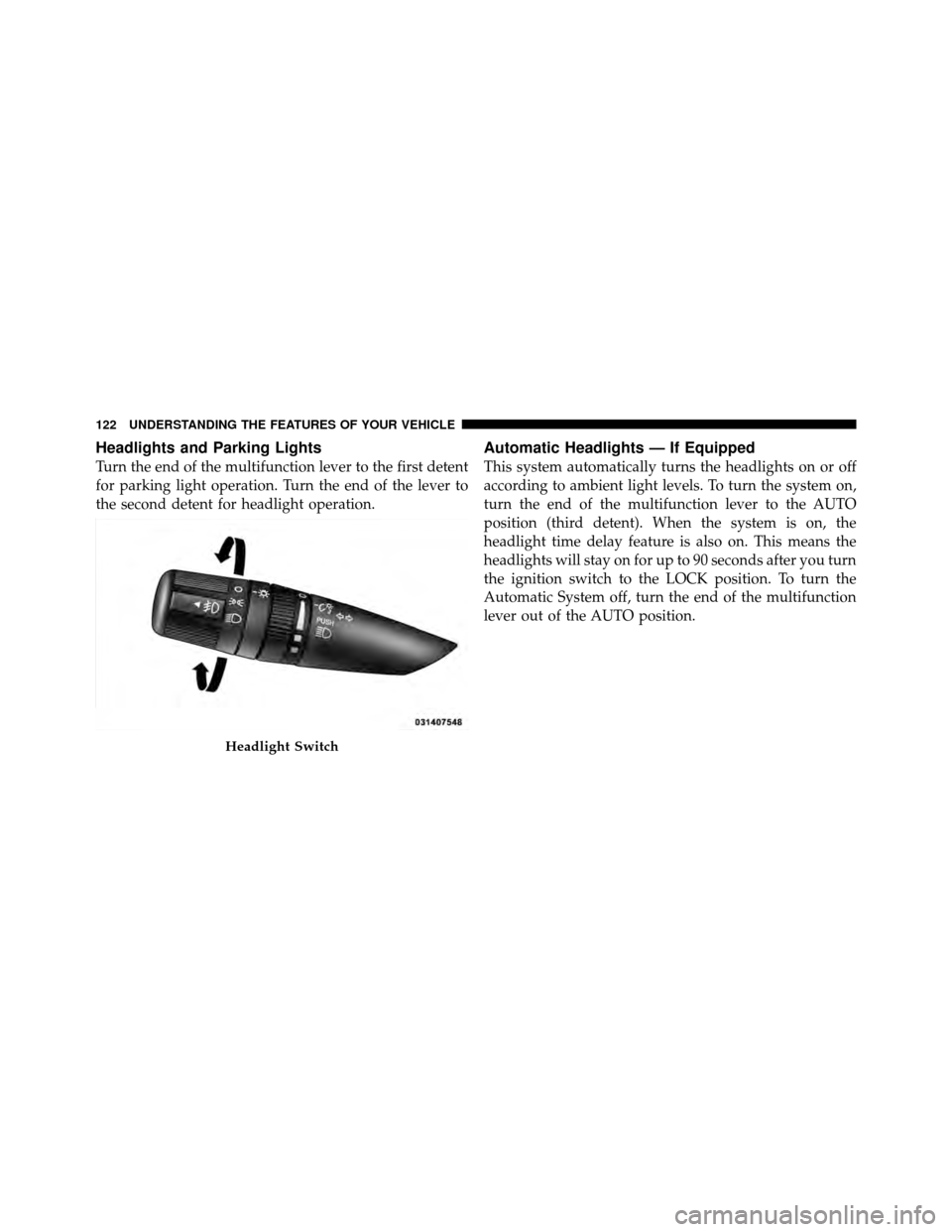

Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn the end of the lever to
the second detent for headlight operation.
Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
turn the end of the multifunction lever to the AUTO
position (third detent). When the system is on, the
headlight time delay feature is also on. This means the
headlights will stay on for up to 90 seconds after you turn
the ignition switch to the LOCK position. To turn the
Automatic System off, turn the end of the multifunction
lever out of the AUTO position.

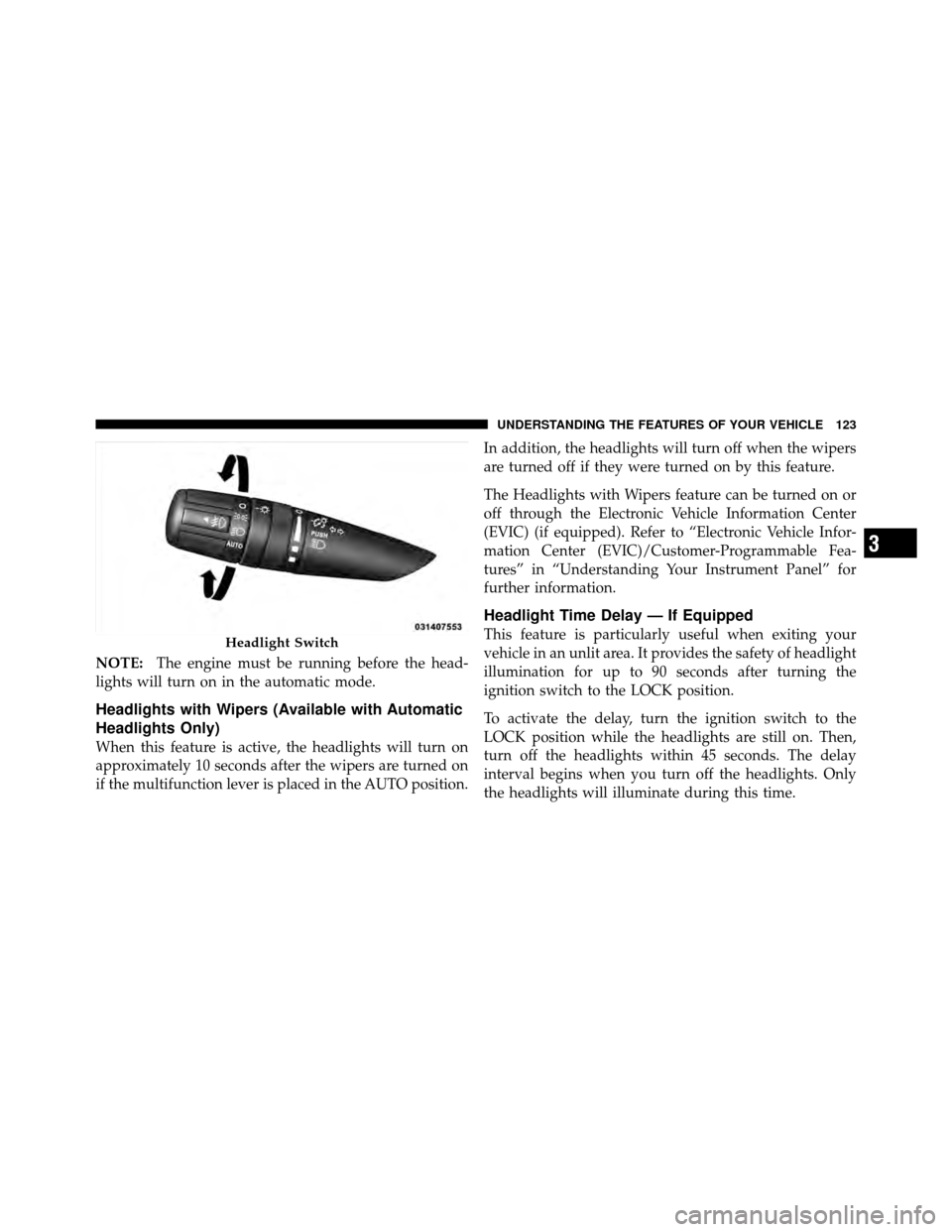

Headlight Switch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The engine must be running before the head-
lights will turn on in the automatic mode.
Headlights with Wipers (Available with Automatic
Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the multifunction lever is placed in the AUTO position. In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.
The Headlights with Wipers feature can be turned on or
off through the Electronic Vehicle Information Center
(EVIC) (if equipped). Refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Customer-Programmable Fea-
tures” in “Understanding Your Instrument Panel” for
further information.
Headlight Time Delay — If Equipped
This feature is particularly useful when exiting your
vehicle in an unlit area. It provides the safety of headlight
illumination for up to 90 seconds after turning the
ignition switch to the LOCK position.
To activate the delay, turn the ignition switch to the
LOCK position while the headlights are still on. Then,
turn off the headlights within 45 seconds. The delay
interval begins when you turn off the headlights. Only
the headlights will illuminate during this time.Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
